recommended oil YAMAHA AEROX50 2008 Owners Manual

INSTRUMENT AND CONTROL FUNCTIONS
3-8
3
EAU13460
2-stroke engine oil Make sure that there is sufficient oil in
the 2-stroke engine oil tank. Add the
recommended 2-stroke engine oil if
necessary.NOTE:Make sure that the 2-stroke engine oiltank cap is properly installed.
EAUS1050
Kickstarter To start the engine, push the kickstarter
down lightly with your foot until the
gears engage, and then push it down
smoothly but forcefully.
EAU14160
Rider seat To open the rider seat
1. Place the scooter on the center-
stand.
2. Insert the key into the main switch,
and then turn it counterclockwise.NOTE:Do not push inward when turning thekey.
3. Fold the rider seat up.
To close the rider seat
1. Fold the rider seat down, and then
push it down to lock it in place.
Recommended oil:
Yamalube 2 or equivalent 2-stroke
engine oil (JASO grade “FC”, or ISO
grades ”EG-C” or “EG-D”)
Oil quantity:
1.4 L (1.48 US qt) (1.23 Imp.qt)
1. KickstarterZAUM0289
1. Seat
1
ZAUM0264

PRE-OPERATION CHECKS
4-2
4
EAU15603
Pre-operation check list
ITEM CHECKS PAGE
FuelCheck fuel level in fuel tank.
Refuel if necessary.
Check fuel line for leakage.3-6
2-stroke engine oilCheck oil level in oil tank.
If necessary, add recommended oil to specified level.
Check vehicle for oil leakage.3-7, 3-8
Final transmission oilCheck vehicle for oil leakage. 6-7
CoolantCheck coolant level in reservoir.
If necessary, add recommended coolant to specified level.
Check cooling system for leakage.6-8
Front brakeCheck operation.
If soft or spongy, have Yamaha dealer bleed hydraulic system.
Check brake pads for wear.
Replace if necessary.
Check fluid level in reservoir.
If necessary, add recommended brake fluid to specified level.
Check hydraulic system for leakage.6-13, 6-14, 6-15
Rear brakeCheck operation.
If soft or spongy, have Yamaha dealer bleed hydraulic system.
Check brake pads for wear.
Replace if necessary.
Check fluid level in reservoir.
If necessary, add recommended brake fluid to specified level.
Check hydraulic system for leakage.6-13, 6-14, 6-15
Throttle gripMake sure that operation is smooth.
Check cable free play.
If necessary, have Yamaha dealer adjust cable free play and lubricate cable and
grip housing.6-11, 6-16

PERIODIC MAINTENANCE AND MINOR REPAIR

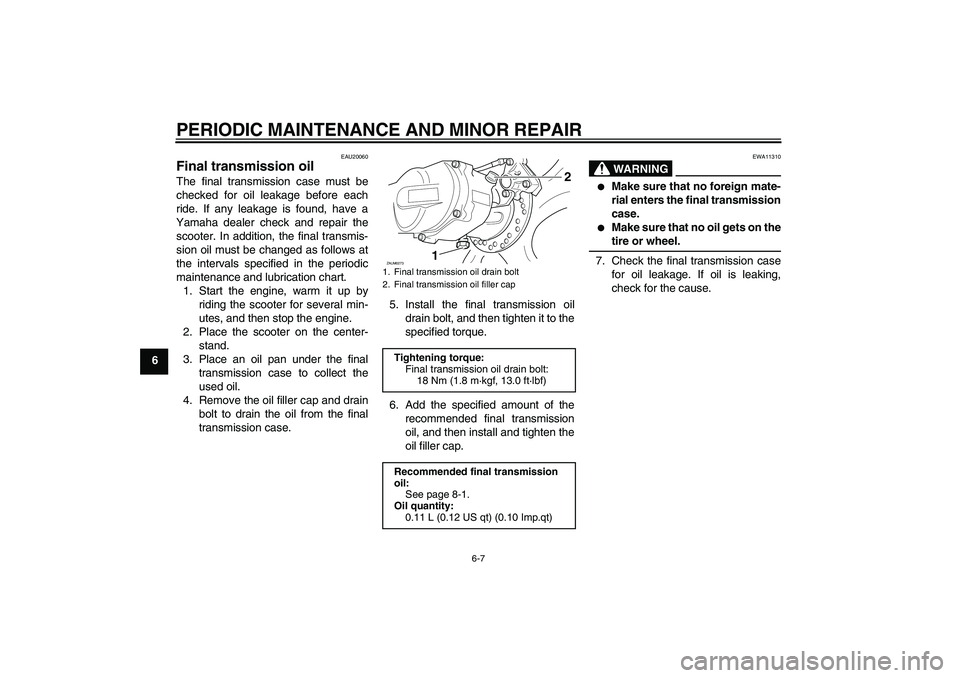

6-7
6
EAU20060
Final transmission oil The final transmission case must be
checked for oil leakage before each
ride. If any leakage is found, have a
Yamaha dealer check and repair the
scooter. In addition, the final transmis-
sion oil must be changed as follows at
the intervals specified in the periodic
maintenance and lubrication chart.
1. Start the engine, warm it up by
riding the scooter for several min-
utes, and then stop the engine.
2. Place the scooter on the center-
stand.
3. Place an oil pan under the final
transmission case to collect the
used oil.
4. Remove the oil filler cap and drain
bolt to drain the oil from the final
transmission case.5. Install the final transmission oil
drain bolt, and then tighten it to the
specified torque.
6. Add the specified amount of the
recommended final transmission
oil, and then install and tighten the
oil filler cap.
WARNING
EWA11310


Make sure that no foreign mate-
rial enters the final transmission
case.


Make sure that no oil gets on thetire or wheel.
7. Check the final transmission case
for oil leakage. If oil is leaking,
check for the cause.
1. Final transmission oil drain bolt
2. Final transmission oil filler capTightening torque:
Final transmission oil drain bolt:
18 Nm (1.8 m·kgf, 13.0 ft·lbf)
Recommended final transmission
oil:
See page 8-1.
Oil quantity:
0.11 L (0.12 US qt) (0.10 Imp.qt)
12
ZAUM0273

PERIODIC MAINTENANCE AND MINOR REPAIR
6-9
65. Close the reservoir cap, and then
install the cowling.
EAU33030
Changing the coolant
WARNING
EWA10380
Never attempt to remove the radiatorcap when the engine is hot.
The coolant must be changed at the in-
tervals specified in the periodic mainte-
nance and lubrication chart. Have a
Yamaha dealer change the coolant.
EAUM1641
Cleaning the air filter element The air filter element should be cleaned
at the intervals specified in the periodic
maintenance and lubrication chart.
Clean the air filter element more fre-
quently if you are riding in unusually
wet or dusty areas.
1. Remove the air filter case cover by
removing the screws.
2. Pull the air filter element out, clean
it with solvent, and then squeeze
the remaining solvent out.
WARNING
EWA10430
Use only a dedicated parts cleaning
solvent. To avoid the risk of fire or
explosion, do not use gasoline orsolvents with a low flash point.CAUTION:
ECA10510
To avoid damaging the foam materi-
al, handle it gently and carefully, anddo not twist or wring it.
3. Apply oil of the recommended type
to the entire surface of the ele-
ment, and then squeeze the ex-
cess oil out.
1. Screw
1
ZAUM0275
1. Air filter element
1ZAUM0276

PERIODIC MAINTENANCE AND MINOR REPAIR

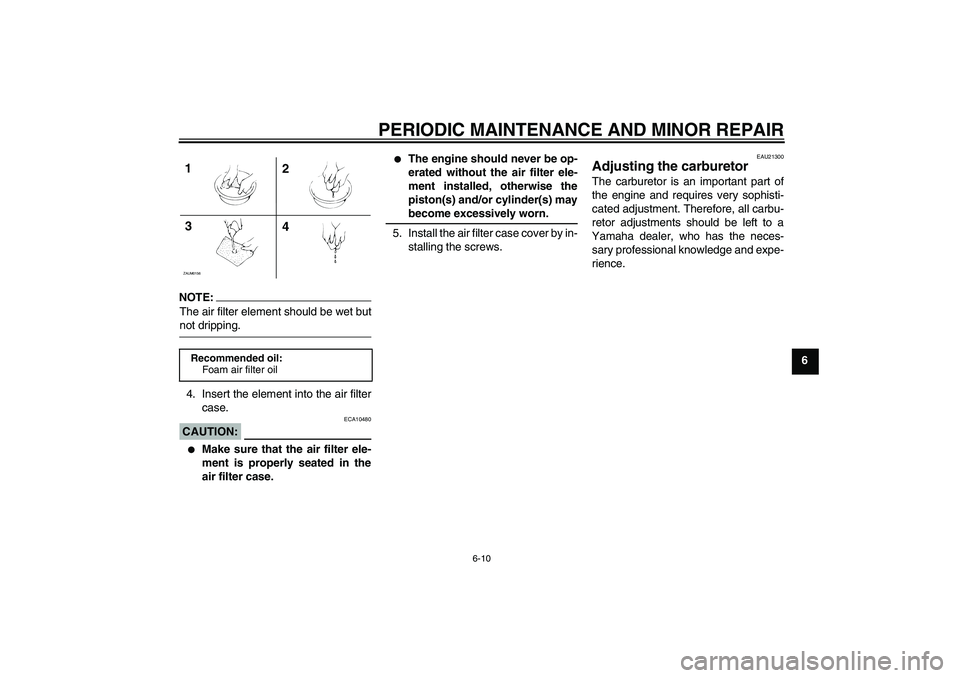

6-10
6
NOTE:The air filter element should be wet butnot dripping.
4. Insert the element into the air filter
case.CAUTION:
ECA10480


Make sure that the air filter ele-
ment is properly seated in the
air filter case.


The engine should never be op-
erated without the air filter ele-
ment installed, otherwise the
piston(s) and/or cylinder(s) maybecome excessively worn.
5. Install the air filter case cover by in-
stalling the screws.
EAU21300
Adjusting the carburetor The carburetor is an important part of
the engine and requires very sophisti-
cated adjustment. Therefore, all carbu-
retor adjustments should be left to a
Yamaha dealer, who has the neces-
sary professional knowledge and expe-
rience.
Recommended oil:
Foam air filter oil1
4 32ZAUM0156

PERIODIC MAINTENANCE AND MINOR REPAIR

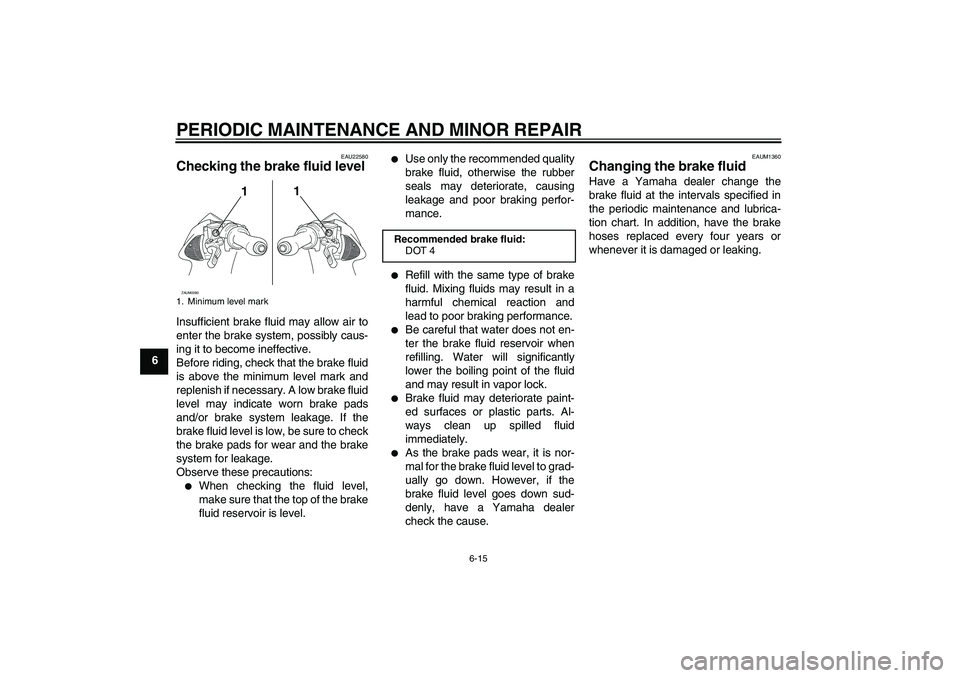

6-15
6
EAU22580
Checking the brake fluid level Insufficient brake fluid may allow air to
enter the brake system, possibly caus-
ing it to become ineffective.
Before riding, check that the brake fluid
is above the minimum level mark and
replenish if necessary. A low brake fluid
level may indicate worn brake pads
and/or brake system leakage. If the
brake fluid level is low, be sure to check
the brake pads for wear and the brake
system for leakage.
Observe these precautions:

When checking the fluid level,
make sure that the top of the brake
fluid reservoir is level.


Use only the recommended quality
brake fluid, otherwise the rubber
seals may deteriorate, causing
leakage and poor braking perfor-
mance.


Refill with the same type of brake
fluid. Mixing fluids may result in a
harmful chemical reaction and
lead to poor braking performance.


Be careful that water does not en-
ter the brake fluid reservoir when
refilling. Water will significantly
lower the boiling point of the fluid
and may result in vapor lock.


Brake fluid may deteriorate paint-
ed surfaces or plastic parts. Al-
ways clean up spilled fluid
immediately.


As the brake pads wear, it is nor-
mal for the brake fluid level to grad-
ually go down. However, if the
brake fluid level goes down sud-
denly, have a Yamaha dealer
check the cause.
EAUM1360
Changing the brake fluid Have a Yamaha dealer change the
brake fluid at the intervals specified in
the periodic maintenance and lubrica-
tion chart. In addition, have the brake
hoses replaced every four years or
whenever it is damaged or leaking.
1. Minimum level mark
11
ZAUM0280
Recommended brake fluid:
DOT 4

SPECIFICATIONS
8-1
8
Dimensions:Overall length:
1743 mm (68.6 in)
Overall width:
690 mm (27.2 in)
Overall height:
1170 mm (46.1 in)
Seat height:
828 mm (32.6 in)
Wheelbase:
1256 mm (49.4 in)
Ground clearance:
185 mm (7.28 in)
Minimum turning radius:
1800 mm (70.9 in)Weight:With oil and fuel:
97.0 kg (214 lb)Engine:Engine type:
Liquid cooled 2-stroke
Cylinder arrangement:
Forward-inclined single cylinder
Displacement:
49.0 cm³ (2.99 cu.in)
Bore × stroke:
40.0 × 39.2 mm (1.57 × 1.54 in)
Compression ratio:
7.90 :1
Starting system:
Electric starter and kickstarter
Lubrication system:
Separate lubrication (Yamaha autolube)
Engine oil:Type:
YAMALUBE 2-cycle oil or 2-stroke engine
oil (JASO FC grade) or (ISO EG-C or EG-D
grade)
Engine oil quantity:
Quantity:
1.4 L (1.48 US qt) (1.23 Imp.qt)Final transmission oil:Type:
SAE10W30 type SE motor oil
Quantity:
0.11 L (0.12 US qt) (0.10 Imp.qt)Cooling system:Coolant reservoir capacity (up to the
maximum level mark):
0.25 L (0.26 US qt) (0.22 Imp.qt)
Radiator capacity (including all routes):
1.20 L (1.27 US qt) (1.06 Imp.qt)Air filter:Air filter element:
Wet elementFuel:Recommended fuel:
Regular unleaded gasoline only
Fuel tank capacity:
7.0 L (1.85 US gal) (1.54 Imp.gal)Carburetor:Manufacturer:
GURTNER
Type x quantity:
PY 12 x 1
Spark plug(s):Manufacturer/model:
NGK/BR8HS
Spark plug gap:
0.6–0.7 mm (0.024–0.028 in)Clutch:Clutch type:
Dry, centrifugal automaticFinal transmission oil:Primary reduction system:
Helical gear
Primary reduction ratio:
52 × 13 (4.000)
Secondary reduction system:
Spur gear
Secondary reduction ratio:
43 × 14 (3.070)
Transmission type:
V-belt automatic
Operation:
Centrifugal automatic typeChassis:Frame type:
Steel tube underbone
Caster angle:
27.00 °
Trail:
90.0 mm (3.54 in)Front tire:Type:
Tubeless
Size:
130/60-13 53L

SPECIFICATIONS
8-2
8
Manufacturer/model:
MICHELIN / PILOT SPORT
Manufacturer/model:
PIRELLI / EVO21Rear tire:Type:
Tubeless
Size:
140/60-13 57L
Manufacturer/model:
MICHELIN / PILOT SPORT
Manufacturer/model:
PIRELLI / EVO22Loading:Maximum load:
180 kg (397 lb)
(Total weight of rider, passenger, cargo and
accessories)Tire air pressure (measured on cold
tires):Loading condition:
0–90 kg (0–198 lb)
Front:
150 kPa (22 psi) (1.50 kgf/cm²)
Rear:
150 kPa (22 psi) (1.50 kgf/cm²)
Loading condition:
90–180 kg (198–397 lb)
Front:
160 kPa (23 psi) (1.60 kgf/cm²)
Rear:
170 kPa (25 psi) (1.70 kgf/cm²)
Front wheel:Wheel type:
Cast wheel
Rim size:
13xMT3.00Rear wheel:Wheel type:
Cast wheel
Rim size:
13xMT3.50Front brake:Type:
Single disc brake
Operation:
Right hand operation
Recommended fluid:
DOT 4Rear brake:Type:
Single disc brake
Operation:
Left hand operation
Recommended fluid:
DOT 4Front suspension:Type:
Telescopic fork
Spring/shock absorber type:
Coil spring/oil damper
Wheel travel:
80.0 mm (3.15 in)Rear suspension:Type:
Unit swingSpring/shock absorber type:
Coil spring/gas-oil damper
Wheel travel:
70.0 mm (2.76 in)
Electrical system:Ignition system:
DC. CDI
Charging system:
AC magnetoBattery:Model:
CB4-LB(GS), YB4L-B(YUASA)
Voltage, capacity:
12 V, 4.0 AhHeadlight:Bulb type:
IncandescenceBulb voltage, wattage x quantity:Headlight:
12 V, 35 W/35.0 W × 1
Tail/brake light:
12 V, 21.0 W/5.0 W × 1
Front turn signal light:
12 V, 10.0 W × 2
Rear turn signal light:
12 V, 10.0 W × 2
Meter lighting:
12 V, 1.2 W × 2
High beam indicator light:
12 V, 2.0 W × 1
Oil level warning light:
12 V, 2.0 W × 1
Turn signal indicator light:
12 V, 2.0 W × 1
