YAMAHA BANSHEE 350 2010 Service Manual

4-16
1
2
34
5
6
7
8
9
10
11

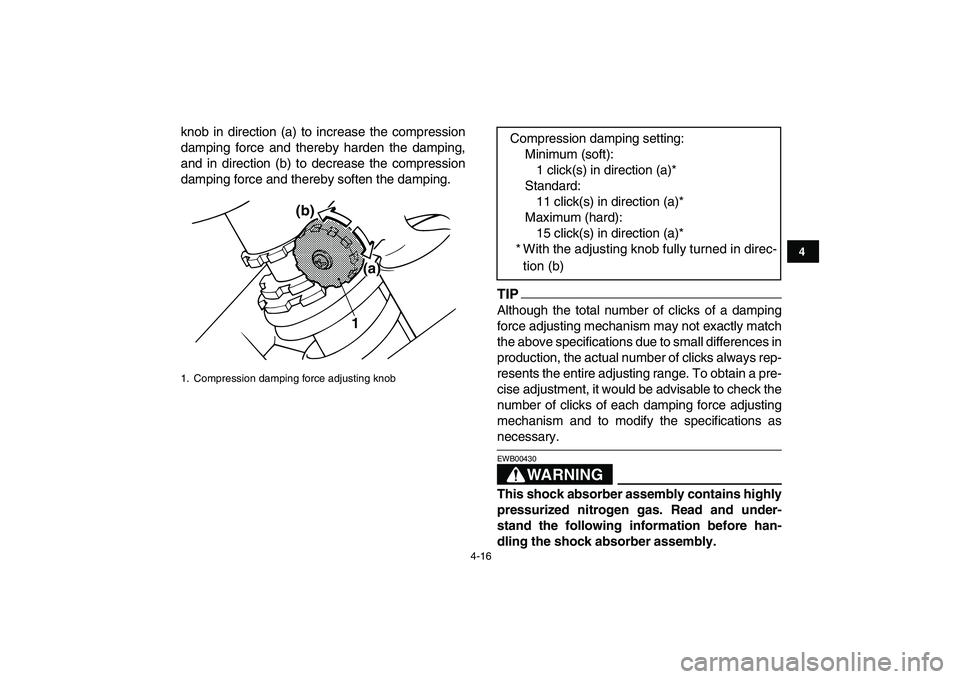

knob in direction (a) to increase the compression
damping force and thereby harden the damping,
and in direction (b) to decrease the compression
damping force and thereby soften the damping.TIP
Although the total number of clicks of a damping
force adjusting mechanism may not exactly match
the above specifications due to small differences in
production, the actual number of clicks always rep-
resents the entire adjusting range. To obtain a pre-
cise adjustment, it would be advisable to check the
number of clicks of each damping force adjusting
mechanism and to modify the specifications as
necessary.
WARNING
EWB00430
This shock absorber assembly contains highly
pressurized nitrogen gas. Read and under-
stand the following information before han-
dling the shock absorber assembly.
1. Compression damping force adjusting knob
1(a) (b)

Compression damping setting:
Minimum (soft):
1 click(s) in direction (a)*
Standard:
11 click(s) in direction (a)*
Maximum (hard):
15 click(s) in direction (a)*
* With the adjusting knob fully turned in direc-
tion (b)
✦✯✬✩✧✤✲✣ ✤✩ 


4-17
1
2
34
5
6
7
8
9
10
11

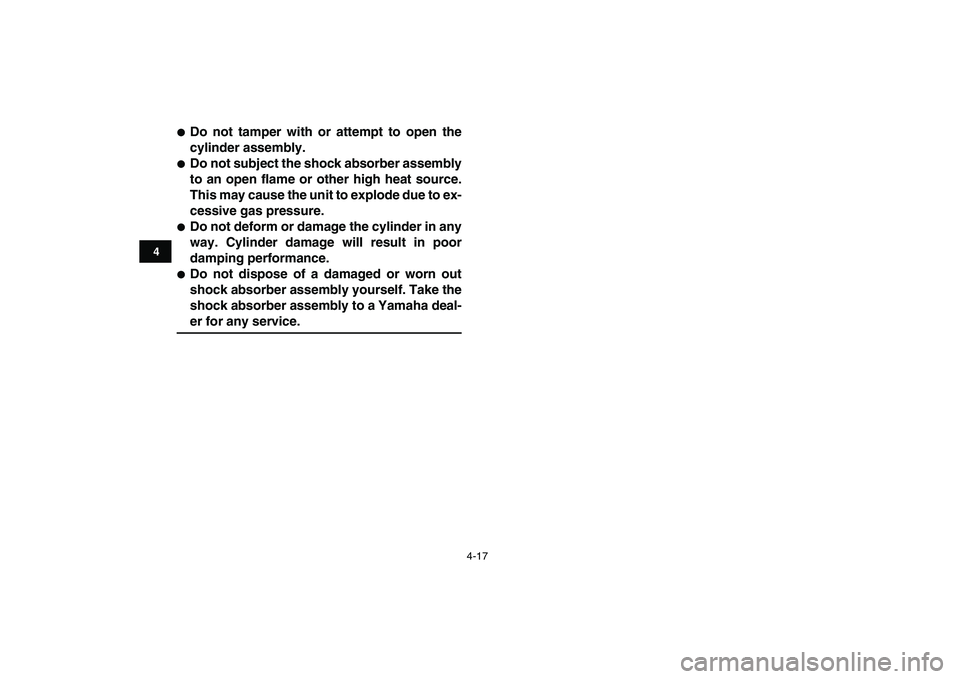

Do not tamper with or attempt to open the
cylinder assembly.

Do not subject the shock absorber assembly
to an open flame or other high heat source.
This may cause the unit to explode due to ex-
cessive gas pressure.

Do not deform or damage the cylinder in any
way. Cylinder damage will result in poor
damping performance.

Do not dispose of a damaged or worn out
shock absorber assembly yourself. Take the
shock absorber assembly to a Yamaha deal-
er for any service.
✦✯✬✩✧✤✲✣ ✤✪ 


5-1
1
2
3
45
6
7
8
9
10
11

EBU19201

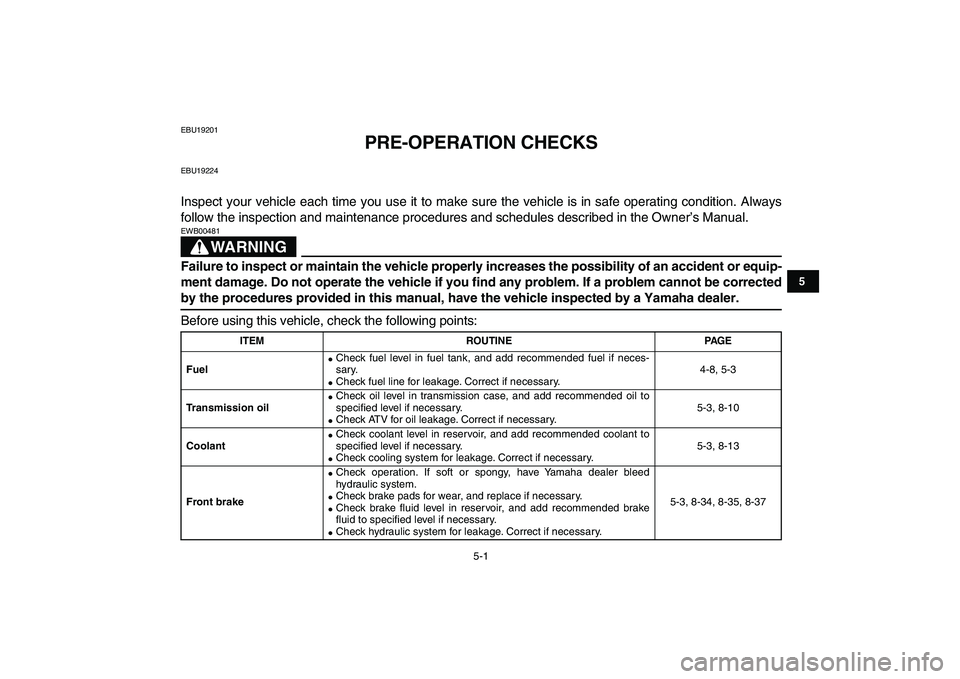

PRE-OPERATION CHECKS
EBU19224
Inspect your vehicle each time you use it to make sure the vehicle is in safe operating condition. Always
follow the inspection and maintenance procedures and schedules described in the Owner’s Manual.
WARNING

EWB00481
Failure to inspect or maintain the vehicle properly increases the possibility of an accident or equip-
ment damage. Do not operate the vehicle if you find any problem. If a problem cannot be corrected
by the procedures provided in this manual, have the vehicle inspected by a Yamaha dealer.
Before using this vehicle, check the following points:
ITEM ROUTINE PAGE
Fuel


Check fuel level in fuel tank, and add recommended fuel if neces-
sary.

Check fuel line for leakage. Correct if necessary.4-8, 5-3
Transmission oil

Check oil level in transmission case, and add recommended oil to
specified level if necessary.

Check ATV for oil leakage. Correct if necessary.5-3, 8-10
Coolant

Check coolant level in reservoir, and add recommended coolant to
specified level if necessary.

Check cooling system for leakage. Correct if necessary.5-3, 8-13
Front brake

Check operation. If soft or spongy, have Yamaha dealer bleed
hydraulic system.

Check brake pads for wear, and replace if necessary.

Check brake fluid level in reservoir, and add recommended brake
fluid to specified level if necessary.

Check hydraulic system for leakage. Correct if necessary.5-3, 8-34, 8-35, 8-37
✦✯✬✩✧✤✲✣ ✤ 


5-2
1
2
3
45
6
7
8
9
10
11

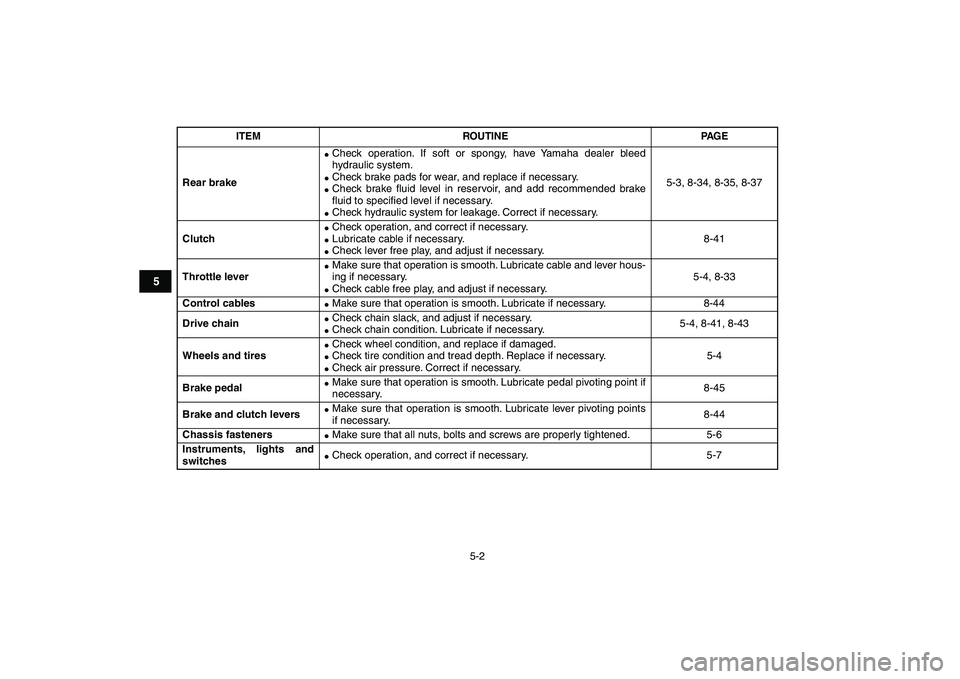

Rear brake

Check operation. If soft or spongy, have Yamaha dealer bleed
hydraulic system.

Check brake pads for wear, and replace if necessary.

Check brake fluid level in reservoir, and add recommended brake
fluid to specified level if necessary.

Check hydraulic system for leakage. Correct if necessary.5-3, 8-34, 8-35, 8-37
Clutch

Check operation, and correct if necessary.

Lubricate cable if necessary.

Check lever free play, and adjust if necessary.8-41
Throttle lever

Make sure that operation is smooth. Lubricate cable and lever hous-
ing if necessary.

Check cable free play, and adjust if necessary.5-4, 8-33
Control cables

Make sure that operation is smooth. Lubricate if necessary. 8-44
Drive chain

Check chain slack, and adjust if necessary.

Check chain condition. Lubricate if necessary.5-4, 8-41, 8-43
Wheels and tires

Check wheel condition, and replace if damaged.

Check tire condition and tread depth. Replace if necessary.

Check air pressure. Correct if necessary.5-4
Brake pedal

Make sure that operation is smooth. Lubricate pedal pivoting point if
necessary.8-45
Brake and clutch levers

Make sure that operation is smooth. Lubricate lever pivoting points
if necessary.8-44
Chassis fasteners

Make sure that all nuts, bolts and screws are properly tightened. 5-6
Instruments, lights and
switches

Check operation, and correct if necessary. 5-7
ITEM ROUTINE PAGE
✦✯✬✩✧✤✲✣ ✥ 


5-3
1
2
3
45
6
7
8
9
10
11

EBU19550

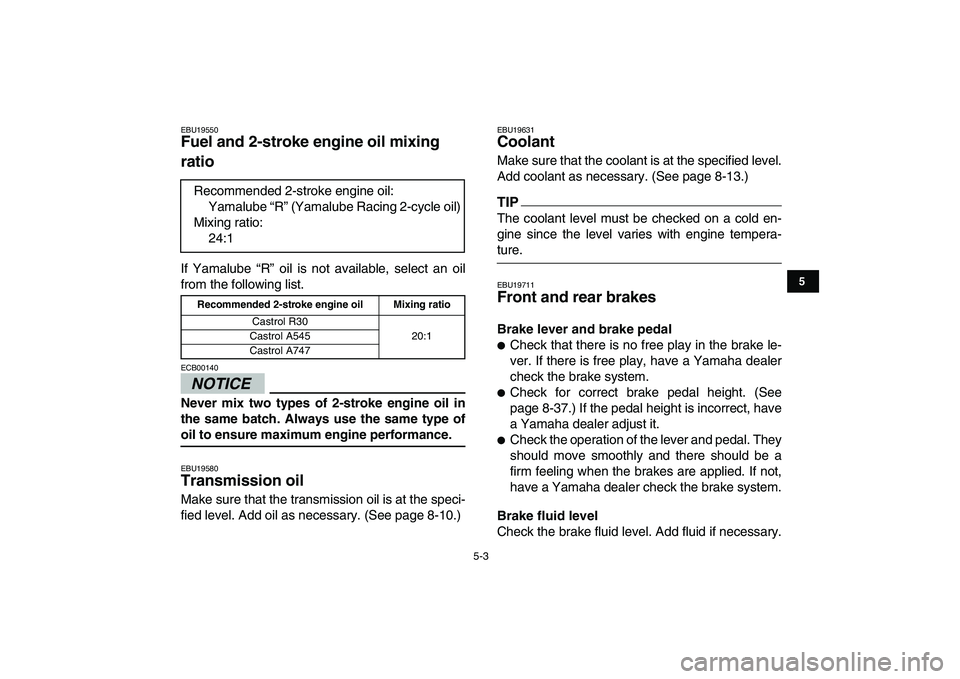

Fuel and 2-stroke engine oil mixing
ratio
If Yamalube “R” oil is not available, select an oil
from the following list.
NOTICE

ECB00140
Never mix two types of 2-stroke engine oil in
the same batch. Always use the same type of
oil to ensure maximum engine performance.
EBU19580
Transmission oil
Make sure that the transmission oil is at the speci-
fied level. Add oil as necessary. (See page 8-10.)
EBU19631
Coolant
Make sure that the coolant is at the specified level.
Add coolant as necessary. (See page 8-13.)
TIP

The coolant level must be checked on a cold en-
gine since the level varies with engine tempera-
ture.
EBU19711
Front and rear brakes
Brake lever and brake pedal

Check that there is no free play in the brake le-
ver. If there is free play, have a Yamaha dealer
check the brake system.

Check for correct brake pedal height. (See
page 8-37.) If the pedal height is incorrect, have
a Yamaha dealer adjust it.

Check the operation of the lever and pedal. They
should move smoothly and there should be a
firm feeling when the brakes are applied. If not,
have a Yamaha dealer check the brake system.
Brake fluid level
Check the brake fluid level. Add fluid if necessary. Recommended 2-stroke engine oil:
Yamalube “R” (Yamalube Racing 2-cycle oil)
Mixing ratio:
24:1
Recommended 2-stroke engine oil Mixing ratio

Castrol R30
20:1 Castrol A545
Castrol A747
✦✯✬✩✧✤✲✣ ✦ 


5-4
1
2
3
45
6
7
8
9
10
11

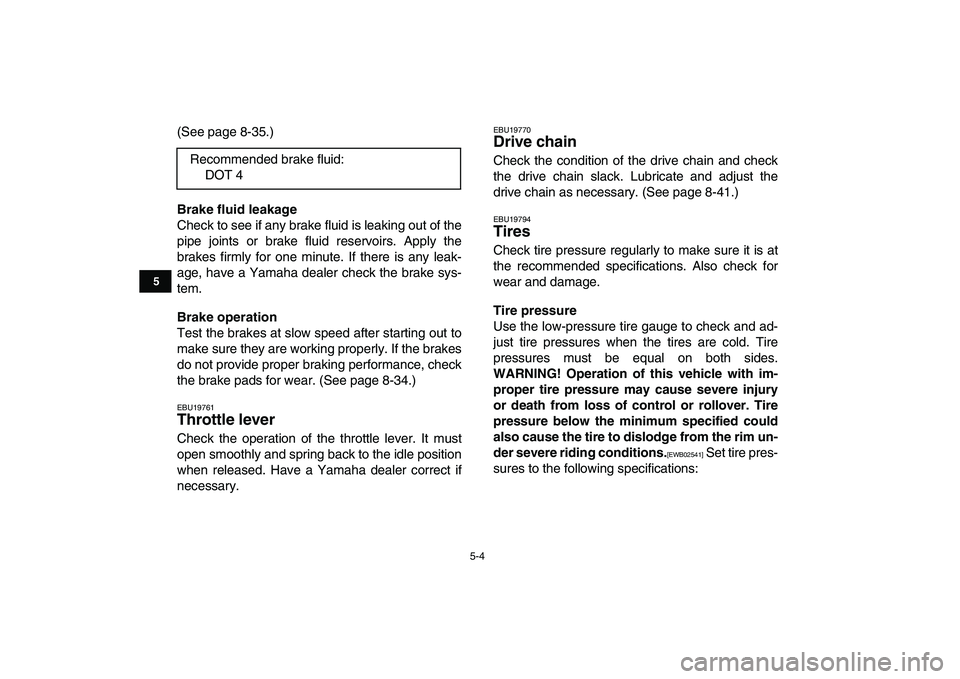

(See page 8-35.)
Brake fluid leakage
Check to see if any brake fluid is leaking out of the
pipe joints or brake fluid reservoirs. Apply the
brakes firmly for one minute. If there is any leak-
age, have a Yamaha dealer check the brake sys-
tem.
Brake operation
Test the brakes at slow speed after starting out to
make sure they are working properly. If the brakes
do not provide proper braking performance, check
the brake pads for wear. (See page 8-34.)

EBU19761
Throttle lever
Check the operation of the throttle lever. It must
open smoothly and spring back to the idle position
when released. Have a Yamaha dealer correct if
necessary.
EBU19770
Drive chain
Check the condition of the drive chain and check
the drive chain slack. Lubricate and adjust the
drive chain as necessary. (See page 8-41.)
EBU19794
Tires
Check tire pressure regularly to make sure it is at
the recommended specifications. Also check for
wear and damage.
Tire pressure
Use the low-pressure tire gauge to check and ad-
just tire pressures when the tires are cold. Tire
pressures must be equal on both sides.
WARNING! Operation of this vehicle with im-
proper tire pressure may cause severe injury
or death from loss of control or rollover. Tire
pressure below the minimum specified could
also cause the tire to dislodge from the rim un-
der severe riding conditions.

[EWB02541]
Set tire pres-
sures to the following specifications: Recommended brake fluid:
DOT 4
✦✯✬✩✧✤✲✣ ✧ 


5-5
1
2
3
45
6
7
8
9
10
11

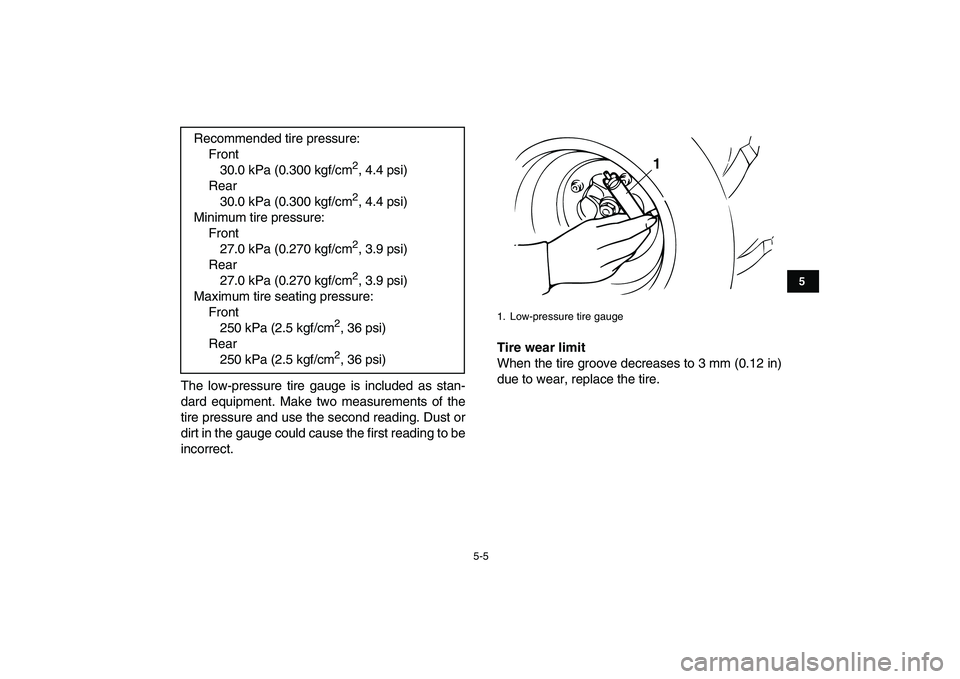

The low-pressure tire gauge is included as stan-
dard equipment. Make two measurements of the
tire pressure and use the second reading. Dust or
dirt in the gauge could cause the first reading to be
incorrect.
Tire wear limit
When the tire groove decreases to 3 mm (0.12 in)
due to wear, replace the tire. Recommended tire pressure:
Front
30.0 kPa (0.300 kgf/cm
2
, 4.4 psi)
Rear
30.0 kPa (0.300 kgf/cm
2
, 4.4 psi)
Minimum tire pressure:
Front
27.0 kPa (0.270 kgf/cm
2
, 3.9 psi)
Rear
27.0 kPa (0.270 kgf/cm
2
, 3.9 psi)
Maximum tire seating pressure:
Front
250 kPa (2.5 kgf/cm
2
, 36 psi)
Rear
250 kPa (2.5 kgf/cm
2
, 36 psi)
1. Low-pressure tire gauge
1
✦✯✬✩✧✤✲✣  


5-6
1
2
3
45
6
7
8
9
10
11

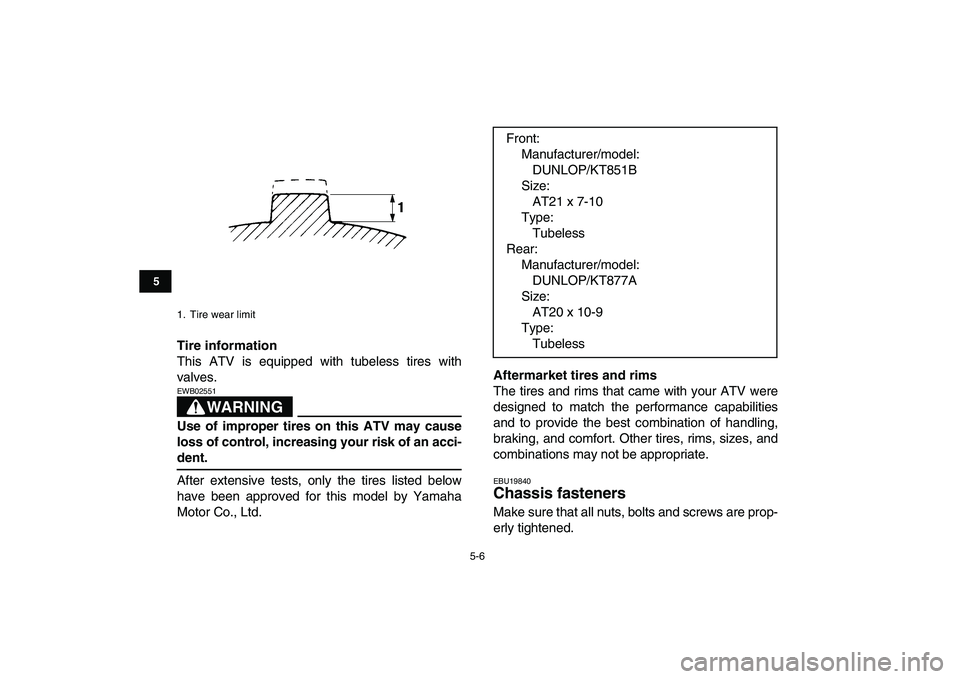

Tire information
This ATV is equipped with tubeless tires with
valves.
WARNING

EWB02551
Use of improper tires on this ATV may cause
loss of control, increasing your risk of an acci-
dent.
After extensive tests, only the tires listed below
have been approved for this model by Yamaha
Motor Co., Ltd.
Aftermarket tires and rims
The tires and rims that came with your ATV were
designed to match the performance capabilities
and to provide the best combination of handling,
braking, and comfort. Other tires, rims, sizes, and
combinations may not be appropriate.

EBU19840
Chassis fasteners
Make sure that all nuts, bolts and screws are prop-
erly tightened.
1. Tire wear limit
Front:
Manufacturer/model:
DUNLOP/KT851B
Size:
AT21 x 7-10
Type:
Tubeless
Rear:
Manufacturer/model:
DUNLOP/KT877A
Size:
AT20 x 10-9
Type:
Tubeless
✦✯✬✩✧✤✲✣ ✩ 


5-7
1
2
3
45
6
7
8
9
10
11

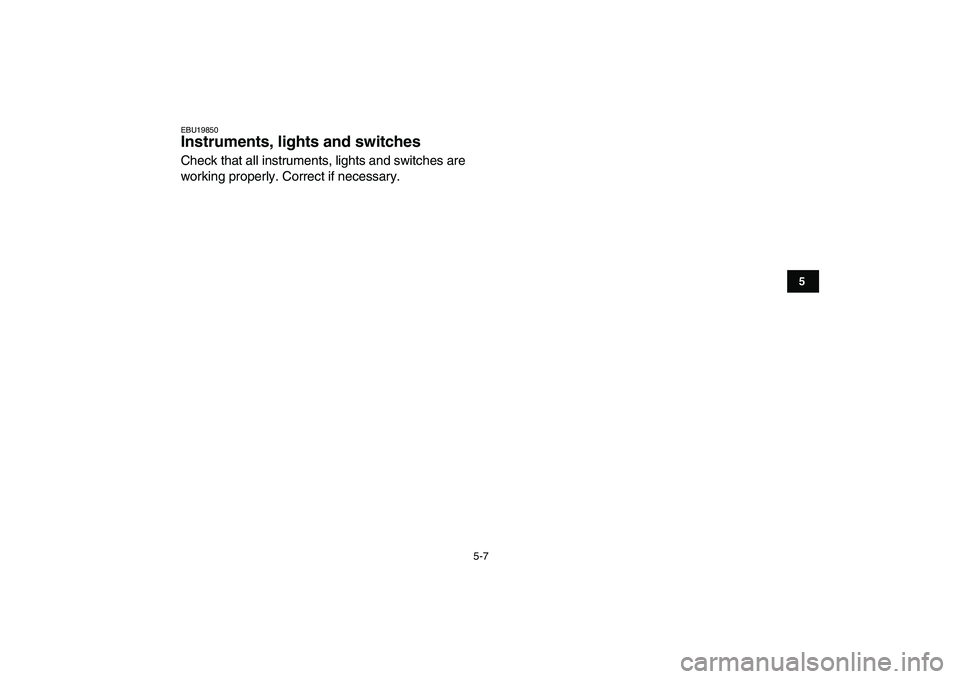

EBU19850
Instruments, lights and switches
Check that all instruments, lights and switches are
working properly. Correct if necessary.
✦✯✬✩✧✤✲✣ ✪ 


6-1
1
2
3
4
56
7
8
9
10
11

EBU19880

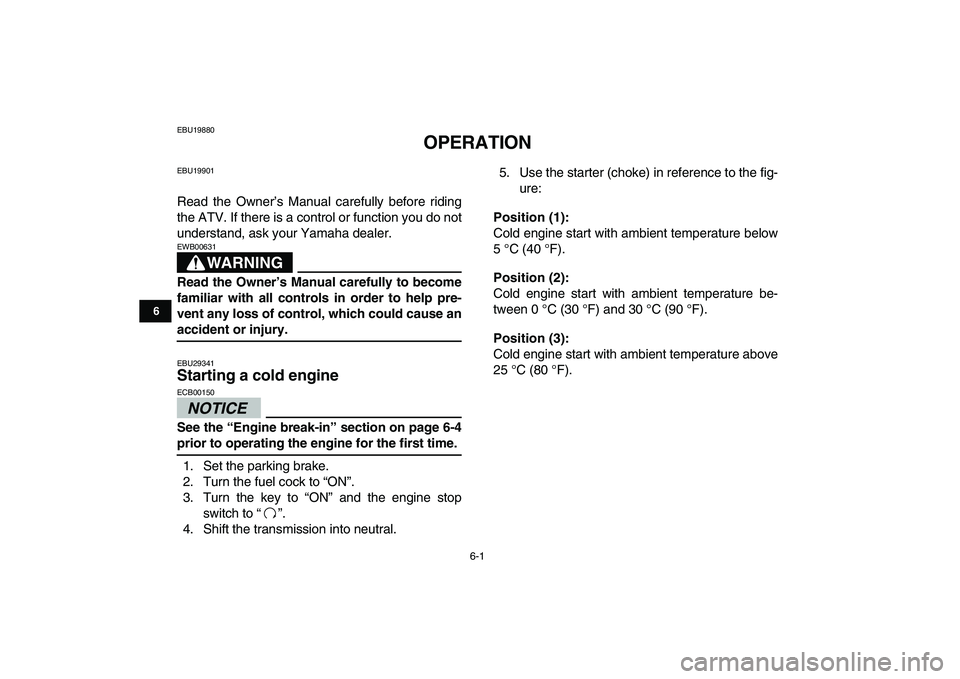

OPERATION
EBU19901
Read the Owner’s Manual carefully before riding
the ATV. If there is a control or function you do not
understand, ask your Yamaha dealer.
WARNING

EWB00631
Read the Owner’s Manual carefully to become
familiar with all controls in order to help pre-
vent any loss of control, which could cause an
accident or injury.
EBU29341
Starting a cold engine
NOTICE

ECB00150
See the “Engine break-in” section on page 6-4
prior to operating the engine for the first time.
1. Set the parking brake.
2. Turn the fuel cock to “ON”.
3. Turn the key to “ON” and the engine stop
switch to “”.
4. Shift the transmission into neutral.5. Use the starter (choke) in reference to the fig-
ure:
Position (1):
Cold engine start with ambient temperature below
5 °C (40 °F).
Position (2):
Cold engine start with ambient temperature be-
tween 0 °C (30 °F) and 30 °C (90 °F).
Position (3):
Cold engine start with ambient temperature above
25 °C (80 °F).
✦✯✬✩✧✤✲✣ ✤
