Page 16 of 378
EBU00015
1-CONTENTS
LOCATION OF THE WARNING AND
SPECIFICATION LABELS ...................... 1-1
SAFETY INFORMATION ......................... 2-1
DESCRIPTION AND MACHINE
IDENTIFICATION ................................... 3-1
Identification number records ............... 3-3
Key identification number .................... 3-5
Vehicle identification number ............... 3-7
Model label ........................................... 3-9
CONTROL FUNCTIONS ........................ 4-1
Main switch .......................................... 4-1
Indicator lights ..................................... 4-3
Handlebar switches ............................. 4-5
Throttle lever ....................................... 4-9
Speed limiter ...................................... 4-11
Front brake lever ............................... 4-13
Rear brake pedal and lever ............... 4-13
Parking brake .................................... 4-15
Shift pedal ......................................... 4-17
Drive select lever ................................ 4-17
Recoil starter ..................................... 4-19
1234
Fuel tank cap .................................... 4-19
Fuel cock ........................................... 4-21
Starter (choke) .................................. 4-23
Seat.................................................... 4-25
Storage box........................................ 4-29
Front carrier ....................................... 4-29
Rear carrier ........................................ 4-29
Rear shock absorber adjustment ....... 4-31
PRE-OPERATION CHECKS .................. 5-1
Front and rear brakes .......................... 5-5
Fuel ...................................................... 5-9
Engine oil ........................................... 5-13
Final gear oil ...................................... 5-17
Throttle lever ..................................... 5-17
Fittings and Fasteners ...................... 5-19
Lights ................................................. 5-19
Switches............................................. 5-19
Battery ............................................... 5-19
Tires .................................................. 5-21
How to measure tire pressure ........... 5-25
Tire wear limit .................................... 5-27
5
EE.book Page 1 Monday, June 25, 2001 3:46 PM
Page 84 of 378

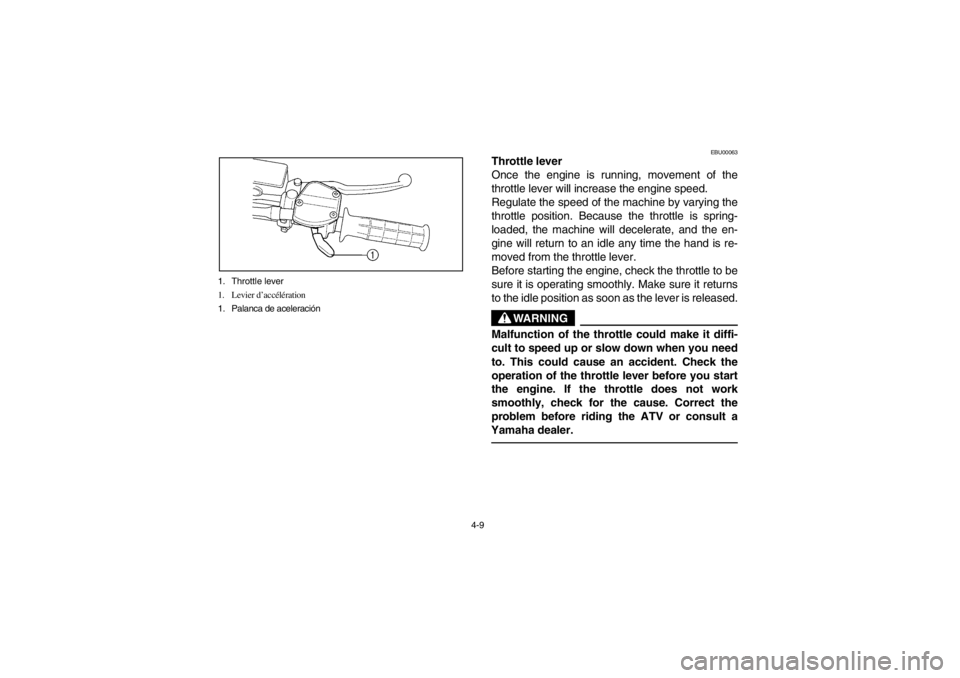

4-9 1. Throttle lever
1. Levier d’accélération
1. Palanca de aceleración
EBU00063
Throttle lever
Once the engine is running, movement of the
throttle lever will increase the engine speed.
Regulate the speed of the machine by varying the
throttle position. Because the throttle is spring-
loaded, the machine will decelerate, and the en-
gine will return to an idle any time the hand is re-
moved from the throttle lever.
Before starting the engine, check the throttle to be
sure it is operating smoothly. Make sure it returns
to the idle position as soon as the lever is released.
WARNING
Malfunction of the throttle could make it diffi-
cult to speed up or slow down when you need
to. This could cause an accident. Check the
operation of the throttle lever before you start
the engine. If the throttle does not work
smoothly, check for the cause. Correct the
problem before riding the ATV or consult a
Yamaha dealer.
EE.book Page 9 Monday, June 25, 2001 2:27 PM
Page 108 of 378
5-1
EBU00113
PRE-OPERATION CHECKS
Before using this machine, check the following points:
ITEM ROUTINE PAGE
BrakesCheck operation, condition and free play.
Adjust if necessary.5-5 ~ 5-7,
8-45 ~ 8-57
FuelCheck fuel level.
Fill with fuel if necessary.5-9 ~ 5-11
Engine oilCheck oil level.
Fill with oil if necessary.5-13 ~ 5-15,
8-13 ~ 8-21
Final gear oilCheck for leakage. 5-17, 8-23 ~ 8-27
ThrottleCheck for proper throttle cable operation. 5-17, 8-43
Wheels and tiresCheck tire pressure, wear and damage.5-21 ~ 5-27,
8-67 ~ 8-69
Fittings and FastenersCheck all fittings and fasteners. 5-19
LightsCheck for proper operation. 5-19, 8-81 ~ 8-85
BatteryCheck fluid level.
Fill with distilled water if necessary.5-19, 8-71 ~ 8-77
EE.book Page 1 Monday, June 25, 2001 2:27 PM
Page 126 of 378
5-19
EBU00152
Fittings and Fasteners
Always check the tightness of chassis fittings and
fasteners before a ride. Take the machine to a
Yamaha dealer or refer to the Service Manual for
correct tightening torque.
EBU00803
Lights
Check the headlight and tail/brake light to make
sure they are in working condition. Repair as nec-
essary for proper operation.
EBU00912
Switches
Check the operation of the light switch, engine
stop switch and any other switches. Repair as nec-
essary for proper operation.
EBU00499
Battery
Check fluid level and fill if necessary. Use only dis-
tilled water if refilling is necessary. (See pages
8-71 ~ 8-77.)
EE.book Page 19 Monday, June 25, 2001 2:27 PM
Page 144 of 378
6-9
EBU00180
Starting a warm engine
To start a warm engine, refer to the “Starting a cold
engine” section. The starter (choke) should not be
used. The throttle should be opened slightly.
EBU00182
Warming up
To get maximum engine life, always warm up the
engine before starting off. Never accelerate hard
with a cold engine! To see whether or not the en-
gine is warm, check if it responds to the throttle
normally with the starter (choke) turned off.
EE.book Page 9 Monday, June 25, 2001 2:27 PM
Page 258 of 378
8-7
EBU00262
PERIODIC MAINTENANCE/LUBRICATION
ITEM ROUTINEINITIAL EVERY
1
month3
months6
months6
months1
year
Valves*•Check valve clearance.
•Adjust if necessary.
Spark plug•Check condition.
•Adjust gap and clean.
•Replace if necessary.Air filter•Clean.
•Replace if necessary.Every 20~40 hours
(More often in wet or dusty areas.)
Carburetor*•Check idle speed/starter operation.
•Adjust if necessary.Cylinder head breather
system*•Check breather hose for cracks or damage.
•Replace if necessary.Exhaust system*•Check for leakage.
•Retighten if necessary.
•Replace gasket if necessary.Fuel line*•Check fuel hose for cracks or damage.
•Replace if necessary.Engine oil
•Replace (Warm engine before draining).Engine oil filter
•Clean.Engine oil strainer
•Clean.Final gear oil•Check oil level/oil leakage.
•Replace.Front brake*•Check operation/fluid leakage/see NOTE page 8-4.
•Correct if necessary.Rear brake*•Check operation.
•Adjust if necessary.Clutch*•Check operation.
•Adjust if necessary.EE.book Page 7 Monday, June 25, 2001 2:27 PM
Page 264 of 378

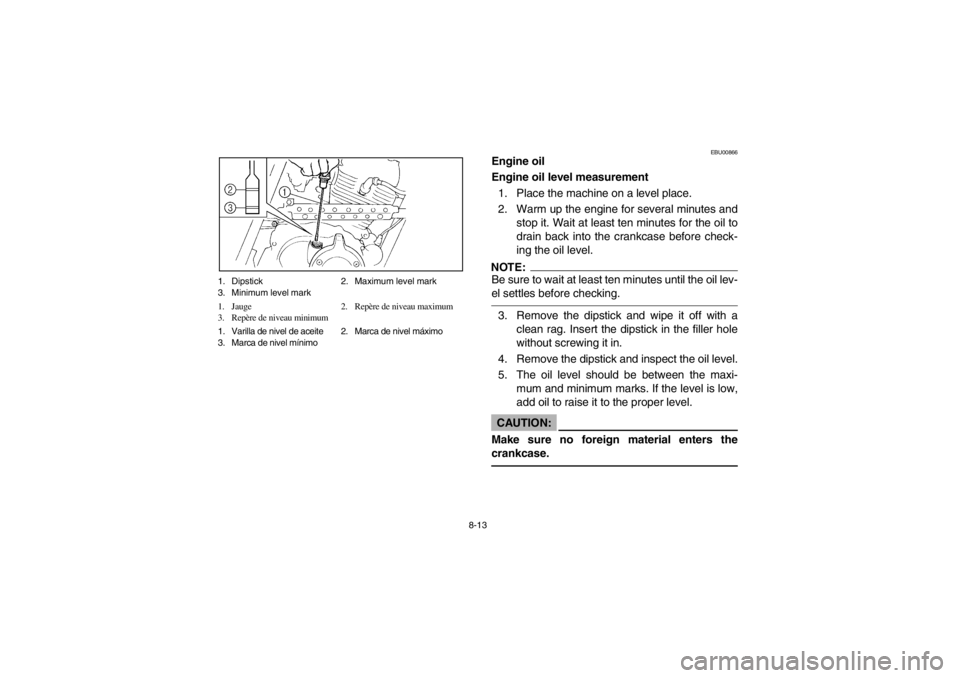

8-13 1. Dipstick 2. Maximum level mark
3. Minimum level mark
1. Jauge 2. Repère de niveau maximum
3. Repère de niveau minimum
1. Varilla de nivel de aceite 2. Marca de nivel máximo
3. Marca de nivel mínimo
EBU00866
Engine oil
Engine oil level measurement
1. Place the machine on a level place.
2. Warm up the engine for several minutes and
stop it. Wait at least ten minutes for the oil to
drain back into the crankcase before check-
ing the oil level.NOTE:_ Be sure to wait at least ten minutes until the oil lev-
el settles before checking. _3. Remove the dipstick and wipe it off with a
clean rag. Insert the dipstick in the filler hole
without screwing it in.
4. Remove the dipstick and inspect the oil level.
5. The oil level should be between the maxi-
mum and minimum marks. If the level is low,
add oil to raise it to the proper level.CAUTION:_ Make sure no foreign material enters the
crankcase. _
EE.book Page 13 Monday, June 25, 2001 2:27 PM
Page 270 of 378
8-19
CAUTION:_ Be sure no foreign material enters the crank-
case. _11. Warm up the engine for several minutes at
idle speed. Check for oil leakage while warm-
ing up.CAUTION:_ If oil leakage is found, stop the engine immedi-
ately and check for the cause. _
Recommended oil:
See page 10-2.
Oil quantity:
Periodic oil change:
1.5 L
With oil filter replacement:
1.6 L
Total amount:
1.8 L
EE.book Page 19 Monday, June 25, 2001 2:27 PM
Page 272 of 378
8-21 1. Oil gallery bolt 2. Cloth
1. Boulon de rampe de graissage 2. Chiffon
1. Tornillo del conducto de aceite 2. Trapo
Oil pressure check
1. Put a cloth around the cylinder.
2. Slightly loosen the oil gallery bolt in the cylin-
der head.
3. Start the engine and keep it idling until oil be-
gins to seep from the oil gallery. If no oil
comes out after one minute, turn the engine
off so it will not seize and find the cause.
4. Start the engine and check the oil pressure.
5. After checking, tighten the oil gallery bolt to
the specified torque.CAUTION:_ Be sure to inspect the oil pressure after replac-
ing the engine oil. _
Tightening torque:
Oil gallery bolt:
7 Nm (0.7 m·kgf)
EE.book Page 21 Monday, June 25, 2001 2:27 PM
Page 288 of 378
8-37 1. Air filter element 2. Foam cover
1.Élément du filtre à air 2. Cache en mousse
1. Elemento filtrante 2. Forro de espuma
9. Reinstall the foam cover to the air filter ele-
ment.
10. Reinstall the air filter assembly and parts re-
moved for access.NOTE:_ The air filter element should be cleaned every 20 ~
40 hours. It should be cleaned more often if the
machine is operated in extremely dusty areas.
Each time filter element maintenance is per-
formed, check the air inlet to the filter case for ob-
structions. Check the air cleaner rubber joint to the
carburetor and manifold fittings for an airtight seal.
Tighten all fittings securely to avoid the possibility
of unfiltered air entering the engine. _CAUTION:_ Never operate the engine with the air filter ele-
ment removed. This will allow unfiltered air to
enter, causing rapid engine wear and possible
engine damage. Additionally, operation with-
out the filter element will affect carburetor jet-
ting with subsequent poor performance and
possible engine overheating. _
EE.book Page 37 Monday, June 25, 2001 2:27 PM
