Page 16 of 378
EBU00015
1-CONTENTS
LOCATION OF THE WARNING AND
SPECIFICATION LABELS ....................... 1-1
SAFETY INFORMATION ......................... 2-1
DESCRIPTION AND MACHINE
IDENTIFICATION ................................... 3-1
Identification number records ............... 3-3
Key identification number .................... 3-5
Vehicle identification number ............... 3-7
Model label ........................................... 3-9
CONTROL FUNCTIONS ........................ 4-1
Main switch........................................... 4-1
Indicator lights ..................................... 4-3
Handlebar switches ............................. 4-5
Throttle lever ..................................... 4-11
Speed limiter ...................................... 4-13
Front brake lever ............................... 4-15
Rear brake pedal and lever ............... 4-15
Parking brake .................................... 4-17
Shift pedal ......................................... 4-19
Drive select lever ............................... 4-19
Recoil starter ..................................... 4-21
1234
Fuel tank cap .................................... 4-21
Fuel cock ........................................... 4-23
Starter (choke) .................................. 4-25
Seat.................................................... 4-27
Storage box........................................ 4-31
Front carrier ....................................... 4-31
Rear carrier ........................................ 4-31
Rear shock absorber adjustment ....... 4-33
PRE-OPERATION CHECKS .................. 5-1
Front and rear brakes .......................... 5-5
Fuel ...................................................... 5-9
Engine oil ........................................... 5-13
Final gear oil ...................................... 5-17
Throttle lever ...................................... 5-17
Fittings and Fasteners ...................... 5-19
Lights ................................................. 5-19
Switches............................................. 5-19
Battery ............................................... 5-19
Tires .................................................. 5-21
How to measure tire pressure ........... 5-25
Tire wear limit .................................... 5-27
5
U4XE64.book Page 1 Thursday, May 30, 2002 1:49 PM
Page 86 of 378
4-11 1. Throttle lever
1. Levier d’accélération
1. Palanca de aceleración
EBU00063

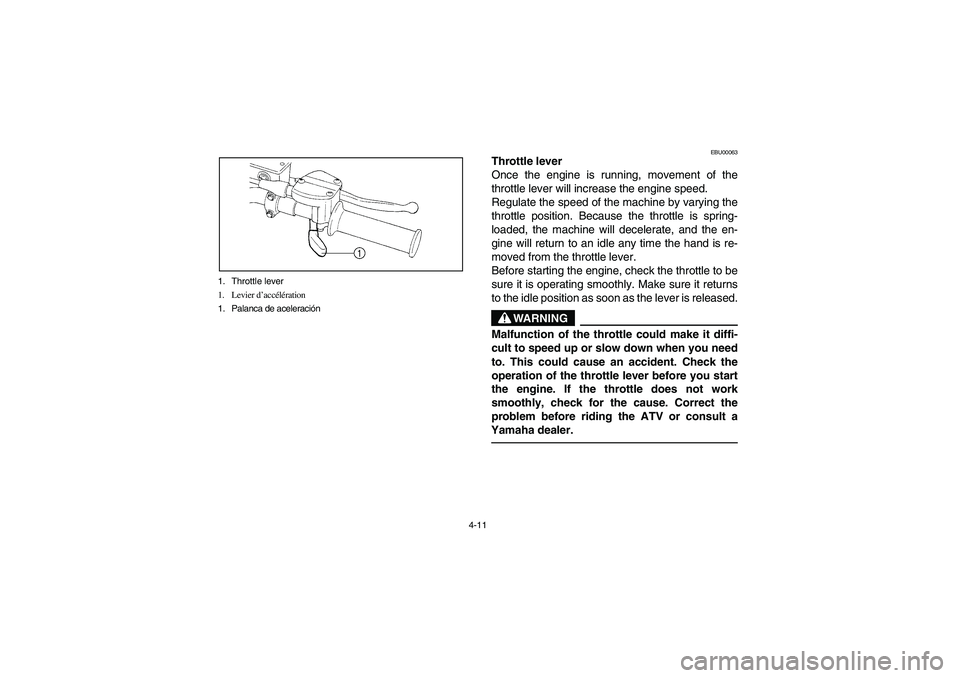

Throttle lever
Once the engine is running, movement of the
throttle lever will increase the engine speed.
Regulate the speed of the machine by varying the
throttle position. Because the throttle is spring-
loaded, the machine will decelerate, and the en-
gine will return to an idle any time the hand is re-
moved from the throttle lever.
Before starting the engine, check the throttle to be
sure it is operating smoothly. Make sure it returns
to the idle position as soon as the lever is released.
WARNING
Malfunction of the throttle could make it diffi-
cult to speed up or slow down when you need
to. This could cause an accident. Check the
operation of the throttle lever before you start
the engine. If the throttle does not work
smoothly, check for the cause. Correct the
problem before riding the ATV or consult a
Yamaha dealer.
U4XE64.book Page 11 Thursday, May 30, 2002 1:49 PM
Page 110 of 378
5-1
EBU00113
PRE-OPERATION CHECKS
Before using this machine, check the following points:
ITEM ROUTINE PAGE
Front brakeCheck operation, free play, fluid level and fluid leakage.
Fill with DOT 4 brake fluid if necessary.5-5–5-7,
8-49–8-55
Rear brakeCheck operation, condition and free play.
Adjust if necessary.5-5–5-7,
8-51–8-55
FuelCheck fuel level.
Fill with fuel if necessary.5-9–5-11
Engine oilCheck oil level.
Fill with oil if necessary.5-13–5-15,
8-13–8-19
Final gear oilCheck for leakage. 5-17, 8-21–8-25
ThrottleCheck for proper throttle cable operation. 5-17, 8-41
Wheels and tiresCheck tire pressure, wear and damage.5-21–5-27,
8-65–8-67
Fittings and FastenersCheck all fittings and fasteners. 5-19
LightsCheck for proper operation. 5-19, 8-79–8-85
BatteryCheck fluid level.
Fill with distilled water if necessary.5-19, 8-69–8-75
U4XE64.book Page 1 Thursday, May 30, 2002 1:49 PM
Page 146 of 378
6-9
EBU00180
Starting a warm engine
To start a warm engine, refer to the “Starting a cold
engine” section. The starter (choke) should not be
used. The throttle should be opened slightly.
EBU00182
Warming up
To get maximum engine life, always warm up the
engine before starting off. Never accelerate hard
with a cold engine! To see whether or not the en-
gine is warm, check if it responds to the throttle
normally with the starter (choke) turned off.
U4XE64.book Page 9 Thursday, May 30, 2002 1:49 PM
Page 260 of 378
8-7
EBU00262

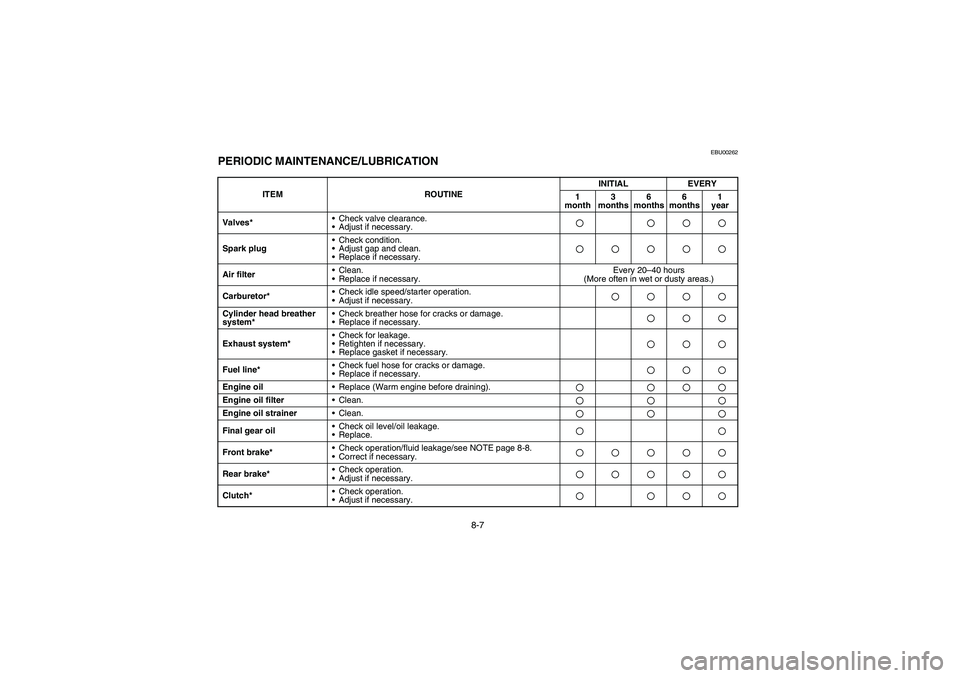

PERIODIC MAINTENANCE/LUBRICATION
ITEM ROUTINEINITIAL EVERY
1
month3
months6
months6
months1
year
Valves*•Check valve clearance.
•Adjust if necessary.
Spark plug•Check condition.
•Adjust gap and clean.
•Replace if necessary.Air filter•Clean.
•Replace if necessary.Every 20–40 hours
(More often in wet or dusty areas.)
Carburetor*•Check idle speed/starter operation.
•Adjust if necessary.Cylinder head breather
system*•Check breather hose for cracks or damage.
•Replace if necessary.Exhaust system*•Check for leakage.
•Retighten if necessary.
•Replace gasket if necessary.Fuel line*•Check fuel hose for cracks or damage.
•Replace if necessary.Engine oil
•Replace (Warm engine before draining).Engine oil filter
•Clean.Engine oil strainer
•Clean.Final gear oil•Check oil level/oil leakage.
•Replace.Front brake*•Check operation/fluid leakage/see NOTE page 8-8.
•Correct if necessary.Rear brake*•Check operation.
•Adjust if necessary.Clutch*•Check operation.
•Adjust if necessary.U4XE64.book Page 7 Thursday, May 30, 2002 1:49 PM
Page 266 of 378
8-13 1. Oil filler cap 2. Dipstick
3. Maximum level mark 4. Minimum level mark
1. Bouchon de remplissage d’huile 2. Jauge
3. Repère de niveau maximum 4. Repère de niveau minimum
1. Tapa de relleno de aceite 2. Varilla de nivel de aceite
3. Marca de nivel máximo 4. Marca de nivel mínimo
EBU01100

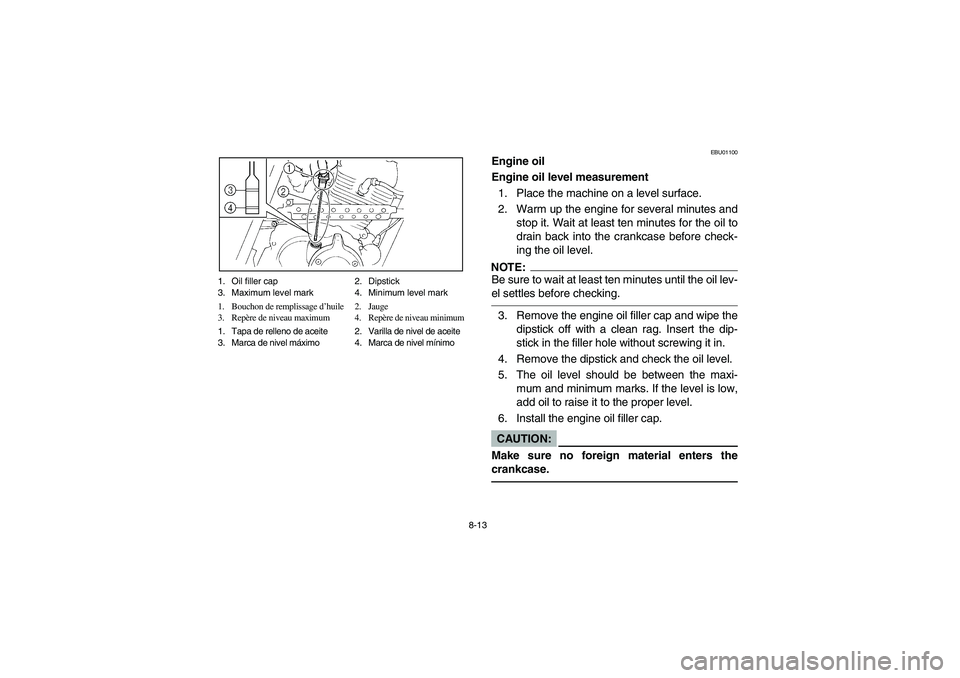

Engine oil
Engine oil level measurement
1. Place the machine on a level surface.
2. Warm up the engine for several minutes and
stop it. Wait at least ten minutes for the oil to
drain back into the crankcase before check-
ing the oil level.NOTE:_ Be sure to wait at least ten minutes until the oil lev-
el settles before checking. _3. Remove the engine oil filler cap and wipe the
dipstick off with a clean rag. Insert the dip-
stick in the filler hole without screwing it in.
4. Remove the dipstick and check the oil level.
5. The oil level should be between the maxi-
mum and minimum marks. If the level is low,
add oil to raise it to the proper level.
6. Install the engine oil filler cap.CAUTION:_ Make sure no foreign material enters the
crankcase. _
U4XE64.book Page 13 Thursday, May 30, 2002 1:49 PM
Page 272 of 378
8-19
CAUTION:_ Be sure no foreign material enters the crank-
case. _12. Warm up the engine for several minutes at
idle speed. Check for oil leakage while warm-
ing up.CAUTION:_ If oil leakage is found, stop the engine immedi-
ately and check for the cause. _

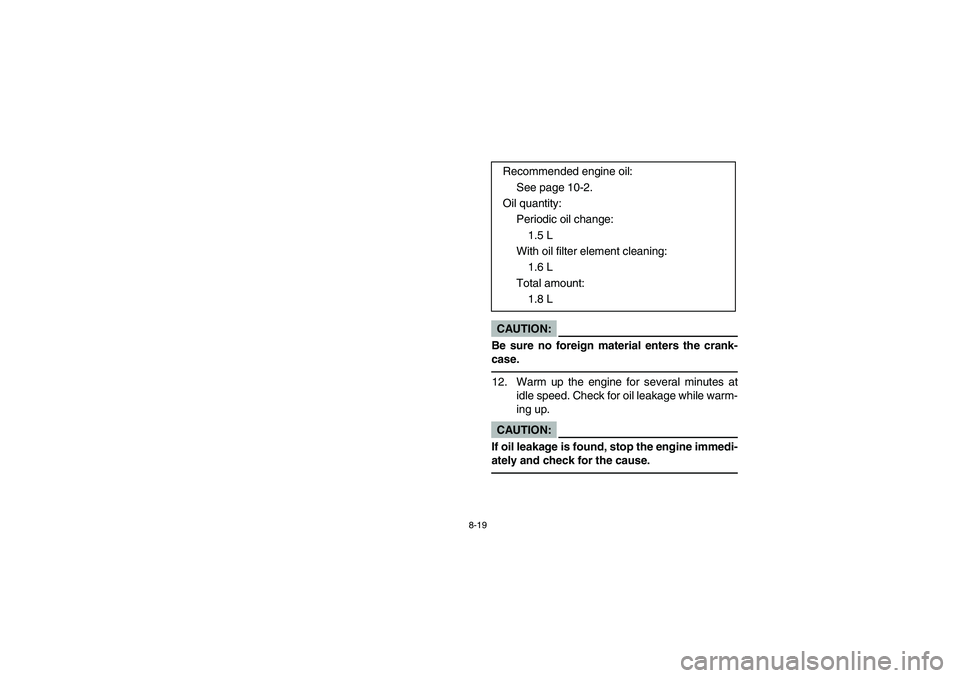

Recommended engine oil:
See page 10-2.
Oil quantity:
Periodic oil change:
1.5 L
With oil filter element cleaning:
1.6 L
Total amount:
1.8 L
U4XE64.book Page 19 Thursday, May 30, 2002 1:49 PM
Page 288 of 378
8-35

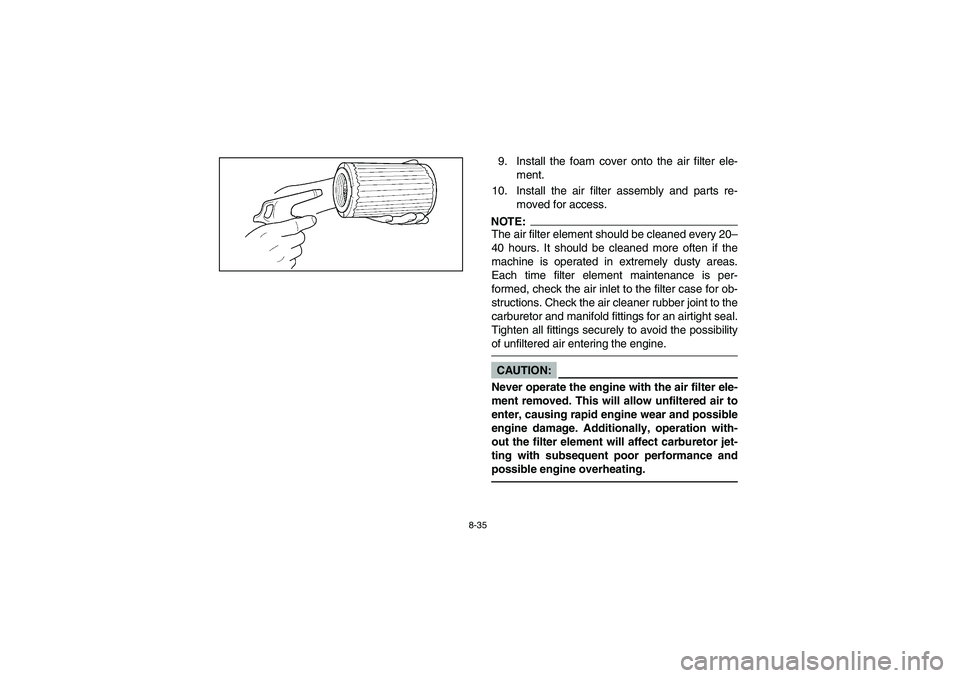

9. Install the foam cover onto the air filter ele-
ment.
10. Install the air filter assembly and parts re-
moved for access.NOTE:The air filter element should be cleaned every 20–
40 hours. It should be cleaned more often if the
machine is operated in extremely dusty areas.
Each time filter element maintenance is per-
formed, check the air inlet to the filter case for ob-
structions. Check the air cleaner rubber joint to the
carburetor and manifold fittings for an airtight seal.
Tighten all fittings securely to avoid the possibility
of unfiltered air entering the engine. CAUTION:
Never operate the engine with the air filter ele-
ment removed. This will allow unfiltered air to
enter, causing rapid engine wear and possible
engine damage. Additionally, operation with-
out the filter element will affect carburetor jet-
ting with subsequent poor performance and
possible engine overheating.
U4XE64.book Page 35 Thursday, May 30, 2002 1:49 PM
Page 342 of 378
8-89

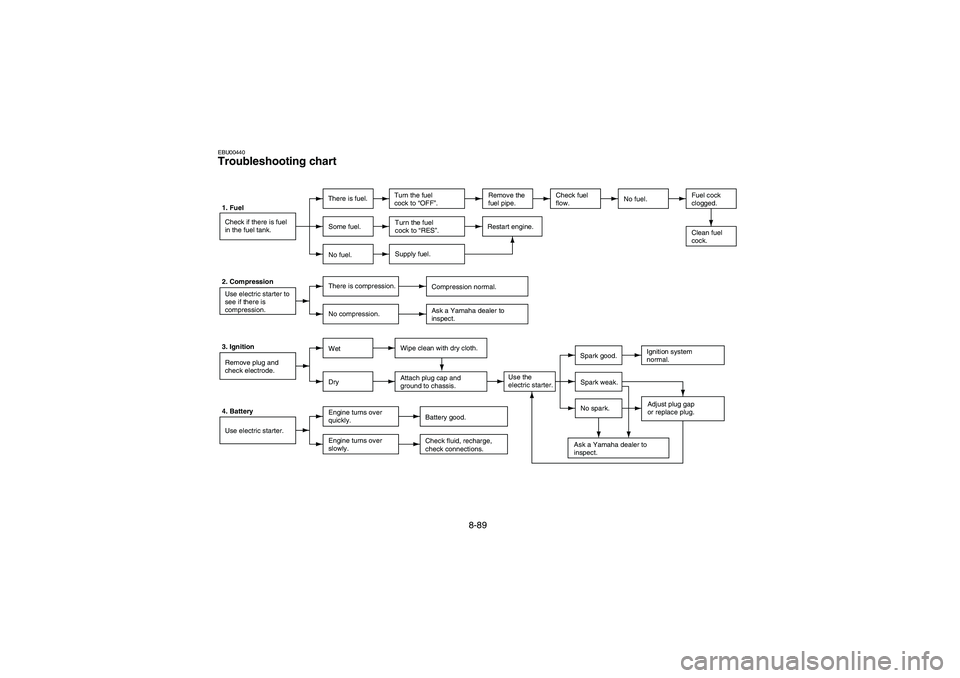

EBU00440Troubleshooting chart1. Fuel
Check if there is fuel
in the fuel tank.There is fuel.Turn the fuel
cock to “OFF”.Remove the
fuel pipe. No fuel.Fuel cock
clogged.
Clean fuel
cock. Some fuel.Turn the fuel
cock to “RES”.Restart engine.
No fuel.Supply fuel.
2. Compression
Use electric starter to
see if there is
compression.There is compression.
Compression normal.
No compression.Ask a Yamaha dealer to
inspect.
3. Ignition
Remove plug and
check electrode.WetWipe clean with dry cloth.
DryAttach plug cap and
ground to chassis.Use the
electric starter.Spark good.Ignition system
normal.
Spark weak.
Adjust plug gap
or replace plug. No spark.
Ask a Yamaha dealer to
inspect. 4. Battery
Use electric starter.Engine turns over
quickly.Battery good.
Engine turns over
slowly.Check fluid, recharge,
check connections.Check fuel
flow.U4XE64.book Page 89 Thursday, May 30, 2002 1:49 PM
