headlight bulb YAMAHA BEAR TRACKER 250 2003 Owners Manual

Wheel removal .................................. 8-65
Wheel installation ............................... 8-67
Battery ............................................... 8-69
Replenishing the battery fluid ............. 8-73
Fuse replacement .............................. 8-77
Replacing a headlight bulb ................. 8-79
Headlight beam adjustment................ 8-81
Tail/brake light bulb replacement ....... 8-83
Troubleshooting ................................. 8-87
Troubleshooting chart ........................ 8-89
CLEANING AND STORAGE .................. 9-1
A. Cleaning .......................................... 9-1
B. Storage ........................................... 9-7
SPECIFICATIONS ................................ 10-1
CONVERSION TABLE .......................... 11-1
91011U4XE64.book Page 3 Thursday, May 30, 2002 1:49 PM

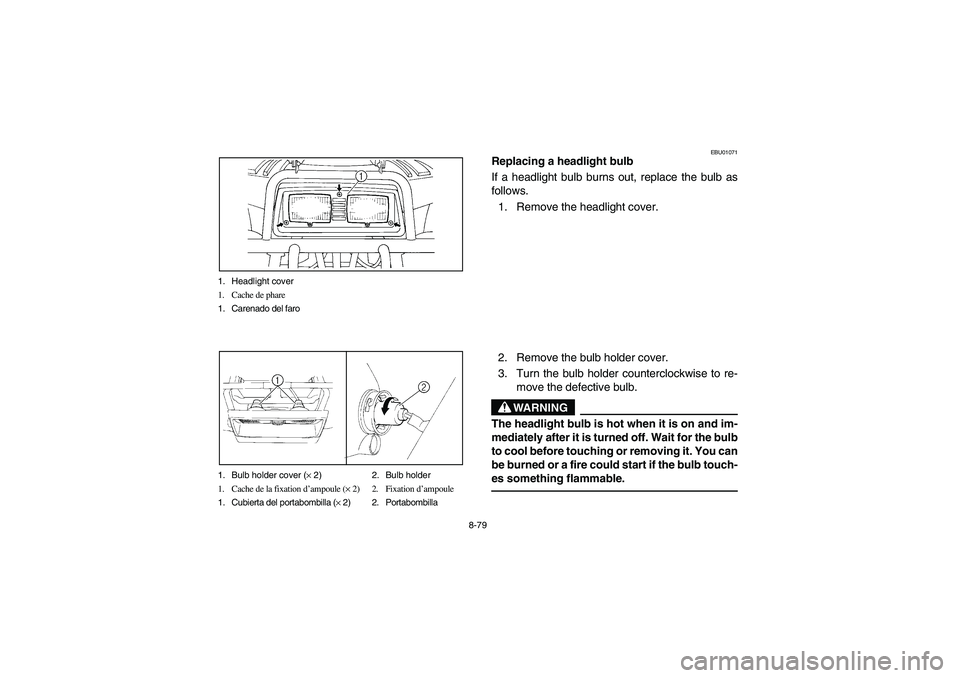

8-79 1. Headlight cover
1. Cache de phare
1. Carenado del faro
1. Bulb holder cover (× 2) 2. Bulb holder
1. Cache de la fixation d’ampoule (× 2) 2. Fixation d’ampoule
1. Cubierta del portabombilla (× 2) 2. Portabombilla
EBU01071
Replacing a headlight bulb
If a headlight bulb burns out, replace the bulb as
follows.
1. Remove the headlight cover.
2. Remove the bulb holder cover.
3. Turn the bulb holder counterclockwise to re-
move the defective bulb.
WARNING
The headlight bulb is hot when it is on and im-
mediately after it is turned off. Wait for the bulb
to cool before touching or removing it. You can
be burned or a fire could start if the bulb touch-
es something flammable.
U4XE64.book Page 79 Thursday, May 30, 2002 1:49 PM

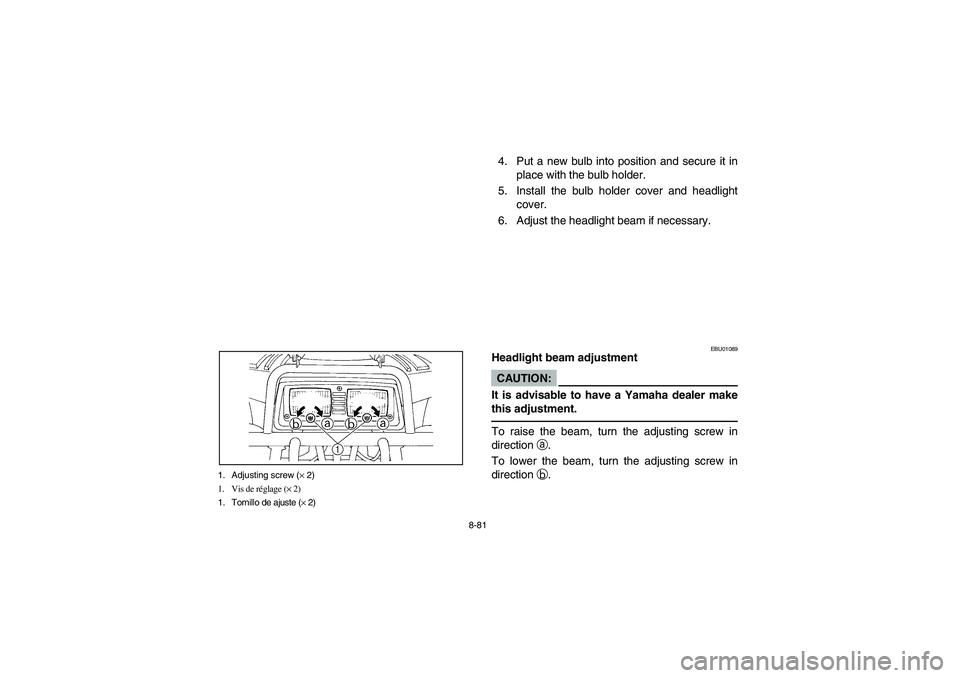

8-81 1. Adjusting screw (× 2)
1. Vis de réglage (× 2)
1. Tornillo de ajuste (× 2)
4. Put a new bulb into position and secure it in
place with the bulb holder.
5. Install the bulb holder cover and headlight
cover.
6. Adjust the headlight beam if necessary.
EBU01089
Headlight beam adjustmentCAUTION:
It is advisable to have a Yamaha dealer make
this adjustment. To raise the beam, turn the adjusting screw in
direction
a.
To lower the beam, turn the adjusting screw in
direction
b.
U4XE64.book Page 81 Thursday, May 30, 2002 1:49 PM

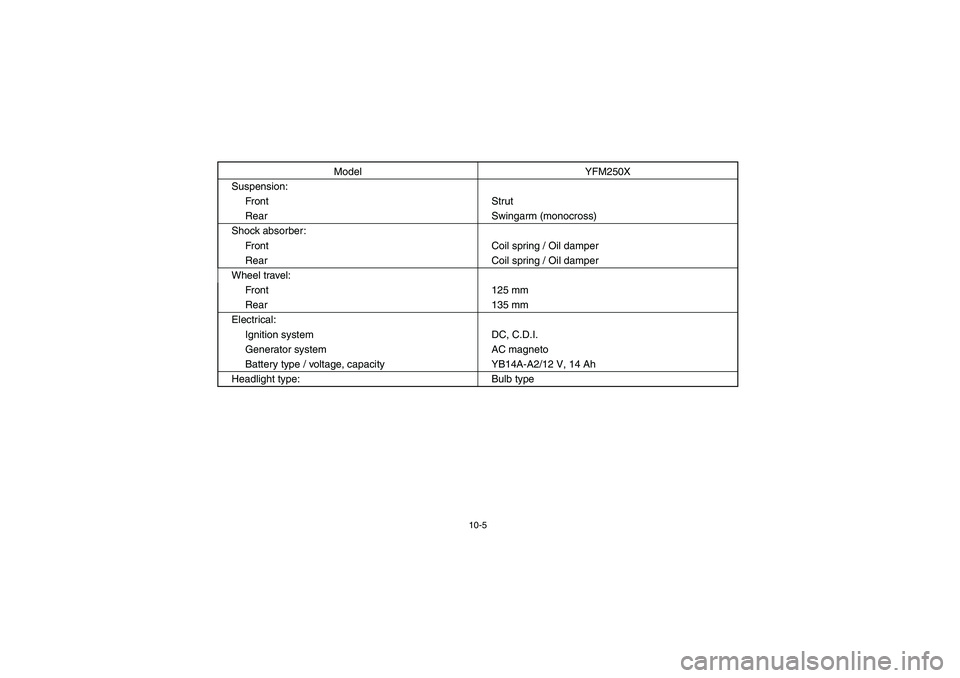

10-5
Suspension:
Fr on t S tr ut
Rear Swingarm (monocross)
Shock absorber:
Front Coil spring / Oil damper
Rear Coil spring / Oil damper
Wheel travel:
Front 125 mm
Rear 135 mm
Electrical:
Ignition system DC, C.D.I.
Generator system AC magneto
Battery type / voltage, capacity YB14A-A2/12 V, 14 Ah
Headlight type: Bulb typeModel YFM250X
U4XE64.book Page 5 Thursday, May 30, 2002 1:49 PM

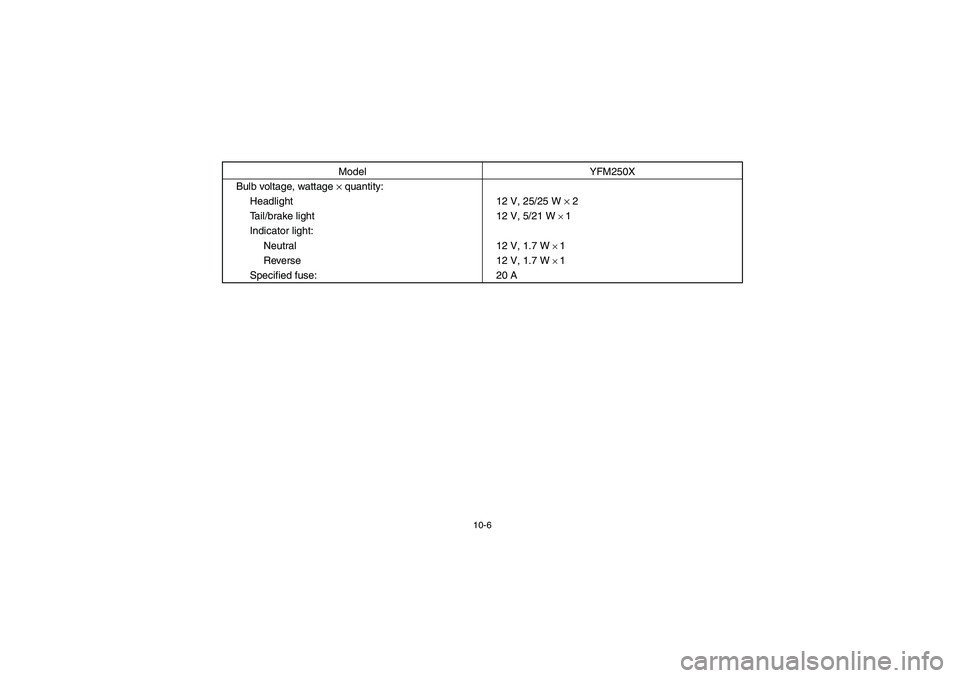

10-6
Bulb voltage, wattage
× quantity:
Headlight 12 V, 25/25 W
× 2
Tail/brake light 12 V, 5/21 W
× 1
Indicator light:
Neutral 12 V, 1.7 W
× 1
Reverse 12 V, 1.7 W × 1
Specified fuse: 20 AModel YFM250X
U4XE64.book Page 6 Thursday, May 30, 2002 1:49 PM
