light YAMAHA BEAR TRACKER 250 2004 Manuale de Empleo (in Spanish)

EBU00015
1-CONTENTS
LOCATION OF THE WARNING AND
SPECIFICATION LABELS ....................... 1-1
SAFETY INFORMATION ......................... 2-1
DESCRIPTION AND MACHINE
IDENTIFICATION .................................... 3-1
Identification number records ............... 3-3
Key identification number .................... 3-5
Vehicle identification number ............... 3-7
Model label ........................................... 3-9
CONTROL FUNCTIONS ......................... 4-1
Main switch........................................... 4-1
Indicator lights ..................................... 4-3
Handlebar switches ............................. 4-5
Throttle lever ..................................... 4-11
Speed limiter ...................................... 4-13
Front brake lever ............................... 4-15
Brake pedal and rear brake lever ....... 4-15
Parking brake ..................................... 4-17
Shift pedal ......................................... 4-19
Drive select lever ............................... 4-19
Recoil starter ..................................... 4-21
1234
Fuel tank cap .................................... 4-21
Fuel cock ........................................... 4-23
Starter (choke) .................................. 4-25
Seat.................................................... 4-27
Storage box........................................ 4-31
Front carrier ....................................... 4-31
Rear carrier ........................................ 4-31
Rear shock absorber adjustment ....... 4-33
PRE-OPERATION CHECKS ................... 5-1
Front and rear brakes .......................... 5-5
Fuel ...................................................... 5-9
Engine oil ........................................... 5-13
Final gear oil ...................................... 5-15
Throttle lever ...................................... 5-15
Fittings and fasteners......................... 5-17
Lights ................................................. 5-17
Switches............................................. 5-17
Battery ............................................... 5-17
Tires .................................................. 5-19
How to measure tire pressure ........... 5-23
Tire wear limit .................................... 5-25
5
U4XE65.book Page 1 Tuesday, May 6, 2003 1:38 PM

OPERATION ............................................6-1
Starting a cold engine ...........................6-3
Starting a warm engine ........................6-9
Warming up ..........................................6-9
Drive select lever operation and
reverse driving .................................6-11
Shifting ................................................6-15
To start out and accelerate .................6-17
To decelerate ......................................6-19
Engine break-in ...................................6-21
Parking ...............................................6-23
Parking on a slope .............................6-25
Accessories and loading ....................6-27
RIDING YOUR ATV..................................7-1
Getting to know your ATV .....................7-3
Ride with care and good judgement .....7-5
Be careful where you ride ...................7-27
Turning your ATV ................................7-41
Climbing uphill.....................................7-47
Riding downhill ....................................7-57
Crossing a slope .................................7-61
Crossing through shallow water ..........7-65
Riding over rough terrain ....................7-69
Sliding and skidding ............................7-71
What to do if ........................................7-75
What to do...........................................7-75
67
PERIODIC MAINTENANCE AND
ADJUSTMENT ......................................... 8-1
Owner’s manual and tool kit ................. 8-3
Periodic maintenance/lubrication.......... 8-7
Engine oil ............................................ 8-13
Final gear oil ....................................... 8-21
Spark plug inspection ......................... 8-27
Air filter element cleaning ................... 8-31
Carburetor adjustment ....................... 8-37
Idle speed adjustment ........................ 8-39
Valve clearance adjustment .............. 8-41
Throttle lever adjustment ................... 8-41
Front brake pad check ........................ 8-43
Rear brake shoe inspection ............... 8-43
Brake fluid level check ........................ 8-45
Brake fluid replacement ...................... 8-47
Front brake lever free play.................. 8-49
Rear brake adjustment ....................... 8-51
Adjusting the rear brake light switch ... 8-57
Clutch adjustment .............................. 8-59
Cable inspection and lubrication......... 8-61
Brake lever and brake pedal
lubrication ........................................ 8-63
Steering shaft lubrication .................... 8-63
Wheel removal.................................... 8-65
Wheel installation ............................... 8-67
Battery ............................................... 8-69
8
U4XE65.book Page 2 Tuesday, May 6, 2003 1:38 PM

Replenishing the battery fluid ............. 8-73
Fuse replacement .............................. 8-77
Replacing a headlight bulb ................. 8-79
Headlight beam adjustment................ 8-81
Tail/brake light bulb replacement ....... 8-83
Troubleshooting ................................. 8-87
Troubleshooting chart ........................ 8-89
CLEANING AND STORAGE ................... 9-1
A. Cleaning .......................................... 9-1
B. Storage ........................................... 9-7
SPECIFICATIONS ................................ 10-1
CONVERSION TABLE .......................... 11-1
91011U4XE65.book Page 3 Tuesday, May 6, 2003 1:38 PM

2-17
WARNING


Always turn off the engine when refueling.


Do not refuel right after the engine has
been running and is still very hot.


Do not spill gasoline on the engine or ex-
haust pipe/muffler when refueling. Never
refuel while smoking, or while in the vicini-
ty of sparks, open flames, or other sources
of ignition such as the pilot lights of water
heaters and clothes dryers. Gasoline can
catch fire and you could be burned.


When transporting the machine in another
vehicle, be sure it is kept upright and that
the fuel cock is in the “OFF” position. Oth-
erwise, fuel may leak out of the carburetor
or fuel tank.


Gasoline is poisonous. If you should swal-
low some gasoline or inhale a lot of gaso-
line vapor, or get some gasoline in your
eyes, see your doctor immediately. If gaso-
line spills on your skin, wash with soap
and water. If gasoline spills on your cloth-
ing, change your clothes.
U4XE65.book Page 17 Tuesday, May 6, 2003 1:38 PM

3-1
EBU00032
1-DESCRIPTION AND MACHINE
IDENTIFICATION1. Rear carrier
2. Seat
3. Fuel tank cap
4. Front carrier
5. Brake pedal
6. Front wheel
7. Headlight
8. Fuel cock
9. Starter (choke)
10. Recoil starter11. Tail/brake light
12. Rear wheel
13. Shift pedal
14. Drive select lever
15. Rear brake lever
16. Parking brake
17. Main switch
18. Front brake lever
19. Throttle lever
20. Horn switch
21. Handlebar switchNOTE:The machine you have purchased may differ
slightly from those shown in the figures of this
manual.
U4XE65.book Page 1 Tuesday, May 6, 2003 1:38 PM

4-1
EBU00040
1-CONTROL FUNCTIONS
EBU00942
Main switch
Functions of the respective switch positions are as
follows:
ON:
The engine can be started only at this position and
the headlights and taillight come on when the light
switch is on.
OFF:
All electrical circuits are switched off. The key can
be removed in this position.
U4XE65.book Page 1 Tuesday, May 6, 2003 1:38 PM

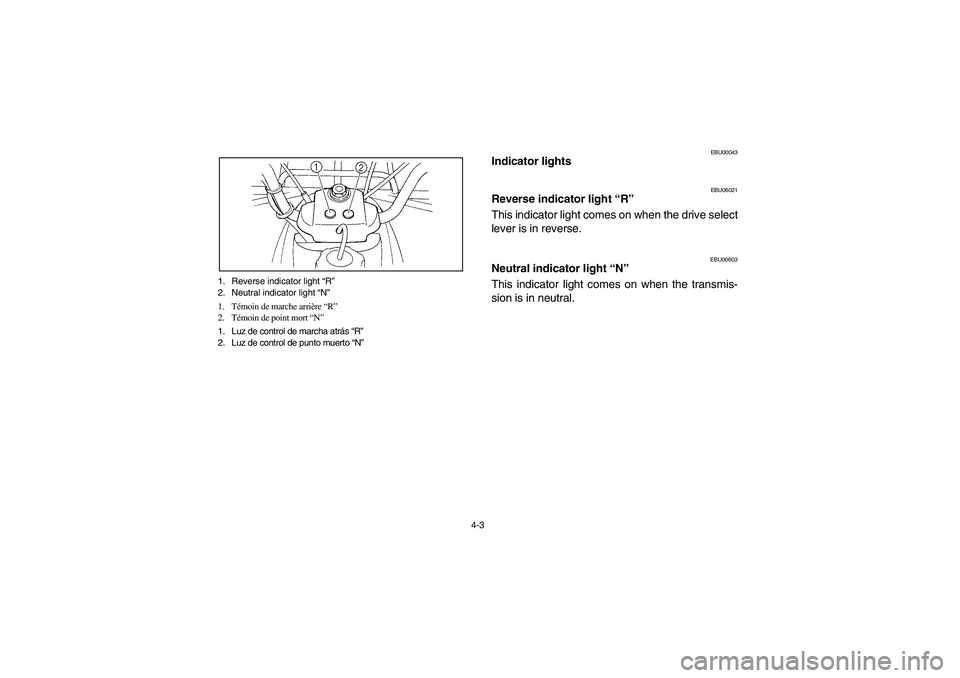

4-3 1. Reverse indicator light “R”
2. Neutral indicator light “N”
1. Témoin de marche arrière “R”
2. Témoin de point mort “N”
1. Luz de control de marcha atrás “R”
2. Luz de control de punto muerto “N”
EBU00043
Indicator lights
EBU06021
Reverse indicator light “R”
This indicator light comes on when the drive select
lever is in reverse.
EBU00603
Neutral indicator light “N”
This indicator light comes on when the transmis-
sion is in neutral.
U4XE65.book Page 3 Tuesday, May 6, 2003 1:38 PM

4-5 1. Light switch “LIGHTS”
2. Engine stop switch “ENG. STOP”
3. Start switch “START”
4. Horn switch “”
1. Contacteur d’éclairage “LIGHTS”
2. Coupe-circuit du moteur “ENG. STOP”
3. Contacteur du démarreur “START”
4. Contacteur de l’avertisseur “”
1. Interruptor de luces “LIGHTS”
2. Interruptor de paro del motor “ENG. STOP”
3. Interruptor de arranque “START”
4. Interruptor de la bocina “”
EBU00053
Handlebar switches
EBU11580
Engine stop switch “ENG. STOP”
Make sure that the engine stop switch is in the
“RUN” position before starting the engine. The en-
gine stop switch controls ignition and can be used
at all times to stop the engine, especially in an
emergency. The engine will not start or run when
the engine stop switch is turned to “OFF”.
EBU00056
Start switch “START”
The starter motor cranks the engine when this
switch is pushed.CAUTION:
See starting instructions prior to starting en-
gine (see page 6-3 for details).
U4XE65.book Page 5 Tuesday, May 6, 2003 1:38 PM

4-7 1. Light switch “LIGHTS”
2. Engine stop switch “ENG. STOP”
3. Start switch “START”
4. Horn switch “”
1. Contacteur d’éclairage “LIGHTS”
2. Coupe-circuit du moteur “ENG. STOP”
3. Contacteur du démarreur “START”
4. Contacteur de l’avertisseur “”
1. Interruptor de luces “LIGHTS”
2. Interruptor de paro del motor “ENG. STOP”
3. Interruptor de arranque “START”
4. Interruptor de la bocina “”
NOTE:If the starter switch is pushed with the main switch
“ON” and the engine stop switch “OFF”, the starter
motor will be activated but the engine will not start.
To start the engine, be sure to position the engine
stop switch at “RUN”.
EBU11560
Light switch “LIGHTS”
Set the switch to the “LO” position to turn on the
low beam and the taillight.
Set the switch to the “HI” position to turn on the
high beam and the taillight.
Set the switch to the “OFF” position to turn off all of
the lights.CAUTION:_ Do not use the headlights with the engine
turned off for more than thirty minutes. The
battery may discharge to the point that the
starter motor will not operate properly. If this
should happen, remove the battery and re-
charge it. _
U4XE65.book Page 7 Tuesday, May 6, 2003 1:38 PM

4-8
N.B.:_ Si le contacteur du démarreur est enfoncé alors que le
contacteur à clé est sur “ON” et le coupe-circuit du mo-
teur sur “OFF”, le démarreur tournera mais le moteur ne
se mettra pas en marche. Avant de mettre le moteur en
marche, s’assurer que le coupe-circuit du moteur est sur
“RUN”. _
FBU11560
Contacteur d’éclairage “LIGHTS ”
Placer le contacteur à la position “LO” pour allumer les
feux de croisement et le feu arrière.
Placer le contacteur à la position “HI” pour allumer les
feux de route et le feu arrière.
Placer le contacteur sur “OFF” pour éteindre tous les
feux.ATTENTION:_ Ne jamais laisser les phares allumés pendant plus
d’une demi-heure après avoir coupé le moteur. La
batterie risque de se décharger au point d’empêcher
la mise en marche du moteur. Si cela devait se produi-
re, déposer et recharger la batterie. _
NOTA:_ Si se pulsa el interruptor de arranque con el interrup-
tor principal en “ON” (contacto) y el interruptor de
paro del motor en “OFF” (desconectado), se activará
el motor de arranque pero el motor principal no se
pondrá en marcha. Para que arranque, coloque el in-
terruptor de paro del motor en la posición “RUN”. _
SBU11560
Interruptor de luces “LIGHTS”
Ponga el interruptor en la posición “LO” para encen-
der la luz de cruce y la luz de cola.
Ponga el interruptor en la posición “HI” para encen-
der la luz de carretera y la luz de cola.
Ponta el interruptor en la posición “OFF” para apagar
todas las luces.AT E N C I O N :_ No mantenga las luces del faro encendidas du-
rante más de treinta minutos con el motor para-
do. La batería podría descargarse hasta el extre-
mo de que el motor de arranque no funcione
debidamente. Si sucediese esto, desmonte la ba-
tería y recárguela. _
U4XE65.book Page 8 Tuesday, May 6, 2003 1:38 PM
