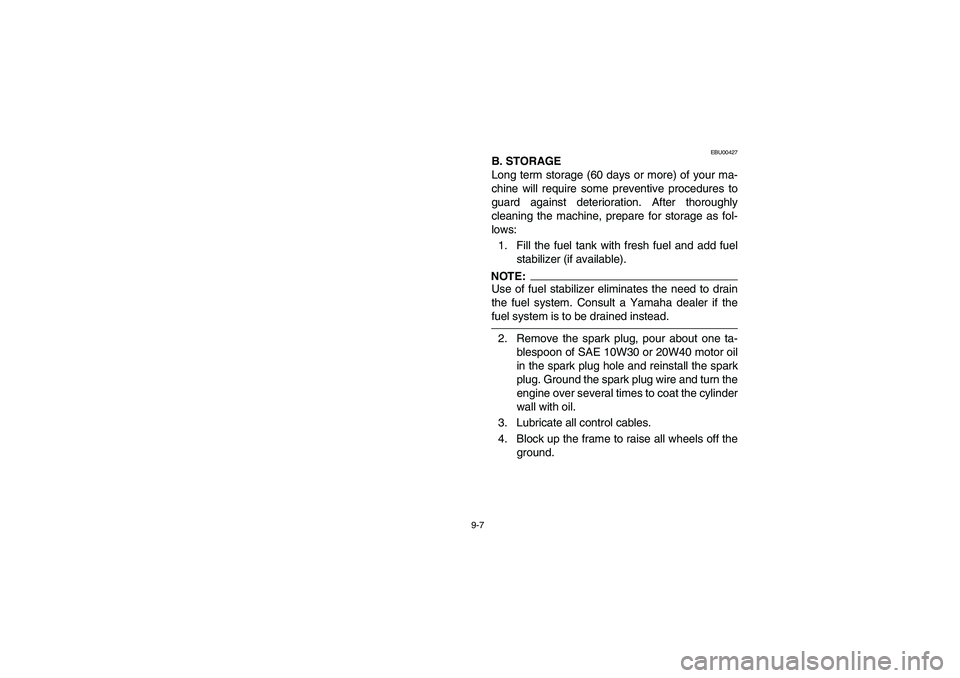

9-7
EBU00427
B. STORAGE
Long term storage (60 days or more) of your ma-
chine will require some preventive procedures to
guard against deterioration. After thoroughly
cleaning the machine, prepare for storage as fol-
lows:
1. Fill the fuel tank with fresh fuel and add fuel
stabilizer (if available).NOTE:Use of fuel stabilizer eliminates the need to drain
the fuel system. Consult a Yamaha dealer if the
fuel system is to be drained instead.2. Remove the spark plug, pour about one ta-
blespoon of SAE 10W30 or 20W40 motor oil
in the spark plug hole and reinstall the spark
plug. Ground the spark plug wire and turn the
engine over several times to coat the cylinder
wall with oil.
3. Lubricate all control cables.
4. Block up the frame to raise all wheels off the
ground.
U4XE65.book Page 7 Tuesday, May 6, 2003 1:38 PM
10-1
EBU00428
SPECIFICATIONS
Model YFM250X
Dimension:
Overall length 1,940 mm
Overall width 1,080 mm
Overall height 1,118 mm
Seat height 780 mm
Wheelbase 1,170 mm
Minimum ground clearance 150 mm
Minimum turning radius 2,900 mm
Basic weight:
With oil and full fuel tank 213 kg
Noise and vibration level:
Noise level (71/311/EEC) (For Europe) 75.3 dB (A)
Vibration on seat (EN1032, ISO5008)
(For Europe) Not exceed 0.5 (m/s
2)
Vibration on handlebar (EN1032, ISO5008)
(For Europe) Not exceed 2.5 (m/s2)
Engine:
Type Air-cooled 4-stroke, SOHC
Cylinder arrangement Forward-inclined single cylinder
Displacement 229.6 cm
3
Bore
× stroke 71
× 58 mm
Compression ratio 8.7:1
U4XE65.book Page 1 Tuesday, May 6, 2003 1:38 PM

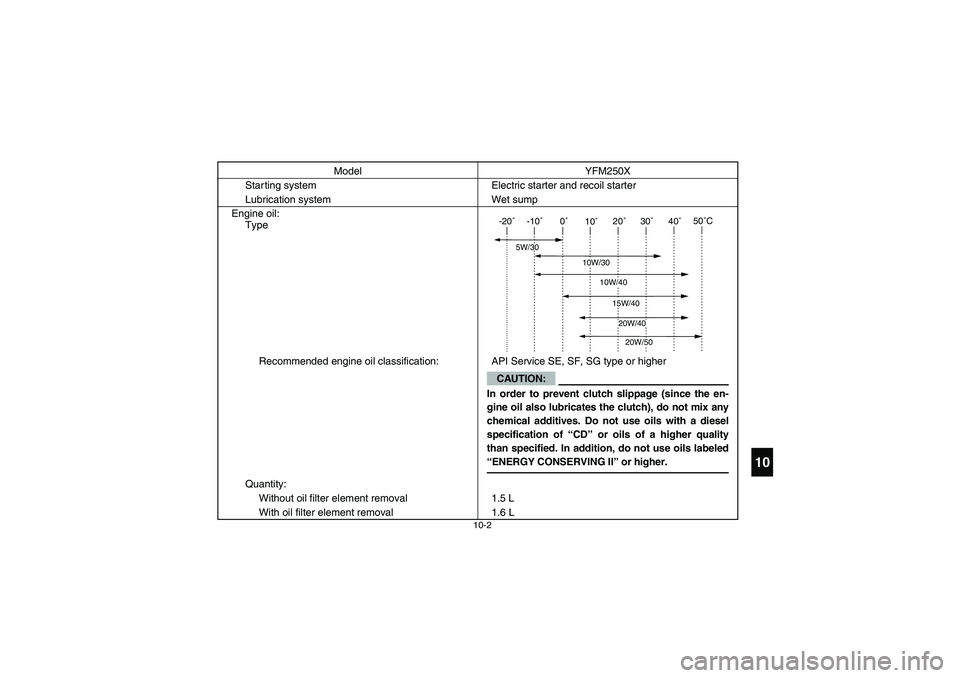

10-2
10
Starting system Electric starter and recoil starter
Lubrication system Wet sump
Engine oil:
Type
Recommended engine oil classification: API Service SE, SF, SG type or higher
Quantity:
Without oil filter element removal 1.5 L
With oil filter element removal 1.6 LModel YFM250X
-20˚ -10˚ 0˚
10˚20˚ 30˚40˚50˚C
10W/30
15W/4020W/4020W/50
10W/40
5W/30
CAUTION:
In order to prevent clutch slippage (since the en-
gine oil also lubricates the clutch), do not mix any
chemical additives. Do not use oils with a diesel
specification of “CD” or oils of a higher quality
than specified. In addition, do not use oils labeled
“ENERGY CONSERVING II” or higher.
