lock YAMAHA BEAR TRACKER 250 2004 Owners Manual

4-13 1. Locknut 2. Adjusting screw a. 12 mm
1. Contre-écrou 2. Vis de réglage
1. Contratuerca 2. Tornillo de ajuste
EBU11980
Speed limiter
The speed limiter keeps the throttle from fully
opening, even when the throttle lever is pushed to
the maximum. Turning in the adjusting screw limits
the maximum engine power available and de-
creases the maximum speed of the ATV.
WARNING
_ Improper adjustment of the speed limiter and
throttle could cause throttle cable damage or
improper throttle operation. You could lose
control, have an accident or be injured. Do not
turn the adjusting screw out more than 12 mm
or the throttle cable could be damaged. Always
make sure the throttle lever free play is adjust-
ed to 3–5 mm. See page 8-41. _
U4XE65.book Page 13 Tuesday, May 6, 2003 1:38 PM

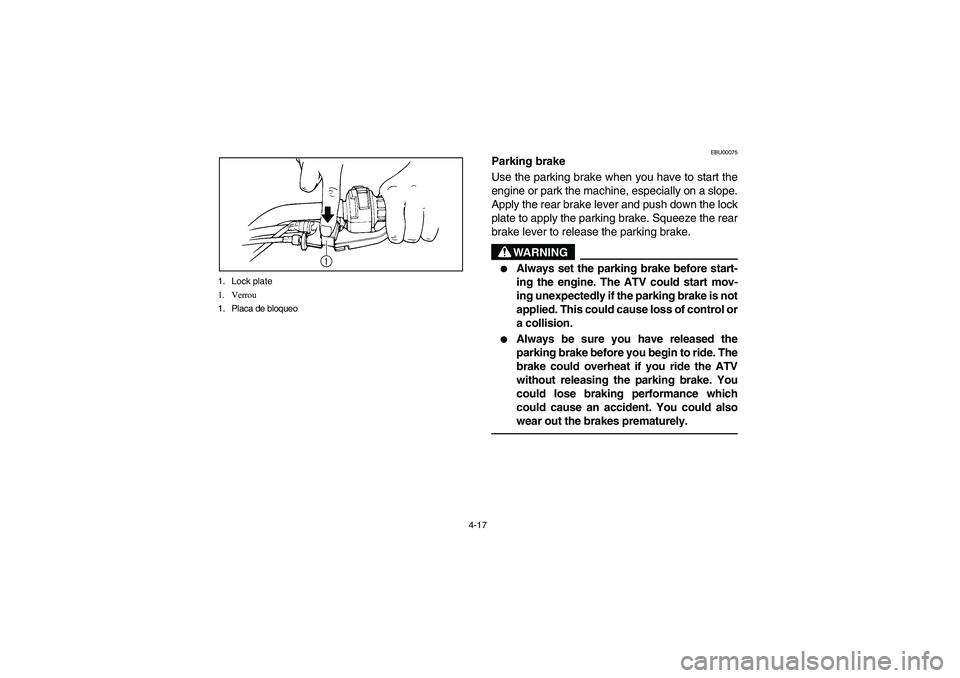

4-17 1. Lock plate
1. Verrou
1. Placa de bloqueo
EBU00075
Parking brake
Use the parking brake when you have to start the
engine or park the machine, especially on a slope.
Apply the rear brake lever and push down the lock
plate to apply the parking brake. Squeeze the rear
brake lever to release the parking brake.
WARNING


Always set the parking brake before start-
ing the engine. The ATV could start mov-
ing unexpectedly if the parking brake is not
applied. This could cause loss of control or
a collision.


Always be sure you have released the
parking brake before you begin to ride. The
brake could overheat if you ride the ATV
without releasing the parking brake. You
could lose braking performance which
could cause an accident. You could also
wear out the brakes prematurely.
U4XE65.book Page 17 Tuesday, May 6, 2003 1:38 PM

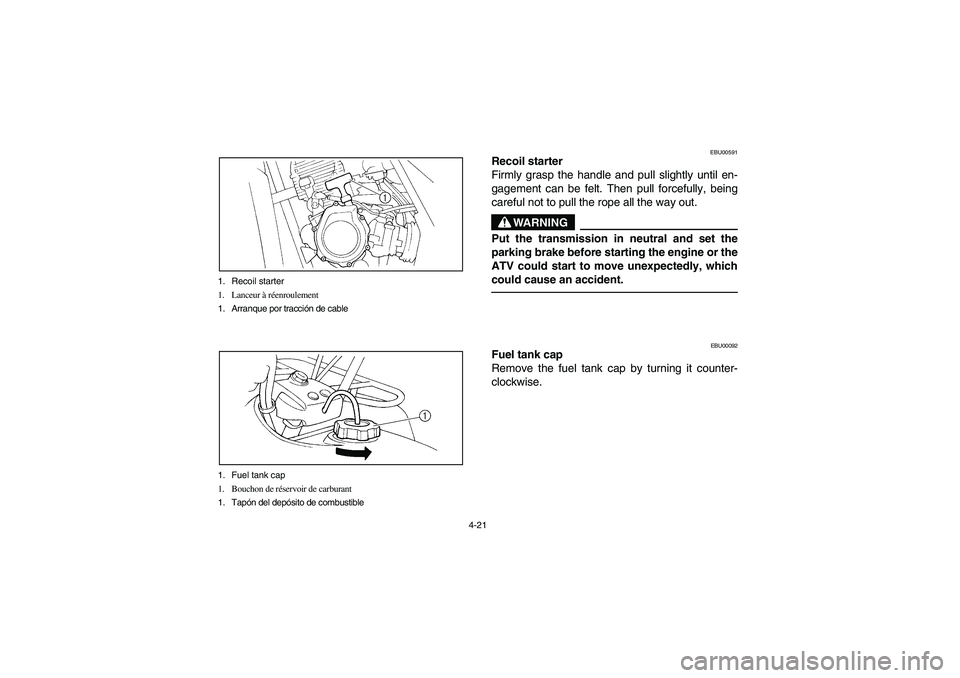

4-21 1. Recoil starter
1. Lanceur à réenroulement
1. Arranque por tracción de cable
1. Fuel tank cap
1. Bouchon de réservoir de carburant
1. Tapón del depósito de combustible
EBU00591
Recoil starter
Firmly grasp the handle and pull slightly until en-
gagement can be felt. Then pull forcefully, being
careful not to pull the rope all the way out.
WARNING
Put the transmission in neutral and set the
parking brake before starting the engine or the
ATV could start to move unexpectedly, which
could cause an accident.
EBU00092
Fuel tank cap
Remove the fuel tank cap by turning it counter-
clockwise.
U4XE65.book Page 21 Tuesday, May 6, 2003 1:38 PM

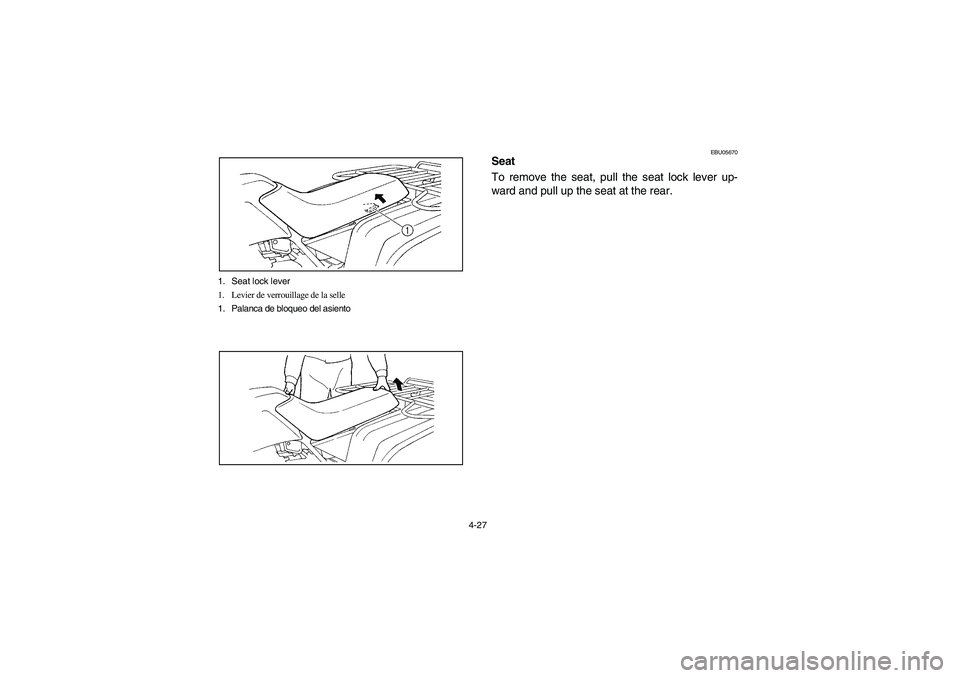

4-27 1. Seat lock lever
1. Levier de verrouillage de la selle
1. Palanca de bloqueo del asiento
EBU05670
Seat
To remove the seat, pull the seat lock lever up-
ward and pull up the seat at the rear.
U4XE65.book Page 27 Tuesday, May 6, 2003 1:38 PM

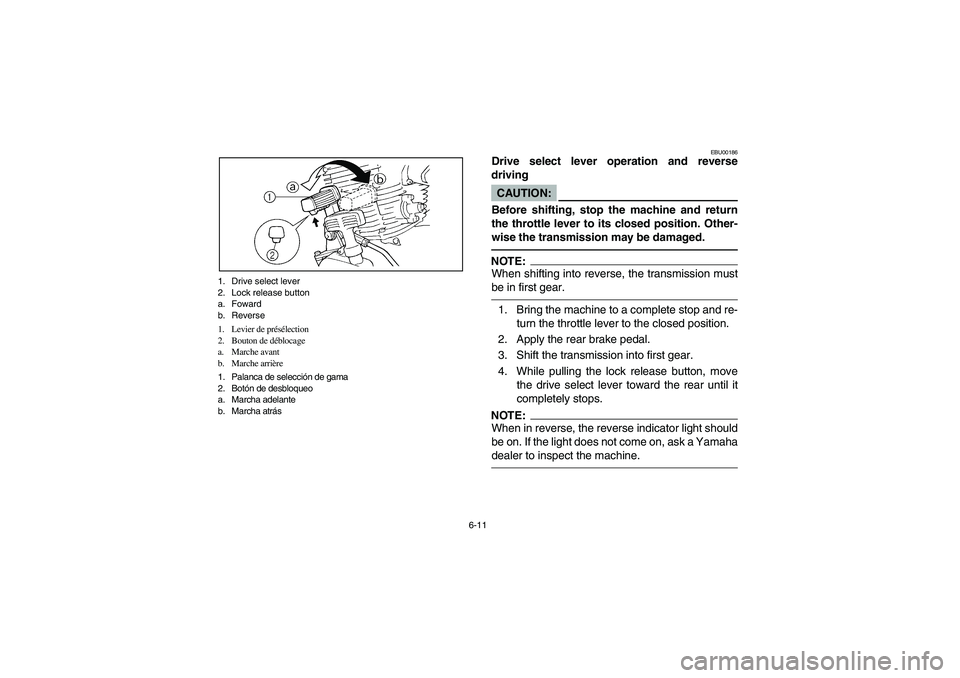

6-11 1. Drive select lever
2. Lock release button
a. Foward
b. Reverse
1. Levier de présélection
2. Bouton de déblocage
a. Marche avant
b. Marche arrière
1. Palanca de selección de gama
2. Botón de desbloqueo
a. Marcha adelante
b. Marcha atrás
EBU00186
Drive select lever operation and reverse
drivingCAUTION:
Before shifting, stop the machine and return
the throttle lever to its closed position. Other-
wise the transmission may be damaged.NOTE:When shifting into reverse, the transmission must
be in first gear.1. Bring the machine to a complete stop and re-
turn the throttle lever to the closed position.
2. Apply the rear brake pedal.
3. Shift the transmission into first gear.
4. While pulling the lock release button, move
the drive select lever toward the rear until it
completely stops.NOTE:When in reverse, the reverse indicator light should
be on. If the light does not come on, ask a Yamaha
dealer to inspect the machine.
U4XE65.book Page 11 Tuesday, May 6, 2003 1:38 PM

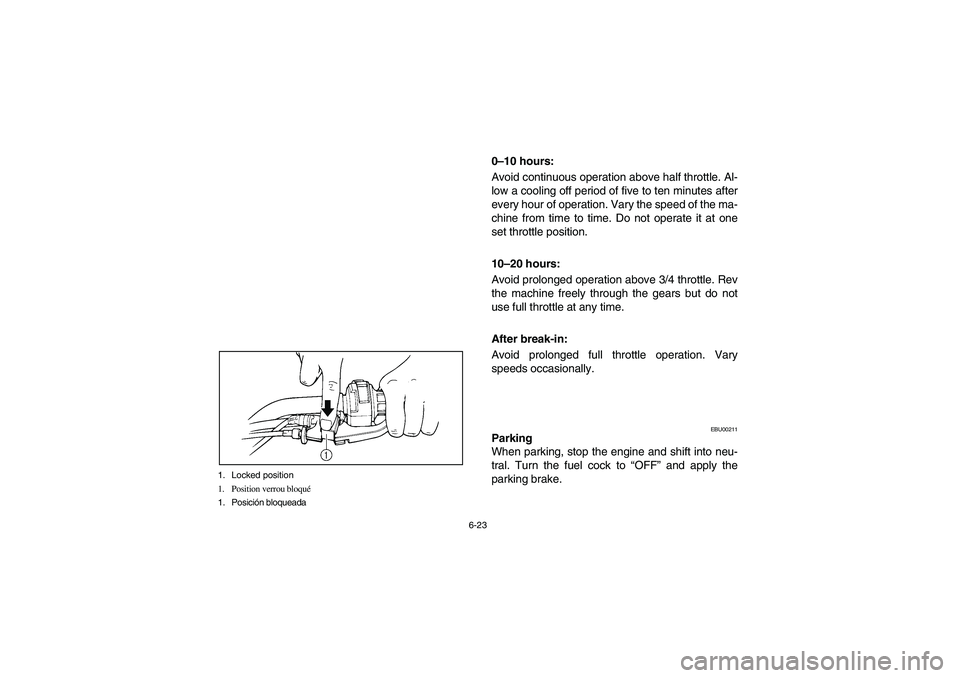

6-23 1. Locked position
1. Position verrou bloqué
1. Posición bloqueada
0–10 hours:
Avoid continuous operation above half throttle. Al-
low a cooling off period of five to ten minutes after
every hour of operation. Vary the speed of the ma-
chine from time to time. Do not operate it at one
set throttle position.
10–20 hours:
Avoid prolonged operation above 3/4 throttle. Rev
the machine freely through the gears but do not
use full throttle at any time.
After break-in:
Avoid prolonged full throttle operation. Vary
speeds occasionally.
EBU00211
Parking
When parking, stop the engine and shift into neu-
tral. Turn the fuel cock to “OFF” and apply the
parking brake.
U4XE65.book Page 23 Tuesday, May 6, 2003 1:38 PM

6-25

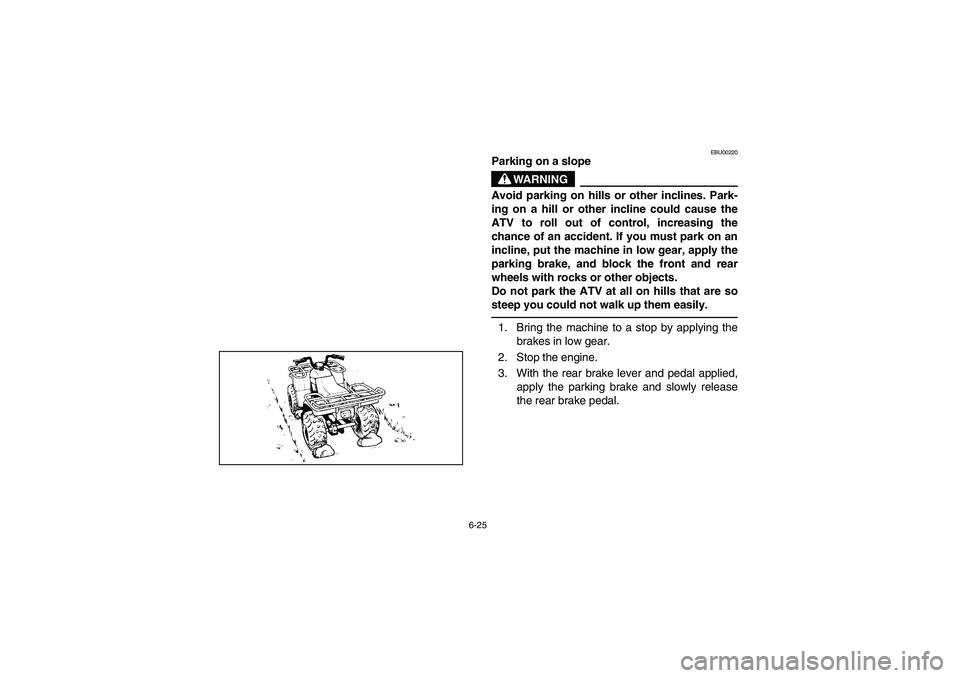

EBU00220
Parking on a slope
WARNING
Avoid parking on hills or other inclines. Park-
ing on a hill or other incline could cause the
ATV to roll out of control, increasing the
chance of an accident. If you must park on an
incline, put the machine in low gear, apply the
parking brake, and block the front and rear
wheels with rocks or other objects.
Do not park the ATV at all on hills that are so
steep you could not walk up them easily.1. Bring the machine to a stop by applying the
brakes in low gear.
2. Stop the engine.
3. With the rear brake lever and pedal applied,
apply the parking brake and slowly release
the rear brake pedal.
U4XE65.book Page 25 Tuesday, May 6, 2003 1:38 PM

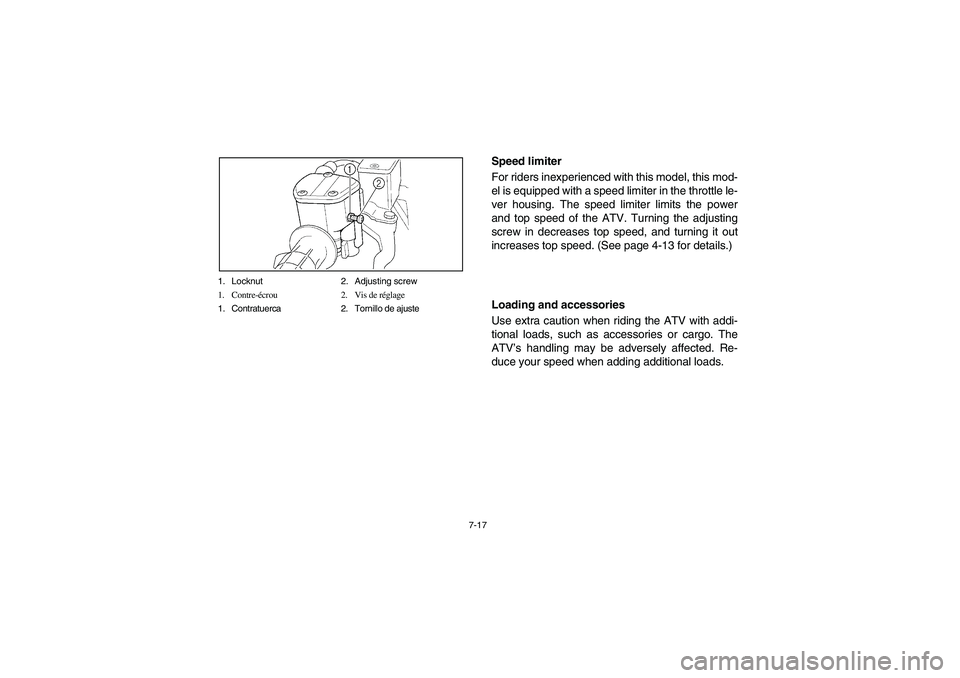

7-17 1. Locknut 2. Adjusting screw
1. Contre-écrou 2. Vis de réglage
1. Contratuerca 2. Tornillo de ajuste
Speed limiter
For riders inexperienced with this model, this mod-
el is equipped with a speed limiter in the throttle le-
ver housing. The speed limiter limits the power
and top speed of the ATV. Turning the adjusting
screw in decreases top speed, and turning it out
increases top speed. (See page 4-13 for details.)
Loading and accessories
Use extra caution when riding the ATV with addi-
tional loads, such as accessories or cargo. The
ATV’s handling may be adversely affected. Re-
duce your speed when adding additional loads.
U4XE65.book Page 17 Tuesday, May 6, 2003 1:38 PM

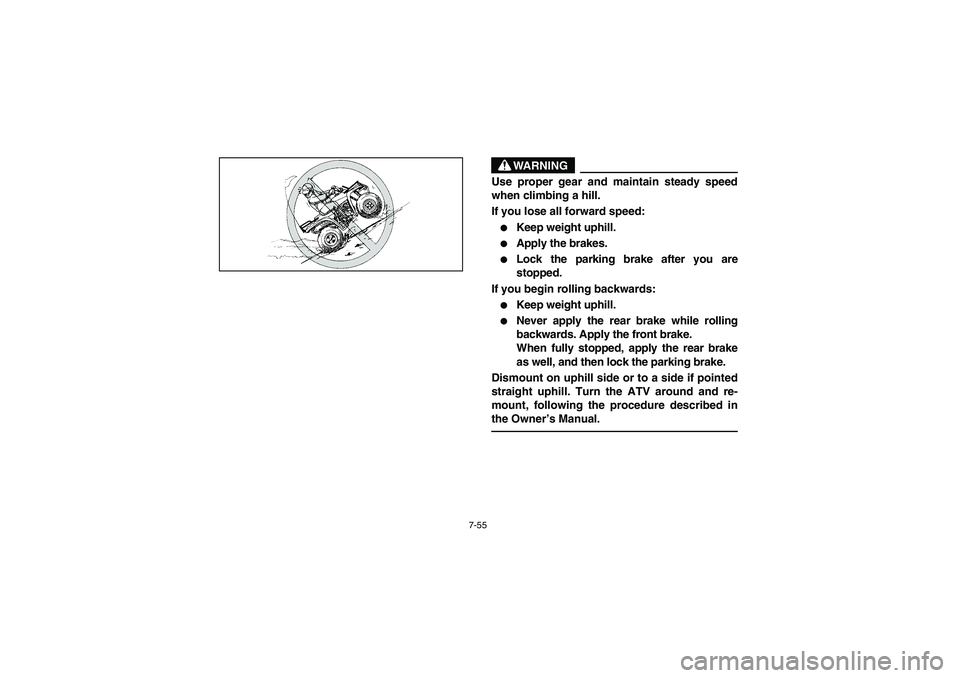

7-55
WARNING
_ Use proper gear and maintain steady speed
when climbing a hill.
If you lose all forward speed:

Keep weight uphill.


Apply the brakes.


Lock the parking brake after you are
stopped.
If you begin rolling backwards:


Keep weight uphill.


Never apply the rear brake while rolling
backwards. Apply the front brake.
When fully stopped, apply the rear brake
as well, and then lock the parking brake.
Dismount on uphill side or to a side if pointed
straight uphill. Turn the ATV around and re-
mount, following the procedure described in
the Owner’s Manual.
_
U4XE65.book Page 55 Tuesday, May 6, 2003 1:38 PM

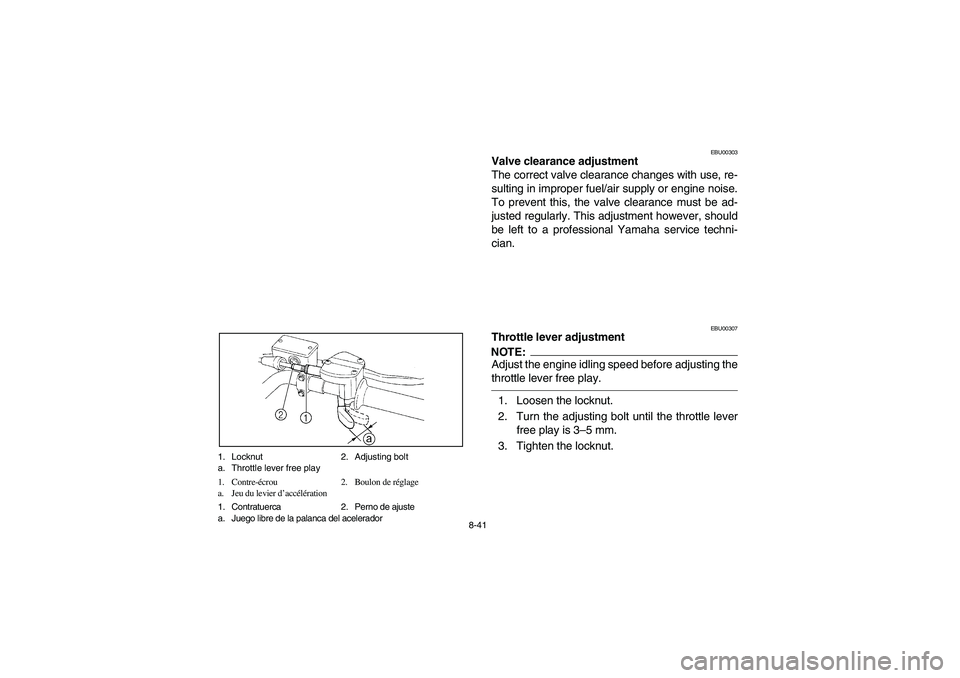

8-41 1. Locknut 2. Adjusting bolt
a. Throttle lever free play
1. Contre-écrou 2. Boulon de réglage
a. Jeu du levier d’accélération
1. Contratuerca 2. Perno de ajuste
a. Juego libre de la palanca del acelerador
EBU00303
Valve clearance adjustment
The correct valve clearance changes with use, re-
sulting in improper fuel/air supply or engine noise.
To prevent this, the valve clearance must be ad-
justed regularly. This adjustment however, should
be left to a professional Yamaha service techni-
cian.
EBU00307
Throttle lever adjustmentNOTE:Adjust the engine idling speed before adjusting the
throttle lever free play.1. Loosen the locknut.
2. Turn the adjusting bolt until the throttle lever
free play is 3–5 mm.
3. Tighten the locknut.
