Spark plug inspection .........................8-25
Air filter element cleaning ...................8-31
Carburetor settings .............................8-39
Idle speed adjustment ........................8-51
Throttle lever adjustment ....................8-53
Brake fluid level check ........................8-55
Brake fluid replacement ......................8-57
Front brake pad check ........................8-59
Rear brake pad inspection .................8-59
Front brake lever free play .................8-61
Brake pedal height adjustment ...........8-63
Parking brake adjustment ...................8-65
Adjusting the rear brake light switch ...8-69
Clutch adjustment ...............................8-71
Autolube pump adjustment .................8-71
Drive chain slack check ......................8-73
Drive chain slack adjustment ..............8-75
Lubricating the drive chain .................8-77
Cable inspection and lubrication ........8-81
Brake and shift pedal/brake and
clutch lever lubrication ......................8-83Front upper and lower arm pivot
lubrication .........................................8-83
Steering shaft lubrication ....................8-85
Wheel removal ...................................8-87
Wheel installation ...............................8-87
Replacing the headlight bulb ..............8-89
Headlight beam adjustment ................8-97
Tail/brake light bulb replacement .......8-99
Troubleshooting ................................8-101
Troubleshooting chart .......................8-105
CLEANING AND STORAGE....................9-1
A. Cleaning ...........................................9-1
B. Storage ............................................9-7
SPECIFICATIONS .................................10-1
Conversion table ....................................11-1
9
10
11
5VM-9-61-01 3/14/03 9:34 PM Page 14

6-31
8Accessories should be rigidly and securely
mounted. An accessory which can shift posi-
tion or come off while you are riding could
affect your ability to control the ATV.
8Do not mount an accessory where it could
interfere with your ability to control the ATV.
Examples include (but are not limited to) a
heavy or bulky object attached to the handle-
bars which could make steering difficult, an
accessory that limits your ability to move
around on the seat, or one that limits your
view.
8Use extra caution when riding an ATV with
accessories. The ATV may handle differently
than it does without accessories.
5VM-9-61-03 3/14/03 10:47 PM Page 32

7-63

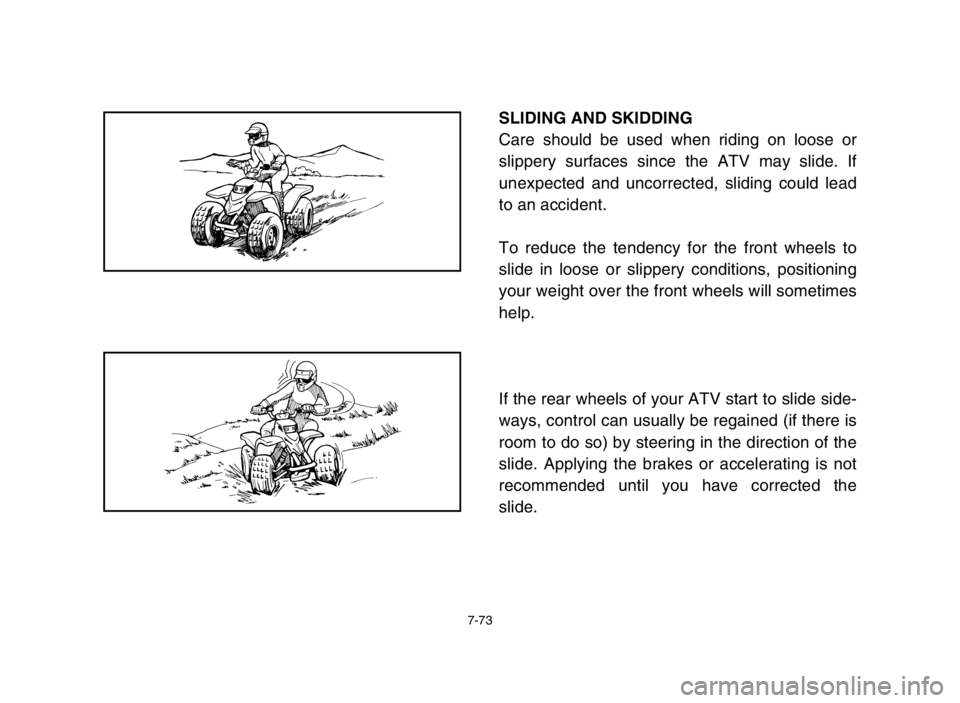

CROSSING A SLOPE
Traversing a sloping surface on your ATV
requires you to properly position your weight to
maintain proper balance. Be sure that you have
learned the basic riding skills on flat ground
before attempting to cross a sloping surface.
Avoid slopes with slippery surfaces or rough ter-
rain that may upset your balance.
As you travel across a slope, lean your body in
the uphill direction. It may be necessary to cor-
rect the steering when riding on loose surfaces
by pointing the front wheels slightly uphill. When
riding on slopes be sure not to make sharp turns
either up or down hill.
5VM-9-61-04 3/14/03 9:37 PM Page 64

7-73
SLIDING AND SKIDDING
Care should be used when riding on loose or
slippery surfaces since the ATV may slide. If
unexpected and uncorrected, sliding could lead
to an accident.
To reduce the tendency for the front wheels to
slide in loose or slippery conditions, positioning
your weight over the front wheels will sometimes
help.
If the rear wheels of your ATV start to slide side-
ways, control can usually be regained (if there is
room to do so) by steering in the direction of the
slide. Applying the brakes or accelerating is not
recommended until you have corrected the
slide.
5VM-9-61-04 3/14/03 9:38 PM Page 74

8-8 * It is recommended that these items be serviced by a Yamaha dealer.
** Lithium-soap-based greaseINITIAL EVERY
ITEM ROUTINE 1 3 6 6 1
month months months months year
Drive chain9Lubricate, check free play and alignment.
2222
9Replace if necessary.
* Drive chain guard
9Check wear and replace if necessary.222
and rollers
* Steering system9Inspect play, clean and lubricate.**22222
* Front and rear
9Inspect and lubricate.**22222
suspension
Tire9Inspect air pressure, wheel runout, and tire wear.22222
* Wheels9Inspect bearings.
22222
9Replace bearings if necessary.
* Throttle, control cable9Check routing and connection.
22222
9Lubricate.
Outside nuts and bolts9Tighten if necessary.22222
Frame9Clean and inspect.2222
Lighting9Inspect.22222
5VM-9-61-05 3/14/03 10:48 PM Page 9

8-85
1Right sideCôté droitLado derecho
1
EBU12810
Steering shaft lubrication
Lubricate the pivot points with a grease gun.
Recommended lubricant:
Lithium-soap-based grease
(all purpose grease)
1. Grease nipple (×3)
1. Graisseur (×3)1. Boquilla de engrase (×3)
1. Grease nipple
1. Graisseur1. Boquilla de engrase
5VM-9-61-05 3/14/03 10:48 PM Page 86
