Replacing a headlight bulb
If a headlight bulb burns out, replace it as fol-
lows.
1. Remove the front panel by removing the
screws.
2. Remove the headlight beam adjusting
screw, the washer, the spring and the nut.
NOTE:
When removing the headlight adjusting screw,
be careful not to lose the spring and nut.
22
1

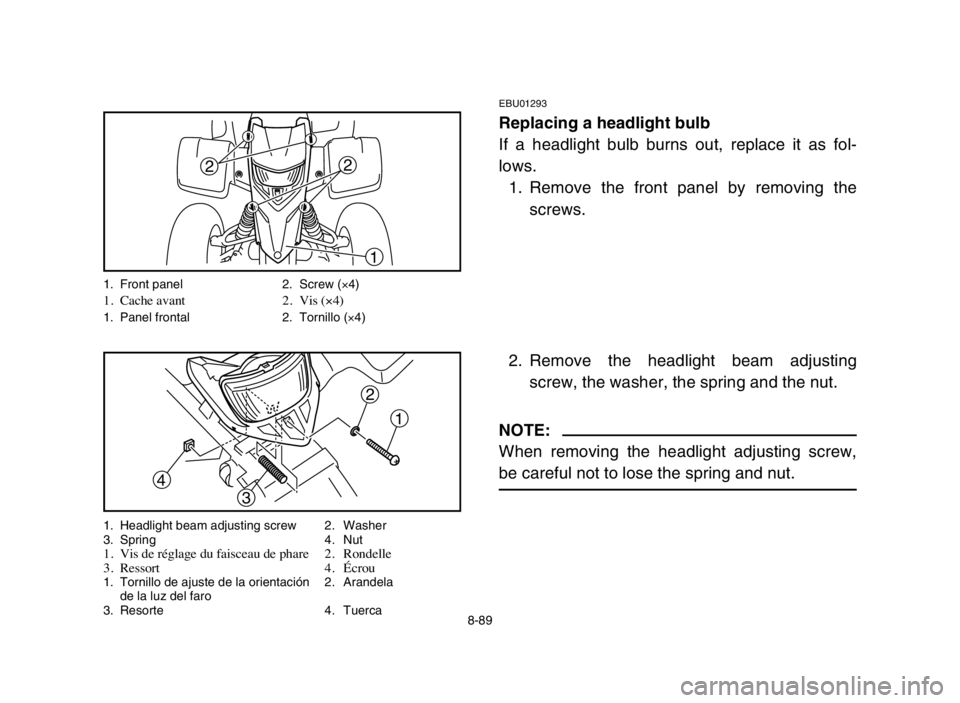

1. Front panel 2. Screw (×4)1. Cache avant 2. Vis (×4)1. Panel frontal 2. Tornillo (×4)
1
3
4
2
1. Headlight beam adjusting screw 2. Washer
3. Spring 4. Nut
1. Vis de réglage du faisceau de phare 2. Rondelle
3. Ressort 4. Écrou
1. Tornillo de ajuste de la orientación 2. Arandela
de la luz del faro
3. Resorte 4. Tuerca
8-89
5VM-9-62-05 3/12/04 4:15 PM Page 90

1
2
5. Remove the headlight bulb holder cover.
6. Turn the headlight bulb holder counterclock-
wise and remove the defective bulb.
w
A headlight bulb is hot when it is on and
immediately after it is turned off. Wait for the
bulb to cool before touching or removing it.
You can be burned, or a fire could start if the
bulb touches something flammable.
7. Put a new headlight bulb into position and
secure it in place with the bulb holder.
1. Headlight bulb holder 2. Headlight bulb1. Fixation de l’ampoule de phare 2. Ampoule1. Portabombillas del faro 2. Bombilla
8-93
1 2
1. Headlight bulb holder cover 2. Headlight bulb holder1. Cache de la fixation de l’ampoule du phare
2. Fixation de l’ampoule de phare
1. Cubierta del portabombillas del faro
2. Portabombillas del faro
5VM-9-62-05 3/12/04 4:15 PM Page 94

a
22
11
cC
Do not touch the glass part of the headlight
bulb to keep it free from oil, otherwise the
transparency of the glass, the luminosity of
the bulb, and the bulb life will be adversely
affected. Thoroughly clean off any dirt and
fingerprints on the headlight bulb using a
cloth moistened with alcohol or thinner.
8. Install the headlight bulb holder cover.
cC
Make sure the headlight bulb holder cover is
securely fitted over the bulb holder.
9. Install the headlight unit assembly by
installing the screws.
a. Do not touch the glass part of the headlight bulb.a. Ne pas toucher le verre de l’ampoule de phare.a. No toque la parte de vidrio de la bombilla del faro.
8-95 1. Headlight unit assembly 2. Screw (×2)
1. Optique de phare 2. Vis (×2)1. Unidad del faro 2. Tornillo (×2)
5VM-9-62-05 3/12/04 4:15 PM Page 96

8-99
EBU00861
Tail/brake light bulb replacement
1. Remove the bulb holder (together with the
bulb) by turning it counterclockwise.
2. Remove the defective bulb from the bulb
holder by pushing it inward and turning it
counterclockwise.
3. Install a new bulb in the bulb holder by
pushing it inward and turning it clockwise.
4. Install the bulb holder (together with the
bulb).
q
q
w
1. Bulb holder1. Fixation d’ampoule1. Portabombillas
1. Bulb holder 2. Bulb
1. Fixation d’ampoule 2. Ampoule1. Portabombillas 2. Bombilla
5VM-9-62-05 3/12/04 4:15 PM Page 100

10-5
Model YFS200
Suspension:
Front suspension Double wishbone
Rear suspension Swingarm (monocross)
Shock absorber:
Front shock absorber Coil spring/Oil damper
Rear shock absorber Coil spring/Gas-oil damper
Wheel travel:
Front wheel travel 180 mm
Rear wheel travel 180 mm
Electrical:
Ignition system C.D.I.
Generator system C.D.I. magneto
Headlight type: Bulb type
Bulb voltage, wattage ×quantity:
Headlight 12V, 35 W/36.5 W ×1
Tail/brake light 12V, 5/21 W ×1
Oil level warning light 12V, 3.4 W ×1
