4-17
EBU00085Drive select lever
The drive select lever is used for driving the
machine either forward or in reverse. Refer to
page 6-13 for drive select lever operation.EBU00092Fuel tank cap
Remove the fuel tank cap by turning it counter-
clockwise.
e
a
q
w
q
a. Drive select lever 1. Neutral
2. Forward 3. Reversea. Levier de présélection 1. Point mort
2. Avant 3. Arrièrea. Palanca de selección de gama 1.Punto muerto
2. Adelante 3. Atrás1. Fuel tank cap1. Bouchon de réservoir de carburant1. Tapón del depósito de combustible
5VJ-9-60-04 3/26/02 9:20 PM Page 18

8-83
EBU01179Replacing the headlight bulb
If the headlight bulb burns out, replace the bulb
as follows.
1. Remove the screws holding the headlight
unit to the headlight body.
2. Remove the headlight bulb holder cover,
turn the bulb holder counterclockwise and
remove the defective bulb.wThe headlight bulb is hot when it is on and
immediately after it is turned off. Wait for the
bulb to cool before touching or removing it.
You can be burned, or a fire could start if the
bulb touches something flammable.3. Put a new headlight bulb into position and
secure it in place with the bulb holder.
1
1

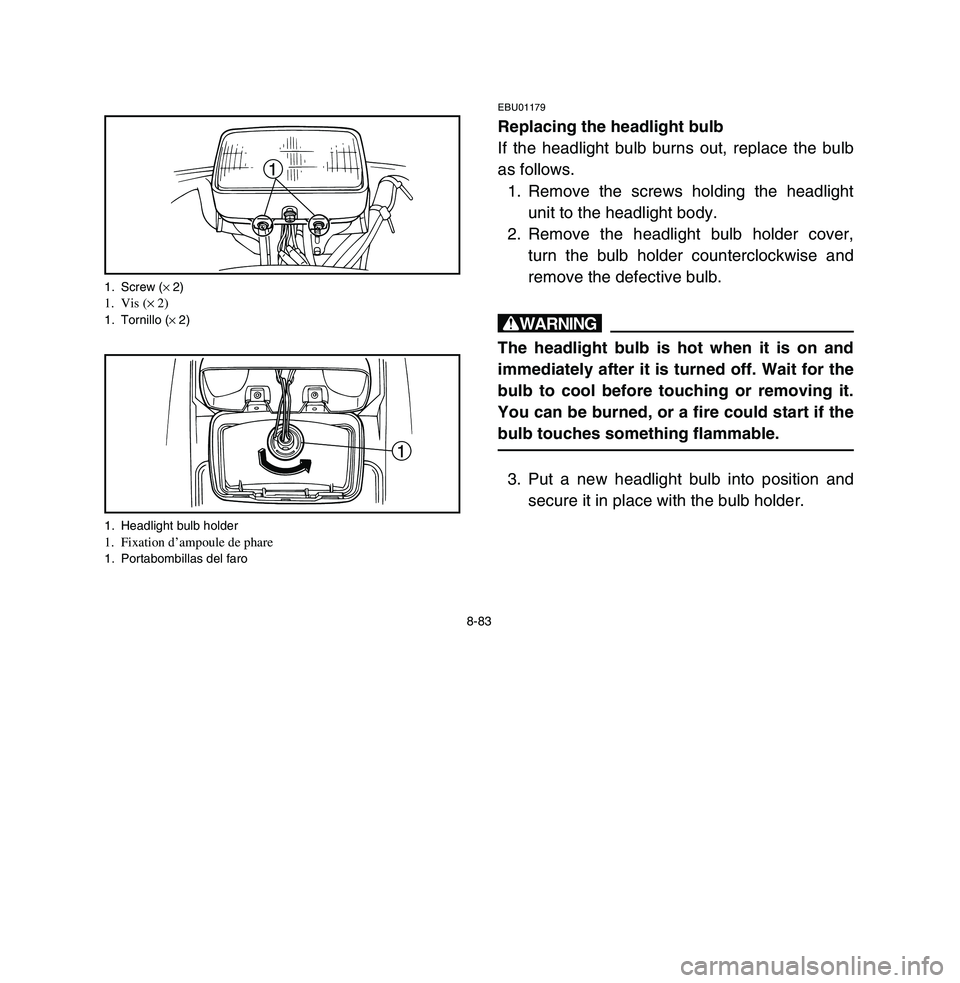

1. Screw (× 2)1. Vis (× 2)1. Tornillo (×2)
1. Headlight bulb holder1. Fixation d’ampoule de phare1. Portabombillas del faro
5VJ-9-60-08 3/26/02 9:17 PM Page 8-84

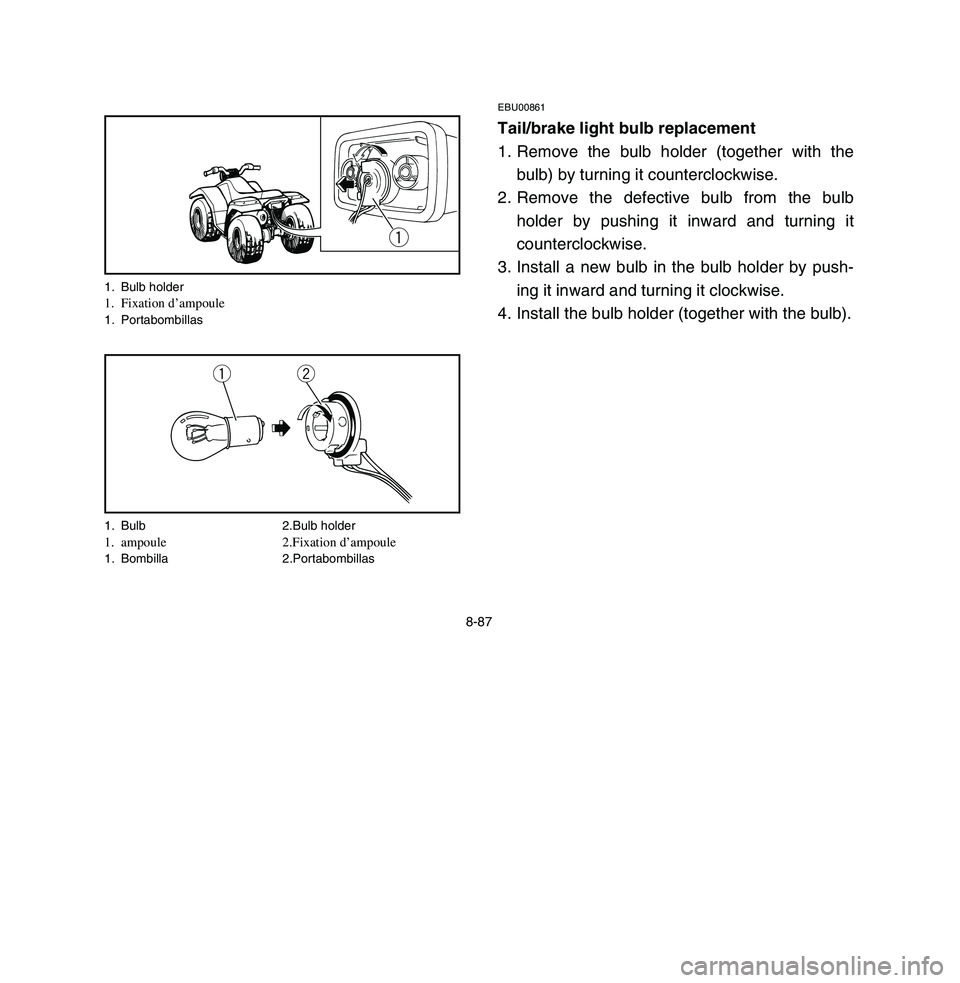

1. Bulb holder1. Fixation d’ampoule1. Portabombillas
1. Bulb 2.Bulb holder1. ampoule 2.Fixation d’ampoule1. Bombilla 2.Portabombillas
8-87
EBU00861Tail/brake light bulb replacement
1. Remove the bulb holder (together with the
bulb) by turning it counterclockwise.
2. Remove the defective bulb from the bulb
holder by pushing it inward and turning it
counterclockwise.
3. Install a new bulb in the bulb holder by push-
ing it inward and turning it clockwise.
4. Install the bulb holder (together with the bulb).
q
q
w
5VJ-9-60-08 3/26/02 9:17 PM Page 8-88
