PERIODIC MAINTENANCE AND
ADJUSTMENT .........................................8-1
Owner’s manual and tool kit .................8-3
Periodic maintenance/Lubrication ........8-7
Engine oil ............................................8-13
Transmission oil .................................8-21
Spark plug inspection .........................8-27
Engine and V-belt compartment
air filter element cleaning .................8-31
Idle speed adjustment ........................8-41
Valve clearance adjustment ...............8-43
Throttle lever adjustment ....................8-43
Front and rear brake shoe
inspection .........................................8-45
Front brake lever free play
adjustment ........................................8-47
Rear brake adjustment .......................8-55
Drive chain slack check ......................8-57
Drive chain slack adjustment ..............8-59Lubricating and drive chain ................8-63
Draining the V-belt compartment ........8-65
Cable inspection and lubrication ........8-67
Brake lever lubrication ........................8-69
Knuckle shaft, lower arms and
steering shaft lubrication ..................8-69
Wheel removal ...................................8-71
Wheel installation ...............................8-71
Battery ................................................8-73
Replenishing the battery fluid .............8-77
Fuse replacement ...............................8-81
Replacing the headlight bulb ..............8-83
Tail/brake light bulb replacement .......8-87
Headlight beam adjustment ................8-89
Troubleshooting ..................................8-91
Troubleshooting chart .........................8-958
5VJ-9-61-01 3/14/03 11:48 PM Page 14

5-1
EBU00113
PRE-OPERATION CHECKS
Before using this machine, check the following points:
ITEM ROUTINE PAGE
Brakes• Check operation, condition and free play. 5-5 – 5-7,
• Adjust if necessary. 8-45 – 8-55
Fuel • Check fuel level.
• Fill with fuel if necessary.5-7 – 5-11
Engine oil and• Check oil level. 5-11 – 5-15,
transmission oil• Fill with oil if necessary. 8-13 – 8-25
Drive chain• Check chain slack and condition.
5-15, 8-57 – 8-63
• Adjust if necessary.
Throttle• Check for proper throttle cable operation. 5-15
Wheels and tires• Check tire pressure, wear and damage. 5-19 – 5-25, 8-71
Fittings and fasteners• Check all fittings and fasteners. 5-15
Battery• Check fluid level.
5-17, 8-73 – 8-79
• Fill with distilled water if necessary.
Lights and switches• Check for proper operation. 5-17, 8-83 – 8-87
5VJ-9-61-05 3/17/03 4:50 PM Page 2

5-15
EBU00498
Chain
Check the general condition of the chain and
check the chain slack before every ride.
Lubricate and adjust the chain as necessary.
(See pages 8-53–8-59 for details.)
EBU01083
Throttle lever
Check to see that the throttle lever operates cor-
rectly. It must open smoothly and spring back to
the idle position when released. Have a Yamaha
dealer repair as necessary for proper operation.Engine oil quantity:
Periodic oil change:
1.25 L
Total amount:
1.45 L
Transmission oil quantity:
Total amount:
0.6 L
5VJ-9-61-05 3/17/03 4:50 PM Page 16

8-7
EBU00262
PERIODIC MAINTENANCE/LUBRICATION
INITIAL EVERY
ITEM ROUTINE
13661
monthmonths months monthsyear
Valves*• Check valve clearance.
1111
• Adjust if necessary.
• Check condition.
Spark plug• Adjust gap and clean.11111
• Replace if necessary.
Air filter element
• Clean. Every 20–40 hours
(for engine and V-belt
• Replace if necessary. (more often in wet or dusty areas)
compartment)
Carburetor*• Check idle speed/starter operation.
1111
• Adjust if necessary.
Cylinder head cover• Check breather hose for cracks or damage.
111
breather system*• Replace if necessary.
• Check leakage.
Exhaust system*• Retighten if necessary.111
• Replace gasket if necessary.
Fuel line*• Check fuel hose for cracks or damage.
111
• Replace if necessary.
Engine oil• Replace (warm engine before draining).1111
Oil strainer*• Clean.
111
• Replace if necessary.
Drive chain• Check and adjust slack/alignment/clean/lube.11111
Transmission oil• Check oil level/oil leakage.
11
• Replace every 12 months.
5VJ-9-61-08 3/17/03 4:52 PM Page 8-8

8-13
EBU00896
Engine oil
Engine oil level measurement
1. Place the machine on a level surface.
2. Warm up the engine for several minutes and
stop it.
3. Remove the dipstick and wipe it off with a
clean rag. Insert the dipstick in the filler hole
without screwing it in.
NOTE:
Wait a few minutes until the oil level settles
before checking.
4. Remove the dipstick and inspect the oil level.
5. The oil level should be between the maximum
and minimum marks. If the level is low, add oil
to raise it to the proper level.
qw
e
1. Dipstick
2. Maximum level mark 3. Minimum level mark
1. Jauge
2. Repère de niveau maximum 3. Repère de niveau minimum
1. Varilla de medición
2. Marca de máximo 3. Marca de mínimo
5VJ-9-61-08 3/17/03 4:52 PM Page 8-14

8-19
cC
Be sure no foreign material enters the
crankcase.
9. Warm up the engine for several minutes at
idle speed. Check for oil leakage while warm-
ing up.
cC
If oil leakage is found, stop the engine imme-
diately and check for the cause.
Recommended oil:
See page 10-2.
Oil quantity:
Periodic oil change
1.25 L
Total amount:
1.45 L
5VJ-9-61-08 3/17/03 4:52 PM Page 8-20

8-21
EBU00891
Transmission oil

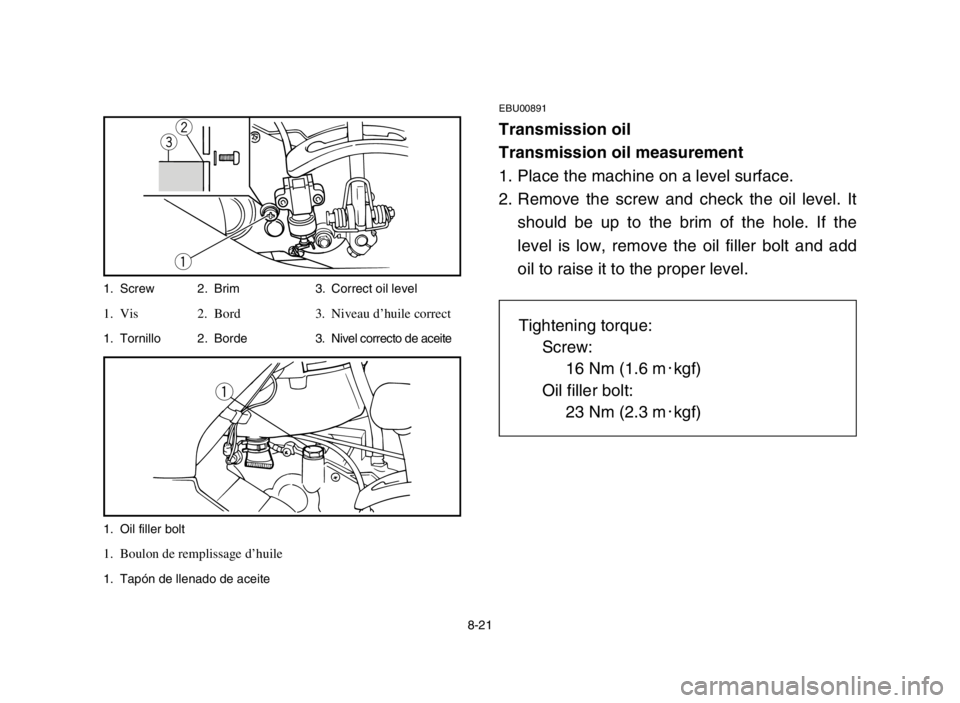

Transmission oil measurement
1. Place the machine on a level surface.
2. Remove the screw and check the oil level. It
should be up to the brim of the hole. If the
level is low, remove the oil filler bolt and add
oil to raise it to the proper level.we
q
q
1. Screw 2. Brim 3. Correct oil level
1. Vis 2. Bord 3. Niveau d’huile correct
1. Tornillo 2. Borde 3. Nivel correcto de aceite
1. Oil filler bolt
1. Boulon de remplissage d’huile
1. Tapón de llenado de aceite
Tightening torque:
Screw:
16 Nm (1.6 m0kgf)
Oil filler bolt:
23 Nm (2.3 m0kgf)
5VJ-9-61-08 3/17/03 4:52 PM Page 8-22

8-25
cC
Be sure no foreign material enters the
crankcase.
6. Start the engine and warm up for a few min-
utes. While warming up, check for oil leakage.
If oil leakage is found, stop the engine imme-
diately and check for the cause.
7. Check the oil level.Recommended oil:
See page 10-2
Oil quantity:
Total amount:
0.6 L (0.53 Imp qt, 0.63 US qt)
5VJ-9-61-08 3/17/03 4:52 PM Page 8-26
