EBU00015
1-CONTENTS
LOCATION OF THE WARNING AND
SPECIFICATION LABELS ....................... 1-1
SAFETY INFORMATION ......................... 2-1
DESCRIPTION AND MACHINE
IDENTIFICATION .................................... 3-1
Identification number records ............... 3-3
Key identification number .................... 3-5
Vehicle identification number ............... 3-7
Model label ........................................... 3-9
CONTROL FUNCTIONS ......................... 4-1
Main switch........................................... 4-1
Indicator lights ..................................... 4-3
Handlebar switches ............................. 4-5
Throttle lever ....................................... 4-9
Speed limiter ...................................... 4-11
Front brake lever ............................... 4-13
Brake pedal and rear brake lever ....... 4-15
Parking brake ..................................... 4-17
Shift pedal ......................................... 4-19
Drive select lever ............................... 4-19
Recoil starter ..................................... 4-21
1234
Fuel tank cap .................................... 4-21
Fuel cock ........................................... 4-23
Starter (choke) ................................... 4-25
Seat.................................................... 4-27
Storage compartment ........................ 4-29
Front carrier ....................................... 4-31
Rear carrier ........................................ 4-31
Rear shock absorber adjustment ....... 4-33
PRE-OPERATION CHECKS ................... 5-1
Front and rear brakes .......................... 5-5
Fuel ...................................................... 5-9
Engine oil ........................................... 5-13
Final gear oil ...................................... 5-15
Throttle lever ...................................... 5-15
Fittings and fasteners......................... 5-17
Lights ................................................. 5-17
Switches............................................. 5-17
Battery ............................................... 5-17
Tires .................................................. 5-19
How to measure tire pressure ............ 5-23
Tire wear limit .................................... 5-25
5
U1P060.book Page 1 Monday, August 2, 2004 12:19 PM

OPERATION ............................................6-1
Starting a cold engine ...........................6-3
Starting a warm engine ........................6-9
Warming up ..........................................6-9
Drive select lever operation and
reverse driving ..................................6-11
Shifting ................................................6-15
To start out and accelerate .................6-17
To decelerate ......................................6-19
Engine break-in ...................................6-21
Parking ...............................................6-23
Parking on a slope ..............................6-25
Accessories and loading ....................6-27
RIDING YOUR ATV..................................7-1
Getting to know your ATV .....................7-3
Ride with care and good judgement .....7-5
Be careful where you ride ...................7-27
Turning your ATV ................................7-41
Climbing uphill.....................................7-47
Riding downhill ....................................7-57
Crossing a slope .................................7-61
Crossing through shallow water ..........7-65
Riding over rough terrain ....................7-71
Sliding and skidding ............................7-73
What to do if ........................................7-77
What to do...........................................7-77
67
PERIODIC MAINTENANCE AND
ADJUSTMENT ......................................... 8-1
Owner’s manual and tool kit ................. 8-3
Periodic maintenance/lubrication.......... 8-7
Engine oil and oil filter element........... 8-17
Final gear oil ....................................... 8-31
Spark plug inspection ......................... 8-37
Air filter element cleaning ................... 8-43
Carburetor adjustment ....................... 8-49
Idle speed adjustment ........................ 8-51
Valve clearance adjustment .............. 8-53
Throttle lever adjustment ................... 8-53
Select lever safety system cable
adjustment ........................................ 8-55
Front brake pad check ........................ 8-55
Rear brake shoe inspection ............... 8-57
Brake fluid level check ........................ 8-59
Brake fluid replacement ...................... 8-61
Front brake lever free play.................. 8-63
Adjusting the brake pedal and rear
brake lever........................................ 8-65
Adjusting the rear brake light switch ... 8-73
Clutch adjustment ............................... 8-75
Cable inspection and lubrication......... 8-77
Brake lever and brake pedal
lubrication ........................................ 8-79
Steering shaft lubrication .................... 8-81
8
U1P060.book Page 2 Monday, August 2, 2004 12:19 PM

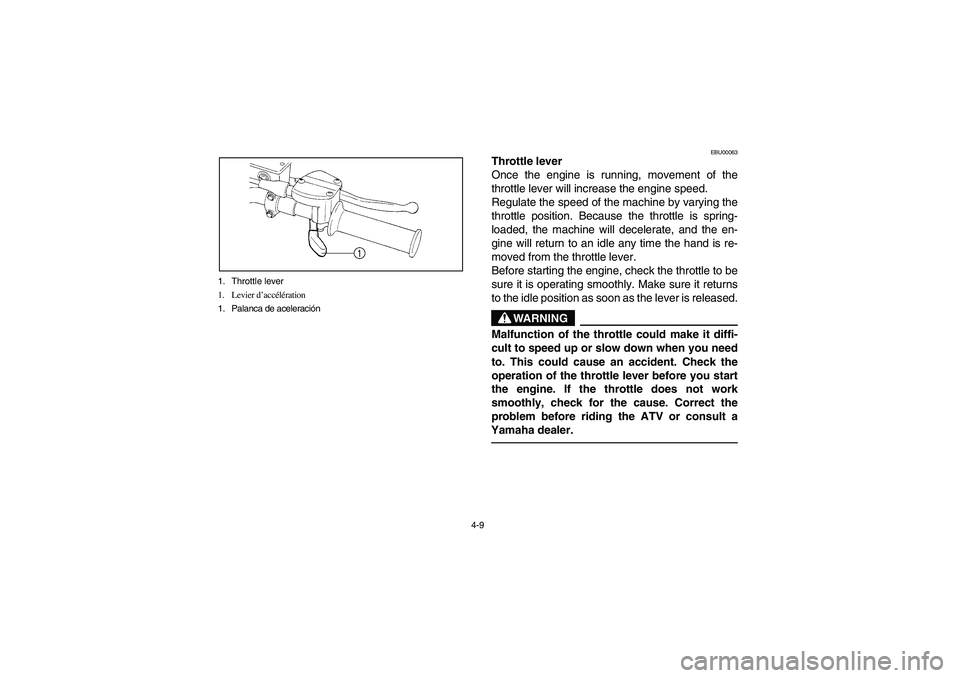

4-9 1. Throttle lever
1. Levier d’accélération
1. Palanca de aceleración
EBU00063
Throttle lever
Once the engine is running, movement of the
throttle lever will increase the engine speed.
Regulate the speed of the machine by varying the
throttle position. Because the throttle is spring-
loaded, the machine will decelerate, and the en-
gine will return to an idle any time the hand is re-
moved from the throttle lever.
Before starting the engine, check the throttle to be
sure it is operating smoothly. Make sure it returns
to the idle position as soon as the lever is released.
WARNING
Malfunction of the throttle could make it diffi-
cult to speed up or slow down when you need
to. This could cause an accident. Check the
operation of the throttle lever before you start
the engine. If the throttle does not work
smoothly, check for the cause. Correct the
problem before riding the ATV or consult a
Yamaha dealer.
U1P060.book Page 9 Monday, August 2, 2004 12:19 PM

5-1
EBU00113
1-PRE-OPERATION CHECKS
Before using this machine, check the following points:
ITEM ROUTINE PAGE
Front brakeCheck operation, free play, fluid level and fluid leakage.
Fill with DOT 4 brake fluid if necessary.5-5–5-7,
8-55–8-63
Rear brakeCheck operation, condition and free play.
Adjust if necessary.5-5–5-7,
8-57, 8-65–8-71
FuelCheck fuel level.
Fill with fuel if necessary.5-9–5-11
Engine oilCheck oil level.
Fill with oil if necessary.5-13, 8-17–8-29
Final gear oilCheck for leakage. 5-15, 8-31–8-35
ThrottleCheck for proper throttle cable operation. 5-15, 8-53
Wheels and tiresCheck tire pressure, wear and damage.5-19–5-25,
8-81–8-83
Fittings and fastenersCheck all fittings and fasteners. 5-17
Lights and switchesCheck for proper operation. 5-17, 8-95–8-101
BatteryCheck fluid level.
Fill with distilled water if necessary.5-17, 8-85–8-91
U1P060.book Page 1 Monday, August 2, 2004 12:19 PM

6-9
EBU00180
Starting a warm engine
To start a warm engine, refer to the “Starting a cold
engine” section. The starter (choke) should not be
used. The throttle should be opened slightly.
EBU00182
Warming up
To get maximum engine life, always warm up the
engine before starting off. Never accelerate hard
with a cold engine! To see whether or not the en-
gine is warm, check if it responds to the throttle
normally with the starter (choke) turned off.
U1P060.book Page 9 Monday, August 2, 2004 12:19 PM

8-7
EBU02621
PERIODIC MAINTENANCE/LUBRICATION
NOTE:_

For ATVs not equipped with an odometer or an hour meter, follow the month maintenance intervals.


For ATVs equipped with an odometer or an hour meter, follow the km (mi) or hours maintenance intervals. How-
ever, keep in mind that if the ATV isn’t used for a long period of time, the month maintenance intervals should be
followed.
_
ITEM ROUTINEWhichever
comes firstINITIAL EVERY
month136612
km
(mi)320
(200)1,200
(750)2,400
(1,500)2,400
(1,500)4,800
(3,000)
hours 20 75 150 150 300
Valves*Check valve clearance.
Adjust if necessary.
Spark plugCheck condition.
Adjust gap and clean.
Replace if necessary.Air filter elementClean.
Replace if necessary.Every 20–40 hours
(More often in wet or dusty areas.)
Carburetor*Check starter (choke) operation.
Adjust engine idling speed.Cylinder head breather
system*Check breather hose for cracks or damage.
Replace if necessary.Exhaust system*Check for leakage.
Tighten if necessary.
Replace gasket(s) if necessary.Fuel line*Check fuel hose for cracks or damage.
Replace if necessary.Engine oil
Replace (Warm engine before draining).Engine oil filter element
Clean.U1P060.book Page 7 Monday, August 2, 2004 12:19 PM

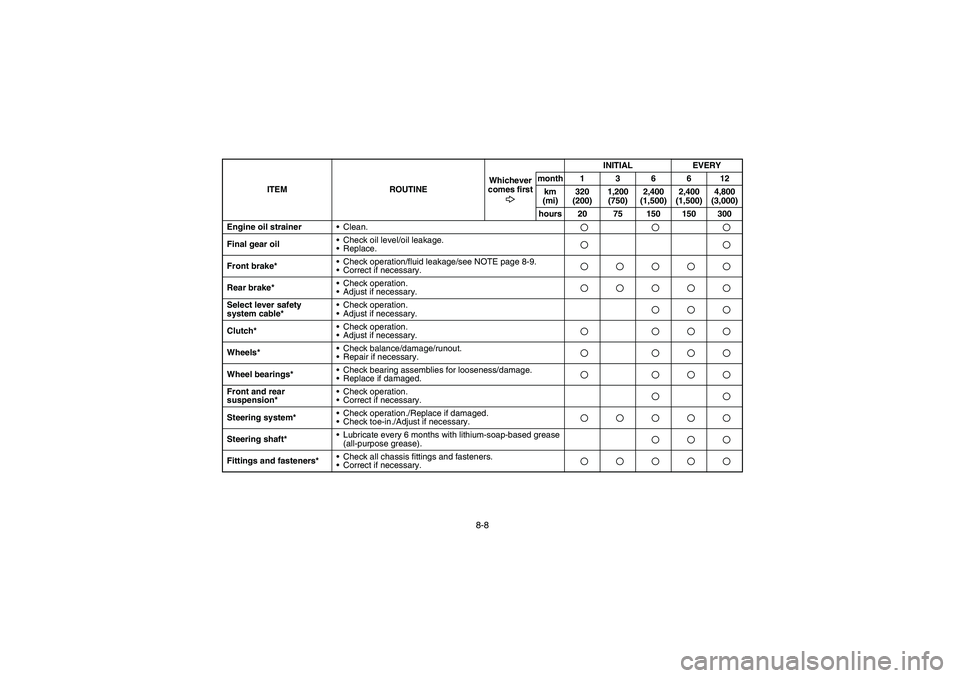

8-8
Engine oil strainer
Clean.Final gear oilCheck oil level/oil leakage.
Replace.Front brake*Check operation/fluid leakage/see NOTE page 8-9.
Correct if necessary.Rear brake*Check operation.
Adjust if necessary.Select lever safety
system cable*Check operation.
Adjust if necessary.Clutch*Check operation.
Adjust if necessary.Wheels*Check balance/damage/runout.
Repair if necessary.Wheel bearings*Check bearing assemblies for looseness/damage.
Replace if damaged.Front and rear
suspension*Check operation.
Correct if necessary.Steering system*Check operation./Replace if damaged.
Check toe-in./Adjust if necessary.Steering shaft*Lubricate every 6 months with lithium-soap-based grease
(all-purpose grease).Fittings and fasteners*Check all chassis fittings and fasteners.
Correct if necessary.
ITEM ROUTINEWhichever
comes firstINITIAL EVERY
month136612
km
(mi)320
(200)1,200
(750)2,400
(1,500)2,400
(1,500)4,800
(3,000)
hours 20 75 150 150 300
U1P060.book Page 8 Monday, August 2, 2004 12:19 PM

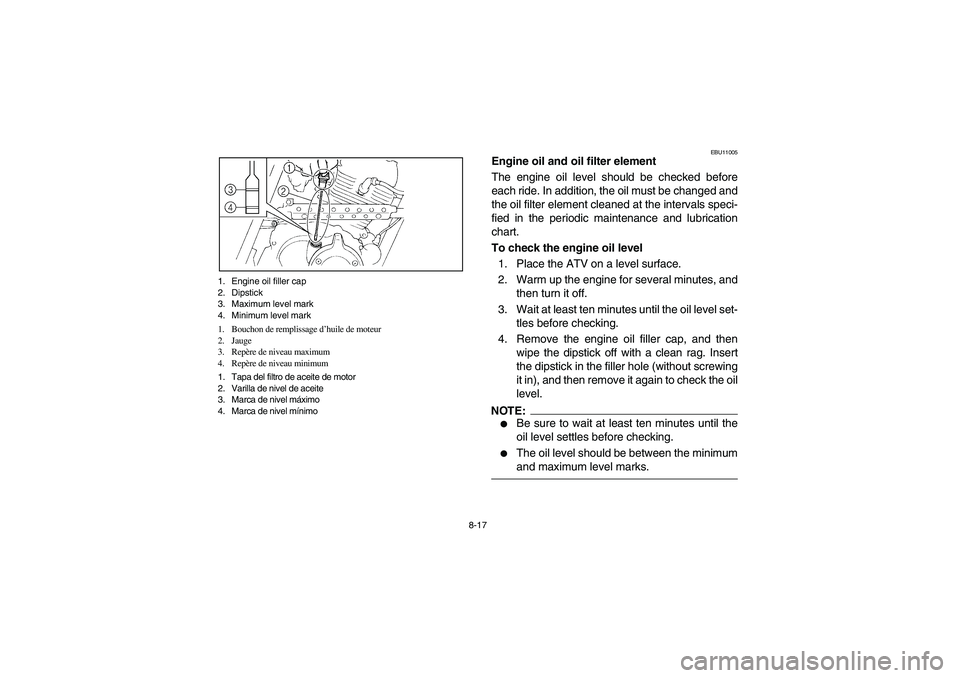

8-17 1. Engine oil filler cap
2. Dipstick
3. Maximum level mark
4. Minimum level mark
1. Bouchon de remplissage d’huile de moteur
2. Jauge
3. Repère de niveau maximum
4. Repère de niveau minimum
1. Tapa del filtro de aceite de motor
2. Varilla de nivel de aceite
3. Marca de nivel máximo
4. Marca de nivel mínimo
EBU11005
Engine oil and oil filter element
The engine oil level should be checked before
each ride. In addition, the oil must be changed and
the oil filter element cleaned at the intervals speci-
fied in the periodic maintenance and lubrication
chart.
To check the engine oil level
1. Place the ATV on a level surface.
2. Warm up the engine for several minutes, and
then turn it off.
3. Wait at least ten minutes until the oil level set-
tles before checking.
4. Remove the engine oil filler cap, and then
wipe the dipstick off with a clean rag. Insert
the dipstick in the filler hole (without screwing
it in), and then remove it again to check the oil
level.NOTE:_

Be sure to wait at least ten minutes until the
oil level settles before checking.


The oil level should be between the minimum
and maximum level marks.
_
U1P060.book Page 17 Monday, August 2, 2004 12:19 PM

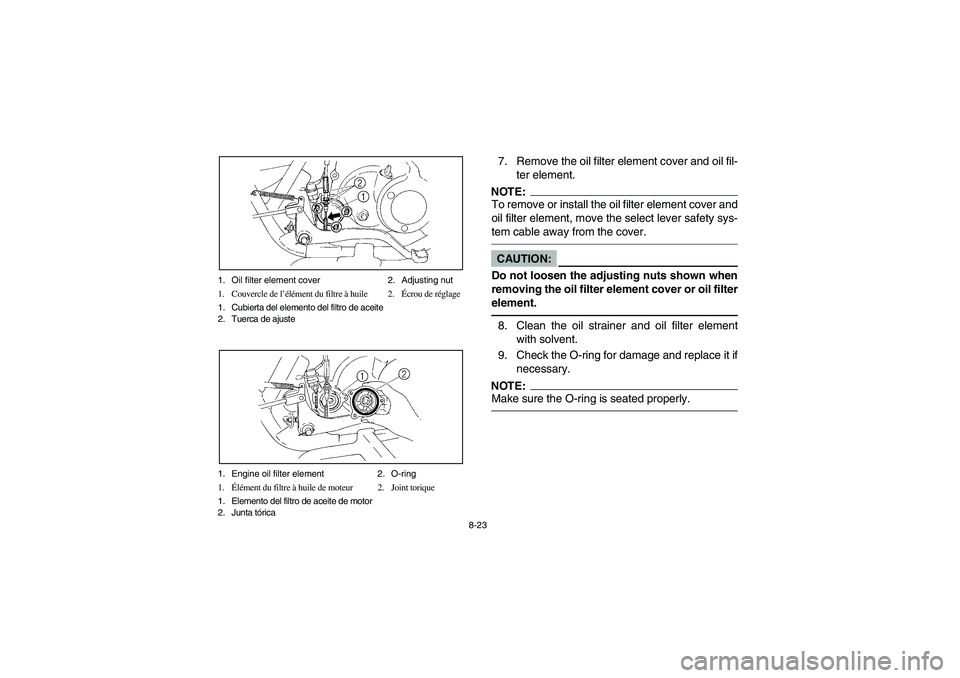

8-23 1. Oil filter element cover 2. Adjusting nut
1. Couvercle de l’élément du filtre à huile 2.Écrou de réglage
1. Cubierta del elemento del filtro de aceite
2. Tuerca de ajuste
1. Engine oil filter element 2. O-ring
1.Élément du filtre à huile de moteur 2. Joint torique
1. Elemento del filtro de aceite de motor
2. Junta tórica
7. Remove the oil filter element cover and oil fil-
ter element.NOTE:_ To remove or install the oil filter element cover and
oil filter element, move the select lever safety sys-
tem cable away from the cover. _CAUTION:_ Do not loosen the adjusting nuts shown when
removing the oil filter element cover or oil filter
element. _8. Clean the oil strainer and oil filter element
with solvent.
9. Check the O-ring for damage and replace it if
necessary.NOTE:_ Make sure the O-ring is seated properly. _
U1P060.book Page 23 Monday, August 2, 2004 12:19 PM

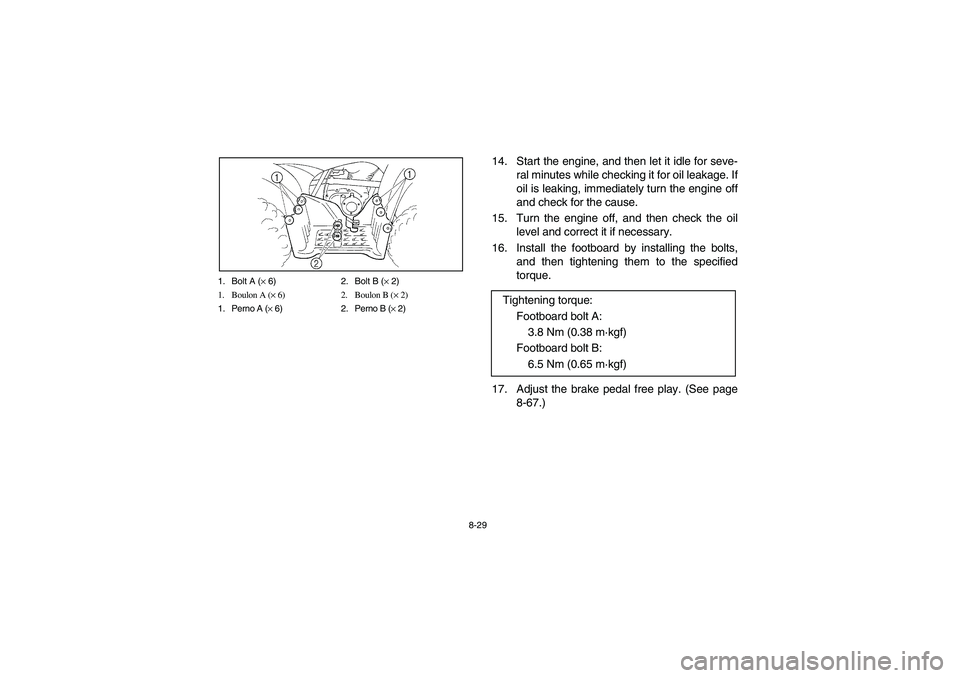

8-29 1. Bolt A (× 6) 2. Bolt B (× 2)
1. Boulon A (× 6) 2. Boulon B (× 2)
1. Perno A (× 6) 2. Perno B (× 2)
14. Start the engine, and then let it idle for seve-
ral minutes while checking it for oil leakage. If
oil is leaking, immediately turn the engine off
and check for the cause.
15. Turn the engine off, and then check the oil
level and correct it if necessary.
16. Install the footboard by installing the bolts,
and then tightening them to the specified
torque.
17. Adjust the brake pedal free play. (See page
8-67.) Tightening torque:
Footboard bolt A:
3.8 Nm (0.38 m·kgf)
Footboard bolt B:
6.5 Nm (0.65 m·kgf)
U1P060.book Page 29 Monday, August 2, 2004 12:19 PM
