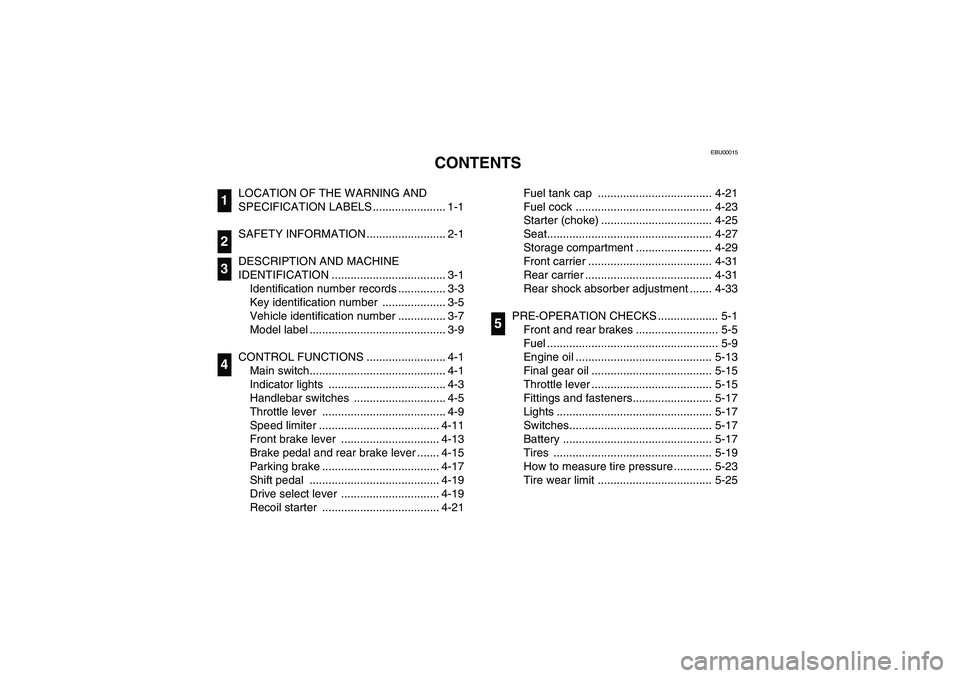

1-CONTENTS
LOCATION OF THE WARNING AND
SPECIFICATION LABELS ....................... 1-1
SAFETY INFORMATION ......................... 2-1
DESCRIPTION AND MACHINE
IDENTIFICATION .................................... 3-1
Identification number records ............... 3-3
Key identification number .................... 3-5
Vehicle identification number ............... 3-7
Model label ........................................... 3-9
CONTROL FUNCTIONS ......................... 4-1
Main switch........................................... 4-1
Indicator lights ..................................... 4-3
Handlebar switches ............................. 4-5
Throttle lever ....................................... 4-9
Speed limiter ...................................... 4-11
Front brake lever ............................... 4-13
Brake pedal and rear brake lever ....... 4-15
Parking brake ..................................... 4-17
Shift pedal ......................................... 4-19
Drive select lever ............................... 4-19
Recoil starter ..................................... 4-21
1234
Fuel tank cap .................................... 4-21
Fuel cock ........................................... 4-23
Starter (choke) ................................... 4-25
Seat.................................................... 4-27
Storage compartment ........................ 4-29
Front carrier ....................................... 4-31
Rear carrier ........................................ 4-31
Rear shock absorber adjustment ....... 4-33
PRE-OPERATION CHECKS ................... 5-1
Front and rear brakes .......................... 5-5
Fuel ...................................................... 5-9
Engine oil ........................................... 5-13
Final gear oil ...................................... 5-15
Throttle lever ...................................... 5-15
Fittings and fasteners......................... 5-17
Lights ................................................. 5-17
Switches............................................. 5-17
Battery ............................................... 5-17
Tires .................................................. 5-19
How to measure tire pressure ............ 5-23
Tire wear limit .................................... 5-25
5
U1P060.book Page 1 Monday, August 2, 2004 12:19 PM

2-17

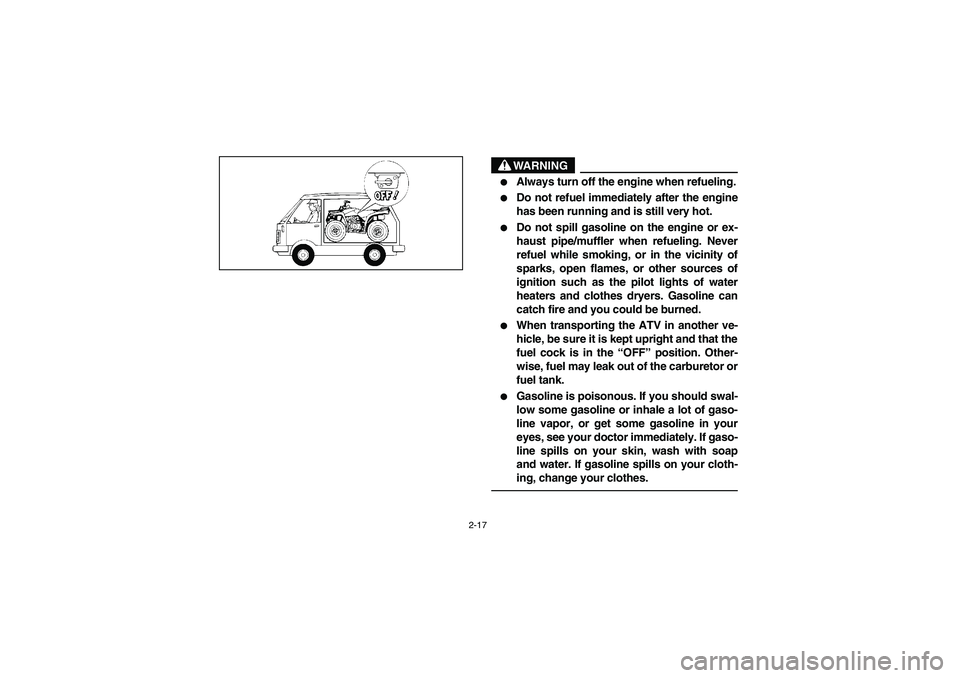

WARNING
_

Always turn off the engine when refueling.


Do not refuel immediately after the engine
has been running and is still very hot.


Do not spill gasoline on the engine or ex-
haust pipe/muffler when refueling. Never
refuel while smoking, or in the vicinity of
sparks, open flames, or other sources of
ignition such as the pilot lights of water
heaters and clothes dryers. Gasoline can
catch fire and you could be burned.


When transporting the ATV in another ve-
hicle, be sure it is kept upright and that the
fuel cock is in the “OFF” position. Other-
wise, fuel may leak out of the carburetor or
fuel tank.


Gasoline is poisonous. If you should swal-
low some gasoline or inhale a lot of gaso-
line vapor, or get some gasoline in your
eyes, see your doctor immediately. If gaso-
line spills on your skin, wash with soap
and water. If gasoline spills on your cloth-
ing, change your clothes.
_
U1P060.book Page 17 Monday, August 2, 2004 12:19 PM

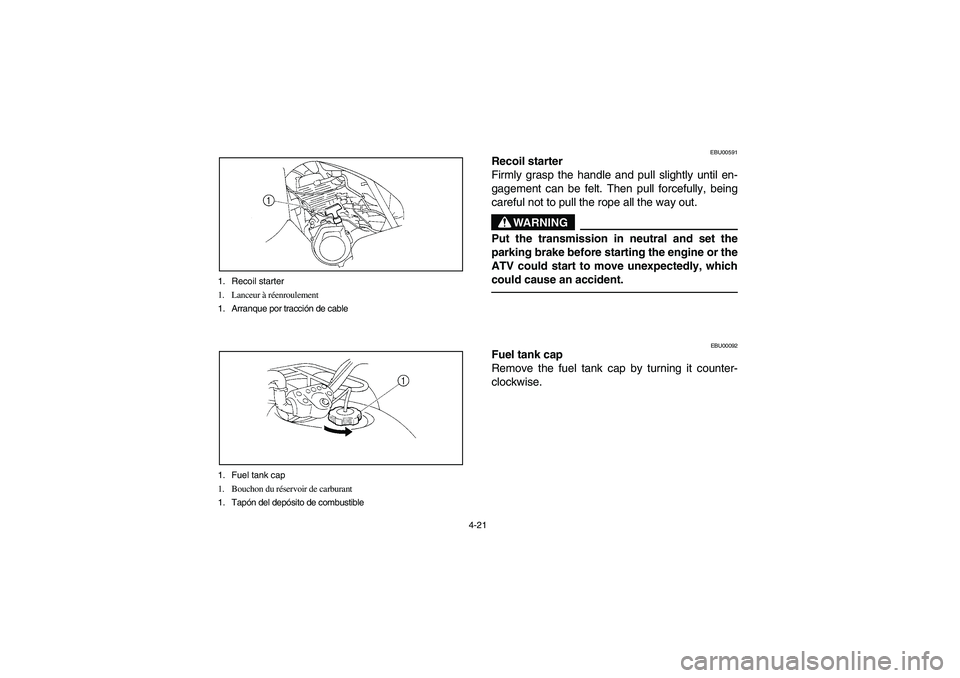

4-21 1. Recoil starter
1. Lanceur à réenroulement
1. Arranque por tracción de cable
1. Fuel tank cap
1. Bouchon du réservoir de carburant
1. Tapón del depósito de combustible
EBU00591
Recoil starter
Firmly grasp the handle and pull slightly until en-
gagement can be felt. Then pull forcefully, being
careful not to pull the rope all the way out.
WARNING
Put the transmission in neutral and set the
parking brake before starting the engine or the
ATV could start to move unexpectedly, which
could cause an accident.
EBU00092
Fuel tank cap
Remove the fuel tank cap by turning it counter-
clockwise.
U1P060.book Page 21 Monday, August 2, 2004 12:19 PM

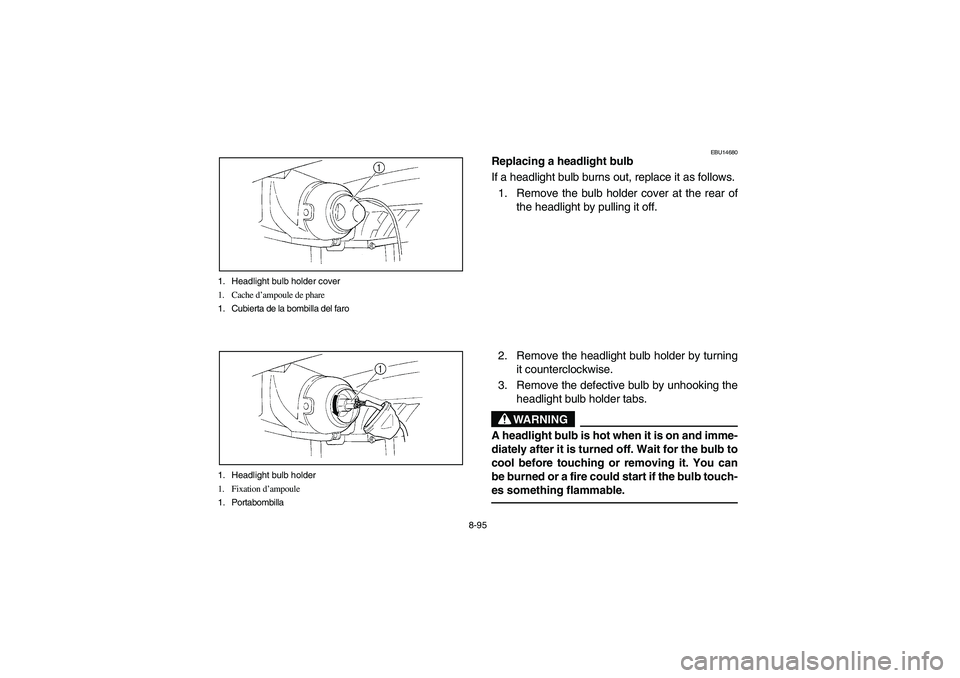

8-95 1. Headlight bulb holder cover
1. Cache d’ampoule de phare
1. Cubierta de la bombilla del faro
1. Headlight bulb holder
1. Fixation d’ampoule
1. Portabombilla
EBU14680
Replacing a headlight bulb
If a headlight bulb burns out, replace it as follows.
1. Remove the bulb holder cover at the rear of
the headlight by pulling it off.
2. Remove the headlight bulb holder by turning
it counterclockwise.
3. Remove the defective bulb by unhooking the
headlight bulb holder tabs.
WARNING
_ A headlight bulb is hot when it is on and imme-
diately after it is turned off. Wait for the bulb to
cool before touching or removing it. You can
be burned or a fire could start if the bulb touch-
es something flammable. _
U1P060.book Page 95 Monday, August 2, 2004 12:19 PM

8-103
EBU00413

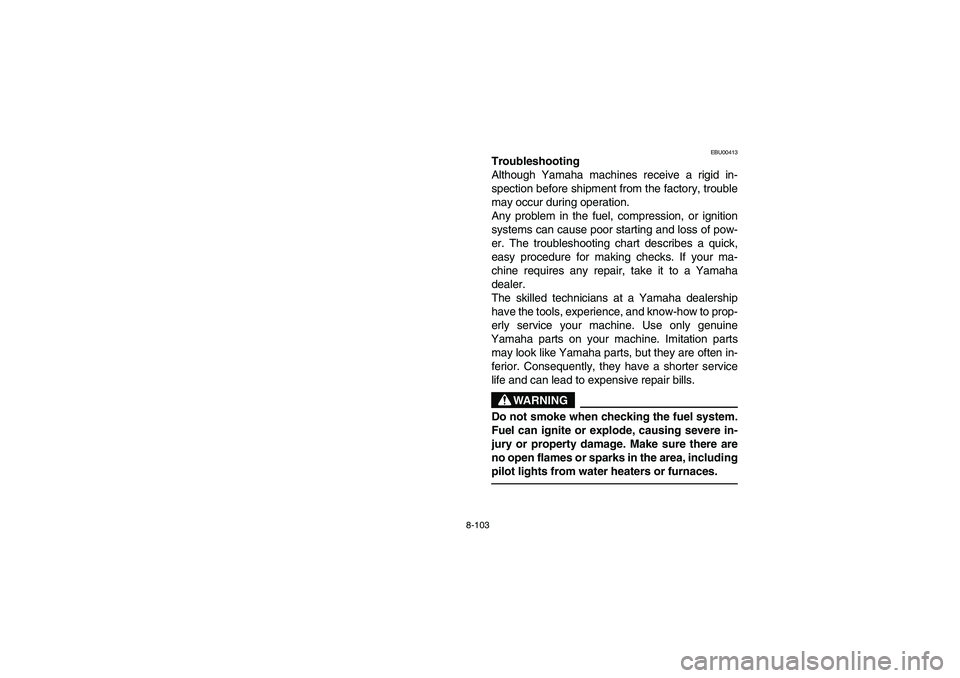

Troubleshooting
Although Yamaha machines receive a rigid in-
spection before shipment from the factory, trouble
may occur during operation.
Any problem in the fuel, compression, or ignition
systems can cause poor starting and loss of pow-
er. The troubleshooting chart describes a quick,
easy procedure for making checks. If your ma-
chine requires any repair, take it to a Yamaha
dealer.
The skilled technicians at a Yamaha dealership
have the tools, experience, and know-how to prop-
erly service your machine. Use only genuine
Yamaha parts on your machine. Imitation parts
may look like Yamaha parts, but they are often in-
ferior. Consequently, they have a shorter service
life and can lead to expensive repair bills.
WARNING
Do not smoke when checking the fuel system.
Fuel can ignite or explode, causing severe in-
jury or property damage. Make sure there are
no open flames or sparks in the area, including
pilot lights from water heaters or furnaces.
U1P060.book Page 103 Monday, August 2, 2004 12:19 PM
