fuel type YAMAHA BRUIN 250 2006 Manuale de Empleo (in Spanish)

10-1
EBU00428
SPECIFICATIONS
Model YFM25BV
Dimension:
Overall length 1,916 mm
Overall width 1,038 mm
Overall height 1,118 mm
Seat height 772 mm
Wheelbase 1,170 mm
Minimum ground clearance 150 mm
Minimum turning radius 2,900 mm
Basic weight:
With oil and full fuel tank 216.0 kg
Noise and vibration level:
Noise level (77/311/EEC) (For Europe) 77.5 dB (A)
Vibration on seat (EN1032, ISO5008)
(For Europe) Will not exceed 0.5 (m/s
2)
Vibration on handlebar (EN1032, ISO5008)
(For Europe) Will not exceed 2.5 (m/s2)
Engine:
Type Air-cooled 4-stroke, SOHC
Cylinder arrangement Forward-inclined single cylinder
Displacement 229.6 cm
3
Bore
× stroke 71.0
× 58.0 mm
Compression ratio 8.70:1
EE.book Page 1 Friday, May 27, 2005 5:00 PM

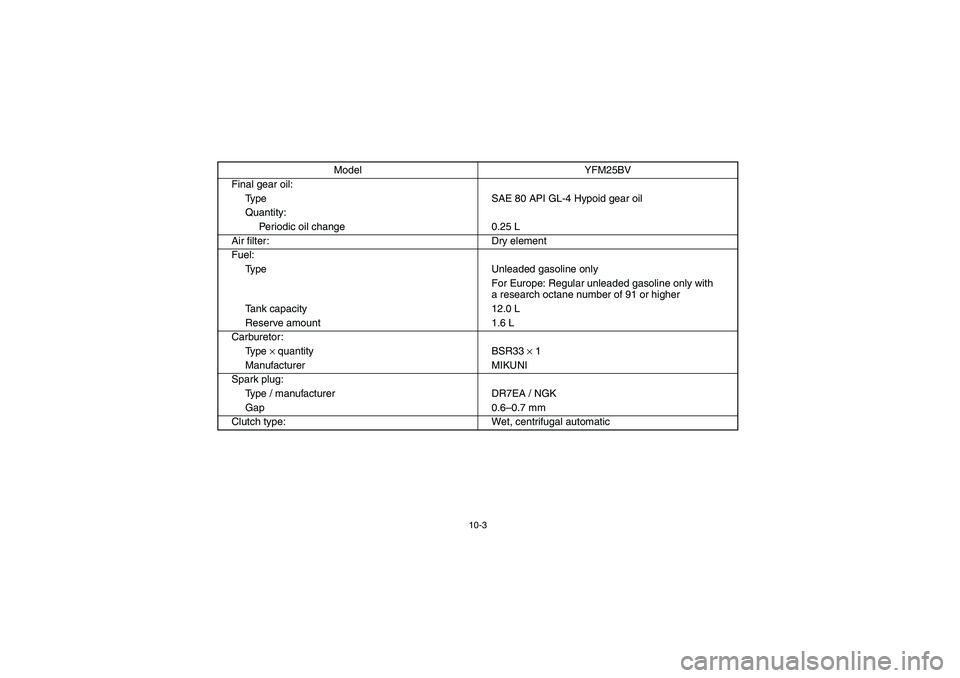

10-3
Final gear oil:
Type SAE 80 API GL-4 Hypoid gear oil
Quantity:
Periodic oil change 0.25 L
Air filter: Dry element
Fuel:
Type Unleaded gasoline only
For Europe: Regular unleaded gasoline only with
a research octane number of 91 or higher
Tank capacity 12.0 L
Reserve amount 1.6 L
Carburetor:
Ty p e
× quantity BSR33
× 1
Manufacturer MIKUNI
Spark plug:
Type / manufacturer DR7EA / NGK
Gap 0.6–0.7 mm
Clutch type: Wet, centrifugal automaticModel YFM25BV
EE.book Page 3 Friday, May 27, 2005 5:00 PM
