brake fluid YAMAHA BRUIN 350 2WD 2005 Manuale de Empleo (in Spanish)

OPERATION ...........................................6-1
Starting a cold engine ...........................6-3
Starting a warm engine .........................6-9
Warming up...........................................6-9
Drive select lever operation and
reverse driving ..................................6-11
Engine break-in ...................................6-15
Parking ................................................6-17
Parking on a slope ..............................6-19
Accessories and loading .....................6-21
RIDING YOUR ATV..................................7-1
Getting to know your ATV .....................7-3
Ride with care and good judgement .....7-5
Be careful where you ride ...................7-27
Turning your ATV ................................7-39
Climbing uphill.....................................7-45
Riding downhill ....................................7-55
Crossing a slope .................................7-59
Crossing through shallow water ..........7-63
Riding over rough terrain ....................7-69
Sliding and skidding ............................7-71
What to do if ........................................7-75
What to do...........................................7-75
67
PERIODIC MAINTENANCE AND
ADJUSTMENT ........................................ 8-1
Owner’s manual and tool kit ................. 8-3
Periodic maintenance/lubrication.......... 8-7
Panel removal and installation............ 8-17
Engine oil and oil filter cartridge ......... 8-21
Final gear oil ....................................... 8-31
Spark plug inspection ......................... 8-39
Air filter element cleaning ................... 8-45
V-belt cooling duct check hose ........... 8-53
V-belt case drain plug ......................... 8-53
Carburetor adjustment ........................ 8-55
Idle speed adjustment ........................ 8-57
Valve clearance adjustment ............... 8-59
Select lever safety system cable
adjustment ........................................ 8-59
Throttle lever adjustment .................... 8-61
Front brake pad check ........................ 8-63
Rear brake shoe inspection ................ 8-63
Brake fluid level check ........................ 8-65
Brake fluid replacement ...................... 8-69
Front brake lever free play.................. 8-71
Rear brake pedal and lever
adjustment ........................................ 8-73
Adjusting the rear brake light
switch ............................................... 8-79
Cable inspection and lubrication......... 8-81
8
EE.book Page 2 Wednesday, April 21, 2004 8:59 AM

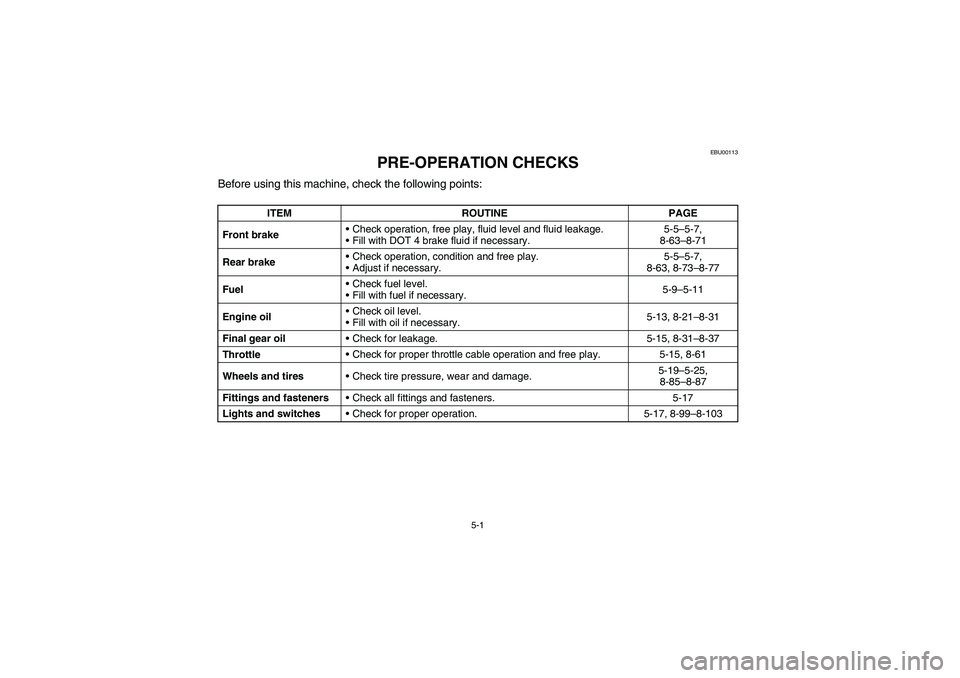

5-1
EBU00113
PRE-OPERATION CHECKS
Before using this machine, check the following points:
ITEM ROUTINE PAGE
Front brakeCheck operation, free play, fluid level and fluid leakage.
Fill with DOT 4 brake fluid if necessary.5-5–5-7,
8-63–8-71
Rear brakeCheck operation, condition and free play.
Adjust if necessary.5-5–5-7,
8-63, 8-73–8-77
FuelCheck fuel level.
Fill with fuel if necessary.5-9–5-11
Engine oilCheck oil level.
Fill with oil if necessary.5-13, 8-21–8-31
Final gear oilCheck for leakage. 5-15, 8-31–8-37
ThrottleCheck for proper throttle cable operation and free play. 5-15, 8-61
Wheels and tiresCheck tire pressure, wear and damage.5-19–5-25,
8-85–8-87
Fittings and fastenersCheck all fittings and fasteners. 5-17
Lights and switchesCheck for proper operation. 5-17, 8-99–8-103
EE.book Page 1 Wednesday, April 21, 2004 8:59 AM

5-5
EBU13151
Front and rear brakes
Brake levers and brake pedal

Check for correct free play in the front brake le-
ver. If the free play is incorrect, have a Yamaha
dealer adjust it.


Check for correct free play in the rear brake le-
ver and brake pedal. If the free play is incorrect,
adjust it. (See pages 8-73–8-77.)


Check the operation of the brake levers and
pedal. They should move smoothly and there
should be a firm feeling when the brakes are
applied. If not, have a Yamaha dealer inspect
the brake system.
Brake fluid level (front brake)
Check the brake fluid level. Add fluid if necessary.
(See pages 8-65–8-69.)
Recommended brake fluid: DOT 4
EE.book Page 5 Wednesday, April 21, 2004 8:59 AM

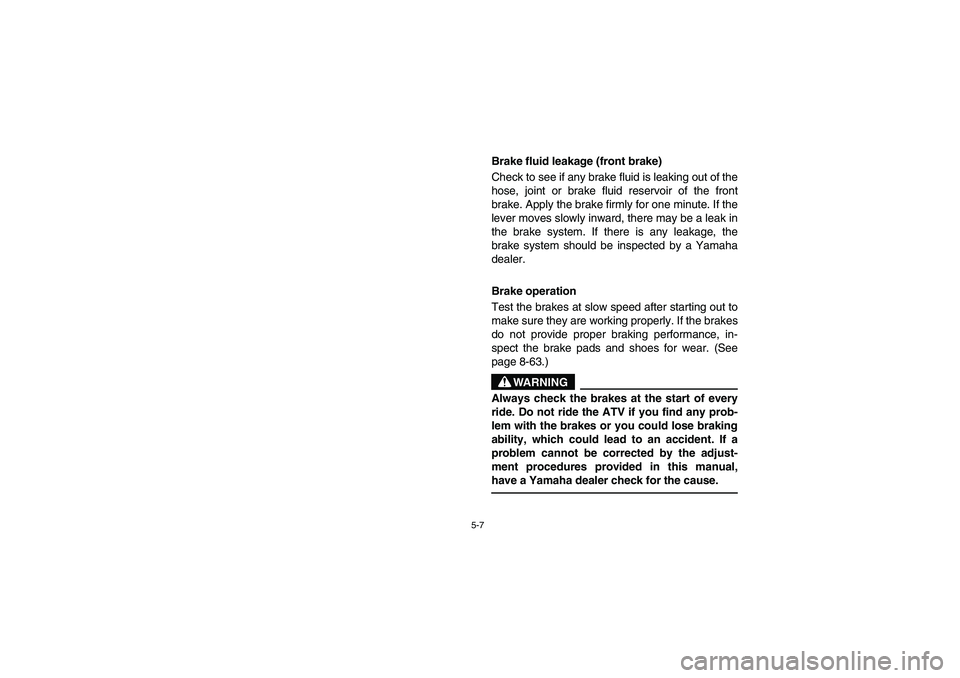

5-7
Brake fluid leakage (front brake)
Check to see if any brake fluid is leaking out of the
hose, joint or brake fluid reservoir of the front
brake. Apply the brake firmly for one minute. If the
lever moves slowly inward, there may be a leak in
the brake system. If there is any leakage, the
brake system should be inspected by a Yamaha
dealer.
Brake operation
Test the brakes at slow speed after starting out to
make sure they are working properly. If the brakes
do not provide proper braking performance, in-
spect the brake pads and shoes for wear. (See
page 8-63.)
WARNING
_ Always check the brakes at the start of every
ride. Do not ride the ATV if you find any prob-
lem with the brakes or you could lose braking
ability, which could lead to an accident. If a
problem cannot be corrected by the adjust-
ment procedures provided in this manual,
have a Yamaha dealer check for the cause. _
EE.book Page 7 Wednesday, April 21, 2004 8:59 AM

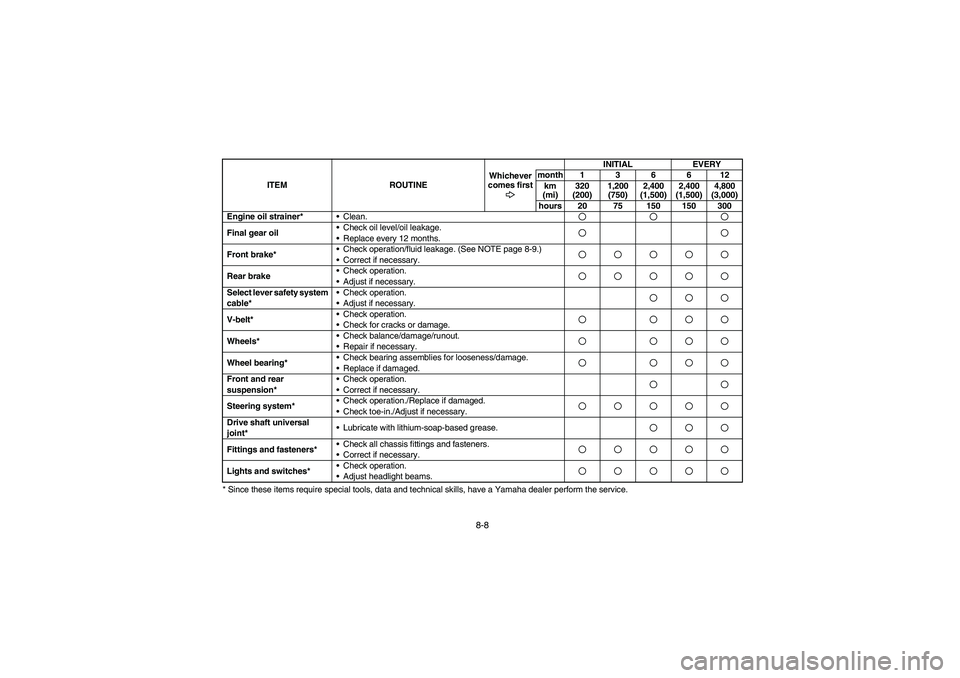

8-8
* Since these items require special tools, data and technical skills, have a Yamaha dealer perform the service.Engine oil strainer*
Clean.Final gear oilCheck oil level/oil leakage.
Replace every 12 months.Front brake*Check operation/fluid leakage. (See NOTE page 8-9.)
Correct if necessary.Rear brakeCheck operation.
Adjust if necessary.Select lever safety system
cable*Check operation.
Adjust if necessary.V-belt*Check operation.
Check for cracks or damage.Wheels*Check balance/damage/runout.
Repair if necessary.Wheel bearing*Check bearing assemblies for looseness/damage.
Replace if damaged.Front and rear
suspension*Check operation.
Correct if necessary.Steering system*Check operation./Replace if damaged.
Check toe-in./Adjust if necessary.Drive shaft universal
joint*Lubricate with lithium-soap-based grease.Fittings and fasteners*Check all chassis fittings and fasteners.
Correct if necessary.Lights and switches*Check operation.
Adjust headlight beams.
ITEM ROUTINEWhichever
comes firstINITIAL EVERY
month136612
km
(mi)320
(200)1,200
(750)2,400
(1,500)2,400
(1,500)4,800
(3,000)
hours 20 75 150 150 300
EE.book Page 8 Wednesday, April 21, 2004 8:59 AM

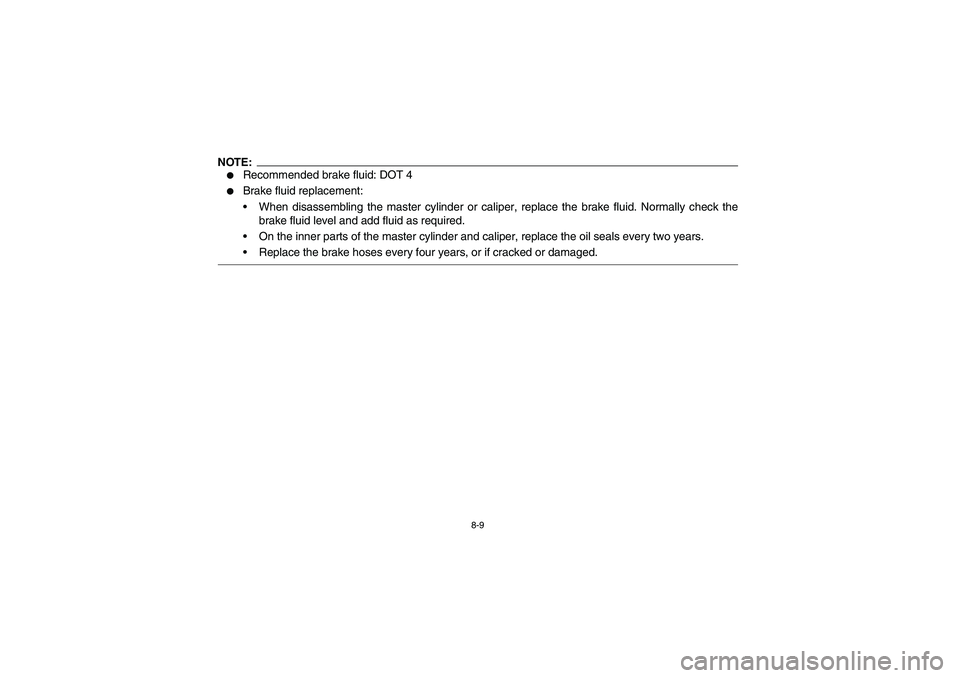

8-9
NOTE:

Recommended brake fluid: DOT 4


Brake fluid replacement:
When disassembling the master cylinder or caliper, replace the brake fluid. Normally check the
brake fluid level and add fluid as required.
On the inner parts of the master cylinder and caliper, replace the oil seals every two years.
Replace the brake hoses every four years, or if cracked or damaged.
EE.book Page 9 Wednesday, April 21, 2004 8:59 AM

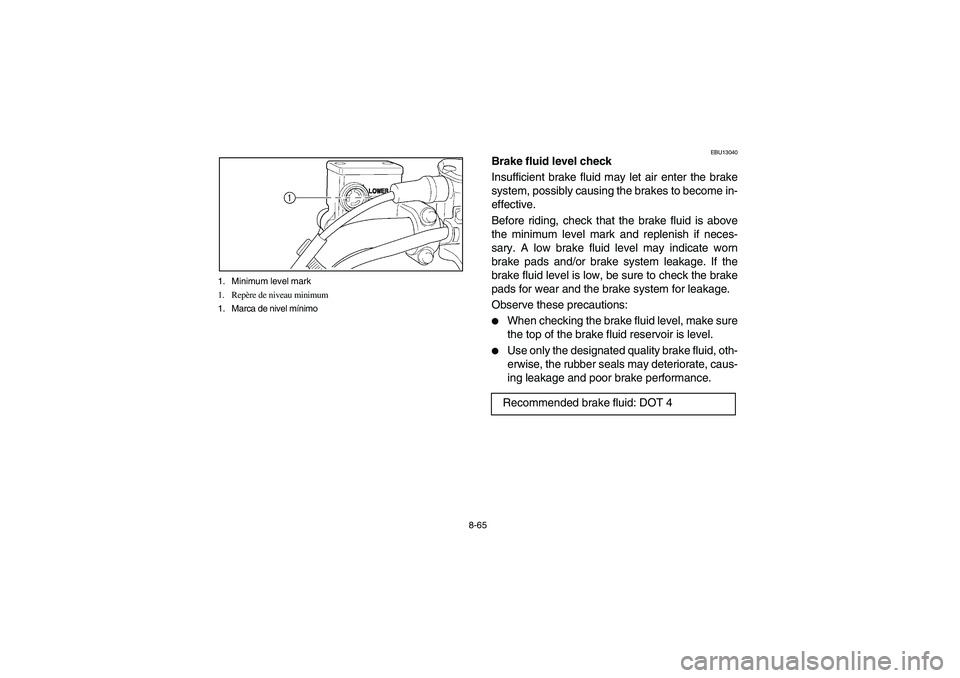

8-65 1. Minimum level mark
1. Repère de niveau minimum
1. Marca de nivel mínimo
EBU13040
Brake fluid level check
Insufficient brake fluid may let air enter the brake
system, possibly causing the brakes to become in-
effective.
Before riding, check that the brake fluid is above
the minimum level mark and replenish if neces-
sary. A low brake fluid level may indicate worn
brake pads and/or brake system leakage. If the
brake fluid level is low, be sure to check the brake
pads for wear and the brake system for leakage.
Observe these precautions:

When checking the brake fluid level, make sure
the top of the brake fluid reservoir is level.


Use only the designated quality brake fluid, oth-
erwise, the rubber seals may deteriorate, caus-
ing leakage and poor brake performance.
Recommended brake fluid: DOT 4
EE.book Page 65 Wednesday, April 21, 2004 8:59 AM

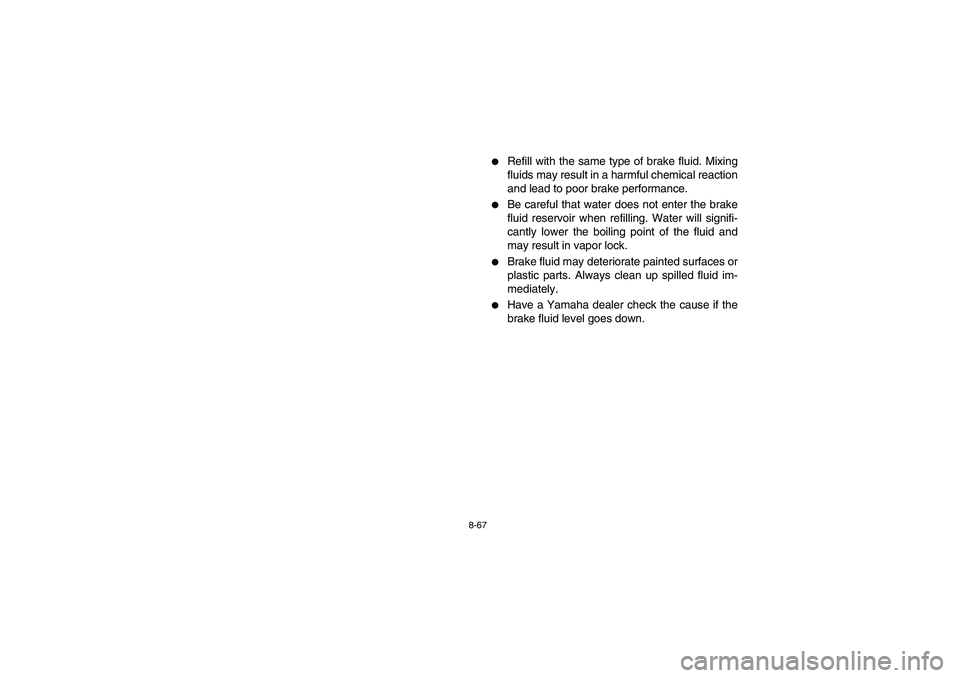

8-67

Refill with the same type of brake fluid. Mixing
fluids may result in a harmful chemical reaction
and lead to poor brake performance.


Be careful that water does not enter the brake
fluid reservoir when refilling. Water will signifi-
cantly lower the boiling point of the fluid and
may result in vapor lock.


Brake fluid may deteriorate painted surfaces or
plastic parts. Always clean up spilled fluid im-
mediately.


Have a Yamaha dealer check the cause if the
brake fluid level goes down.
EE.book Page 67 Wednesday, April 21, 2004 8:59 AM

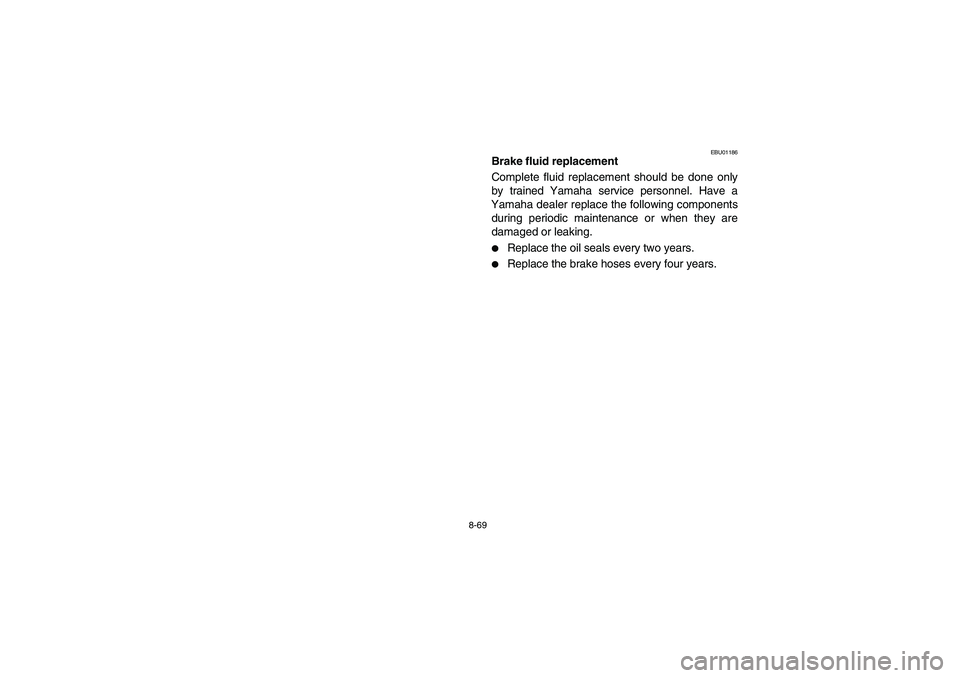

8-69
EBU01186
Brake fluid replacement
Complete fluid replacement should be done only
by trained Yamaha service personnel. Have a
Yamaha dealer replace the following components
during periodic maintenance or when they are
damaged or leaking.

Replace the oil seals every two years.


Replace the brake hoses every four years.
EE.book Page 69 Wednesday, April 21, 2004 8:59 AM
