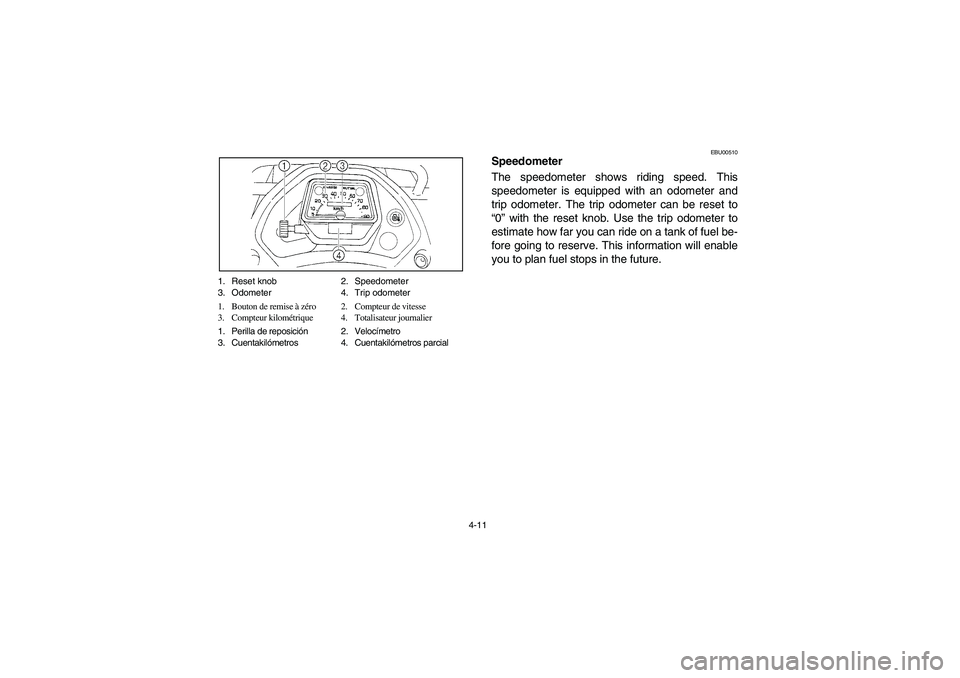

4-11 1. Reset knob 2. Speedometer
3. Odometer 4. Trip odometer
1. Bouton de remise à zéro 2. Compteur de vitesse
3. Compteur kilométrique 4. Totalisateur journalier
1. Perilla de reposición2.Velocímetro
3. Cuentakilómetros 4. Cuentakilómetros parcial
EBU00510
Speedometer
The speedometer shows riding speed. This
speedometer is equipped with an odometer and
trip odometer. The trip odometer can be reset to
“0” with the reset knob. Use the trip odometer to
estimate how far you can ride on a tank of fuel be-
fore going to reserve. This information will enable
you to plan fuel stops in the future.
EE.book Page 11 Wednesday, April 21, 2004 8:59 AM
8-7
EBU02621

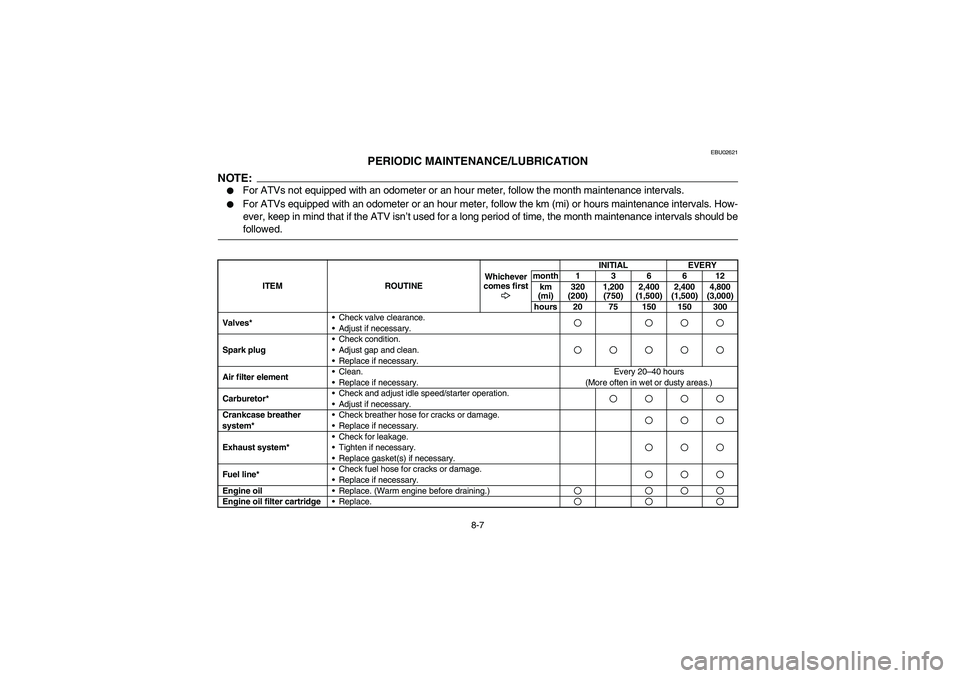

PERIODIC MAINTENANCE/LUBRICATION
NOTE:_
For ATVs not equipped with an odometer or an hour meter, follow the month maintenance intervals.
For ATVs equipped with an odometer or an hour meter, follow the km (mi) or hours maintenance intervals. How-
ever, keep in mind that if the ATV isn’t used for a long period of time, the month maintenance intervals should be
followed.
_
ITEM ROUTINEWhichever
comes firstINITIAL EVERY
month136612
km
(mi)320
(200)1,200
(750)2,400
(1,500)2,400
(1,500)4,800
(3,000)
hours 20 75 150 150 300
Valves*Check valve clearance.
Adjust if necessary.
Spark plugCheck condition.
Adjust gap and clean.
Replace if necessary.Air filter elementClean.
Replace if necessary.Every 20–40 hours
(More often in wet or dusty areas.)
Carburetor*Check and adjust idle speed/starter operation.
Adjust if necessary.Crankcase breather
system*Check breather hose for cracks or damage.
Replace if necessary.Exhaust system*Check for leakage.
Tighten if necessary.
Replace gasket(s) if necessary.Fuel line*Check fuel hose for cracks or damage.
Replace if necessary.Engine oil
Replace. (Warm engine before draining.)Engine oil filter cartridge
Replace.EE.book Page 7 Wednesday, April 21, 2004 8:59 AM
