parking brake YAMAHA BRUIN 350 2WD 2005 Manuale de Empleo (in Spanish)

EBU00015
1-CONTENTS
LOCATION OF THE WARNING AND
SPECIFICATION LABELS ...................... 1-1
SAFETY INFORMATION ......................... 2-1
DESCRIPTION AND MACHINE
IDENTIFICATION ................................... 3-1
Identification number records ............... 3-3
Key identification number ..................... 3-5
Vehicle identification number ............... 3-7
Model label ........................................... 3-9
CONTROL FUNCTIONS ........................ 4-1
Main switch........................................... 4-1
Indicator and warning lights.................. 4-3
Speedometer ...................................... 4-11
Handlebar switches ............................ 4-13
Throttle lever ...................................... 4-17
Speed limiter ...................................... 4-19
Front brake lever ................................ 4-21
Brake pedal and rear brake lever ....... 4-23
Parking brake ..................................... 4-25
Drive select lever ................................ 4-27
Recoil starter ...................................... 4-29
1234
Fuel tank cap ..................................... 4-29
Fuel cock............................................ 4-31
Starter (choke) ................................... 4-33
Seat.................................................... 4-35
Storage box........................................ 4-37
Front carrier ....................................... 4-39
Rear carrier ........................................ 4-39
Front shock absorber adjustment ...... 4-41
Rear shock absorber adjustment ....... 4-43
PRE-OPERATION CHECKS .................. 5-1
Front and rear brakes .......................... 5-5
Fuel ...................................................... 5-9
Engine oil ........................................... 5-13
Final gear oil ...................................... 5-15
Throttle lever ...................................... 5-15
Fittings and fasteners......................... 5-17
Lights ................................................. 5-17
Switches............................................. 5-17
Tires ................................................... 5-19
How to measure tire pressure ............ 5-23
Tire wear limit..................................... 5-25
5
EE.book Page 1 Wednesday, April 21, 2004 8:59 AM

OPERATION ...........................................6-1
Starting a cold engine ...........................6-3
Starting a warm engine .........................6-9
Warming up...........................................6-9
Drive select lever operation and
reverse driving ..................................6-11
Engine break-in ...................................6-15
Parking ................................................6-17
Parking on a slope ..............................6-19
Accessories and loading .....................6-21
RIDING YOUR ATV..................................7-1
Getting to know your ATV .....................7-3
Ride with care and good judgement .....7-5
Be careful where you ride ...................7-27
Turning your ATV ................................7-39
Climbing uphill.....................................7-45
Riding downhill ....................................7-55
Crossing a slope .................................7-59
Crossing through shallow water ..........7-63
Riding over rough terrain ....................7-69
Sliding and skidding ............................7-71
What to do if ........................................7-75
What to do...........................................7-75
67
PERIODIC MAINTENANCE AND
ADJUSTMENT ........................................ 8-1
Owner’s manual and tool kit ................. 8-3
Periodic maintenance/lubrication.......... 8-7
Panel removal and installation............ 8-17
Engine oil and oil filter cartridge ......... 8-21
Final gear oil ....................................... 8-31
Spark plug inspection ......................... 8-39
Air filter element cleaning ................... 8-45
V-belt cooling duct check hose ........... 8-53
V-belt case drain plug ......................... 8-53
Carburetor adjustment ........................ 8-55
Idle speed adjustment ........................ 8-57
Valve clearance adjustment ............... 8-59
Select lever safety system cable
adjustment ........................................ 8-59
Throttle lever adjustment .................... 8-61
Front brake pad check ........................ 8-63
Rear brake shoe inspection ................ 8-63
Brake fluid level check ........................ 8-65
Brake fluid replacement ...................... 8-69
Front brake lever free play.................. 8-71
Rear brake pedal and lever
adjustment ........................................ 8-73
Adjusting the rear brake light
switch ............................................... 8-79
Cable inspection and lubrication......... 8-81
8
EE.book Page 2 Wednesday, April 21, 2004 8:59 AM

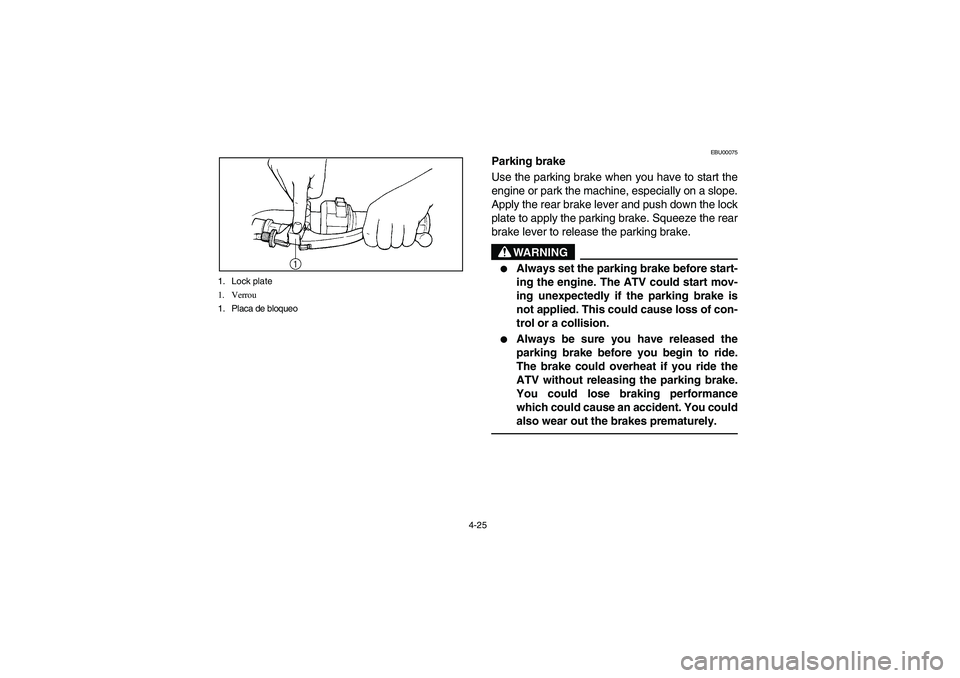

4-25 1. Lock plate
1. Verrou
1. Placa de bloqueo
EBU00075
Parking brake
Use the parking brake when you have to start the
engine or park the machine, especially on a slope.
Apply the rear brake lever and push down the lock
plate to apply the parking brake. Squeeze the rear
brake lever to release the parking brake.
WARNING
_

Always set the parking brake before start-
ing the engine. The ATV could start mov-
ing unexpectedly if the parking brake is
not applied. This could cause loss of con-
trol or a collision.


Always be sure you have released the
parking brake before you begin to ride.
The brake could overheat if you ride the
ATV without releasing the parking brake.
You could lose braking performance
which could cause an accident. You could
also wear out the brakes prematurely.
_
EE.book Page 25 Wednesday, April 21, 2004 8:59 AM

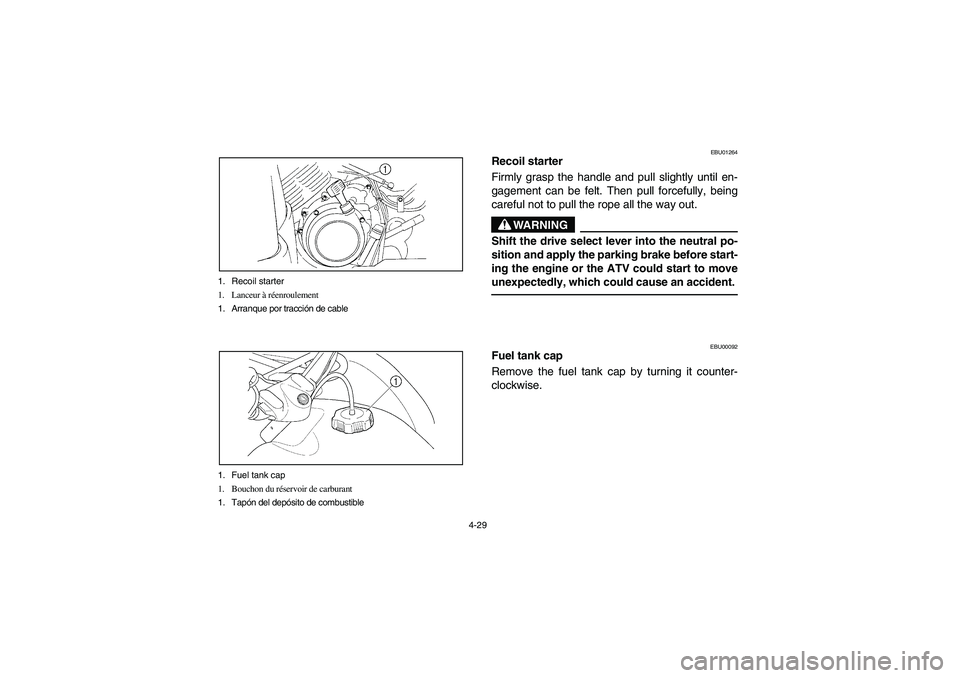

4-29 1. Recoil starter
1. Lanceur à réenroulement
1. Arranque por tracción de cable
1. Fuel tank cap
1. Bouchon du réservoir de carburant
1. Tapón del depósito de combustible
EBU01264
Recoil starter
Firmly grasp the handle and pull slightly until en-
gagement can be felt. Then pull forcefully, being
careful not to pull the rope all the way out.
WARNING
_ Shift the drive select lever into the neutral po-
sition and apply the parking brake before start-
ing the engine or the ATV could start to move
unexpectedly, which could cause an accident. _
EBU00092
Fuel tank cap
Remove the fuel tank cap by turning it counter-
clockwise.
EE.book Page 29 Wednesday, April 21, 2004 8:59 AM

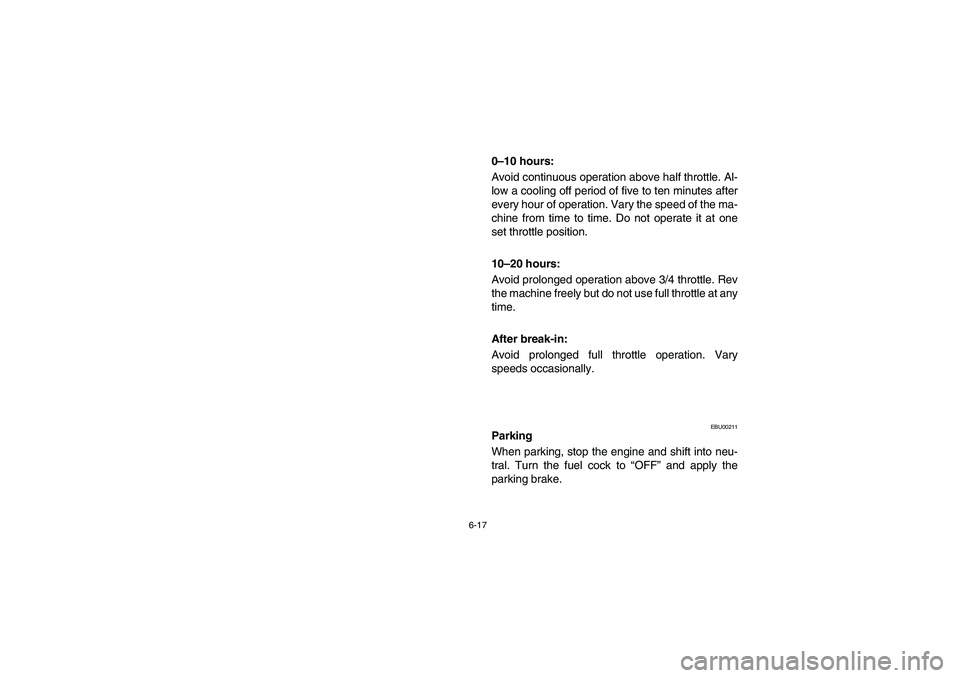

6-17
0–10 hours:
Avoid continuous operation above half throttle. Al-
low a cooling off period of five to ten minutes after
every hour of operation. Vary the speed of the ma-
chine from time to time. Do not operate it at one
set throttle position.
10–20 hours:
Avoid prolonged operation above 3/4 throttle. Rev
the machine freely but do not use full throttle at any
time.
After break-in:
Avoid prolonged full throttle operation. Vary
speeds occasionally.
EBU00211
Parking
When parking, stop the engine and shift into neu-
tral. Turn the fuel cock to “OFF” and apply the
parking brake.
EE.book Page 17 Wednesday, April 21, 2004 8:59 AM

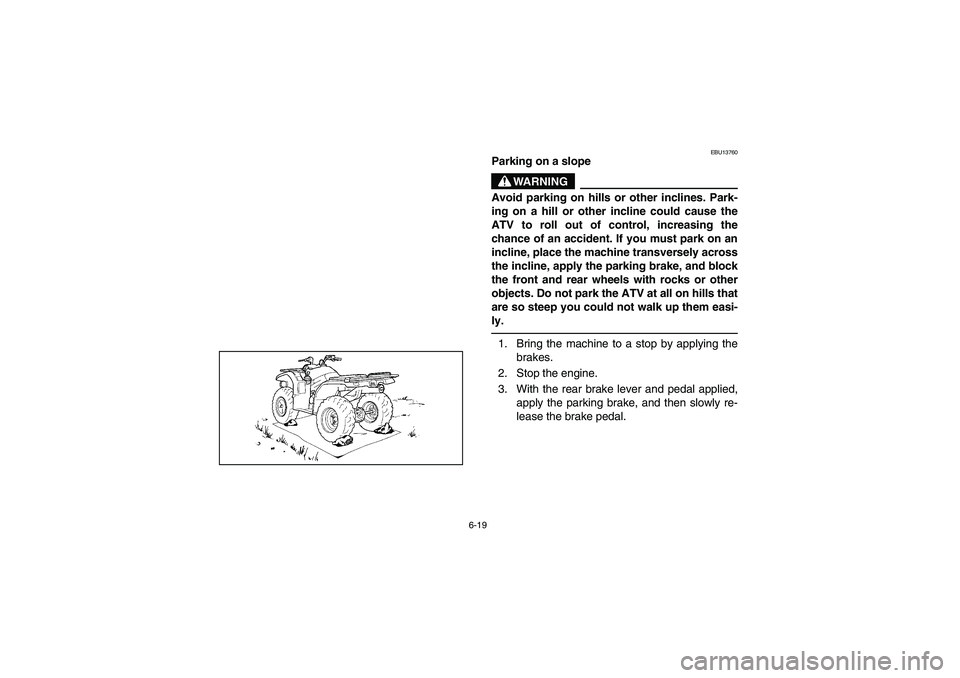

6-19
EBU13760
Parking on a slope
WARNING
_ Avoid parking on hills or other inclines. Park-
ing on a hill or other incline could cause the
ATV to roll out of control, increasing the
chance of an accident. If you must park on an
incline, place the machine transversely across
the incline, apply the parking brake, and block
the front and rear wheels with rocks or other
objects. Do not park the ATV at all on hills that
are so steep you could not walk up them easi-
ly. _1. Bring the machine to a stop by applying the
brakes.
2. Stop the engine.
3. With the rear brake lever and pedal applied,
apply the parking brake, and then slowly re-
lease the brake pedal.
EE.book Page 19 Wednesday, April 21, 2004 8:59 AM

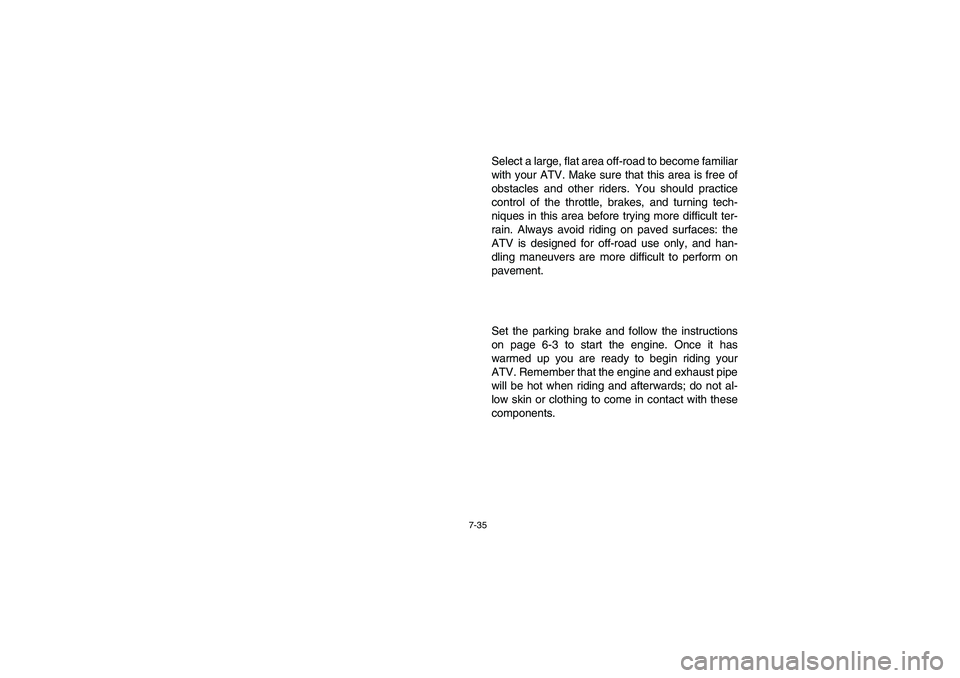

7-35
Select a large, flat area off-road to become familiar
with your ATV. Make sure that this area is free of
obstacles and other riders. You should practice
control of the throttle, brakes, and turning tech-
niques in this area before trying more difficult ter-
rain. Always avoid riding on paved surfaces: the
ATV is designed for off-road use only, and han-
dling maneuvers are more difficult to perform on
pavement.
Set the parking brake and follow the instructions
on page 6-3 to start the engine. Once it has
warmed up you are ready to begin riding your
ATV. Remember that the engine and exhaust pipe
will be hot when riding and afterwards; do not al-
low skin or clothing to come in contact with these
components.
EE.book Page 35 Wednesday, April 21, 2004 8:59 AM

7-37
With the engine idling, return the starter (choke) to
the closed position and shift the drive select lever
into the forward position, then release the parking
brake. Apply the throttle slowly and smoothly. The
centrifugal clutch will engage and you will start to
accelerate. If the throttle is applied too abruptly,
the front wheels may lift off the ground resulting in
a loss of directional control. Avoid higher speeds
until you are thoroughly familiar with the operation
of your ATV.
When slowing down or stopping, release the throt-
tle and apply the brakes smoothly and evenly. Im-
proper use of the brakes can cause the tires to
lose traction, reducing control and increasing the
possibility of an accident.
EE.book Page 37 Wednesday, April 21, 2004 8:59 AM

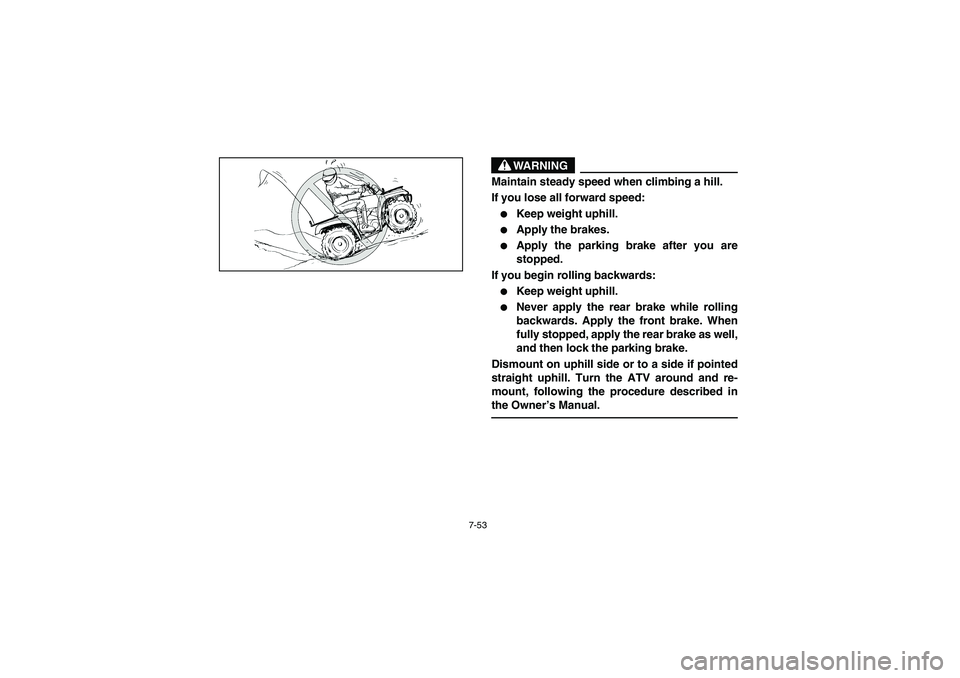

7-53
WARNING
_ Maintain steady speed when climbing a hill.
If you lose all forward speed:

Keep weight uphill.


Apply the brakes.


Apply the parking brake after you are
stopped.
If you begin rolling backwards:


Keep weight uphill.


Never apply the rear brake while rolling
backwards. Apply the front brake. When
fully stopped, apply the rear brake as well,
and then lock the parking brake.
Dismount on uphill side or to a side if pointed
straight uphill. Turn the ATV around and re-
mount, following the procedure described in
the Owner’s Manual.
_
EE.book Page 53 Wednesday, April 21, 2004 8:59 AM
