fuse box YAMAHA BRUIN 350 2WD 2005 Notices Demploi (in French)

3-1
EBU00032
DESCRIPTION AND MACHINE
IDENTIFICATION1. Rear shock absorber
assembly spring preload
adjusting ring
2. Storage box and tool kit
3. Spark plug
4. Front shock absorber
assembly spring preload
adjusting ring
5. Brake pedal
6. V-belt case
7. Fuel cock
8. Air filter case
9. Fuses
10. Tail/brake light
11. Front shock absorber
assembly spring preload
adjusting ring
12. V-belt cooling duct check
hose
13. Oil filter cartridge14. Engine oil dipstick
15. Rear brake lever
16. Left handlebar switches
17. Starter (choke)
18. Horn switch
19. Drive select lever
20. Speedometer
21. Main switch
22. Fuel tank cap
23. Throttle lever
24. Front brake leverNOTE:The machine you have purchased may differ
slightly from those shown in the figures of this
manual.
EE.book Page 1 Wednesday, April 21, 2004 8:59 AM

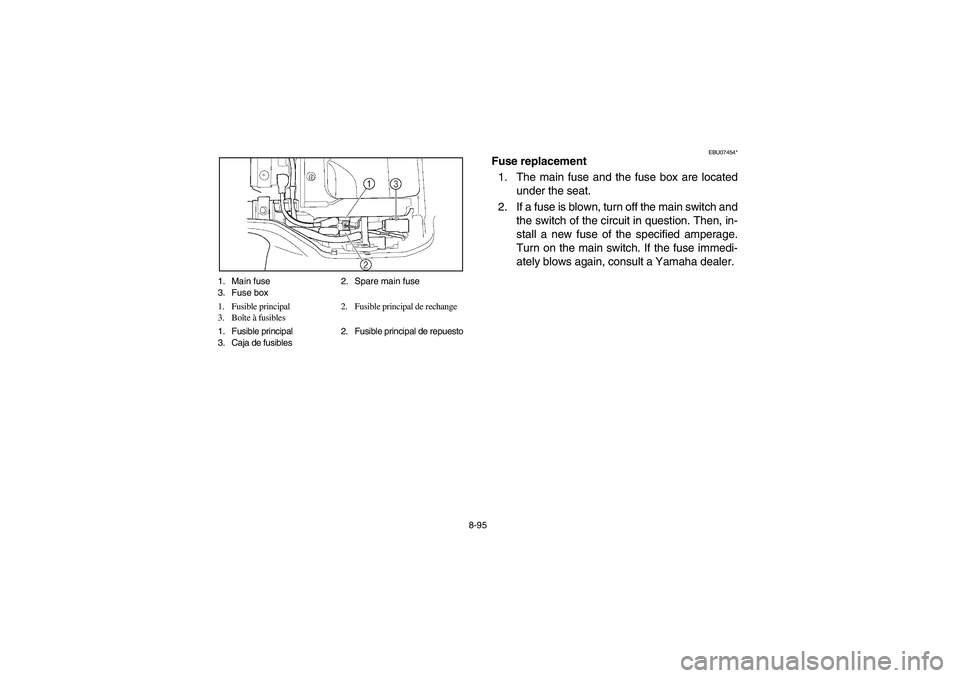

8-95 1. Main fuse 2. Spare main fuse
3. Fuse box
1. Fusible principal 2. Fusible principal de rechange
3. Boîte à fusibles
1. Fusible principal 2. Fusible principal de repuesto
3. Caja de fusibles
EBU07454*
Fuse replacement
1. The main fuse and the fuse box are located
under the seat.
2. If a fuse is blown, turn off the main switch and
the switch of the circuit in question. Then, in-
stall a new fuse of the specified amperage.
Turn on the main switch. If the fuse immedi-
ately blows again, consult a Yamaha dealer.
