drain bolt YAMAHA BRUIN 350 2WD 2005 Owners Manual

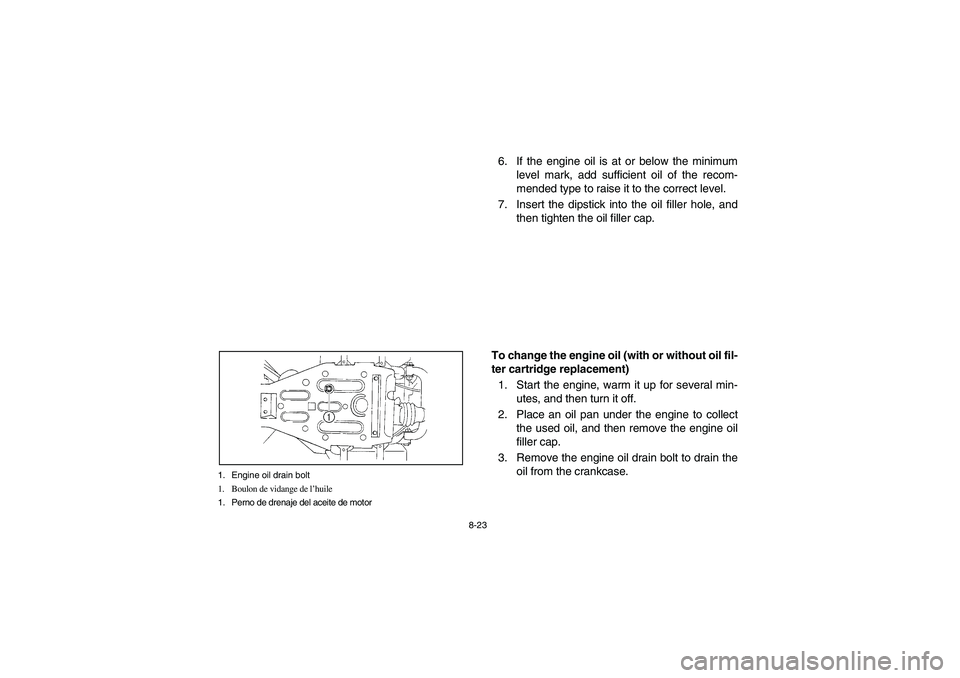

8-23 1. Engine oil drain bolt
1. Boulon de vidange de l’huile
1. Perno de drenaje del aceite de motor
6. If the engine oil is at or below the minimum
level mark, add sufficient oil of the recom-
mended type to raise it to the correct level.
7. Insert the dipstick into the oil filler hole, and
then tighten the oil filler cap.
To change the engine oil (with or without oil fil-
ter cartridge replacement)
1. Start the engine, warm it up for several min-
utes, and then turn it off.
2. Place an oil pan under the engine to collect
the used oil, and then remove the engine oil
filler cap.
3. Remove the engine oil drain bolt to drain the
oil from the crankcase.
EE.book Page 23 Wednesday, April 21, 2004 8:59 AM

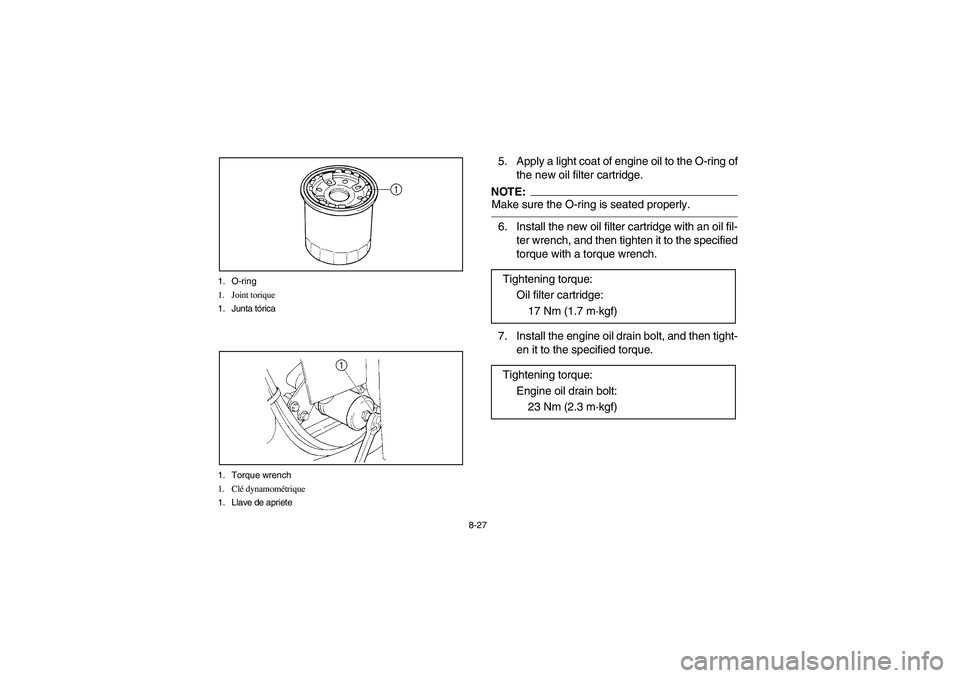

8-27 1. O-ring
1. Joint torique
1. Junta tórica
1. Torque wrench
1. Clé dynamométrique
1. Llave de apriete
5. Apply a light coat of engine oil to the O-ring of
the new oil filter cartridge.NOTE:_ Make sure the O-ring is seated properly. _6. Install the new oil filter cartridge with an oil fil-
ter wrench, and then tighten it to the specified
torque with a torque wrench.
7. Install the engine oil drain bolt, and then tight-
en it to the specified torque. Tightening torque:
Oil filter cartridge:
17 Nm (1.7 m·kgf)
Tightening torque:
Engine oil drain bolt:
23 Nm (2.3 m·kgf)
EE.book Page 27 Wednesday, April 21, 2004 8:59 AM

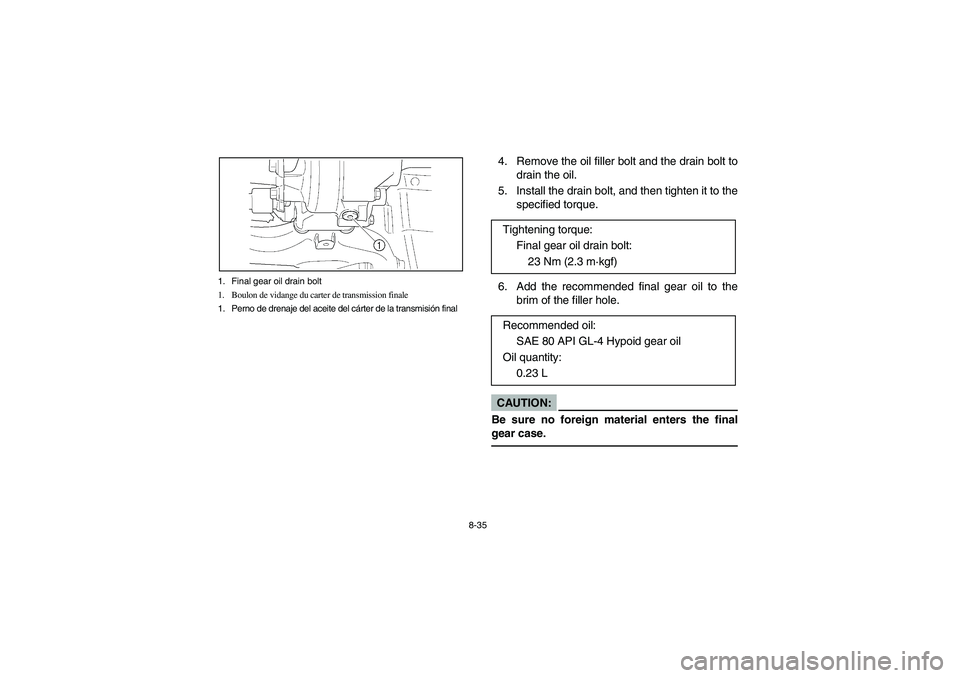

8-35 1. Final gear oil drain bolt
1. Boulon de vidange du carter de transmission finale
1. Perno de drenaje del aceite del cárter de la transmisión final
4. Remove the oil filler bolt and the drain bolt to
drain the oil.
5. Install the drain bolt, and then tighten it to the
specified torque.
6. Add the recommended final gear oil to the
brim of the filler hole.CAUTION:_ Be sure no foreign material enters the final
gear case. _
Tightening torque:
Final gear oil drain bolt:
23 Nm (2.3 m·kgf)
Recommended oil:
SAE 80 API GL-4 Hypoid gear oil
Oil quantity:
0.23 L
