headlights YAMAHA BRUIN 350 2WD 2005 Owners Manual

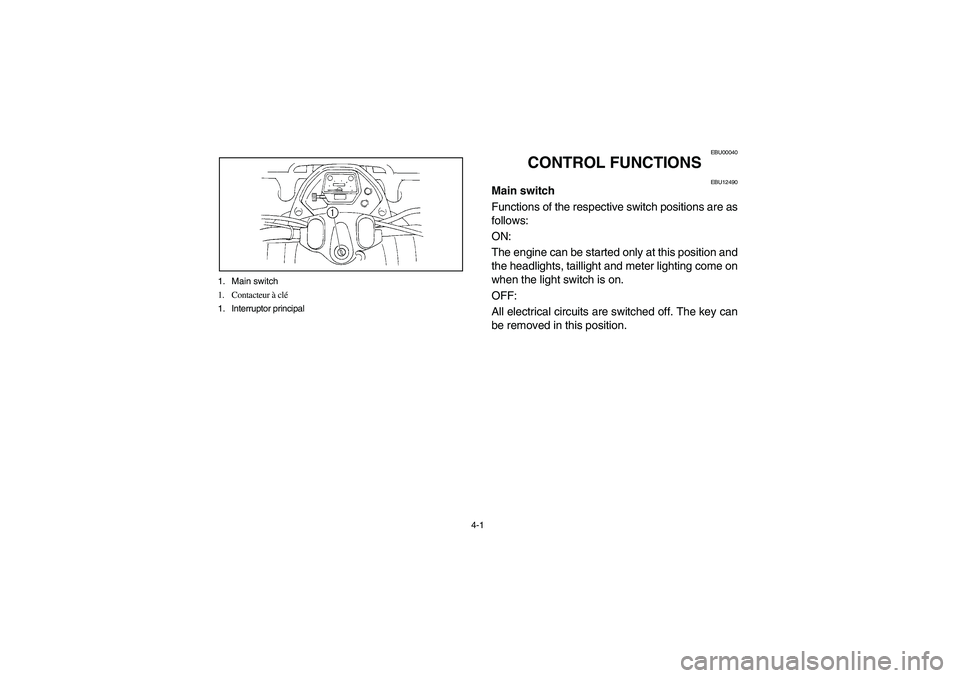

4-1 1. Main switch
1. Contacteur à clé
1. Interruptor principal
EBU00040
CONTROL FUNCTIONS
EBU12490
Main switch
Functions of the respective switch positions are as
follows:
ON:
The engine can be started only at this position and
the headlights, taillight and meter lighting come on
when the light switch is on.
OFF:
All electrical circuits are switched off. The key can
be removed in this position.
EE.book Page 1 Wednesday, April 21, 2004 8:59 AM

4-13 1. Light switch “//OFF”
2. Engine stop switch “/”
3. Start switch “”
4. Horn switch “”
1. Contacteur d’éclairage “//OFF”
2. Coupe-circuit du moteur “/”
3. Contacteur du démarreur “”
4. Contacteur de l’avertisseur “”
1. Interruptor de las luces “//OFF”
2. Interruptor de paro del motor “/”
3. Interruptor de arranque “”
4. Interruptor de la bocina “”
EBU00053
Handlebar switches
EBU12510
Light switch “/ /OFF”
Set the switch to “” to turn on the low beams,
the taillight and the meter lighting.
Set the switch to “” to turn on the high beams,
the taillight and the meter lighting.
Set the switch to “OFF” to turn off all the lights.CAUTION:_ Do not use the headlights with the engine
turned off for more than thirty minutes. The
battery may discharge to the point that the
starter motor will not operate properly. If this
should happen, remove the battery and re-
charge it. _
EE.book Page 13 Wednesday, April 21, 2004 8:59 AM

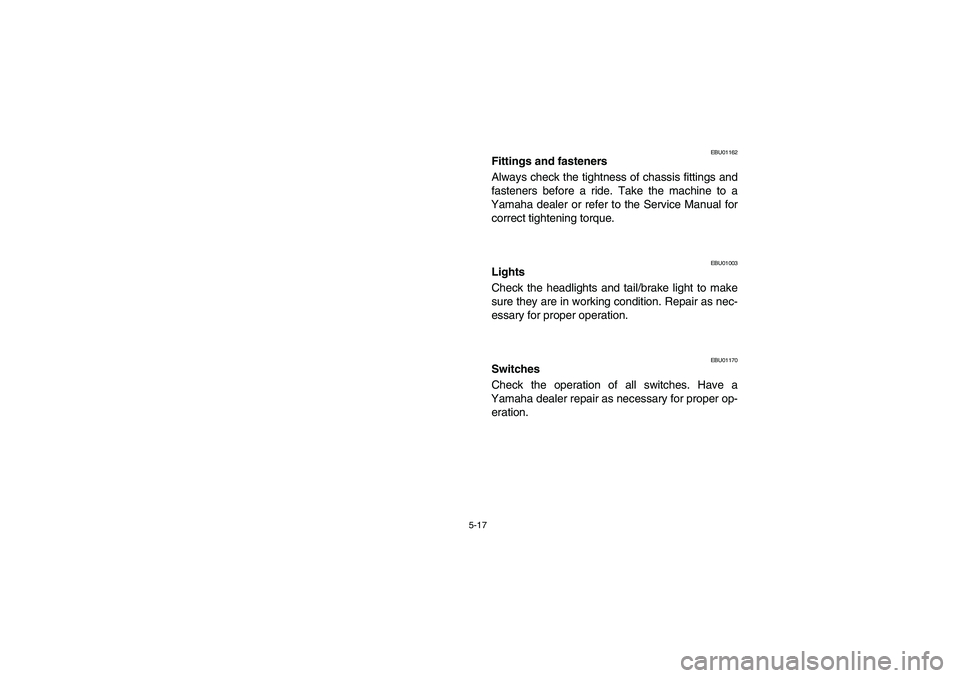

5-17
EBU01162
Fittings and fasteners
Always check the tightness of chassis fittings and
fasteners before a ride. Take the machine to a
Yamaha dealer or refer to the Service Manual for
correct tightening torque.
EBU01003
Lights
Check the headlights and tail/brake light to make
sure they are in working condition. Repair as nec-
essary for proper operation.
EBU01170
Switches
Check the operation of all switches. Have a
Yamaha dealer repair as necessary for proper op-
eration.
EE.book Page 17 Wednesday, April 21, 2004 8:59 AM
