YAMAHA BT1100 2002 User Guide

78910
1211
DESCRIPTIONEAU00026
2-2
2
7. Fuse box (page 6-28)
8. Battery (page 6-26)
9. Helmet holders (page 3-14)
10. Air filter element (page 6-10)
11. Engine oil filter element (page 6-6)
12. Brake pedal (page 3-10)
Right view

22
0 20
01
80 160 14
0
12
0
1
0080
604020k
m
/
h345
6
7
2
1
0
3456721
8
DESCRIPTIONEAU00026
2-3
2

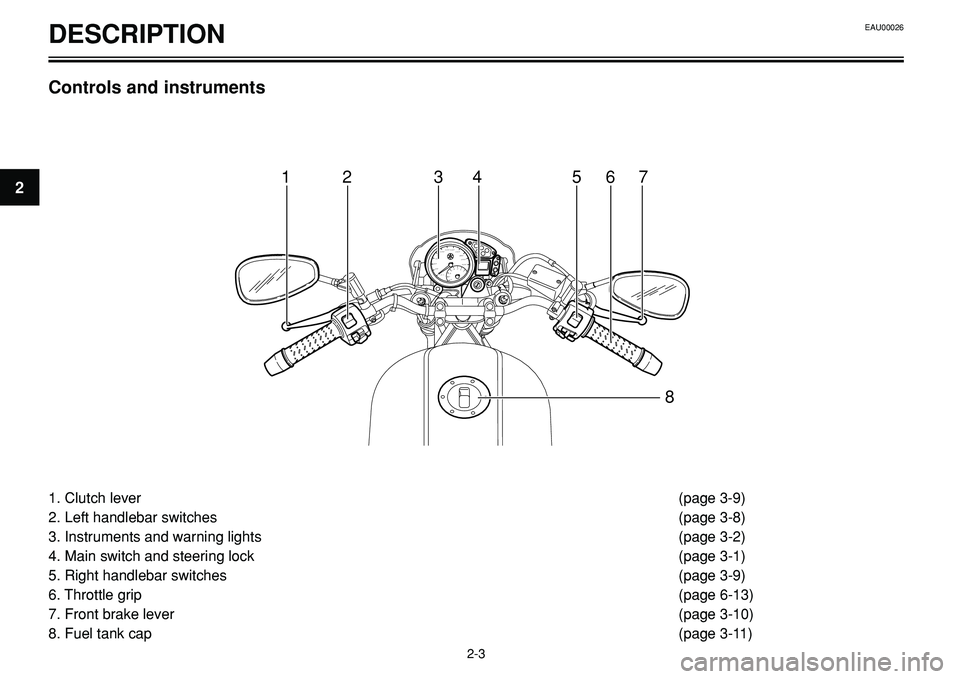

1. Clutch lever (page 3-9)
2. Left handlebar switches (page 3-8)
3. Instruments and warning lights (page 3-2)
4. Main switch and steering lock (page 3-1)
5. Right handlebar switches (page 3-9)
6. Throttle grip (page 6-13)
7. Front brake lever (page 3-10)
8. Fuel tank cap (page 3-11)
Controls and instruments

3

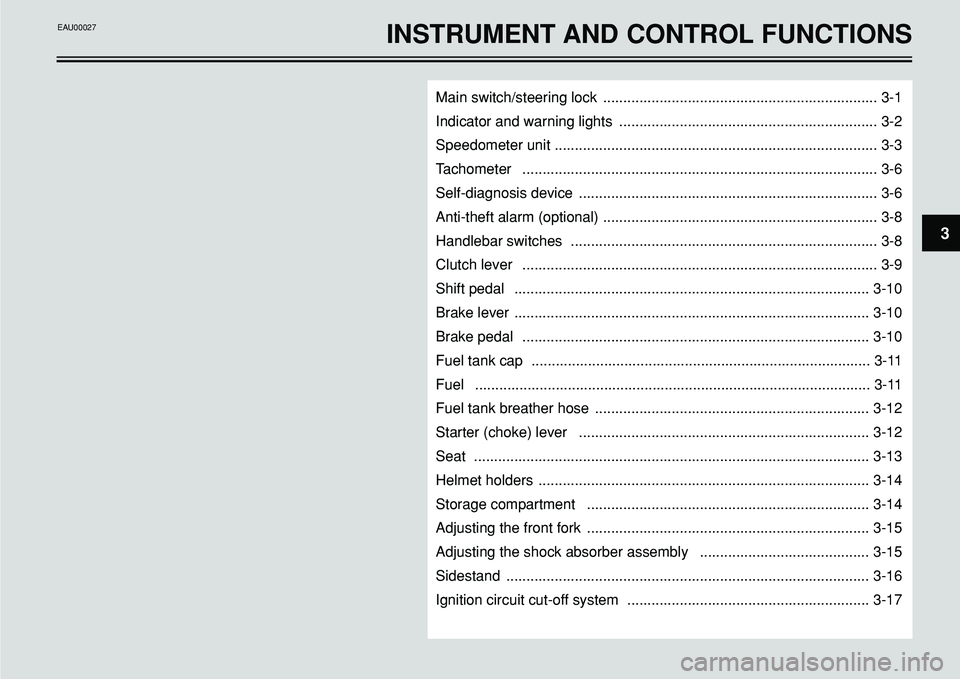

Main switch/steering lock .................................................................... 3-1
Indicator and warning lights ................................................................ 3-2
Speedometer unit ................................................................................ 3-3
Tachometer ........................................................................................ 3-6
Self-diagnosis device .......................................................................... 3-6
Anti-theft alarm (optional) .................................................................... 3-8
Handlebar switches ............................................................................ 3-8
Clutch lever ........................................................................................ 3-9
Shift pedal ........................................................................................ 3-10
Brake lever ........................................................................................ 3-10
Brake pedal ...................................................................................... 3-10
Fuel tank cap .................................................................................... 3-11
Fuel .................................................................................................. 3-11
Fuel tank breather hose .................................................................... 3-12
Starter (choke) lever ........................................................................ 3-12
Seat .................................................................................................. 3-13
Helmet holders .................................................................................. 3-14
Storage compartment ...................................................................... 3-14
Adjusting the front fork ...................................................................... 3-15
Adjusting the shock absorber assembly .......................................... 3-15
Sidestand .......................................................................................... 3-16
Ignition circuit cut-off system ............................................................ 3-17
INSTRUMENT AND CONTROL FUNCTIONSEAU00027

LOCK
POFF
ON PUSH
12
EAU00029

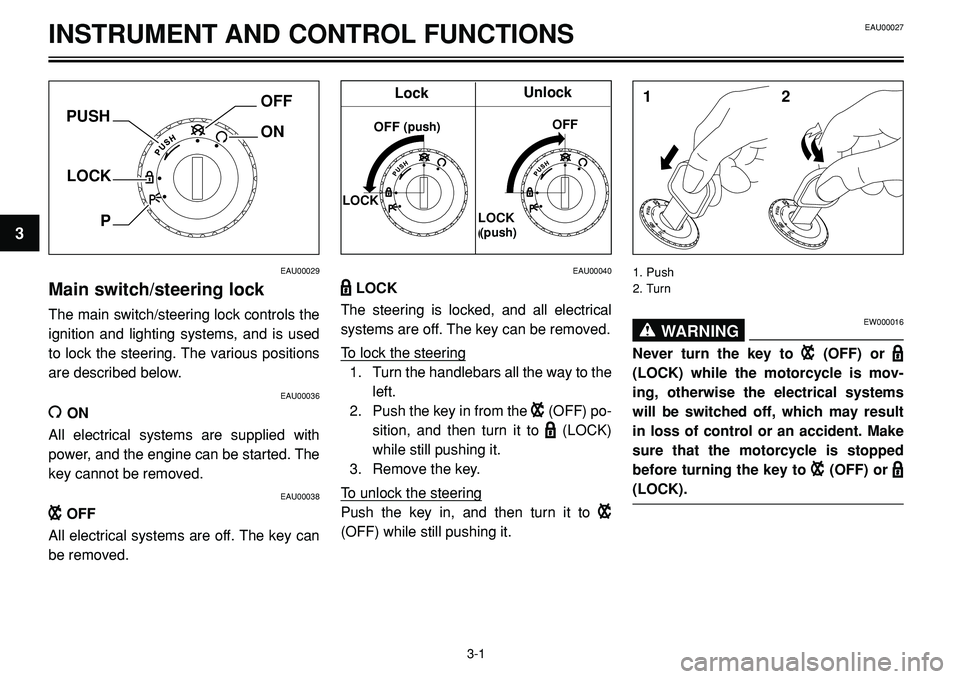

Main switch/steering lock
The main switch/steering lock controls the
ignition and lighting systems, and is used
to lock the steering. The various positions
are described below.
EAU00036
ION
All electrical systems are supplied with
power, and the engine can be started. The
key cannot be removed.
EAU00038
BOFF
All electrical systems are off. The key can
be removed.
EAU00040
DLOCK
The steering is locked, and all electrical
systems are off. The key can be removed.
To lock the steering
1. Turn the handlebars all the way to the
left.
2. Push the key in from the
B(OFF) po-
sition, and then turn it to
D(LOCK)
while still pushing it.
3. Remove the key.
To unlock the steering
Push the key in, and then turn it to
B
(OFF) while still pushing it.
1. Push
2. Turn
EAU00027
3-1
3
INSTRUMENT AND CONTROL FUNCTIONS
EW000016WARNING0
Never turn the key to B(OFF) or D
(LOCK) while the motorcycle is mov-
ing, otherwise the electrical systems
will be switched off, which may result
in loss of control or an accident. Make
sure that the motorcycle is stopped
before turning the key to
B(OFF) orD
(LOCK).
LOCKOFF (Premere)
Bloccare Sbloccare

LOCK
(Premere)OFF

Lock
(push)
Unlock
(push)

INSTRUMENT AND CONTROL FUNCTIONS
220 200 180 160 140 120
100
80
60
40
20
km/h345
6
7
2
1
0
N
34 512EAU01590

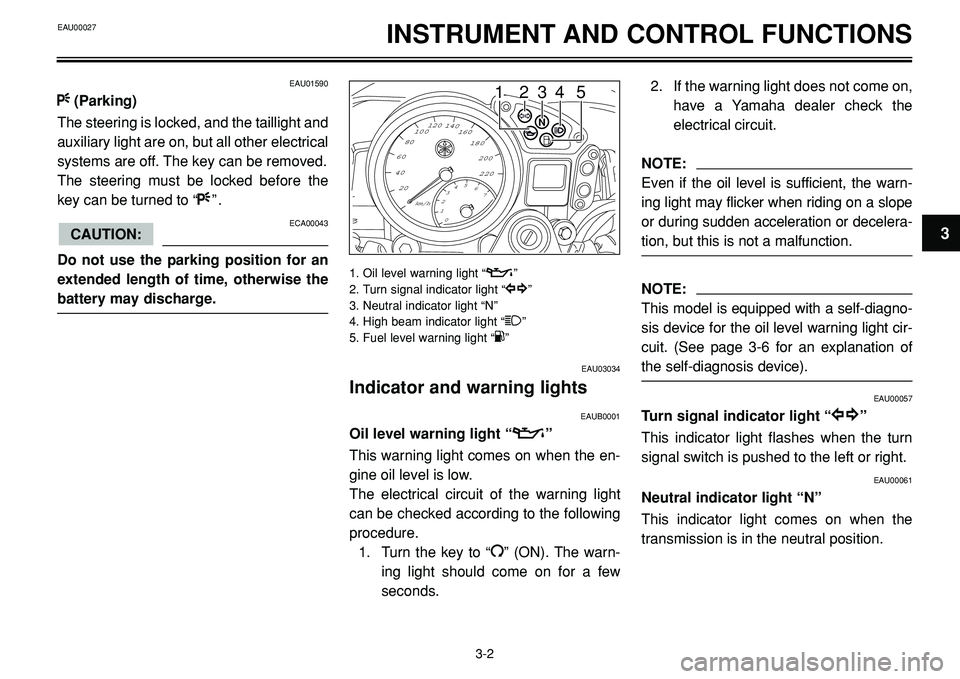

F(Parking)
The steering is locked, and the taillight and
auxiliary light are on, but all other electrical
systems are off. The key can be removed.
The steering must be locked before the
key can be turned to “
F”.
ECA00043
Do not use the parking position for an
extended length of time, otherwise the
battery may discharge.
CAUTION:
EAU03034
Indicator and warning lights
EAUB0001
Oil level warning light “v”
This warning light comes on when the en-
gine oil level is low.
The electrical circuit of the warning light
can be checked according to the following
procedure.
1. Turn the key to “
I” (ON). The warn-
ing light should come on for a few
seconds.
1. Oil level warning light “v”
2. Turn signal indicator light “y
y”
3. Neutral indicator light “N”
4. High beam indicator light “
1”
5. Fuel level warning light “K”
2. If the warning light does not come on,
have a Yamaha dealer check the
electrical circuit.
NOTE:
Even if the oil level is sufficient, the warn-
ing light may flicker when riding on a slope
or during sudden acceleration or decelera-
tion, but this is not a malfunction.
NOTE:
This model is equipped with a self-diagno-
sis device for the oil level warning light cir-
cuit. (See page 3-6 for an explanation of
the self-diagnosis device).
EAU00057
Turn signal indicator light “y
y”
This indicator light flashes when the turn
signal switch is pushed to the left or right.
EAU00061
Neutral indicator light “N”
This indicator light comes on when the
transmission is in the neutral position.
3-2
3
EAU00027

INSTRUMENT AND CONTROL FUNCTIONS
2
1
54 3
1
2
6 5 4
3
EAU00063

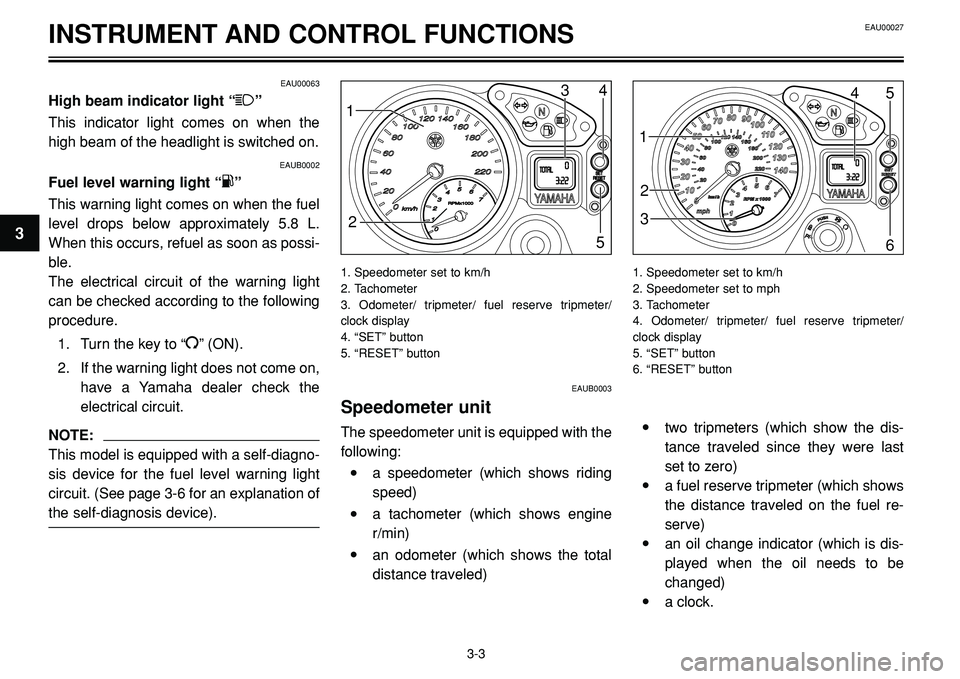

High beam indicator light “1”
This indicator light comes on when the
high beam of the headlight is switched on.
EAUB0002
Fuel level warning light “K”
This warning light comes on when the fuel
level drops below approximately 5.8 L.
When this occurs, refuel as soon as possi-
ble.
The electrical circuit of the warning light
can be checked according to the following
procedure.
1. Turn the key to “
I” (ON).
2. If the warning light does not come on,
have a Yamaha dealer check the
electrical circuit.
NOTE:
This model is equipped with a self-diagno-
sis device for the fuel level warning light
circuit. (See page 3-6 for an explanation of
the self-diagnosis device).
EAUB0003
Speedometer unit
The speedometer unit is equipped with the
following:
•a speedometer (which shows riding
speed)
•a tachometer (which shows engine
r/min)
•an odometer (which shows the total
distance traveled)
1. Speedometer set to km/h
2. Tachometer
3. Odometer/ tripmeter/ fuel reserve tripmeter/
clock display
4. “SET” button
5. “RESET” button
•two tripmeters (which show the dis-
tance traveled since they were last
set to zero)
•a fuel reserve tripmeter (which shows
the distance traveled on the fuel re-
serve)
•an oil change indicator (which is dis-
played when the oil needs to be
changed)
•a clock.
1. Speedometer set to km/h
2. Speedometer set to mph
3. Tachometer
4. Odometer/ tripmeter/ fuel reserve tripmeter/
clock display
5. “SET” button
6. “RESET” button
EAU00027
3-3
3

INSTRUMENT AND CONTROL FUNCTIONS

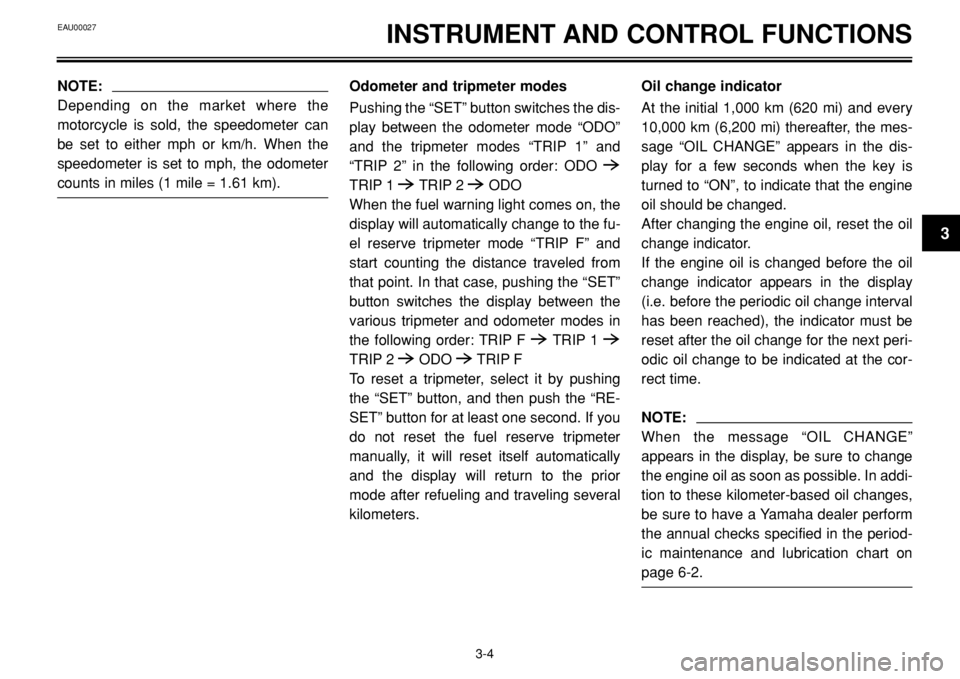

NOTE:
Depending on the market where the
motorcycle is sold, the speedometer can
be set to either mph or km/h. When the
speedometer is set to mph, the odometer
counts in miles (1 mile = 1.61 km).Odometer and tripmeter modes
Pushing the “SET” button switches the dis-
play between the odometer mode “ODO”
and the tripmeter modes “TRIP 1” and
“TRIP 2” in the following order: ODO 6
TRIP 1 6TRIP 2 6ODO
When the fuel warning light comes on, the
display will automatically change to the fu-
el reserve tripmeter mode “TRIP F” and
start counting the distance traveled from
that point. In that case, pushing the “SET”
button switches the display between the
various tripmeter and odometer modes in
the following order: TRIP F 6TRIP 1 6
TRIP 2 6ODO 6TRIP F
To reset a tripmeter, select it by pushing
the “SET” button, and then push the “RE-
SET” button for at least one second. If you
do not reset the fuel reserve tripmeter
manually, it will reset itself automatically
and the display will return to the prior
mode after refueling and traveling several
kilometers.Oil change indicator
At the initial 1,000 km (620 mi) and every
10,000 km (6,200 mi) thereafter, the mes-
sage “OIL CHANGE” appears in the dis-
play for a few seconds when the key is
turned to “ON”, to indicate that the engine
oil should be changed.
After changing the engine oil, reset the oil
change indicator.
If the engine oil is changed before the oil
change indicator appears in the display
(i.e. before the periodic oil change interval
has been reached), the indicator must be
reset after the oil change for the next peri-
odic oil change to be indicated at the cor-
rect time.
NOTE:
When the message “OIL CHANGE”
appears in the display, be sure to change
the engine oil as soon as possible. In addi-
tion to these kilometer-based oil changes,
be sure to have a Yamaha dealer perform
the annual checks specified in the period-
ic maintenance and lubrication chart on
page 6-2.
EAU00027
3-4
3

INSTRUMENT AND CONTROL FUNCTIONS

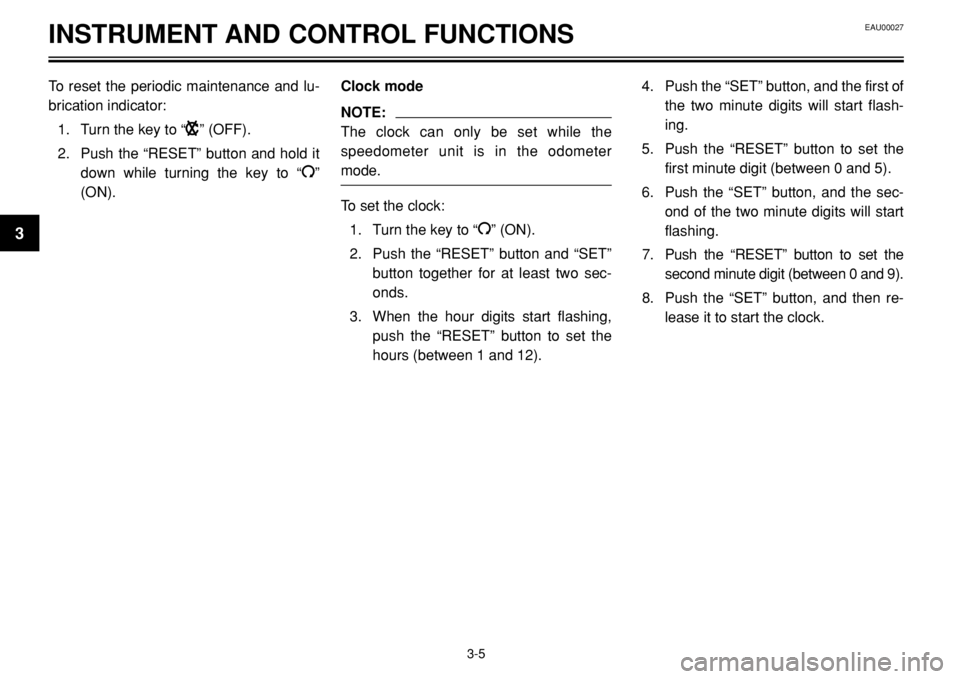

To reset the periodic maintenance and lu-
brication indicator:
1. Turn the key to “
B” (OFF).
2. Push the “RESET” button and hold it
down while turning the key to “
I”
(ON).Clock mode
NOTE:
The clock can only be set while the
speedometer unit is in the odometer
mode.
To set the clock:
1. Turn the key to “
I” (ON).
2. Push the “RESET” button and “SET”
button together for at least two sec-
onds.
3. When the hour digits start flashing,
push the “RESET” button to set the
hours (between 1 and 12).4. Push the “SET” button, and the first of
the two minute digits will start flash-
ing.
5. Push the “RESET” button to set the
first minute digit (between 0 and 5).
6. Push the “SET” button, and the sec-
ond of the two minute digits will start
flashing.
7. Push the “RESET” button to set the
second minute digit (between 0 and 9).
8. Push the “SET” button, and then re-
lease it to start the clock.
EAU00027
3-5
3

INSTRUMENT AND CONTROL FUNCTIONS
NOTE:
The clock can only be set when the motor-
cycle is stopped. The clock does not auto-
matically adjust for Daylight Saving Time.
Therefore, when the time changes from
Standard Time to Daylight Saving Time
(and vice versa), the clock must be set
manually.
EAU00101
Tachometer
The electric tachometer allows the rider to
monitor the engine speed and keep it with-
in the ideal power range.
EC000003
Do not operate the engine in the
tachometer red zone.
Red zone: 6,400 r/min and above.
CAUTION:
EAUB0004
Self-diagnosis device
NOTE:
When the key is turned to “
I” (ON), the
tachometer and speedometer needles
should move to the maximum, then back
to zero. In addition, the oil level warning
light and fuel level warning light should
come on for a few seconds, then go off. If
the tachometer or speedometer needle
does not move as described or either of
the warning lights does not come on, have
a Yamaha dealer check the electrical cir-
cuits.
This model is equipped with a self-diagno-
sis device for the following electrical cir-
cuits:
•speedometer
•tachometer
•oil level warning light
•throttle position sensor
•speed sensor.
3-6
31
2
1. Tachometer
2. Red zone
EAU00027

INSTRUMENT AND CONTROL FUNCTIONSEAU00027
3-7
3
If any of the above circuits are defective,
the tachometer will repeatedly display the
following error code:Use the chart below to identify the faulty
electrical circuit.
If the tachometer displays such an error
code, note the circuit-specific number of
r/min, and then have a Yamaha dealer
check the motorcycle.EC000004
When the tachometer displays an error
code, the motorcycle should be
checked as soon as possible in order
to avoid engine damage.
CAUTION:
0 r/min (for 3 seconds)
Circuit-specific number of r/min
for 2.5 seconds (see the table below).
Specific Faulty electrical r/min circuit
3,000 r/min Throttle position
sensor
4,000 r/min Speed sensor
Current engine speed for 3 seconds
