78910
1211
DESCRIPTIONEAU00026
2-2
2

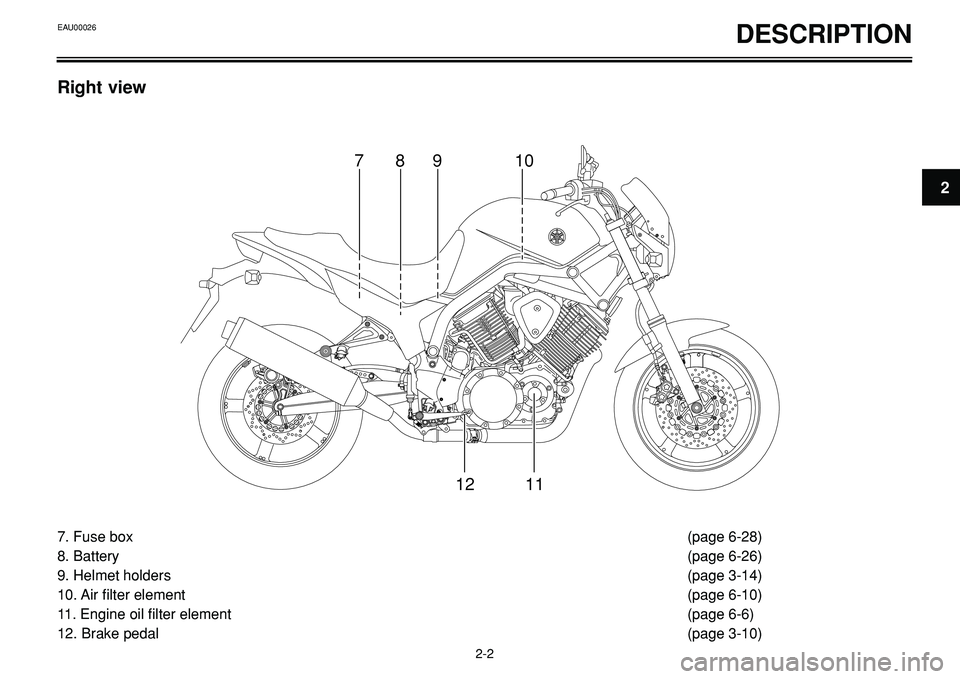

7. Fuse box (page 6-28)
8. Battery (page 6-26)
9. Helmet holders (page 3-14)
10. Air filter element (page 6-10)
11. Engine oil filter element (page 6-6)
12. Brake pedal (page 3-10)
Right view

EAU00462PERIODIC MAINTENANCE AND MINOR REPAIR
128
1
7
9
2
3
546
EAUB0012

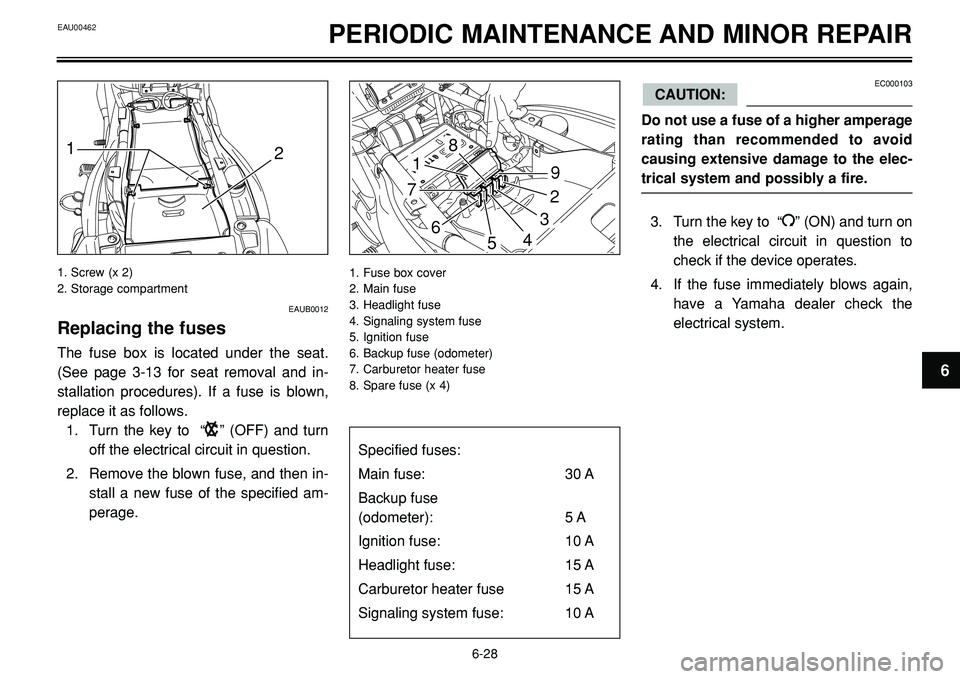

Replacing the fuses
The fuse box is located under the seat.
(See page 3-13 for seat removal and in-
stallation procedures). If a fuse is blown,
replace it as follows.
1. Turn the key to “
B” (OFF) and turn
off the electrical circuit in question.
2. Remove the blown fuse, and then in-
stall a new fuse of the specified am-
perage.
1. Screw (x 2)
2. Storage compartment
EC000103
Do not use a fuse of a higher amperage
rating than recommended to avoid
causing extensive damage to the elec-
trical system and possibly a fire.
3. Turn the key to “
I” (ON) and turn on
the electrical circuit in question to
check if the device operates.
4. If the fuse immediately blows again,
have a Yamaha dealer check the
electrical system.
CAUTION:
1. Fuse box cover
2. Main fuse
3. Headlight fuse
4. Signaling system fuse
5. Ignition fuse
6. Backup fuse (odometer)
7. Carburetor heater fuse
8. Spare fuse (x 4)
6-28
6
Specified fuses:
Main fuse: 30 A
Backup fuse
(odometer): 5 A
Ignition fuse: 10 A
Headlight fuse: 15 A
Carburetor heater fuse 15 A
Signaling system fuse: 10 A
