INSTRUMENT AND CONTROL FUNCTIONS
3-5
3
EAU12901
Front brake lever The front brake lever is located on the
right side of the handlebar. To apply the
front brake, pull this lever toward the
throttle grip.
EAU12951
Rear brake lever The rear brake lever is located on the
left side of the handlebar. To apply the
rear brake, pull this lever toward the
handlebar grip.
EAU37471
Fuel tank cap To remove the fuel tank cap
1. Open the seat. (See page 3-8.)
2. Turn the fuel tank cap counter-
clockwise and pull it off.
To install the fuel tank cap
1. Insert the fuel tank cap into the
tank opening and turn it clockwise
until the “ ” marks on the cap
and tank are aligned.
2. Close the seat.
1. Front brake lever
1
1. Rear brake lever
1
1. Fuel tank cap
1
U1RSE0E0.book Page 5 Tuesday, October 18, 2011 8:56 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-6
3
WARNING
EWA11091
Make sure that the fuel tank cap is
properly closed after filling fuel.
Leaking fuel is a fire hazard.
EAU13221
Fuel Make sure there is sufficient gasoline in
the tank.
WARNING
EWA10881
Gasoline and gasoline vapors are
extremely flammable. To avoid fires
and explosions and to reduce the
risk of injury when refueling, follow
these instructions.1. Before refueling, turn off the en-
gine and be sure that no one is sit-
ting on the vehicle. Never refuel
while smoking, or while in the vi-
cinity of sparks, open flames, or
other sources of ignition such as
the pilot lights of water heaters and
clothes dryers.
2. Do not overfill the fuel tank. When
refueling, be sure to insert the
pump nozzle into the fuel tank filler
hole. Stop filling when the fuel
reaches the bottom of the filler
tube. Because fuel expands when
it heats up, heat from the engine or
the sun can cause fuel to spill out
of the fuel tank.3. Wipe up any spilled fuel immedi-
ately. NOTICE: Immediately wipe
off spilled fuel with a clean, dry,
soft cloth, since fuel may deteri-
orate painted surfaces or plastic
parts.
[ECA10071]
4. Be sure to securely close the fuel
tank cap.
WARNING
EWA15151
Gasoline is poisonous and can
cause injury or death. Handle gaso-
line with care. Never siphon gaso-
line by mouth. If you should swallow
some gasoline or inhale a lot of gas-
oline vapor, or get some gasoline in

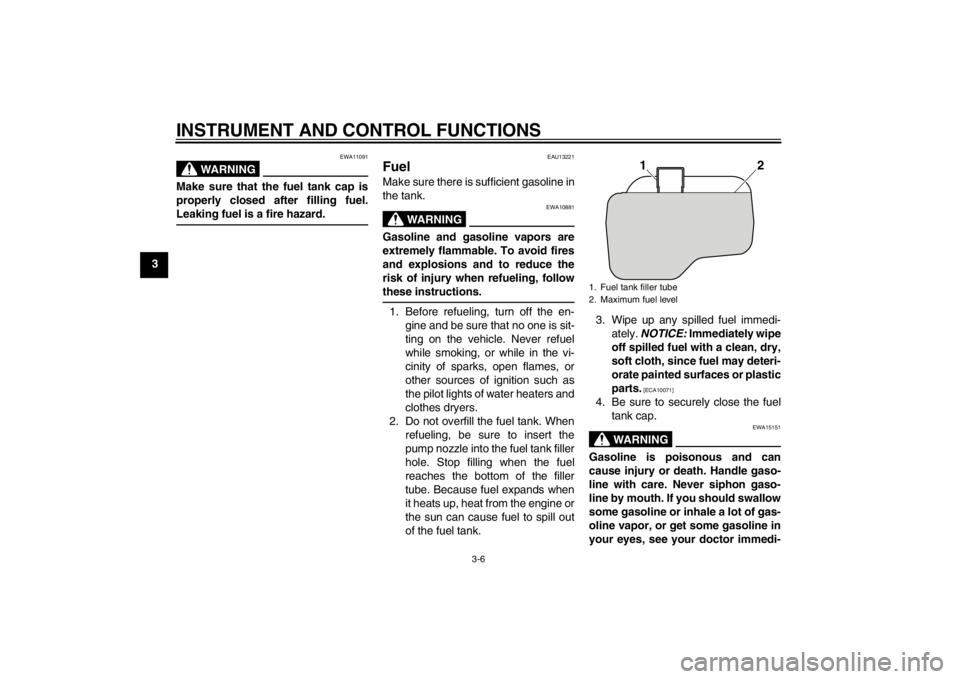

your eyes, see your doctor immedi-1. Fuel tank filler tube
2. Maximum fuel level
2 1
U1RSE0E0.book Page 6 Tuesday, October 18, 2011 8:56 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-7
3 ately. If gasoline spills on your skin,
wash with soap and water. If gaso-
line spills on your clothing, change
your clothes.
EAU33522
NOTICE
ECA11400
Use only unleaded gasoline. The use
of leaded gasoline will cause severe
damage to internal engine parts,
such as the valves and piston rings,
as well as to the exhaust system.Your Yamaha engine has been de-
signed to use regular unleaded gaso-
line with a research octane number of
95 or higher. If knocking (or pinging) oc-
curs, use a gasoline of a different brand
or premium unleaded fuel. Use of un-
leaded fuel will extend spark plug life
and reduce maintenance costs.
EAU13445
Catalytic converters This vehicle is equipped with catalytic
converters in the exhaust system.
WARNING
EWA10862
The exhaust system is hot after op-
eration. To prevent a fire hazard or
burns:●
Do not park the vehicle near
possible fire hazards such as
grass or other materials that
easily burn.
●
Park the vehicle in a place
where pedestrians or children
are not likely to touch the hot
exhaust system.
●
Make sure that the exhaust sys-
tem has cooled down before do-
ing any maintenance work.
●
Do not allow the engine to idle
more than a few minutes. Long
idling can cause a build-up of
heat.
NOTICE
ECA10701
Use only unleaded gasoline. The use
of leaded gasoline will cause unre-
pairable damage to the catalytic
converter.
Recommended fuel:
Regular unleaded gasoline only
Fuel tank capacity:
5.0 L (1.32 US gal, 1.10 Imp.gal)
U1RSE0E0.book Page 7 Tuesday, October 18, 2011 8:56 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-8
3
EAU37650
Kickstarter If the engine fails to start by pushing the
start switch, try to start it by using the
kickstarter. To start the engine, fold out
the kickstarter lever, move it down light-
ly with your foot until the gears engage,
and then push it down smoothly but
forcefully.
EAUT1503
Seat To open the seat
1. Place the scooter on the center-
stand.
2. Insert the key into the main switch,
and then turn it counterclockwise
to the first “OPEN” position. If the
main switch is in the “LOCK” posi-
tion, turn the key counterclockwise
to the second “OPEN” position.TIPDo not push inward when turning the
key from “OFF” to “OPEN” or from
“LOCK” to “OPEN”.3. Fold the seat up.To close the seat
1. Fold the seat down, and then push
it down to lock it in place.
2. Remove the key from the main
switch if the scooter will be left un-
attended.
TIPMake sure that the seat is properly se-
cured before riding.
1. Kickstarter lever
1
1. Seat open position
ON
OPEN
OPENP
U
S
HLOCKOFF
ON
OPEN
OPENP
U
S
HLOCKOFF
1
1
U1RSE0E0.book Page 8 Tuesday, October 18, 2011 8:56 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-9
3
EAU37481
Helmet holders The helmet holders are located under
the seat.
To secure a helmet to a helmet hold-
er
1. Open the seat. (See page 3-8.)
2. Attach a helmet to a helmet holder,
and then securely close the seat.
WARNING! Never ride with a
helmet attached to the helmet
holder, since the helmet may hit
objects, causing loss of control
and possibly an accident.
[EWA10161]
To release a helmet from a helmet
holder
Open the seat, remove the helmet from
the helmet holder, and then close the
seat.
EAUT1717
Storage compartments NOTICE
ECA17840
Keep the following points in mind
when using the storage compart-
ments.●
Since the storage compart-
ments accumulate heat when
exposed to the sun and/or the
engine heat, do not store any-
thing susceptible to heat, con-
sumables or flammable items
inside them.
●
To avoid humidity from spread-
ing through the storage com-
partments, wrap wet articles in a
plastic bag before storing them
in the compartments.
●
Since the storage compart-
ments may get wet while the ve-
hicle is being washed, wrap any
articles stored in the compart-
ments in a plastic bag.
●
Do not keep anything valuable
or breakable in the storage com-
partments.
1. Helmet holder
1
U1RSE0E0.book Page 9 Tuesday, October 18, 2011 8:56 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-10
3Front storage compartment
WARNING
EWA11191
●
Do not exceed the load limit of
1.5 kg (3.3 lb) for the front stor-
age compartment.
●
Do not exceed the maximum
load of 165 kg (364 lb) for the ve-
hicle.
Rear storage compartment
The rear storage compartment is locat-
ed under the seat. (See page 3-8.)
WARNING
EWAT1051
●
Do not exceed the load limit of 5
kg (11 lb) for the rear storage
compartment.
●
Do not exceed the maximum
load of 165 kg (364 lb) for the ve-
hicle.
TIP●
Some helmets cannot be stored in
the storage compartment because
of their size or shape.
●
Do not leave your scooter unat-
tended with the seat open.
1. Front storage compartment
1
1. Rear storage compartment
1
U1RSE0E0.book Page 10 Tuesday, October 18, 2011 8:56 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-11
3
EAU15112
Carrier
WARNING
EWA10171
●
Do not exceed the load limit of 3
kg (7 lb) for the carrier.
●
Do not exceed the maximum
load of 165 kg (364 lb) for the ve-
hicle.
EAUT1072
Luggage hook
WARNING
EWAT1031
●
Do not exceed the load limit of
1.0 kg (2.2 lb) for the luggage
hook.
●
Do not exceed the maximum
load of 165 kg (364 lb) for the ve-
hicle.
EAU29910
Grab bar Hold the grab bar with your right hand
to place the vehicle on the centerstand.
1. Carrier
1
1. Luggage hook
1
1. Grab bar
1
U1RSE0E0.book Page 11 Tuesday, October 18, 2011 8:56 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-12
3
EAU15305
Sidestand The sidestand is located on the left side
of the frame. Raise the sidestand or
lower it with your foot while holding the
vehicle upright.TIPThe built-in sidestand switch is part of
the ignition circuit cut-off system, which
cuts the ignition in certain situations.
(See the following section for an expla-
nation of the ignition circuit cut-off sys-
tem.)
WARNING
EWA10241
The vehicle must not be ridden with
the sidestand down, or if the side-
stand cannot be properly moved up
(or does not stay up), otherwise the
sidestand could contact the ground
and distract the operator, resulting
in a possible loss of control.
Yamaha’s ignition circuit cut-off
system has been designed to assist
the operator in fulfilling the respon-
sibility of raising the sidestand be-
fore starting off. Therefore, check
this system regularly and have a
Yamaha dealer repair it if it does not
function properly.
EAU15373
Ignition circuit cut-off system The ignition circuit cut-off system (com-
prising the sidestand switch and brake
light switches) has the following func-
tions.●
It prevents starting when the side-
stand is up, but neither brake is ap-
plied.
●
It prevents starting when either
brake is applied, but the sidestand
is still down.
●
It cuts the running engine when the
sidestand is moved down.
Periodically check the operation of the
ignition circuit cut-off system according
to the following procedure.
TIPThis check is most reliable if performed
with a warmed-up engine.
1. Sidestand
1
U1RSE0E0.book Page 12 Tuesday, October 18, 2011 8:56 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-13
3
With the engine turned off:
1. Move the sidestand down.
2. Make sure that the engine stop switch is turned on.
3. Turn the key on.
4. Keep the front or rear brake applied.
5. Push the start switch.
Does the engine start?
With the engine still off:
6. Move the sidestand up.
7. Keep the front or rear brake applied.
8. Push the start switch.
Does the engine start?
With the engine still running:
9. Move the sidestand down.
Does the engine stall?
The system is OK. The scooter can be ridden.The sidestand switch may not be working correctly.
The scooter should not be ridden until
checked by a Yamaha dealer.
The sidestand switch may not be working correctly.
The scooter should not be ridden until
checked by a Yamaha dealer.
YES NO YES NO NO YES
The brake switch may not be working correctly.
The scooter should not be ridden until
checked by a Yamaha dealer.• The vehicle must be placed on the center-
stand during this inspection.• If a malfunction is noted, have a Yamaha
dealer check the system before riding.
WARNING
U1RSE0E0.book Page 13 Tuesday, October 18, 2011 8:56 AM

FOR YOUR SAFETY – PRE-OPERATION CHECKS
4-1
4
EAU15596
Inspect your vehicle each time you use it to make sure the vehicle is in safe operating condition. Always follow the inspection
and maintenance procedures and schedules described in the Owner’s Manual.
WARNING
EWA11151
Failure to inspect or maintain the vehicle properly increases the possibility of an accident or equipment damage.
Do not operate the vehicle if you find any problem. If a problem cannot be corrected by the procedures provided in
this manual, have the vehicle inspected by a Yamaha dealer.Before using this vehicle, check the following points:
ITEM CHECKS PAGE
Fuel Check fuel level in fuel tank.
Refuel if necessary.
Check fuel line for leakage.3-6
Engine oil Check oil level in engine.
If necessary, add recommended oil to specified level.
Check vehicle for oil leakage.6-10
Final transmission oil Check vehicle for oil leakage. 6-12
Front brake Check operation.
If soft or spongy, have Yamaha dealer bleed hydraulic system.
Check brake pads for wear.
Replace if necessary.
Check fluid level in reservoir.
If necessary, add specified brake fluid to specified level.
Check hydraulic system for leakage.6-19, 6-20
Rear brake Check operation.
Lubricate cable if necessary.
Check lever free play.
Adjust if necessary.6-18, 6-19
U1RSE0E0.book Page 1 Tuesday, October 18, 2011 8:56 AM
