DESCRIPTION
2-1
2
EAU10410

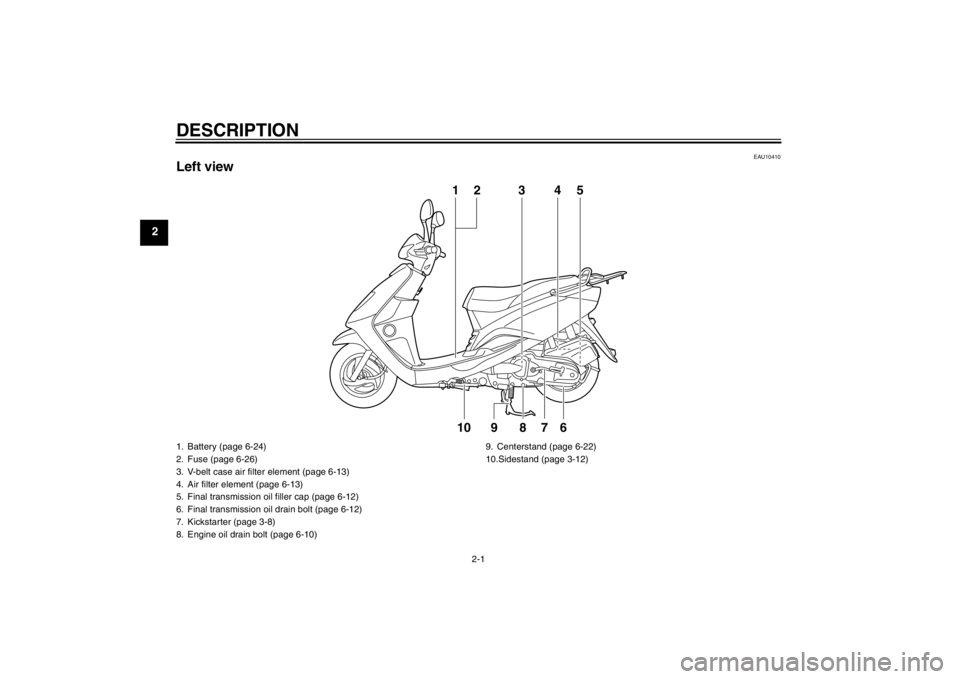

Left view
1
23
10
9
8
7
64
5
1. Battery (page 6-24)
2. Fuse (page 6-26)
3. V-belt case air filter element (page 6-13)
4. Air filter element (page 6-13)
5. Final transmission oil filler cap (page 6-12)
6. Final transmission oil drain bolt (page 6-12)
7. Kickstarter (page 3-8)
8. Engine oil drain bolt (page 6-10)9. Centerstand (page 6-22)
10.Sidestand (page 3-12)U1RSE0E0.book Page 1 Tuesday, October 18, 2011 8:56 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-26
6
EAU23503
Replacing the fuse The fuse holder is located behind panel
B. (See page 6-7.)
If the fuse is blown, replace it as fol-
lows.
1. Turn the key to “OFF” and turn off
all electrical circuits.
2. Remove the blown fuse, and then
install a new fuse of the specified
amperage. WARNING! Do not
use a fuse of a higher amperage
rating than recommended to
avoid causing extensive dam-
age to the electrical system and
possibly a fire.
[EWA15131]
3. Turn the key to “ON” and turn on
the electrical circuits to check if the
devices operate.
4. If the fuse immediately blows
again, have a Yamaha dealer
check the electrical system.
EAU53301
Replacing the headlight bulb If the headlight bulb burns out, replace
it as follows.NOTICE
ECA10650
Take care not to damage the follow-
ing parts:●
Headlight bulb
Do not touch the glass part of
the headlight bulb to keep it free
from oil, otherwise the transpar-
ency of the glass, the luminosity
of the bulb, and the bulb life will
be adversely affected. Thor-
oughly clean off any dirt and fin-
gerprints on the headlight bulb
using a cloth moistened with al-
cohol or thinner.
●
Headlight lens
Do not affix any type of tinted
film or stickers to the headlight
lens.
Do not use a headlight bulb of a
wattage higher than specified.
1. Fuse
2. Spare fuse
1
2
Specified fuse:
15.0 A
U1RSE0E0.book Page 26 Tuesday, October 18, 2011 8:56 AM

SPECIFICATIONS
8-3
8
Fuses:Main fuse:
15.0 A
U1RSE0E0.book Page 3 Tuesday, October 18, 2011 8:56 AM
