Instrument operation
34
The hour meter and voltmeter are displayed
alternately at 3-second intervals.
TIP:
If the engine is stopped after the check en-
gine warning is activated, the hour meter and
error code will be displayed alternately at 3-
second intervals.
Hour meter
The hour meter shows the total number of
hours that the engine has been running since
the watercraft was new.
TIP:
The elapsed time will be kept even if the bat-
tery terminals have been disconnected.
Voltmeter
The voltmeter shows the battery voltage.
When the battery voltage is normal, the volt-
meter displays approximately 12 volts.If the battery voltage has dropped significant-
ly, “Lo” is displayed on the voltmeter, and all
other display segments of the information
display turn off. If the battery voltage has ris-
en significantly, “HI” is displayed. If “Lo” or
“HI” is displayed, immediately return to shore
and have a Yamaha dealer service the water-
craft.
EJU37272Fuel level meter
The fuel level meter shows the amount of fuel
remaining in the fuel tank. The amount of re-
maining fuel is shown using four display seg-
ments, which disappear one at a time as the
fuel level decreases.
TIP:
The accuracy of the fuel level meter varies
depending on the operating conditions. Use
this function as a reference only.
1
Hour meter and voltmeter
1 Hour meter
1
1
1Vo l t m et e r
1 Fuel level meter
1
1
UF3Y74E0.book Page 34 Monday, June 22, 2020 5:11 PM

Instrument operation
35
EJU44710Fuel level warning
If the fuel remaining in the fuel tank drops to
about 8 L (2.1 US gal, 1.8 Imp.gal), the lowest
fuel level segment, the fuel level warning indi-
cator, and the “WARNING” indicator light
blink, and the buzzer sounds intermittently for
30 seconds.
If the fuel level warning is activated, refill the
fuel tank as soon as possible. (See page 43
for information on filling the fuel tank.)
After the fuel tank is refilled, the warning sig-
nals will be cleared when the engine is re-
started.
EJU43720Oil pressure warning
If the oil pressure drops significantly, the oil
pressure warning indicator, the check engine
warning indicator, and the “WARNING” indi-
cator light blink, and the buzzer sounds inter-
mittently for 30 seconds. At the same time,
the maximum engine speed is limited.If the oil pressure warning is activated, imme-
diately reduce the engine speed, return to
shore, and then check the engine oil level.
(See page 45 for information on checking the
engine oil level.) If the oil level is sufficient,
have a Yamaha dealer check the watercraft.
EJU43901Engine overheat warning
If the engine temperature rises significantly,
the engine overheat warning indicator, the
check engine warning indicator, and the
“WARNING” indicator light blink, and the
buzzer sounds intermittently. After 5 sec-
onds, the engine overheat warning indicator
and the “WARNING” indicator light stop
blinking and remain on, and the buzzer
sounds continuously. After 30 seconds, the
buzzer stops. While the engine overheat
warning is activated, the maximum engine
speed is limited.
If the engine overheat warning is activated,
immediately reduce the engine speed, return
to shore, and then make sure that water is
being discharged from the cooling water pilot
outlet while the engine is running. If there is
no discharge of water, stop the engine, and
then check the jet intake for clogging. (See
page 89 for information on the jet intake.)
NOTICE: If you cannot locate and correct
the cause of the overheating, consult a
Yamaha dealer. Continuing to operate at
UF3Y74E0.book Page 35 Monday, June 22, 2020 5:11 PM

Instrument operation
36
higher speeds could result in severe en-
gine damage.
[ECJ00042]
EJU44690
Check engine warning
If a sensor malfunction or a short circuit is de-
tected, the check engine warning indicator
and the “WARNING” indicator light blink, and
the buzzer sounds intermittently for 30 sec-
onds.
If the engine is stopped after the check en-
gine warning is activated, the tachometer
portion of the information display will show the hour meter and error code alternately at
3-second intervals.
If the check engine warning is activated, im-
mediately reduce the engine speed, return to
shore, and have a Yamaha dealer check the
engine.
1
Error code
1
UF3Y74E0.book Page 36 Monday, June 22, 2020 5:11 PM

Equipment operation
37
EJU40335
EquipmentEJU44600Seat
The seat is removable.
Remove the seat to access the fire extin-
guisher holder, seat storage compartment,
and engine compartment.
To remove the seat:
(1) Pull the seat latch up, and then lift up therear of the seat.
(2) Pull the seat rearward and remove it. To install the seat:
(1) Insert the projection on the front of the
seat into the stay on the deck.
(2) Push the rear of the seat down to secure- ly lock it in place.
EJU31364Handgrip
The handgrip is used when boarding the wa-
tercraft from the water and when the spotter
is facing rearward. WARNING! Do not use
the handgrip to lift the watercraft. The
handgrip is not designed to support the
watercraft’s weight. If the handgrip
1 Seat latch
1
UF3Y74E0.book Page 37 Monday, June 22, 2020 5:11 PM

Equipment operation
38
breaks, the watercraft could fall, which
could result in severe injury.
[EWJ00022]
EJU37382
Reboarding grip
The reboarding grip is used when boarding
the watercraft from the water.
EJU34865Reboarding step (EX SPORT / EX
DELUXE / EX LIMITED)
The reboarding step is used to assist in re-
boarding the watercraft from the water.
When boarding the watercraft, push the re-
boarding step down until it stops. The step
returns automatically to its original position
when released. WARNING! Do not use the
reboarding step to lift the watercraft. The
reboarding step is not designed to support
the watercraft’s weight. If the reboarding step breaks, the watercraft could fall,
which could result in severe injury.
[EWJ01212]
ECJ00743
Use the reboarding step only to board the
watercraft in the water. Do not use the re-
boarding step for any other purpose. The
watercraft can be damaged.
1
Handgrip
1 Reboarding grip
1
1
1Reboarding step
1
UF3Y74E0.book Page 38 Monday, June 22, 2020 5:11 PM

Equipment operation
39
EJU34873Bow eye
The bow eye is used to attach a rope to the
watercraft when transporting, mooring, or
towing it in an emergency. (See page 91 for
information on towing the watercraft.)
EJU34882Stern eyes
The stern eyes are used to attach a rope to
the watercraft when transporting or mooring
it.
EJU40423Cleat
The cleat is used to attach a ski rope to the
watercraft when pulling a wakeboarder or
water-skier. WARNING! Do not use the
cleat to lift the watercraft. The cleat is not
designed to support the watercraft’s
weight. If the cleat breaks, the watercraft could fall, which could result in severe in-
jury.
[EWJ01511]
EJU34894
Pull-up cleats (EX LIMITED)
The pull-up cleats are used to attach a rope
to the watercraft when mooring it.
To use a pull-up cleat, pull it up. The pull-up
cleat returns automatically to its original posi-
tion when released. WARNING! Do not use
the pull-up cleats to lift the watercraft. The
pull-up cleats are not designed to support
the watercraft’s weight. If the pull-up
cleats break, the watercraft could fall,
which could result in severe injury.
[EWJ00822]
EJU31685
Storage compartments
This watercraft is equipped with the following
storage compartments.
The storage compartments are not designed
to be waterproof. If you carry objects that
1 Bow eye
1 Stern eye
1
1
1Cleat
1 Pull-up cleat
1
1
UF3Y74E0.book Page 39 Monday, June 22, 2020 5:11 PM

Equipment operation
40
must be kept dry, put them in a waterproof
bag.
Make sure that the storage compartments
are closed securely before operating the wa-
tercraft.

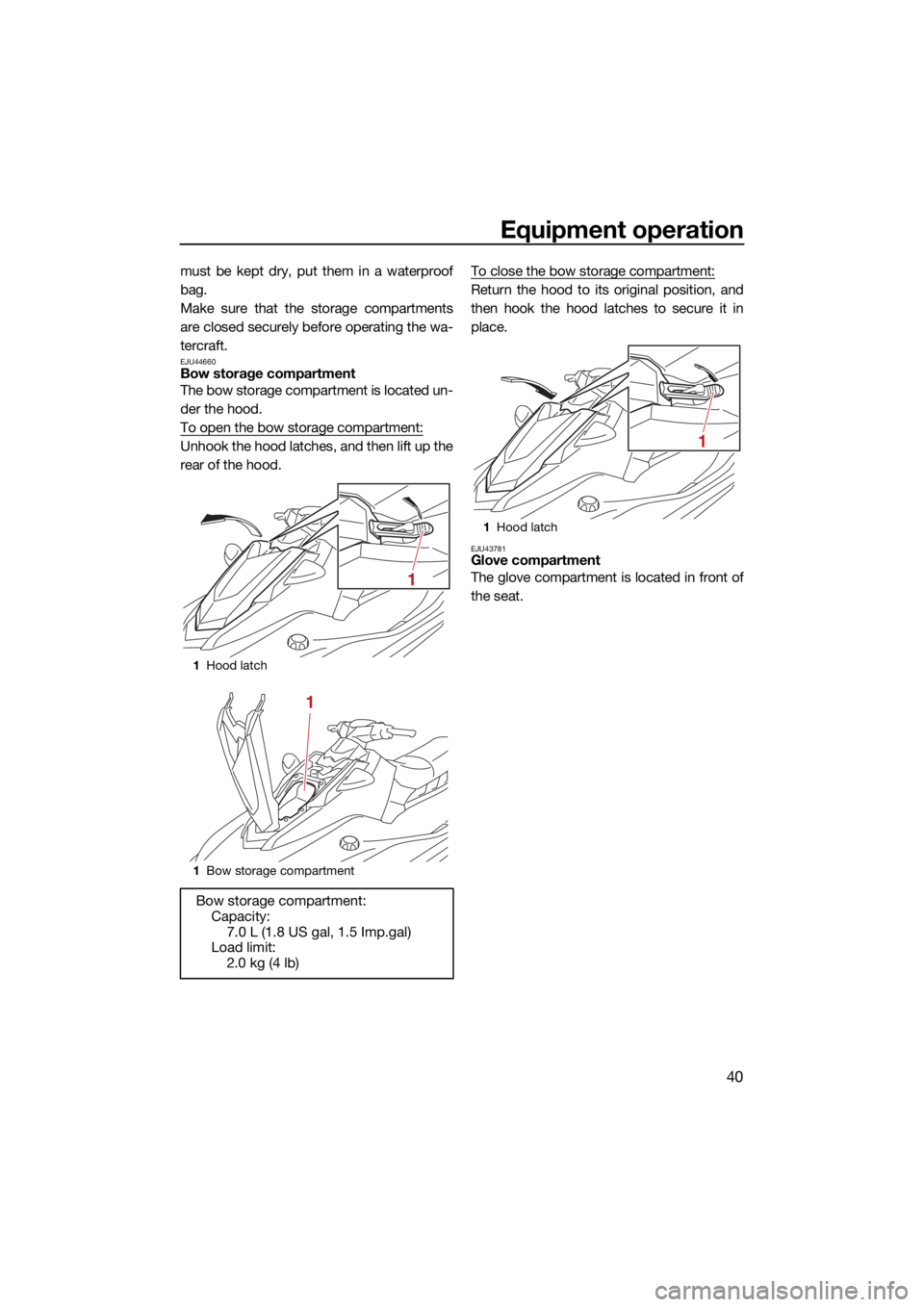

EJU44660Bow storage compartment
The bow storage compartment is located un-
der the hood.
To open the bow storage compartment:
Unhook the hood latches, and then lift up the
rear of the hood.To close the bow storage compartment:
Return the hood to its original position, and
then hook the hood latches to secure it in
place.
EJU43781Glove compartment
The glove compartment is located in front of
the seat.
1
Hood latch
1 Bow storage compartment
Bow storage compartment:
Capacity:7.0 L (1.8 US gal, 1.5 Imp.gal)
Load limit:
2.0 kg (4 lb)
1
1
1Hood latch
1
UF3Y74E0.book Page 40 Monday, June 22, 2020 5:11 PM

Equipment operation
41

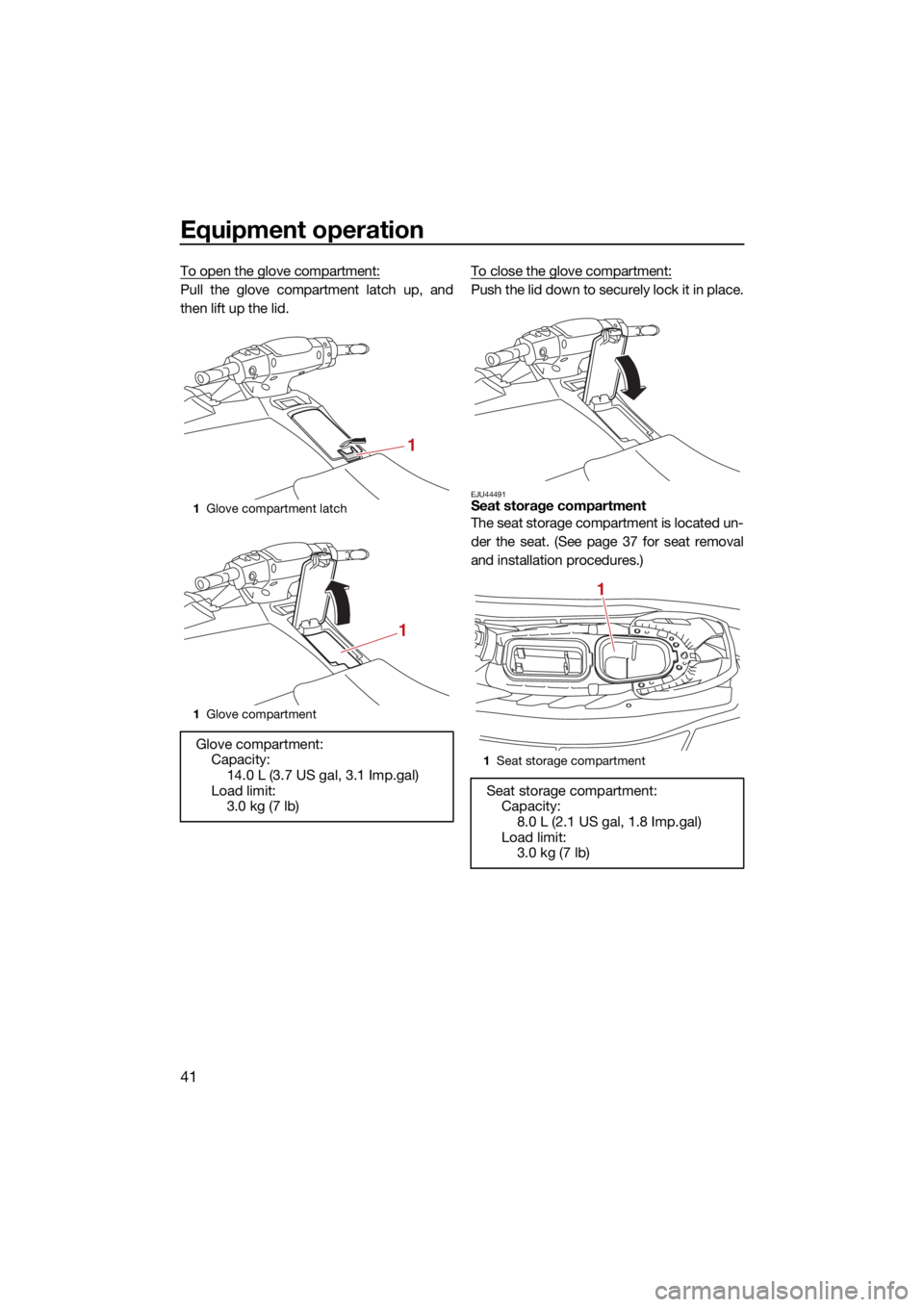

To open the glove compartment:
Pull the glove compartment latch up, and
then lift up the lid.To close the glove compartment:Push the lid down to securely lock it in place.
EJU44491Seat storage compartment
The seat storage compartment is located un-
der the seat. (See page 37 for seat removal
and installation procedures.)1
Glove compartment latch
1 Glove compartment
Glove compartment:
Capacity:14.0 L (3.7 US gal, 3.1 Imp.gal)
Load limit: 3.0 kg (7 lb)
1
1
1Seat storage compartment
Seat storage compartment:
Capacity: 8.0 L (2.1 US gal, 1.8 Imp.gal)
Load limit: 3.0 kg (7 lb)
1
UF3Y74E0.book Page 41 Monday, June 22, 2020 5:11 PM

Equipment operation
42

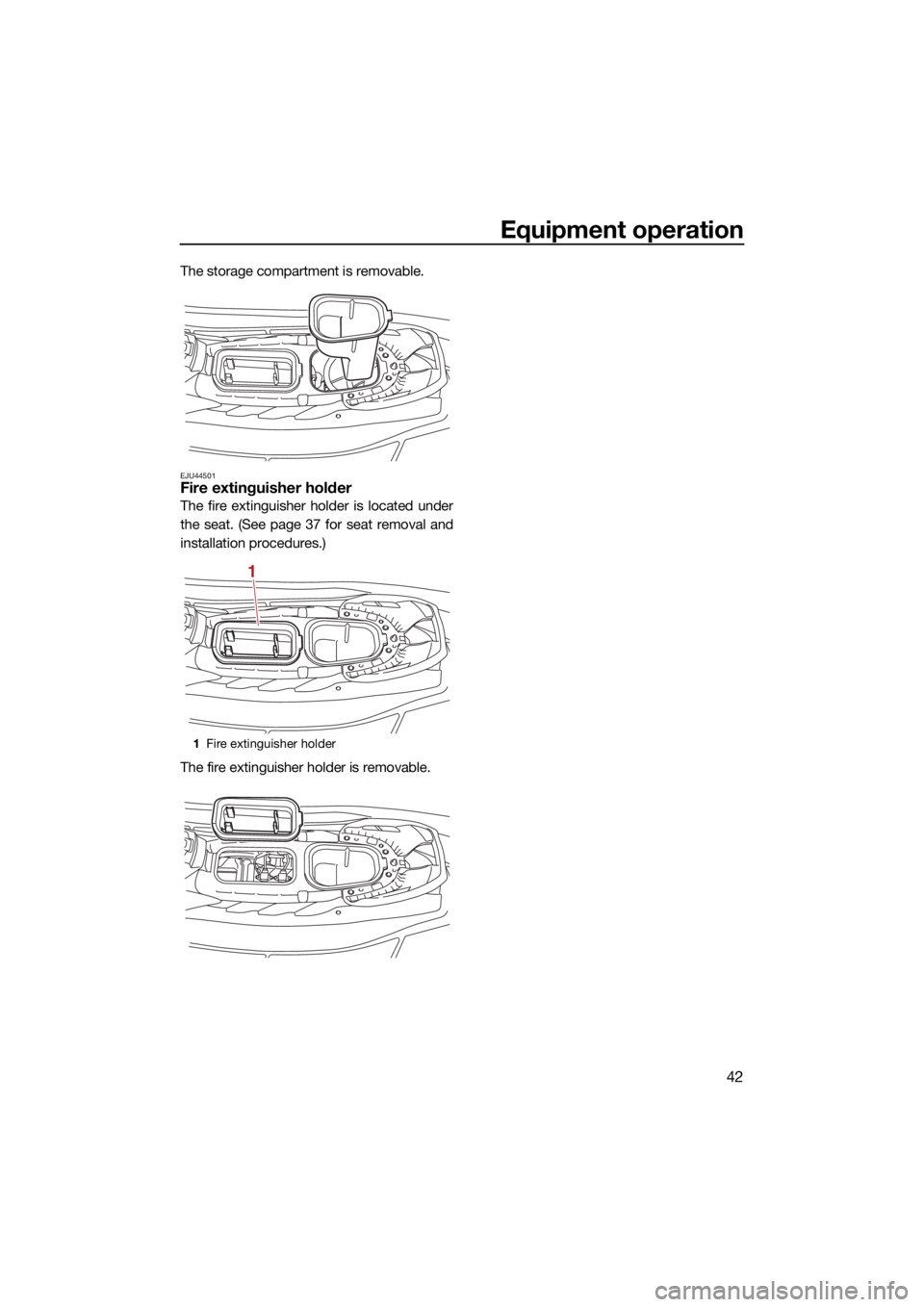

The storage compartment is removable.
EJU44501Fire extinguisher holder
The fire extinguisher holder is located under
the seat. (See page 37 for seat removal and
installation procedures.)
The fire extinguisher holder is removable.
1Fire extinguisher holder
1
UF3Y74E0.book Page 42 Monday, June 22, 2020 5:11 PM

Operation and handling requirements
43
EJU31823
Fuel requirementsEJU44880FuelEWJ00283
Gasoline and gasoline vapors are ex-
tremely flammable. To avoid fires and
explosions and to reduce the risk of in-
jury when refueling, follow these in-
structions.
Gasoline is poisonous and can cause in-
jury or death. Handle gasoline with care.
Never siphon gasoline by mouth. If you
should swallow some gasoline, inhale a
lot of gasoline vapor, or get some gaso-
line in your eyes, see your doctor imme-
diately. If gasoline spills on your skin,
wash with soap and water. If gasoline
spills on your clothing, change your
clothes.
ECJ00322
Do not use leaded gasoline. Leaded
gasoline can seriously damage the en-
gine.
Avoid getting water and contaminants in
the fuel tank. Contaminated fuel can
cause poor performance and engine
damage. Use only fresh gasoline that
has been stored in clean containers.

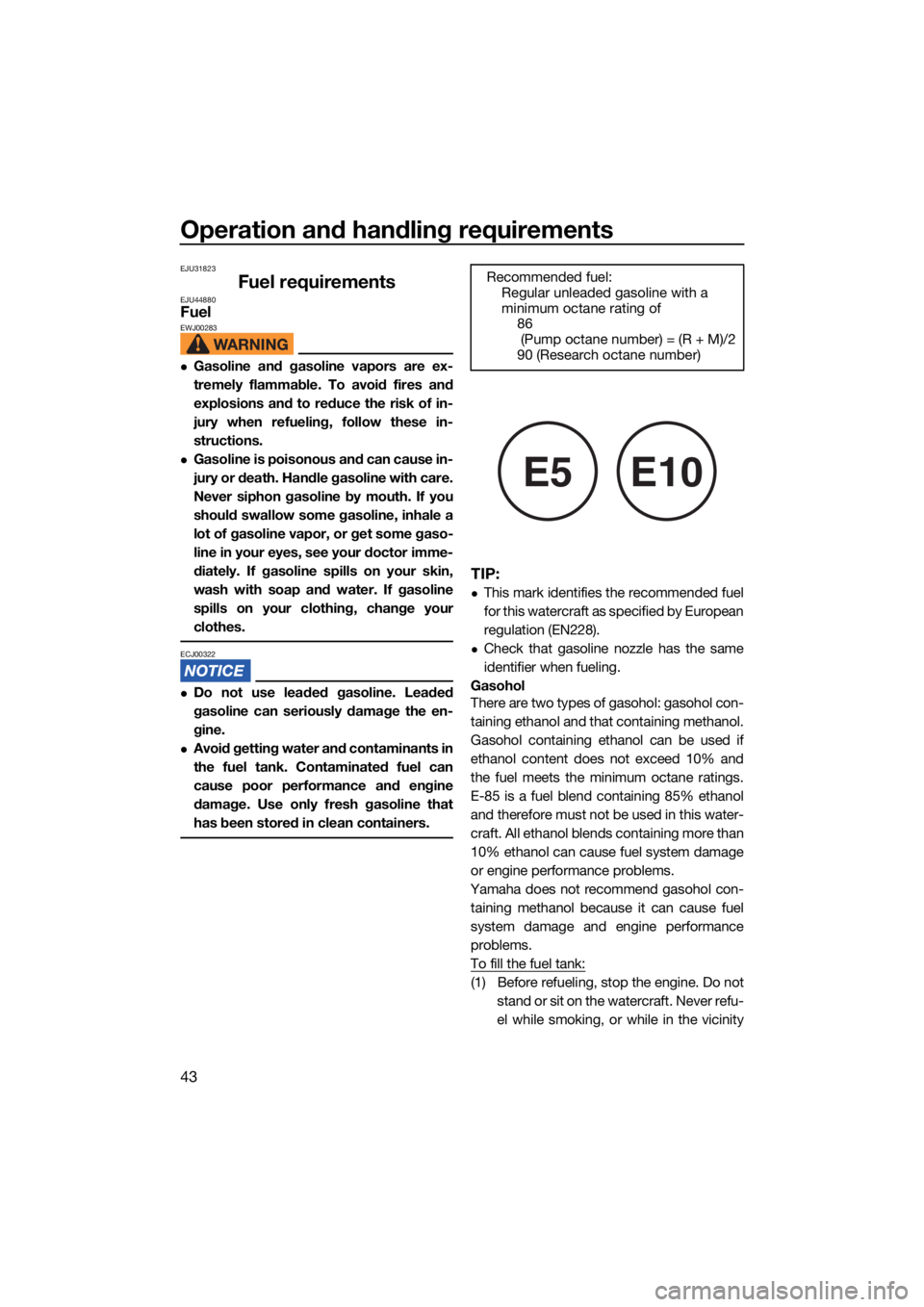

TIP:
This mark identifies the recommended fuel
for this watercraft as specified by European
regulation (EN228).
Check that gasoline nozzle has the same
identifier when fueling.
Gasohol
There are two types of gasohol: gasohol con-
taining ethanol and that containing methanol.
Gasohol containing ethanol can be used if
ethanol content does not exceed 10% and
the fuel meets the minimum octane ratings.
E-85 is a fuel blend containing 85% ethanol
and therefore must not be used in this water-
craft. All ethanol blends containing more than
10% ethanol can cause fuel system damage
or engine performance problems.
Yamaha does not recommend gasohol con- taining methanol because it can cause fuel
system damage and engine performance
problems.
To fill the fuel tank:
(1) Before refueling, stop the engine. Do not stand or sit on the watercraft. Never refu-
el while smoking, or while in the vicinity
Recommended fuel:
Regular unleaded gasoline with a
minimum octane rating of 86
(Pump octane number) = (R + M)/2
90 (Research octane number)
E5E10
UF3Y74E0.book Page 43 Monday, June 22, 2020 5:11 PM
