YAMAHA FJR1300A 2003 Owners Manual

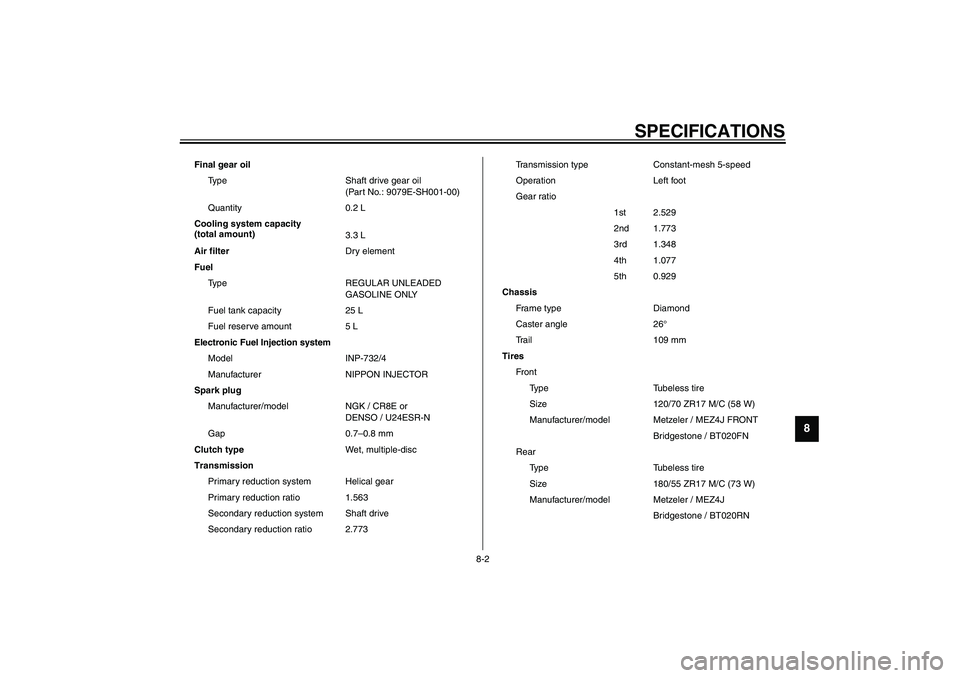

SPECIFICATIONS
8-2
8
Final gear oil
Type Shaft drive gear oil
(Part No.: 9079E-SH001-00)
Quantity 0.2 L
Cooling system capacity
(total amount)
3.3 L
Air filterDry element
Fuel
Type REGULAR UNLEADED
GASOLINE ONLY
Fuel tank capacity 25 L
Fuel reserve amount 5 L
Electronic Fuel Injection system
Model INP-732/4
Manufacturer NIPPON INJECTOR
Spark plug
Manufacturer/model NGK / CR8E or
DENSO / U24ESR-N
Gap 0.7–0.8 mm
Clutch typeWet, multiple-disc
Transmission
Primary reduction system Helical gear
Primary reduction ratio 1.563
Secondary reduction system Shaft drive
Secondary reduction ratio 2.773Transmission type Constant-mesh 5-speed
Operation Left foot
Gear ratio
1st 2.529
2nd 1.773
3rd 1.348
4th 1.077
5th 0.929
Chassis
Frame type Diamond
Caster angle 26°
Trail 109 mm
Tires
Front
Type Tubeless tire
Size 120/70 ZR17 M/C (58 W)
Manufacturer/model Metzeler / MEZ4J FRONT
Bridgestone / BT020FN
Rear
Type Tubeless tire
Size 180/55 ZR17 M/C (73 W)
Manufacturer/model Metzeler / MEZ4J
Bridgestone / BT020RN
U5JWE2.book Page 2 Wednesday, November 6, 2002 3:32 PM

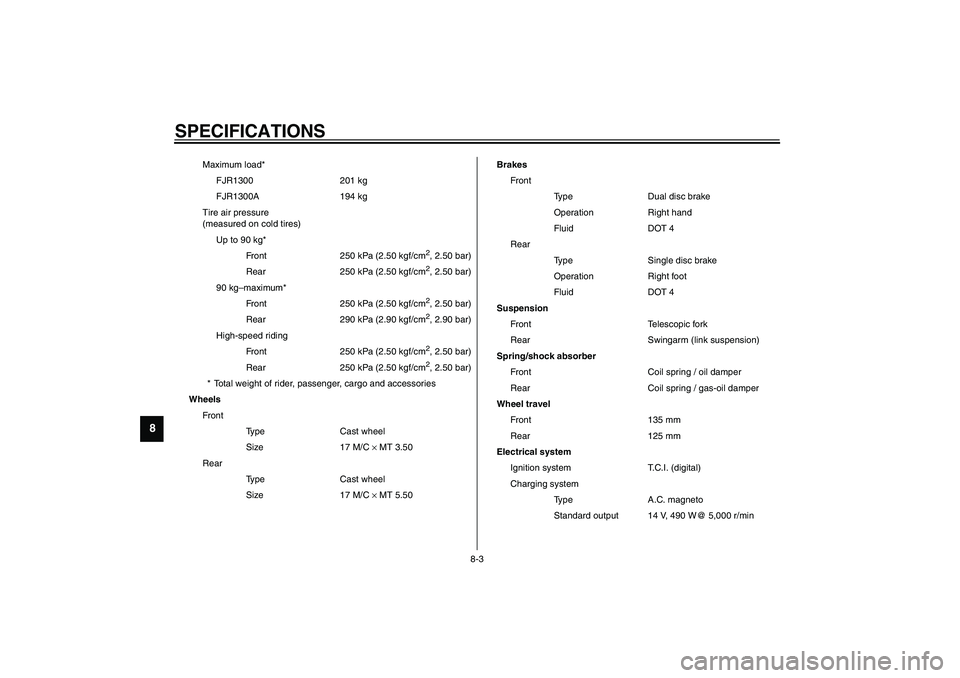

SPECIFICATIONS
8-3
8
Maximum load*
FJR1300 201 kg
FJR1300A 194 kg
Tire air pressure
(measured on cold tires)
Up to 90 kg*
Front 250 kPa (2.50 kgf/cm
2, 2.50 bar)
Rear 250 kPa (2.50 kgf/cm2, 2.50 bar)
90 kg–maximum*
Front 250 kPa (2.50 kgf/cm2, 2.50 bar)
Rear 290 kPa (2.90 kgf/cm2, 2.90 bar)
High-speed riding
Front 250 kPa (2.50 kgf/cm2, 2.50 bar)
Rear 250 kPa (2.50 kgf/cm2, 2.50 bar)
* Total weight of rider, passenger, cargo and accessories
Wheels
Front
Type Cast wheel
Size 17 M/C × MT 3.50
Rear
Type Cast wheel
Size 17 M/C × MT 5.50Brakes
Fr o n t
Type Dual disc brake
Operation Right hand
Fluid DOT 4
Rear
Type Single disc brake
Operation Right foot
Fluid DOT 4
Suspension
Front Telescopic fork
Rear Swingarm (link suspension)
Spring/shock absorber
Front Coil spring / oil damper
Rear Coil spring / gas-oil damper
Wheel travel
Front 135 mm
Rear 125 mm
Electrical system
Ignition system T.C.I. (digital)
Charging system
Type A.C. magneto
Standard output 14 V, 490 W@ 5,000 r/min
U5JWE2.book Page 3 Wednesday, November 6, 2002 3:32 PM

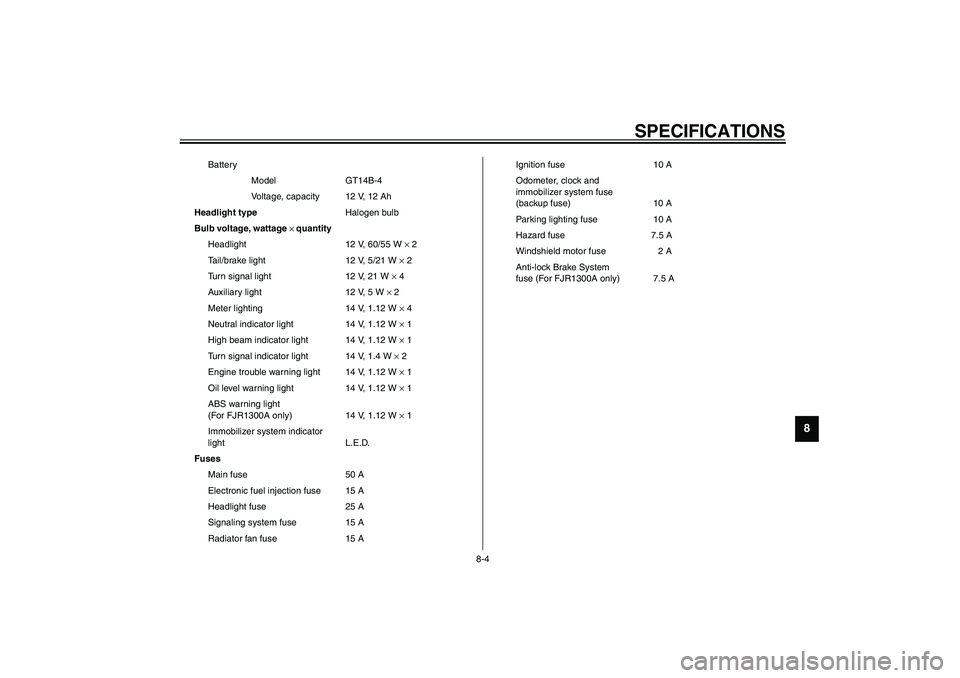

SPECIFICATIONS
8-4
8
Battery
Model GT14B-4
Voltage, capacity 12 V, 12 Ah
Headlight typeHalogen bulb
Bulb voltage, wattage × quantity
Headlight 12 V, 60/55 W × 2
Tail/brake light 12 V, 5/21 W × 2
Turn signal light 12 V, 21 W × 4
Auxiliary light 12 V, 5 W × 2
Meter lighting 14 V, 1.12 W × 4
Neutral indicator light 14 V, 1.12 W × 1
High beam indicator light 14 V, 1.12 W × 1
Turn signal indicator light 14 V, 1.4 W × 2
Engine trouble warning light 14 V, 1.12 W × 1
Oil level warning light 14 V, 1.12 W × 1
ABS warning light
(For FJR1300A only) 14 V, 1.12 W × 1
Immobilizer system indicator
light L.E.D.
Fuses
Main fuse 50 A
Electronic fuel injection fuse 15 A
Headlight fuse 25 A
Signaling system fuse 15 A
Radiator fan fuse 15 AIgnition fuse 10 A
Odometer, clock and
immobilizer system fuse
(backup fuse) 10 A
Parking lighting fuse 10 A
Hazard fuse 7.5 A
Windshield motor fuse 2 A
Anti-lock Brake System
fuse (For FJR1300A only) 7.5 A
E_5jw_Spec.fm Page 4 Monday, November 11, 2002 10:01 AM

SPECIFICATIONS
8-5
8
EAU04513

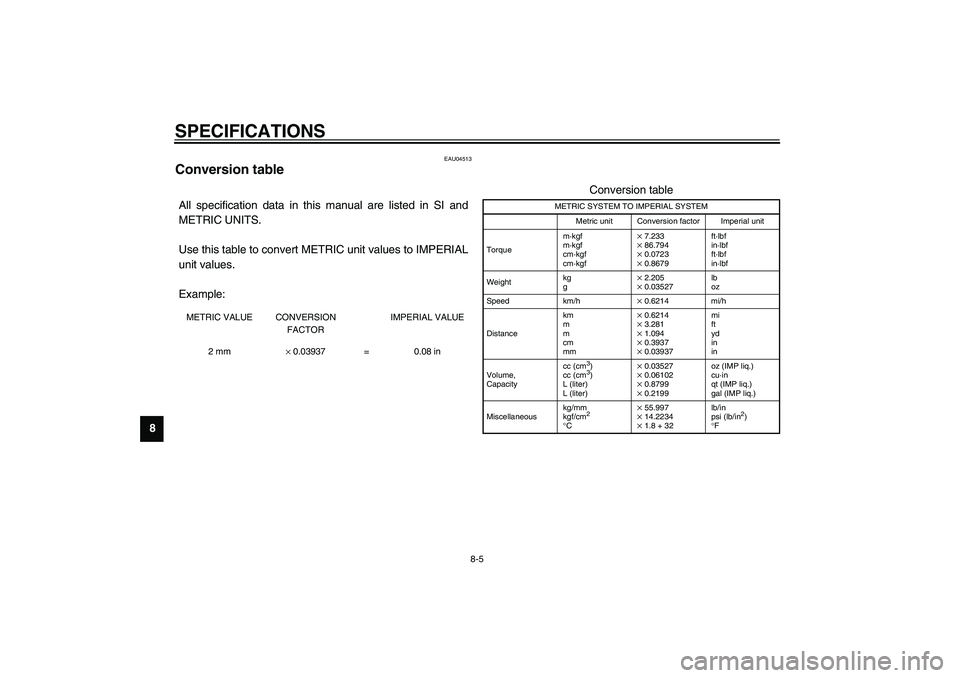

Conversion table CS-04EAll specification data in this manual are listed in SI and
METRIC UNITS.
Use this table to convert METRIC unit values to IMPERIAL
unit values.
Example:METRIC VALUE CONVERSION
FACTORIMPERIAL VALUE
2 mm× 0.03937 = 0.08 in
Conversion table
METRIC SYSTEM TO IMPERIAL SYSTEM
Metric unit Conversion factor Imperial unit
Torquem·kgf
m·kgf
cm·kgf
cm·kgf
× 7.233× 86.794× 0.0723× 0.8679ft·lbf
in·lbf
ft·lbf
in·lbf
Weightkg
g× 2.205× 0.03527lb
oz
Speed km/h× 0.6214 mi/h
Distancekm
m
m
cm
mm× 0.6214× 3.281× 1.094× 0.3937× 0.03937mi
ft
yd
in
in
Volume,
Capacitycc (cm
3)
cc (cm3)
L (liter)
L (liter)
× 0.03527× 0.06102× 0.8799× 0.2199oz (IMP liq.)
cu·in
qt (IMP liq.)
gal (IMP liq.)
Miscellaneouskg/mm
kgf/cm
2
°
C
× 55.997× 14.2234× 1.8 + 32 lb/in
psi (lb/in
2)
°
F
U5JWE2.book Page 5 Wednesday, November 6, 2002 3:32 PM

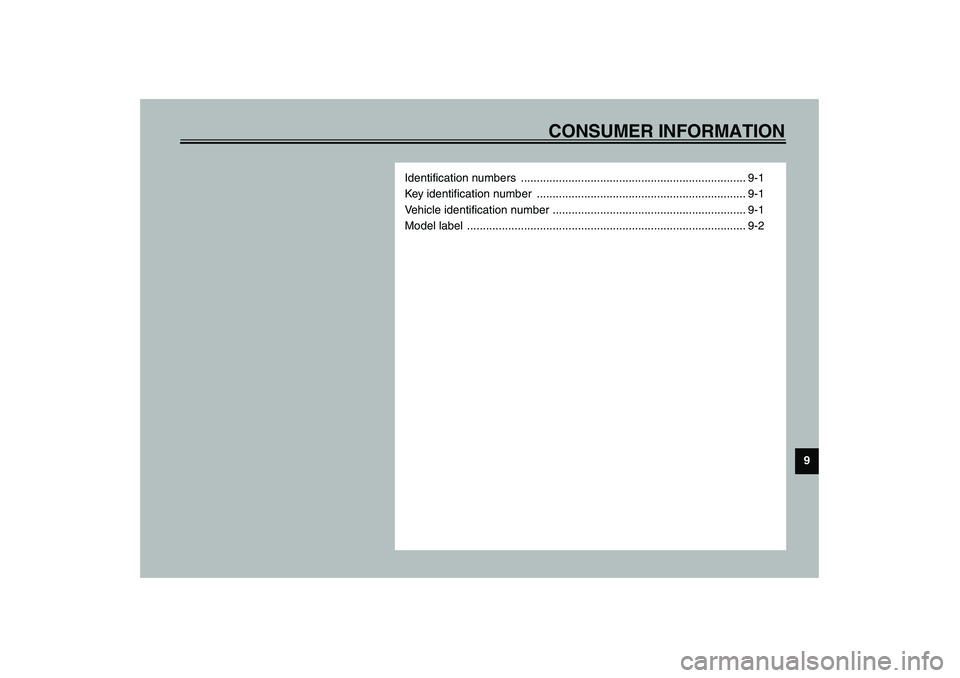

CONSUMER INFORMATION
9
Identification numbers ....................................................................... 9-1
Key identification number .................................................................. 9-1
Vehicle identification number ............................................................. 9-1
Model label ........................................................................................ 9-2
U5JWE2.book Page 1 Wednesday, November 6, 2002 3:32 PM

9-1
9
EAU01039

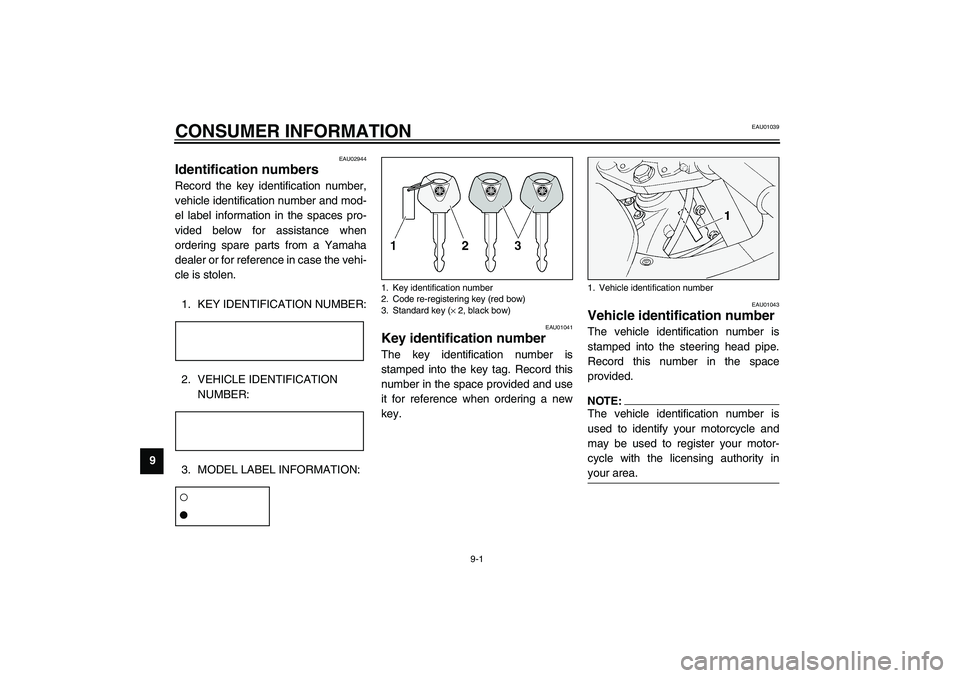

9-CONSUMER INFORMATION
EAU02944
Identification numbers Record the key identification number,
vehicle identification number and mod-
el label information in the spaces pro-
vided below for assistance when
ordering spare parts from a Yamaha
dealer or for reference in case the vehi-
cle is stolen.
1. KEY IDENTIFICATION NUMBER:CA-02E2. VEHICLE IDENTIFICATION
NUMBER:CA-02E3. MODEL LABEL INFORMATION:CA-01EEAU01041
Key identification number The key identification number is
stamped into the key tag. Record this
number in the space provided and use
it for reference when ordering a new
key.
EAU01043
Vehicle identification number The vehicle identification number is
stamped into the steering head pipe.
Record this number in the space
provided.NOTE:_ The vehicle identification number is
used to identify your motorcycle and
may be used to register your motor-
cycle with the licensing authority in
your area. _
1. Key identification number
2. Code re-registering key (red bow)
3. Standard key (× 2, black bow)
1. Vehicle identification number
U5JWE2.book Page 1 Wednesday, November 6, 2002 3:32 PM

CONSUMER INFORMATION
9-2
9
EAU01804

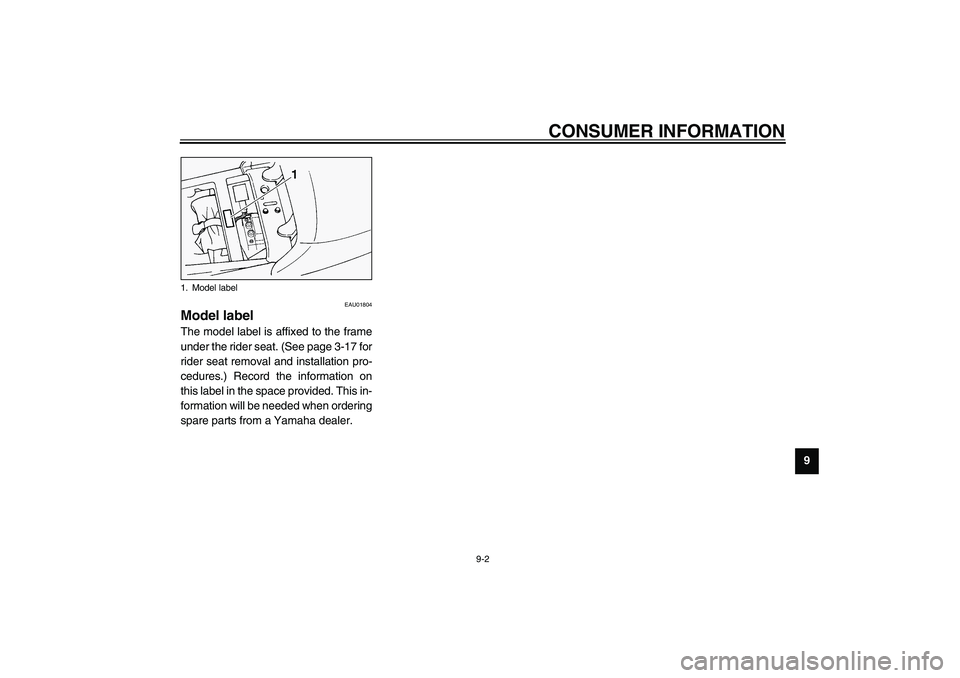

Model label The model label is affixed to the frame
under the rider seat. (See page 3-17 for
rider seat removal and installation pro-
cedures.) Record the information on
this label in the space provided. This in-
formation will be needed when ordering
spare parts from a Yamaha dealer.1. Model label
U5JWE2.book Page 2 Wednesday, November 6, 2002 3:32 PM

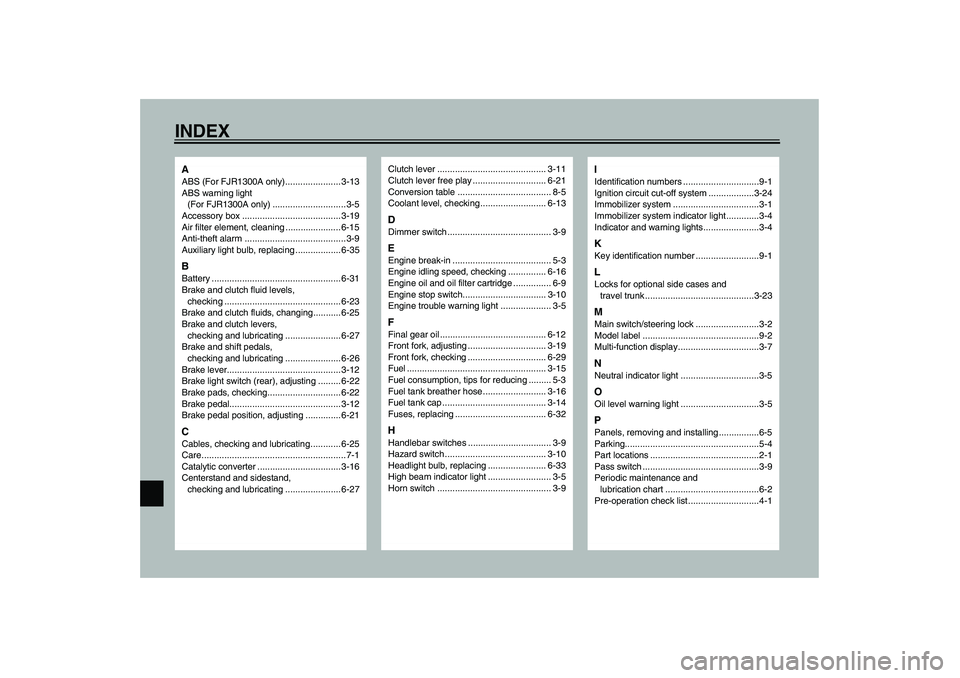

INDEXAABS (For FJR1300A only)...................... 3-13
ABS warning light
(For FJR1300A only) .............................3-5
Accessory box ....................................... 3-19
Air filter element, cleaning ...................... 6-15
Anti-theft alarm ........................................3-9
Auxiliary light bulb, replacing .................. 6-35BBattery ................................................... 6-31
Brake and clutch fluid levels,
checking .............................................. 6-23
Brake and clutch fluids, changing........... 6-25
Brake and clutch levers,
checking and lubricating ...................... 6-27
Brake and shift pedals,
checking and lubricating ...................... 6-26
Brake lever............................................. 3-12
Brake light switch (rear), adjusting ......... 6-22
Brake pads, checking............................. 6-22
Brake pedal............................................ 3-12
Brake pedal position, adjusting .............. 6-21CCables, checking and lubricating............ 6-25
Care.........................................................7-1
Catalytic converter ................................. 3-16
Centerstand and sidestand,
checking and lubricating ...................... 6-27
Clutch lever ........................................... 3-11
Clutch lever free play ............................. 6-21
Conversion table ..................................... 8-5
Coolant level, checking .......................... 6-13DDimmer switch ......................................... 3-9EEngine break-in ....................................... 5-3
Engine idling speed, checking ............... 6-16
Engine oil and oil filter cartridge ............... 6-9
Engine stop switch................................. 3-10
Engine trouble warning light .................... 3-5FFinal gear oil .......................................... 6-12
Front fork, adjusting ............................... 3-19
Front fork, checking ............................... 6-29
Fuel ....................................................... 3-15
Fuel consumption, tips for reducing ......... 5-3
Fuel tank breather hose ......................... 3-16
Fuel tank cap ......................................... 3-14
Fuses, replacing .................................... 6-32HHandlebar switches ................................. 3-9
Hazard switch ........................................ 3-10
Headlight bulb, replacing ....................... 6-33
High beam indicator light ......................... 3-5
Horn switch ............................................. 3-9
IIdentification numbers ..............................9-1
Ignition circuit cut-off system ..................3-24
Immobilizer system..................................3-1
Immobilizer system indicator light.............3-4
Indicator and warning lights......................3-4KKey identification number .........................9-1LLocks for optional side cases and
travel trunk ...........................................3-23MMain switch/steering lock .........................3-2
Model label ..............................................9-2
Multi-function display................................3-7NNeutral indicator light ...............................3-5OOil level warning light ...............................3-5PPanels, removing and installing ................6-5
Parking.....................................................5-4
Part locations ...........................................2-1
Pass switch ..............................................3-9
Periodic maintenance and
lubrication chart .....................................6-2
Pre-operation check list ............................4-1
E_5jwIX.fm Page 1 Monday, November 11, 2002 10:01 AM

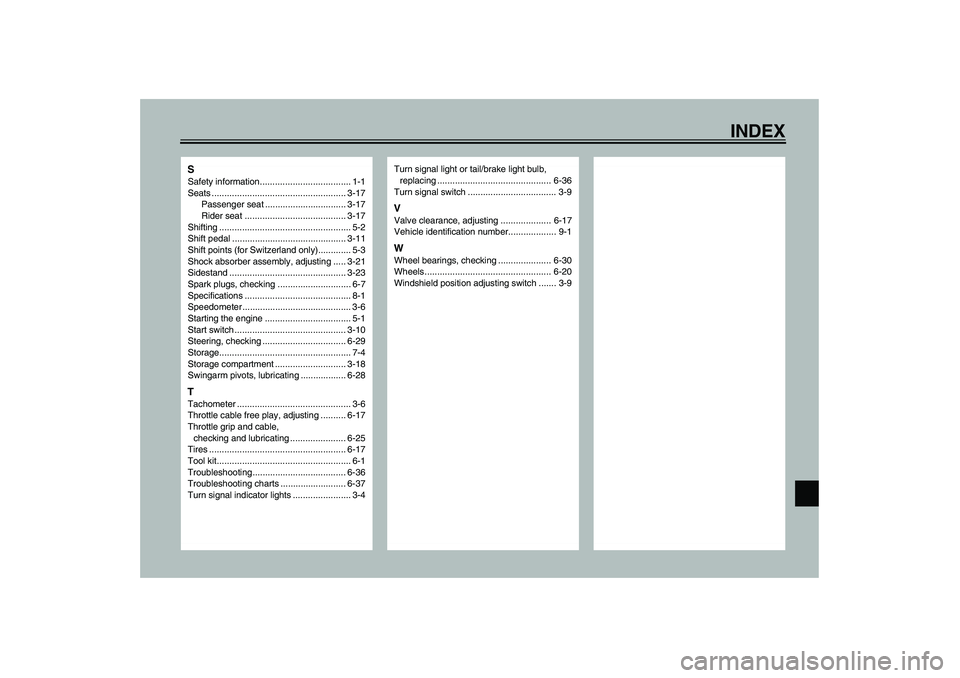

INDEX
SSafety information.................................... 1-1
Seats ..................................................... 3-17
Passenger seat ................................ 3-17
Rider seat ........................................ 3-17
Shifting .................................................... 5-2
Shift pedal ............................................. 3-11
Shift points (for Switzerland only)............. 5-3
Shock absorber assembly, adjusting ..... 3-21
Sidestand .............................................. 3-23
Spark plugs, checking ............................. 6-7
Specifications .......................................... 8-1
Speedometer ........................................... 3-6
Starting the engine .................................. 5-1
Start switch ............................................ 3-10
Steering, checking ................................. 6-29
Storage.................................................... 7-4
Storage compartment ............................ 3-18
Swingarm pivots, lubricating .................. 6-28TTachometer ............................................. 3-6
Throttle cable free play, adjusting .......... 6-17
Throttle grip and cable,
checking and lubricating ...................... 6-25
Tires ...................................................... 6-17
Tool kit..................................................... 6-1
Troubleshooting..................................... 6-36
Troubleshooting charts .......................... 6-37
Turn signal indicator lights ....................... 3-4
Turn signal light or tail/brake light bulb,
replacing ............................................. 6-36
Turn signal switch ................................... 3-9VValve clearance, adjusting .................... 6-17
Vehicle identification number................... 9-1WWheel bearings, checking ..................... 6-30
Wheels .................................................. 6-20
Windshield position adjusting switch ....... 3-9
U5JWE2.book Page 2 Wednesday, November 6, 2002 3:32 PM

Shiro.fm Page 1 Thursday, June 7, 2001 11:38 AM
