DESCRIPTION
2-1
2
EAU10410
Left view1. Fuse box (page 6-28)
2. Accessory box (page 3-15)
3. Front fork spring preload adjusting bolt (page 3-16)
4. Front fork rebound damping force adjusting knob (page 3-16)
5. Engine oil filler cap (page 6-8)
6. Owner’s tool kit (page 6-1)
7. Rider seat (page 3-14)
8. Passenger seat (page 3-14)
9. Carrier
10.Final gear oil filler bolt (page 6-10)
11.Final gear oil drain bolt (page 6-10)12.Shock absorber assembly rebound damping force adjusting knob
(page 3-18)
13.Shock absorber assembly spring preload adjusting lever (page 3-18)
14.Air filter element (page 6-13)
15.Shift pedal (page 3-10)
16.Engine oil filter cartridge (page 6-8)
17.Engine oil level check window (page 6-8)5JWE3.book Page 1 Friday, September 5, 2003 3:08 PM

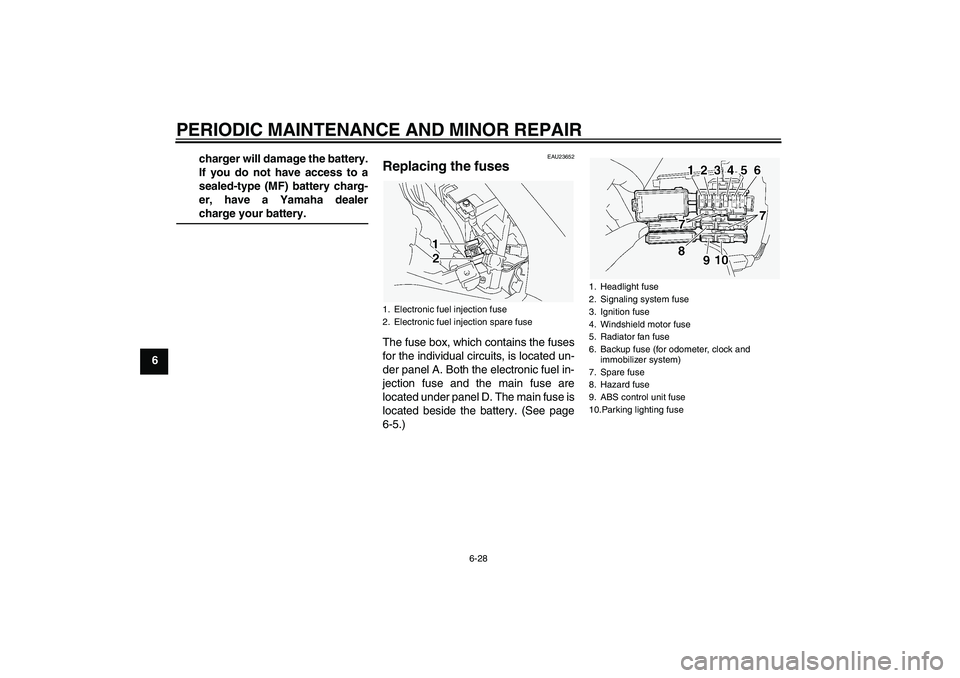

PERIODIC MAINTENANCE AND MINOR REPAIR
6-28
6charger will damage the battery.
If you do not have access to a
sealed-type (MF) battery charg-
er, have a Yamaha dealer
charge your battery.
EAU23652
Replacing the fuses The fuse box, which contains the fuses
for the individual circuits, is located un-
der panel A. Both the electronic fuel in-
jection fuse and the main fuse are
located under panel D. The main fuse is
located beside the battery. (See page
6-5.)1. Electronic fuel injection fuse
2. Electronic fuel injection spare fuse
1. Headlight fuse
2. Signaling system fuse
3. Ignition fuse
4. Windshield motor fuse
5. Radiator fan fuse
6. Backup fuse (for odometer, clock and
immobilizer system)
7. Spare fuse
8. Hazard fuse
9. ABS control unit fuse
10.Parking lighting fuse
5JWE3.book Page 28 Friday, September 5, 2003 3:08 PM

INDEXAABS (For FJR1300A only) .................... 3-11
ABS warning light
(For FJR1300A only) ............................ 3-4
Accessory box....................................... 3-15
Air filter element, cleaning..................... 6-13
Anti-theft alarm (optional)........................ 3-7
Auxiliary light bulb, replacing ................ 6-31BBattery................................................... 6-27
Brake and clutch fluid levels,
checking ............................................. 6-20
Brake and clutch fluids, changing ......... 6-22
Brake and clutch levers, checking
and lubricating .................................... 6-23
Brake and shift pedals, checking
and lubricating .................................... 6-23
Brake lever ............................................ 3-10
Brake pedal ........................................... 3-11
Brake pedal position, adjusting ............. 6-19CCables, checking and lubricating .......... 6-22
Care ........................................................ 7-1
Catalytic converter ................................ 3-14
Centerstand and sidestand,
checking and lubricating ..................... 6-24
Clutch lever ............................................. 3-9
Clutch lever free play ............................ 6-18
Coolant.................................................. 6-11DDimmer switch ........................................ 3-8EEngine break-in ....................................... 5-3
Engine idling speed, checking .............. 6-14Engine oil and oil filter cartridge ............. 6-8
Engine stop switch.................................. 3-9
Engine trouble warning light ................... 3-4
FFinal gear oil ......................................... 6-10
Front and rear brake pads, checking .... 6-20
Front fork, adjusting .............................. 3-16
Front fork, checking .............................. 6-25
Fuel....................................................... 3-12
Fuel consumption, tips for reducing........ 5-3
Fuel tank breather hose........................ 3-13
Fuel tank cap ........................................ 3-12
Fuses, replacing ................................... 6-28HHandlebar switches ................................ 3-8
Hazard switch ......................................... 3-9
Headlight bulb, replacing ...................... 6-30
High beam indicator light ........................ 3-4
Horn switch ............................................. 3-9IIdentification numbers ............................ 9-1
Ignition circuit cut-off system ................ 3-20
Immobilizer system ................................. 3-1
Immobilizer system indicator light........... 3-4
Indicator and warning lights .................... 3-3KKey identification number ....................... 9-1LLocks for optional side cases and
travel trunk ......................................... 3-19MMain switch/steering lock........................ 3-2
Model label ............................................. 9-2
Multi-function display .............................. 3-6
NNeutral indicator light .............................. 3-4OOil level warning light .............................. 3-4PPanels, removing and installing .............. 6-5
Parking .................................................... 5-4
Part locations .......................................... 2-1
Pass switch ............................................. 3-8
Periodic maintenance and
lubrication chart .................................... 6-2
Pre-operation check list........................... 4-2RRear brake light switch, adjusting ......... 6-19
Rear suspension, lubricating ................. 6-25SSafety information ................................... 1-1
Seats ..................................................... 3-14
Shifting .................................................... 5-2
Shift pedal ............................................. 3-10
Shock absorber assembly, adjusting .... 3-18
Sidestand .............................................. 3-19
Spark plugs, checking ............................. 6-7
Specifications .......................................... 8-1
Speedometer........................................... 3-5
Starting the engine .................................. 5-1
Start switch.............................................. 3-9
Steering, checking................................. 6-26
Storage.................................................... 7-3
Storage compartment............................ 3-15
Swingarm pivots, lubricating ................. 6-24TTachometer ............................................. 3-5
Throttle cable free play, adjusting ......... 6-15
