SPECIFICATIONS
8-1
8
Dimensions:Overall length:
2195 mm (86.4 in)
Overall width:
760 mm (29.9 in)
Overall height:
1435 mm (56.5 in)
Seat height:
805 mm (31.7 in)
Wheelbase:
1515 mm (59.6 in)
Ground clearance:
135 mm (5.31 in)
Minimum turning radius:
3100 mm (122.0 in)Weight:With oil and fuel:
FJR1300 275.0 kg (606 lb)
FJR1300A 282.0 kg (622 lb)Engine:Engine type:
Liquid cooled 4-stroke, DOHC
Cylinder arrangement:
Forward-inclined parallel 4-cylinder
Displacement:
1298.0 cm³ (79.20 cu.in)
Bore × stroke:
79.0 × 66.2 mm (3.11 × 2.61 in)
Compression ratio:
10.80 :1
Starting system:
Electric starter
Lubrication system:
Wet sump
Engine oil:Type:
SAE20W40
Recommended engine oil grade:
API service SE, SF, SG type or higher
Engine oil quantity:
Without oil filter cartridge replacement:
3.80 L (4.02 US qt) (3.34 Imp.qt)
With oil filter cartridge replacement:
4.00 L (4.23 US qt) (3.52 Imp.qt)Final gear oil:Type:
Shaft drive gear oil
Quantity:
0.20 L (0.21 US qt) (0.18 Imp.qt)Cooling system:Coolant reservoir capacity (up to the
maximum level mark):
0.25 L (0.26 US qt) (0.22 Imp.qt)
Radiator capacity (including all routes):
3.20 L (3.38 US qt) (2.82 Imp.qt)Air filter:Air filter element:
Dry elementFuel:Recommended fuel:
Regular unleaded gasoline only
Fuel tank capacity:
25.0 L (6.61 US gal) (5.50 Imp.gal)
Fuel reserve amount:
5.0 L (1.32 US gal) (1.10 Imp.gal)Electronic fuel injection:Manufacturer:
NIPPON INJECTORModel:
INP-732/4
Spark plug(s):Manufacturer/model:
NGK/CR8E
Manufacturer/model:
DENSO/U24ESR-N
Spark plug gap:
0.7–0.8 mm (0.028–0.031 in)Clutch:Clutch type:
Wet, multiple-discTransmission:Primary reduction system:
Helical gear
Primary reduction ratio:
75/48 (1.563)
Secondary reduction system:
Shaft drive
Secondary reduction ratio:
35/36 × 21/27 × 33/9 (2.773)
Transmission type:
Constant mesh 5-speed
Operation:
Left foot operation
Gear ratio:
1st:
43/17 (2.529)
2nd:
39/22 (1.773)
3rd:
31/23 (1.348)
4th:
28/26 (1.077)
U5JWE4E0.book Page 1 Friday, July 30, 2004 6:07 PM

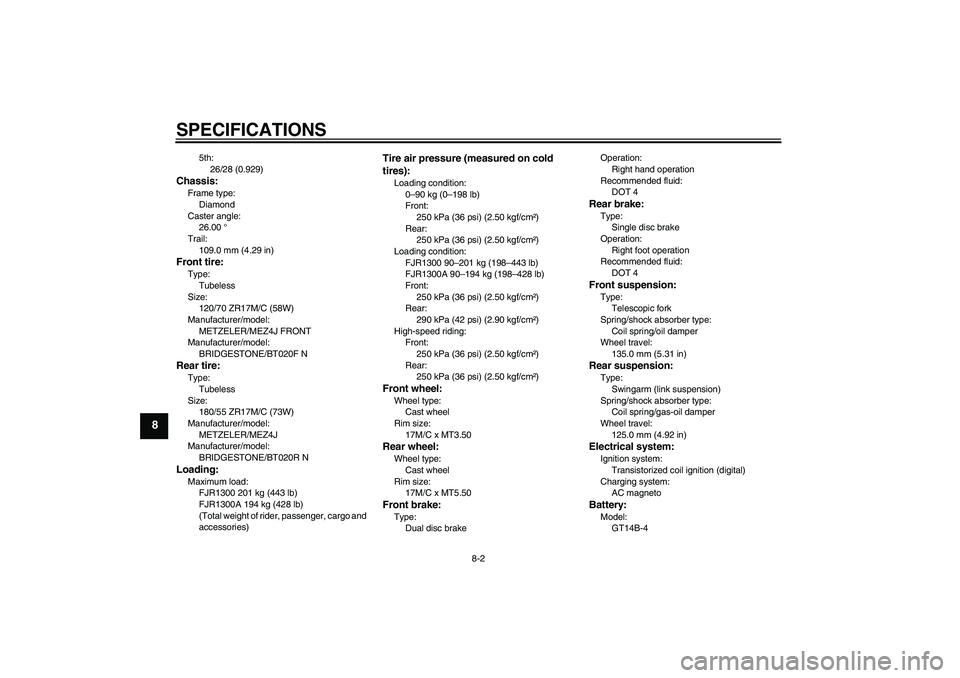

SPECIFICATIONS
8-2
8
5th:
26/28 (0.929)
Chassis:Frame type:
Diamond
Caster angle:
26.00 °
Trail:
109.0 mm (4.29 in)Front tire:Type:
Tubeless
Size:
120/70 ZR17M/C (58W)
Manufacturer/model:
METZELER/MEZ4J FRONT
Manufacturer/model:
BRIDGESTONE/BT020F NRear tire:Type:
Tubeless
Size:
180/55 ZR17M/C (73W)
Manufacturer/model:
METZELER/MEZ4J
Manufacturer/model:
BRIDGESTONE/BT020R NLoading:Maximum load:
FJR1300 201 kg (443 lb)
FJR1300A 194 kg (428 lb)
(Total weight of rider, passenger, cargo and
accessories)
Tire air pressure (measured on cold
tires):Loading condition:
0–90 kg (0–198 lb)
Front:
250 kPa (36 psi) (2.50 kgf/cm²)
Rear:
250 kPa (36 psi) (2.50 kgf/cm²)
Loading condition:
FJR1300 90–201 kg (198–443 lb)
FJR1300A 90–194 kg (198–428 lb)
Front:
250 kPa (36 psi) (2.50 kgf/cm²)
Rear:
290 kPa (42 psi) (2.90 kgf/cm²)
High-speed riding:
Front:
250 kPa (36 psi) (2.50 kgf/cm²)
Rear:
250 kPa (36 psi) (2.50 kgf/cm²)Front wheel:Wheel type:
Cast wheel
Rim size:
17M/C x MT3.50Rear wheel:Wheel type:
Cast wheel
Rim size:
17M/C x MT5.50Front brake:Type:
Dual disc brakeOperation:
Right hand operation
Recommended fluid:
DOT 4
Rear brake:Type:
Single disc brake
Operation:
Right foot operation
Recommended fluid:
DOT 4Front suspension:Type:
Telescopic fork
Spring/shock absorber type:
Coil spring/oil damper
Wheel travel:
135.0 mm (5.31 in)Rear suspension:Type:
Swingarm (link suspension)
Spring/shock absorber type:
Coil spring/gas-oil damper
Wheel travel:
125.0 mm (4.92 in)Electrical system:Ignition system:
Transistorized coil ignition (digital)
Charging system:
AC magnetoBattery:Model:
GT14B-4
U5JWE4E0.book Page 2 Friday, July 30, 2004 6:07 PM

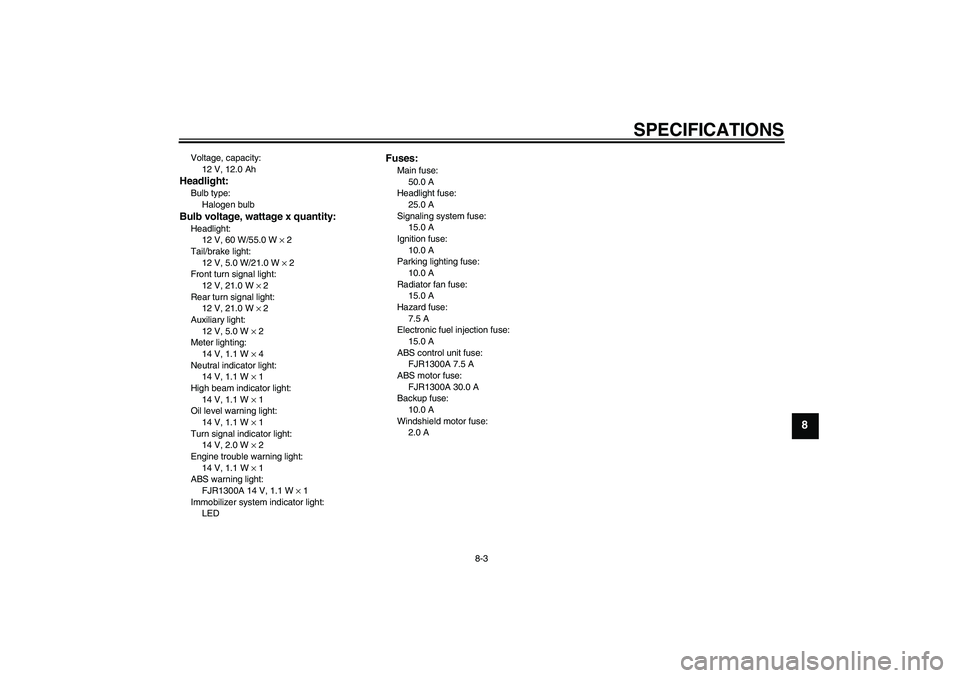

SPECIFICATIONS
8-3
8
Voltage, capacity:
12 V, 12.0 AhHeadlight:Bulb type:
Halogen bulbBulb voltage, wattage x quantity:Headlight:
12 V, 60 W/55.0 W × 2
Tail/brake light:
12 V, 5.0 W/21.0 W × 2
Front turn signal light:
12 V, 21.0 W × 2
Rear turn signal light:
12 V, 21.0 W × 2
Auxiliary light:
12 V, 5.0 W × 2
Meter lighting:
14 V, 1.1 W × 4
Neutral indicator light:
14 V, 1.1 W × 1
High beam indicator light:
14 V, 1.1 W × 1
Oil level warning light:
14 V, 1.1 W × 1
Turn signal indicator light:
14 V, 2.0 W × 2
Engine trouble warning light:
14 V, 1.1 W × 1
ABS warning light:
FJR1300A 14 V, 1.1 W × 1
Immobilizer system indicator light:
LED
Fuses:Main fuse:
50.0 A
Headlight fuse:
25.0 A
Signaling system fuse:
15.0 A
Ignition fuse:
10.0 A
Parking lighting fuse:
10.0 A
Radiator fan fuse:
15.0 A
Hazard fuse:
7.5 A
Electronic fuel injection fuse:
15.0 A
ABS control unit fuse:
FJR1300A 7.5 A
ABS motor fuse:
FJR1300A 30.0 A
Backup fuse:
10.0 A
Windshield motor fuse:
2.0 A
U5JWE4E0.book Page 3 Friday, July 30, 2004 6:07 PM

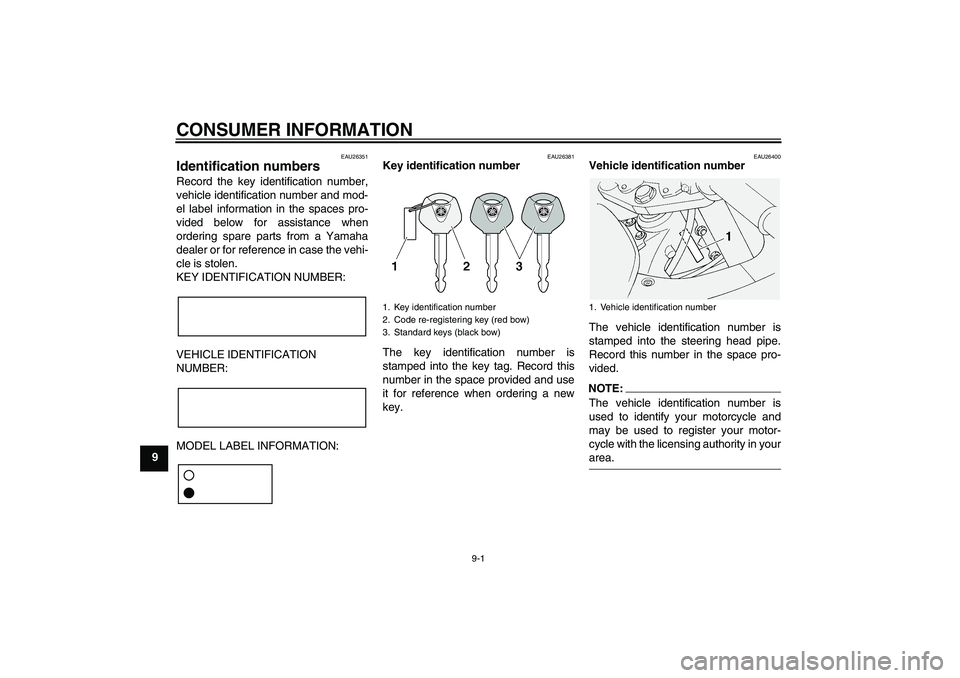

CONSUMER INFORMATION
9-1
9
EAU26351
Identification numbers Record the key identification number,
vehicle identification number and mod-
el label information in the spaces pro-
vided below for assistance when
ordering spare parts from a Yamaha
dealer or for reference in case the vehi-
cle is stolen.
KEY IDENTIFICATION NUMBER:
VEHICLE IDENTIFICATION
NUMBER:
MODEL LABEL INFORMATION:
EAU26381
Key identification number
The key identification number is
stamped into the key tag. Record this
number in the space provided and use
it for reference when ordering a new
key.
EAU26400
Vehicle identification number
The vehicle identification number is
stamped into the steering head pipe.
Record this number in the space pro-
vided.NOTE:
The vehicle identification number is
used to identify your motorcycle and
may be used to register your motor-
cycle with the licensing authority in yourarea.
1. Key identification number
2. Code re-registering key (red bow)
3. Standard keys (black bow)
1. Vehicle identification number
U5JWE4E0.book Page 1 Friday, July 30, 2004 6:07 PM

CONSUMER INFORMATION
9-2
9
EAU26470

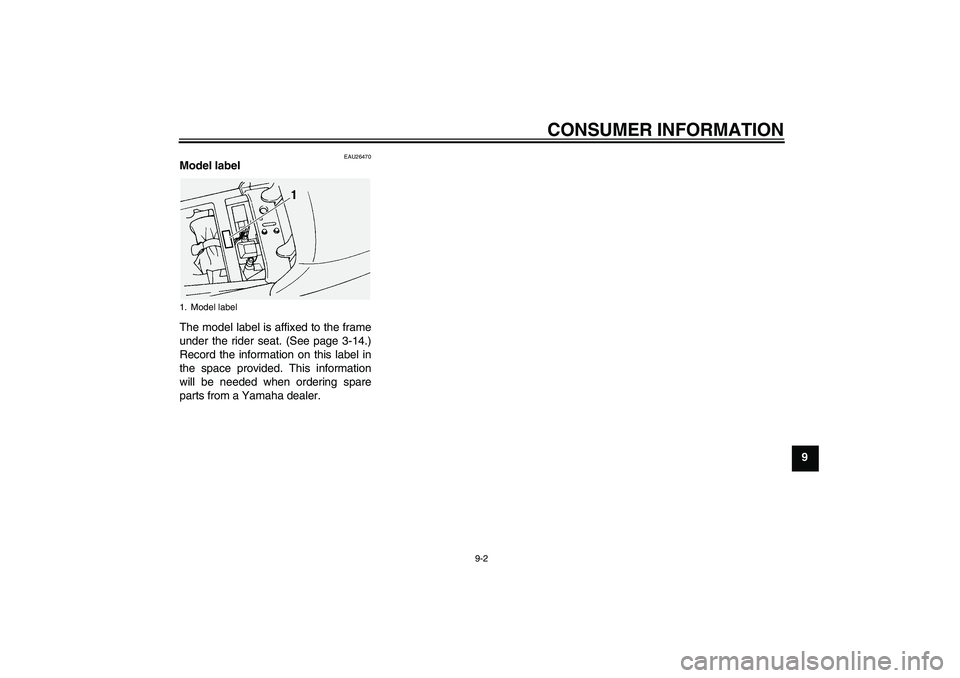

Model label
The model label is affixed to the frame
under the rider seat. (See page 3-14.)
Record the information on this label in
the space provided. This information
will be needed when ordering spare
parts from a Yamaha dealer.1. Model label
U5JWE4E0.book Page 2 Friday, July 30, 2004 6:07 PM

INDEXAABS (for ABS models) .......................... 3-11
ABS warning light (for ABS models) ....... 3-4
Accessory box....................................... 3-15
Air filter element, cleaning..................... 6-13
Anti-theft alarm (optional)........................ 3-7
Auxiliary light bulb, replacing ................ 6-31BBattery................................................... 6-26
Brake and clutch fluid levels,
checking ............................................. 6-20
Brake and clutch fluids, changing ......... 6-21
Brake and clutch levers,
checking and lubricating ..................... 6-23
Brake and shift pedals,
checking and lubricating ..................... 6-22
Brake lever ............................................ 3-10
Brake pedal ........................................... 3-11CCables, checking and lubricating .......... 6-22
Care ........................................................ 7-1
Catalytic converter ................................ 3-14
Centerstand and sidestand,
checking and lubricating ..................... 6-24
Clutch lever ............................................. 3-9
Clutch lever free play ............................ 6-19
Coolant.................................................. 6-12DDimmer switch ........................................ 3-8EEngine break-in ....................................... 5-3
Engine idling speed, checking .............. 6-15
Engine oil and oil filter cartridge .............. 6-8
Engine stop switch .................................. 3-9Engine trouble warning light ................... 3-4
FFinal gear oil ......................................... 6-10
Front and rear brake pads, checking .... 6-19
Front fork, adjusting .............................. 3-16
Front fork, checking .............................. 6-25
Fuel....................................................... 3-12
Fuel consumption, tips for reducing........ 5-3
Fuel tank breather hose........................ 3-13
Fuel tank cap ........................................ 3-12
Fuses, replacing ................................... 6-28HHandlebar switches ................................ 3-8
Hazard switch ......................................... 3-9
Headlight bulb, replacing ...................... 6-29
High beam indicator light ........................ 3-4
Horn switch ............................................. 3-9IIdentification numbers ............................ 9-1
Ignition circuit cut-off system ................ 3-20
Immobilizer system ................................. 3-1
Immobilizer system indicator light........... 3-4
Indicator and warning lights .................... 3-3KKey identification number ....................... 9-1LLocks for optional side cases and
travel trunk ......................................... 3-19MMain switch/steering lock........................ 3-2
Model label ............................................. 9-2
Multi-function display .............................. 3-6NNeutral indicator light .............................. 3-4
OOil level warning light .............................. 3-4PPanels, removing and installing .............. 6-5
Parking .................................................... 5-4
Part locations .......................................... 2-1
Pass switch ............................................. 3-8
Periodic maintenance and
lubrication chart .................................... 6-2
Pre-operation check list........................... 4-2RRear brake light switch, adjusting ......... 6-19
Rear suspension, lubricating ................. 6-24SSafety information ................................... 1-1
Seats ..................................................... 3-14
Shifting .................................................... 5-2
Shift pedal ............................................. 3-10
Shock absorber assembly, adjusting .... 3-18
Sidestand .............................................. 3-19
Spark plugs, checking ............................. 6-7
Specifications .......................................... 8-1
Speedometer........................................... 3-5
Starting the engine .................................. 5-1
Start switch.............................................. 3-9
Steering, checking................................. 6-25
Storage.................................................... 7-3
Storage compartment............................ 3-15
Swingarm pivots, lubricating ................. 6-24TTachometer ............................................. 3-5
Throttle cable free play, checking ......... 6-15
Throttle grip and cable,
checking and lubricating ..................... 6-22
U5JWE4E0.book Page 1 Friday, July 30, 2004 6:07 PM

INDEX
Tires...................................................... 6-16
Tool kit .................................................... 6-1
Troubleshooting .................................... 6-32
Troubleshooting charts ......................... 6-33
Turn signal indicator lights ...................... 3-3
Turn signal light or tail/brake light bulb,
replacing ............................................. 6-31
Turn signal switch ................................... 3-8VValve clearance .................................... 6-15
Vehicle identification number.................. 9-1WWheel bearings, checking .................... 6-26
Wheels.................................................. 6-18
Windshield position adjusting switch ...... 3-8
U5JWE4E0.book Page 2 Friday, July 30, 2004 6:07 PM

A5-yoko_Blank.fm Page 1 Tuesday, April 8, 2003 11:43 AM

A5-yoko_Blank.fm Page 1 Tuesday, April 8, 2003 11:43 AM

PRINTED ON RECYCLED PAPER
YAMAHA MOTOR CO., LTD.
PRINTED IN JAPAN
2004.08-0.3×1 CR
(E)
5JW-28199-E4
FJR1300
FJR1300A
OWNER’S MANUAL
