TABLE OF CONTENTSSAFETY INFORMATION ..................1-1
DESCRIPTION ..................................2-1
Left view ..........................................2-1
Right view ........................................2-2
Controls and instruments.................2-3
INSTRUMENT AND CONTROL
FUNCTIONS.......................................3-1
Immobilizer system .........................3-1
Main switch/steering lock ................3-2
Indicator and warning lights ............3-3
Speedometer ..................................3-5
Tachometer ....................................3-5
Multi-function display ......................3-6
Anti-theft alarm (optional) ...............3-7
Handlebar switches ........................3-8
Clutch lever .....................................3-9
Shift pedal .....................................3-10
Brake lever ...................................3-10
Brake pedal ..................................3-11
ABS (for ABS models) ..................3-11
Fuel tank cap ................................3-12
Fuel ...............................................3-12
Fuel tank breather hose ................3-13
Catalytic converter ........................3-14
Seats ............................................3-14
Storage compartment ...................3-15
Accessory box ..............................3-15
Adjusting the front fork ..................3-16Adjusting the shock absorber
assembly ................................... 3-18
Locks for the optional side cases
and travel trunk ......................... 3-19
Sidestand ..................................... 3-19
Ignition circuit cut-off system ........ 3-20
PRE-OPERATION CHECKS............. 4-1
Pre-operation check list .................. 4-2
OPERATION AND IMPORTANT
RIDING POINTS................................. 5-1
Starting the engine ......................... 5-1
Shifting ........................................... 5-2
Tips for reducing fuel
consumption ............................... 5-3
Engine break-in .............................. 5-3
Parking ........................................... 5-4
PERIODIC MAINTENANCE AND
MINOR REPAIR................................. 6-1
Owner’s tool kit ............................... 6-1
Periodic maintenance and
lubrication chart .......................... 6-2
Removing and installing panels ..... 6-5
Checking the spark plugs ............... 6-7
Engine oil and oil filter cartridge ..... 6-8
Final gear oil ................................. 6-10
Coolant ......................................... 6-12
Cleaning the air filter element ...... 6-13Checking the engine idling
speed ........................................ 6-15
Checking the throttle cable free
play ........................................... 6-15
Valve clearance ........................... 6-15
Tires ............................................. 6-16
Cast wheels ................................. 6-18
Clutch lever free play ................... 6-19
Adjusting the rear brake light
switch ....................................... 6-19
Checking the front and rear
brake pads ................................ 6-19
Checking the brake and clutch
fluid levels ................................. 6-20
Changing the brake and clutch
fluids ......................................... 6-21
Checking and lubricating the
cables ....................................... 6-22
Checking and lubricating the
throttle grip and cable ............... 6-22
Checking and lubricating the
brake and shift pedals .............. 6-22
Checking and lubricating the
brake and clutch levers ............ 6-23
Checking and lubricating the
centerstand and sidestand ....... 6-24
Lubricating the swingarm
pivots ........................................ 6-24
Lubricating the rear suspension ... 6-24
Checking the front fork ................. 6-25
Checking the steering .................. 6-25U5JWE4E0.book Page 1 Friday, July 30, 2004 6:07 PM
Page 14 of 90
DESCRIPTION
2-3
2
EAU10430

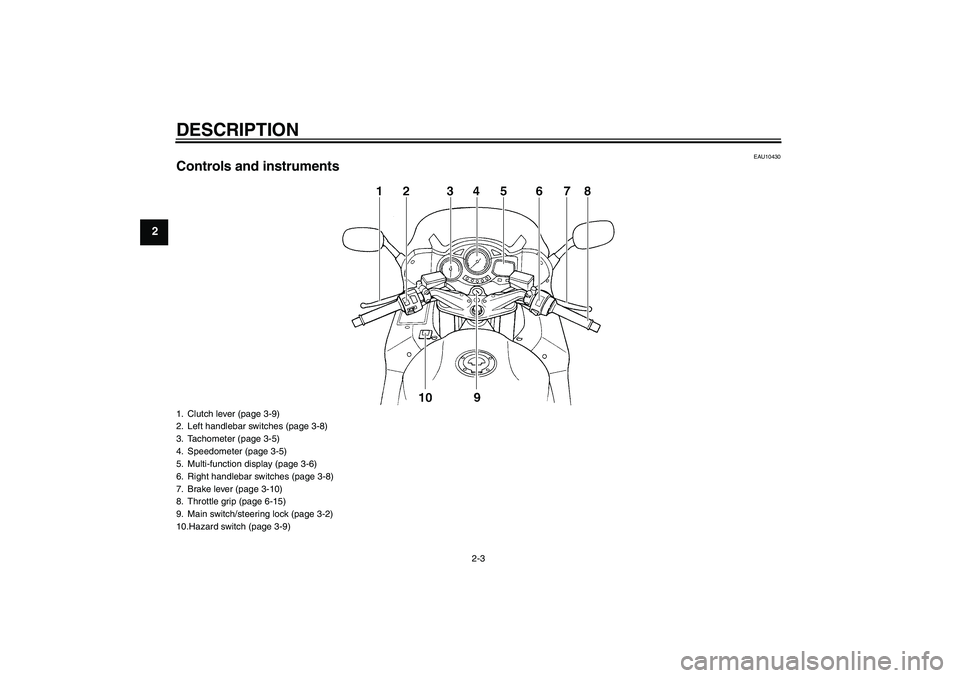

Controls and instruments1. Clutch lever (page 3-9)
2. Left handlebar switches (page 3-8)
3. Tachometer (page 3-5)
4. Speedometer (page 3-5)
5. Multi-function display (page 3-6)
6. Right handlebar switches (page 3-8)
7. Brake lever (page 3-10)
8. Throttle grip (page 6-15)
9. Main switch/steering lock (page 3-2)
10.Hazard switch (page 3-9)U5JWE4E0.book Page 3 Friday, July 30, 2004 6:07 PM
Page 16 of 90
INSTRUMENT AND CONTROL FUNCTIONS
3-2
3
EAU10471

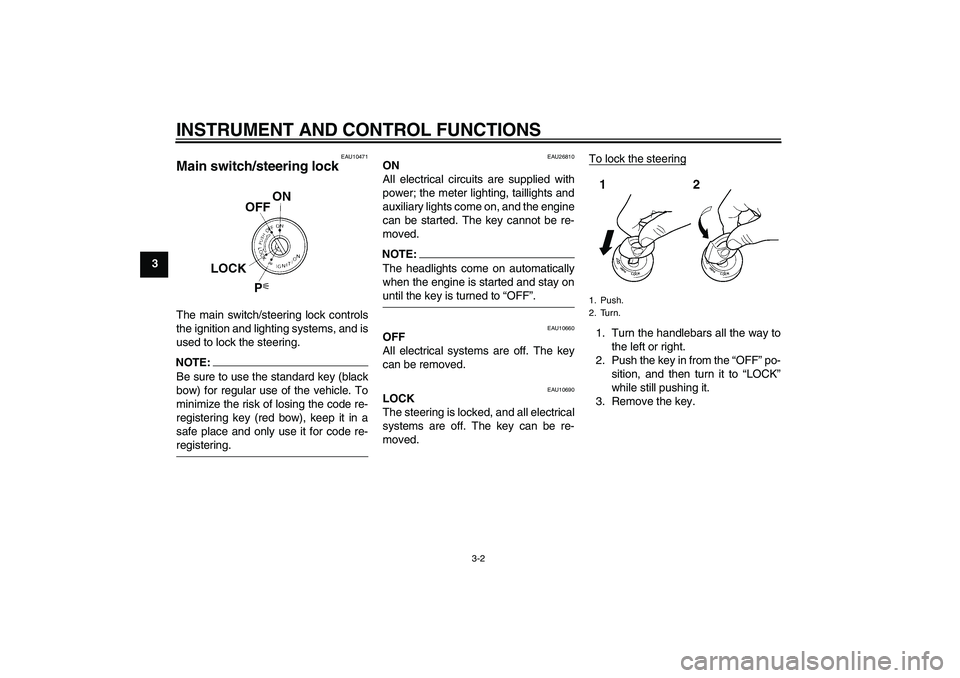

Main switch/steering lock The main switch/steering lock controls
the ignition and lighting systems, and is
used to lock the steering.NOTE:Be sure to use the standard key (black
bow) for regular use of the vehicle. To
minimize the risk of losing the code re-
registering key (red bow), keep it in a
safe place and only use it for code re-registering.
EAU26810
ON
All electrical circuits are supplied with
power; the meter lighting, taillights and
auxiliary lights come on, and the engine
can be started. The key cannot be re-
moved.NOTE:The headlights come on automatically
when the engine is started and stay onuntil the key is turned to “OFF”.
EAU10660
OFF
All electrical systems are off. The key
can be removed.
EAU10690
LOCK
The steering is locked, and all electrical
systems are off. The key can be re-
moved.To lock the steering
1. Turn the handlebars all the way to
the left or right.
2. Push the key in from the “OFF” po-
sition, and then turn it to “LOCK”
while still pushing it.
3. Remove the key.1. Push.
2. Turn.
U5JWE4E0.book Page 2 Friday, July 30, 2004 6:07 PM
Page 17 of 90
INSTRUMENT AND CONTROL FUNCTIONS
3-3
3 To unlock the steering
Push the key into the main switch, and
then turn it to “OFF” while still pushing
it.
WARNING
EWA10060
Never turn the key to “OFF” or
“LOCK” while the vehicle is moving,
otherwise the electrical systems will
be switched off, which may result in
loss of control or an accident. Make
sure that the vehicle is stopped be-
fore turning the key to “OFF” or“LOCK”.
EAU10910
(Parking)
The steering is locked, the taillights and
auxiliary lights are on, and the hazard
light can be turned on, but all other
electrical systems are off. The key can
be removed.
The steering must be locked before the
key can be turned to “”.
CAUTION:
ECA11020
Do not use the parking position for
an extended length of time, other-wise the battery may discharge.
EAU11002

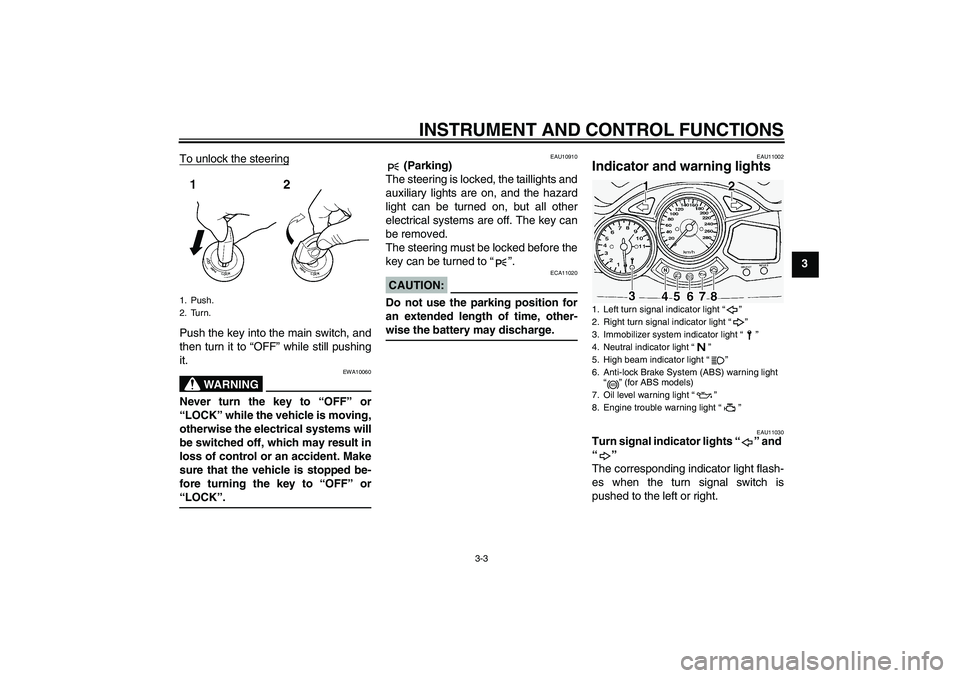

Indicator and warning lights
EAU11030
Turn signal indicator lights “” and
“”
The corresponding indicator light flash-
es when the turn signal switch is
pushed to the left or right.
1. Push.
2. Turn.
1. Left turn signal indicator light “”
2. Right turn signal indicator light “”
3. Immobilizer system indicator light “”
4. Neutral indicator light “”
5. High beam indicator light “”
6. Anti-lock Brake System (ABS) warning light
“” (for ABS models)
7. Oil level warning light “”
8. Engine trouble warning light “”
ABS
U5JWE4E0.book Page 3 Friday, July 30, 2004 6:07 PM
Page 18 of 90
INSTRUMENT AND CONTROL FUNCTIONS
3-4
3
EAU11060
Neutral indicator light “”
This indicator light comes on when the
transmission is in the neutral position.
EAU11080
High beam indicator light “”
This indicator light comes on when the
high beam of the headlight is switched
on.
EAU11120
Oil level warning light “”
This warning light comes on when the
engine oil level is low.
The electrical circuit of the warning light
can be checked by turning the key to
“ON”.
If the warning light does not come on
for a few seconds, then go off, have a
Yamaha dealer check the electrical cir-
cuit.NOTE:Even if the oil level is sufficient, the
warning light may flicker when riding on
a slope or during sudden acceleration
or deceleration, but this is not a mal-function.
EAU11530
Engine trouble warning light “”
This warning light comes on or flashes
when an electrical circuit monitoring the
engine is defective. When this occurs,
have a Yamaha dealer check the self-
diagnosis system. (See page 3-6 for an
explanation of the self-diagnosis de-
vice.)
The electrical circuit of the warning light
can be checked by turning the key to
“ON”. If the warning light does not come
on for a few seconds, then go off, have
a Yamaha dealer check the electrical
circuit.
EAU11543
ABS warning light “” (for ABS
models)
If this warning light comes on or flashes
while riding, the ABS may be defective.
If this occurs, have a Yamaha dealer
check the system as soon as possible.
(See page 3-11.)
WARNING
EWA10081
If the ABS warning light comes on or
flashes while riding, the brake sys-
tem reverts to conventional braking.
Therefore, be careful not to causethe wheels to lock during emergen-
cy braking. If the warning light
comes on or flashes while riding,
have a Yamaha dealer check the
brake system as soon as possible.
The electrical circuit of the warning light
can be checked by turning the key to
“ON”.
If the warning light does not come on or
remains on, have a Yamaha dealer
check the electrical circuit.
EAU26872
Immobilizer system indicator light
“”
The electrical circuit of the indicator
light can be checked by turning the key
to “ON”.
If the indicator light does not come on
for a few seconds, then go off, have a
Yamaha dealer check the electrical cir-
cuit.
When the key is turned to “OFF” and 30
seconds have passed, the indicator
light will start flashing indicating the im-
mobilizer system is enabled. After 24
hours have passed, the indicator light
will stop flashing, however the immobi-
lizer system is still enabled.
ABS
U5JWE4E0.book Page 4 Friday, July 30, 2004 6:07 PM
Page 20 of 90
INSTRUMENT AND CONTROL FUNCTIONS
3-6
3
EAU26861
Multi-function display The multi-function display is equipped
with the following:
a fuel meter
a coolant temperature meter
an odometer (which shows the to-
tal distance traveled)
two tripmeters (which show the
distance traveled since they were
last set to zero)
a fuel reserve tripmeter (which
shows the distance traveled on the
fuel reserve)
a self-diagnosis device
a clockOdometer and tripmeter modes
Pushing the “SELECT” button switches
the display between the odometer
mode “ODO” and the tripmeter modes
“TRIP” in the following order:
ODO → TRIP (top) → TRIP (bottom) →
ODO
When approximately 5.0 L (1.32 US
gal) (1.10 Imp.gal) of fuel remains in the
fuel tank, the display will automatically
change to the fuel reserve tripmeter
mode “TRIP F” and start counting the
distance traveled from that point. In that
case, pushing the “SELECT” button
switches the display between the vari-
ous tripmeter and odometer modes in
the following order:
TRIP F → TRIP (top) → TRIP (bottom)
→ ODO → TRIP F
To reset a tripmeter, select it by push-
ing the “SELECT” button, and then
push the “RESET” button for at least
one second. If you do not reset the fuel
reserve tripmeter manually, it will reset
itself automatically and the display will
return to the prior mode after refueling
and traveling 5 km (3 mi).Self-diagnosis device
This model is equipped with a self-diag-
nosis device for various electrical cir-
cuits.
If any of those circuits are defective, the
multi-function display will indicate a
two-digit error code (e.g., 11, 12, 13).
If the multi-function display indicates
such an error code, note the code num-
ber, and then have a Yamaha dealer
check the vehicle.
CAUTION:
ECA11790
If the multi-function display indi-
cates an error code, the vehicle
should be checked as soon as pos-
sible in order to avoid engine dam-age.
This model is also equipped with a self-
diagnosis device for the immobilizer
system.
If any of the immobilizer system circuits
are defective, the immobilizer system
indicator light will flash, and then the
multi-function display will indicate a
two-digit error code (e.g., 51, 52, 53)
when the key is turned to “ON”.
1. Multi-function display
2.“SELECT” button
3.“RESET” buttonU5JWE4E0.book Page 6 Friday, July 30, 2004 6:07 PM
Page 21 of 90
INSTRUMENT AND CONTROL FUNCTIONS
3-7
3
NOTE:If the multi-function display indicates er-
ror code 52, this could be caused by
transponder interference. If this errorappears, try the following.
1. Use the code re-registering key to
start the engine.NOTE:Make sure there are no other immobi-
lizer keys close to the main switch, and
do not keep more than one immobilizer
key on the same key ring! Immobilizer
system keys may cause signal interfer-
ence, which may prevent the enginefrom starting.
2. If the engine starts, turn it off, and
try starting the engine with the
standard keys.
3. If one or both of the standard keys
do not start the engine, take the
vehicle, the code re-registering
key and both standard keys to a
Yamaha dealer and have the stan-
dard keys re-registered.If the multi-function display indicates
any error codes, note the code number,
and then have a Yamaha dealer check
the vehicle.
Clock mode
To set the clock:
1. Push the “SELECT” button and
“RESET” button together for at
least two seconds.
2. When the hour digits start flashing,
push the “RESET” button to set the
hours.
3. Push the “SELECT” button, and
the minute digits will start flashing.
4. Push the “RESET” button to set
the minutes.
5. Push the “SELECT” button and
then release it to start the clock.
EAU12330
Anti-theft alarm (optional) This model can be equipped with an
optional anti-theft alarm by a Yamaha
dealer. Contact a Yamaha dealer for
more information.
U5JWE4E0.book Page 7 Friday, July 30, 2004 6:07 PM
Page 25 of 90
INSTRUMENT AND CONTROL FUNCTIONS
3-11
3
EAU12941
Brake pedal The brake pedal is on the right side of
the motorcycle. To apply the rear
brake, press down on the brake pedal.
EAU26792
ABS (for ABS models) The Yamaha ABS (Anti-lock Brake
System) features a dual electronic con-
trol system, which acts on the front and
rear brakes independently. The ABS is
monitored by an ECU (Electronic Con-
trol Unit), which will have recourse to
manual braking if a malfunction occurs.
WARNING
EWA10090
The ABS performs best on long
braking distances.
On certain (rough or gravel)
roads, the braking distance may
be longer with than without the
ABS. Therefore, always keep a
sufficient distance to the vehicle
ahead to match the ridingspeed.
NOTE:
When the ABS is activated, the
brakes are operated in the usual
way. A pulsating action may be felt
at the brake lever or brake pedal,
but this does not indicate a mal-
function.
This ABS has a test mode which
allows the owner to experience the
pulsating at the brake lever or
brake pedal when the ABS is oper-
ating. However, special tools are
required, so please consult your
Yamaha dealer when performingthis test.
1. Brake pedal
U5JWE4E0.book Page 11 Friday, July 30, 2004 6:07 PM
Page 26 of 90
INSTRUMENT AND CONTROL FUNCTIONS
3-12
3
EAU13070
Fuel tank cap To open the fuel tank cap
Open the fuel tank cap lock cover, in-
sert the key into the lock, and then turn
it 1/4 turn clockwise. The lock will be re-
leased and the fuel tank cap can be
opened.
To close the fuel tank cap
1. Push the fuel tank cap into position
with the key inserted in the lock.
2. Turn the key counterclockwise to
the original position, remove it, and
then close the lock cover.
NOTE:The fuel tank cap cannot be closed un-
less the key is in the lock. In addition,
the key cannot be removed if the cap isnot properly closed and locked.
WARNING
EWA11090
Make sure that the fuel tank cap isproperly closed before riding.
EAU13210
Fuel Make sure that there is sufficient fuel in
the tank. Fill the fuel tank to the bottom
of the filler tube as shown.
WARNING
EWA10880
Do not overfill the fuel tank, oth-
erwise it may overflow when the
fuel warms up and expands.
Avoid spilling fuel on the hot en-gine.
1. Fuel tank cap lock cover
2. Unlock.
1. Fuel tank filler tube
2. Fuel level
U5JWE4E0.book Page 12 Friday, July 30, 2004 6:07 PM
Page 27 of 90
INSTRUMENT AND CONTROL FUNCTIONS
3-13
3
CAUTION:
ECA10070
Immediately wipe off spilled fuel
with a clean, dry, soft cloth, since
fuel may deteriorate painted surfac-es or plastic parts.
EAU13320
CAUTION:
ECA11400
Use only unleaded gasoline. The use
of leaded gasoline will cause severe
damage to internal engine parts,
such as the valves and piston rings,as well as to the exhaust system.
Your Yamaha engine has been de-
signed to use regular unleaded gaso-
line with a research octane number of
91 or higher. If knocking (or pinging) oc-
curs, use a gasoline of a different brandor premium unleaded fuel. Use of un-
leaded fuel will extend spark plug life
and reduce maintenance costs.
EAU13410
Fuel tank breather hose Before operating the motorcycle:
Check the fuel tank breather hose
connection.
Check the fuel tank breather hose
for cracks or damage, and replace
it if damaged.
Make sure that the end of the fuel
tank breather hose is not blocked,
and clean it if necessary.
Recommended fuel:
REGULAR UNLEADED GASOLINE
ONLY
Fuel tank capacity:
25.0 L (6.61 US gal) (5.50 Imp.gal)
Fuel reserve amount:
5.0 L (1.32 US gal) (1.10 Imp.gal)
1. Fuel tank breather hose
U5JWE4E0.book Page 13 Friday, July 30, 2004 6:07 PM
