Page 7 of 102

TABLE OF CONTENTS
Checking and lubricating the
centerstand and sidestand ........ 6-25
Lubricating the swingarm pivots ... 6-26
Lubricating the rear suspension ... 6-26
Checking the front fork ................. 6-26
Checking the steering ................... 6-27
Checking the wheel bearings ....... 6-28
Battery .......................................... 6-28
Replacing the fuses ...................... 6-29
Replacing a headlight bulb ........... 6-31
Front turn signal light .................... 6-32
Replacing a rear turn signal light
bulb or a tail/brake light bulb ..... 6-32
Replacing the license plate light
bulb ........................................... 6-33
Replacing an auxiliary light bulb ... 6-34
Troubleshooting ............................ 6-34
Troubleshooting charts ................. 6-35
MOTORCYCLE CARE AND
STORAGE.......................................... 7-1
Care ................................................ 7-1
Storage ...........................................7-3
SPECIFICATIONS ............................. 8-1
CONSUMER INFORMATION............. 9-1
Identification numbers .................... 9-1
U3P6E0E0.book Page 2 Tuesday, January 24, 2006 10:46 AM

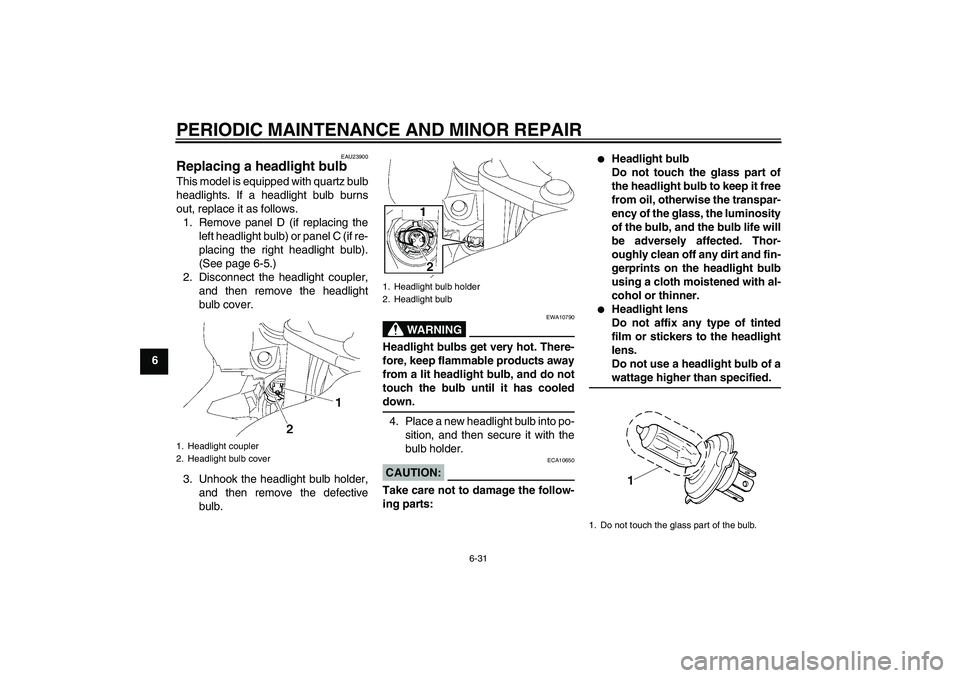

Page 84 of 102

PERIODIC MAINTENANCE AND MINOR REPAIR
6-31
6
EAU23900
Replacing a headlight bulb This model is equipped with quartz bulb
headlights. If a headlight bulb burns
out, replace it as follows.
1. Remove panel D (if replacing the
left headlight bulb) or panel C (if re-
placing the right headlight bulb).
(See page 6-5.)
2. Disconnect the headlight coupler,
and then remove the headlight
bulb cover.
3. Unhook the headlight bulb holder,
and then remove the defective
bulb.
WARNING
EWA10790
Headlight bulbs get very hot. There-
fore, keep flammable products away
from a lit headlight bulb, and do not
touch the bulb until it has cooleddown.
4. Place a new headlight bulb into po-
sition, and then secure it with the
bulb holder.CAUTION:
ECA10650
Take care not to damage the follow-
ing parts:
Headlight bulb
Do not touch the glass part of
the headlight bulb to keep it free
from oil, otherwise the transpar-
ency of the glass, the luminosity
of the bulb, and the bulb life will
be adversely affected. Thor-
oughly clean off any dirt and fin-
gerprints on the headlight bulb
using a cloth moistened with al-
cohol or thinner.
Headlight lens
Do not affix any type of tinted
film or stickers to the headlight
lens.
Do not use a headlight bulb of awattage higher than specified.
1. Headlight coupler
2. Headlight bulb cover
1. Headlight bulb holder
2. Headlight bulb
1. Do not touch the glass part of the bulb.
U3P6E0E0.book Page 31 Tuesday, January 24, 2006 10:46 AM

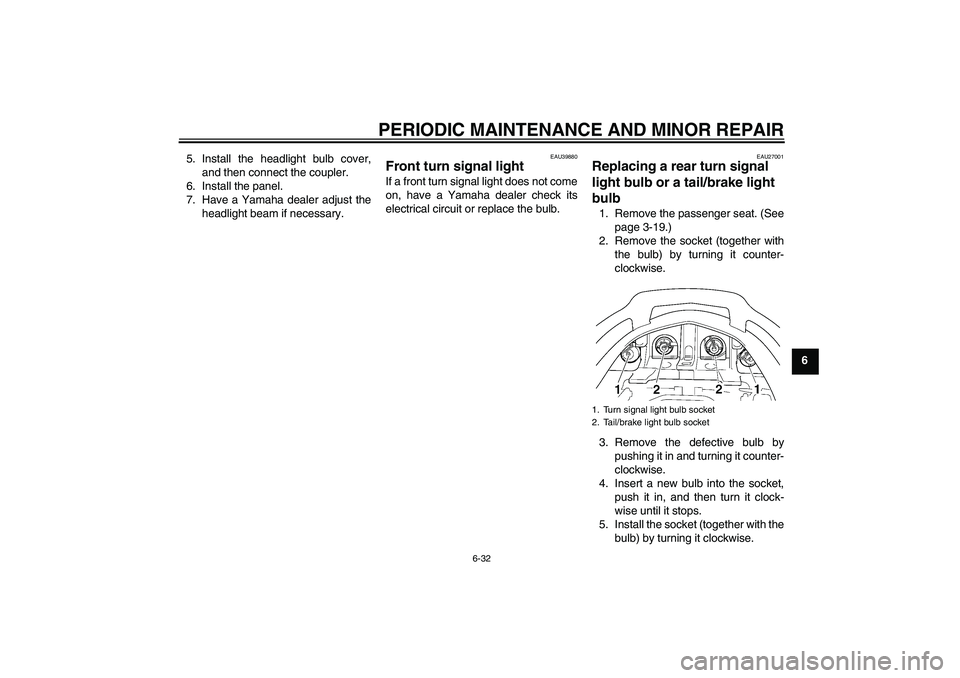

Page 85 of 102

PERIODIC MAINTENANCE AND MINOR REPAIR
6-32
6 5. Install the headlight bulb cover,
and then connect the coupler.
6. Install the panel.
7. Have a Yamaha dealer adjust the
headlight beam if necessary.
EAU39880
Front turn signal light If a front turn signal light does not come
on, have a Yamaha dealer check its
electrical circuit or replace the bulb.
EAU27001
Replacing a rear turn signal
light bulb or a tail/brake light
bulb 1. Remove the passenger seat. (See
page 3-19.)
2. Remove the socket (together with
the bulb) by turning it counter-
clockwise.
3. Remove the defective bulb by
pushing it in and turning it counter-
clockwise.
4. Insert a new bulb into the socket,
push it in, and then turn it clock-
wise until it stops.
5. Install the socket (together with the
bulb) by turning it clockwise.1. Turn signal light bulb socket
2. Tail/brake light bulb socket
U3P6E0E0.book Page 32 Tuesday, January 24, 2006 10:46 AM

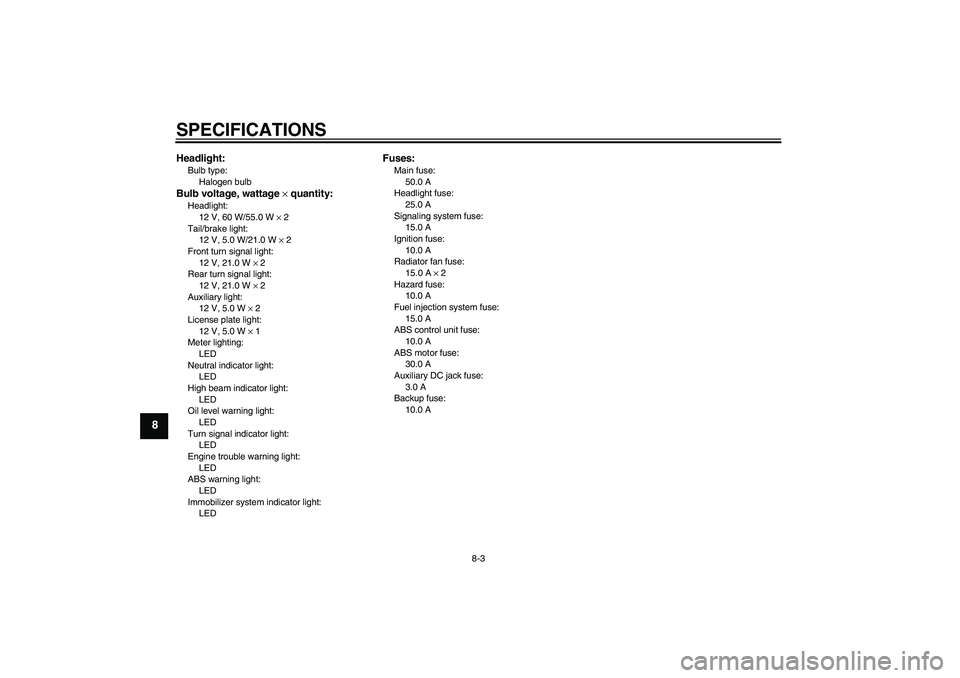

Page 96 of 102

SPECIFICATIONS
8-3
8
Headlight:Bulb type:
Halogen bulbBulb voltage, wattage × quantity:Headlight:
12 V, 60 W/55.0 W × 2
Tail/brake light:
12 V, 5.0 W/21.0 W × 2
Front turn signal light:
12 V, 21.0 W × 2
Rear turn signal light:
12 V, 21.0 W × 2
Auxiliary light:
12 V, 5.0 W × 2
License plate light:
12 V, 5.0 W × 1
Meter lighting:
LED
Neutral indicator light:
LED
High beam indicator light:
LED
Oil level warning light:
LED
Turn signal indicator light:
LED
Engine trouble warning light:
LED
ABS warning light:
LED
Immobilizer system indicator light:
LED
Fuses:Main fuse:
50.0 A
Headlight fuse:
25.0 A
Signaling system fuse:
15.0 A
Ignition fuse:
10.0 A
Radiator fan fuse:
15.0 A × 2
Hazard fuse:
10.0 A
Fuel injection system fuse:
15.0 A
ABS control unit fuse:
10.0 A
ABS motor fuse:
30.0 A
Auxiliary DC jack fuse:
3.0 A
Backup fuse:
10.0 A
U3P6E0E0.book Page 3 Tuesday, January 24, 2006 10:46 AM

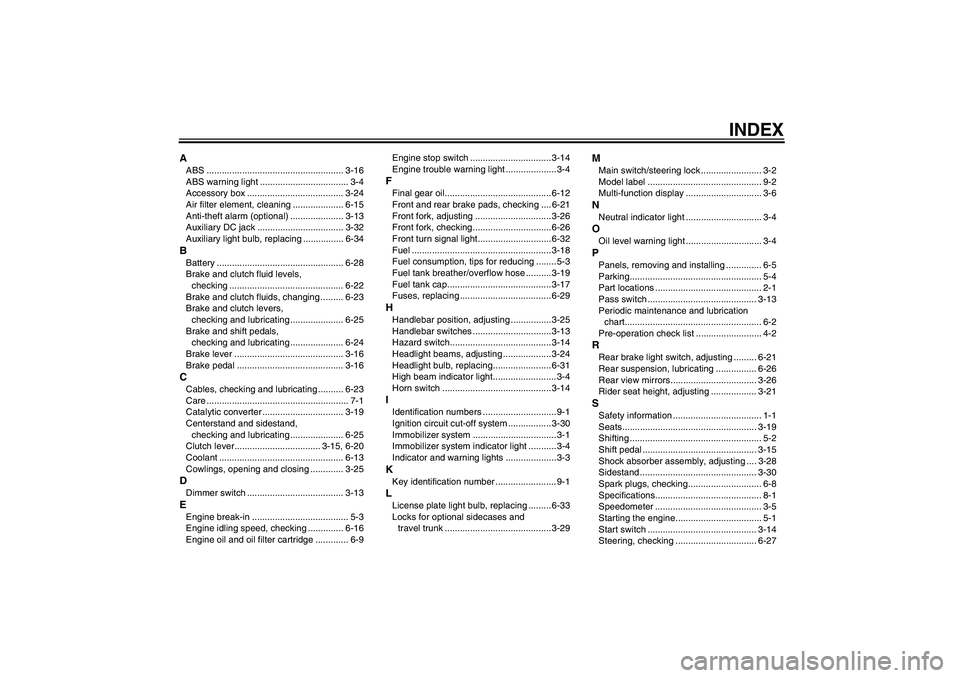

Page 99 of 102

INDEX
AABS ...................................................... 3-16
ABS warning light ................................... 3-4
Accessory box ...................................... 3-24
Air filter element, cleaning .................... 6-15
Anti-theft alarm (optional) ..................... 3-13
Auxiliary DC jack .................................. 3-32
Auxiliary light bulb, replacing ................ 6-34BBattery .................................................. 6-28
Brake and clutch fluid levels,
checking ............................................. 6-22
Brake and clutch fluids, changing ......... 6-23
Brake and clutch levers,
checking and lubricating ..................... 6-25
Brake and shift pedals,
checking and lubricating ..................... 6-24
Brake lever ........................................... 3-16
Brake pedal .......................................... 3-16CCables, checking and lubricating .......... 6-23
Care ........................................................ 7-1
Catalytic converter ................................ 3-19
Centerstand and sidestand,
checking and lubricating ..................... 6-25
Clutch lever.................................. 3-15, 6-20
Coolant ................................................. 6-13
Cowlings, opening and closing ............. 3-25DDimmer switch ...................................... 3-13EEngine break-in ...................................... 5-3
Engine idling speed, checking .............. 6-16
Engine oil and oil filter cartridge ............. 6-9Engine stop switch ................................ 3-14
Engine trouble warning light .................... 3-4
FFinal gear oil.......................................... 6-12
Front and rear brake pads, checking .... 6-21
Front fork, adjusting .............................. 3-26
Front fork, checking...............................6-26
Front turn signal light............................. 6-32
Fuel ....................................................... 3-18
Fuel consumption, tips for reducing ........ 5-3
Fuel tank breather/overflow hose .......... 3-19
Fuel tank cap......................................... 3-17
Fuses, replacing .................................... 6-29HHandlebar position, adjusting ................ 3-25
Handlebar switches ............................... 3-13
Hazard switch........................................ 3-14
Headlight beams, adjusting ................... 3-24
Headlight bulb, replacing....................... 6-31
High beam indicator light......................... 3-4
Horn switch ........................................... 3-14IIdentification numbers ............................. 9-1
Ignition circuit cut-off system ................. 3-30
Immobilizer system .................................3-1
Immobilizer system indicator light ........... 3-4
Indicator and warning lights .................... 3-3KKey identification number ........................ 9-1LLicense plate light bulb, replacing ......... 6-33
Locks for optional sidecases and
travel trunk .......................................... 3-29
MMain switch/steering lock ........................ 3-2
Model label ............................................. 9-2
Multi-function display .............................. 3-6NNeutral indicator light .............................. 3-4OOil level warning light .............................. 3-4PPanels, removing and installing .............. 6-5
Parking.................................................... 5-4
Part locations .......................................... 2-1
Pass switch ........................................... 3-13
Periodic maintenance and lubrication
chart...................................................... 6-2
Pre-operation check list .......................... 4-2RRear brake light switch, adjusting ......... 6-21
Rear suspension, lubricating ................ 6-26
Rear view mirrors.................................. 3-26
Rider seat height, adjusting .................. 3-21SSafety information ................................... 1-1
Seats..................................................... 3-19
Shifting .................................................... 5-2
Shift pedal ............................................. 3-15
Shock absorber assembly, adjusting .... 3-28
Sidestand .............................................. 3-30
Spark plugs, checking............................. 6-8
Specifications.......................................... 8-1
Speedometer .......................................... 3-5
Starting the engine.................................. 5-1
Start switch ........................................... 3-14
Steering, checking ................................ 6-27
