YAMAHA FJR1300A 2008 Workshop Manual

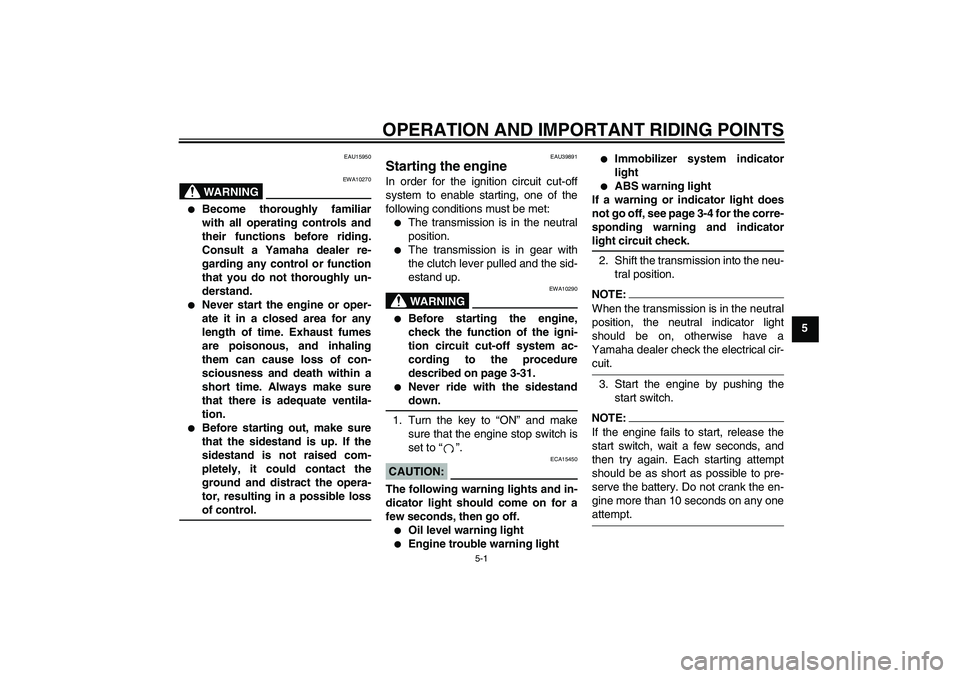

OPERATION AND IMPORTANT RIDING POINTS
5-1
5
EAU15950
WARNING
EWA10270


Become thoroughly familiar
with all operating controls and
their functions before riding.
Consult a Yamaha dealer re-
garding any control or function
that you do not thoroughly un-
derstand.


Never start the engine or oper-
ate it in a closed area for any
length of time. Exhaust fumes
are poisonous, and inhaling
them can cause loss of con-
sciousness and death within a
short time. Always make sure
that there is adequate ventila-
tion.


Before starting out, make sure
that the sidestand is up. If the
sidestand is not raised com-
pletely, it could contact the
ground and distract the opera-
tor, resulting in a possible lossof control.
EAU39891
Starting the engine In order for the ignition circuit cut-off
system to enable starting, one of the
following conditions must be met:

The transmission is in the neutral
position.


The transmission is in gear with
the clutch lever pulled and the sid-
estand up.WARNING
EWA10290


Before starting the engine,
check the function of the igni-
tion circuit cut-off system ac-
cording to the procedure
described on page 3-31.


Never ride with the sidestanddown.
1. Turn the key to “ON” and make
sure that the engine stop switch is
set to“”.
CAUTION:
ECA15450
The following warning lights and in-
dicator light should come on for a
few seconds, then go off.

Oil level warning light


Engine trouble warning light


Immobilizer system indicator
light


ABS warning light
If a warning or indicator light does
not go off, see page 3-4 for the corre-
sponding warning and indicator
light circuit check.
2. Shift the transmission into the neu-
tral position.NOTE:When the transmission is in the neutral
position, the neutral indicator light
should be on, otherwise have a
Yamaha dealer check the electrical cir-cuit.
3. Start the engine by pushing the
start switch.NOTE:If the engine fails to start, release the
start switch, wait a few seconds, and
then try again. Each starting attempt
should be as short as possible to pre-
serve the battery. Do not crank the en-
gine more than 10 seconds on any oneattempt.
U3P6E2E0.book Page 1 Friday, September 14, 2007 9:43 AM

OPERATION AND IMPORTANT RIDING POINTS
5-2
5
CAUTION:
ECA11040
For maximum engine life, never ac-
celerate hard when the engine iscold!
EAU16671
Shifting Shifting gears lets you control the
amount of engine power available for
starting off, accelerating, climbing hills,
etc.
The gear positions are shown in the il-
lustration.NOTE:To shift the transmission into the neu-
tral position, press the shift pedal down
repeatedly until it reaches the end of itstravel, and then slightly raise it.
CAUTION:
ECA10260


Even with the transmission in
the neutral position, do not
coast for long periods of time
with the engine off, and do not
tow the motorcycle for long dis-
tances. The transmission is
properly lubricated only when
the engine is running. Inade-
quate lubrication may damage
the transmission.


Always use the clutch while
changing gears to avoid damag-
ing the engine, transmission,
and drive train, which are not
designed to withstand theshock of forced shifting.
1. Shift pedal
2. Neutral position
U3P6E2E0.book Page 2 Friday, September 14, 2007 9:43 AM

OPERATION AND IMPORTANT RIDING POINTS
5-3
5
EAU16810

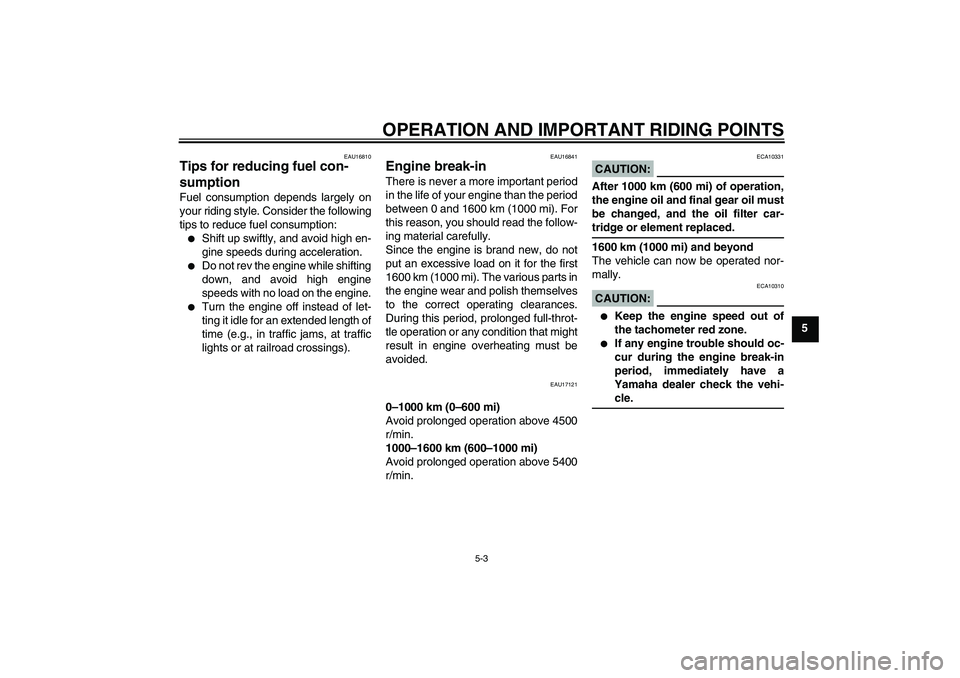

Tips for reducing fuel con-
sumption Fuel consumption depends largely on
your riding style. Consider the following
tips to reduce fuel consumption:

Shift up swiftly, and avoid high en-
gine speeds during acceleration.


Do not rev the engine while shifting
down, and avoid high engine
speeds with no load on the engine.


Turn the engine off instead of let-
ting it idle for an extended length of
time (e.g., in traffic jams, at traffic
lights or at railroad crossings).
EAU16841
Engine break-in There is never a more important period
in the life of your engine than the period
between 0 and 1600 km (1000 mi). For
this reason, you should read the follow-
ing material carefully.
Since the engine is brand new, do not
put an excessive load on it for the first
1600 km (1000 mi). The various parts in
the engine wear and polish themselves
to the correct operating clearances.
During this period, prolonged full-throt-
tle operation or any condition that might
result in engine overheating must be
avoided.
EAU17121
0–1000 km (0–600 mi)
Avoid prolonged operation above 4500
r/min.
1000–1600 km (600–1000 mi)
Avoid prolonged operation above 5400
r/min.
CAUTION:
ECA10331
After 1000 km (600 mi) of operation,
the engine oil and final gear oil must
be changed, and the oil filter car-tridge or element replaced.
1600 km (1000 mi) and beyond
The vehicle can now be operated nor-
mally.CAUTION:
ECA10310


Keep the engine speed out of
the tachometer red zone.


If any engine trouble should oc-
cur during the engine break-in
period, immediately have a
Yamaha dealer check the vehi-cle.
U3P6E2E0.book Page 3 Friday, September 14, 2007 9:43 AM

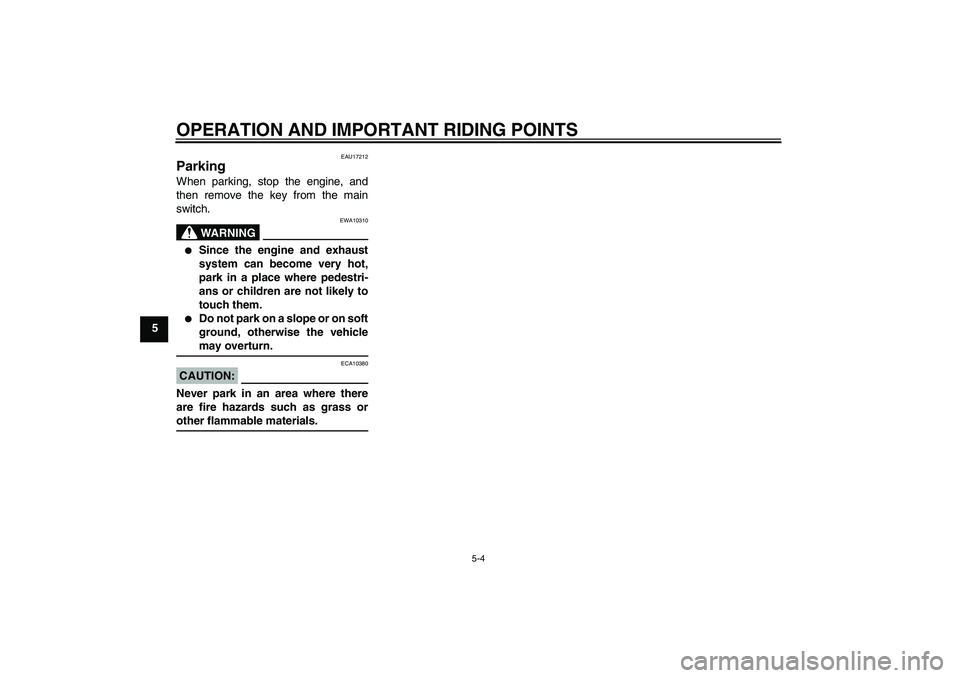

OPERATION AND IMPORTANT RIDING POINTS
5-4
5
EAU17212
Parking When parking, stop the engine, and
then remove the key from the main
switch.
WARNING
EWA10310


Since the engine and exhaust
system can become very hot,
park in a place where pedestri-
ans or children are not likely to
touch them.


Do not park on a slope or on soft
ground, otherwise the vehiclemay overturn.
CAUTION:
ECA10380
Never park in an area where there
are fire hazards such as grass orother flammable materials.U3P6E2E0.book Page 4 Friday, September 14, 2007 9:43 AM

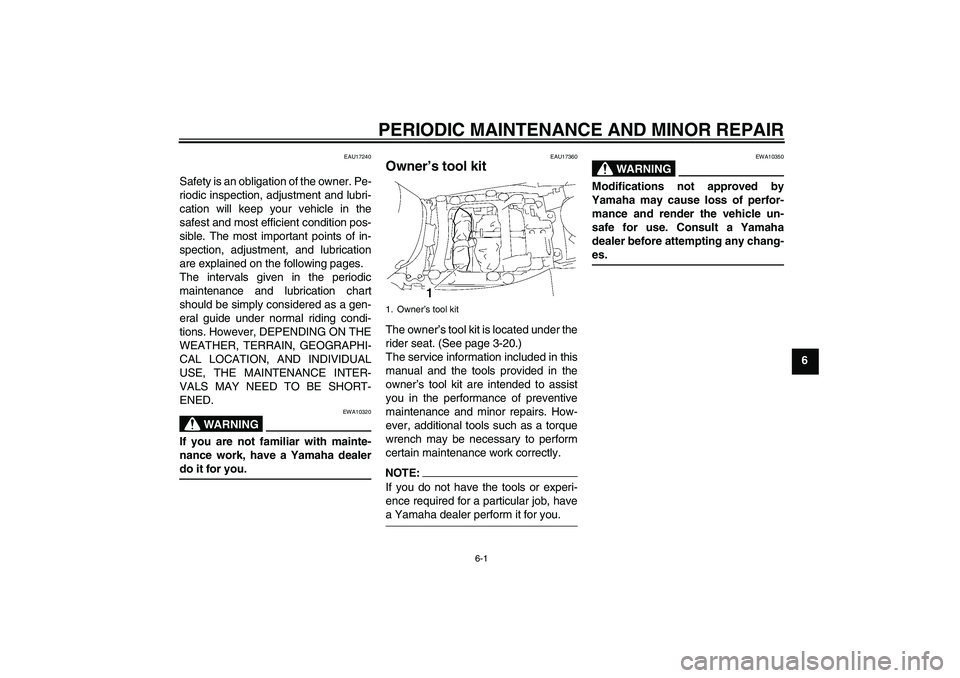

PERIODIC MAINTENANCE AND MINOR REPAIR
6-1
6
EAU17240
Safety is an obligation of the owner. Pe-
riodic inspection, adjustment and lubri-
cation will keep your vehicle in the
safest and most efficient condition pos-
sible. The most important points of in-
spection, adjustment, and lubrication
are explained on the following pages.
The intervals given in the periodic
maintenance and lubrication chart
should be simply considered as a gen-
eral guide under normal riding condi-
tions. However, DEPENDING ON THE
WEATHER, TERRAIN, GEOGRAPHI-
CAL LOCATION, AND INDIVIDUAL
USE, THE MAINTENANCE INTER-
VALS MAY NEED TO BE SHORT-
ENED.
WARNING
EWA10320
If you are not familiar with mainte-
nance work, have a Yamaha dealerdo it for you.
EAU17360
Owner’s tool kit The owner’s tool kit is located under the
rider seat. (See page 3-20.)
The service information included in this
manual and the tools provided in the
owner’s tool kit are intended to assist
you in the performance of preventive
maintenance and minor repairs. How-
ever, additional tools such as a torque
wrench may be necessary to perform
certain maintenance work correctly.NOTE:If you do not have the tools or experi-
ence required for a particular job, havea Yamaha dealer perform it for you.
WARNING
EWA10350
Modifications not approved by
Yamaha may cause loss of perfor-
mance and render the vehicle un-
safe for use. Consult a Yamaha
dealer before attempting any chang-es.
1. Owner’s tool kit
U3P6E2E0.book Page 1 Friday, September 14, 2007 9:43 AM

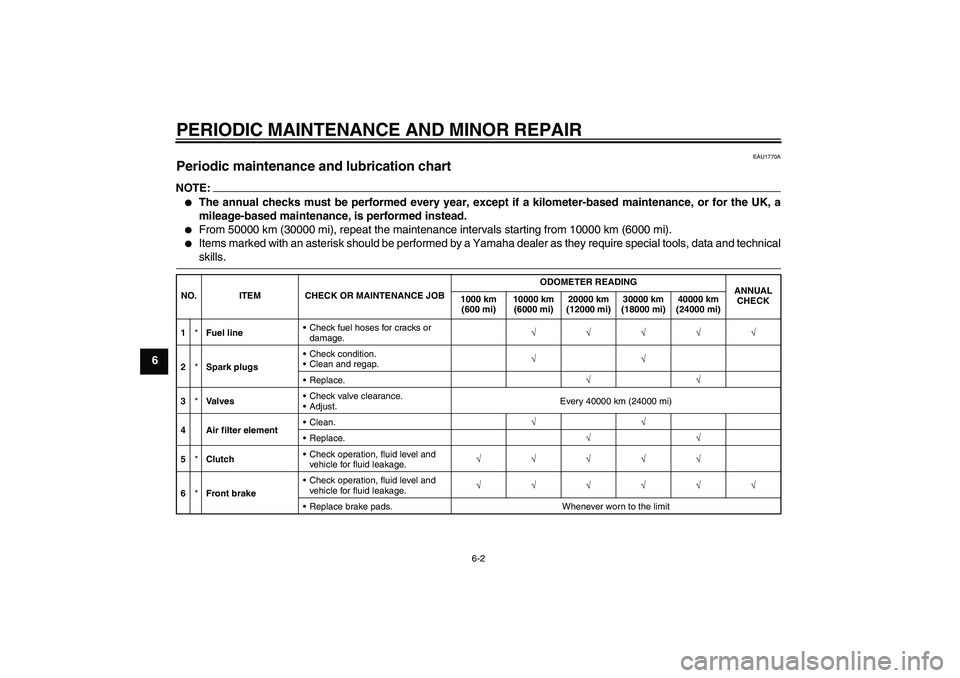

PERIODIC MAINTENANCE AND MINOR REPAIR
6-2
6
EAU1770A
Periodic maintenance and lubrication chart NOTE:

The annual checks must be performed every year, except if a kilometer-based maintenance, or for the UK, a
mileage-based maintenance, is performed instead.


From 50000 km (30000 mi), repeat the maintenance intervals starting from 10000 km (6000 mi).


Items marked with an asterisk should be performed by a Yamaha dealer as they require special tools, data and technicalskills.
NO. ITEM CHECK OR MAINTENANCE JOBODOMETER READING
ANNUAL
CHECK 1000 km
(600 mi)10000 km
(6000 mi)20000 km
(12000 mi)30000 km
(18000 mi)40000 km
(24000 mi)
1*Fuel lineCheck fuel hoses for cracks or
damage.√√√√√
2*Spark plugsCheck condition.
Clean and regap.√√
Replace.√√
3*ValvesCheck valve clearance.
Adjust.Every 40000 km (24000 mi)
4 Air filter elementClean.√√
Replace.√√
5*ClutchCheck operation, fluid level and
vehicle for fluid leakage.√√√√√
6*Front brakeCheck operation, fluid level and
vehicle for fluid leakage.√√√√√√
Replace brake pads. Whenever worn to the limit
U3P6E2E0.book Page 2 Friday, September 14, 2007 9:43 AM

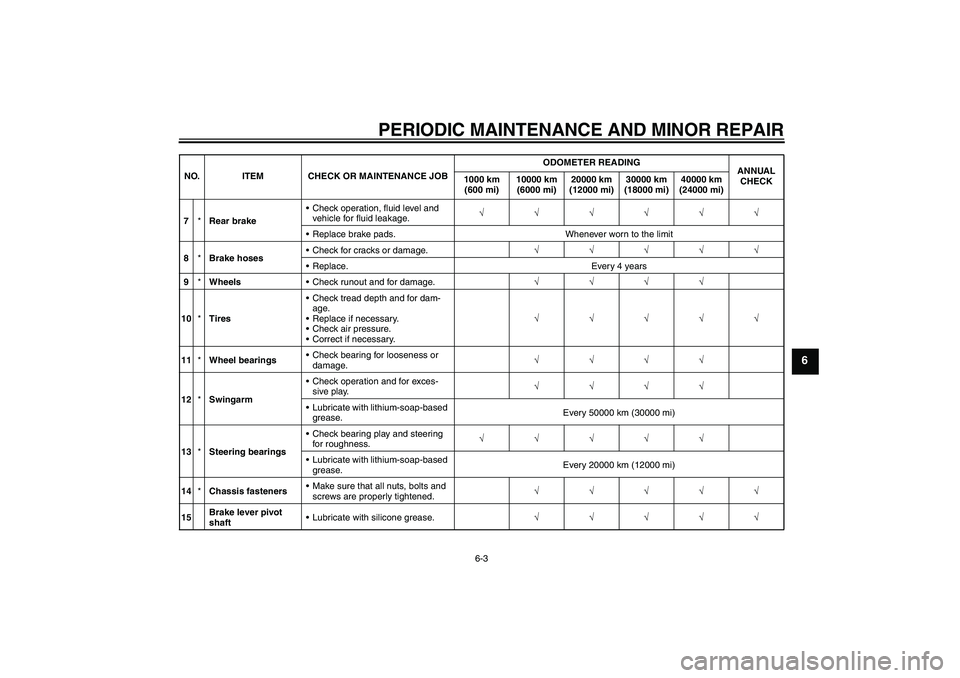

PERIODIC MAINTENANCE AND MINOR REPAIR
6-3
6
7*Rear brakeCheck operation, fluid level and
vehicle for fluid leakage.√√√√√√
Replace brake pads. Whenever worn to the limit
8*Brake hosesCheck for cracks or damage.√√√√√
Replace. Every 4 years
9*WheelsCheck runout and for damage.√√√√
10*TiresCheck tread depth and for dam-
age.
Replace if necessary.
Check air pressure.
Correct if necessary.√√√√√
11*Wheel bearingsCheck bearing for looseness or
damage.√√√√
12*SwingarmCheck operation and for exces-
sive play.√√√√
Lubricate with lithium-soap-based
grease.Every 50000 km (30000 mi)
13*Steering bearingsCheck bearing play and steering
for roughness.√√√√√
Lubricate with lithium-soap-based
grease.Every 20000 km (12000 mi)
14*Chassis fastenersMake sure that all nuts, bolts and
screws are properly tightened.√√√√√
15Brake lever pivot
shaftLubricate with silicone grease.√√√√√ NO. ITEM CHECK OR MAINTENANCE JOBODOMETER READING
ANNUAL
CHECK 1000 km
(600 mi)10000 km
(6000 mi)20000 km
(12000 mi)30000 km
(18000 mi)40000 km
(24000 mi)
U3P6E2E0.book Page 3 Friday, September 14, 2007 9:43 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-4
6
16Brake pedal pivot
shaftLubricate with lithium-soap-based
grease.√√√√√
17Clutch lever pivot
shaftLubricate with silicone grease.√√√√√
18Shift pedal pivot
shaftLubricate with lithium-soap-based
grease.√√√√√
19Sidestand, center-
standCheck operation.
Lubricate.√√√√√
20*Sidestand switchCheck operation.√√√√√√
21*Front forkCheck operation and for oil leak-
age.√√√√
22*Shock absorber as-
semblyCheck operation and shock ab-
sorber for oil leakage.√√√√
23*Rear suspension re-
lay arm and con-
necting arm
pivoting pointsCheck operation.√√√√
Lubricate with lithium-soap-based
grease.√√
24*Fuel injectionAdjust engine idling speed and
synchronization.√√√√√√
25 Engine oilChange.
Check oil level and vehicle for oil
leakage.√√√√√√
26Engine oil filter car-
tridgeReplace.√√√
27*Cooling systemCheck coolant level and vehicle
for coolant leakage.√√√√√
Change. Every 3 years NO. ITEM CHECK OR MAINTENANCE JOBODOMETER READING
ANNUAL
CHECK 1000 km
(600 mi)10000 km
(6000 mi)20000 km
(12000 mi)30000 km
(18000 mi)40000 km
(24000 mi)U3P6E2E0.book Page 4 Friday, September 14, 2007 9:43 AM

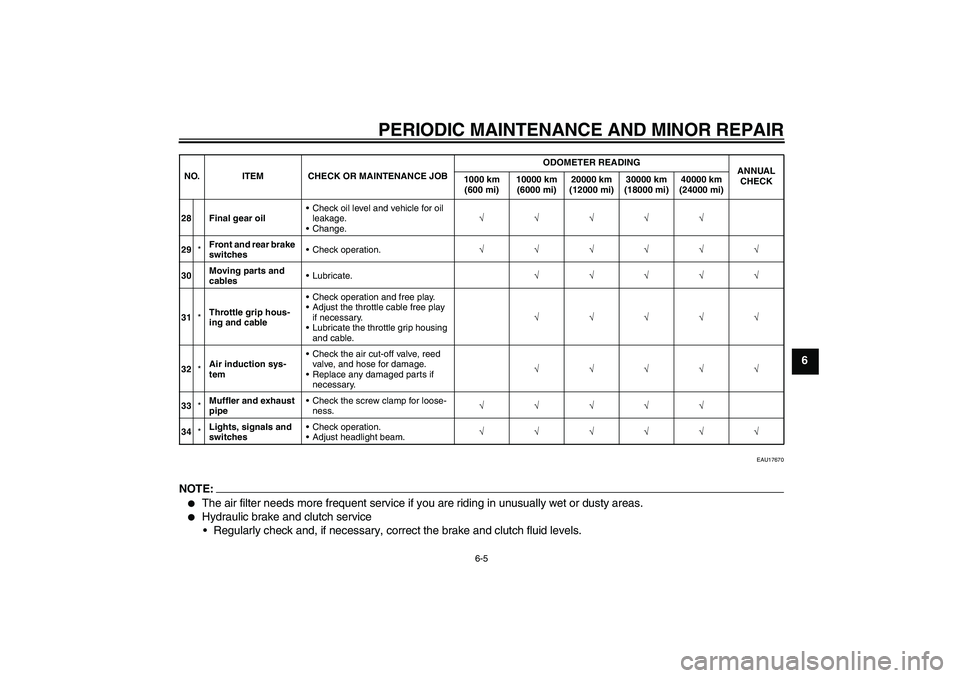

PERIODIC MAINTENANCE AND MINOR REPAIR
6-5
6
EAU17670
NOTE:

The air filter needs more frequent service if you are riding in unusually wet or dusty areas.


Hydraulic brake and clutch service
Regularly check and, if necessary, correct the brake and clutch fluid levels.
28 Final gear oilCheck oil level and vehicle for oil
leakage.
Change.√√√√√
29*Front and rear brake
switchesCheck operation.√√√√√√
30Moving parts and
cablesLubricate.√√√√√
31*Throttle grip hous-
ing and cableCheck operation and free play.
Adjust the throttle cable free play
if necessary.
Lubricate the throttle grip housing
and cable.√√√√√
32*Air induction sys-
temCheck the air cut-off valve, reed
valve, and hose for damage.
Replace any damaged parts if
necessary.√√√√√
33*Muffler and exhaust
pipeCheck the screw clamp for loose-
ness.√√√√√
34*Lights, signals and
switchesCheck operation.
Adjust headlight beam.√√√√√√ NO. ITEM CHECK OR MAINTENANCE JOBODOMETER READING
ANNUAL
CHECK 1000 km
(600 mi)10000 km
(6000 mi)20000 km
(12000 mi)30000 km
(18000 mi)40000 km
(24000 mi)
U3P6E2E0.book Page 5 Friday, September 14, 2007 9:43 AM

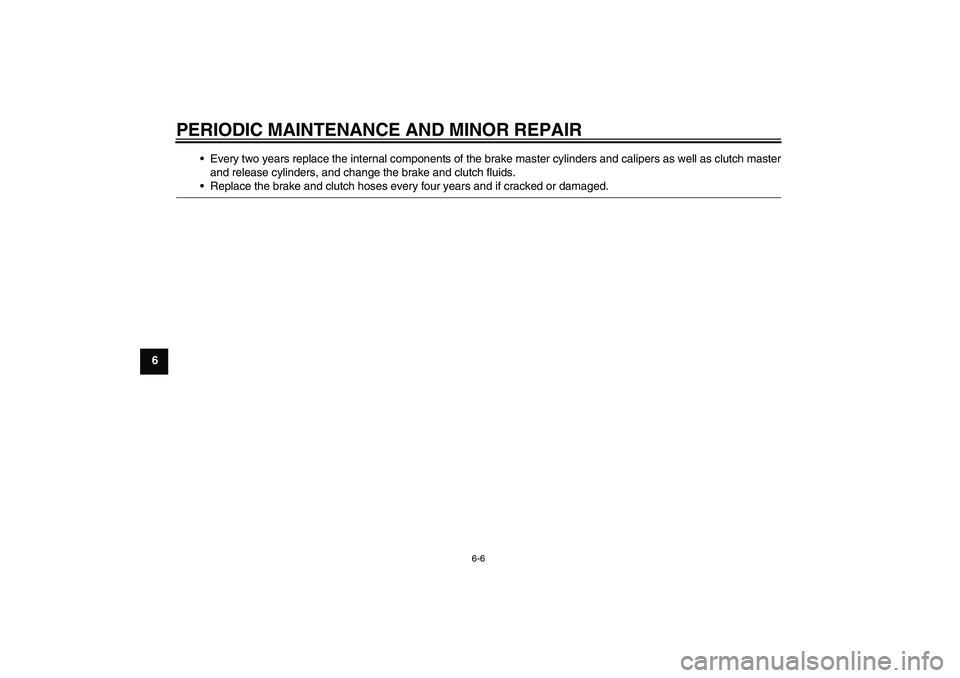

PERIODIC MAINTENANCE AND MINOR REPAIR
6-6
6Every two years replace the internal components of the brake master cylinders and calipers as well as clutch master
and release cylinders, and change the brake and clutch fluids.
Replace the brake and clutch hoses every four years and if cracked or damaged.
U3P6E2E0.book Page 6 Friday, September 14, 2007 9:43 AM
