INSTRUMENT AND CONTROL FUNCTIONS
3-5
3 cy braking. If the warning light
comes on or flashes while riding,
have a Yamaha dealer check the
brake system as soon as possible.
The electrical circuit of the warning light
can be checked by turning the key to
“ON”.
If the warning light does not come on or
remains on, have a Yamaha dealer
check the electrical circuit.
EAU38621
Immobilizer system indicator light
The electrical circuit of the indicator
light can be checked by turning the key
to “ON”.
If the indicator light does not come on
for a few seconds, then go off, have a
Yamaha dealer check the electrical cir-
cuit.
When the key is turned to “OFF” and 30
seconds have passed, the indicator
light will start flashing indicating the im-
mobilizer system is enabled. After 24
hours have passed, the indicator light
will stop flashing, however the immobi-
lizer system is still enabled.This model is also equipped with a self-
diagnosis device for the immobilizer
system. (See page 3-12 for an explana-
tion of the self-diagnosis device.)
EAU11601
Speedometer The speedometer shows the riding
speed.
When the key is turned to “ON”, the
speedometer needle will sweep once
across the speed range and then return
to zero in order to test the electrical cir-
cuit.1. Tachometer
2. Speedometer
3. Multi-function display
U3P6E3E0.book Page 5 Monday, August 25, 2008 9:22 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-8
3Fuel meter
The fuel meter indicates the amount of
fuel in the fuel tank. The display seg-
ments of the fuel meter disappear to-
wards “E” (Empty) as the fuel level
decreases. When the last segment
starts flashing, refuel as soon as possi-
ble. When the key is turned to “ON”, all
of the display segments of the fuel
meter will appear one after the other
and then disappear in order to test the
electrical circuit.
TIPThis fuel meter is equipped with a self-
diagnosis system. If a problem is de-
tected in the electrical circuit, all the dis-play segments will start flashing. If this
occurs, have a Yamaha dealer check
the electrical circuit.
Coolant temperature meter
With the key in the “ON” position, the
coolant temperature meter indicates
the temperature of the coolant. When
the key is turned to “ON”, all of the dis-
play segments of the coolant tempera-
ture meter will appear one after the
other and then disappear in order to
test the electrical circuit. The coolant
temperature varies with changes in the
weather and engine load. If the top seg-
ment flashes, stop the vehicle and let
the engine cool. (See page 6-34.)
NOTICE
ECA10021
Do not continue to operate the en-gine if it is overheating.
Transmission gear display
This display shows the selected gear.
The neutral position, however, is not
displayed, it is indicated by the neutral
indicator light.
1. Fuel meter
1. Coolant temperature meter
1. Transmission gear display
2. Neutral indicator light“”
U3P6E3E0.book Page 8 Monday, August 25, 2008 9:22 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-14
3Right
EAU12380
Pass switch“”
Press this switch to flash the head-
lights.
EAU12400
Dimmer switch“/”
Set this switch to“” for the high
beam and to“” for the low beam.
EAU12460
Turn signal switch“/”
To signal a right-hand turn, push this
switch to“”. To signal a left-hand
turn, push this switch to“”. When re-
leased, the switch returns to the centerposition. To cancel the turn signal
lights, push the switch in after it has re-
turned to the center position.
EAU12493
Windshield position adjusting
switch“”
To move the windshield up, push this
switch in direction (a). To move the
windshield down, push the switch in di-
rection (b).TIPWhen the key is turned to “OFF”, the
windshield will automatically return tothe lowest position.
EAU12500
Horn switch“”
Press this switch to sound the horn.
EAU12660
Engine stop switch“/”
Set this switch to“” before starting
the engine. Set this switch to“” to
stop the engine in case of an emergen-
cy, such as when the vehicle overturns
or when the throttle cable is stuck.
EAU12711
Start switch“”
Push this switch to crank the engine
with the starter. See page 5-1 for start-
ing instructions prior to starting the en-
gine.
EAU42340
The engine trouble warning light and
ABS warning light will come on when
the key is turned to “ON” and the start
switch is pushed, but this does not indi-
cate a malfunction.
1. Engine stop switch“/”
2. Hazard switch“”
3. Start switch“”
1. Windshield position adjusting switch“”
U3P6E3E0.book Page 14 Monday, August 25, 2008 9:22 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-31
3
EAU40502
Grip warmer adjusting knob
WARNING
EWA14510
Do not turn the grip warmer knobwhile the vehicle is moving.NOTICE
ECA15520


Be sure to wear gloves when us-
ing the grip warmers.


If the ambient temperature is 20
°C (68 °F) or higher, do not set
the grip warmer adjusting knob
to the “HI” position.


If the handlebar grip or throttle
grip becomes worn or damaged,
stop using the grip warmers andreplace the grips.
This vehicle is equipped with grip
warmers, which can only be used when
the engine is running.
Use the grip warmer adjusting knob, lo-
cated near the accessory box, to adjust
the grip warmer temperature.The grip warmer adjusting knob can be
set between the “LO” and “HI” posi-
tions. To raise the temperature, turn the
knob in direction (a). To lower the tem-
perature, turn the knob in direction (b).
Align the“” mark on the knob with
“OFF” to turn the grip warmers off.
TIPWhen the vehicle is stopped or travel-
ing at extremely low speeds (e.g., in
traffic jams), the grip warmer tempera-
ture is lower than when traveling athigher speeds.
EAU15301
Sidestand The sidestand is located on the left side
of the frame. Raise the sidestand or
lower it with your foot while holding the
vehicle upright.TIPThe built-in sidestand switch is part of
the ignition circuit cut-off system, which
cuts the ignition in certain situations.
(See further down for an explanation ofthe ignition circuit cut-off system.)
WARNING
EWA10240
The vehicle must not be ridden with
the sidestand down, or if the side-
stand cannot be properly moved up
(or does not stay up), otherwise the
sidestand could contact the ground
and distract the operator, resulting
in a possible loss of control.
Yamaha’s ignition circuit cut-off
system has been designed to assist
the operator in fulfilling the respon-
sibility of raising the sidestand be-
fore starting off. Therefore, check
this system regularly as described
1.“LO” position
2.“OFF” position
3.“” mark
4. Grip warmer adjusting knob
5.“HI” position
U3P6E3E0.book Page 31 Monday, August 25, 2008 9:22 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-33
3
With the engine turned off:
1. Move the sidestand down.
2. Make sure that the engine stop switch is set to “
3. Turn the key on.
4. Shift the transmission into the neutral position.
5. Push the start switch.
Does the engine start?
With the engine still running:
6. Move the sidestand up.
7. Keep the clutch lever pulled.
8. Shift the transmission into gear.
9. Move the sidestand down.
Does the engine stall?
After the engine has stalled:
10. Move the sidestand up.
11. Keep the clutch lever pulled.
12. Push the start switch.
Does the engine start?
The system is OK. The motorcycle can be ridden.
YES NO YES NO YES NO
The neutral switch may not be working correctly.
The motorcycle should not be ridden until
checked by a Yamaha dealer.
The clutch switch may not be working correctly.
The motorcycle should not be ridden until
checked by a Yamaha dealer.The sidestand switch may not be working correctly.
The motorcycle should not be ridden until
checked by a Yamaha dealer.• The vehicle must be placed on the center-
stand during this inspection.• If a malfunction is noted, have a Yamaha
dealer check the system before riding.
WARNING
”.
U3P6E3E0.book Page 33 Monday, August 25, 2008 9:22 AM

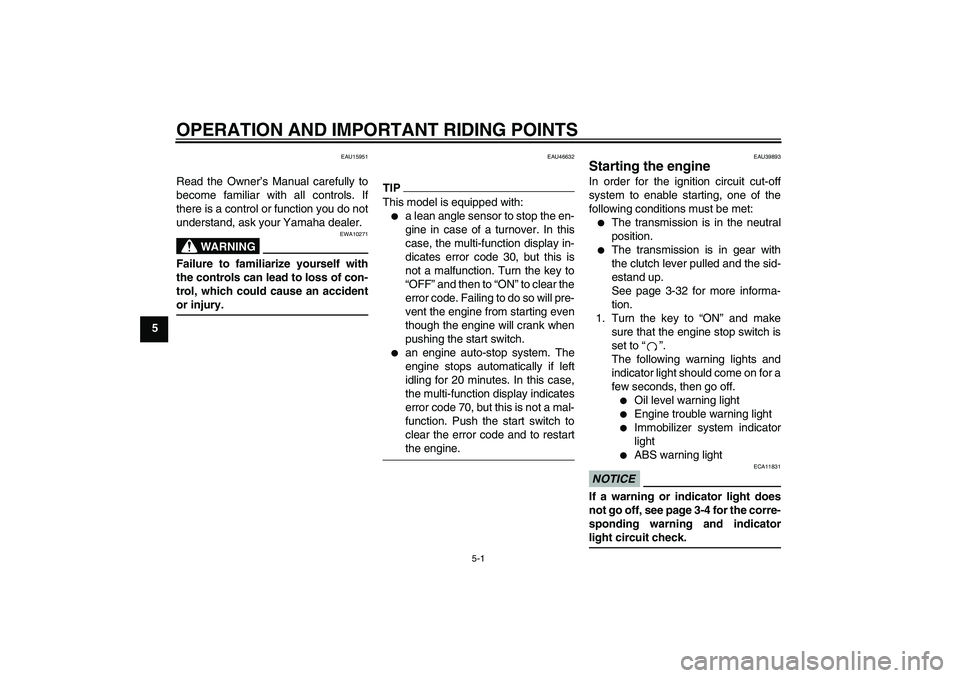

OPERATION AND IMPORTANT RIDING POINTS
5-1
5
EAU15951
Read the Owner’s Manual carefully to
become familiar with all controls. If
there is a control or function you do not
understand, ask your Yamaha dealer.
WARNING
EWA10271
Failure to familiarize yourself with
the controls can lead to loss of con-
trol, which could cause an accidentor injury.
EAU46632
TIPThis model is equipped with:

a lean angle sensor to stop the en-
gine in case of a turnover. In this
case, the multi-function display in-
dicates error code 30, but this is
not a malfunction. Turn the key to
“OFF” and then to “ON” to clear the
error code. Failing to do so will pre-
vent the engine from starting even
though the engine will crank when
pushing the start switch.


an engine auto-stop system. The
engine stops automatically if left
idling for 20 minutes. In this case,
the multi-function display indicates
error code 70, but this is not a mal-
function. Push the start switch to
clear the error code and to restartthe engine.
EAU39893
Starting the engine In order for the ignition circuit cut-off
system to enable starting, one of the
following conditions must be met:

The transmission is in the neutral
position.


The transmission is in gear with
the clutch lever pulled and the sid-
estand up.
See page 3-32 for more informa-
tion.
1. Turn the key to “ON” and make
sure that the engine stop switch is
set to“”.
The following warning lights and
indicator light should come on for a
few seconds, then go off.

Oil level warning light


Engine trouble warning light


Immobilizer system indicator
light


ABS warning light
NOTICE
ECA11831
If a warning or indicator light does
not go off, see page 3-4 for the corre-
sponding warning and indicatorlight circuit check.
U3P6E3E0.book Page 1 Monday, August 25, 2008 9:22 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-35
6Engine overheating
WARNING
EWAT1040


Do not remove the radiator cap when the engine and radiator are hot. Scalding hot fluid and steam may be
blown out under pressure, which could cause serious injury. Be sure to wait until the engine has cooled.


Place a thick rag, like a towel, over the radiator cap, and then slowly rotate the cap counterclockwise to the de-
tent to allow any residual pressure to escape. When the hissing sound has stopped, press down on the capwhile turning it counterclockwise, and then remove the cap.
TIPIf coolant is not available, tap water can be temporarily used instead, provided that it is changed to the recommended coolantas soon as possible.
Wait until the
engine has cooled.
Check the coolant level in the
reservoir and radiator.
The coolant level
is OK.The coolant level is low.
Check the cooling system
for leakage.
Have a Yamaha dealer checkand repair the cooling system.Add coolant. (See TIP.)
Start the engine. If the engine overheats again,
have a
Yamaha dealer check
and repair the cooling system.
There is
leakage.
There is
no leakage.
U3P6E3E0.book Page 35 Monday, August 25, 2008 9:22 AM

INDEXAABS ....................................................... 3-17
ABS warning light.................................... 3-4
Accessory box....................................... 3-25
Air filter element, cleaning..................... 6-15
Anti-theft alarm (optional)...................... 3-13
Auxiliary DC jack ................................... 3-34
Auxiliary light bulb ................................. 6-32BBattery................................................... 6-28
Brake and clutch fluid levels,
checking ............................................. 6-21
Brake and clutch fluids, changing ......... 6-23
Brake and clutch levers, checking
and lubricating .................................... 6-24
Brake and shift pedals, checking
and lubricating .................................... 6-24
Brake lever ............................................ 3-16
Brake pedal ........................................... 3-16CCables, checking and lubricating .......... 6-23
Care ........................................................ 7-1
Catalytic converters .............................. 3-20
Centerstand and sidestand, checking
and lubricating .................................... 6-25
Clutch lever .................................. 3-15, 6-20
Coolant.................................................. 6-14
Cowlings, opening and closing ............. 3-26DDimmer switch ...................................... 3-14EEngine break-in ....................................... 5-3
Engine idling speed, checking .............. 6-16
Engine oil and oil filter cartridge .............. 6-9Engine stop switch................................ 3-14
Engine trouble warning light ................... 3-4
FFinal gear oil ......................................... 6-12
Front and rear brake pads, checking .... 6-21
Front fork, adjusting .............................. 3-28
Front fork, checking .............................. 6-26
Front turn signal light ............................ 6-31
Fuel....................................................... 3-18
Fuel consumption, tips for reducing........ 5-3
Fuel tank breather/overflow hose ......... 3-20
Fuel tank cap ........................................ 3-18
Fuses, replacing ................................... 6-29GGrip warmer adjusting knob.................. 3-31HHandlebar position, adjusting ............... 3-26
Handlebar switches .............................. 3-13
Hazard switch ....................................... 3-15
Headlight beams, adjusting .................. 3-26
Headlight bulb....................................... 6-30
High beam indicator light ........................ 3-4
Horn switch ........................................... 3-14IIdentification numbers ............................ 9-1
Ignition circuit cut-off system ................ 3-32
Immobilizer system ................................. 3-1
Immobilizer system indicator light........... 3-5
Indicator and warning lights .................... 3-4KKey identification number ....................... 9-1LLicense plate light bulb, replacing ........ 6-32
MMain switch/steering lock ........................ 3-2
Matte color, caution ................................. 7-1
Model label .............................................. 9-2
Multi-function display............................... 3-6NNeutral indicator light .............................. 3-4OOil level warning light .............................. 3-4PPanels, removing and installing .............. 6-7
Parking .................................................... 5-4
Part locations .......................................... 2-1
Pass switch ........................................... 3-14
Periodic maintenance and lubrication
chart ...................................................... 6-2RRear brake light switch .......................... 6-20
Rear suspension, lubricating ................. 6-26
Rear view mirrors .................................. 3-27
Rider seat height, adjusting................... 3-22SSafety information ................................... 1-1
Seats ..................................................... 3-21
Shifting .................................................... 5-2
Shift pedal ............................................. 3-16
Shock absorber assembly, adjusting .... 3-29
Sidestand .............................................. 3-31
Spark plugs, checking ............................. 6-8
Specifications .......................................... 8-1
Speedometer........................................... 3-5
Starting the engine .................................. 5-1
Start switch............................................ 3-14
Steering, checking................................. 6-27
U3P6E3E0.book Page 1 Monday, August 25, 2008 9:22 AM
