YAMAHA FJR1300A 2010 Owner's Manual

INSTRUMENT AND CONTROL FUNCTIONS
3-7
3 Odometer and tripmeter modes
Pushing the select button switches the
display between the odometer mode
“ODO” and the tripmeter modes “Trip 1”
and “Trip 2” in the following order:
ODO → Trip 1 → Trip 2 → ODO
TIPWhen selecting “Trip 1” or “Trip 2”, the
display flashes for five seconds.When approximately 5.5 L (1.45 US
gal, 1.21 Imp.gal) of fuel remains in the
fuel tank, the display will automatically
change to the fuel reserve tripmeter
mode “Trip F” and start counting the
distance traveled from that point. In thatcase, pushing the select button switch-
es the display between the various trip-
meter and odometer modes in the
following order:
Trip F → ODO → Trip 1 → Trip 2 → Trip
F
TIPWhen selecting “Trip 1”, “Trip 2” or “Trip
F”, the display flashes for five seconds.To reset a tripmeter, select it by push-
ing the select button, and then push the
select button for at least one second
while the display is flashing. If you do
not reset the fuel reserve tripmeter
manually, it will reset itself automatical-
ly and the display will return to the prior
mode after refueling and traveling 5 km
(3 mi).Clock
To set the clock:
1. Push the select button and reset
button together for at least two
seconds.
2. When the hour digits start flashing,
push the reset button to set the
hours.
3. Push the select button, and the
minute digits will start flashing.
4. Push the reset button to set the
minutes.
5. Push the select button and then re-
lease it to start the clock.
1. Odometer/tripmeter/fuel reserve tripmeter
2. Select button
3. Reset button
1. Clock
2. Select button
3. Reset button
U1CYE0E0.book Page 7 Tuesday, October 27, 2009 11:52 AM

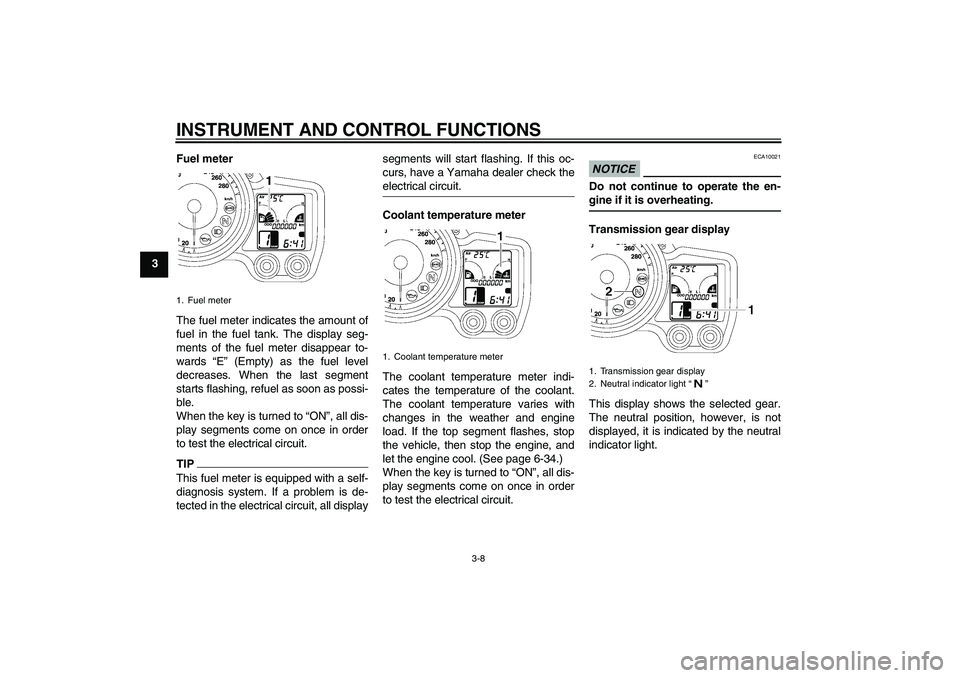

INSTRUMENT AND CONTROL FUNCTIONS
3-8
3Fuel meter
The fuel meter indicates the amount of
fuel in the fuel tank. The display seg-
ments of the fuel meter disappear to-
wards “E” (Empty) as the fuel level
decreases. When the last segment
starts flashing, refuel as soon as possi-
ble.
When the key is turned to “ON”, all dis-
play segments come on once in order
to test the electrical circuit.
TIPThis fuel meter is equipped with a self-
diagnosis system. If a problem is de-
tected in the electrical circuit, all displaysegments will start flashing. If this oc-
curs, have a Yamaha dealer check the
electrical circuit.
Coolant temperature meter
The coolant temperature meter indi-
cates the temperature of the coolant.
The coolant temperature varies with
changes in the weather and engine
load. If the top segment flashes, stop
the vehicle, then stop the engine, and
let the engine cool. (See page 6-34.)
When the key is turned to “ON”, all dis-
play segments come on once in order
to test the electrical circuit.
NOTICE
ECA10021
Do not continue to operate the en-
gine if it is overheating.Transmission gear display
This display shows the selected gear.
The neutral position, however, is not
displayed, it is indicated by the neutral
indicator light.
1. Fuel meter
1. Coolant temperature meter
1. Transmission gear display
2. Neutral indicator light“”
U1CYE0E0.book Page 8 Tuesday, October 27, 2009 11:52 AM

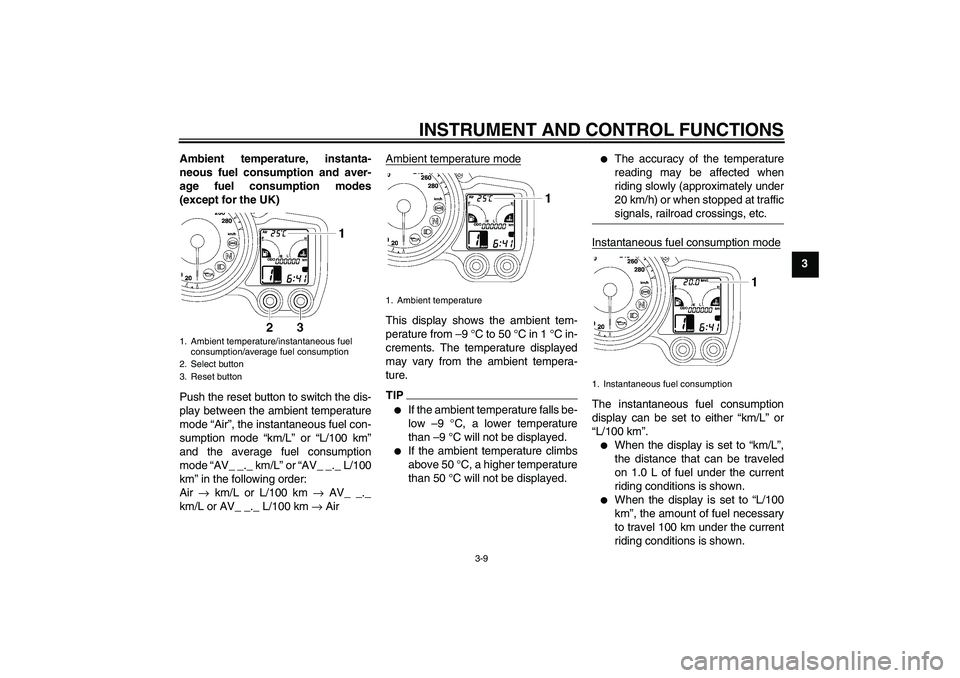

INSTRUMENT AND CONTROL FUNCTIONS
3-9
3 Ambient temperature, instanta-
neous fuel consumption and aver-
age fuel consumption modes
(except for the UK)
Push the reset button to switch the dis-
play between the ambient temperature
mode “Air”, the instantaneous fuel con-
sumption mode “km/L” or “L/100 km”
and the average fuel consumption
mode “AV_ _._ km/L” or “AV_ _._ L/100
km” in the following order:
Air → km/L or L/100 km → AV_ _._
km/L or AV_ _._ L/100 km → AirAmbient temperature mode
This display shows the ambient tem-
perature from –9 °C to 50 °C in 1 °C in-
crements. The temperature displayed
may vary from the ambient tempera-
ture.TIP

If the ambient temperature falls be-
low –9 °C, a lower temperature
than –9 °C will not be displayed.


If the ambient temperature climbs
above 50 °C, a higher temperature
than 50 °C will not be displayed.


The accuracy of the temperature
reading may be affected when
riding slowly (approximately under
20 km/h) or when stopped at traffic
signals, railroad crossings, etc.
Instantaneous fuel consumption modeThe instantaneous fuel consumption
display can be set to either “km/L” or
“L/100 km”.

When the display is set to “km/L”,
the distance that can be traveled
on 1.0 L of fuel under the current
riding conditions is shown.


When the display is set to “L/100
km”, the amount of fuel necessary
to travel 100 km under the current
riding conditions is shown.
1. Ambient temperature/instantaneous fuel
consumption/average fuel consumption
2. Select button
3. Reset button
1. Ambient temperature
1. Instantaneous fuel consumption
U1CYE0E0.book Page 9 Tuesday, October 27, 2009 11:52 AM

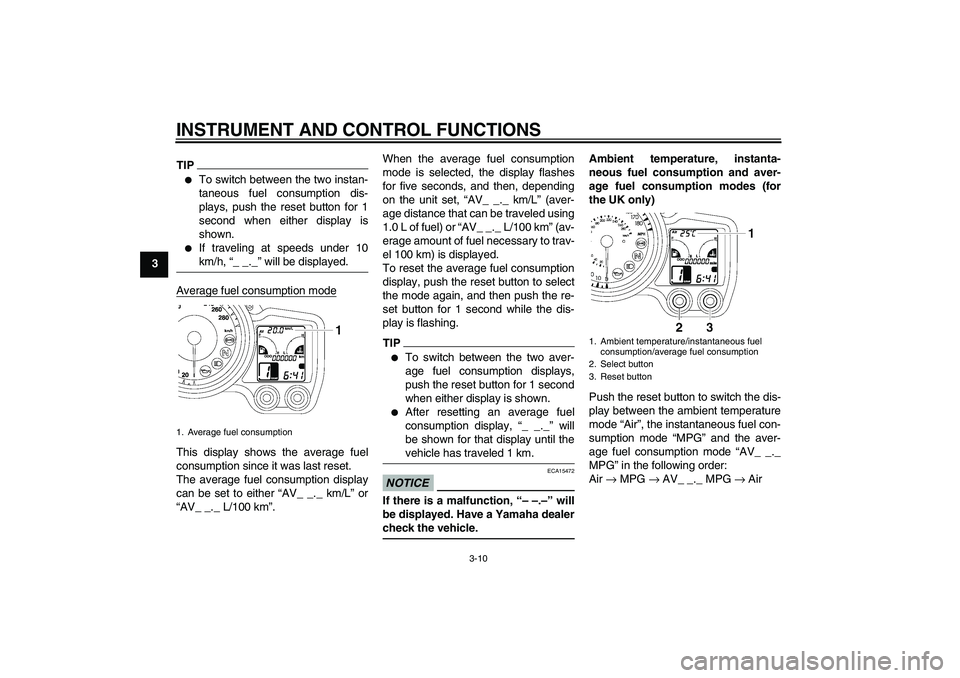

INSTRUMENT AND CONTROL FUNCTIONS
3-10
3
TIP

To switch between the two instan-
taneous fuel consumption dis-
plays, push the reset button for 1
second when either display is
shown.


If traveling at speeds under 10
km/h, “_ _._” will be displayed.
Average fuel consumption modeThis display shows the average fuel
consumption since it was last reset.
The average fuel consumption display
can be set to either “AV_ _._ km/L” or
“AV_ _._ L/100 km”.When the average fuel consumption
mode is selected, the display flashes
for five seconds, and then, depending
on the unit set, “AV_ _._ km/L” (aver-
age distance that can be traveled using
1.0 L of fuel) or “AV_ _._ L/100 km” (av-
erage amount of fuel necessary to trav-
el 100 km) is displayed.
To reset the average fuel consumption
display, push the reset button to select
the mode again, and then push the re-
set button for 1 second while the dis-
play is flashing.
TIP

To switch between the two aver-
age fuel consumption displays,
push the reset button for 1 second
when either display is shown.


After resetting an average fuel
consumption display, “_ _._” will
be shown for that display until the
vehicle has traveled 1 km.
NOTICE
ECA15472
If there is a malfunction, “– –.–” will
be displayed. Have a Yamaha dealer
check the vehicle.
Ambient temperature, instanta-
neous fuel consumption and aver-
age fuel consumption modes (for
the UK only)
Push the reset button to switch the dis-
play between the ambient temperature
mode “Air”, the instantaneous fuel con-
sumption mode “MPG” and the aver-
age fuel consumption mode “AV_ _._
MPG” in the following order:
Air → MPG → AV_ _._ MPG → Air
1. Average fuel consumption
1. Ambient temperature/instantaneous fuel
consumption/average fuel consumption
2. Select button
3. Reset button
U1CYE0E0.book Page 10 Tuesday, October 27, 2009 11:52 AM

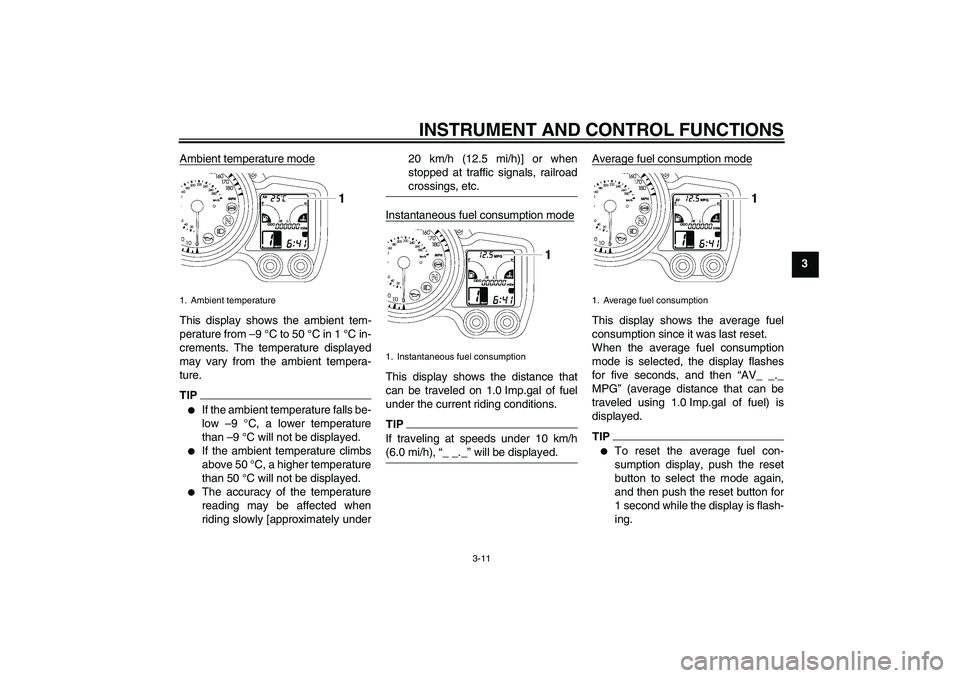

INSTRUMENT AND CONTROL FUNCTIONS
3-11
3 Ambient temperature mode
This display shows the ambient tem-
perature from –9 °C to 50 °C in 1 °C in-
crements. The temperature displayed
may vary from the ambient tempera-
ture.TIP

If the ambient temperature falls be-
low –9 °C, a lower temperature
than –9 °C will not be displayed.


If the ambient temperature climbs
above 50 °C, a higher temperature
than 50 °C will not be displayed.


The accuracy of the temperature
reading may be affected when
riding slowly [approximately under20 km/h (12.5 mi/h)] or when
stopped at traffic signals, railroad
crossings, etc.
Instantaneous fuel consumption modeThis display shows the distance that
can be traveled on 1.0 Imp.gal of fuel
under the current riding conditions.TIPIf traveling at speeds under 10 km/h
(6.0 mi/h), “_ _._” will be displayed.
Average fuel consumption modeThis display shows the average fuel
consumption since it was last reset.
When the average fuel consumption
mode is selected, the display flashes
for five seconds, and then “AV_ _._
MPG” (average distance that can be
traveled using 1.0 Imp.gal of fuel) is
displayed.TIP

To reset the average fuel con-
sumption display, push the reset
button to select the mode again,
and then push the reset button for
1 second while the display is flash-
ing.
1. Ambient temperature
1. Instantaneous fuel consumption
1. Average fuel consumption
U1CYE0E0.book Page 11 Tuesday, October 27, 2009 11:52 AM

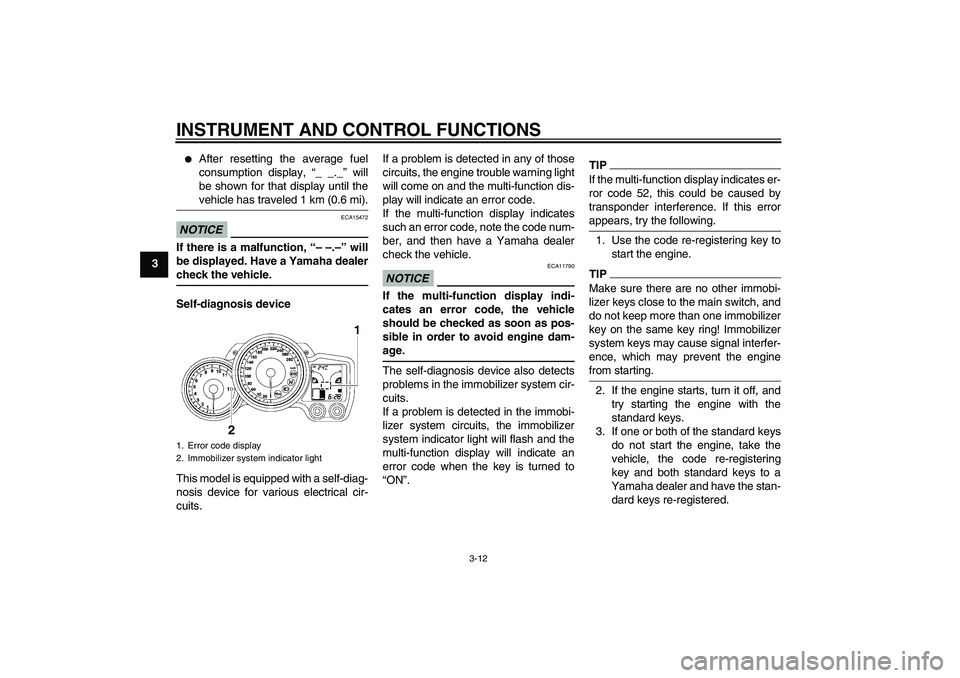

INSTRUMENT AND CONTROL FUNCTIONS
3-12
3


After resetting the average fuel
consumption display, “_ _._” will
be shown for that display until the
vehicle has traveled 1 km (0.6 mi).
NOTICE
ECA15472
If there is a malfunction, “– –.–” will
be displayed. Have a Yamaha dealer
check the vehicle.Self-diagnosis device
This model is equipped with a self-diag-
nosis device for various electrical cir-
cuits.If a problem is detected in any of those
circuits, the engine trouble warning light
will come on and the multi-function dis-
play will indicate an error code.
If the multi-function display indicates
such an error code, note the code num-
ber, and then have a Yamaha dealer
check the vehicle.
NOTICE
ECA11790
If the multi-function display indi-
cates an error code, the vehicle
should be checked as soon as pos-
sible in order to avoid engine dam-
age.The self-diagnosis device also detects
problems in the immobilizer system cir-
cuits.
If a problem is detected in the immobi-
lizer system circuits, the immobilizer
system indicator light will flash and the
multi-function display will indicate an
error code when the key is turned to
“ON”.
TIPIf the multi-function display indicates er-
ror code 52, this could be caused by
transponder interference. If this error
appears, try the following.1. Use the code re-registering key to
start the engine.TIPMake sure there are no other immobi-
lizer keys close to the main switch, and
do not keep more than one immobilizer
key on the same key ring! Immobilizer
system keys may cause signal interfer-
ence, which may prevent the engine
from starting.2. If the engine starts, turn it off, and
try starting the engine with the
standard keys.
3. If one or both of the standard keys
do not start the engine, take the
vehicle, the code re-registering
key and both standard keys to a
Yamaha dealer and have the stan-
dard keys re-registered.
1. Error code display
2. Immobilizer system indicator lightU1CYE0E0.book Page 12 Tuesday, October 27, 2009 11:52 AM

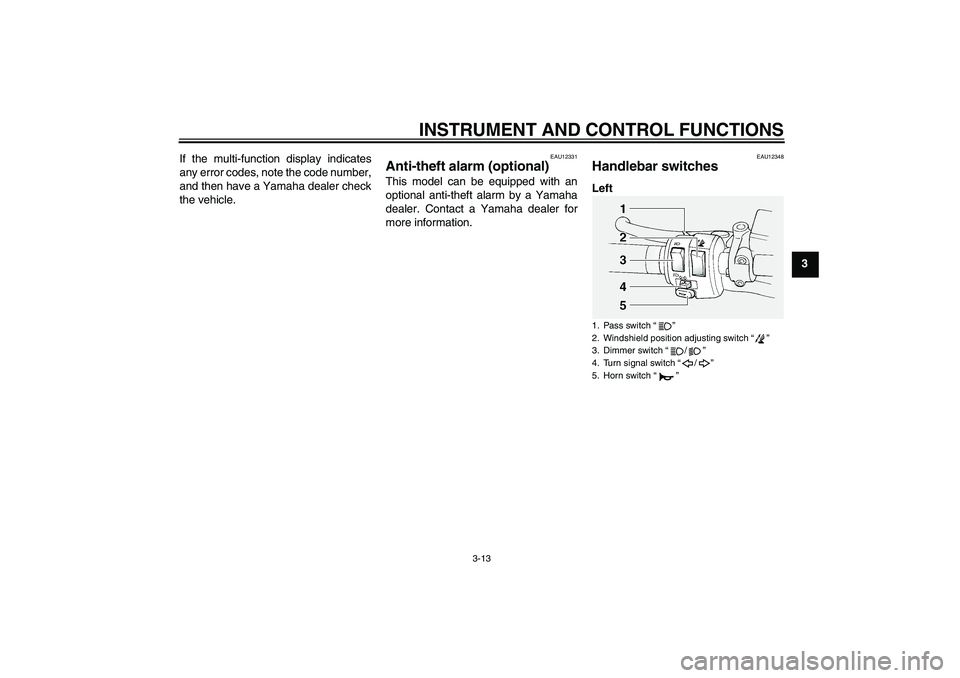

INSTRUMENT AND CONTROL FUNCTIONS
3-13
3 If the multi-function display indicates
any error codes, note the code number,
and then have a Yamaha dealer check
the vehicle.
EAU12331
Anti-theft alarm (optional) This model can be equipped with an
optional anti-theft alarm by a Yamaha
dealer. Contact a Yamaha dealer for
more information.
EAU12348
Handlebar switches Left1. Pass switch“”
2. Windshield position adjusting switch“”
3. Dimmer switch“/”
4. Turn signal switch“/”
5. Horn switch“”
U1CYE0E0.book Page 13 Tuesday, October 27, 2009 11:52 AM

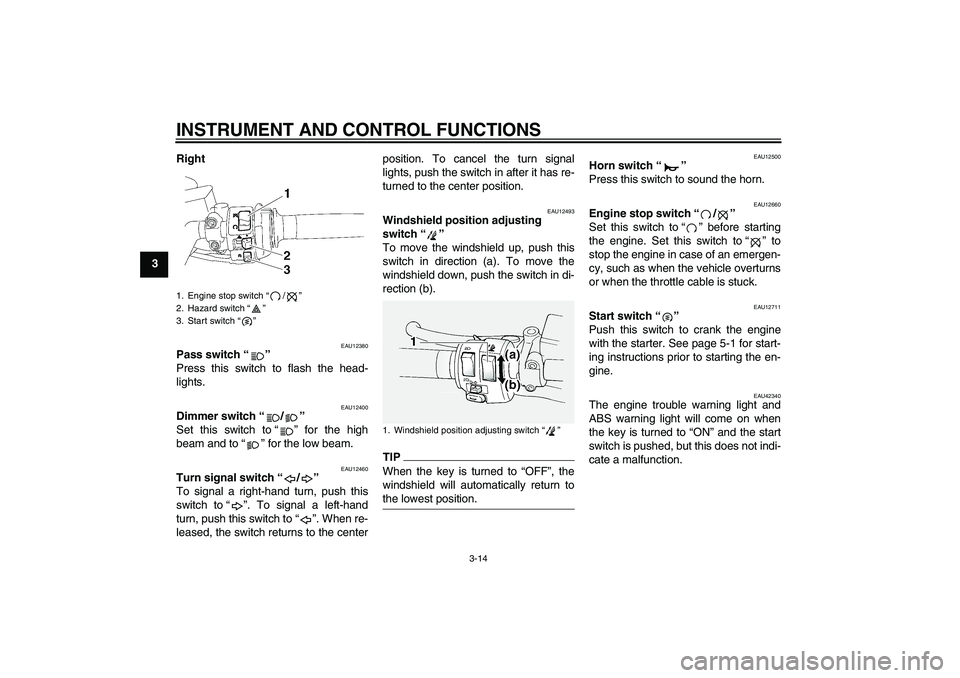

INSTRUMENT AND CONTROL FUNCTIONS
3-14
3Right
EAU12380
Pass switch“”
Press this switch to flash the head-
lights.
EAU12400
Dimmer switch“/”
Set this switch to“” for the high
beam and to“” for the low beam.
EAU12460
Turn signal switch“/”
To signal a right-hand turn, push this
switch to“”. To signal a left-hand
turn, push this switch to“”. When re-
leased, the switch returns to the centerposition. To cancel the turn signal
lights, push the switch in after it has re-
turned to the center position.
EAU12493
Windshield position adjusting
switch“”
To move the windshield up, push this
switch in direction (a). To move the
windshield down, push the switch in di-
rection (b).TIPWhen the key is turned to “OFF”, the
windshield will automatically return to
the lowest position.
EAU12500
Horn switch“”
Press this switch to sound the horn.
EAU12660
Engine stop switch“/”
Set this switch to“” before starting
the engine. Set this switch to“” to
stop the engine in case of an emergen-
cy, such as when the vehicle overturns
or when the throttle cable is stuck.
EAU12711
Start switch“”
Push this switch to crank the engine
with the starter. See page 5-1 for start-
ing instructions prior to starting the en-
gine.
EAU42340
The engine trouble warning light and
ABS warning light will come on when
the key is turned to “ON” and the start
switch is pushed, but this does not indi-
cate a malfunction.
1. Engine stop switch“/”
2. Hazard switch“”
3. Start switch“”
1. Windshield position adjusting switch“”
U1CYE0E0.book Page 14 Tuesday, October 27, 2009 11:52 AM

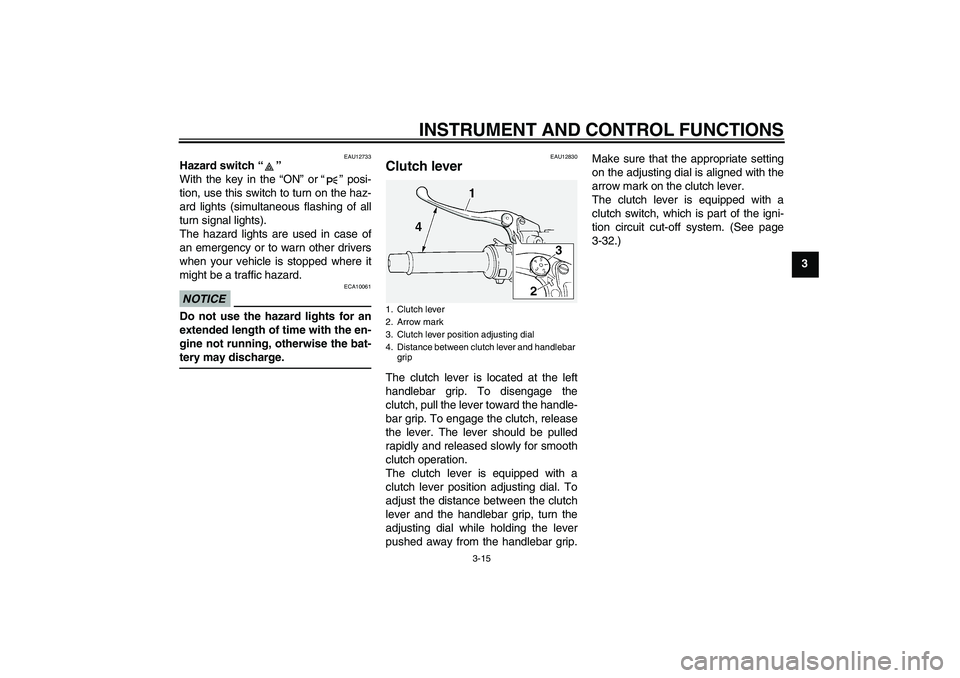

INSTRUMENT AND CONTROL FUNCTIONS
3-15
3
EAU12733
Hazard switch“”
With the key in the “ON” or“” posi-
tion, use this switch to turn on the haz-
ard lights (simultaneous flashing of all
turn signal lights).
The hazard lights are used in case of
an emergency or to warn other drivers
when your vehicle is stopped where it
might be a traffic hazard.NOTICE
ECA10061
Do not use the hazard lights for an
extended length of time with the en-
gine not running, otherwise the bat-
tery may discharge.
EAU12830
Clutch lever The clutch lever is located at the left
handlebar grip. To disengage the
clutch, pull the lever toward the handle-
bar grip. To engage the clutch, release
the lever. The lever should be pulled
rapidly and released slowly for smooth
clutch operation.
The clutch lever is equipped with a
clutch lever position adjusting dial. To
adjust the distance between the clutch
lever and the handlebar grip, turn the
adjusting dial while holding the lever
pushed away from the handlebar grip.Make sure that the appropriate setting
on the adjusting dial is aligned with the
arrow mark on the clutch lever.
The clutch lever is equipped with a
clutch switch, which is part of the igni-
tion circuit cut-off system. (See page
3-32.)1. Clutch lever
2. Arrow mark
3. Clutch lever position adjusting dial
4. Distance between clutch lever and handlebar
grip
U1CYE0E0.book Page 15 Tuesday, October 27, 2009 11:52 AM

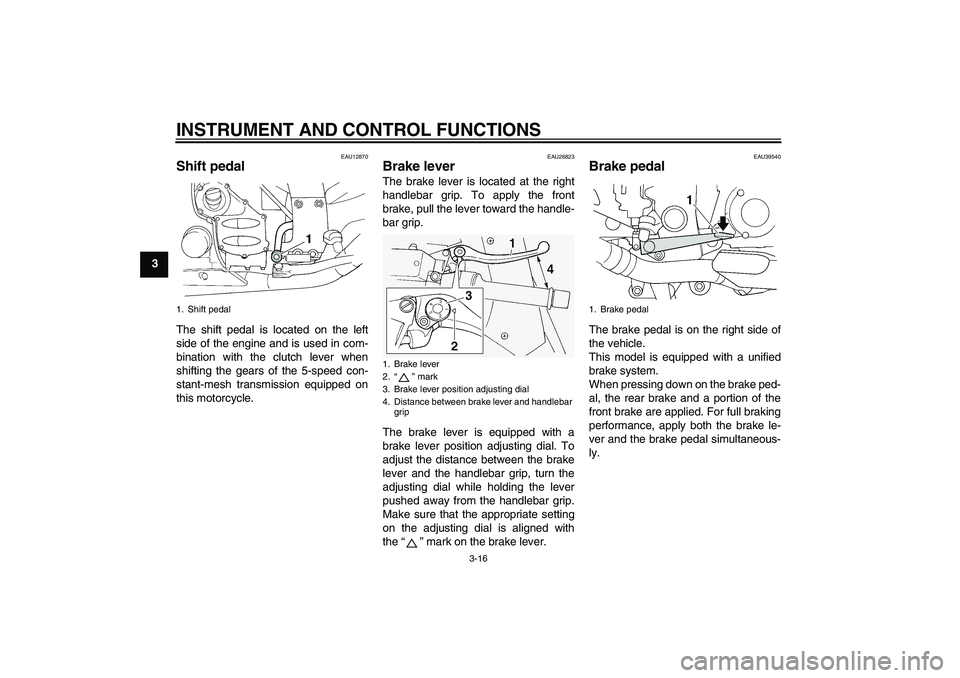

INSTRUMENT AND CONTROL FUNCTIONS
3-16
3
EAU12870
Shift pedal The shift pedal is located on the left
side of the engine and is used in com-
bination with the clutch lever when
shifting the gears of the 5-speed con-
stant-mesh transmission equipped on
this motorcycle.
EAU26823
Brake lever The brake lever is located at the right
handlebar grip. To apply the front
brake, pull the lever toward the handle-
bar grip.
The brake lever is equipped with a
brake lever position adjusting dial. To
adjust the distance between the brake
lever and the handlebar grip, turn the
adjusting dial while holding the lever
pushed away from the handlebar grip.
Make sure that the appropriate setting
on the adjusting dial is aligned with
the“” mark on the brake lever.
EAU39540
Brake pedal The brake pedal is on the right side of
the vehicle.
This model is equipped with a unified
brake system.
When pressing down on the brake ped-
al, the rear brake and a portion of the
front brake are applied. For full braking
performance, apply both the brake le-
ver and the brake pedal simultaneous-
ly.
1. Shift pedal
1. Brake lever
2.“” mark
3. Brake lever position adjusting dial
4. Distance between brake lever and handlebar
grip
1. Brake pedal
U1CYE0E0.book Page 16 Tuesday, October 27, 2009 11:52 AM
