EAU54192
Cruise control system
This model is equipped with a cruise
control system designed to maintain a
set cruising speed.
The cruise control system operates
only when riding in 3rd gear at speeds
between about 50 km/h (31 mi/h) and
160 km/h (100 mi/h), 4th or 5th gear at
speeds between about 50 km/h (31
mi/h) and 180 km/h (112 mi/h), or 6th
gear at speeds between about 55 km/h
(34 mi/h) and 180 km/h (112 mi/h).
WARNING
EWA16341
 Improper use of the cruise con-
trol system may result in loss of
control, which coul d lea d to an
acci dent. Do not activate the
cruise control system in heavy
traffic, poor weather con ditions,
or amon g win din g, slippery,
hilly, rou gh or g ravel roa ds.
 When travelin g uphill or d own-
hill, the cruise control system
may not be ab le to maintain the
set cruisin g speed .
 To prevent acci dentally activat-
in g the cruise control system,
turn it off when not in use. Make
sure that the cruise control sys-
tem ind icator light “ ” is off.
Activatin g an d settin g the cruise
control system 1. Push the cruise control power switch “ ” located on the left
handlebar. The cruise control sys-
tem indicator light “ ” will come
on.
2. Push the “SET–” side of the cruise control setting switch to activate
the cruise control system. Your
current traveling speed will be-
come the set cruising speed. The
cruise control setting indicator
light “SET” will come on.
1. Cruise control system indicator light “ ”
2. Cruise control setting indicator light “SET”
1. Cruise control setting switch “RES+/SET–”
2. Cruise control power switch “ ”
NA.TEMP
C.TEMP
TIME TR
21
RES
SETPA S S
1
2
UB96E0E0.book Page 7 Wednesday, November 4, 2015 5:01 PM

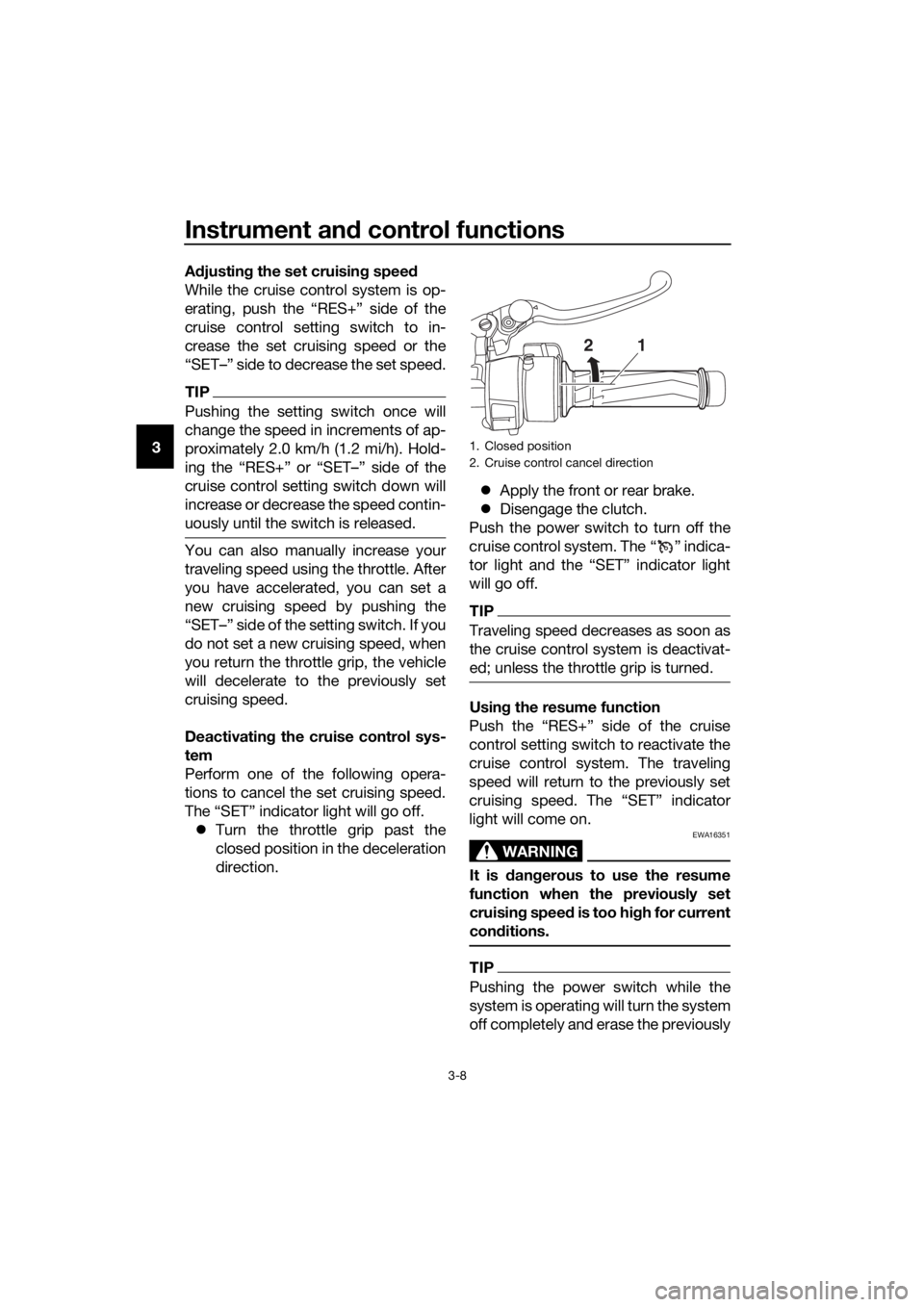

Instrument and control functions
3-8
3 A
djustin g the set cruisin g speed
While the cruise control system is op-
erating, push the “RES+” side of the
cruise control setting switch to in-
crease the set cruising speed or the
“SET–” side to decrease the set speed.
TIP
Pushing the setting switch once will
change the speed in increments of ap-
proximately 2.0 km/h (1.2 mi/h). Hold-
ing the “RES+” or “SET–” side of the
cruise control setting switch down will
increase or decrease the speed contin-
uously until the switch is released.
You can also manually increase your
traveling speed using the throttle. After
you have accelerated, you can set a
new cruising speed by pushing the
“SET–” side of the setting switch. If you
do not set a new cruising speed, when
you return the throttle grip, the vehicle
will decelerate to the previously set
cruising speed.
Deactivatin g the cruise control sys-
tem
Perform one of the following opera-
tions to cancel the set cruising speed.
The “SET” indicator light will go off.  Turn the throttle grip past the
closed position in the deceleration
direction. 
Apply the front or rear brake.
 Disengage the clutch.
Push the power switch to turn off the
cruise control system. The “ ” indica-
tor light and the “SET” indicator light
will go off.
TIP
Traveling speed decreases as soon as
the cruise control system is deactivat-
ed; unless the throttle grip is turned.
Usin g the resume function
Push the “RES+” side of the cruise
control setting switch to reactivate the
cruise control system. The traveling
speed will return to the previously set
cruising speed. The “SET” indicator
light will come on.
WARNING
EWA16351
It is d angerous to use the resume
function when the previously set
cruisin g speed is too hi gh for current
con ditions.
TIP
Pushing the power switch while the
system is operating will turn the system
off completely and erase the previously
1. Closed position
2. Cruise control cancel direction
21
UB96E0E0.book Page 8 Wednesday, November 4, 2015 5:01 PM

Instrument and control functions
3-9
3
set cruising speed. You will not be able
to use the resume function until a new
cruising speed has been set.
Automatic deactivation of the cruise
control system
The cruise control system for this mod-
el is electronically controlled and is
linked with the other control systems.
The cruise control system will auto-
matically become deactivated under
the following conditions:
 The cruise control system is not
able to maintain the set cruising
speed.
 Wheel slip or wheel spin is detect-
ed. (If the traction control system
has not been turned off, the trac-
tion control system will work.)
 The start/engine stop switch is set
to the “ ” position.
 The engine stalls.
 The sidestand is lowered.
When traveling with a set cruising
speed, if the cruise control system is
deactivated under the above condi-
tions, the “ ” indicator light will go off
and the “SET” indicator light will flash
for 4 seconds, and then go off.
When not traveling with a set cruising
speed, if the start/engine stop switch is
set to the “ ” position, the engine
stalls, or the sidestand is lowered, then
the “ ” indicator light will go off (the
“SET” indicator light will not flash).
If the cruise control system is automat-
ically deactivated, please stop and
confirm that your vehicle is in good op-
erating condition.
Before using the cruise control system
again, activate it using the power
switch.
TIP
In some cases, the cruise control sys-
tem may not be able to maintain the set
cruising speed when the vehicle is
traveling uphill or downhill.  When the vehicle is traveling up-
hill, the actual traveling speed may
become lower than the set cruis-
ing speed. If this occurs, acceler-
ate to the desired traveling speed
using the throttle.
 When the vehicle is traveling
downhill, the actual traveling
speed may become higher than
the set cruising speed. If this oc-
curs, the setting switch cannot be
used to adjust the set cruising
speed. To reduce the traveling
speed, apply the brakes. When
the brakes are applied, the cruise
control system will become deac-
tivated.
UB96E0E0.book Page 9 Wednesday, November 4, 2015 5:01 PM

Instrument and control functions
3-10
3
EAU58235
Multi-function meter unit
WARNING
EWA12423
Be sure to stop the vehicle before
makin g any settin g chan ges to the
multi-function meter unit. Chang ing
settin gs while ri din g can d istract the
operator an d increase the risk of an
acci dent.
TIP
The select switch “ / ” and the
menu switch “MENU” are located on
the left handlebar. These switches al-
low you to control or change the set-
tings of the multi-function meter unit.
The multi-function meter unit is
equipped with the following:
 a speedometer
 a tachometer
 a clock
 a fuel meter
 an eco indicator
 a transmission gear display
 a drive mode display
 a function display
 an information display
 a setting mode display
TIP
B e s u r e t o t u r n t h e k e y t o “ O N ” b e -
fore attempting to use select
switch “ / ”, menu switch
“MENU”, “RESET” button or
“TCS” button.
 To switch the meter displays be-
tween kilometers and miles, see
page 3-16.
Speed ometer
The speedometer shows the vehicle’s
traveling speed.
1. “RESET” button
2. “TCS” button
3. Tachometer
4. Drive mode display
5. Eco indicator “ECO”
6. Fuel meter
7. Speedometer
8. Clock
9. Transmission gear display
10.Function display
11.Information display
GEARN25A.TEMP ˚C
LoC.TEMP˚C
0:06TIME TRIP
1231145786910
1. Menu switch “MENU”
2. Select switch “ / ”
1
2
UB96E0E0.book Page 10 Wednesday, November 4, 2015 5:01 PM

Instrument and control functions
3-11
3
Tachometer
The electric tachometer allows the rid-
er to monitor the engine speed and
keep it within the ideal power range.
When the key is turned to “ON”, the ta-
chometer needle sweeps across the
r/min range and then returns to zero
r/min in order to test the electrical cir-
cuit.
NOTICE
ECA10032
Do not operate the en
gine in the ta-
chometer red zone.
Re d zone: 9000 r/min an d a bove
Fuel meter
The fuel meter indicates the amount of
fuel in the fuel tank. The display seg-
ments of the fuel meter disappear from “F” (full) towards “E” (empty) as the fuel
level decreases. When the last seg-
ment starts flashing, refuel as soon as
possible.
When the key is turned to “ON”, all dis-
play segments come on once in order
to test the electrical circuit.
TIP
If a problem is detected in the fuel me-
ter electrical circuit, the fuel meter dis-
play segments will flash repeatedly.
Have a Yamaha dealer check the vehi-
cle.
Eco in
dicator
This indicator comes on when the vehi-
cle is being operated in an environ-
mentally friendly, fuel-efficient manner.
The indicator goes off when the vehicle
is stopped.
TIP
Consider the following tips to reduce
fuel consumption:  Avoid high engine speeds during
acceleration.
 Travel at a constant speed.
 Select the transmission gear that
is appropriate for the vehicle
speed.
1. Tachometer
2. Tachometer red zone
1. Fuel meter
1 2
GEAR
NA.TEMP
C.TEMP
1
1. Eco indicator “ECO”
GEAR
NA.TEMP
C.TEMP
1
UB96E0E0.book Page 11 Wednesday, November 4, 2015 5:01 PM

Instrument and control functions
3-12
3 Transmission
gear display
This display shows the selected gear.
The neutral position is indicated
by “ ” and by the neutral indicator
light “ ”.
Drive mo de display
This display indicates which drive
mode has been selected: Touring
mode “T” or sports mode “S”. For
more details on the modes and on how
to select them, see pages 3-22 and
3-24. Function
display
Push the “MENU” switch to switch the
display between the following func-
tions. The display changes each time
the switch is pushed.  Grip warmer adjusting function
 Information display selection
function
 Windshield adjusting function
 Damping force adjusting function
 Preload adjusting function
TIP
The preload adjusting function will ap-
pear only when the vehicle is stopped
with the engine running.
1. Neutral indicator light “ ”
2. Transmission gear display
1. Drive mode display
GEARN25A.TEMP ˚C
LoC.TEMP˚C
0:06TIME TRIP
12
GEAR
NA.TEMP
C.TEMP
1
1. Function display
1. Grip warmer adjusting function
2. Information display selection function
3. Windshield adjusting function
4. Damping force adjusting function
5. Preload adjusting function
GEAR
N
25A.TEMP˚C
LoC.TEMP˚C
0:06TIME TRIP
1
213
45
UB96E0E0.book Page 12 Wednesday, November 4, 2015 5:01 PM

Instrument and control functions
3-13
3
The following pages contain an expla-
nation of the grip warmer, information
display, and windshield functions. See
page 3-40 for an explanation of the
preload and damping force adjusting
functions.
A
djustin g the g rip warmer
This vehicle is equipped with grip
warmers, which can only be used
when the engine is running. There are 4
grip warmer settings.
To increase the grip warmer tempera-
ture, push the “ ” side of the select
switch. To decrease the grip warmer
temperature, push the “ ” side of the
select switch.
NOTICE
ECA17931
Be sure to wear g loves when
usin g the grip warmers.
 If the am bient temperature is 20
°C (68 °F) or hig her, do not set
the grip warmer to the hi gh set-
ting .
 If the han dle bar grip or throttle
g rip becomes worn or dam-
a g ed , stop usin g the grip warm-
ers an d replace the grips.
Selectin g the information display
There are 3 information displays. The
selected information display can be
switched by pushing the select switch.
The following items are shown in the
information displays:
 an odometer display
 tripmeter displays
 a fuel reserve tripmeter display
 an estimated traveling range dis-
play
 an elapsed time display
 an ambient temperature display
 a coolant temperature display
 an average fuel consumption dis-
play
 an instantaneous fuel consump-
tion display
The items shown in each information
display can be selected.
To set or select the items shown, see
page 3-16.
Odometer display:Off
Low
Middle Display
Setting
High
1. Information display
2. Display–1
3. Display–2
4. Display–3
GEARN
5.0TRIP-1 km
7.0TRIP-2km
km
20ODO
GEARN
11RANGEkm
12.3FUEL AVG km/L
km/L
12.3CRNT FUEL
GEARN
25A.TEMP ˚C
LoC.TEMP ˚C
0:06TIME TRIP
3
421
20
ODOkm
UB96E0E0.book Page 13 Wednesday, November 4, 2015 5:01 PM

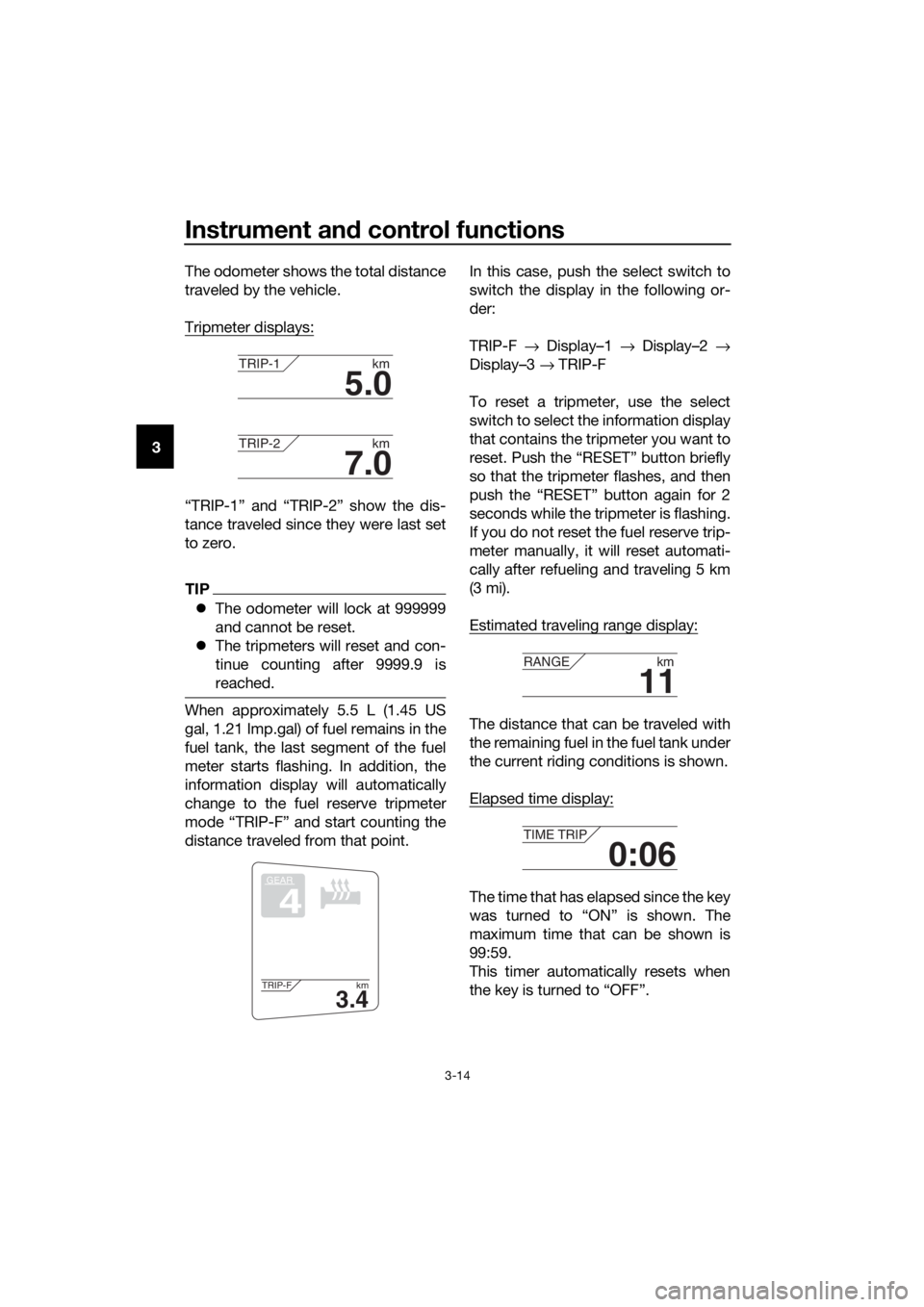

Instrument and control functions
3-14
3 The odometer shows the total distance
traveled by the vehicle.
Tripmeter displays:
“TRIP-1” and “TRIP-2” show the dis-
tance traveled since they were last set
to zero.
TIP

The odometer will lock at 999999
and cannot be reset.
 The tripmeters will reset and con-
tinue counting after 9999.9 is
reached.
When approximately 5.5 L (1.45 US
gal, 1.21 Imp.gal) of fuel remains in the
fuel tank, the last segment of the fuel
meter starts flashing. In addition, the
information display will automatically
change to the fuel reserve tripmeter
mode “TRIP-F” and start counting the
distance traveled from that point. In this case, push the select switch to
switch the display in the following or-
der:
TRIP-F
→ Display–1 → Display–2 →
Display–3 → TRIP-F
To reset a tripmeter, use the select
switch to select the information display
that contains the tripmeter you want to
reset. Push the “RESET” button briefly
so that the tripmeter flashes, and then
push the “RESET” button again for 2
seconds while the tripmeter is flashing.
If you do not reset the fuel reserve trip-
meter manually, it will reset automati-
cally after refueling and traveling 5 km
(3 mi).
Estimated traveling range display:The distance that can be traveled with
the remaining fuel in the fuel tank under
the current riding conditions is shown.
Elapsed time display:
The time that has elapsed since the key
was turned to “ON” is shown. The
maximum time that can be shown is
99:59.
This timer automatically resets when
the key is turned to “OFF”.
5.0
TRIP-1 km
7.0
TRIP-2km
GEAR
4
3.4
TRIP-F km
11
RANGEkm
0:06
TIME TRIP
UB96E0E0.book Page 14 Wednesday, November 4, 2015 5:01 PM

Instrument and control functions
3-15
3
TIP
There are also “TIME–2” and “TIME–3”
elapsed time displays, but they cannot
be set to the information display. See
“Setting mode” on page 3-16 for de-
tailed information.
Ambient temperature display:
This display shows the ambient tem-
perature from –9 °C to 50 °C in 1 °C in-
crements. The temperature displayed
may vary from the ambient tempera-
ture.
TIP
 –9 °C will be displayed even if the
ambient temperature falls below
–9 °C.
 50 °C will be displayed even if the
ambient temperature climbs
above 50 °C.
 The accuracy of the temperature
reading may be affected when rid-
ing under 20 km/h (12 mi/h) or
when stopped at traffic signals
and railroad crossings.
Coolant temperature display:
The coolant temperature display indi-
cates the temperature of the coolant.
The coolant temperature varies with
changes in the weather and engine
load. If the message “Hi” flashes, stop the
vehicle, then stop the engine, and let
the engine cool. (See page 6-38.)
TIP
The selected information display can-
not be switched while the message
“Hi” is flashing.
NOTICE
ECA10022
Do not continue to operate the en-
g
ine if it is overheatin g.
Average fuel consumption display:
The average fuel consumption display
modes “km/L”, “L/100km” or “MPG”
show the average fuel consumption
since the display was last reset.
 The “km/L” display shows the av-
erage distance that can be trav-
eled on 1.0 L of fuel.
 The “L/100km” display shows the
average amount of fuel necessary
to travel 100 km.
 The “MPG” display shows the av-
erage distance that can be trav-
eled on 1.0 Imp.gal of fuel.
25
A.TEMP ˚C
Lo
C.TEMP˚C
GEAR
4
Hi
C.TEMP˚C
12.3
FUEL AVG km/L
UB96E0E0.book Page 15 Wednesday, November 4, 2015 5:01 PM

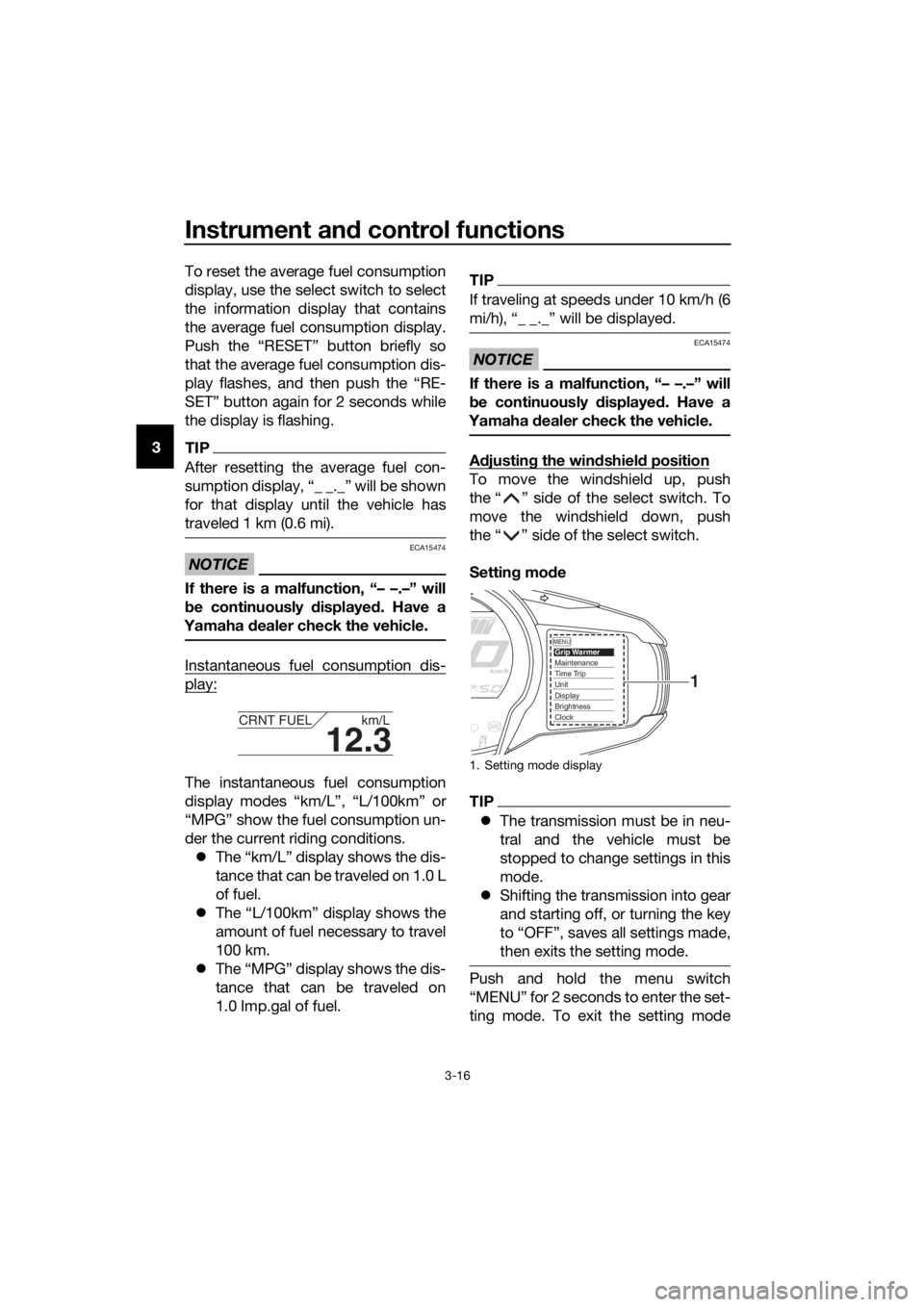

Instrument and control functions
3-16
3 To reset the average fuel consumption
display, use the select switch to select
the information display that contains
the average fuel consumption display.
Push the “RESET” button briefly so
that the average fuel consumption dis-
play flashes, and then push the “RE-
SET” button again for 2 seconds while
the display is flashing.TIP
After resetting the average fuel con-
sumption display, “_ _._” will be shown
for that display until the vehicle has
traveled 1 km (0.6 mi).
NOTICE
ECA15474
If there is a malfunction, “– –.–” will
b
e continuously displaye d. Have a
Yamaha dealer check the vehicle.
Instantaneous fuel consumption dis-
play:
The instantaneous fuel consumption
display modes “km/L”, “L/100km” or
“MPG” show the fuel consumption un-
der the current riding conditions.
 The “km/L” display shows the dis-
tance that can be traveled on 1.0 L
of fuel.
 The “L/100km” display shows the
amount of fuel necessary to travel
100 km.
 The “MPG” display shows the dis-
tance that can be traveled on
1.0 Imp.gal of fuel.
TIP
If traveling at speeds under 10 km/h (6
mi/h), “_ _._” will be displayed.
NOTICE
ECA15474
If there is a malfunction, “– –.–” will
be continuously displaye d. Have a
Yamaha dealer check the vehicle.
A djustin g the wind shield position
To move the windshield up, push
the “ ” side of the select switch. To
move the windshield down, push
the “ ” side of the select switch.
Settin g mo de
TIP
 The transmission must be in neu-
tral and the vehicle must be
stopped to change settings in this
mode.
 Shifting the transmission into gear
and starting off, or turning the key
to “OFF”, saves all settings made,
then exits the setting mode.
Push and hold the menu switch
“MENU” for 2 seconds to enter the set-
ting mode. To exit the setting mode
12.3
CRNT FUEL km/L
1. Setting mode display
MENUGrip WarmerMaintenanceTime TripUnitDisplayBrightnessClock
1
UB96E0E0.book Page 16 Wednesday, November 4, 2015 5:01 PM
