Motorcycle care and stora ge
7-4
7
EAU26244
Stora ge
Short-term
Always store your motorcycle in a cool,
dry place and, if necessary, protect it
against dust with a porous cover. Be
sure the engine and the exhaust sys-
tem are cool before covering the mo-
torcycle.
NOTICE
ECA10811
Storin g the motorcycle in a
poorly ventilated room or cover-
in g it with a tarp, while it is still
wet, will allow water an d humi d-
ity to seep in an d cause rust.
To prevent corrosion, avoi d
d amp cellars, sta bles ( because
of the presence of ammonia)
an d areas where stron g chemi-
cals are store d.
Lon g-term
Before storing your motorcycle for sev-
eral months: 1. Follow all the instructions in the “Care” section of this chapter.
2. Fill up the fuel tank and add fuel stabilizer (if available) to prevent
the fuel tank from rusting and the
fuel from deteriorating.
3. Perform the following steps to protect the cylinders, piston rings,
etc. from corrosion.a. Remove the spark plug caps and spark plugs.
b. Pour a teaspoonful of engine oil into each spark plug bore.
c. Install the spark plug caps onto the spark plugs, and then pla-
ce the spark plugs on the cylin- der head so that the electrodes
are grounded. (This will limit
sparking during the next step.)
d. Turn the engine over several times with the starter. (This will
coat the cylinder walls with oil.)
WARNING! To prevent d am-
a g e or injury from sparkin g,
make sure to groun d the
spark plu g electro des while
turnin g the en gine over.
[EWA10952]
e. Remove the spark plug caps
from the spark plugs, and then
install the spark plugs and the
spark plug caps.
4. Lubricate all control cables and the pivoting points of all levers and
pedals as well as of the side-
stand/centerstand.
5. Check and, if necessary, correct the tire air pressure, and then lift
the motorcycle so that both of its
wheels are off the ground. Alterna-
tively, turn the wheels a little every
month in order to prevent the tires
from becoming degraded in one
spot.
6. Cover the muffler outlets with plastic bags to prevent moisture
from entering them.
7. Remove the battery and fully char- ge it. Store it in a cool, dry place
and charge it once a month. Do
not store the battery in an exces-
sively cold or warm place [less
than 0 °C (30 °F) or more than 30
°C (90 °F)]. For more information
on storing the battery, see page
6-32.
UB96E1E0.book Page 4 Monday, July 10, 2017 10:57 AM
Page 112 of 122

Motorcycle care and stora ge
7-5
7
TIP
Make any necessary repairs before
storing the motorcycle.
UB96E1E0.book Page 5 Monday, July 10, 2017 10:57 AM
Page 113 of 122

Specifications
8-1
8
Dimensions:
Overall length:2230 mm (87.8 in)
Overall width:
750 mm (29.5 in)
Overall height: 1325/1455 mm (52.2/57.3 in)
Seat height: 805/825 mm (31.7/32.5 in)
Wheelbase:
1545 mm (60.8 in)
Ground clearance: 125 mm (4.92 in)
Minimum turning radius: 3.2 m (10.50 ft)
Wei ght:
Curb weight:
292 kg (644 lb)
Engine:
Combustion cycle:
4-stroke
Cooling system:
Liquid cooled
Valve train: DOHC
Cylinder arrangement: Inline
Number of cylinders:
4-cylinder
Displacement: 1298 cm³
Bore × stroke:
79.0 × 66.2 mm (3.11 × 2.61 in)
Compression ratio:
10.8 : 1
Starting system: Electric starter
Lubrication system: Wet sump
Engine oil:
Recommended brand:
YAMALUBE
SAE viscosity grades: 10W-40
Recommended engine oil grade:
API service SG type or higher, JASO
standard MA
Engine oil quantity:
Oil change: 3.80 L (4.02 US qt, 3.34 Imp.qt) With oil filter removal:
4.00 L (4.23 US qt, 3.52 Imp.qt)
Final gear oil:
Type:
Yamaha genuine shaft drive gear oil SAE 80W-90 API GL-5
Quantity:
0.20 L (0.21 US qt, 0.18 Imp.qt)
Coolant quantity:
Coolant reservoir (up to the maximum level
mark):0.25 L (0.26 US qt, 0.22 Imp.qt)
Radiator (including all routes): 2.60 L (2.75 US qt, 2.29 Imp.qt)
Air filter:
Air filter element:
Dry element
Fuel:
Recommended fuel:Regular unleaded gasoline (Gasohol [E10]
acceptable)
Fuel tank capacity: 25 L (6.6 US gal, 5.5 Imp.gal)
Fuel reserve amount:
5.5 L (1.45 US gal, 1.21 Imp.gal)
Fuel injection:
Throttle body:ID mark:B881 00
Spark plu g(s):
Manufacturer/model:
NGK/CPR8EA-9
Spark plug gap: 0.8–0.9 mm (0.031–0.035 in)
Clutch:
Clutch type:
Wet, multiple-disc
Drivetrain:
Primary reduction ratio:1.563 (75/48)
Final drive:
Shaft
Secondary reduction ratio: 2.693 (34/36 x 21/27 x 33/9)
Transmission type: Constant mesh 6-speed
Gear ratio:
1st:2.500 (35/14)
UB96E1E0.book Page 1 Monday, July 10, 2017 10:57 AM
Page 114 of 122

Specifications
8-2
8
2nd:1.722 (31/18)
3rd: 1.350 (27/20)
4th:
1.111 (30/27)
5th: 0.963 (26/27)
6th: 0.846 (22/26)
Chassis:
Frame type:Diamond
Caster angle: 26.0 °
Trail: 109 mm (4.3 in)
Front tire:
Type:Tubeless
Size: 120/70ZR17M/C (58W)
Manufacturer/model:
BRIDGESTONE/BT023F E
Rear tire:
Type: Tubeless
Size:
180/55ZR17M/C(73W)
Manufacturer/model: BRIDGESTONE/BT023R E
Loa din g:
Maximum load:
212 kg (467 lb)
(Total weight of rider, passenger, cargo
and accessories)
Tire air pressure (measure d on col d
tires):
1 person:
Front:
250 kPa (2.50 kgf/cm², 36 psi)
Rear: 290 kPa (2.90 kgf/cm², 42 psi)
2 persons: Front:250 kPa (2.50 kgf/cm², 36 psi)
Rear: 290 kPa (2.90 kgf/cm², 42 psi)
Front wheel:
Wheel type:Cast wheel
Rim size:
17M/C x MT3.50
Rear wheel:
Wheel type:Cast wheel
Rim size:
17M/C x MT5.50
Unifie d b rake system:
Operation:
Activated by rear brake
Front brake:
Type:
Hydraulic dual disc brake
Specified brake fluid: DOT 4
Rear brake:
Type:
Hydraulic single disc brake
Specified brake fluid: DOT 4
Front suspension:
Type:
Telescopic fork
Spring: Coil spring
Shock absorber: Hydraulic damper
Wheel travel:
135 mm (5.3 in)
Rear suspension:
Type:Swingarm (link suspension)
Spring:
Coil spring
Shock absorber: Gas-hydraulic damper
Wheel travel: 125 mm (4.9 in)
Electrical system:
System voltage:12 V
Ignition system: TCI
Charging system:
AC magneto
UB96E1E0.book Page 2 Monday, July 10, 2017 10:57 AM
Page 115 of 122

Specifications
8-3
8
Battery:
Model:GT14B-4
Voltage, capacity:
12 V, 12.0 Ah (10 HR)
Bul b watta ge:
Headlight:
LED
Brake/tail light:
LED
Front turn signal light: LED
Rear turn signal light: LED
Auxiliary light: LED
License plate light:
LED
Meter lighting: LED
Neutral indicator light: LED
High beam indicator light:
LED
Oil level warning light: LED
Turn signal indicator light: LED
Engine trouble warning light:
LED
ABS warning light: LED
Cruise control “SET” indicator light: LED
Cruise control “ON” indicator light:
LED
Immobilizer system indicator light: LED
Traction control system indicator light: LED
Suspension warning light:
LED
Fuse(s):
Main fuse:50.0 A
Main fuse 2:
30.0 A
Terminal fuse 1: 3.0 A Headlight fuse:
7.5 A
Brake light fuse: 1.0 A
Signaling system fuse:
7.5 A
Ignition fuse: 20.0 A
Radiator fan motor fuse: 10.0 A × 2
Hazard fuse:
7.5 A
Fuel injection system fuse: 15.0 A
ABS control unit fuse: 7.5 A
ABS motor fuse: 30.0 A
ABS solenoid fuse:
20.0 A
Suspension fuse: 15.0 A
Cruise control fuse: 1.0 A
Backup fuse:
7.5 A
Windshield motor fuse: 20.0 A
Electronic throttle valve fuse: 7.5 A
UB96E1E0.book Page 3 Monday, July 10, 2017 10:57 AM
Page 116 of 122

Consumer information
9-1
9
EAU53562

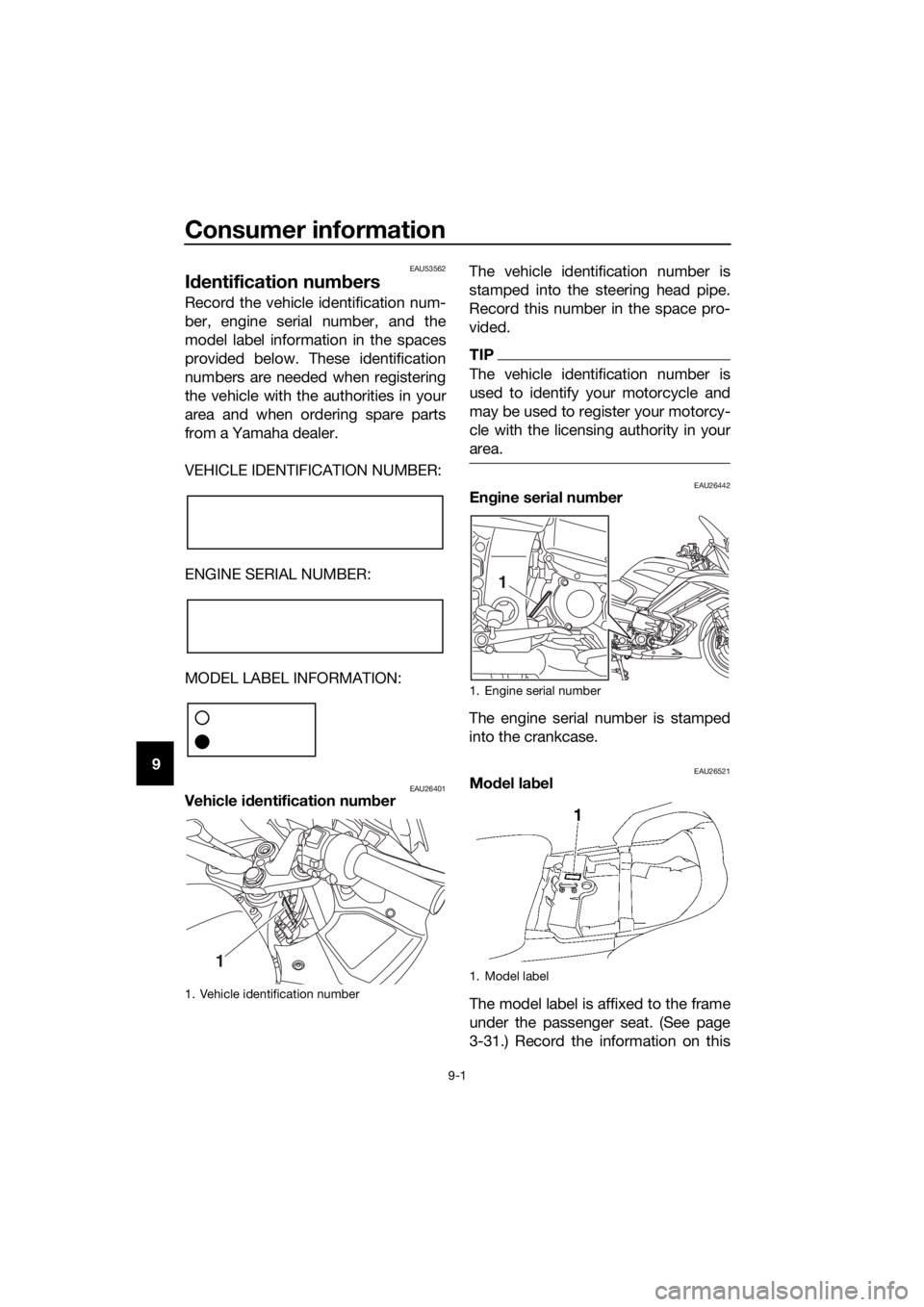

Id entification num bers
Record the vehicle identification num-
ber, engine serial number, and the
model label information in the spaces
provided below. These identification
numbers are needed when registering
the vehicle with the authorities in your
area and when ordering spare parts
from a Yamaha dealer.
VEHICLE IDENTIFICATION NUMBER:
ENGINE SERIAL NUMBER:
MODEL LABEL INFORMATION:
EAU26401Vehicle i dentification num ber The vehicle identification number is
stamped into the steering head pipe.
Record this number in the space pro-
vided.
TIP
The vehicle identification number is
used to identify your motorcycle and
may be used to register your motorcy-
cle with the licensing authority in your
area.
EAU26442En
gine serial num ber
The engine serial number is stamped
into the crankcase.
EAU26521Mo del lab el
The model label is affixed to the frame
under the passenger seat. (See page
3-31.) Record the information on this
1. Vehicle identification number
1
1. Engine serial number
1. Model label
1
UB96E1E0.book Page 1 Monday, July 10, 2017 10:57 AM
Page 117 of 122

Consumer information
9-2
9
label in the space provided. This infor-
mation will be needed when ordering
spare parts from a Yamaha dealer.
EAU69910
Dia
gnostic connector
The diagnostic connector is located as
shown.
1. Diagnostic connector
1
UB96E1E0.book Page 2 Monday, July 10, 2017 10:57 AM
Page 118 of 122

10-1
10
Index
A
ABS ....................................................... 3-26
ABS warning light ................................... 3-5
Accessory box ...................................... 3-36
Air filter element, cleaning .................... 6-17
Auxiliary DC jack ................................... 3-47
B
Battery .................................................. 6-32
Brake and clutch fluid levels,
checking ............................................. 6-26
Brake and clutch fluids, changing ........ 6-27
Brake and clutch levers, checking and
lubricating ........................................... 6-29
Brake and shift pedals, checking and
lubricating ........................................... 6-29
Brake lever ............................................ 3-25
Brake lever free play, checking............. 6-24
Brake light switches.............................. 6-24
Brake pedal........................................... 3-25
C
Cables, checking and lubricating ......... 6-28
Canister................................................. 6-11
Care ........................................................ 7-1
Catalytic converters .............................. 3-31
Centerstand and sidestand, checking
and lubricating .................................... 6-30
Clutch lever ................................. 3-24, 6-23
Coolant ................................................. 6-16
Cornering lights .................................... 3-48
Cowling vents, opening and closing ..... 3-38
Cruise control indicator lights ................. 3-4
Cruise control switches ........................ 3-23
Cruise control system ............................. 3-6
D
Diagnostic connector.............................. 9-2
Dimmer/Pass switch ............................. 3-22
D-mode (drive mode) ............................ 3-22
E
Engine break-in....................................... 5-5
Engine idling speed, checking .............. 6-19
Engine oil and oil filter cartridge ........... 6-11
Engine serial number .............................. 9-1
Engine trouble warning light ................... 3-4
F
Final gear oil.......................................... 6-14
Front and rear brake pads, checking.... 6-25
Front fork, checking .............................. 6-30
Fuel ....................................................... 3-29
Fuel consumption, tips for reducing ....... 5-4
Fuel tank cap ........................................ 3-28 Fuel tank overflow hose ....................... 3-30
Fuses, replacing ................................... 6-33
H
Handlebar position, adjusting .............. 3-37
Handlebar switches .............................. 3-22
Hazard switch....................................... 3-23
Headlight beams, adjusting.................. 3-37
High beam indicator light ....................... 3-4
Horn switch .......................................... 3-23
I
Identification numbers ............................ 9-1
Ignition circuit cut-off system............... 3-45
Immobilizer system ................................ 3-1
Immobilizer system indicator light.......... 3-5
Indicator lights and warning lights ......... 3-4
M
Main switch/steering lock....................... 3-2
Maintenance and lubrication, periodic ... 6-4
Maintenance, emission control
system.................................................. 6-3
Matte color, caution ............................... 7-1
Menu switch ......................................... 3-23
Model label ............................................. 9-1
Multi-function meter unit ........................ 3-9
N
Neutral indicator light ............................. 3-4
O
Oil level warning light ............................. 3-4
P
Panels, removing and installing.............. 6-7
Parking ................................................... 5-6
Part locations ......................................... 2-1
R
Rear view mirrors ................................. 3-39
Rider seat height, adjusting.................. 3-33
S
Safety information .................................. 1-1
Seats .................................................... 3-31
Select switch ........................................ 3-23
Shifting ................................................... 5-3
Shift pedal ............................................ 3-24
Sidestand ............................................. 3-44
Spark plugs, checking .......................... 6-10
Specifications ......................................... 8-1
Starting the engine ................................. 5-2
Steering, checking................................ 6-31
Stop/Run/Start switch .......................... 3-23
Storage ................................................... 7-4
Storage compartments ........................ 3-35
UB96E1E0.book Page 1 Monday, July 10, 2017 10:57 AM
Page 119 of 122

Index
10-2
10
Suspension, adjusting the front and
rear ..................................................... 3-40
Suspension system warning light .......... 3-5
T
Throttle grip and cable, checking and lubricating .......................................... 6-28
Throttle grip free play, checking........... 6-19
Tires...................................................... 6-20
Tool kit.................................................... 6-2
Traction control system........................ 3-27
Traction control system indicator light ... 3-5
Troubleshooting ................................... 6-35
Troubleshooting charts ........................ 6-36
Turn signal indicator lights ..................... 3-4
Turn signal switch ................................ 3-23
V
Valve clearance .................................... 6-20
Vehicle identification number ................. 9-1
Vehicle lights ........................................ 6-35
W
Wheel bearings, checking .................... 6-31
Wheels.................................................. 6-23
UB96E1E0.book Page 2 Monday, July 10, 2017 10:57 AM
Page 120 of 122

A5-tate_Blank.fm Page 1 Thursday, November 24, 2011 4:30 PM
