YAMAHA FJR1300AE 2018 Service Manual

Instrument and control functions
3-27
3
EAU54273
Traction control system
The traction control system helps
maintain traction when accelerating on
slippery surfaces, such as unpaved or
wet roads. If sensors detect that the
rear wheel is starting to slip (uncon-
trolled spinning), the traction control
system assists by regulating engine
power as needed until traction is re-
stored. The “TCS” indicator light flash-
es to let the rider know that traction
control has engaged.
TIP
The rider may also notice slight chang-
es in engine and exhaust sounds when
the traction control system is engaged.
WARNING
EWA15433
The traction control system is not a
su bstitute for ri din g appropriately
for the con ditions. Traction control
cannot prevent loss of traction due
to excessive speed when entering
turns, when acceleratin g har d at a
sharp lean an gle, or while brakin g,
an d cannot prevent front wheel slip-
pin g. As with any vehicle, approach
surfaces that may b e slippery with
caution an d avoi d especially slip-
pery surfaces.
When the key is turned to “ON”, the
traction control system automatically
turns on.
The traction control system can be
turned on or off manually only when the
key is in the “ON” position and the mo-
torcycle is stopped.
TIP
Turn the traction control system off to
help free the rear wheel if the motorcy-
cle gets stuck in mud, sand, or other
soft surfaces.
NOTICE
ECA16801
Use only the specifie d tires. (See
pa ge 6-20.) Usin g different sized
tires will prevent the traction control
system from controllin g tire rotation
accurately.
Turnin g on/off the traction control
system
WARNING
EWA15441
Be sure to stop the vehicle before
makin g any settin g chan ges to the
traction control system. Chan gin g
settin gs while ri din g can d istract the
operator an d increase the risk of an
acci dent.
To turn off the traction control system,
push the “TCS” button on the multi-
function meter unit for at least 2 sec-
onds. The “TCS” indicator light will
come on.
To turn on the traction control system,
push the “TCS” button again. The
“TCS” indicator light will go off.
UB96E1E0.book Page 27 Monday, July 10, 2017 10:57 AM

Instrument and control functions
3-28
3
Resettin g
The traction control system will be dis-
abled in the following conditions:  The rear wheel is rotated with the
centerstand down and the key in
the “ON” position.
 Either the front wheel or rear wheel
comes off the ground while riding.
 Excessive rear wheel spinning.
If the traction control system has been
disabled, both the “TCS” indicator light
and the engine trouble warning light
come on.
To reset the traction control system
Turn the key to “OFF”. Wait at least 1
second, then turn the key back to
“ON”. The “TCS” indicator light should
go off and the system will be enabled.
The engine trouble warning light
should go off after the motorcycle
reaches at least 20 km/h (12 mi/h). If
the “TCS” indicator light and/or engine
trouble warning light still remain on af-
ter resetting, the motorcycle may still
be ridden; however, have a Yamaha
dealer check the motorcycle as soon
as possible.
EAU13075
Fuel tank cap
To open the fuel tank cap
Open the fuel tank cap lock cover, in-
sert the key into the lock, and then turn
it 1/4 turn clockwise. The lock will be
released and the fuel tank cap can be
opened.
To close the fuel tank cap 1. Push the fuel tank cap into posi- tion with the key inserted in the
lock.
2. Turn the key counterclockwise to the original position, remove it,
and then close the lock cover.
TIP
The fuel tank cap cannot be closed un-
less the key is in the lock. In addition,
the key cannot be removed if the cap is
not properly closed and locked.
WARNING
EWA11092
Make sure that the fuel tank cap is
properly close d after fillin g fuel.
Leakin g fuel is a fire hazar d.
1. “TCS” button
2. Engine trouble warning light “ ”
3. Traction control system indicator light “ ”
132
1. Fuel tank cap lock cover
2. Unlock.
1
2
UB96E1E0.book Page 28 Monday, July 10, 2017 10:57 AM

Instrument and control functions
3-29
3
EAU13222
Fuel
Make sure there is sufficient gasoline in
the tank.
WARNING
EWA10882
Gasoline an d gasoline vapors are
extremely flamma ble. To avoi d fires
an d explosions an d to re duce the
risk of injury when refuelin g, follow
these instructions.
1. Before refueling, turn off the en- gine and be sure that no one is sit-
ting on the vehicle. Never refuel
while smoking, or while in the vi-
cinity of sparks, open flames, or
other sources of ignition such as
the pilot lights of water heaters
and clothes dryers.
2. Do not overfill the fuel tank. When refueling, be sure to insert the
pump nozzle into the fuel tank filler
hole. Stop filling when the fuel
reaches the bottom of the filler
tube. Because fuel expands when
it heats up, heat from the engine or
the sun can cause fuel to spill out
of the fuel tank. 3. Wipe up any spilled fuel immedi-
ately. NOTICE: Immediately
wipe off spille d fuel with a clean,
d ry, soft cloth, since fuel may
d eteriorate painte d surfaces or
plastic parts.
[ECA10072]
4. Be sure to securely close the fuel tank cap.
WARNING
EWA15152
Gasoline is poisonous an d can cau-
se injury or death. Han dle gasoline
with care. Never siphon gasoline by
mouth. If you shoul d swallow some
g asoline or inhale a lot of gasoline
vapor, or get some g asoline in your
eyes, see your doctor imme diately. If
g asoline spills on your skin, wash
with soap an d water. If gasoline
spills on your clothin g, chan ge your
clothes.
EAU76860
NOTICE
ECA11401
Use only unlea ded g asoline. The use
of lead ed g asoline will cause severe
d amag e to internal en gine parts,
such as the valves an d piston rin gs,
as well as to the exhaust system.
1. Fuel tank filler tube
2. Maximum fuel level
21
Recommen ded fuel:
Regular unleaded gasoline (Gasohol
[E10] acceptable)
Fuel tank capacity: 25 L (6.6 US gal, 5.5 Imp.gal)
Fuel reserve amount:
5.5 L (1.45 US gal, 1.21 Imp.gal)
UB96E1E0.book Page 29 Monday, July 10, 2017 10:57 AM

Instrument and control functions
3-30
3TIP
 This mark identifies the recom-
mended fuel for this vehicle as
specified by European regulation
(EN228).
 Check that gasoline nozzle has
the same identifier when fueling.
Your Yamaha engine has been de-
signed to use regular unleaded gaso-
line with a research octane number of
95 or higher. If knocking (or pinging)
occurs, use a gasoline of a different
brand or premium unleaded fuel. Use
of unleaded fuel will extend spark plug
life and reduce maintenance costs.
Gasohol
There are two types of gasohol: gaso-
hol containing ethanol and that con-
taining methanol. Gasohol containing
ethanol can be used if the ethanol con-
tent does not exceed 10% (E10). Gas-
ohol containing methanol is not
recommended by Yamaha because it
can cause damage to the fuel system
or vehicle performance problems.
EAU72971
Fuel tank overflow hose
Before operating the vehicle:
 check the overflow hose connec-
tion.
 check the overflow hose for dam-
age.
 confirm the overflow hose is not
blocked.
 confirm the overflow hose is rout-
ed through the clamp.
TIP
See page 6-11 for canister information.
E10
1. Fuel tank overflow hose
2. Clamp
2
1
UB96E1E0.book Page 30 Monday, July 10, 2017 10:57 AM

Instrument and control functions
3-31
3
EAU13447
Catalytic converters
This vehicle is equipped with catalytic
converters in the exhaust system.
WARNING
EWA10863
The exhaust system is hot after op-
eration. To prevent a fire hazar d or
b urns:
 Do not park the vehicle near
possi ble fire hazar ds such as
g rass or other materials that
easily burn.
 Park the vehicle in a place
where ped estrians or chil dren
are not likely to touch the hot
exhaust system.
 Make sure that the exhaust sys-
tem has coole d down before
d oin g any maintenance work.
 Do not allow the eng ine to idle
more than a few minutes. Lon g
i d lin g can cause a b uild-up of
heat.
NOTICE
ECA10702
Use only unlea ded g asoline. The use
of lead ed g asoline will cause unre-
paira ble damag e to the catalytic
converter.
EAU39496
Seats
Passen ger seat
To remove the passenger seat
1. Insert the key into the seat lock, and then turn it counterclockwise.
2. Lift the front of the passenger seat and pull it forward.
To install the passenger seat
1. Insert the projections on the rear of the passenger seat into the seat
holders as shown, and then push
the front of the seat down to lock
it in place.
2. Remove the key.
1. Seat lock
2. Unlock.
1. Projection
2. Seat holder
1
2
UB96E1E0.book Page 31 Monday, July 10, 2017 10:57 AM

Instrument and control functions
3-32
3 Ri
der seat
To remove the rider seat
1. Remove the passenger seat.
2. Push the rider seat lock lever, lo- cated under the back of the rider
seat, to the left as shown, and
then pull the seat off.
To install the rider seat
1. Insert the projection on the front of the rider seat into the seat holder
as shown, and then push the rear
of the seat down to lock it in place.
2. Install the passenger seat.
TIP
 Make sure that the seats are prop-
erly secured before riding. 
The rider seat height can be ad-
justed to change the riding posi-
tion. (See the following section.)
1. Rider seat lock lever
2. Rider seat
1. Projection
2. Seat holder
UB96E1E0.book Page 32 Monday, July 10, 2017 10:57 AM

Instrument and control functions
3-33
3
EAU39633
A djustin g the ri der seat hei ght
The rider seat height can be adjusted
to one of two positions to suit the rid-
er’s preference.
The rider seat height was adjusted to
the lower position at delivery.
To chan ge the ri der seat hei ght to
the hi gh position
1. Remove the rider seat. (See page 3-31.)
2. Remove the rider seat height posi- tion adjuster by pulling it upward.
3. Move the rider seat holder cover to the lower position as shown. 4. Install the rider seat height posi-
tion adjuster so that the “H” mark
is aligned with the match mark.
5. Insert the projection on the front of the rider seat into seat holder B as
shown.
1. Low position
2. High position
1. Rider seat height position adjuster
1. Rider seat holder cover
1. Rider seat height position adjuster
2. “H” mark
3. Match mark
1. Projection
2. Seat holder B (for high position)
3. Rider seat holder cover
1
UB96E1E0.book Page 33 Monday, July 10, 2017 10:57 AM

Instrument and control functions
3-34
3 6. Align the projection on the bottom
of the rider seat with the “H” posi-
tion slot, and then push the rear of
the seat down to lock it in place as
shown.
7. Install the passenger seat.
To chan ge the ri der seat hei ght to
the low position 1. Remove the rider seat. (See page 3-31.)
2. Remove the rider seat height posi- tion adjuster by pulling it upward.
3. Move the rider seat holder cover to the upper position.
4. Install the rider seat height posi- tion adjuster so that the “L” mark
is aligned with the match mark. 5. Insert the projection on the front of
the rider seat into seat holder A as
shown.
6. Align the projection on the bottom of the rider seat with the “L” posi-
tion slot, and then push the rear of
the seat down to lock it in place as
shown.
7. Install the passenger seat.
TIP
Make sure that the seats are properly
secured before riding.
1. “H” position slot
1. Rider seat height position adjuster
2. “L” mark
3. Match mark
1. Projection
2. Rider seat holder cover
3. Seat holder A (for low position)
1. “L” position slot
12
3
UB96E1E0.book Page 34 Monday, July 10, 2017 10:57 AM

Instrument and control functions
3-35
3
EAU73350

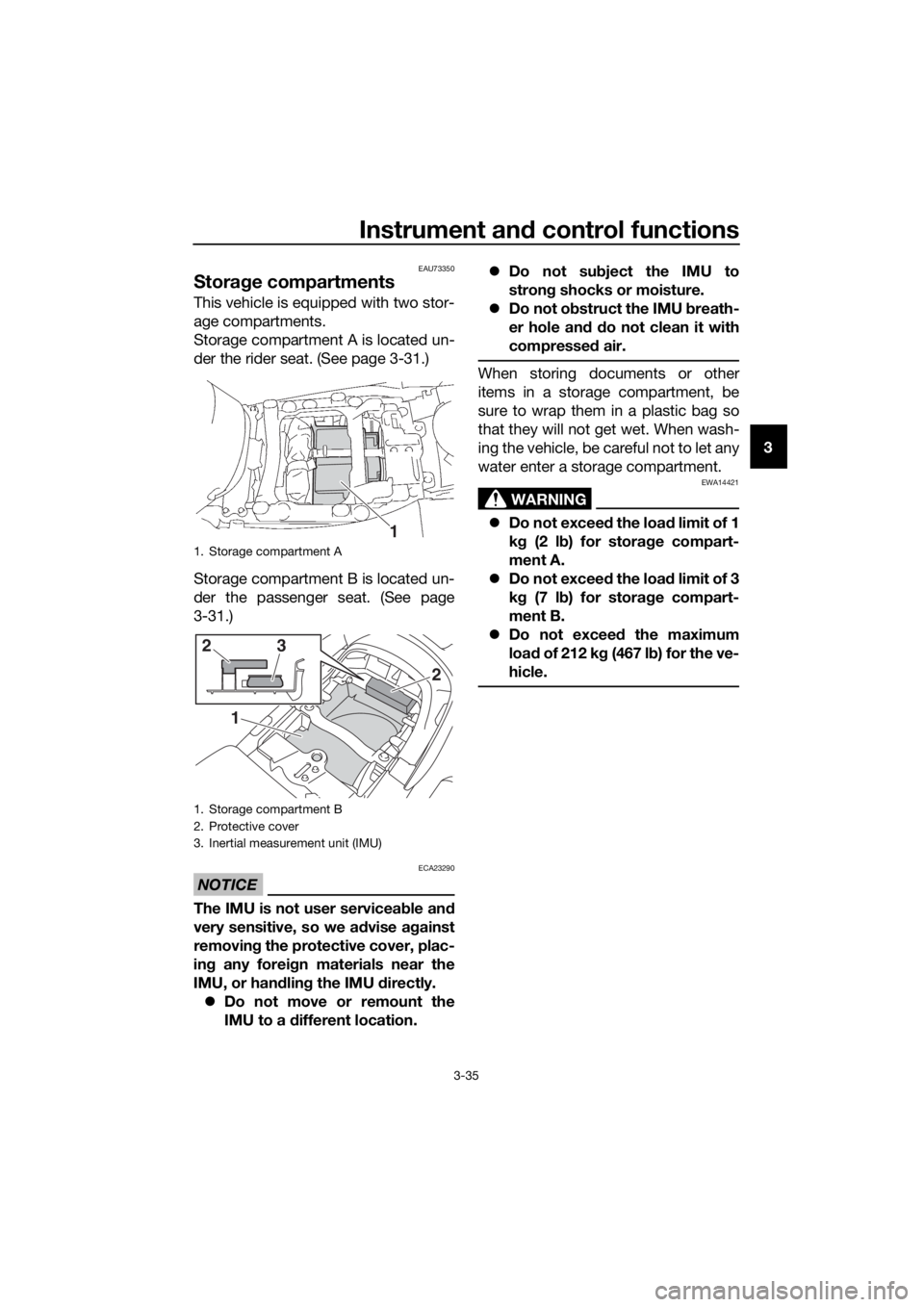

Stora ge compartments
This vehicle is equipped with two stor-
age compartments.
Storage compartment A is located un-
der the rider seat. (See page 3-31.)
Storage compartment B is located un-
der the passenger seat. (See page
3-31.)
NOTICE
ECA23290
The IMU is not user servicea ble an d
very sensitive, so we a dvise a gainst
removin g the protective cover, plac-
in g any forei gn materials near the
IMU, or han dlin g the IMU d irectly.
 Do not move or remount the
IMU to a different location. 
Do not su bject the IMU to
stron g shocks or moisture.
 Do not o bstruct the IMU b reath-
er hole an d d o not clean it with
compresse d air.
When storing documents or other
items in a storage compartment, be
sure to wrap them in a plastic bag so
that they will not get wet. When wash-
ing the vehicle, be careful not to let any
water enter a storage compartment.
WARNING
EWA14421
 Do not exceed the load limit of 1
k g (2 l b) for stora ge compart-
ment A.
 Do not exceed the load limit of 3
k g (7 l b) for stora ge compart-
ment B.
 Do not exceed the maximum
loa d of 212 k g (467 l b) for the ve-
hicle.
1. Storage compartment A
1. Storage compartment B
2. Protective cover
3. Inertial measurement unit (IMU)
1
1
2
23
UB96E1E0.book Page 35 Monday, July 10, 2017 10:57 AM

Instrument and control functions
3-36
3
EAU39482

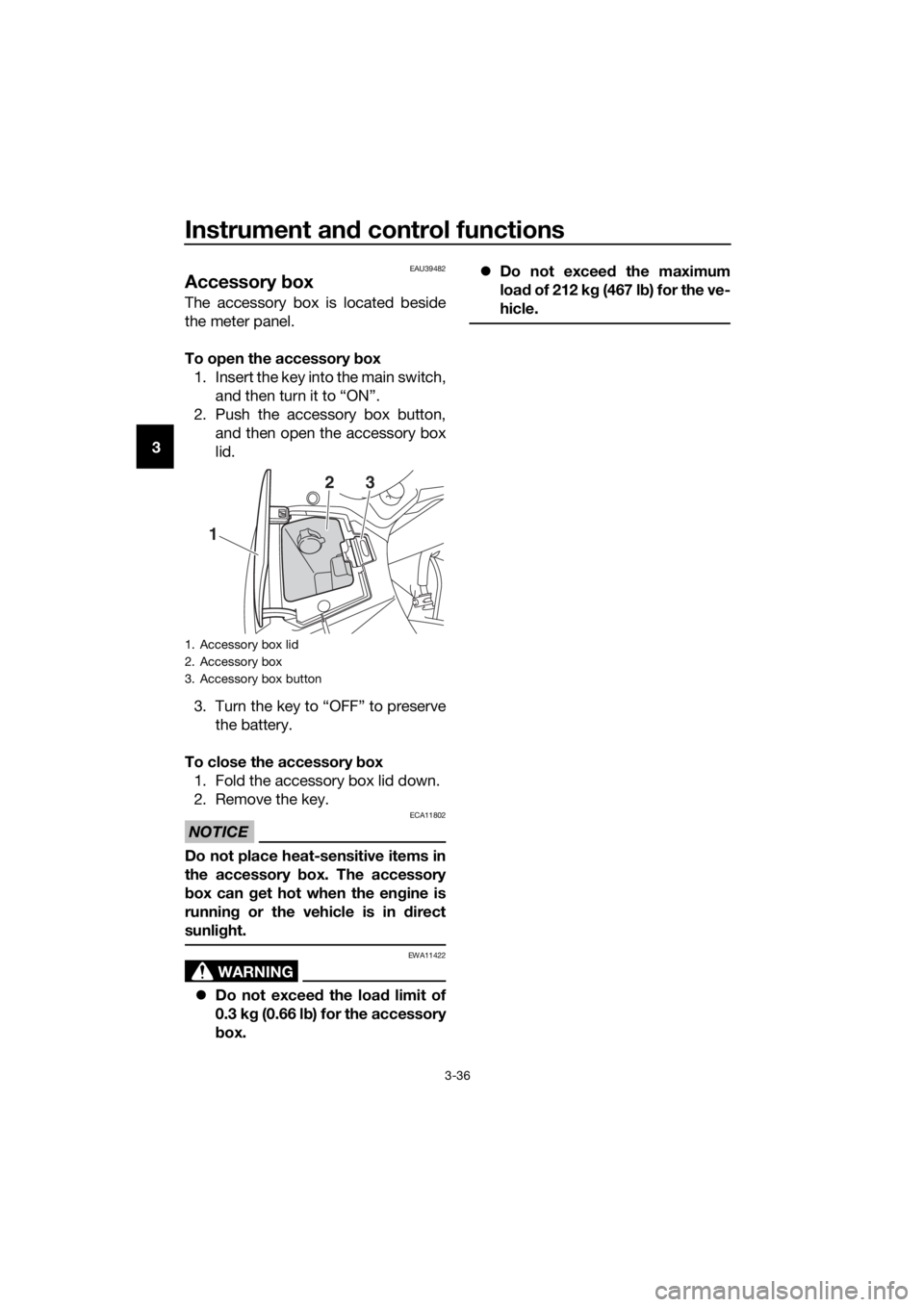

Accessory box
The accessory box is located beside
the meter panel.
To open the accessory box
1. Insert the key into the main switch, and then turn it to “ON”.
2. Push the accessory box button, and then open the accessory box
lid.
3. Turn the key to “OFF” to preserve the battery.
To close the accessory box
1. Fold the accessory box lid down.
2. Remove the key.
NOTICE
ECA11802
Do not place heat-sensitive items in
the accessory box. The accessory
b ox can get hot when the en gine is
running or the vehicle is in d irect
sunli ght.
WARNING
EWA11422
 Do not exceed the load limit of
0.3 k g (0.66 l b) for the accessory
b ox. 
Do not exceed the maximum
loa d of 212 k g (467 l b) for the ve-
hicle.
1. Accessory box lid
2. Accessory box
3. Accessory box button
1
23
UB96E1E0.book Page 36 Monday, July 10, 2017 10:57 AM
