YAMAHA FJR1300AS 2006 Owners Manual

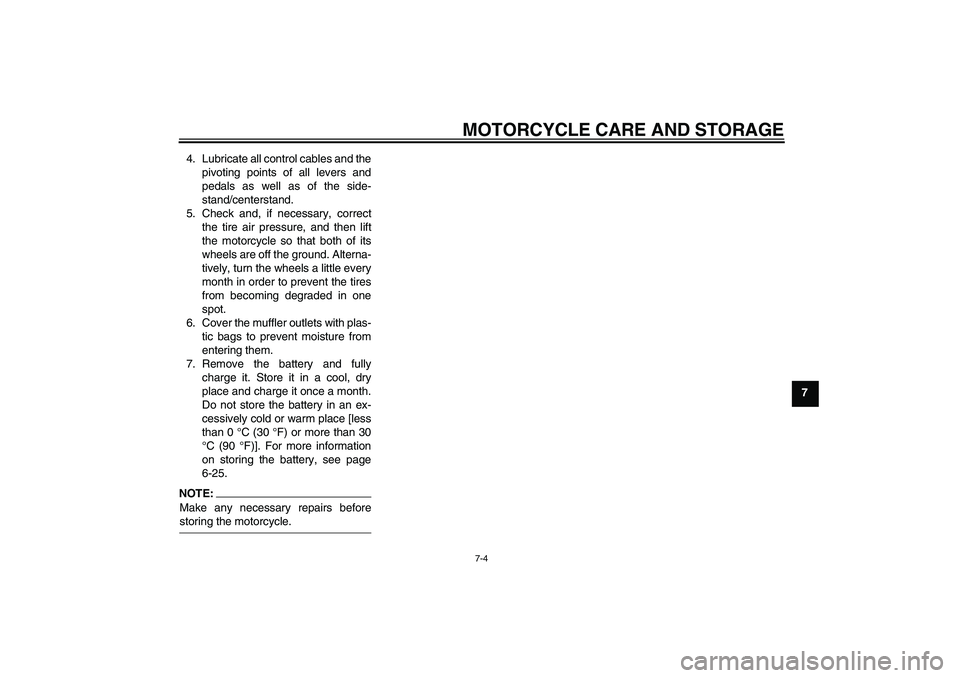

MOTORCYCLE CARE AND STORAGE
7-4
7 4. Lubricate all control cables and the
pivoting points of all levers and
pedals as well as of the side-
stand/centerstand.
5. Check and, if necessary, correct
the tire air pressure, and then lift
the motorcycle so that both of its
wheels are off the ground. Alterna-
tively, turn the wheels a little every
month in order to prevent the tires
from becoming degraded in one
spot.
6. Cover the muffler outlets with plas-
tic bags to prevent moisture from
entering them.
7. Remove the battery and fully
charge it. Store it in a cool, dry
place and charge it once a month.
Do not store the battery in an ex-
cessively cold or warm place [less
than 0 °C (30 °F) or more than 30
°C (90 °F)]. For more information
on storing the battery, see page
6-25.
NOTE:Make any necessary repairs beforestoring the motorcycle.
U2D2EAE0.book Page 4 Monday, June 26, 2006 2:55 PM

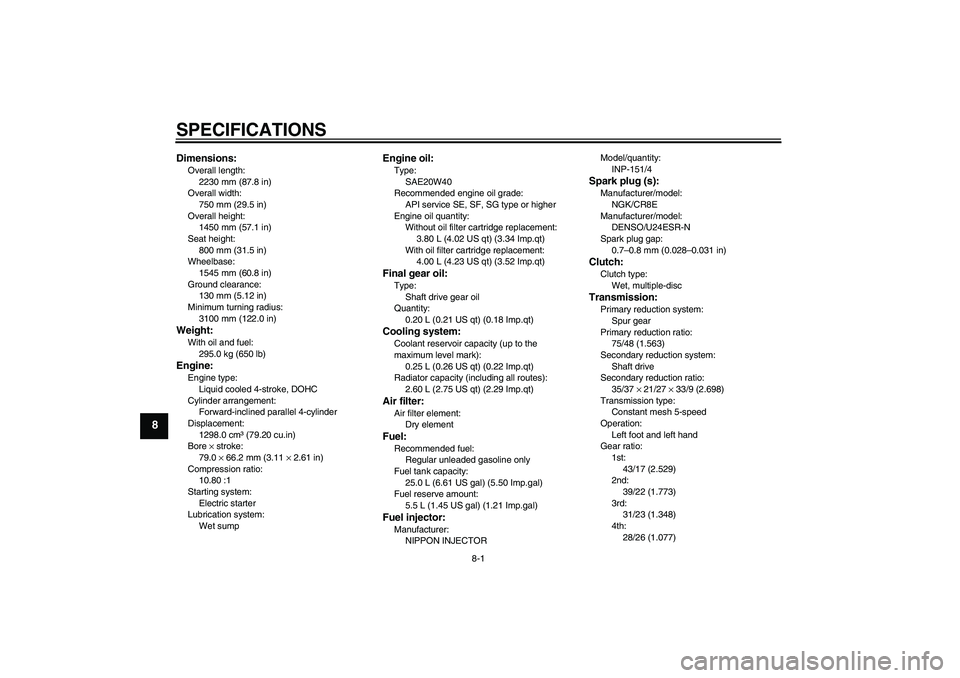

SPECIFICATIONS
8-1
8
Dimensions:Overall length:
2230 mm (87.8 in)
Overall width:
750 mm (29.5 in)
Overall height:
1450 mm (57.1 in)
Seat height:
800 mm (31.5 in)
Wheelbase:
1545 mm (60.8 in)
Ground clearance:
130 mm (5.12 in)
Minimum turning radius:
3100 mm (122.0 in)Weight:With oil and fuel:
295.0 kg (650 lb)Engine:Engine type:
Liquid cooled 4-stroke, DOHC
Cylinder arrangement:
Forward-inclined parallel 4-cylinder
Displacement:
1298.0 cm³ (79.20 cu.in)
Bore × stroke:
79.0 × 66.2 mm (3.11 × 2.61 in)
Compression ratio:
10.80 :1
Starting system:
Electric starter
Lubrication system:
Wet sump
Engine oil:Type:
SAE20W40
Recommended engine oil grade:
API service SE, SF, SG type or higher
Engine oil quantity:
Without oil filter cartridge replacement:
3.80 L (4.02 US qt) (3.34 Imp.qt)
With oil filter cartridge replacement:
4.00 L (4.23 US qt) (3.52 Imp.qt)Final gear oil:Type:
Shaft drive gear oil
Quantity:
0.20 L (0.21 US qt) (0.18 Imp.qt)Cooling system:Coolant reservoir capacity (up to the
maximum level mark):
0.25 L (0.26 US qt) (0.22 Imp.qt)
Radiator capacity (including all routes):
2.60 L (2.75 US qt) (2.29 Imp.qt)Air filter:Air filter element:
Dry elementFuel:Recommended fuel:
Regular unleaded gasoline only
Fuel tank capacity:
25.0 L (6.61 US gal) (5.50 Imp.gal)
Fuel reserve amount:
5.5 L (1.45 US gal) (1.21 Imp.gal)Fuel injector:Manufacturer:
NIPPON INJECTORModel/quantity:
INP-151/4
Spark plug (s):Manufacturer/model:
NGK/CR8E
Manufacturer/model:
DENSO/U24ESR-N
Spark plug gap:
0.7–0.8 mm (0.028–0.031 in)Clutch:Clutch type:
Wet, multiple-discTransmission:Primary reduction system:
Spur gear
Primary reduction ratio:
75/48 (1.563)
Secondary reduction system:
Shaft drive
Secondary reduction ratio:
35/37 × 21/27 × 33/9 (2.698)
Transmission type:
Constant mesh 5-speed
Operation:
Left foot and left hand
Gear ratio:
1st:
43/17 (2.529)
2nd:
39/22 (1.773)
3rd:
31/23 (1.348)
4th:
28/26 (1.077)
U2D2EAE0.book Page 1 Monday, June 26, 2006 2:55 PM

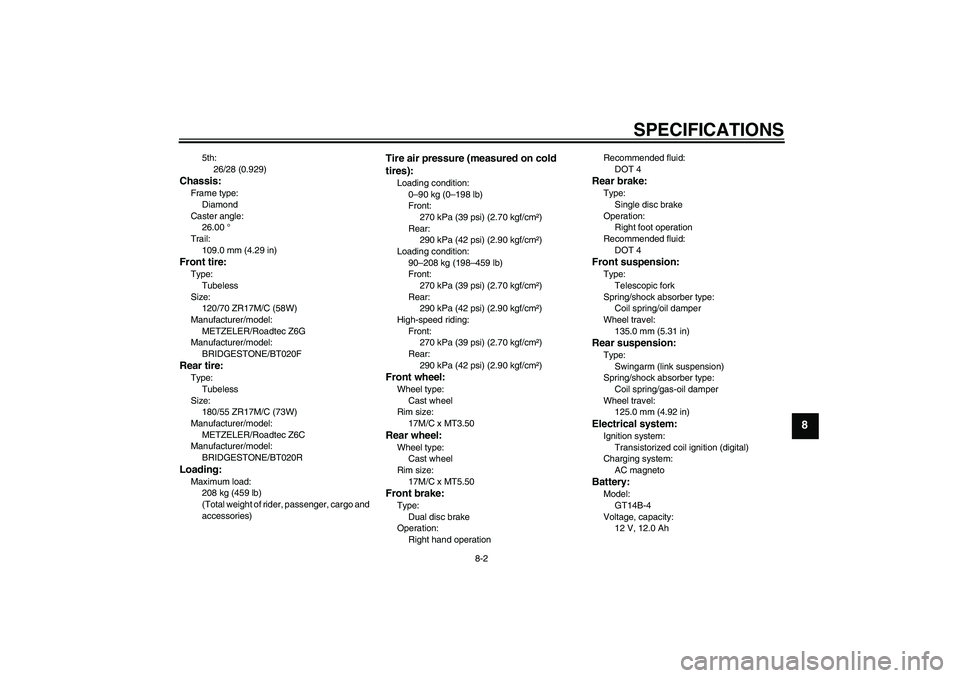

SPECIFICATIONS
8-2
8
5th:
26/28 (0.929)
Chassis:Frame type:
Diamond
Caster angle:
26.00 °
Trail:
109.0 mm (4.29 in)Front tire:Type:
Tubeless
Size:
120/70 ZR17M/C (58W)
Manufacturer/model:
METZELER/Roadtec Z6G
Manufacturer/model:
BRIDGESTONE/BT020FRear tire:Type:
Tubeless
Size:
180/55 ZR17M/C (73W)
Manufacturer/model:
METZELER/Roadtec Z6C
Manufacturer/model:
BRIDGESTONE/BT020RLoading:Maximum load:
208 kg (459 lb)
(Total weight of rider, passenger, cargo and
accessories)
Tire air pressure (measured on cold
tires):Loading condition:
0–90 kg (0–198 lb)
Front:
270 kPa (39 psi) (2.70 kgf/cm²)
Rear:
290 kPa (42 psi) (2.90 kgf/cm²)
Loading condition:
90–208 kg (198–459 lb)
Front:
270 kPa (39 psi) (2.70 kgf/cm²)
Rear:
290 kPa (42 psi) (2.90 kgf/cm²)
High-speed riding:
Front:
270 kPa (39 psi) (2.70 kgf/cm²)
Rear:
290 kPa (42 psi) (2.90 kgf/cm²)Front wheel:Wheel type:
Cast wheel
Rim size:
17M/C x MT3.50Rear wheel:Wheel type:
Cast wheel
Rim size:
17M/C x MT5.50Front brake:Type:
Dual disc brake
Operation:
Right hand operationRecommended fluid:
DOT 4
Rear brake:Type:
Single disc brake
Operation:
Right foot operation
Recommended fluid:
DOT 4Front suspension:Type:
Telescopic fork
Spring/shock absorber type:
Coil spring/oil damper
Wheel travel:
135.0 mm (5.31 in)Rear suspension:Type:
Swingarm (link suspension)
Spring/shock absorber type:
Coil spring/gas-oil damper
Wheel travel:
125.0 mm (4.92 in)Electrical system:Ignition system:
Transistorized coil ignition (digital)
Charging system:
AC magnetoBattery:Model:
GT14B-4
Voltage, capacity:
12 V, 12.0 Ah
U2D2EAE0.book Page 2 Monday, June 26, 2006 2:55 PM

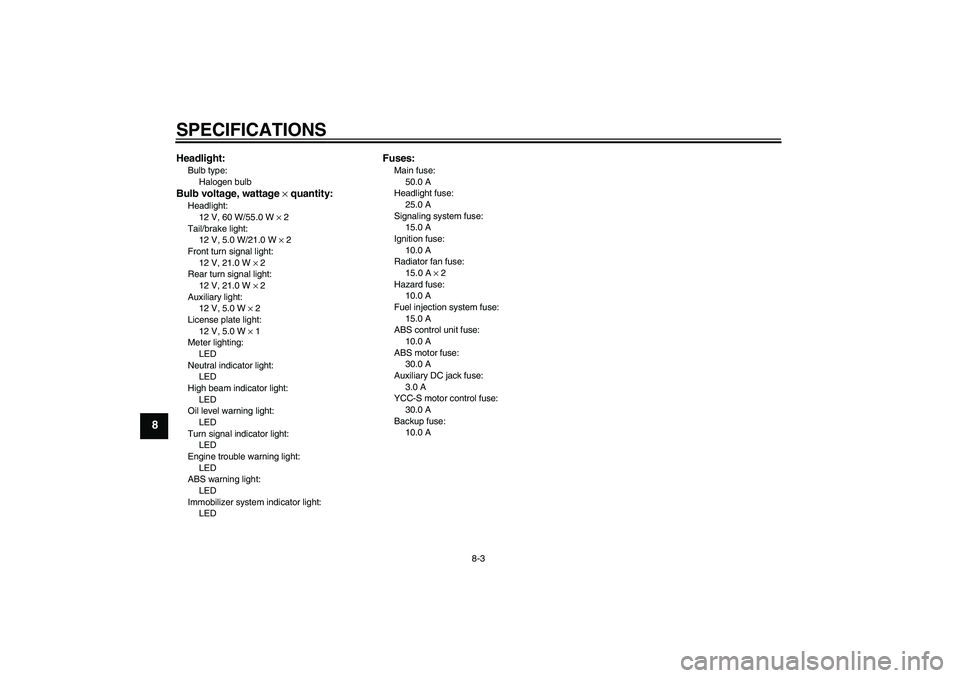

SPECIFICATIONS
8-3
8
Headlight:Bulb type:
Halogen bulbBulb voltage, wattage × quantity:Headlight:
12 V, 60 W/55.0 W × 2
Tail/brake light:
12 V, 5.0 W/21.0 W × 2
Front turn signal light:
12 V, 21.0 W × 2
Rear turn signal light:
12 V, 21.0 W × 2
Auxiliary light:
12 V, 5.0 W × 2
License plate light:
12 V, 5.0 W × 1
Meter lighting:
LED
Neutral indicator light:
LED
High beam indicator light:
LED
Oil level warning light:
LED
Turn signal indicator light:
LED
Engine trouble warning light:
LED
ABS warning light:
LED
Immobilizer system indicator light:
LED
Fuses:Main fuse:
50.0 A
Headlight fuse:
25.0 A
Signaling system fuse:
15.0 A
Ignition fuse:
10.0 A
Radiator fan fuse:
15.0 A × 2
Hazard fuse:
10.0 A
Fuel injection system fuse:
15.0 A
ABS control unit fuse:
10.0 A
ABS motor fuse:
30.0 A
Auxiliary DC jack fuse:
3.0 A
YCC-S motor control fuse:
30.0 A
Backup fuse:
10.0 A
U2D2EAE0.book Page 3 Monday, June 26, 2006 2:55 PM

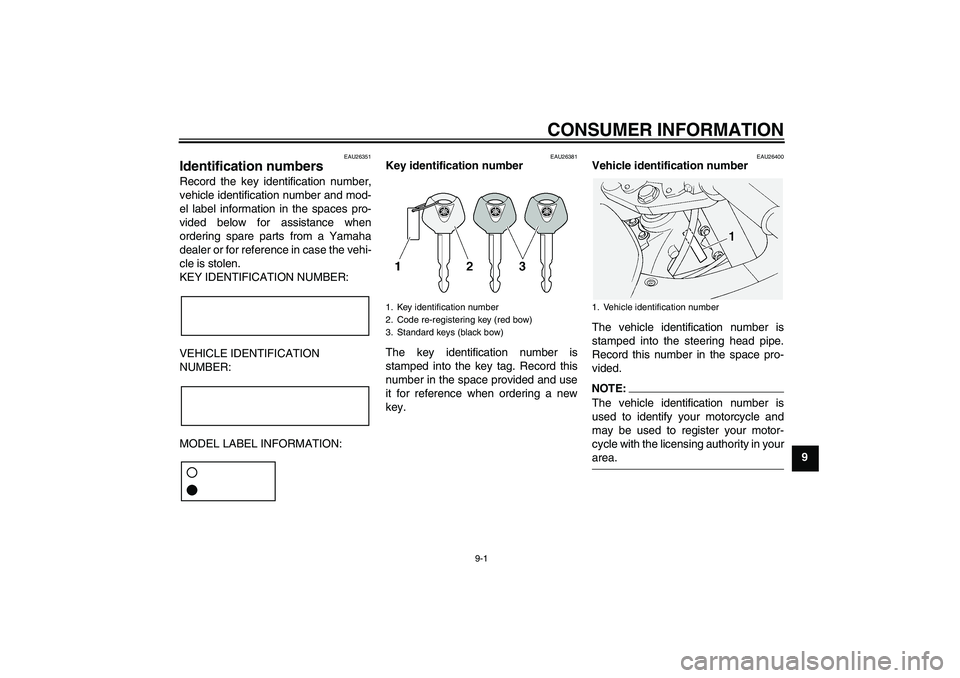

CONSUMER INFORMATION
9-1
9
EAU26351
Identification numbers Record the key identification number,
vehicle identification number and mod-
el label information in the spaces pro-
vided below for assistance when
ordering spare parts from a Yamaha
dealer or for reference in case the vehi-
cle is stolen.
KEY IDENTIFICATION NUMBER:
VEHICLE IDENTIFICATION
NUMBER:
MODEL LABEL INFORMATION:
EAU26381
Key identification number
The key identification number is
stamped into the key tag. Record this
number in the space provided and use
it for reference when ordering a new
key.
EAU26400
Vehicle identification number
The vehicle identification number is
stamped into the steering head pipe.
Record this number in the space pro-
vided.NOTE:
The vehicle identification number is
used to identify your motorcycle and
may be used to register your motor-
cycle with the licensing authority in yourarea.
1. Key identification number
2. Code re-registering key (red bow)
3. Standard keys (black bow)
1. Vehicle identification number
U2D2EAE0.book Page 1 Monday, June 26, 2006 2:55 PM

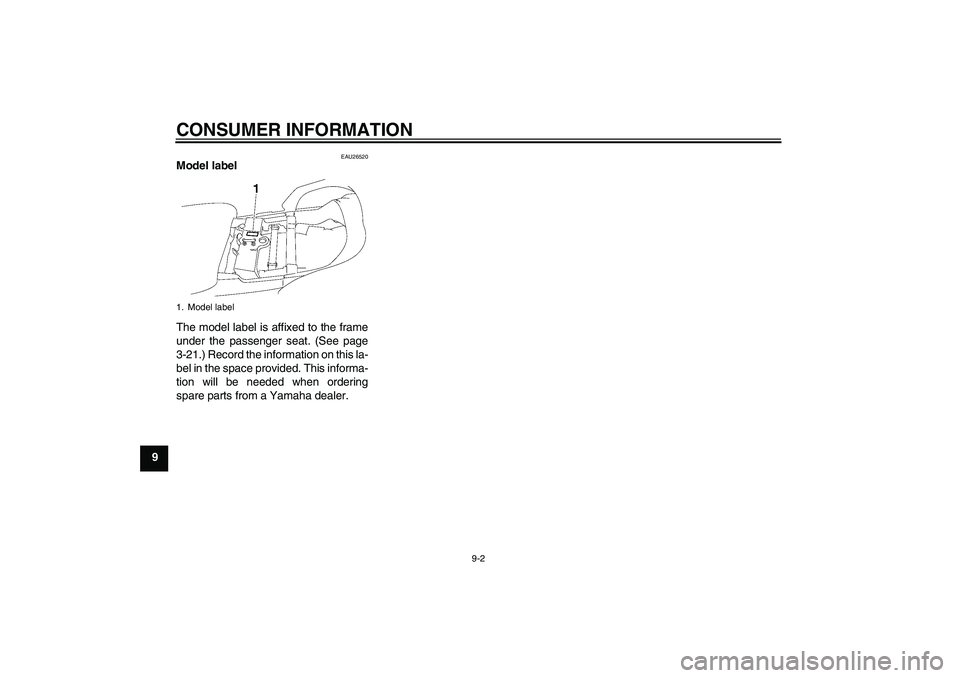

CONSUMER INFORMATION
9-2
9
EAU26520
Model label
The model label is affixed to the frame
under the passenger seat. (See page
3-21.) Record the information on this la-
bel in the space provided. This informa-
tion will be needed when ordering
spare parts from a Yamaha dealer.1. Model labelU2D2EAE0.book Page 2 Monday, June 26, 2006 2:55 PM

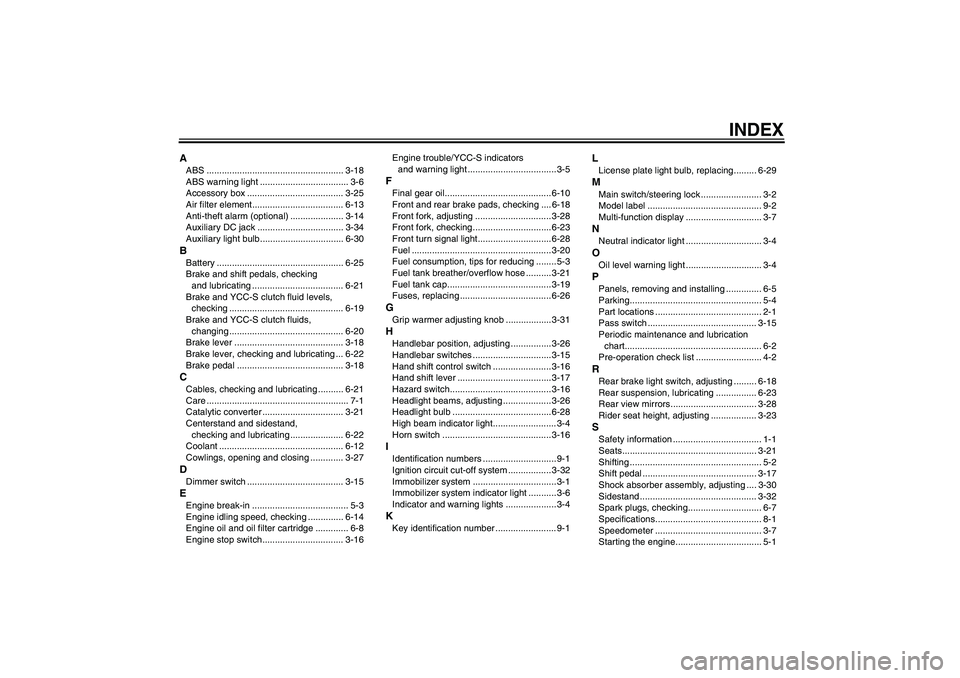

INDEX
AABS ...................................................... 3-18
ABS warning light ................................... 3-6
Accessory box ...................................... 3-25
Air filter element.................................... 6-13
Anti-theft alarm (optional) ..................... 3-14
Auxiliary DC jack .................................. 3-34
Auxiliary light bulb................................. 6-30BBattery .................................................. 6-25
Brake and shift pedals, checking
and lubricating .................................... 6-21
Brake and YCC-S clutch fluid levels,
checking ............................................. 6-19
Brake and YCC-S clutch fluids,
changing ............................................. 6-20
Brake lever ........................................... 3-18
Brake lever, checking and lubricating ... 6-22
Brake pedal .......................................... 3-18CCables, checking and lubricating .......... 6-21
Care ........................................................ 7-1
Catalytic converter ................................ 3-21
Centerstand and sidestand,
checking and lubricating ..................... 6-22
Coolant ................................................. 6-12
Cowlings, opening and closing ............. 3-27DDimmer switch ...................................... 3-15EEngine break-in ...................................... 5-3
Engine idling speed, checking .............. 6-14
Engine oil and oil filter cartridge ............. 6-8
Engine stop switch................................ 3-16Engine trouble/YCC-S indicators
and warning light ................................... 3-5
FFinal gear oil.......................................... 6-10
Front and rear brake pads, checking .... 6-18
Front fork, adjusting .............................. 3-28
Front fork, checking...............................6-23
Front turn signal light............................. 6-28
Fuel ....................................................... 3-20
Fuel consumption, tips for reducing ........ 5-3
Fuel tank breather/overflow hose .......... 3-21
Fuel tank cap......................................... 3-19
Fuses, replacing .................................... 6-26GGrip warmer adjusting knob ..................3-31HHandlebar position, adjusting ................ 3-26
Handlebar switches ............................... 3-15
Hand shift control switch ....................... 3-16
Hand shift lever ..................................... 3-17
Hazard switch........................................ 3-16
Headlight beams, adjusting ................... 3-26
Headlight bulb ....................................... 6-28
High beam indicator light......................... 3-4
Horn switch ........................................... 3-16IIdentification numbers ............................. 9-1
Ignition circuit cut-off system ................. 3-32
Immobilizer system .................................3-1
Immobilizer system indicator light ........... 3-6
Indicator and warning lights .................... 3-4KKey identification number ........................ 9-1
LLicense plate light bulb, replacing......... 6-29MMain switch/steering lock ........................ 3-2
Model label ............................................. 9-2
Multi-function display .............................. 3-7NNeutral indicator light .............................. 3-4OOil level warning light .............................. 3-4PPanels, removing and installing .............. 6-5
Parking.................................................... 5-4
Part locations .......................................... 2-1
Pass switch ........................................... 3-15
Periodic maintenance and lubrication
chart...................................................... 6-2
Pre-operation check list .......................... 4-2RRear brake light switch, adjusting ......... 6-18
Rear suspension, lubricating ................ 6-23
Rear view mirrors.................................. 3-28
Rider seat height, adjusting .................. 3-23SSafety information ................................... 1-1
Seats..................................................... 3-21
Shifting .................................................... 5-2
Shift pedal ............................................. 3-17
Shock absorber assembly, adjusting .... 3-30
Sidestand .............................................. 3-32
Spark plugs, checking............................. 6-7
Specifications.......................................... 8-1
Speedometer .......................................... 3-7
Starting the engine.................................. 5-1
U2D2EAE0.book Page 1 Monday, June 26, 2006 2:55 PM

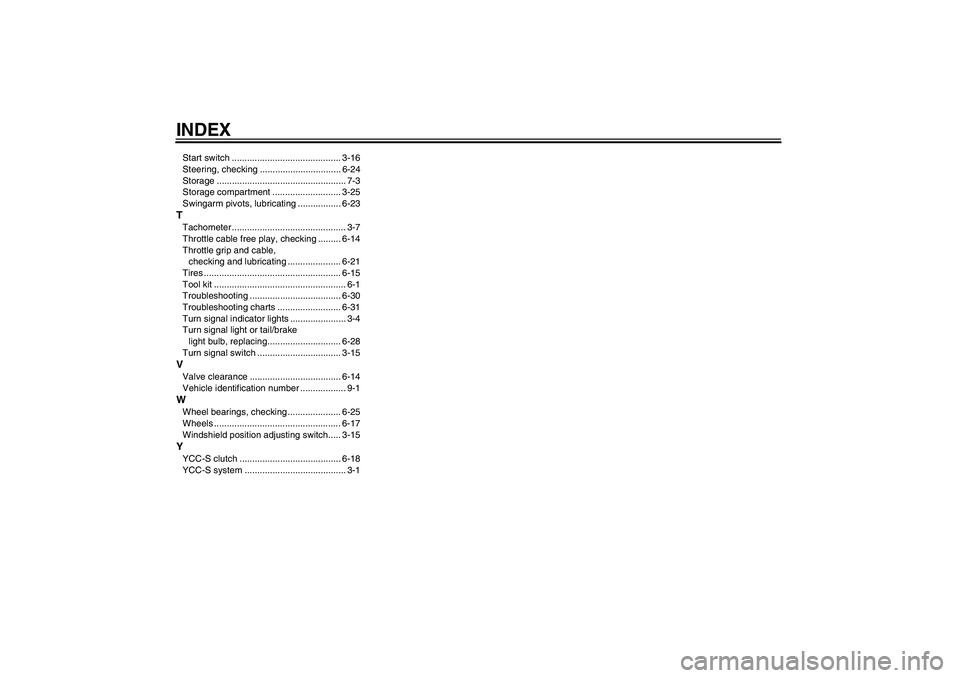

INDEXStart switch ........................................... 3-16
Steering, checking ................................ 6-24
Storage ................................................... 7-3
Storage compartment ........................... 3-25
Swingarm pivots, lubricating ................. 6-23TTachometer ............................................. 3-7
Throttle cable free play, checking ......... 6-14
Throttle grip and cable,
checking and lubricating ..................... 6-21
Tires ...................................................... 6-15
Tool kit .................................................... 6-1
Troubleshooting .................................... 6-30
Troubleshooting charts ......................... 6-31
Turn signal indicator lights ...................... 3-4
Turn signal light or tail/brake
light bulb, replacing............................. 6-28
Turn signal switch ................................. 3-15VValve clearance .................................... 6-14
Vehicle identification number .................. 9-1WWheel bearings, checking ..................... 6-25
Wheels .................................................. 6-17
Windshield position adjusting switch..... 3-15YYCC-S clutch ........................................ 6-18
YCC-S system ........................................ 3-1
U2D2EAE0.book Page 2 Monday, June 26, 2006 2:55 PM

U2D2EAE0.book Page 3 Monday, June 26, 2006 2:55 PM

PRINTED ON RECYCLED PAPER
YAMAHA MOTOR CO., LTD.
PRINTED IN JAPAN
2006.07-0.3×1 CR
(E)
