YAMAHA FJR1300AS 2008 Owner's Manual

INSTRUMENT AND CONTROL FUNCTIONS
3-7
3
EAU11601

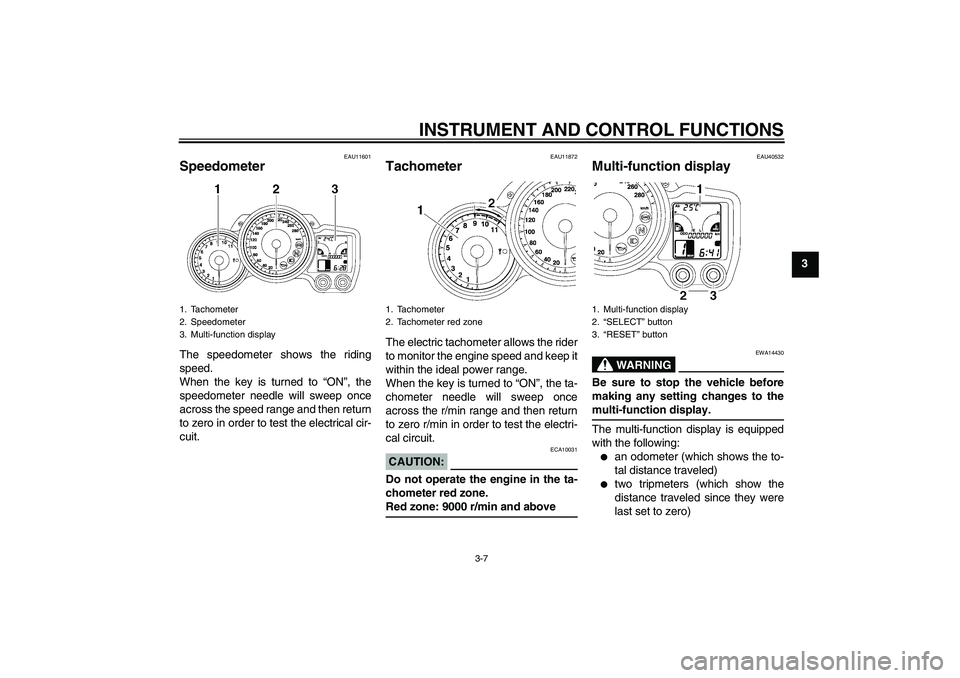

Speedometer The speedometer shows the riding
speed.
When the key is turned to “ON”, the
speedometer needle will sweep once
across the speed range and then return
to zero in order to test the electrical cir-
cuit.
EAU11872
Tachometer The electric tachometer allows the rider
to monitor the engine speed and keep it
within the ideal power range.
When the key is turned to “ON”, the ta-
chometer needle will sweep once
across the r/min range and then return
to zero r/min in order to test the electri-
cal circuit.CAUTION:
ECA10031
Do not operate the engine in the ta-
chometer red zone.Red zone: 9000 r/min and above
EAU40532
Multi-function display
WARNING
EWA14430
Be sure to stop the vehicle before
making any setting changes to themulti-function display.
The multi-function display is equipped
with the following:

an odometer (which shows the to-
tal distance traveled)


two tripmeters (which show the
distance traveled since they were
last set to zero)
1. Tachometer
2. Speedometer
3. Multi-function display
1. Tachometer
2. Tachometer red zone
1. Multi-function display
2.“SELECT” button
3.“RESET” button
U2D2E2E0.book Page 7 Thursday, October 11, 2007 9:15 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-8
3

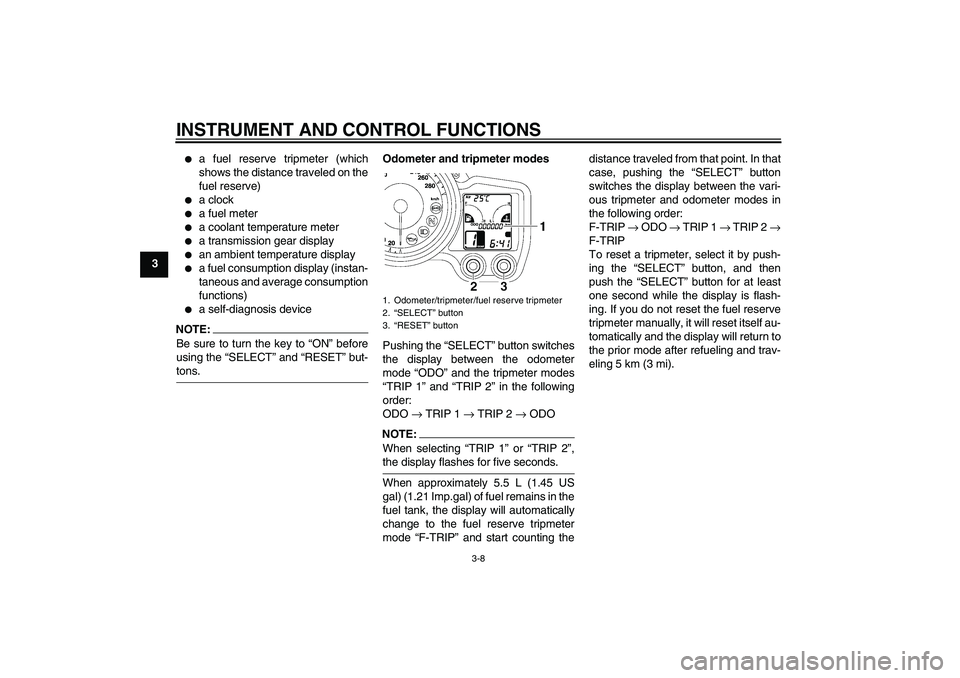

a fuel reserve tripmeter (which
shows the distance traveled on the
fuel reserve)


a clock


a fuel meter


a coolant temperature meter


a transmission gear display


an ambient temperature display


a fuel consumption display (instan-
taneous and average consumption
functions)


a self-diagnosis device
NOTE:Be sure to turn the key to “ON” before
using the “SELECT” and “RESET” but-tons.Odometer and tripmeter modes
Pushing the “SELECT” button switches
the display between the odometer
mode “ODO” and the tripmeter modes
“TRIP 1” and “TRIP 2” in the following
order:
ODO → TRIP 1 → TRIP 2 → ODO
NOTE:When selecting “TRIP 1” or “TRIP 2”,the display flashes for five seconds.
When approximately 5.5 L (1.45 US
gal) (1.21 Imp.gal) of fuel remains in the
fuel tank, the display will automatically
change to the fuel reserve tripmeter
mode “F-TRIP” and start counting thedistance traveled from that point. In that
case, pushing the “SELECT” button
switches the display between the vari-
ous tripmeter and odometer modes in
the following order:
F-TRIP → ODO → TRIP 1 → TRIP 2 →
F-TRIP
To reset a tripmeter, select it by push-
ing the “SELECT” button, and then
push the “SELECT” button for at least
one second while the display is flash-
ing. If you do not reset the fuel reserve
tripmeter manually, it will reset itself au-
tomatically and the display will return to
the prior mode after refueling and trav-
eling 5 km (3 mi).1. Odometer/tripmeter/fuel reserve tripmeter
2.“SELECT” button
3.“RESET” button
U2D2E2E0.book Page 8 Thursday, October 11, 2007 9:15 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-9

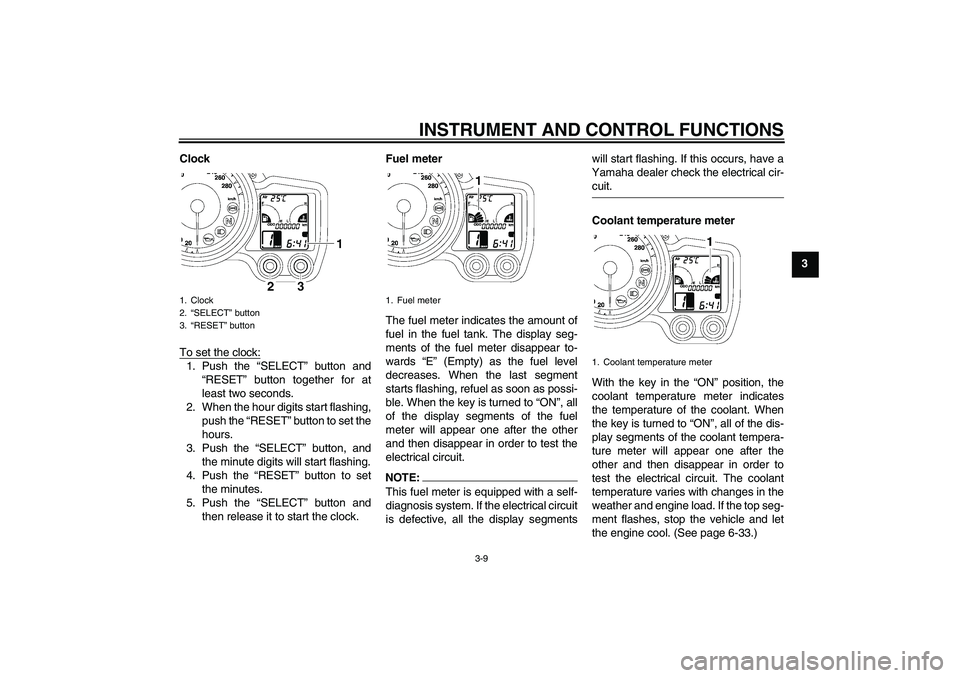

3 Clock
To set the clock:
1. Push the “SELECT” button and
“RESET” button together for at
least two seconds.
2. When the hour digits start flashing,
push the “RESET” button to set the
hours.
3. Push the “SELECT” button, and
the minute digits will start flashing.
4. Push the “RESET” button to set
the minutes.
5. Push the “SELECT” button and
then release it to start the clock.Fuel meter
The fuel meter indicates the amount of
fuel in the fuel tank. The display seg-
ments of the fuel meter disappear to-
wards “E” (Empty) as the fuel level
decreases. When the last segment
starts flashing, refuel as soon as possi-
ble. When the key is turned to “ON”, all
of the display segments of the fuel
meter will appear one after the other
and then disappear in order to test the
electrical circuit.
NOTE:This fuel meter is equipped with a self-
diagnosis system. If the electrical circuit
is defective, all the display segmentswill start flashing. If this occurs, have a
Yamaha dealer check the electrical cir-
cuit.
Coolant temperature meter
With the key in the “ON” position, the
coolant temperature meter indicates
the temperature of the coolant. When
the key is turned to “ON”, all of the dis-
play segments of the coolant tempera-
ture meter will appear one after the
other and then disappear in order to
test the electrical circuit. The coolant
temperature varies with changes in the
weather and engine load. If the top seg-
ment flashes, stop the vehicle and let
the engine cool. (See page 6-33.)
1. Clock
2.“SELECT” button
3.“RESET” button
1. Fuel meter
1. Coolant temperature meter
U2D2E2E0.book Page 9 Thursday, October 11, 2007 9:15 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-10
3

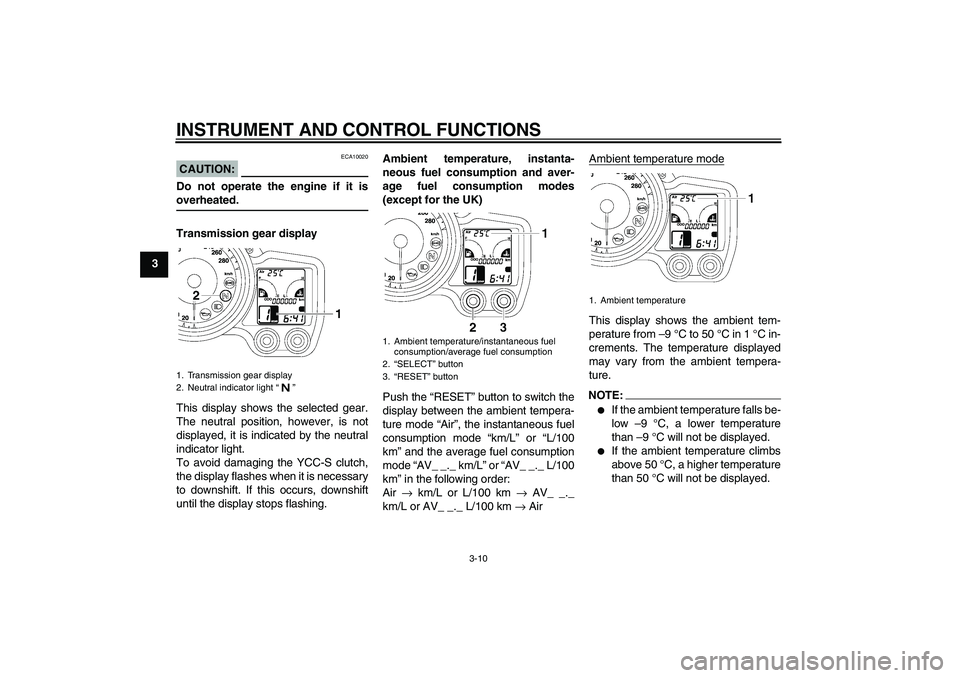

CAUTION:
ECA10020
Do not operate the engine if it isoverheated.
Transmission gear display
This display shows the selected gear.
The neutral position, however, is not
displayed, it is indicated by the neutral
indicator light.
To avoid damaging the YCC-S clutch,
the display flashes when it is necessary
to downshift. If this occurs, downshift
until the display stops flashing.Ambient temperature, instanta-
neous fuel consumption and aver-
age fuel consumption modes
(except for the UK)
Push the “RESET” button to switch the
display between the ambient tempera-
ture mode “Air”, the instantaneous fuel
consumption mode “km/L” or “L/100
km” and the average fuel consumption
mode “AV_ _._ km/L” or “AV_ _._ L/100
km” in the following order:
Air → km/L or L/100 km → AV_ _._
km/L or AV_ _._ L/100 km → AirAmbient temperature mode
This display shows the ambient tem-
perature from –9 °C to 50 °C in 1 °C in-
crements. The temperature displayed
may vary from the ambient tempera-
ture.NOTE:

If the ambient temperature falls be-
low –9 °C, a lower temperature
than –9 °C will not be displayed.


If the ambient temperature climbs
above 50 °C, a higher temperature
than 50 °C will not be displayed.
1. Transmission gear display
2. Neutral indicator light“”
1. Ambient temperature/instantaneous fuel
consumption/average fuel consumption
2.“SELECT” button
3.“RESET” button
1. Ambient temperature
U2D2E2E0.book Page 10 Thursday, October 11, 2007 9:15 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-11
3

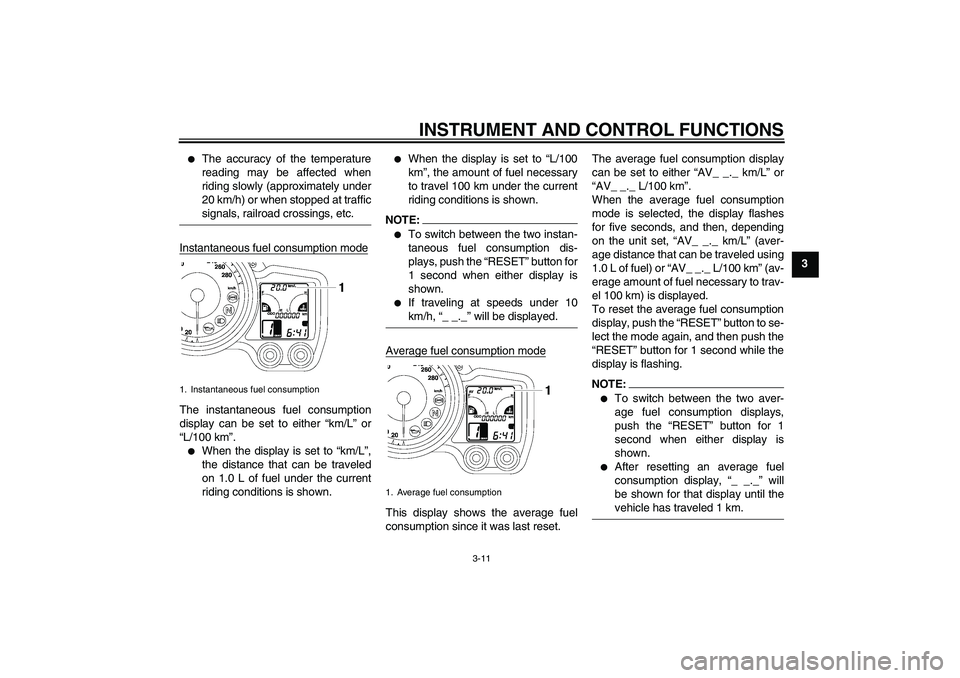

The accuracy of the temperature
reading may be affected when
riding slowly (approximately under
20 km/h) or when stopped at trafficsignals, railroad crossings, etc.
Instantaneous fuel consumption mode
The instantaneous fuel consumption
display can be set to either “km/L” or
“L/100 km”.

When the display is set to “km/L”,
the distance that can be traveled
on 1.0 L of fuel under the current
riding conditions is shown.


When the display is set to “L/100
km”, the amount of fuel necessary
to travel 100 km under the current
riding conditions is shown.
NOTE:

To switch between the two instan-
taneous fuel consumption dis-
plays, push the “RESET” button for
1 second when either display is
shown.


If traveling at speeds under 10km/h, “_ _._” will be displayed.
Average fuel consumption mode
This display shows the average fuel
consumption since it was last reset.The average fuel consumption display
can be set to either “AV_ _._ km/L” or
“AV_ _._ L/100 km”.
When the average fuel consumption
mode is selected, the display flashes
for five seconds, and then, depending
on the unit set, “AV_ _._ km/L” (aver-
age distance that can be traveled using
1.0 L of fuel) or “AV_ _._ L/100 km” (av-
erage amount of fuel necessary to trav-
el 100 km) is displayed.
To reset the average fuel consumption
display, push the “RESET” button to se-
lect the mode again, and then push the
“RESET” button for 1 second while the
display is flashing.
NOTE:

To switch between the two aver-
age fuel consumption displays,
push the “RESET” button for 1
second when either display is
shown.


After resetting an average fuel
consumption display, “_ _._” will
be shown for that display until thevehicle has traveled 1 km.
1. Instantaneous fuel consumption
1. Average fuel consumption
U2D2E2E0.book Page 11 Thursday, October 11, 2007 9:15 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-12
3

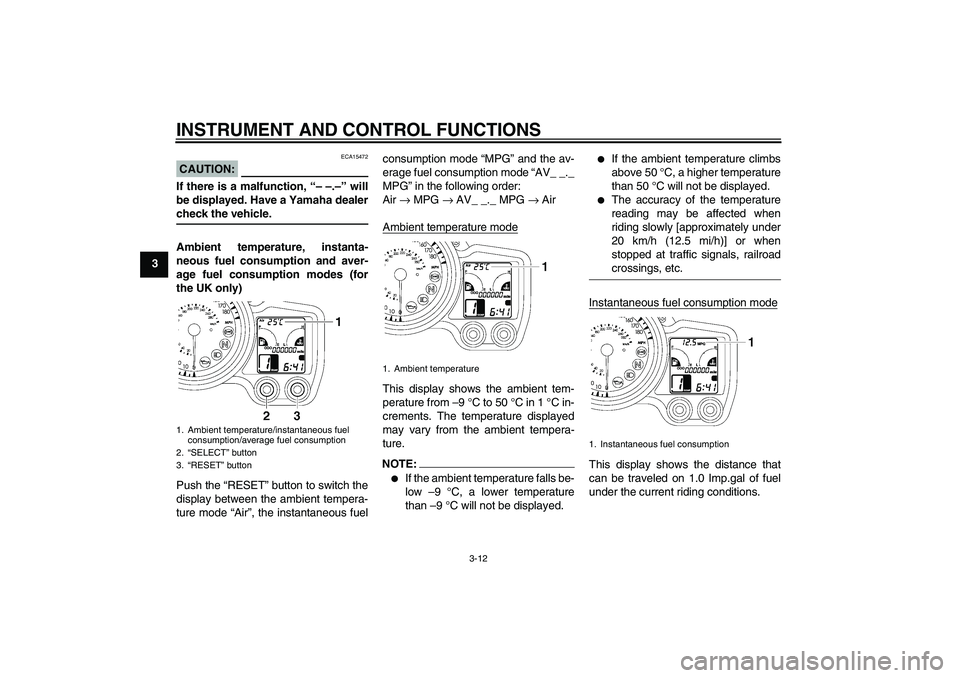

CAUTION:
ECA15472
If there is a malfunction, “– –.–” will
be displayed. Have a Yamaha dealercheck the vehicle.
Ambient temperature, instanta-
neous fuel consumption and aver-
age fuel consumption modes (for
the UK only)
Push the “RESET” button to switch the
display between the ambient tempera-
ture mode “Air”, the instantaneous fuelconsumption mode “MPG” and the av-
erage fuel consumption mode “AV_ _._
MPG” in the following order:
Air → MPG → AV_ _._ MPG → Air
Ambient temperature mode
This display shows the ambient tem-
perature from –9 °C to 50 °C in 1 °C in-
crements. The temperature displayed
may vary from the ambient tempera-
ture.NOTE:

If the ambient temperature falls be-
low –9 °C, a lower temperature
than –9 °C will not be displayed.


If the ambient temperature climbs
above 50 °C, a higher temperature
than 50 °C will not be displayed.


The accuracy of the temperature
reading may be affected when
riding slowly [approximately under
20 km/h (12.5 mi/h)] or when
stopped at traffic signals, railroadcrossings, etc.
Instantaneous fuel consumption mode
This display shows the distance that
can be traveled on 1.0 Imp.gal of fuel
under the current riding conditions.
1. Ambient temperature/instantaneous fuel
consumption/average fuel consumption
2.“SELECT” button
3.“RESET” button
1. Ambient temperature
1. Instantaneous fuel consumption
U2D2E2E0.book Page 12 Thursday, October 11, 2007 9:15 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-13
3

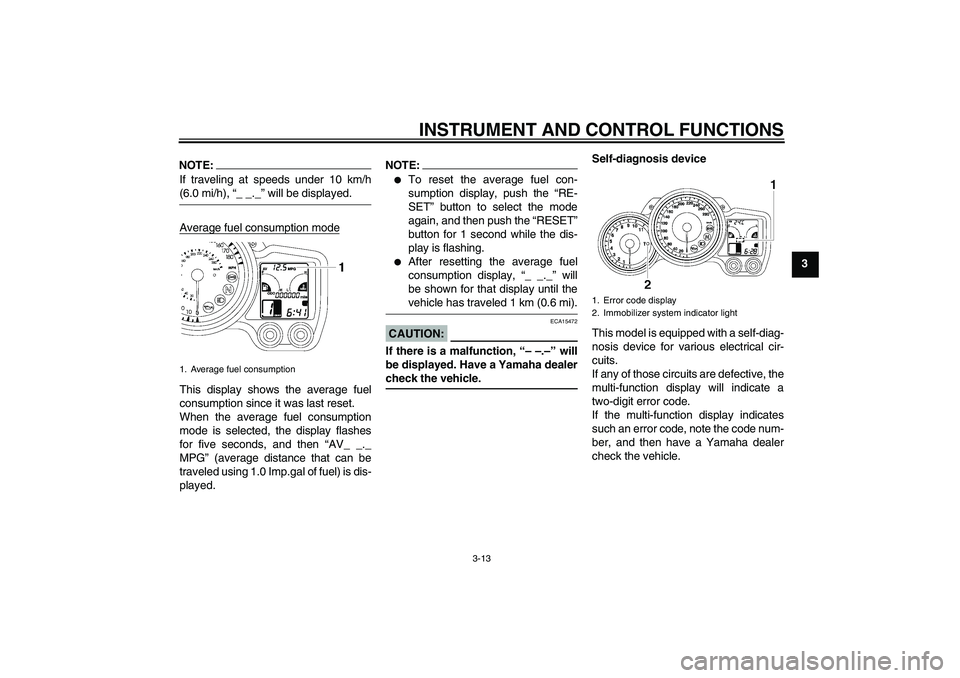

NOTE:If traveling at speeds under 10 km/h(6.0 mi/h), “_ _._” will be displayed.
Average fuel consumption modeThis display shows the average fuel
consumption since it was last reset.
When the average fuel consumption
mode is selected, the display flashes
for five seconds, and then “AV_ _._
MPG” (average distance that can be
traveled using 1.0 Imp.gal of fuel) is dis-
played.
NOTE:

To reset the average fuel con-
sumption display, push the “RE-
SET” button to select the mode
again, and then push the “RESET”
button for 1 second while the dis-
play is flashing.


After resetting the average fuel
consumption display, “_ _._” will
be shown for that display until thevehicle has traveled 1 km (0.6 mi).
CAUTION:
ECA15472
If there is a malfunction, “– –.–” will
be displayed. Have a Yamaha dealercheck the vehicle.Self-diagnosis device
This model is equipped with a self-diag-
nosis device for various electrical cir-
cuits.
If any of those circuits are defective, the
multi-function display will indicate a
two-digit error code.
If the multi-function display indicates
such an error code, note the code num-
ber, and then have a Yamaha dealer
check the vehicle.
1. Average fuel consumption
1. Error code display
2. Immobilizer system indicator light
U2D2E2E0.book Page 13 Thursday, October 11, 2007 9:15 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-14
3

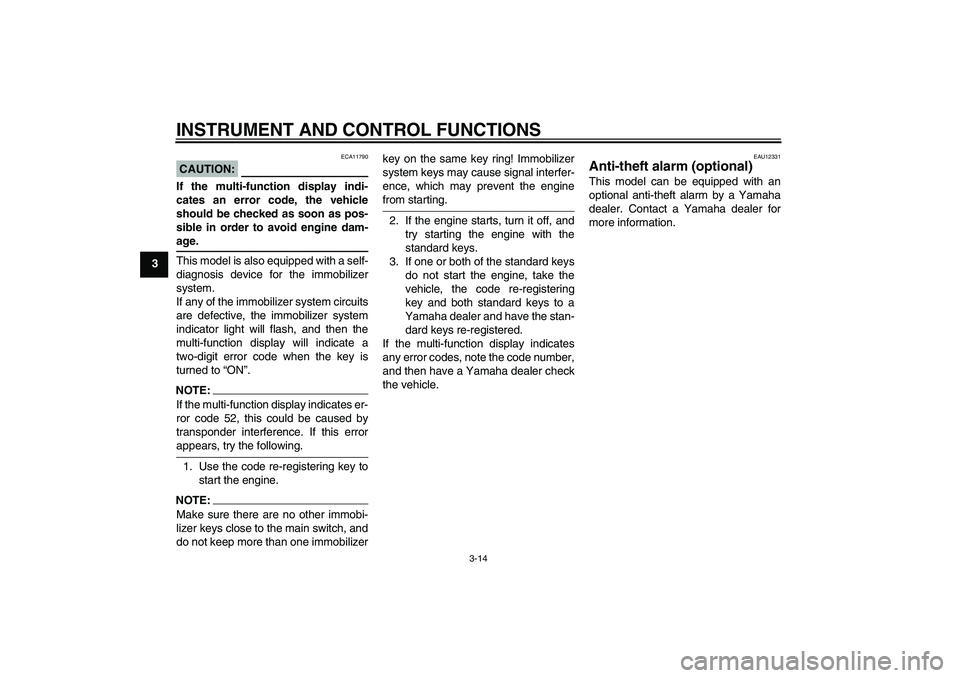

CAUTION:
ECA11790
If the multi-function display indi-
cates an error code, the vehicle
should be checked as soon as pos-
sible in order to avoid engine dam-age.
This model is also equipped with a self-
diagnosis device for the immobilizer
system.
If any of the immobilizer system circuits
are defective, the immobilizer system
indicator light will flash, and then the
multi-function display will indicate a
two-digit error code when the key is
turned to “ON”.NOTE:If the multi-function display indicates er-
ror code 52, this could be caused by
transponder interference. If this errorappears, try the following.
1. Use the code re-registering key to
start the engine.NOTE:Make sure there are no other immobi-
lizer keys close to the main switch, and
do not keep more than one immobilizerkey on the same key ring! Immobilizer
system keys may cause signal interfer-
ence, which may prevent the engine
from starting.
2. If the engine starts, turn it off, and
try starting the engine with the
standard keys.
3. If one or both of the standard keys
do not start the engine, take the
vehicle, the code re-registering
key and both standard keys to a
Yamaha dealer and have the stan-
dard keys re-registered.
If the multi-function display indicates
any error codes, note the code number,
and then have a Yamaha dealer check
the vehicle.
EAU12331
Anti-theft alarm (optional) This model can be equipped with an
optional anti-theft alarm by a Yamaha
dealer. Contact a Yamaha dealer for
more information.
U2D2E2E0.book Page 14 Thursday, October 11, 2007 9:15 AM

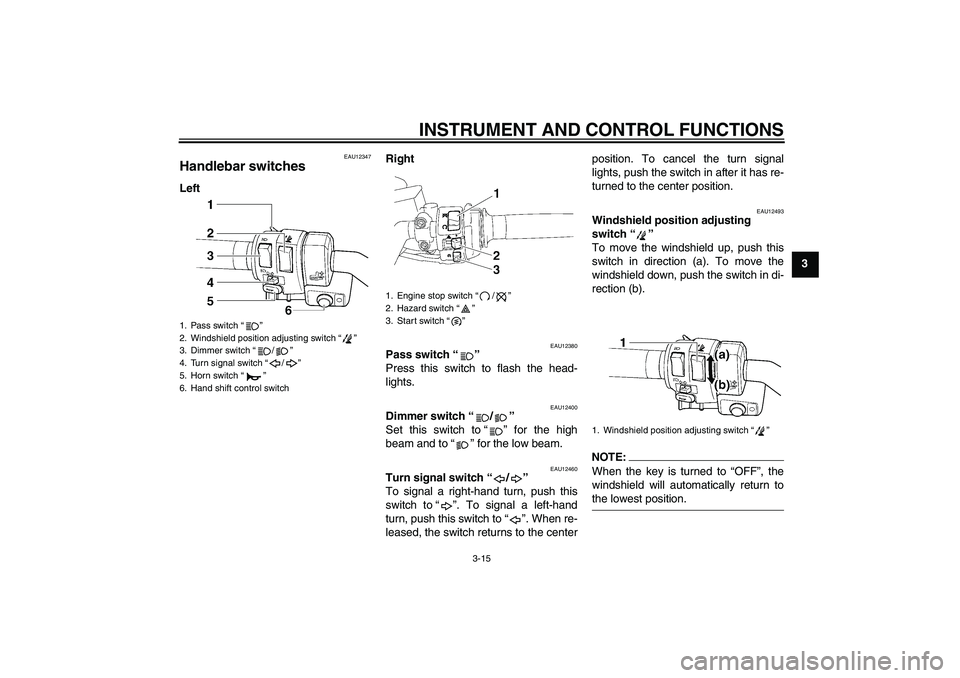

INSTRUMENT AND CONTROL FUNCTIONS
3-15
3
EAU12347
Handlebar switches LeftRight
EAU12380
Pass switch“”
Press this switch to flash the head-
lights.
EAU12400
Dimmer switch“/”
Set this switch to“” for the high
beam and to“” for the low beam.
EAU12460
Turn signal switch“/”
To signal a right-hand turn, push this
switch to“”. To signal a left-hand
turn, push this switch to“”. When re-
leased, the switch returns to the centerposition. To cancel the turn signal
lights, push the switch in after it has re-
turned to the center position.
EAU12493
Windshield position adjusting
switch“”
To move the windshield up, push this
switch in direction (a). To move the
windshield down, push the switch in di-
rection (b).NOTE:When the key is turned to “OFF”, the
windshield will automatically return tothe lowest position.
1. Pass switch“”
2. Windshield position adjusting switch“”
3. Dimmer switch“/”
4. Turn signal switch“/”
5. Horn switch“”
6. Hand shift control switch
1. Engine stop switch“/”
2. Hazard switch“”
3. Start switch“”
1. Windshield position adjusting switch“”
U2D2E2E0.book Page 15 Thursday, October 11, 2007 9:15 AM

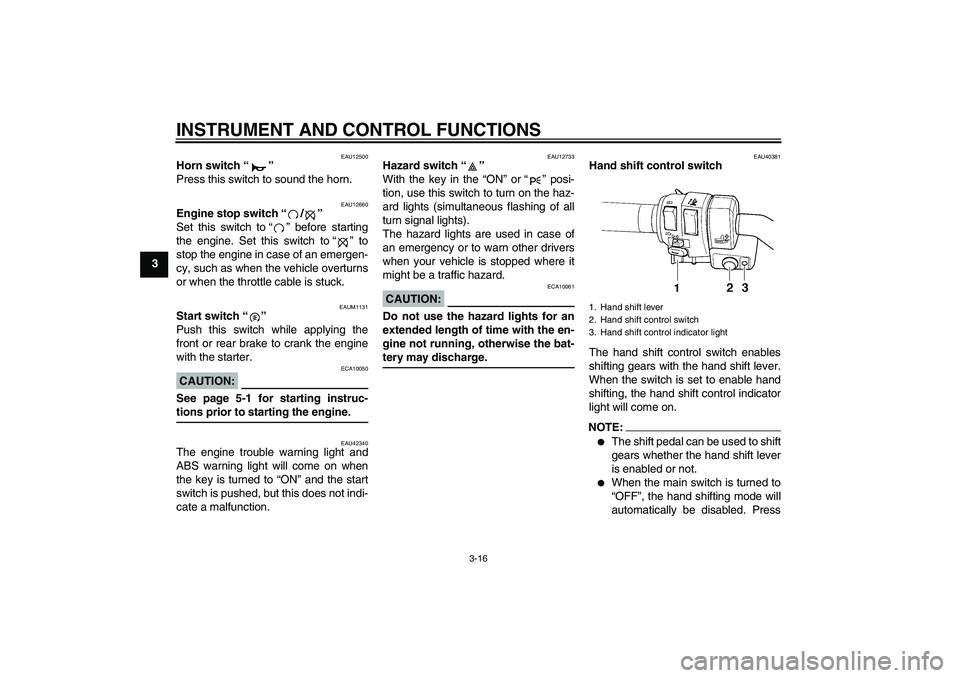

INSTRUMENT AND CONTROL FUNCTIONS
3-16
3
EAU12500
Horn switch“”
Press this switch to sound the horn.
EAU12660
Engine stop switch“/”
Set this switch to“” before starting
the engine. Set this switch to“” to
stop the engine in case of an emergen-
cy, such as when the vehicle overturns
or when the throttle cable is stuck.
EAUM1131
Start switch“”
Push this switch while applying the
front or rear brake to crank the engine
with the starter.CAUTION:
ECA10050
See page 5-1 for starting instruc-tions prior to starting the engine.
EAU42340
The engine trouble warning light and
ABS warning light will come on when
the key is turned to “ON” and the start
switch is pushed, but this does not indi-
cate a malfunction.
EAU12733
Hazard switch“”
With the key in the “ON” or“” posi-
tion, use this switch to turn on the haz-
ard lights (simultaneous flashing of all
turn signal lights).
The hazard lights are used in case of
an emergency or to warn other drivers
when your vehicle is stopped where it
might be a traffic hazard.CAUTION:
ECA10061
Do not use the hazard lights for an
extended length of time with the en-
gine not running, otherwise the bat-tery may discharge.
EAU40381
Hand shift control switch
The hand shift control switch enables
shifting gears with the hand shift lever.
When the switch is set to enable hand
shifting, the hand shift control indicator
light will come on.NOTE:

The shift pedal can be used to shift
gears whether the hand shift lever
is enabled or not.


When the main switch is turned to
“OFF”, the hand shifting mode will
automatically be disabled. Press
1. Hand shift lever
2. Hand shift control switch
3. Hand shift control indicator light
U2D2E2E0.book Page 16 Thursday, October 11, 2007 9:15 AM
