YAMAHA FJR1300AS 2018 Owners Manual

Periodic maintenance an d a djustment
6-19
6
EAU21403
Valve clearance
The valves are an important engine
component, and since valve clearance
changes with use, they must be
checked and adjusted at the intervals
specified in the periodic maintenance
chart. Unadjusted valves can result in
improper air-fuel mixture, engine
noise, and eventually engine damage.
To prevent this from occurring, have
your Yamaha dealer check and adjust
the valve clearance at regular intervals.
TIP
This service must be performed when
the engine is cold.
EAU64410
Tires
Tires are the only contact between the
vehicle and the road. Safety in all con-
ditions of riding depends on a relatively
small area of road contact. Therefore, it
is essential to maintain the tires in good
condition at all times and replace them
at the appropriate time with the speci-
fied tires.
Tire air pressure
The tire air pressure should be
checked and, if necessary, adjusted
before each ride.
WARNING
EWA10504
Operation of this vehicle with im-
proper tire pressure may cause se-
vere injury or d eath from loss of
control.  The tire air pressure must b e
checked and a djuste d on col d
tires (i.e., when the temperature
of the tires equals the am bient
temperature).
 The tire air pressure must b e
a d juste d in accor dance with the
ri din g speed and with the total
wei ght of ri der, passen ger, car-
g o, an d accessories approve d
for this mo del.
UB95E1E0.book Page 19 Tuesday, September 26, 2017 12:01 PM

Periodic maintenance an d a djustment
6-20
6
WARNING
EWA10512
Never overloa d your vehicle. Opera-
tion of an overloa ded vehicle coul d
cause an acci dent.
Tire inspection
The tires must be checked before each
ride. If the center tread depth reaches
the specified limit, if the tire has a nail
or glass fragments in it, or if the side-
wall is cracked, have a Yamaha dealer
replace the tire immediately.
TIP
The tire tread depth limits may differ
from country to country. Always com-
ply with the local regulations.
WARNING
EWA10472
 Have a Yamaha dealer replace
excessively worn tires. Besi des
b ein g ille gal, operatin g the vehi-
cle with excessively worn tires
d ecreases ri din g sta bility an d
can lead to loss of control.
 The replacement of all wheel
and b rake-relate d parts, inclu d-
in g the tires, shoul d b e left to a
Yamaha dealer, who has the
necessary professional knowl-
e dge an d experience to do so.
 Ride at mo derate spee ds after
chan gin g a tire since the tire
surface must first b e “broken
in” for it to develop its optimal
characteristics.
Tire information
Tire air pressure (measure d on col d
tires): 1 person:Front:
250 kPa (2.50 kgf/cm², 36 psi)
Rear: 290 kPa (2.90 kgf/cm², 42 psi)
2 persons: Front: 250 kPa (2.50 kgf/cm², 36 psi)
Rear: 290 kPa (2.90 kgf/cm², 42 psi)
Maximum load *:
208 kg (459 lb)
* Total weight of rider, passenger, car- go and accessories

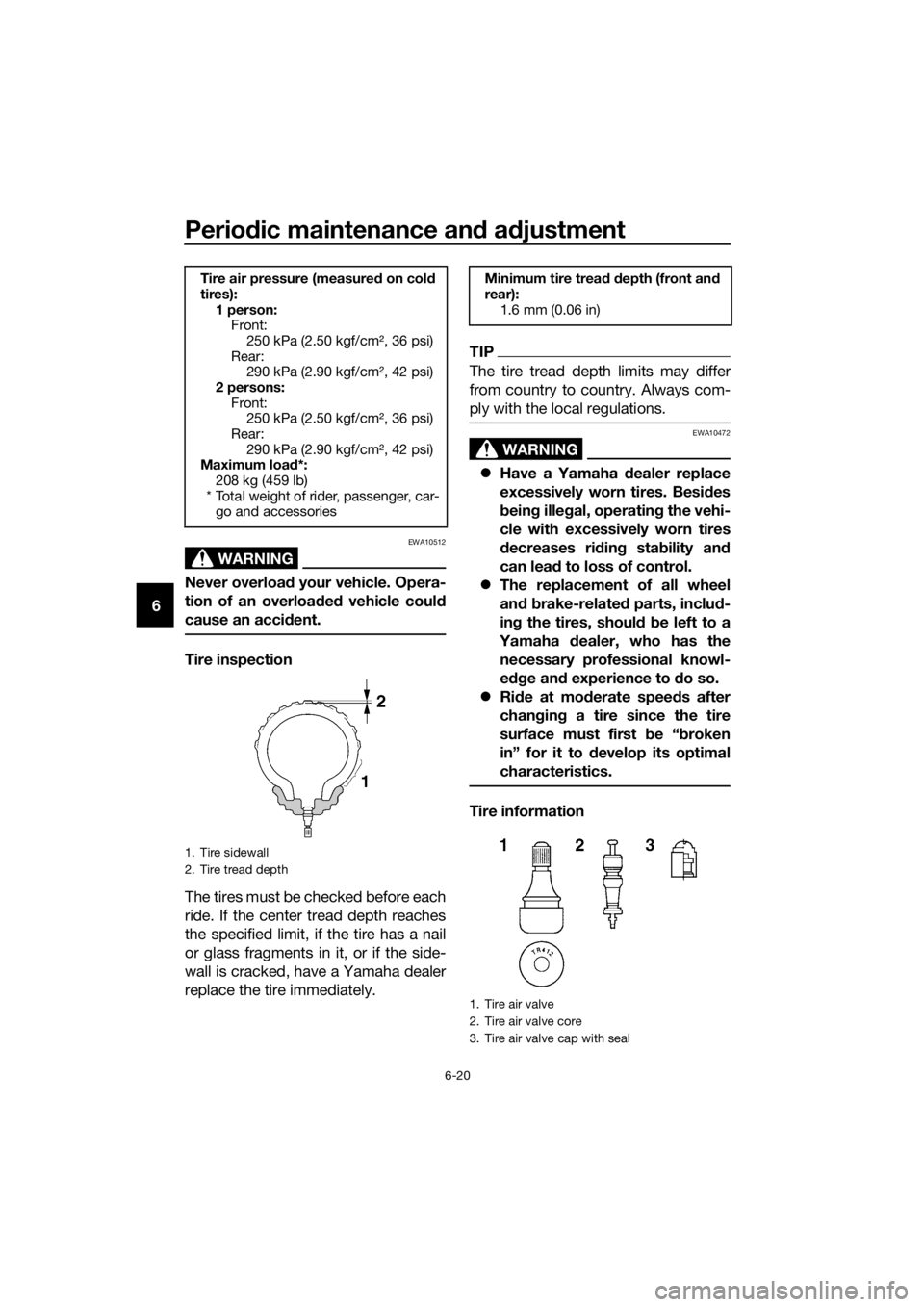

1. Tire sidewall
2. Tire tread depth
Minimum tire trea d d epth (front an d
rear): 1.6 mm (0.06 in)
1. Tire air valve
2. Tire air valve core
3. Tire air valve cap with seal
UB95E1E0.book Page 20 Tuesday, September 26, 2017 12:01 PM

Periodic maintenance an d a djustment
6-21
6
This model is equipped with tubeless
tires and tire air valves.
Tires age, even if they have not been
used or have only been used occasion-
ally. Cracking of the tread and sidewall
rubber, sometimes accompanied by
carcass deformation, is an evidence of
ageing. Old and aged tires shall be
checked by tire specialists to ascertain
their suitability for further use.
WARNING
EWA10902

The front an d rear tires shoul d
b e of the same make an d d e-
si gn, otherwise the han dlin g
characteristics of the motorcy-
cle may b e different, which
coul d lea d to an acci dent.
 Always make sure that the valve
caps are securely installe d to
prevent air pressure leakag e.
 Use only the tire valves an d
valve cores liste d below to
avoi d tire deflation during a ride.
After extensive tests, only the tires list-
ed below have been approved for this
model by Yamaha.
WARNING
EWA10601
This motorcycle is fitte d with super-
hi gh-spee d tires. Note the followin g
points in or der to make the most ef-
ficient use of these tires.  Use only the specifie d replace-
ment tires. Other tires may run
the dan ger of bursting at super
hi gh spee ds.
 Bran d-new tires can have a rel-
atively poor g rip on certain road
surfaces until they have been
“ b roken in”. Therefore, it is a d-
visa ble before doin g any hi gh-
speed ridin g to ri de conserva-
tively for approximately 100 km
(60 mi) after installin g a new tire.
 The tires must be warme d up
b efore a hi gh-spee d run.
 Always a djust the tire air pres-
sure accor din g to the operating
con ditions.
Front tire:
Size:
120/70ZR17M/C (58W)
Manufacturer/model: BRIDGESTONE/BT023F E
Rear tire: Size:180/55ZR17M/C(73W)
Manufacturer/model: BRIDGESTONE/BT023R E
FRONT an d REAR:
Tire air valve: TR412
Valve core:
#9100 (original)
UB95E1E0.book Page 21 Tuesday, September 26, 2017 12:01 PM

Periodic maintenance an d a djustment
6-22
6
EAU21963
Cast wheels
To maximize the performance, durabil-
ity, and safe operation of your vehicle,
note the following points regarding the
specified wheels.
 The wheel rims should be
checked for cracks, bends, warp-
age or other damage before each
ride. If any damage is found, have
a Yamaha dealer replace the
wheel. Do not attempt even the
smallest repair to the wheel. A de-
formed or cracked wheel must be
replaced.
 The wheel should be balanced
whenever either the tire or wheel
has been changed or replaced. An
unbalanced wheel can result in
poor performance, adverse han-
dling characteristics, and a short-
ened tire life.
EAU40622
YCC-S clutch
This model is equipped with a hydrau-
lic clutch, therefore, it is necessary to
check the YCC-S clutch fluid level and
check the hydraulic system for leak-
age. (See page 6-25.)
TIP
If shifting becomes rough or clutch
slippage occurs, or if you notice poor
acceleration or engine stalls, have a
Yamaha dealer check the clutch for wear.
UB95E1E0.book Page 22 Tuesday, September 26, 2017 12:01 PM

Periodic maintenance an d a djustment
6-23
6
EAU37914
Checkin g the brake lever free
play
There should be no free play at the
brake lever end. If there is free play,
have a Yamaha dealer inspect the
brake system.
WARNING
EWA14212
A soft or spon gy feelin g in the brake
lever can in dicate the presence of
air in the hy draulic system. If there is
air in the hy draulic system, have a
Yamaha dealer blee d the system be-
fore operatin g the vehicle. Air in the
hy draulic system will diminish the
b rakin g performance, which may re-
sult in loss of control an d an acci-
d ent.
EAU36505
Brake li ght switches
The brake light should come on just
before braking takes effect. The brake
light is activated by switches connect-
ed to the brake lever and brake pedal.
Since the brake light switches are
components of the anti-lock brake sys-
tem, they should only be serviced by a
Yamaha dealer.

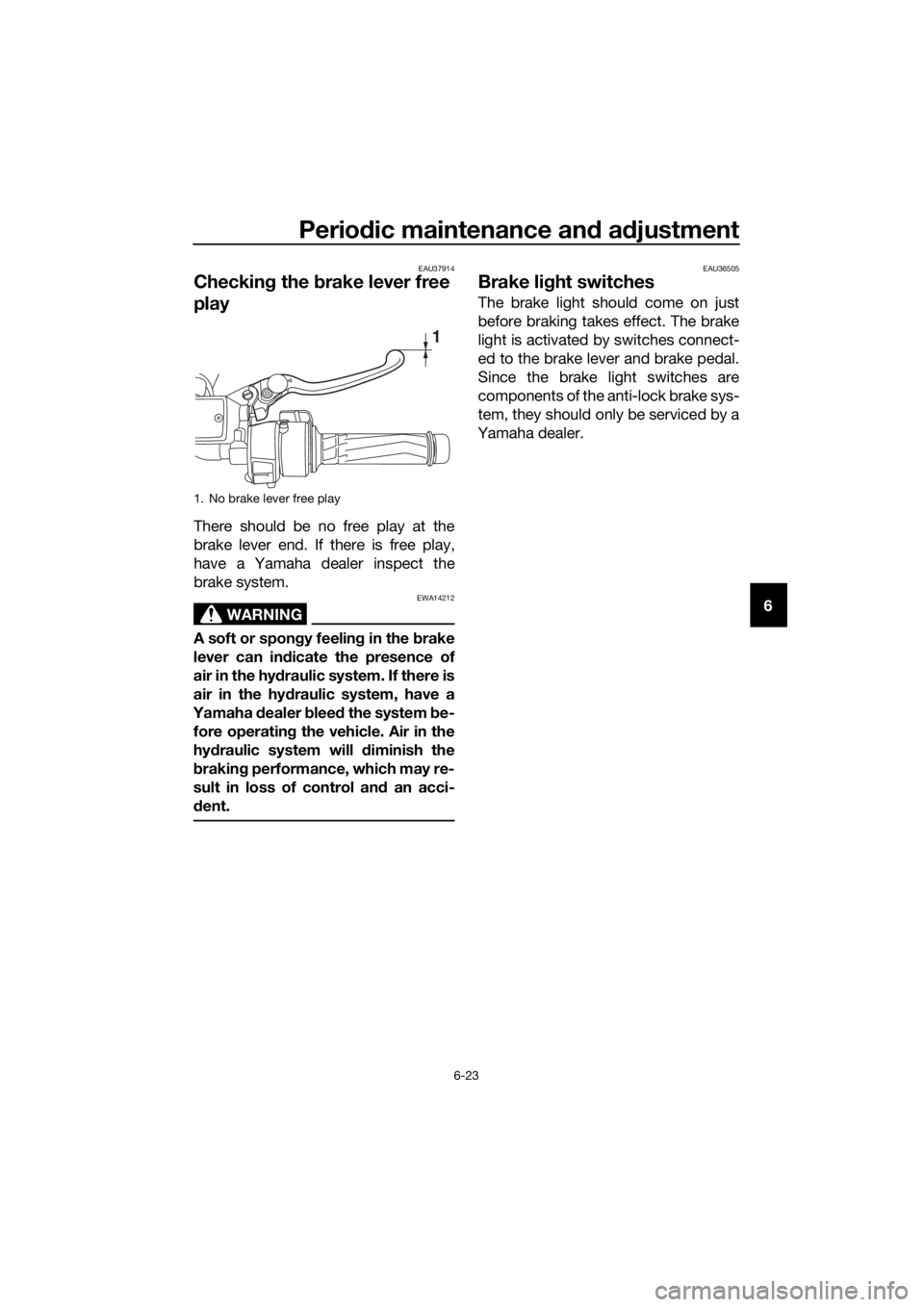

1. No brake lever free play
1
UB95E1E0.book Page 23 Tuesday, September 26, 2017 12:01 PM

Periodic maintenance an d a djustment
6-24
6
EAU22393
Checkin g the front an d rear
b rake pa ds
The front and rear brake pads must be
checked for wear at the intervals spec-
ified in the periodic maintenance and
lubrication chart.
EAU43432Front brake pa ds
The front brake calipers are equipped
with two sets of brake pads.
Each front brake pad is provided with a
wear indicator groove, which allows
you to check the brake pad wear with-
out having to disassemble the brake.
To check a brake pad for wear, check
its wear indicator groove. If a brake
pad has worn to the point that the wear
indicator groove has almost disap-
peared, have a Yamaha dealer replace
the brake pads as a set.
EAU22501Rear brake pa ds
Check each rear brake pad for damage
and measure the lining thickness. If a
brake pad is damaged or if the lining
thickness is less than 0.8 mm (0.03 in),
have a Yamaha dealer replace the
brake pads as a set.

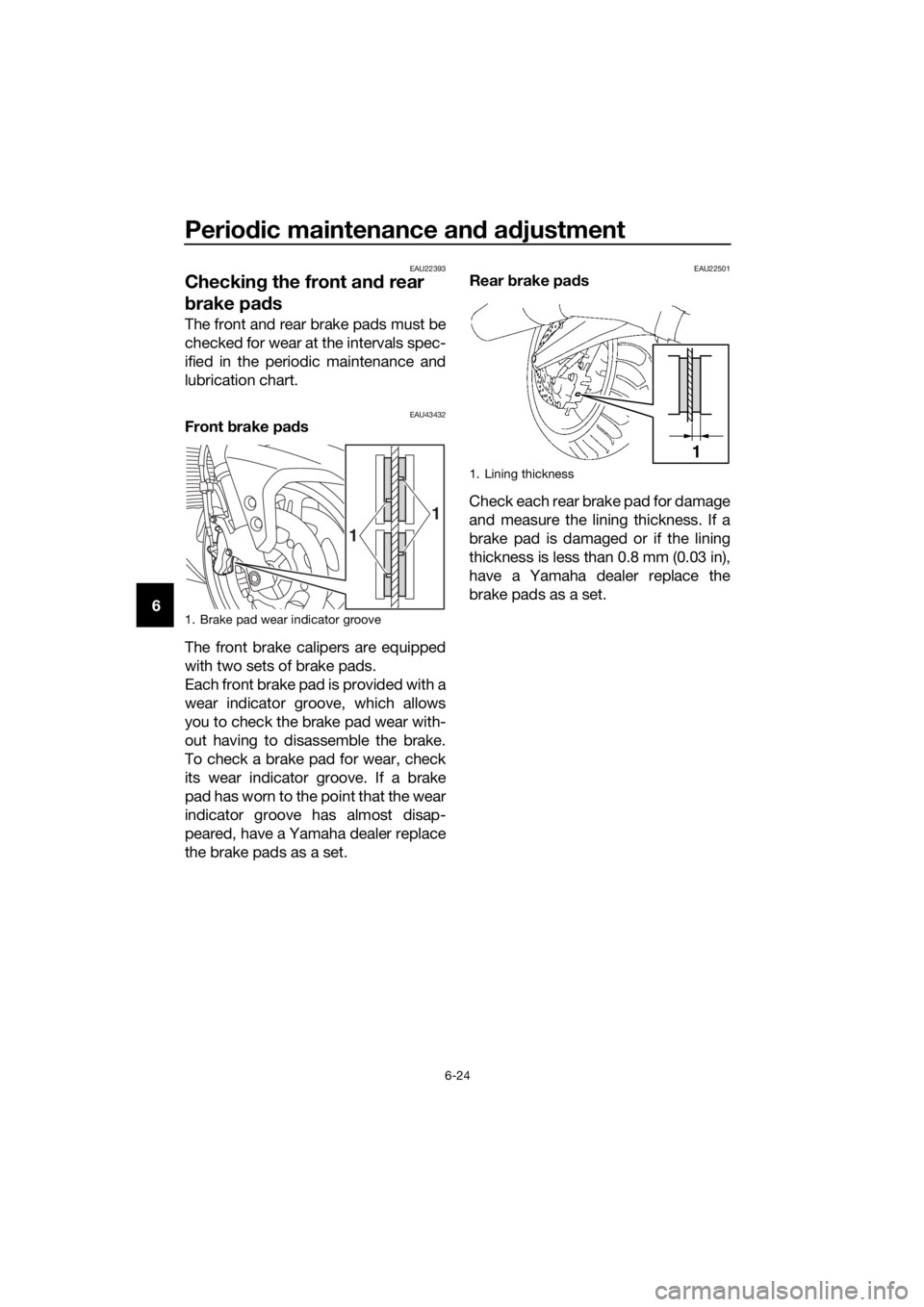

1. Brake pad wear indicator groove
1
1
1. Lining thickness
1
UB95E1E0.book Page 24 Tuesday, September 26, 2017 12:01 PM

Periodic maintenance an d a djustment
6-25
6
EAU40593
Checkin g the brake an d
YCC-S clutch fluid levels
Before riding, check that the brake and
YCC-S clutch fluids are above the mi-
nimum level marks. Check the brake
and YCC-S clutch fluid levels with the
tops of the reservoirs level. Replenish
the brake and YCC-S clutch fluids if
necessary.
Front brake
Rear brake YCC-S clutch
TIP

The rear brake fluid reservoir is lo-
cated behind panel C. (See page
6-7.)
 The YCC-S clutch fluid reservoir is
located behind panel B. (See page
6-7.)
WARNING
EWA16021
Improper maintenance can result in
loss of brakin g a bility or YCC-S
clutch operation. O bserve these
precautions:  Insufficient brake or YCC-S
clutch flui d may allow air to en-
ter the b rake or YCC-S clutch
system, re ducing brakin g or
YCC-S clutch performance.
 Clean the filler caps before re-
moving . Use only DOT 4 b rake
flui d from a seale d container.
 Use only the specifie d b rake flu-
i d ; otherwise, the ru bber seals
may deteriorate, causin g leak-
a g e.

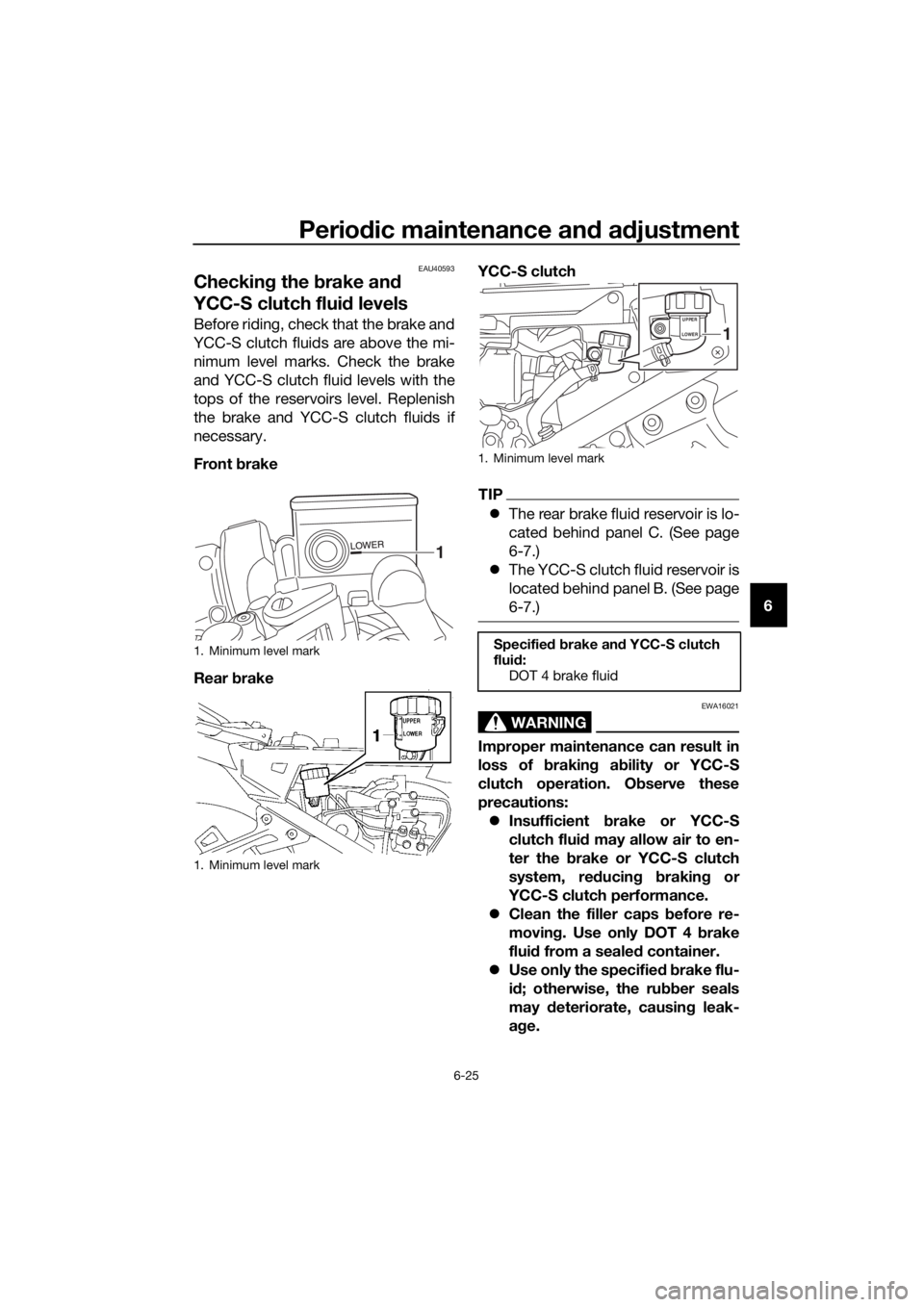

1. Minimum level mark
1. Minimum level mark
1
1. Minimum level mark
Specified b rake an d YCC-S clutch
flui d:
DOT 4 brake fluid
UPPER
LOWER
1
UB95E1E0.book Page 25 Tuesday, September 26, 2017 12:01 PM

Periodic maintenance an d a djustment
6-26
6 
Refill with the same type of
brake flui d. A ddin g a b rake flui d
other than DOT 4 may result in a
harmful chemical reaction.
 Be careful that water or dust
d oes not enter the brake or
YCC-S clutch flui d reservoir
when refillin g. Water will si gnifi-
cantly lower the boilin g point of
the flui d an d may result in vapor
lock, an d d irt may clo g the ABS
hy draulic unit valves.
NOTICE
ECA17641
Brake flui d may damag e painte d
surfaces or plastic parts. Always
clean up spille d flui d imme diately.
The brake and YCC-S clutch fluid res-
ervoir diaphragms will lose their shape
from the negative pressure if the fluid
level goes down too far. Be sure to re-
turn the diaphragms to their original
shape before reinstalling them.
As the brake pads wear, it is normal for
the brake fluid level to gradually go
down. A low brake fluid level may indi-
cate worn brake pads and/or brake
system leakage; therefore, be sure to
check the brake pads for wear and the
brake system for leakage. A low
YCC-S clutch fluid level may indicate
YCC-S clutch system leakage; there-
fore, be sure to check the YCC-S
clutch system for leakage. If the brake
or YCC-S clutch fluid level goes down
suddenly, have a Yamaha dealer check
the cause before further riding.
EAU40604
Chan gin g the brake an d
YCC-S clutch flui ds
Have a Yamaha dealer change the
brake and YCC-S clutch fluids at the
intervals specified in the periodic main-
tenance and lubrication chart. In addi-
tion, have the oil seals of the brake and
YCC-S clutch master cylinders and
calipers as well as the brake and
YCC-S clutch hoses replaced at the in-
tervals listed below or whenever they
are damaged or leaking.
 Oil seals: Replace every two
years.
 Brake and YCC-S clutch hoses:
Replace every four years.
UB95E1E0.book Page 26 Tuesday, September 26, 2017 12:01 PM

Periodic maintenance an d a djustment
6-27
6
EAU23098
Checkin g an d lu bricatin g the
ca bles
The operation of all control cables and
the condition of the cables should be
checked before each ride, and the ca-
bles and cable ends should be lubri-
cated if necessary. If a cable is
damaged or does not move smoothly,
have a Yamaha dealer check or re-
place it. WARNING! Dama ge to the
outer housin g of cab les may result
in internal rustin g an d cause inter-
ference with cab le movement. Re-
place dama ged cab les as soon as
possi ble to prevent unsafe con di-
tions.
[EWA10712] EAU23115
Checkin
g an d lu bricatin g the
throttle grip an d ca ble
The operation of the throttle grip
should be checked before each ride. In
addition, the cable should be lubricat-
ed by a Yamaha dealer at the intervals
specified in the periodic maintenance
chart.
The throttle cable is equipped with a
rubber cover. Make sure that the cover
is securely installed. Even though the
cover is installed correctly, it does not
completely protect the cable from wa-
ter entry. Therefore, use care not to
pour water directly onto the cover or
cable when washing the vehicle. If the
cable or cover becomes dirty, wipe
clean with a moist cloth.
Recommen ded lu bricant:
Yamaha cable lubricant or other
suitable cable lubricant
UB95E1E0.book Page 27 Tuesday, September 26, 2017 12:01 PM

Periodic maintenance an d a djustment
6-28
6

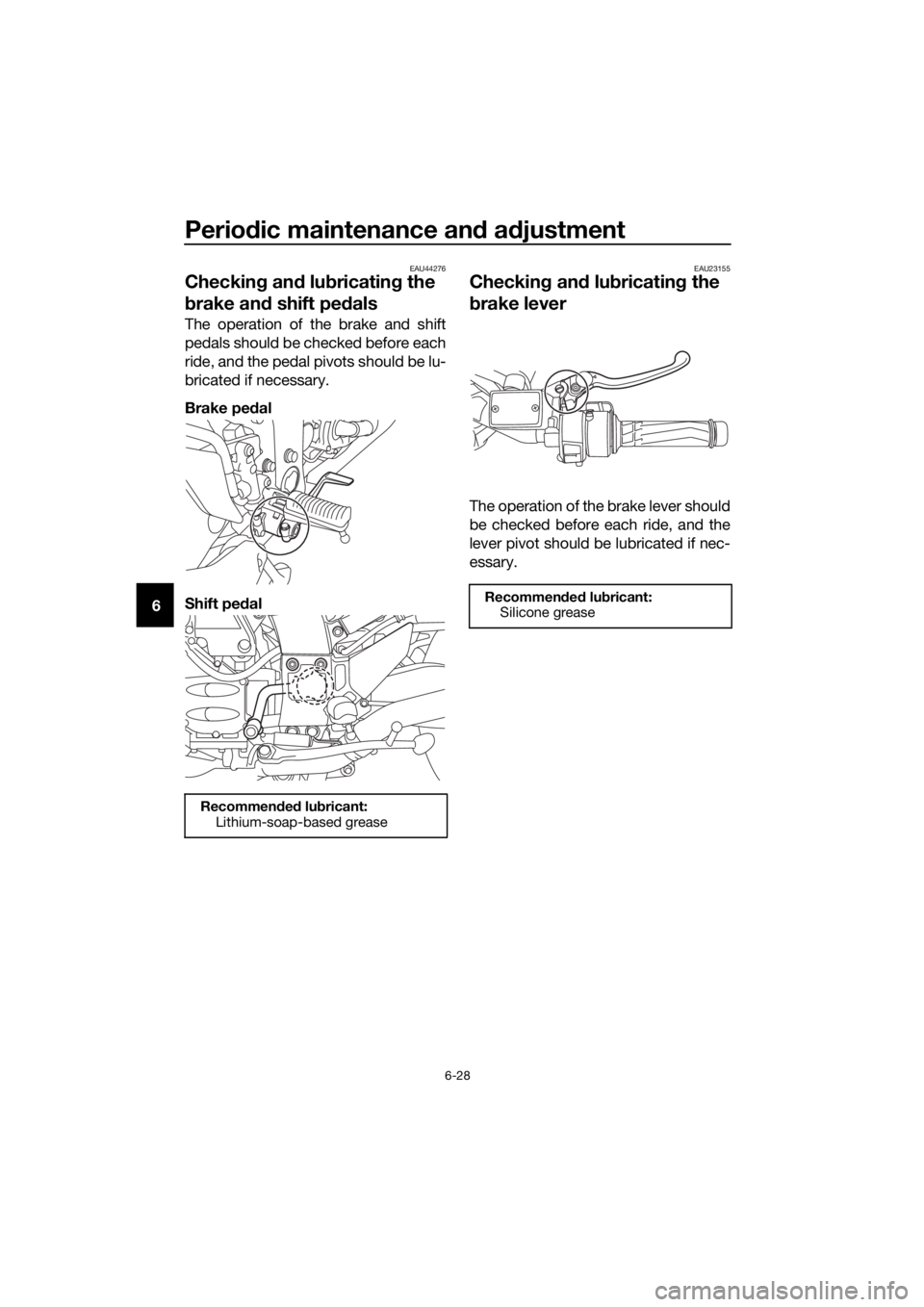

EAU44276
Checkin g an d lu bricatin g the
b rake an d shift pe dals
The operation of the brake and shift
pedals should be checked before each
ride, and the pedal pivots should be lu-
bricated if necessary.
Brake ped al
Shift pe dal
EAU23155
Checkin g an d lu bricatin g the
b rake lever
The operation of the brake lever should
be checked before each ride, and the
lever pivot should be lubricated if nec-
essary.
Recommen ded lu bricant:
Lithium-soap-based grease
Recommen ded lu bricant:
Silicone grease
UB95E1E0.book Page 28 Tuesday, September 26, 2017 12:01 PM
