4-9
E
EJU01355

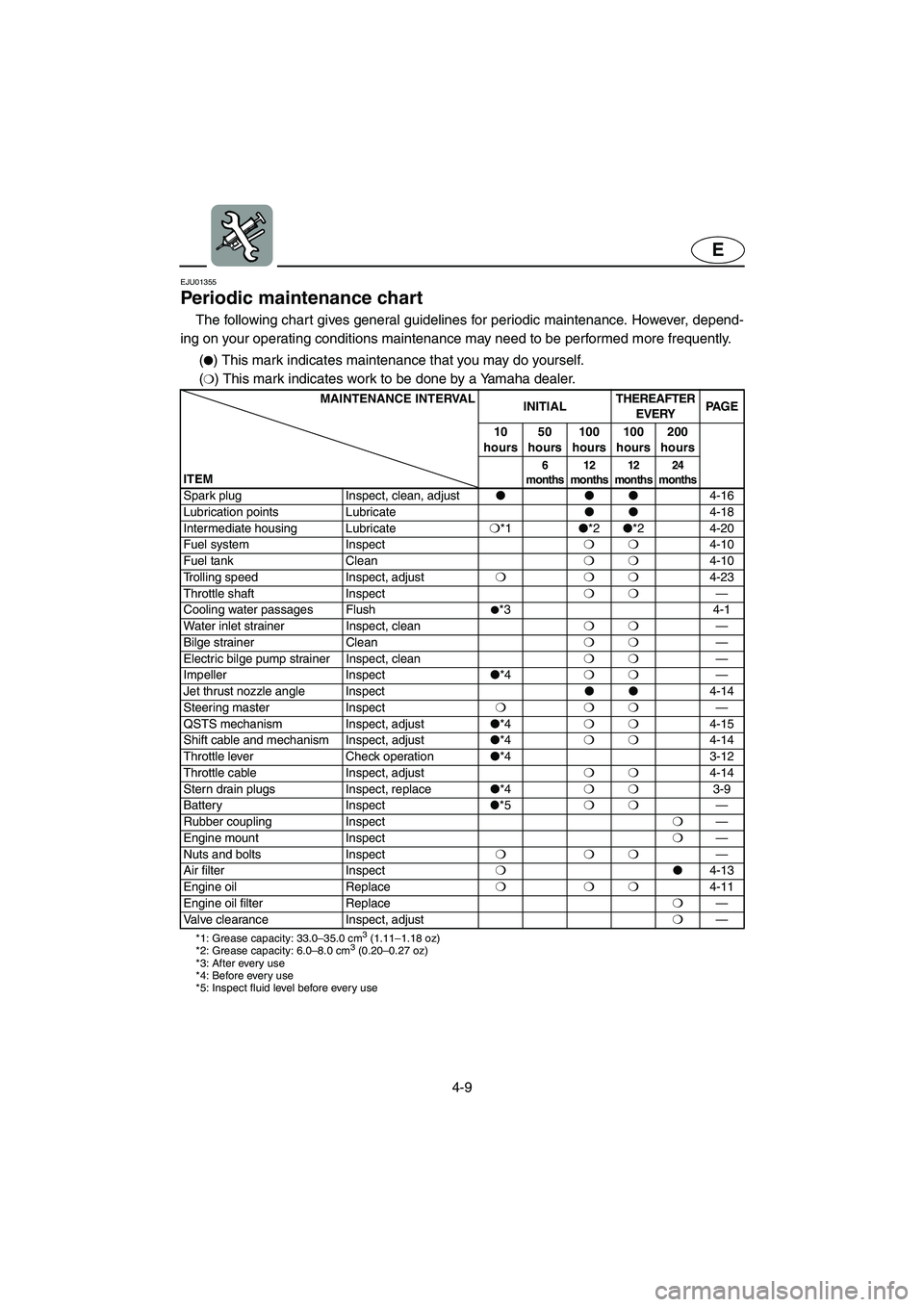

Periodic maintenance chart
The following chart gives general guidelines for periodic maintenance. However, depend-
ing on your operating conditions maintenance may need to be performed more frequently.
PMC-F1B1(
) This mark indicates maintenance that you may do yourself.
(
❍) This mark indicates work to be done by a Yamaha dealer.
MAINTENANCE INTERVAL
INITIALTHEREAFTER
EVERYPA G E
10
hours50
hours100
hours100
hours200
hours
ITEM
6
months12
months12
months24
months
Spark plug Inspect, clean, adjust



4-16
Lubrication points Lubricate


4-18
Intermediate housing Lubricate❍
*1

*2

*2 4-20
Fuel system Inspect❍❍
4-10
Fuel tank Clean❍❍
4-10
Trolling speed Inspect, adjust❍❍❍
4-23
Throttle shaft Inspect❍❍
—
Cooling water passages Flush

*3 4-1
Water inlet strainer Inspect, clean❍❍
—
Bilge strainer Clean❍❍
—
Electric bilge pump strainer Inspect, clean❍❍
—
Impeller Inspect

*4❍❍
—
Jet thrust nozzle angle Inspect


4-14
Steering master Inspect❍❍❍
—
QSTS mechanism Inspect, adjust

*4❍❍
4-15
Shift cable and mechanism Inspect, adjust

*4❍❍
4-14
Throttle lever Check operation

*4 3-12
Throttle cable Inspect, adjust❍❍
4-14
Stern drain plugs Inspect, replace

*4❍❍
3-9
Battery Inspect

*5❍❍
—
Rubber coupling Inspect❍
—
Engine mount Inspect❍
—
Nuts and bolts Inspect❍❍❍
—
Air filter Inspect❍

4-13
Engine oil Replace❍❍❍
4-11
Engine oil filter Replace❍
—
Valve clearance Inspect, adjust❍
—
*1: Grease capacity: 33.0–35.0 cm3 (1.11–1.18 oz)
*2: Grease capacity: 6.0–8.0 cm3 (0.20–0.27 oz)
*3: After every use
*4: Before every use
*5: Inspect fluid level before every use
UF1B71.book Page 9 Tuesday, November 12, 2002 4:17 PM

4-16
E
EJU18201

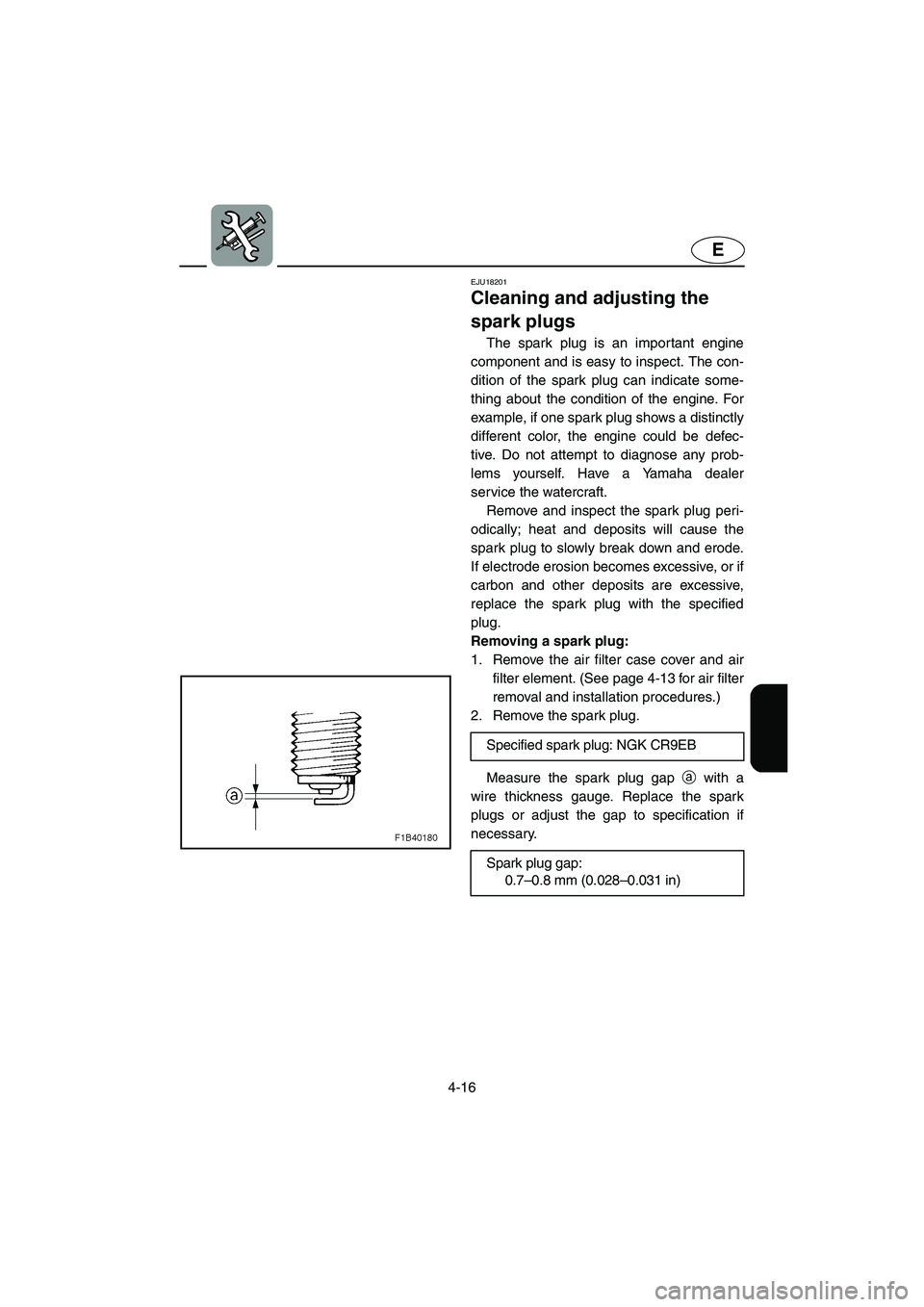

Cleaning and adjusting the
spark plugs
The spark plug is an important engine
component and is easy to inspect. The con-
dition of the spark plug can indicate some-
thing about the condition of the engine. For
example, if one spark plug shows a distinctly
different color, the engine could be defec-
tive. Do not attempt to diagnose any prob-
lems yourself. Have a Yamaha dealer
service the watercraft.
Remove and inspect the spark plug peri-
odically; heat and deposits will cause the
spark plug to slowly break down and erode.
If electrode erosion becomes excessive, or if
carbon and other deposits are excessive,
replace the spark plug with the specified
plug.
Removing a spark plug:
1. Remove the air filter case cover and air
filter element. (See page 4-13 for air filter
removal and installation procedures.)
2. Remove the spark plug.
Measure the spark plug gap a with a
wire thickness gauge. Replace the spark
plugs or adjust the gap to specification if
necessary.Specified spark plug: NGK CR9EB
Spark plug gap:
0.7–0.8 mm (0.028–0.031 in)
