YAMAHA FX HO 2016 Owners Manual

Trouble recovery
105
(3) Remove the electrical box cover.
(4) While pushing both sides of the fuse box
cover inward, pull the cover toward the
bow and remove it.
(5) When replacing the SCU fuse, remove
the screws, and then remove the fuse.Install the spare fuse, and then tighten
the screws.
(6) When replacing a fuse other than the
SCU fuse, remove the fuse using the
fuse puller. Install a spare fuse of the
proper amperage. WARNING! Do not
use fuses of a different amperage than
recommended. Substitution with a
fuse that has an improper rating can
cause extensive electrical system
damage and possible fire.
[EWJ00803]

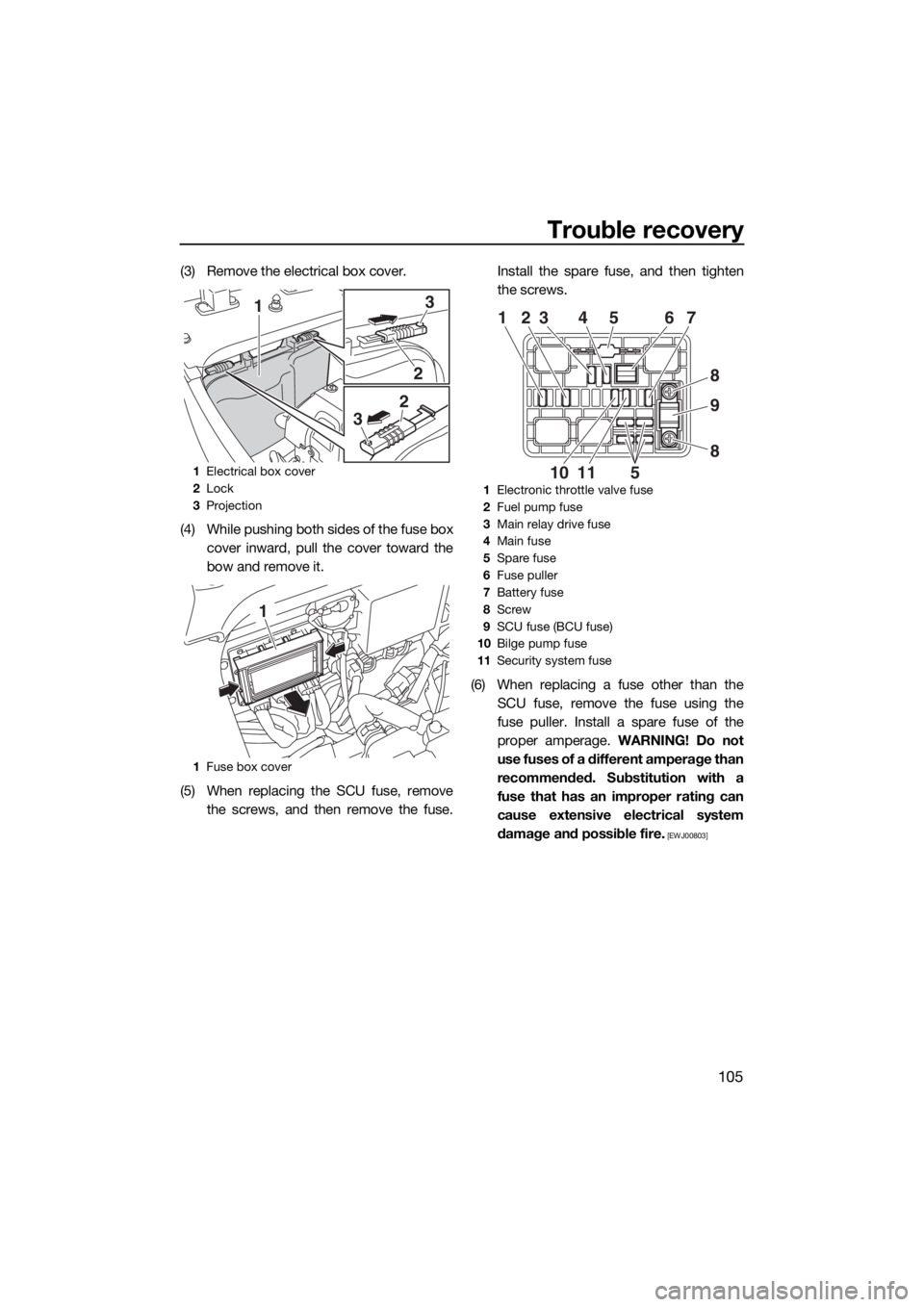

1Electrical box cover
2Lock
3Projection
1Fuse box cover
1
2
3
2
3
1
1Electronic throttle valve fuse
2Fuel pump fuse
3Main relay drive fuse
4Main fuse
5Spare fuse
6Fuse puller
7Battery fuse
8Screw
9SCU fuse (BCU fuse)
10Bilge pump fuse
11Security system fuse
1
5 23 4 5 6 7
8
9
8
11 10
UF2T75E0.book Page 105 Thursday, May 21, 2015 9:30 AM

Trouble recovery
106
(7) Securely install the fuse box cover in its
original position.
(8) Securely install the electrical box cover in
its original position.
(9) Slide the locks to their original positions
to securely lock the electrical box cover
in place.
(10) Securely install the removable watertight
storage compartment and seats in their
original positions.
If the fuse immediately blows again, the elec-
trical system may be defective. If this occurs,
have a Yamaha dealer service the watercraft.
EJU34716Towing the watercraft
WARNING
EWJ00812
The operator of the towing boat must
keep speed to a minimum and avoid
traffic or obstacles which could be a
hazard to the operator on the water-
craft.
The towline should be long enough so
that the watercraft will not collide with
the towing boat when slowing down.
If the watercraft becomes inoperative in the
water, it can be towed to shore.
To tow the watercraft:
Use a towline that is three times the com-
bined length of the towing boat and the wa-
tercraft.
(1) Securely attach the towline to the bow
eye of the watercraft being towed.
(2) Sit astride the seat and hold on to the
handlebars in order to balance the water-
craft. NOTICE: The bow must be kept
up out of the water during towing, oth-
erwise water could flood the engine
compartment or water could flow
back into the engine, causing severe
engine damage.
[ECJ01331]
Tow the watercraft at 8 km/h (5 mph) or less.
NOTICE: Tow the watercraft at 8 km/h (5
mph) or less, otherwise water could flood
the engine compartment or water could
flow back into the engine, causing severe
engine damage.
[ECJ01322]
EJU36156
Submerged watercraft
If the watercraft is submerged or flooded with
water, drain the bilge water from the engine
compartment. Then, have a Yamaha dealer
service the watercraft as soon as possible.
If the watercraft was submerged:
(1) Remove the watercraft from the water
and drain the water from the storage Fuse amperage:
Electronic throttle valve fuse:
10 A
Fuel pump fuse:
10 A
Main relay drive fuse:
10 A
Main fuse:
20 A
Battery fuse:
30 A
SCU fuse:
50 A
Bilge pump fuse:
3 A
Security system fuse:
3 A
1Bow eye
1
UF2T75E0.book Page 106 Thursday, May 21, 2015 9:30 AM

Trouble recovery
107
compartments. (See page 52 for infor-
mation on draining the storage compart-
ments.)
(2) Drain the bilge water from the engine
compartment. (See page 62 for informa-
tion on draining the bilge water.)
(3) Have the watercraft serviced by a
Yamaha dealer as soon as possible.
NOTICE: Be sure to have a Yamaha
dealer inspect the watercraft. Other-
wise, serious engine damage could
result.
[ECJ00792]
UF2T75E0.book Page 107 Thursday, May 21, 2015 9:30 AM

108
Index
A
Adjustable tilt steering system ................. 30
Adjustable tilt steering system checks .... 70
After removing the watercraft from the
water ..................................................... 87
Analog speedometer/tachometer ............ 40
B
Battery care.............................................. 89
Battery checks ......................................... 68
Battery, jumping ..................................... 103
Beaching and docking the watercraft ...... 86
Beverage holders ..................................... 55
Bilge water check..................................... 68
Bilge water, draining ................................ 62
Bilge water, draining on land ................... 62
Bilge water, draining on water ................. 62
Boarding alone ......................................... 82
Boarding and starting off from a dock ..... 85
Boarding the watercraft ........................... 82
Boarding with passenger(s) ..................... 83
Bow eye ................................................... 51
Bow storage compartment ...................... 52
Builder’s plate ............................................ 2
C
Capsized watercraft ................................. 85
Check engine warning ............................. 45
Cleaning ................................................... 92
Cleaning the watercraft ............................ 89
Cleat ......................................................... 51
Cooling water pilot outlet ......................... 31
Cooling water pilot outlet check .............. 73
Craft Identification Number (CIN)............... 1
Cruise assist............................................. 38
Cruising limitations................................... 12
D
Digital speedometer ................................. 41
E
Electric trim system.................................. 34
Emergency procedures .......................... 102
Engine break-in ........................................ 64
Engine compartment check ..................... 67
Engine cover, removing and installing ..... 93
Engine idling speed check ....................... 75
Engine oil ................................................. 60
Engine oil and oil filter .............................. 97Engine oil level check ............................... 68
Engine oil requirements ........................... 60
Engine overheat warning.......................... 44
Engine serial number ................................. 1
Engine shut-off cord (lanyard) check ....... 71
Engine shut-off switch ............................. 28
Engine stop switch ................................... 28
Engine unit check ..................................... 68
Enjoy your watercraft responsibly ............ 20
Equipment ................................................ 49
F
Fire extinguisher check ............................ 72
Fire extinguisher holder and cover........... 57
Fire extinguisher holder, cover, and
band checks ......................................... 72
Flushing the cooling water passages....... 88
Fuel .......................................................... 58
Fuel level check........................................ 67
Fuel level meter ........................................ 43
Fuel level warning..................................... 44
Fuel requirements .................................... 58
Fuel system checks ................................. 67
Fuses, replacing ..................................... 104
G
Getting to know your watercraft .............. 76
Glossary, watercraft ................................. 21
Glove compartment ................................. 53
H
Handgrip .................................................. 50
Hazard information................................... 16
Hood check .............................................. 73
Hour meter/voltmeter ............................... 42
Hull and deck check ................................ 72
I
Identification numbers ............................... 1
Information display................................... 41
J
Jet intake and impeller, cleaning............ 102
Jet intake checks ..................................... 72
Jet thrust nozzle and reverse gate
check .................................................... 72
Jumper cables, connecting .................... 103
L
Labels, important ....................................... 4
Labels, other .............................................. 9
UF2T75E0.book Page 108 Thursday, May 21, 2015 9:30 AM

Index
109
Labels, warning .......................................... 5
Launching the watercraft ......................... 77
Learning to operate your watercraft ........ 76
Leaving the watercraft ............................. 78
Limitations on who may operate the
watercraft.............................................. 11
Long-term storage ................................... 92
Low RPM Mode ....................................... 36
Lubrication ............................................... 92
M
Main components, location of ................. 22
Maintenance ............................................ 93
Manufactured date label ............................ 2
Model information ...................................... 2
Multifunction display ................................ 45
Multifunction information center .............. 40
Multifunction information center check ... 73
N
No-wake mode ........................................ 37
O
Oil pressure warning ................................ 44
Operating in weeded areas ...................... 86
Operating the watercraft .......................... 78
Operating the watercraft in reverse or
neutral ................................................... 81
Operating your watercraft ........................ 76
Operation requirements ........................... 13
P
Periodic maintenance chart ..................... 95
Post-launch checks ................................. 73
Post-operation care ................................. 88
Pre-launch checks ................................... 67
Pre-operation check points ..................... 67
Pre-operation checklist ............................ 65
Primary Identification (PRI-ID) number ...... 1
Pull-up cleats (FX Cruiser HO) ................. 52
R
Raising the reverse gate ........................ 103
Reboarding grip ....................................... 50
Reboarding step ...................................... 50
Recommended equipment ...................... 15
Remote control transmitter ...................... 26
Remote control transmitter check ........... 71
RiDE lever................................................. 29
RiDE lever checks .................................... 70Riding position ......................................... 77
Rustproofing ............................................ 92
S
Safe boating rules .................................... 19
Safety equipment check .......................... 72
Seats ........................................................ 49
Shift indicator ........................................... 46
Shift system ............................................. 32
Shift system check ................................... 74
Start switch .............................................. 28
Starting off ............................................... 84
Starting off from a trailer .......................... 85
Starting the engine on water .................... 77
Steering system ....................................... 29
Steering system checks ........................... 69
Stern drain plug checks ........................... 72
Stern eyes ................................................ 51
Stern storage compartment ..................... 54
Stopping the engine ................................. 78
Stopping the watercraft ........................... 80
Storage compartment checks.................. 72
Storage compartments ............................ 52
Submerged watercraft ........................... 106
Switch checks .......................................... 71
T
Throttle lever ............................................ 29
Throttle lever checks ................................ 70
Tool kit ..................................................... 93
Towing the watercraft ............................ 106
Transporting on a trailer ........................... 63
Trim indicator ........................................... 46
Trim indicator check ................................ 75
Troubleshooting ....................................... 99
Troubleshooting chart .............................. 99
Turning the watercraft .............................. 79
W
Wakeboarding and water-skiing .............. 18
Water separator ....................................... 31
Water separator check ............................. 67
Watercraft characteristics ........................ 16
Watercraft control functions..................... 26
Watercraft information ............................. 47
Watercraft operation functions ................ 32
Watercraft operation modes .................... 36
Watertight storage compartments ........... 55
UF2T75E0.book Page 109 Thursday, May 21, 2015 9:30 AM

Index
110
Y
Yamaha Security System ......................... 27
Yamaha Security System settings ........... 27
UF2T75E0.book Page 110 Thursday, May 21, 2015 9:30 AM

UF2T75E0.book Page 111 Thursday, May 21, 2015 9:30 AM

Printed in U.S.A.
October 2015–0.4 × 1 CR
UF2T76E0.book Page 1 Thursday, September 17, 2015 11:59 AM
