ECO mode YAMAHA FX HO CRUISER 2006 Owners Manual

E
1
EJU09930

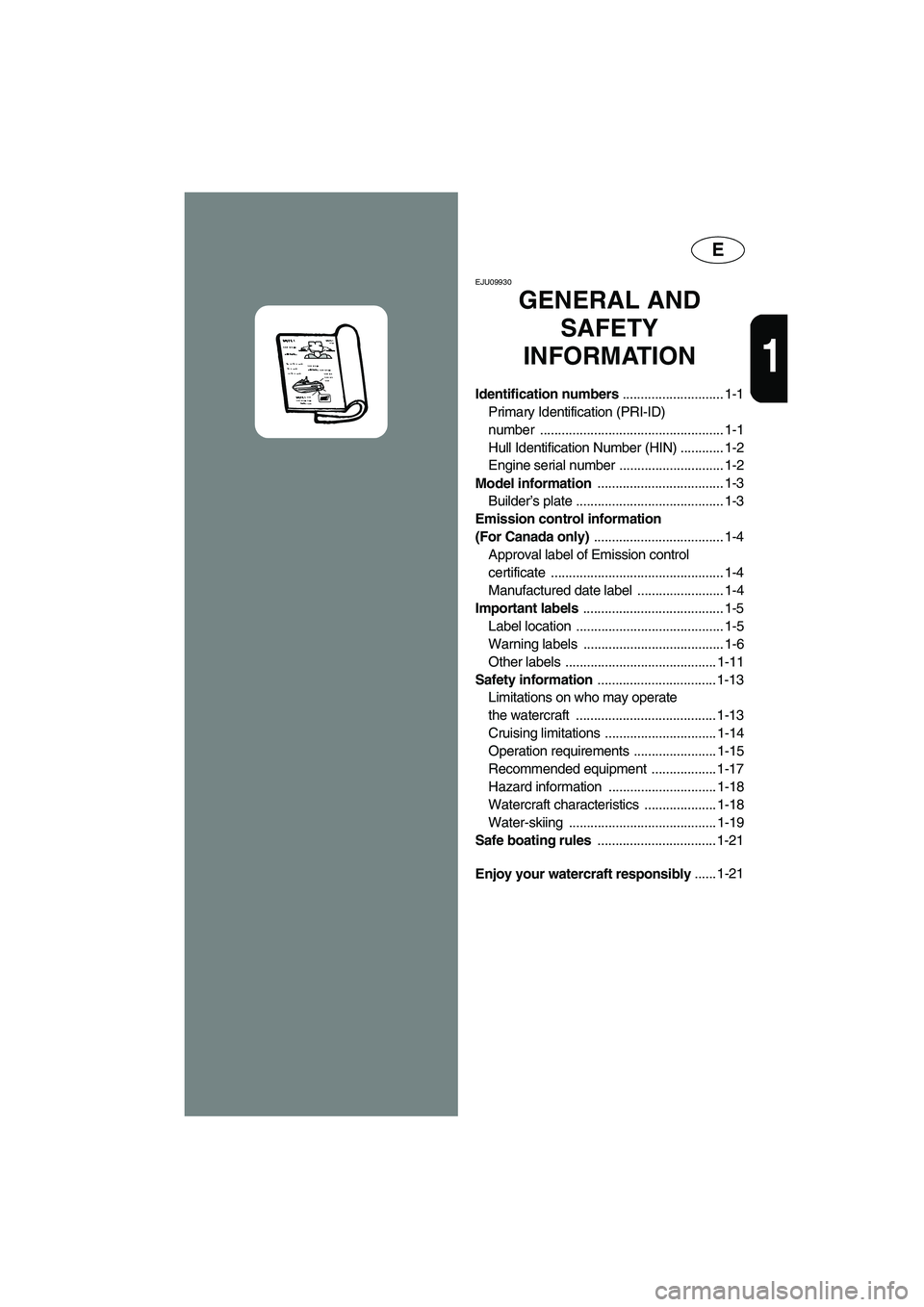

GENERAL AND
SAFETY
INFORMATION
Identification numbers ............................ 1-1
Primary Identification (PRI-ID)
number ................................................... 1-1
Hull Identification Number (HIN) ............ 1-2
Engine serial number ............................. 1-2
Model information ................................... 1-3
Builder’s plate ......................................... 1-3
Emission control information
(For Canada only) .................................... 1-4
Approval label of Emission control
certificate ................................................ 1-4
Manufactured date label ........................ 1-4
Important labels ....................................... 1-5
Label location ......................................... 1-5
Warning labels ....................................... 1-6
Other labels .......................................... 1-11
Safety information ................................. 1-13
Limitations on who may operate
the watercraft ....................................... 1-13
Cruising limitations ............................... 1-14
Operation requirements ....................... 1-15
Recommended equipment .................. 1-17
Hazard information .............................. 1-18
Watercraft characteristics .................... 1-18
Water-skiing ......................................... 1-19
Safe boating rules ................................. 1-21
Enjoy your watercraft responsibly ...... 1-21
E_F1X-70.book Page 1 Friday, August 26, 2005 11:00 AM

1-1
E
EJU18300

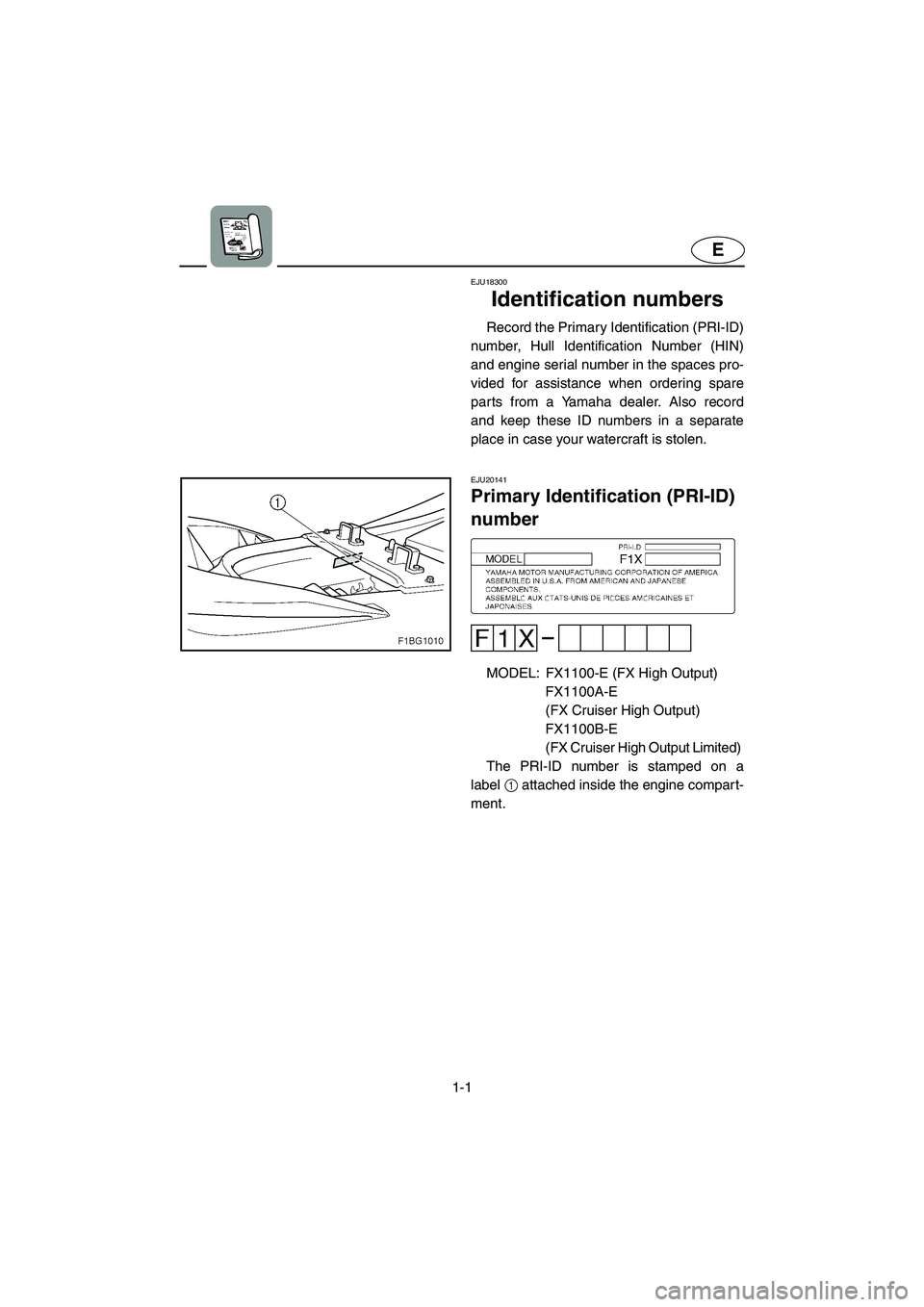

Identification numbers
Record the Primary Identification (PRI-ID)
number, Hull Identification Number (HIN)
and engine serial number in the spaces pro-
vided for assistance when ordering spare
parts from a Yamaha dealer. Also record
and keep these ID numbers in a separate
place in case your watercraft is stolen.
EJU20141
Primary Identification (PRI-ID)
number
MODEL: FX1100-E (FX High Output)
FX1100A-E
(FX Cruiser High Output)
FX1100B-E
(FX Cruiser High Output Limited)
The PRI-ID number is stamped on a
label1 attached inside the engine compart-
ment.
E_F1X-70.book Page 1 Friday, August 26, 2005 11:00 AM

2-20
E
EJU19940

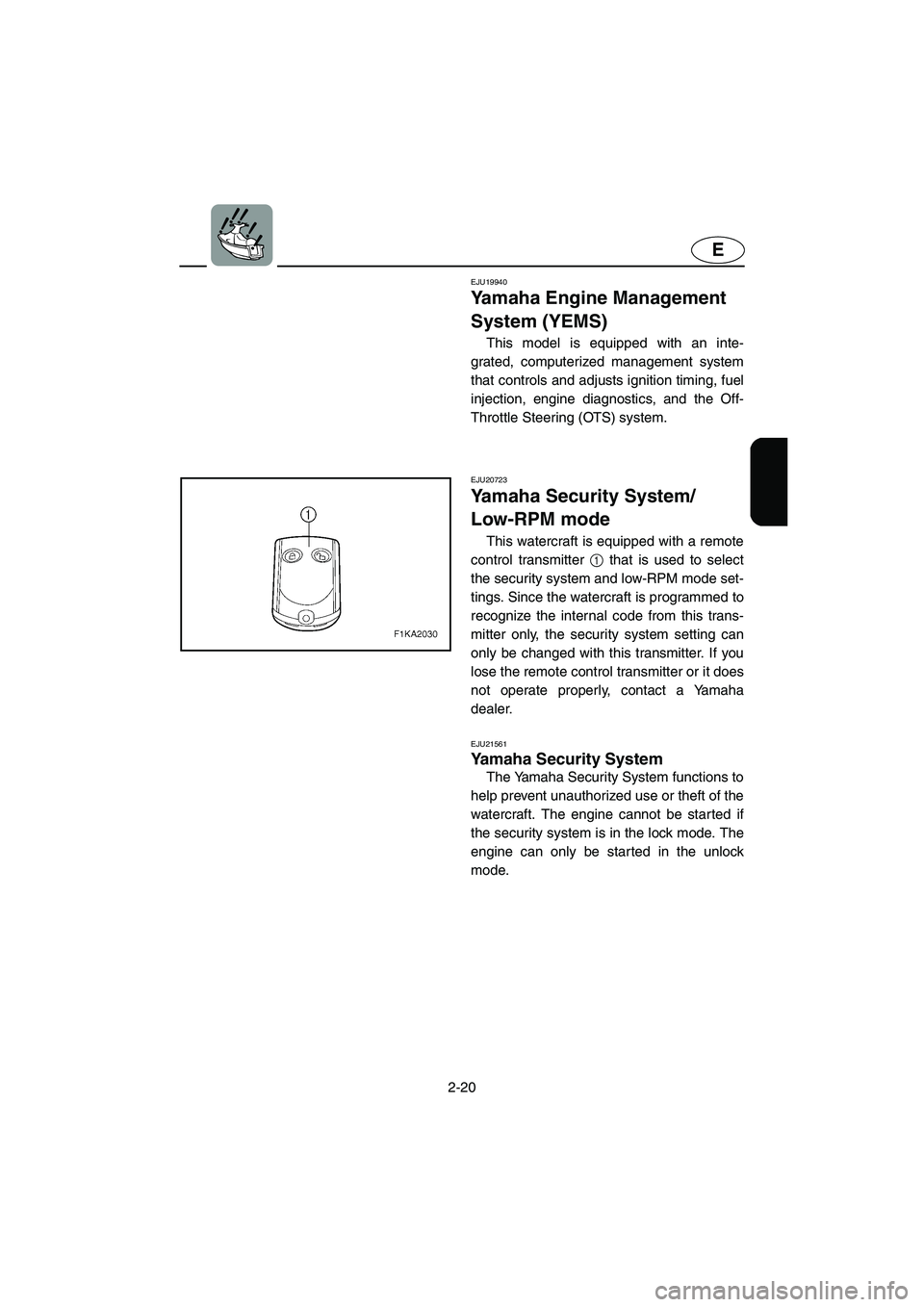

Yamaha Engine Management
System (YEMS)
This model is equipped with an inte-
grated, computerized management system
that controls and adjusts ignition timing, fuel
injection, engine diagnostics, and the Off-
Throttle Steering (OTS) system.
EJU20723
Yamaha Security System/
Low-RPM mode
This watercraft is equipped with a remote
control transmitter 1 that is used to select
the security system and low-RPM mode set-
tings. Since the watercraft is programmed to
recognize the internal code from this trans-
mitter only, the security system setting can
only be changed with this transmitter. If you
lose the remote control transmitter or it does
not operate properly, contact a Yamaha
dealer.
EJU21561
Yamaha Security System
The Yamaha Security System functions to
help prevent unauthorized use or theft of the
watercraft. The engine cannot be started if
the security system is in the lock mode. The
engine can only be started in the unlock
mode.
E_F1X-70.book Page 20 Friday, August 26, 2005 11:00 AM

2-22
E
EJU21583

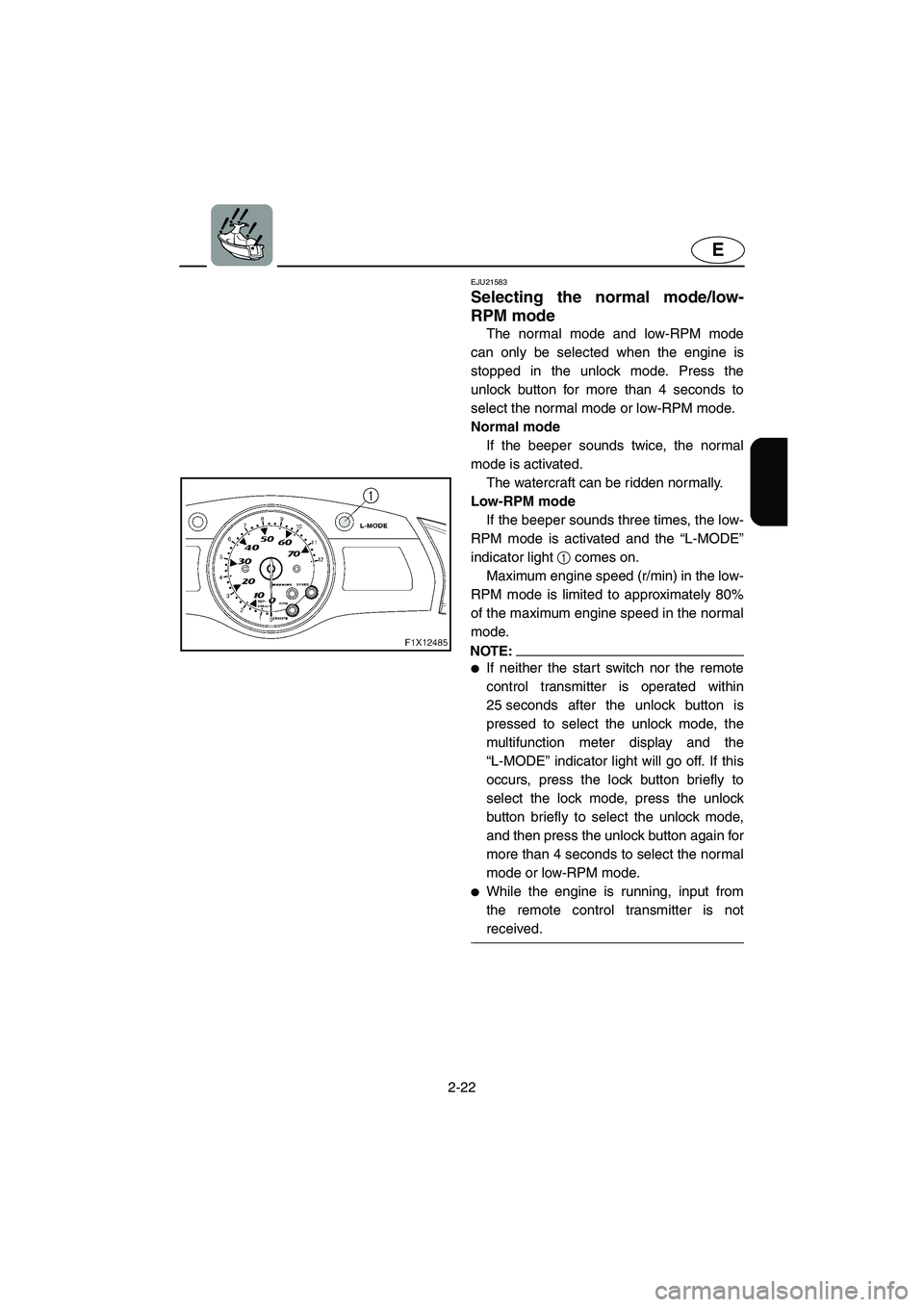

Selecting the normal mode/low-
RPM mode
The normal mode and low-RPM mode
can only be selected when the engine is
stopped in the unlock mode. Press the
unlock button for more than 4 seconds to
select the normal mode or low-RPM mode.
Normal mode
If the beeper sounds twice, the normal
mode is activated.
The watercraft can be ridden normally.
Low-RPM mode
If the beeper sounds three times, the low-
RPM mode is activated and the “L-MODE”
indicator light 1 comes on.
Maximum engine speed (r/min) in the low-
RPM mode is limited to approximately 80%
of the maximum engine speed in the normal
mode.
NOTE:@
If neither the start switch nor the remote
control transmitter is operated within
25 seconds after the unlock button is
pressed to select the unlock mode, the
multifunction meter display and the
“L-MODE” indicator light will go off. If this
occurs, press the lock button briefly to
select the lock mode, press the unlock
button briefly to select the unlock mode,
and then press the unlock button again for
more than 4 seconds to select the normal
mode or low-RPM mode.

While the engine is running, input from
the remote control transmitter is not
received.
@
E_F1X-70-2.fm Page 22 Tuesday, January 31, 2006 9:53 AM

2-24
E
EJU21990

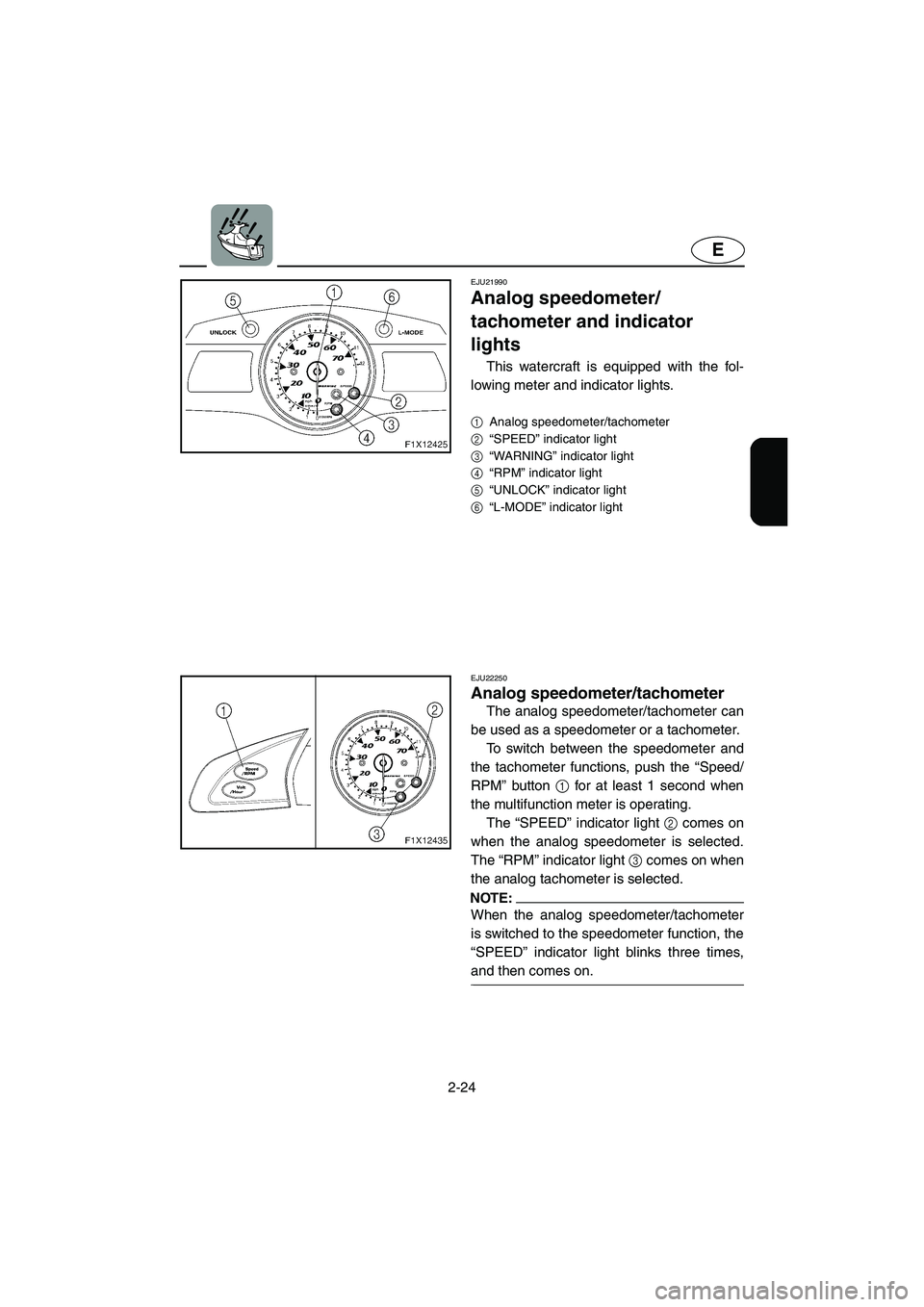

Analog speedometer/
tachometer and indicator
lights
This watercraft is equipped with the fol-
lowing meter and indicator lights.
1
Analog speedometer/tachometer
2
“SPEED” indicator light
3
“WARNING” indicator light
4
“RPM” indicator light
5
“UNLOCK” indicator light
6
“L-MODE” indicator light
EJU22250
Analog speedometer/tachometer
The analog speedometer/tachometer can
be used as a speedometer or a tachometer.
To switch between the speedometer and
the tachometer functions, push the “Speed/
RPM” button 1
for at least 1 second when
the multifunction meter is operating.
The “SPEED” indicator light 2
comes on
when the analog speedometer is selected.
The “RPM” indicator light 3
comes on when
the analog tachometer is selected.
NOTE:@ When the analog speedometer/tachometer
is switched to the speedometer function, the
“SPEED” indicator light blinks three times,
and then comes on.
@
E_F1X-70.book Page 24 Friday, August 26, 2005 11:00 AM

2-32
E

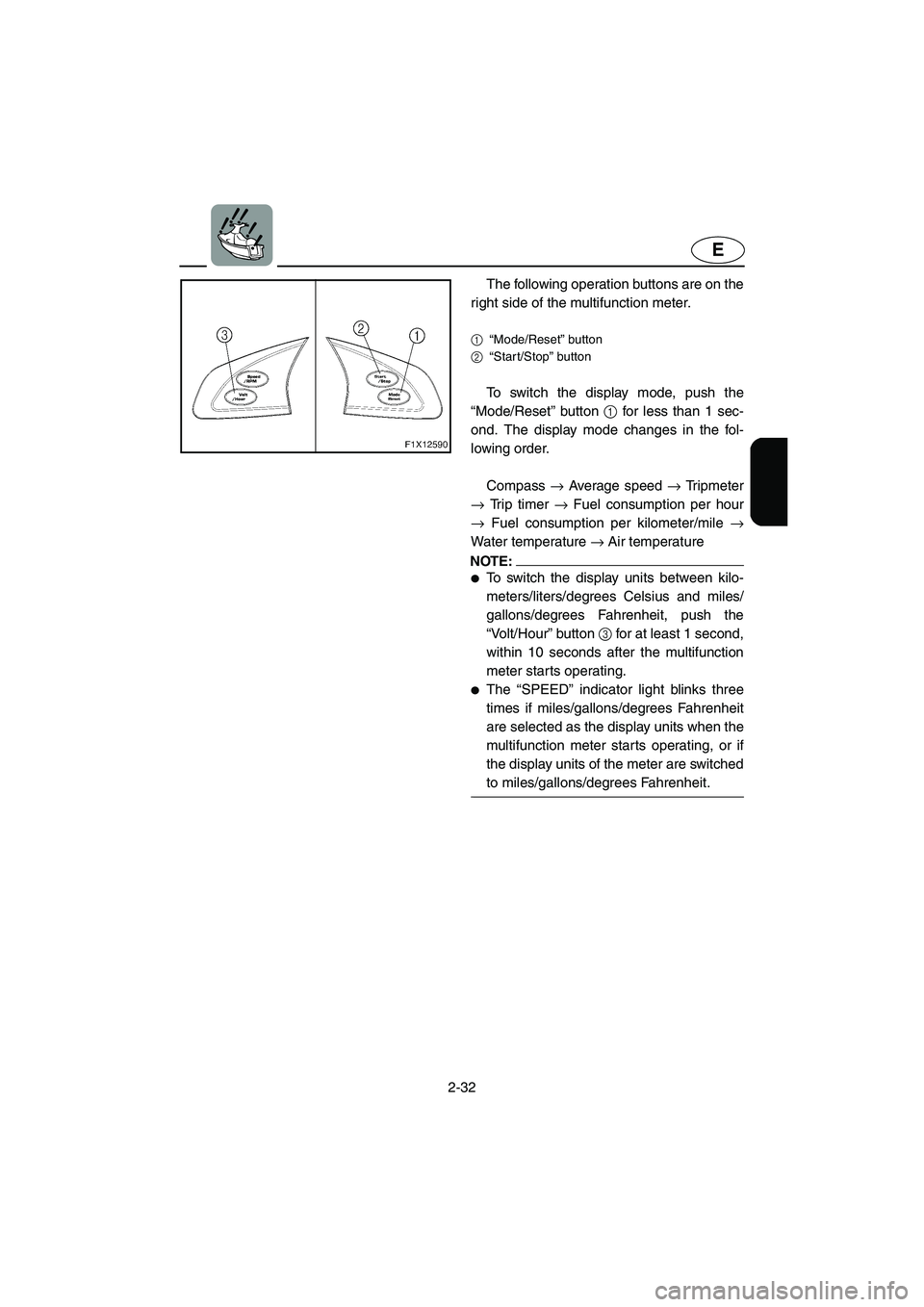

The following operation buttons are on the
right side of the multifunction meter.
1
“Mode/Reset” button
2
“Start/Stop” button
To switch the display mode, push the
“Mode/Reset” button 1
for less than 1 sec-
ond. The display mode changes in the fol-
lowing order.
Compass → Average speed → Tr i p m e t e r
→ Trip timer → Fuel consumption per hour
→ Fuel consumption per kilometer/mile →
Water temperature → Air temperature
NOTE:@
To switch the display units between kilo-
meters/liters/degrees Celsius and miles/
gallons/degrees Fahrenheit, push the
“Vo l t / H o u r” button 3
for at least 1 second,
within 10 seconds after the multifunction
meter starts operating.

The “SPEED” indicator light blinks three
times if miles/gallons/degrees Fahrenheit
are selected as the display units when the
multifunction meter starts operating, or if
the display units of the meter are switched
to miles/gallons/degrees Fahrenheit.
@
E_F1X-70.book Page 32 Friday, August 26, 2005 11:00 AM

2-35
E
Average speed/Tripmeter/Trip timer
modes
Average speed, distance traveled, and
trip time are recorded once measurements
have started, regardless of the current dis-
play.
To start the measurements, push the
“Start/Stop” button 2 for less than 1 sec-
ond. The beeper sounds once.
To stop the measurements, push the
“Start/Stop” button for less than 1 second.
The beeper sounds once. To restart the
measurements, push the “Start/Stop” button
for less than 1 second. The beeper sounds
once.
To reset the displays, push the “Mode/
Reset” button 1 for at least 2 seconds while
the measurements are stopped. The beeper
sounds twice.
NOTE:@ The displays can be reset only when the
measurements are stopped.
@
E_F1X-70.book Page 35 Friday, August 26, 2005 11:00 AM

4-26
E

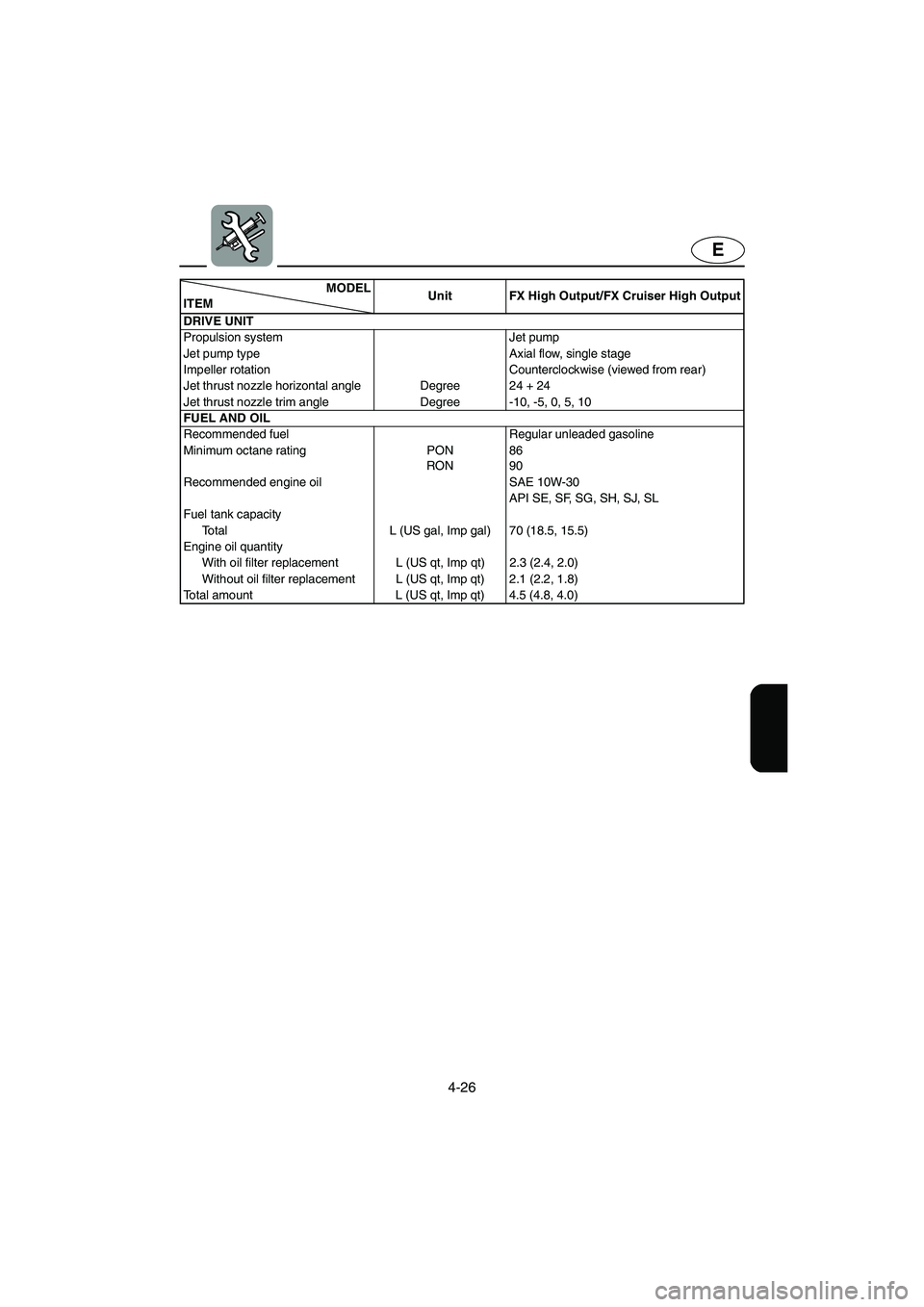

DRIVE UNIT
Propulsion system Jet pump
Jet pump type Axial flow, single stage
Impeller rotation Counterclockwise (viewed from rear)
Jet thrust nozzle horizontal angle Degree 24 + 24
Jet thrust nozzle trim angle Degree -10, -5, 0, 5, 10
FUEL AND OIL
Recommended fuel Regular unleaded gasoline
Minimum octane rating PON
RON86
90
Recommended engine oil SAE 10W-30
API SE, SF, SG, SH, SJ, SL
Fuel tank capacity
Total L (US gal, Imp gal) 70 (18.5, 15.5)
Engine oil quantity
With oil filter replacement L (US qt, Imp qt) 2.3 (2.4, 2.0)
Without oil filter replacement L (US qt, Imp qt) 2.1 (2.2, 1.8)
Total amount L (US qt, Imp qt) 4.5 (4.8, 4.0)MODEL
ITEMUnit FX High Output/FX Cruiser High Output
E_F1X-70.book Page 26 Friday, August 26, 2005 11:00 AM

6-2
E
J

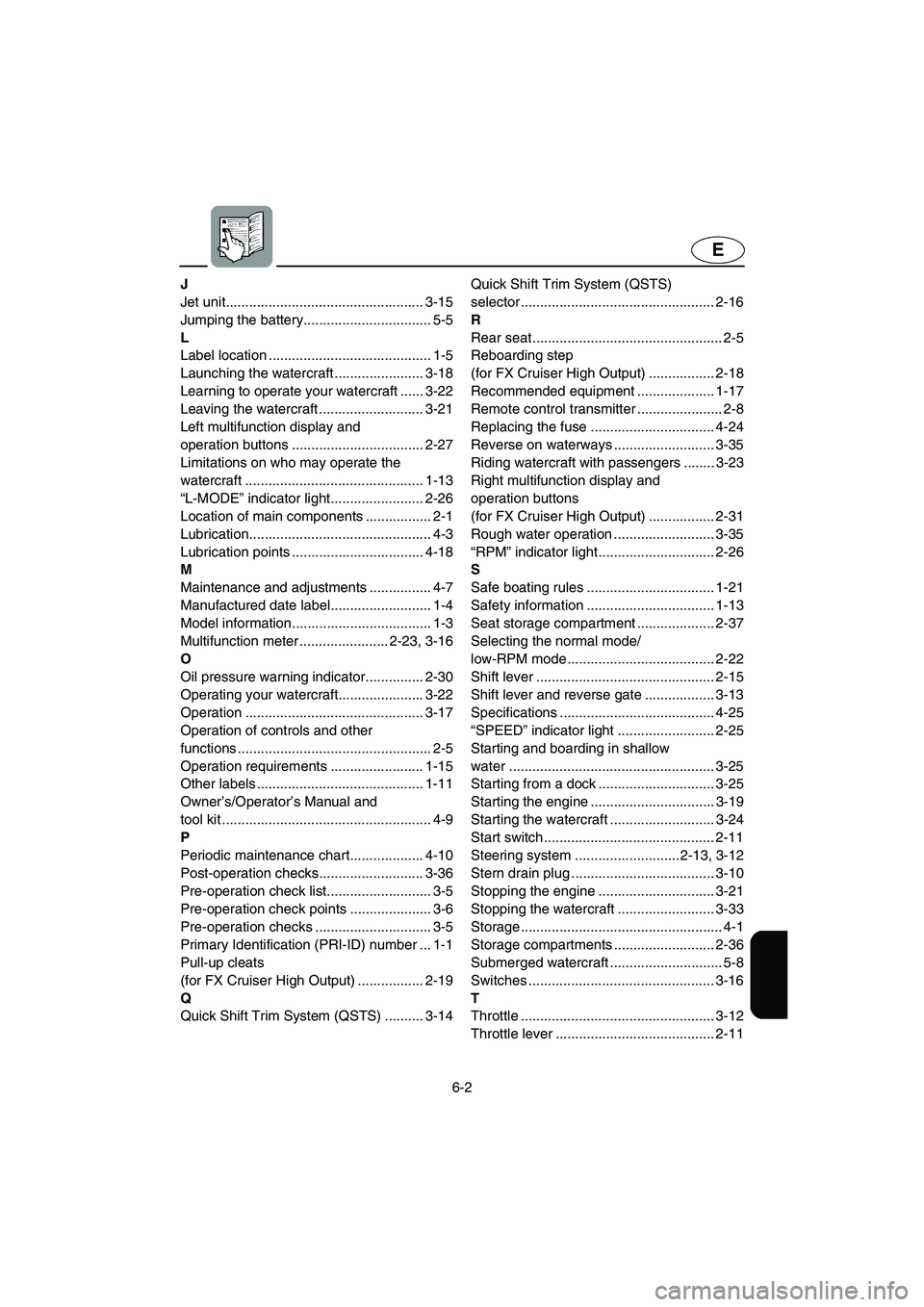

Jet unit................................................... 3-15
Jumping the battery................................. 5-5
L
Label location .......................................... 1-5
Launching the watercraft ....................... 3-18
Learning to operate your watercraft ...... 3-22
Leaving the watercraft ........................... 3-21
Left multifunction display and
operation buttons .................................. 2-27
Limitations on who may operate the
watercraft .............................................. 1-13
“L-MODE” indicator light........................ 2-26
Location of main components ................. 2-1
Lubrication............................................... 4-3
Lubrication points .................................. 4-18
M
Maintenance and adjustments ................ 4-7
Manufactured date label.......................... 1-4
Model information.................................... 1-3
Multifunction meter ....................... 2-23, 3-16
O
Oil pressure warning indicator............... 2-30
Operating your watercraft...................... 3-22
Operation .............................................. 3-17
Operation of controls and other
functions .................................................. 2-5
Operation requirements ........................ 1-15
Other labels ........................................... 1-11
Owner’s/Operator’s Manual and
tool kit ...................................................... 4-9
P
Periodic maintenance chart................... 4-10
Post-operation checks........................... 3-36
Pre-operation check list........................... 3-5
Pre-operation check points ..................... 3-6
Pre-operation checks .............................. 3-5
Primary Identification (PRI-ID) number ... 1-1
Pull-up cleats
(for FX Cruiser High Output) ................. 2-19
Q
Quick Shift Trim System (QSTS) .......... 3-14Quick Shift Trim System (QSTS)
selector.................................................. 2-16
R
Rear seat................................................. 2-5
Reboarding step
(for FX Cruiser High Output) ................. 2-18
Recommended equipment .................... 1-17
Remote control transmitter ...................... 2-8
Replacing the fuse ................................ 4-24
Reverse on waterways .......................... 3-35
Riding watercraft with passengers ........ 3-23
Right multifunction display and
operation buttons
(for FX Cruiser High Output) ................. 2-31
Rough water operation .......................... 3-35
“RPM” indicator light.............................. 2-26
S
Safe boating rules ................................. 1-21
Safety information ................................. 1-13
Seat storage compartment .................... 2-37
Selecting the normal mode/
low-RPM mode...................................... 2-22
Shift lever .............................................. 2-15
Shift lever and reverse gate .................. 3-13
Specifications ........................................ 4-25
“SPEED” indicator light ......................... 2-25
Starting and boarding in shallow
water ..................................................... 3-25
Starting from a dock .............................. 3-25
Starting the engine ................................ 3-19
Starting the watercraft ........................... 3-24
Start switch............................................ 2-11
Steering system ...........................2-13, 3-12
Stern drain plug ..................................... 3-10
Stopping the engine .............................. 3-21
Stopping the watercraft ......................... 3-33
Storage.................................................... 4-1
Storage compartments .......................... 2-36
Submerged watercraft ............................. 5-8
Switches ................................................ 3-16
T
Throttle .................................................. 3-12
Throttle lever ......................................... 2-11
E_F1X-70.book Page 2 Friday, August 26, 2005 11:00 AM
