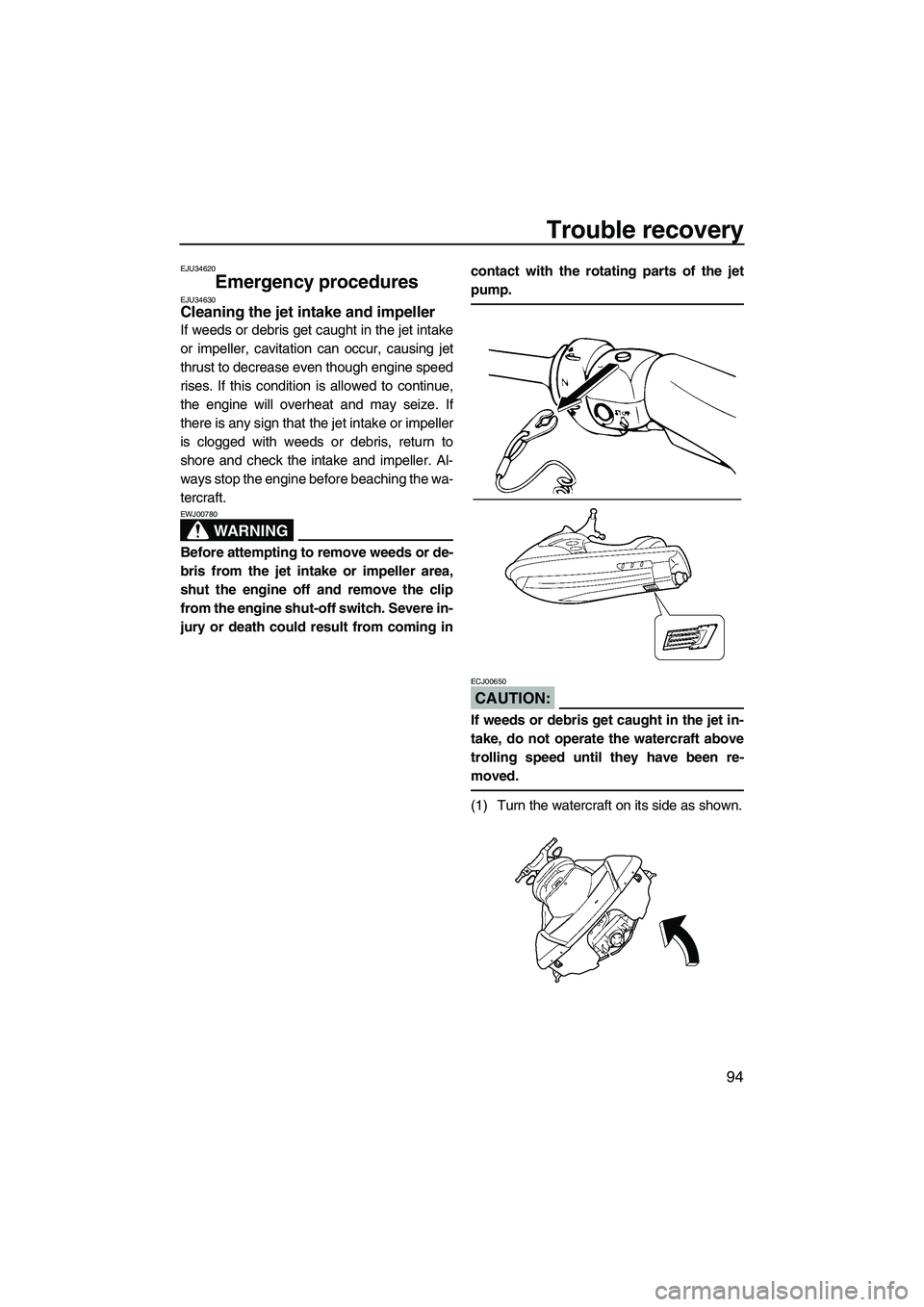

YAMAHA FX HO CRUISER 2007 Owners Manual

Trouble recovery
94
EJU34620
Emergency procedures EJU34630Cleaning the jet intake and impeller
If weeds or debris get caught in the jet intake
or impeller, cavitation can occur, causing jet
thrust to decrease even though engine speed
rises. If this condition is allowed to continue,
the engine will overheat and may seize. If
there is any sign that the jet intake or impeller
is clogged with weeds or debris, return to
shore and check the intake and impeller. Al-
ways stop the engine before beaching the wa-
tercraft.
WARNING
EWJ00780
Before attempting to remove weeds or de-
bris from the jet intake or impeller area,
shut the engine off and remove the clip
from the engine shut-off switch. Severe in-
jury or death could result from coming incontact with the rotating parts of the jet
pump.
CAUTION:
ECJ00650
If weeds or debris get caught in the jet in-
take, do not operate the watercraft above
trolling speed until they have been re-
moved.
(1) Turn the watercraft on its side as shown.
UF1X71E0.book Page 94 Tuesday, September 26, 2006 9:52 AM

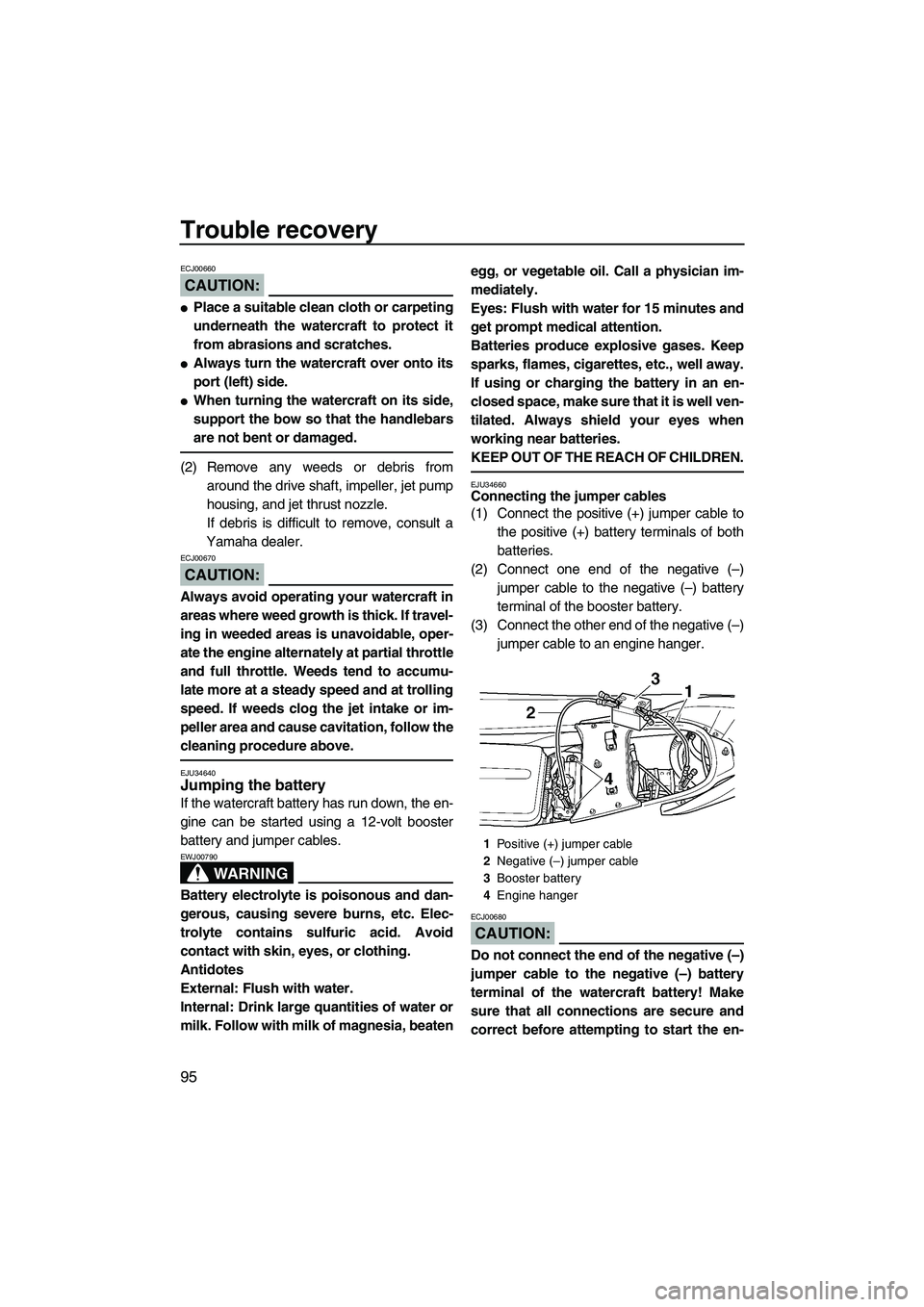

Trouble recovery
95
CAUTION:
ECJ00660

Place a suitable clean cloth or carpeting
underneath the watercraft to protect it
from abrasions and scratches.

Always turn the watercraft over onto its
port (left) side.

When turning the watercraft on its side,
support the bow so that the handlebars
are not bent or damaged.
(2) Remove any weeds or debris from
around the drive shaft, impeller, jet pump
housing, and jet thrust nozzle.
If debris is difficult to remove, consult a
Yamaha dealer.
CAUTION:
ECJ00670
Always avoid operating your watercraft in
areas where weed growth is thick. If travel-
ing in weeded areas is unavoidable, oper-
ate the engine alternately at partial throttle
and full throttle. Weeds tend to accumu-
late more at a steady speed and at trolling
speed. If weeds clog the jet intake or im-
peller area and cause cavitation, follow the
cleaning procedure above.
EJU34640Jumping the battery
If the watercraft battery has run down, the en-
gine can be started using a 12-volt booster
battery and jumper cables.
WARNING
EWJ00790
Battery electrolyte is poisonous and dan-
gerous, causing severe burns, etc. Elec-
trolyte contains sulfuric acid. Avoid
contact with skin, eyes, or clothing.
Antidotes
External: Flush with water.
Internal: Drink large quantities of water or
milk. Follow with milk of magnesia, beatenegg, or vegetable oil. Call a physician im-
mediately.
Eyes: Flush with water for 15 minutes and
get prompt medical attention.
Batteries produce explosive gases. Keep
sparks, flames, cigarettes, etc., well away.
If using or charging the battery in an en-
closed space, make sure that it is well ven-
tilated. Always shield your eyes when
working near batteries.
KEEP OUT OF THE REACH OF CHILDREN.
EJU34660Connecting the jumper cables
(1) Connect the positive (+) jumper cable to
the positive (+) battery terminals of both
batteries.
(2) Connect one end of the negative (–)
jumper cable to the negative (–) battery
terminal of the booster battery.
(3) Connect the other end of the negative (–)
jumper cable to an engine hanger.
CAUTION:
ECJ00680
Do not connect the end of the negative (–)
jumper cable to the negative (–) battery
terminal of the watercraft battery! Make
sure that all connections are secure and
correct before attempting to start the en-
1Positive (+) jumper cable
2Negative (–) jumper cable
3Booster battery
4Engine hanger
UF1X71E0.book Page 95 Tuesday, September 26, 2006 9:52 AM

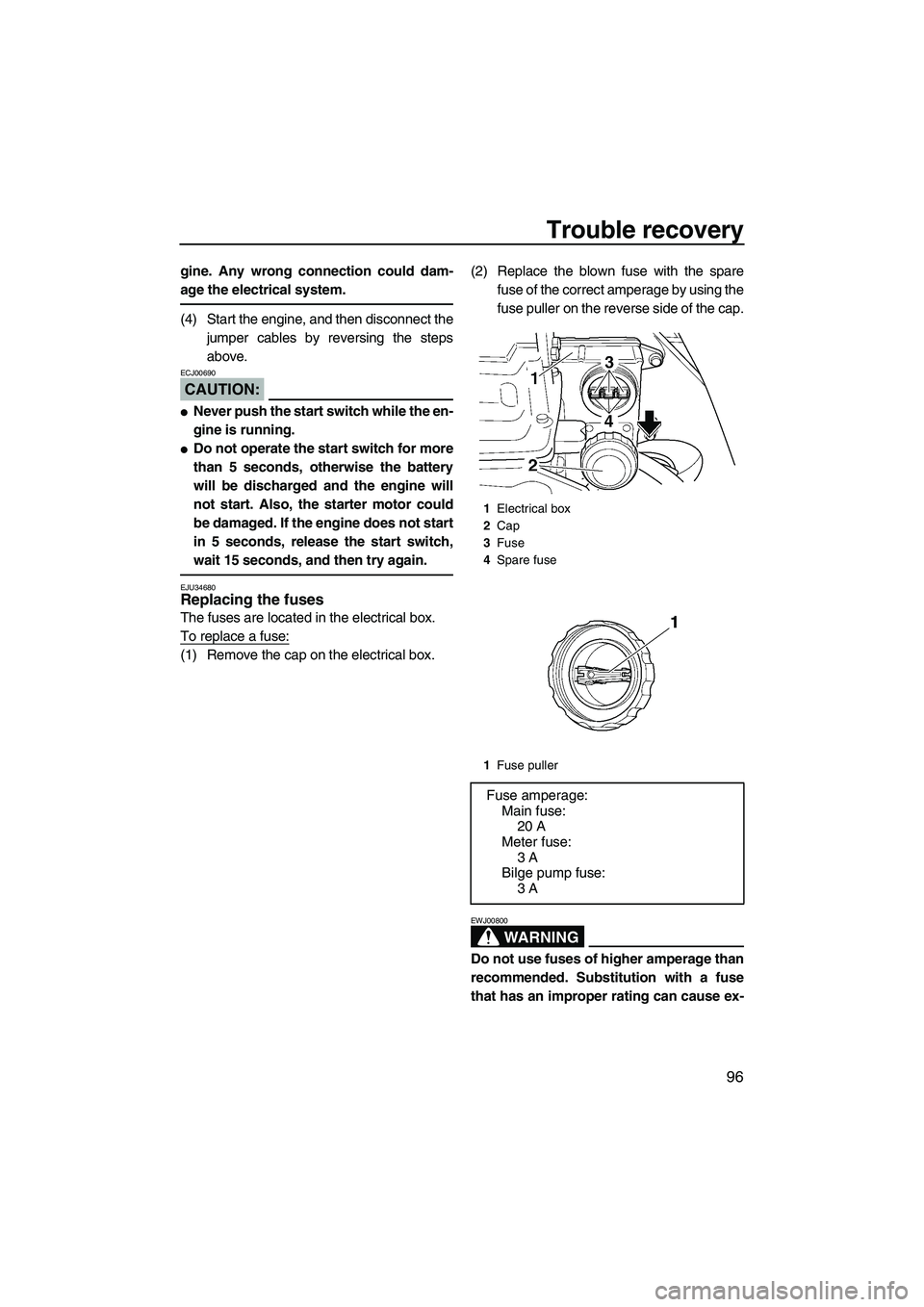

Trouble recovery
96
gine. Any wrong connection could dam-
age the electrical system.
(4) Start the engine, and then disconnect the
jumper cables by reversing the steps
above.
CAUTION:
ECJ00690

Never push the start switch while the en-
gine is running.

Do not operate the start switch for more
than 5 seconds, otherwise the battery
will be discharged and the engine will
not start. Also, the starter motor could
be damaged. If the engine does not start
in 5 seconds, release the start switch,
wait 15 seconds, and then try again.
EJU34680Replacing the fuses
The fuses are located in the electrical box.
To replace a fuse:
(1) Remove the cap on the electrical box.(2) Replace the blown fuse with the spare
fuse of the correct amperage by using the
fuse puller on the reverse side of the cap.
WARNING
EWJ00800
Do not use fuses of higher amperage than
recommended. Substitution with a fuse
that has an improper rating can cause ex-
1Electrical box
2Cap
3Fuse
4Spare fuse
1Fuse puller
Fuse amperage:
Main fuse:
20 A
Meter fuse:
3 A
Bilge pump fuse:
3 A
UF1X71E0.book Page 96 Tuesday, September 26, 2006 9:52 AM

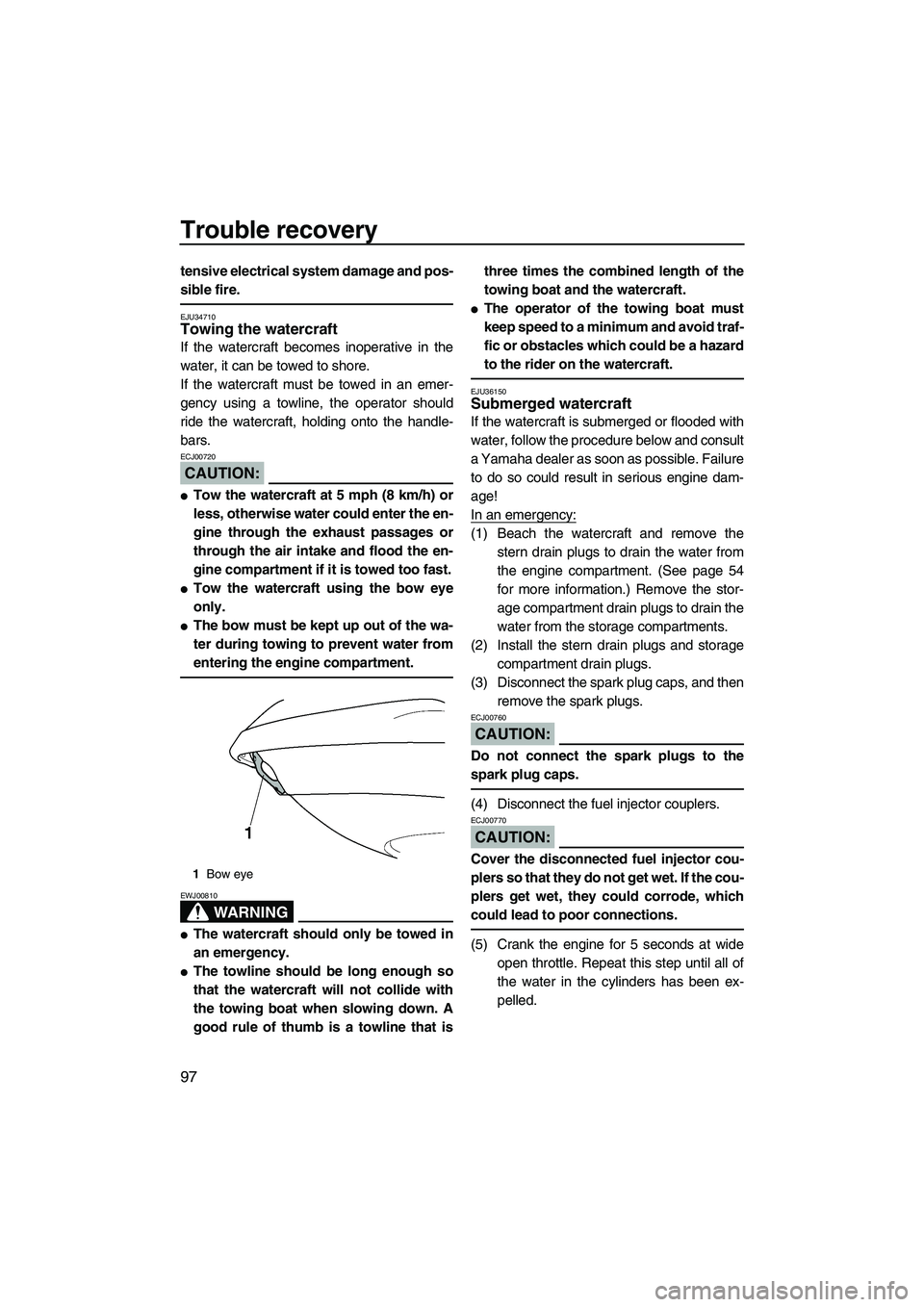

Trouble recovery
97
tensive electrical system damage and pos-
sible fire.
EJU34710Towing the watercraft
If the watercraft becomes inoperative in the
water, it can be towed to shore.
If the watercraft must be towed in an emer-
gency using a towline, the operator should
ride the watercraft, holding onto the handle-
bars.
CAUTION:
ECJ00720

Tow the watercraft at 5 mph (8 km/h) or
less, otherwise water could enter the en-
gine through the exhaust passages or
through the air intake and flood the en-
gine compartment if it is towed too fast.

Tow the watercraft using the bow eye
only.

The bow must be kept up out of the wa-
ter during towing to prevent water from
entering the engine compartment.
WARNING
EWJ00810

The watercraft should only be towed in
an emergency.

The towline should be long enough so
that the watercraft will not collide with
the towing boat when slowing down. A
good rule of thumb is a towline that isthree times the combined length of the
towing boat and the watercraft.

The operator of the towing boat must
keep speed to a minimum and avoid traf-
fic or obstacles which could be a hazard
to the rider on the watercraft.
EJU36150Submerged watercraft
If the watercraft is submerged or flooded with
water, follow the procedure below and consult
a Yamaha dealer as soon as possible. Failure
to do so could result in serious engine dam-
age!
In an emergency:
(1) Beach the watercraft and remove the
stern drain plugs to drain the water from
the engine compartment. (See page 54
for more information.) Remove the stor-
age compartment drain plugs to drain the
water from the storage compartments.
(2) Install the stern drain plugs and storage
compartment drain plugs.
(3) Disconnect the spark plug caps, and then
remove the spark plugs.
CAUTION:
ECJ00760
Do not connect the spark plugs to the
spark plug caps.
(4) Disconnect the fuel injector couplers.
CAUTION:
ECJ00770
Cover the disconnected fuel injector cou-
plers so that they do not get wet. If the cou-
plers get wet, they could corrode, which
could lead to poor connections.
(5) Crank the engine for 5 seconds at wide
open throttle. Repeat this step until all of
the water in the cylinders has been ex-
pelled.
1Bow eye
UF1X71E0.book Page 97 Tuesday, September 26, 2006 9:52 AM

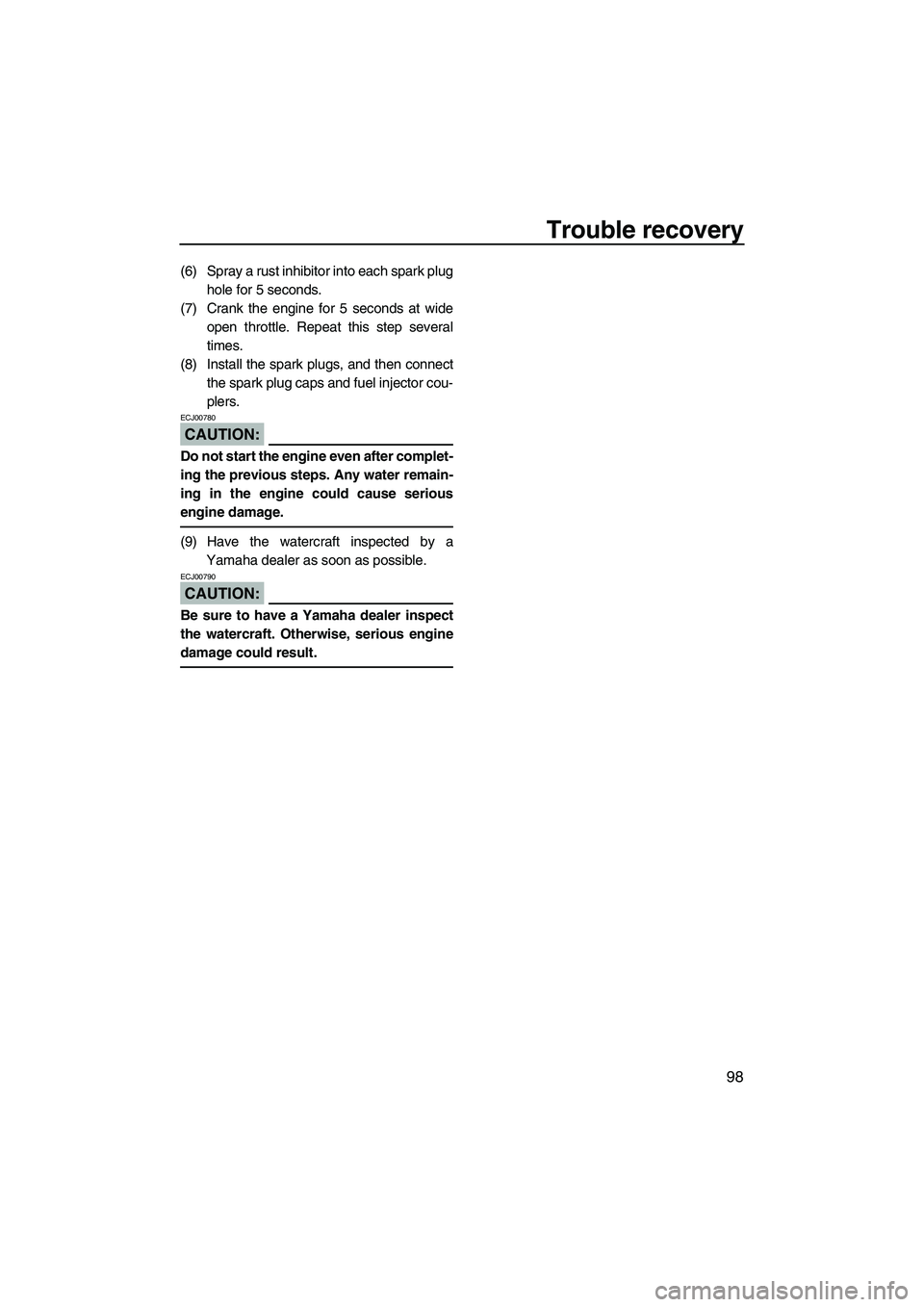

Trouble recovery
98
(6) Spray a rust inhibitor into each spark plug
hole for 5 seconds.
(7) Crank the engine for 5 seconds at wide
open throttle. Repeat this step several
times.
(8) Install the spark plugs, and then connect
the spark plug caps and fuel injector cou-
plers.
CAUTION:
ECJ00780
Do not start the engine even after complet-
ing the previous steps. Any water remain-
ing in the engine could cause serious
engine damage.
(9) Have the watercraft inspected by a
Yamaha dealer as soon as possible.
CAUTION:
ECJ00790
Be sure to have a Yamaha dealer inspect
the watercraft. Otherwise, serious engine
damage could result.
UF1X71E0.book Page 98 Tuesday, September 26, 2006 9:52 AM

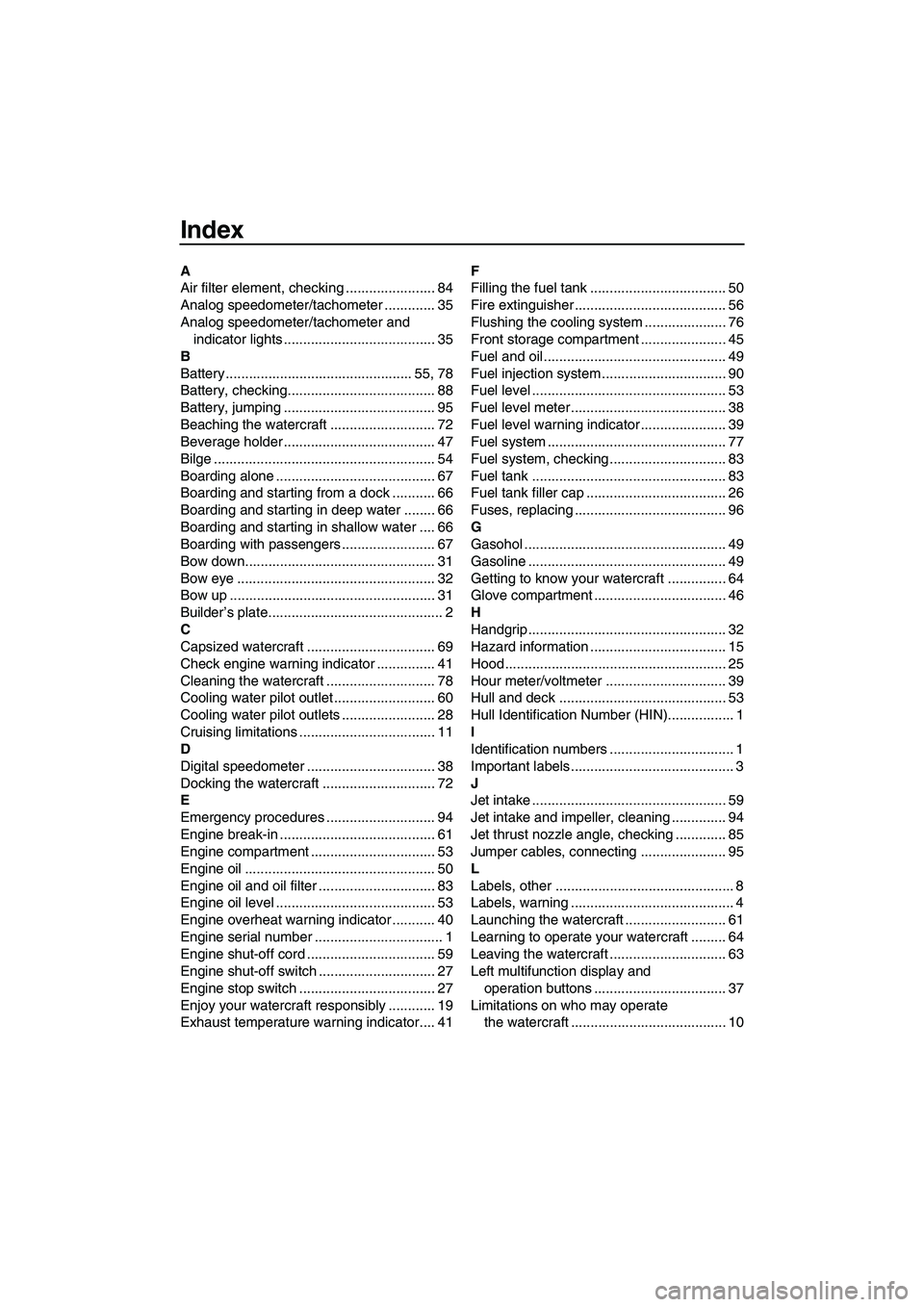

Index
A
Air filter element, checking ....................... 84
Analog speedometer/tachometer ............. 35
Analog speedometer/tachometer and
indicator lights ....................................... 35
B
Battery ................................................ 55, 78
Battery, checking...................................... 88
Battery, jumping ....................................... 95
Beaching the watercraft ........................... 72
Beverage holder ....................................... 47
Bilge ......................................................... 54
Boarding alone ......................................... 67
Boarding and starting from a dock ........... 66
Boarding and starting in deep water ........ 66
Boarding and starting in shallow water .... 66
Boarding with passengers ........................ 67
Bow down................................................. 31
Bow eye ................................................... 32
Bow up ..................................................... 31
Builder’s plate............................................. 2
C
Capsized watercraft ................................. 69
Check engine warning indicator ............... 41
Cleaning the watercraft ............................ 78
Cooling water pilot outlet .......................... 60
Cooling water pilot outlets ........................ 28
Cruising limitations ................................... 11
D
Digital speedometer ................................. 38
Docking the watercraft ............................. 72
E
Emergency procedures ............................ 94
Engine break-in ........................................ 61
Engine compartment ................................ 53
Engine oil ................................................. 50
Engine oil and oil filter .............................. 83
Engine oil level ......................................... 53
Engine overheat warning indicator ........... 40
Engine serial number ................................. 1
Engine shut-off cord ................................. 59
Engine shut-off switch .............................. 27
Engine stop switch ................................... 27
Enjoy your watercraft responsibly ............ 19
Exhaust temperature warning indicator.... 41F
Filling the fuel tank ................................... 50
Fire extinguisher ....................................... 56
Flushing the cooling system ..................... 76
Front storage compartment ...................... 45
Fuel and oil............................................... 49
Fuel injection system ................................ 90
Fuel level .................................................. 53
Fuel level meter ........................................ 38
Fuel level warning indicator ...................... 39
Fuel system .............................................. 77
Fuel system, checking .............................. 83
Fuel tank .................................................. 83
Fuel tank filler cap .................................... 26
Fuses, replacing ....................................... 96
G
Gasohol .................................................... 49
Gasoline ................................................... 49
Getting to know your watercraft ............... 64
Glove compartment .................................. 46
H
Handgrip ................................................... 32
Hazard information ................................... 15
Hood ......................................................... 25
Hour meter/voltmeter ............................... 39
Hull and deck ........................................... 53
Hull Identification Number (HIN)................. 1
I
Identification numbers ................................ 1
Important labels .......................................... 3
J
Jet intake .................................................. 59
Jet intake and impeller, cleaning .............. 94
Jet thrust nozzle angle, checking ............. 85
Jumper cables, connecting ...................... 95
L
Labels, other .............................................. 8
Labels, warning .......................................... 4
Launching the watercraft .......................... 61
Learning to operate your watercraft ......... 64
Leaving the watercraft .............................. 63
Left multifunction display and
operation buttons .................................. 37
Limitations on who may operate
the watercraft ........................................ 10
UF1X71E0.book Page 1 Tuesday, September 26, 2006 9:52 AM

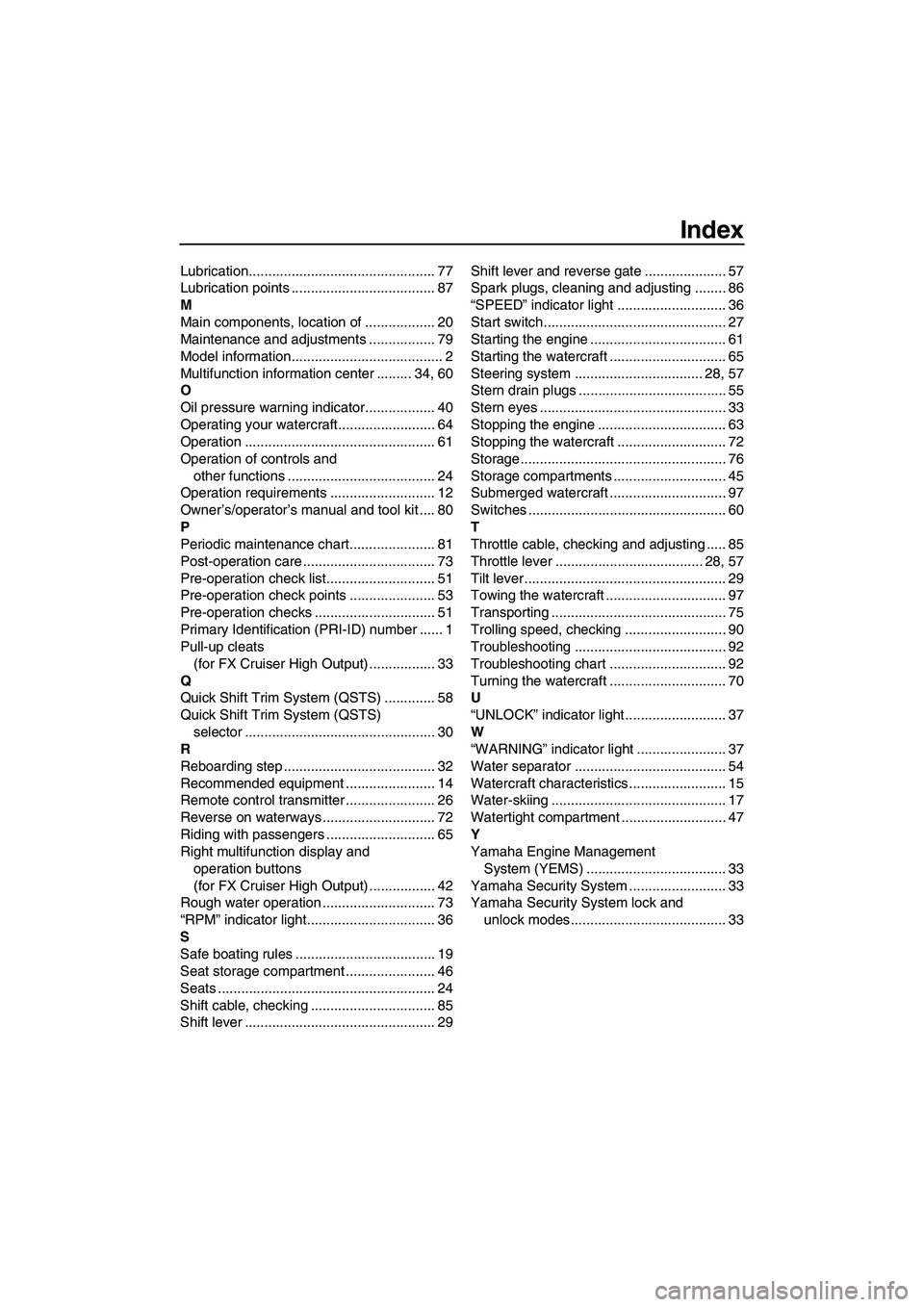

Index
Lubrication................................................ 77
Lubrication points ..................................... 87
M
Main components, location of .................. 20
Maintenance and adjustments ................. 79
Model information....................................... 2
Multifunction information center ......... 34, 60
O
Oil pressure warning indicator.................. 40
Operating your watercraft......................... 64
Operation ................................................. 61
Operation of controls and
other functions ...................................... 24
Operation requirements ........................... 12
Owner’s/operator’s manual and tool kit .... 80
P
Periodic maintenance chart...................... 81
Post-operation care .................................. 73
Pre-operation check list............................ 51
Pre-operation check points ...................... 53
Pre-operation checks ............................... 51
Primary Identification (PRI-ID) number ...... 1
Pull-up cleats
(for FX Cruiser High Output) ................. 33
Q
Quick Shift Trim System (QSTS) ............. 58
Quick Shift Trim System (QSTS)
selector ................................................. 30
R
Reboarding step ....................................... 32
Recommended equipment ....................... 14
Remote control transmitter ....................... 26
Reverse on waterways ............................. 72
Riding with passengers ............................ 65
Right multifunction display and
operation buttons
(for FX Cruiser High Output) ................. 42
Rough water operation ............................. 73
“RPM” indicator light................................. 36
S
Safe boating rules .................................... 19
Seat storage compartment ....................... 46
Seats ........................................................ 24
Shift cable, checking ................................ 85
Shift lever ................................................. 29Shift lever and reverse gate ..................... 57
Spark plugs, cleaning and adjusting ........ 86
“SPEED” indicator light ............................ 36
Start switch............................................... 27
Starting the engine ................................... 61
Starting the watercraft .............................. 65
Steering system ................................. 28, 57
Stern drain plugs ...................................... 55
Stern eyes ................................................ 33
Stopping the engine ................................. 63
Stopping the watercraft ............................ 72
Storage..................................................... 76
Storage compartments ............................. 45
Submerged watercraft .............................. 97
Switches ................................................... 60
T
Throttle cable, checking and adjusting ..... 85
Throttle lever ...................................... 28, 57
Tilt lever .................................................... 29
Towing the watercraft ............................... 97
Transporting ............................................. 75
Trolling speed, checking .......................... 90
Troubleshooting ....................................... 92
Troubleshooting chart .............................. 92
Turning the watercraft .............................. 70
U
“UNLOCK” indicator light .......................... 37
W
“WARNING” indicator light ....................... 37
Water separator ....................................... 54
Watercraft characteristics ......................... 15
Water-skiing ............................................. 17
Watertight compartment ........................... 47
Y
Yamaha Engine Management
System (YEMS) .................................... 33
Yamaha Security System ......................... 33
Yamaha Security System lock and
unlock modes........................................ 33
UF1X71E0.book Page 2 Tuesday, September 26, 2006 9:52 AM

YAMAHA MOTOR CO., LTD.
Printed in USA
October 2006–0.5 × 1 CR
UF1X71E0.book Page 1 Tuesday, September 26, 2006 9:52 AM
