Trouble recovery
95
EJU34620

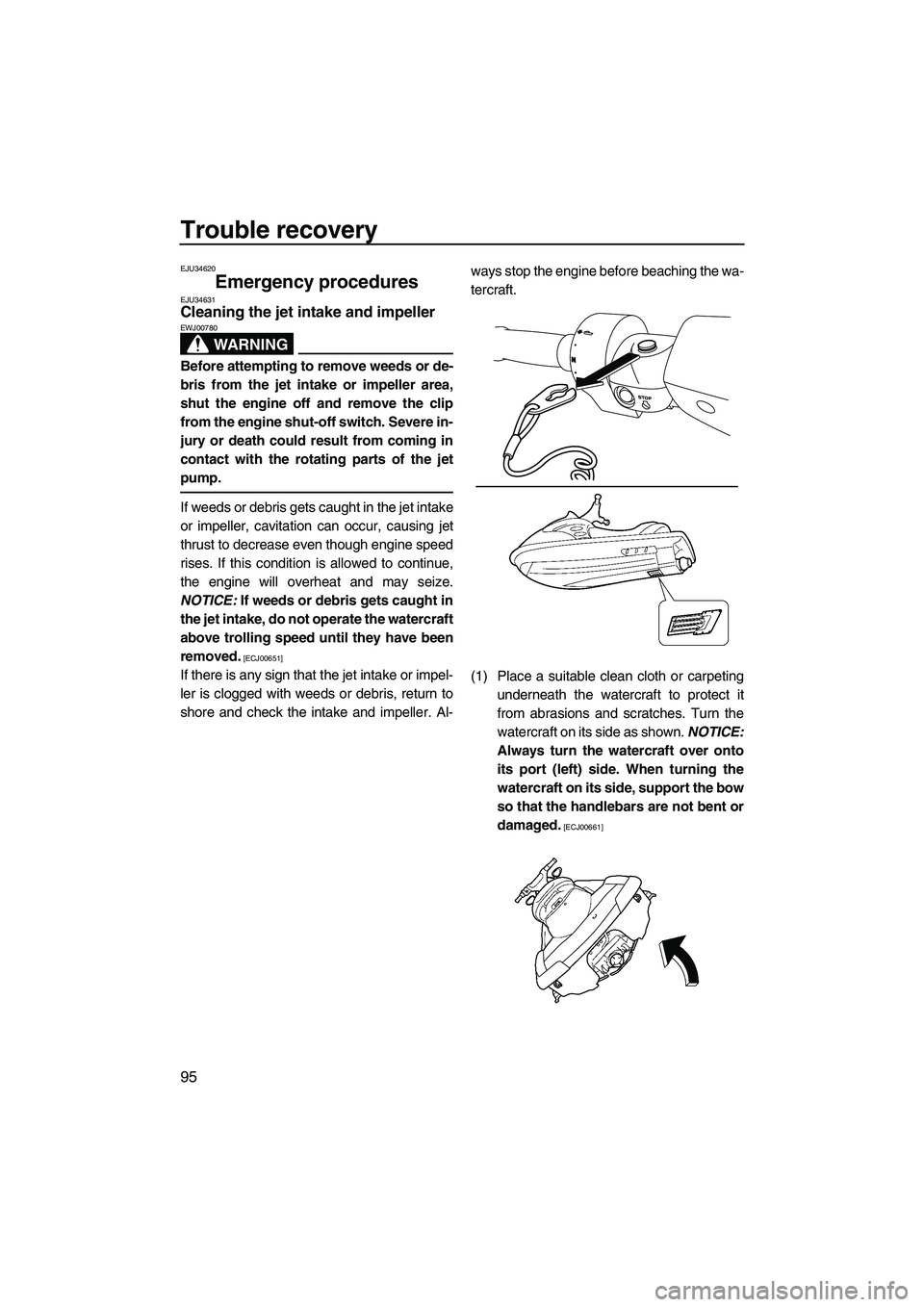

Emergency procedures EJU34631Cleaning the jet intake and impeller
WARNING
EWJ00780
Before attempting to remove weeds or de-
bris from the jet intake or impeller area,
shut the engine off and remove the clip
from the engine shut-off switch. Severe in-
jury or death could result from coming in
contact with the rotating parts of the jet
pump.
If weeds or debris gets caught in the jet intake
or impeller, cavitation can occur, causing jet
thrust to decrease even though engine speed
rises. If this condition is allowed to continue,
the engine will overheat and may seize.
NOTICE: If weeds or debris gets caught in
the jet intake, do not operate the watercraft
above trolling speed until they have been
removed.
[ECJ00651]
If there is any sign that the jet intake or impel-
ler is clogged with weeds or debris, return to
shore and check the intake and impeller. Al-ways stop the engine before beaching the wa-
tercraft.
(1) Place a suitable clean cloth or carpeting
underneath the watercraft to protect it
from abrasions and scratches. Turn the
watercraft on its side as shown. NOTICE:
Always turn the watercraft over onto
its port (left) side. When turning the
watercraft on its side, support the bow
so that the handlebars are not bent or
damaged.
[ECJ00661]
UF1W71E0.book Page 95 Tuesday, June 24, 2008 11:46 AM

Index
A
Air filter element ....................................... 83
Analog speedometer/tachometer ............. 40
Analog speedometer/tachometer and
indicator lights ....................................... 40
B
Battery ................................................ 58, 79
Battery, checking...................................... 89
Battery, jumping ....................................... 96
Beaching the watercraft ........................... 75
Beverage holder ....................................... 51
Bilge ......................................................... 58
Boarding alone ......................................... 70
Boarding and starting from a dock ........... 69
Boarding and starting in deep water ........ 69
Boarding and starting in shallow water .... 69
Boarding with passengers ........................ 70
Bow down................................................. 32
Bow eye ................................................... 33
Bow up ..................................................... 32
Builder’s plate............................................. 2
C
Capsized watercraft ................................. 72
Check engine warning indicator ............... 45
Cleaning the watercraft ............................ 79
Cooling water pilot outlets .................. 29, 63
Craft Identification Number (CIN) ............... 1
Cruise assist............................................. 37
Cruising limitations ................................... 11
D
Digital speedometer ................................. 43
Docking the watercraft ............................. 75
E
Emergency procedures ............................ 95
Engine break-in ........................................ 64
Engine compartment ................................ 56
Engine oil ................................................. 53
Engine oil and oil filter .............................. 83
Engine oil level ......................................... 56
Engine overheat warning indicator ........... 45
Engine serial number ................................. 1
Engine shut-off cord (lanyard) .................. 62
Engine shut-off switch .............................. 27
Engine stop switch ................................... 27
Enjoy your watercraft responsibly ............ 19F
Fire extinguisher ....................................... 59
Flushing the cooling system ..................... 78
Front storage compartment ...................... 49
Fuel .......................................................... 52
Fuel and oil............................................... 52
Fuel injection system ................................ 90
Fuel level .................................................. 56
Fuel level meter ........................................ 43
Fuel level warning indicator ...................... 44
Fuel system, checking .............................. 83
Fuel tank .................................................. 83
Fuel tank filler cap .................................... 26
Fuses, replacing ....................................... 96
G
Getting to know your watercraft ............... 67
Glove compartment .................................. 50
H
Handgrip ................................................... 33
Hazard information ................................... 15
Hood ......................................................... 26
Hour meter/voltmeter ............................... 44
Hull and deck ........................................... 56
I
Identification numbers ................................ 1
J
Jet intake .................................................. 62
Jet intake and impeller, cleaning .............. 95
Jet thrust nozzle angle, checking ............. 83
Jumper cables, connecting ...................... 96
L
Labels, important ........................................ 3
Labels, other .............................................. 8
Labels, warning .......................................... 4
Launching the watercraft .......................... 64
Learning to operate your watercraft ......... 67
Leaving the watercraft .............................. 66
Left multifunction display and operation
buttons .................................................. 42
Limitations on who may operate the
watercraft .............................................. 10
“L-MODE” indicator light ........................... 42
Lubrication................................................ 79
Lubrication points ..................................... 87
UF1W71E0.book Page 1 Tuesday, June 24, 2008 11:46 AM

Index
M
Main components, location of .................. 21
Maintenance and adjustments ................. 80
Model information....................................... 2
Multifunction information center ......... 39, 63
N
No-wake mode ......................................... 36
“NO-WAKE MODE” switch ....................... 29
O
Oil pressure warning indicator.................. 44
Operating in weeded areas ...................... 76
Operating your watercraft......................... 67
Operation ................................................. 64
Operation of controls and other
functions ............................................... 25
Operation requirements ........................... 12
Owner’s/operator’s manual and tool kit .... 80
P
Periodic maintenance chart...................... 81
Post-operation care .................................. 76
Pre-operation check list............................ 54
Pre-operation check points ...................... 56
Pre-operation checks ............................... 54
Primary Identification (PRI-ID) number ...... 1
Pull-up cleats (for FX Cruiser SHO) ......... 34
Q
Quick Shift Trim System (QSTS) ............. 61
Quick Shift Trim System (QSTS)
selector ................................................. 31
R
Reboarding step ....................................... 33
Recommended equipment ....................... 14
Remote control transmitter ....................... 26
Reverse on waterways ............................. 75
Riding with passengers ............................ 68
Right multifunction display and operation
buttons (for FX Cruiser SHO) ............... 46
“RPM” indicator light................................. 41
S
Safe boating rules .................................... 19
Seat storage compartment ....................... 50
Seats ........................................................ 25
Selecting the operation mode .................. 36
“SET” switch ............................................. 29
Shift cable, checking ................................ 84Shift lever ................................................. 31
Shift lever and reverse gate ..................... 60
Shifting ..................................................... 66
Spark plugs, cleaning and adjusting ........ 86
“SPEED” indicator light ............................ 41
Start switch............................................... 28
Starting the engine ................................... 64
Starting the watercraft .............................. 68
Steering system ................................. 30, 60
Stern drain plugs ...................................... 58
Stern eyes ................................................ 34
Stopping the engine ................................. 65
Stopping the watercraft ............................ 74
Storage..................................................... 78
Storage compartments ............................. 49
Submerged watercraft .............................. 98
Switches ................................................... 62
Switches, right handlebar ......................... 28
T
Throttle cable, checking and adjusting ..... 84
Throttle lever ...................................... 29, 59
Tilt lever .................................................... 30
Towing the watercraft ............................... 98
Transporting ............................................. 77
Trolling speed, checking .......................... 90
Troubleshooting ....................................... 92
Troubleshooting chart .............................. 92
Turning the watercraft .............................. 73
U
“UNLOCK” indicator light .......................... 42
Up and down switches ............................. 29
W
“WARNING” indicator light ....................... 42
Water separator ....................................... 57
Watercraft characteristics ......................... 15
Water-skiing ............................................. 17
Watertight compartment ........................... 51
Y
Yamaha Engine Management System
(YEMS) ................................................. 34
Yamaha Security System ......................... 34
Yamaha Security System settings ........... 35
