battery YAMAHA FX SHO 2009 Owners Manual

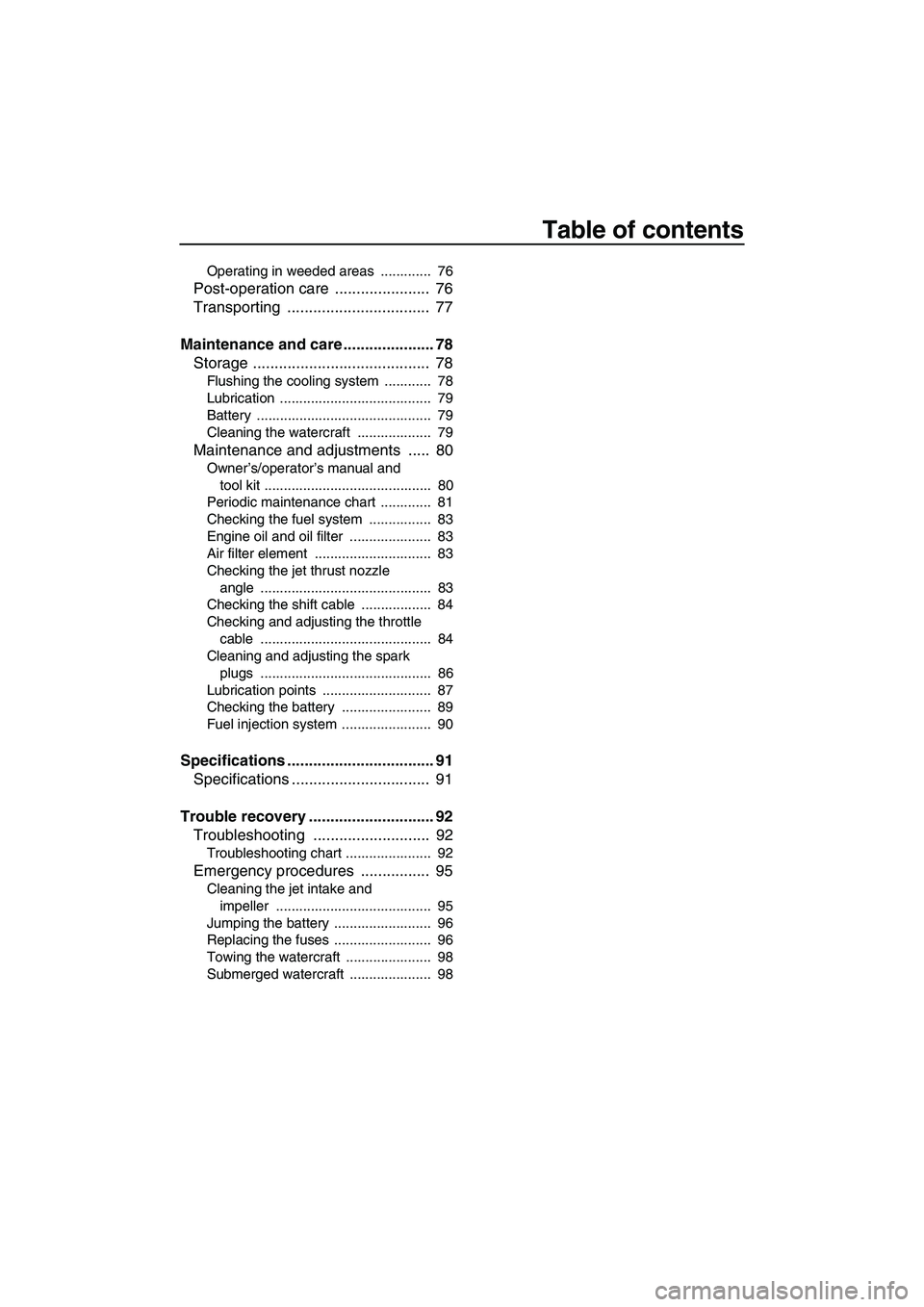

Table of contents
Operating in weeded areas ............. 76
Post-operation care ...................... 76
Transporting ................................. 77
Maintenance and care ..................... 78
Storage ......................................... 78
Flushing the cooling system ............ 78
Lubrication ....................................... 79
Battery ............................................. 79
Cleaning the watercraft ................... 79
Maintenance and adjustments ..... 80
Owner’s/operator’s manual and
tool kit ........................................... 80

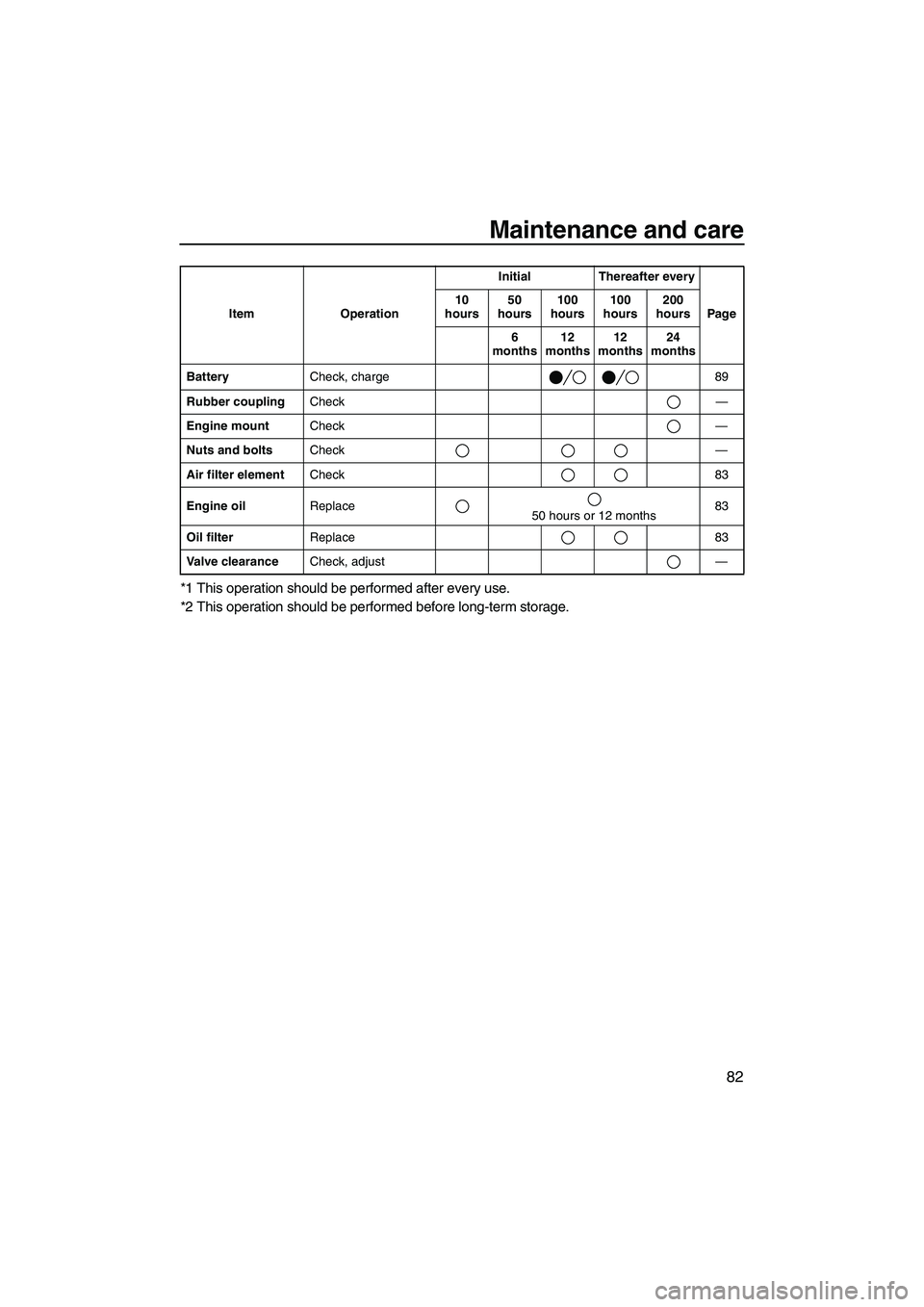

Periodic maintenance chart ............. 81
Checking the fuel system ................ 83
Engine oil and oil filter ..................... 83
Air filter element .............................. 83
Checking the jet thrust nozzle
angle ............................................ 83
Checking the shift cable .................. 84
Checking and adjusting the throttle
cable ............................................ 84
Cleaning and adjusting the spark
plugs ............................................ 86
Lubrication points ............................ 87
Checking the battery ....................... 89
Fuel injection system ....................... 90
Specifications .................................. 91
Specifications ................................ 91
Trouble recovery ............................. 92
Troubleshooting ........................... 92
Troubleshooting chart ...................... 92
Emergency procedures ................ 95
Cleaning the jet intake and
impeller ........................................ 95
Jumping the battery ......................... 96
Replacing the fuses ......................... 96
Towing the watercraft ...................... 98
Submerged watercraft ..................... 98
UF1W71E0.book Page 2 Tuesday, June 24, 2008 11:46 AM

Features and functions
24

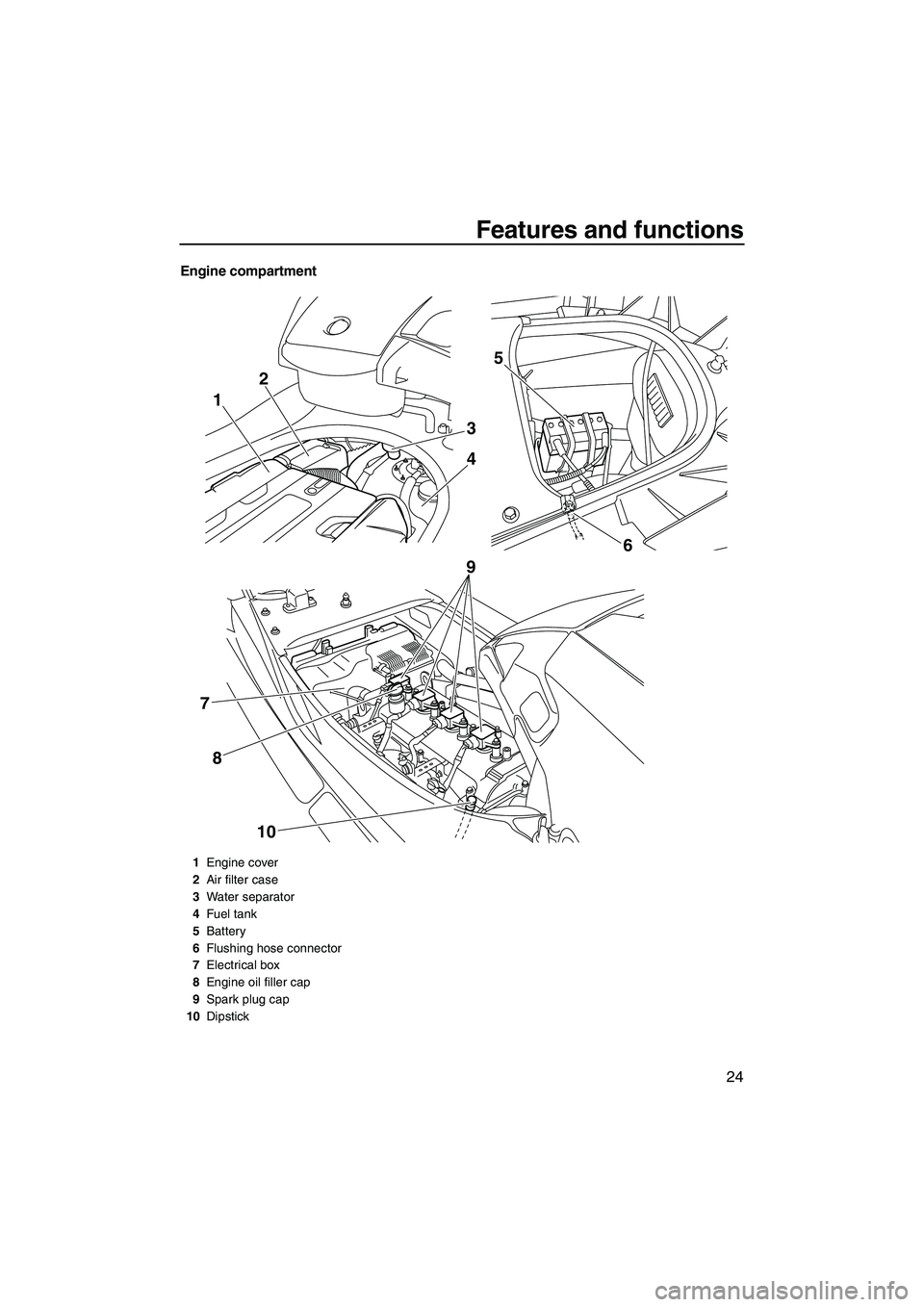

Engine compartment
1
3
6 4 25
10 8 79
1Engine cover
2Air filter case
3Water separator
4Fuel tank
5Battery
6Flushing hose connector
7Electrical box
8Engine oil filler cap
9Spark plug cap
10Dipstick
UF1W71E0.book Page 24 Tuesday, June 24, 2008 11:46 AM

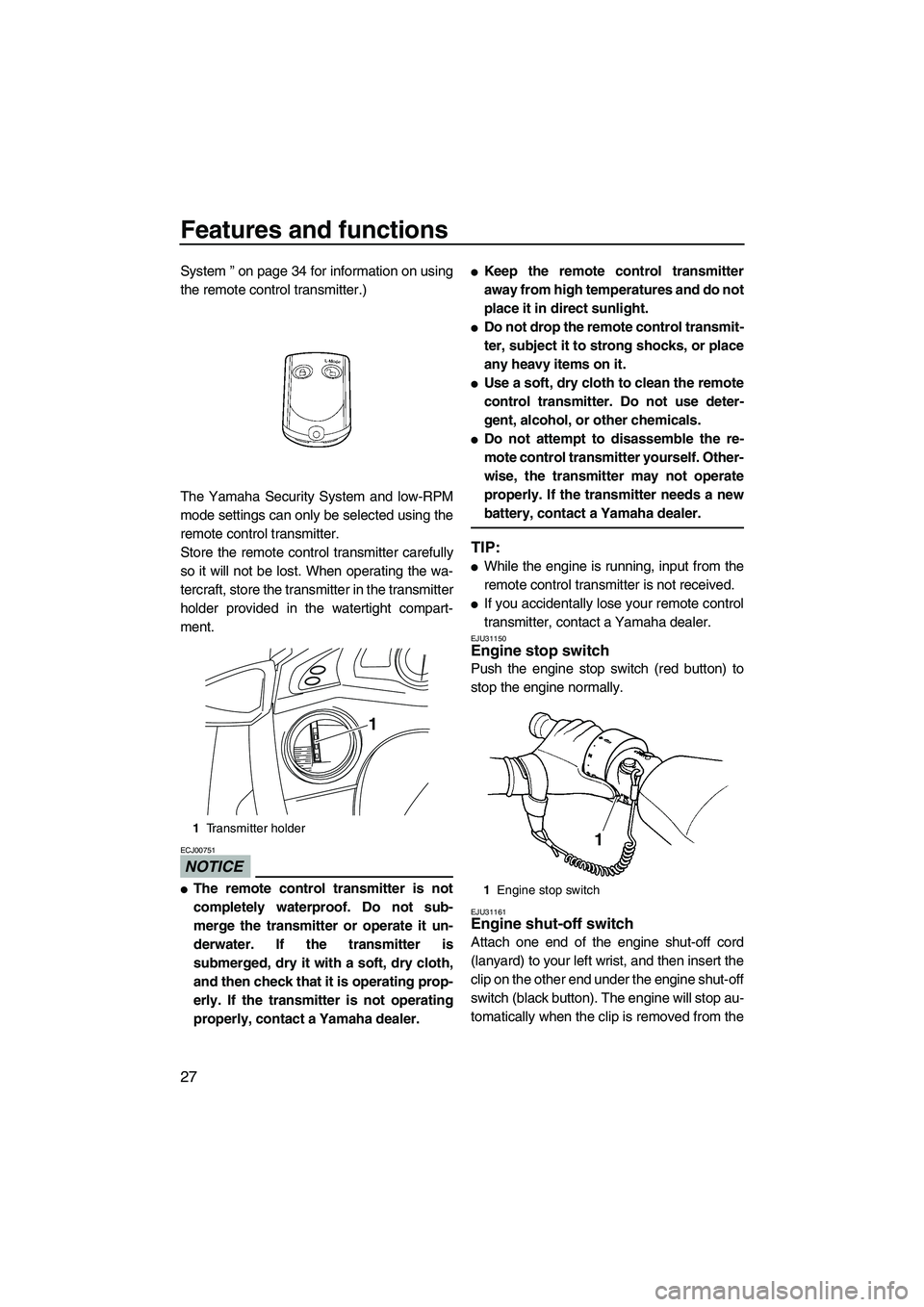

Features and functions
27
System ” on page 34 for information on using
the remote control transmitter.)
The Yamaha Security System and low-RPM
mode settings can only be selected using the
remote control transmitter.
Store the remote control transmitter carefully
so it will not be lost. When operating the wa-
tercraft, store the transmitter in the transmitter
holder provided in the watertight compart-
ment.
NOTICE
ECJ00751

The remote control transmitter is not
completely waterproof. Do not sub-
merge the transmitter or operate it un-
derwater. If the transmitter is
submerged, dry it with a soft, dry cloth,
and then check that it is operating prop-
erly. If the transmitter is not operating
properly, contact a Yamaha dealer.

Keep the remote control transmitter
away from high temperatures and do not
place it in direct sunlight.

Do not drop the remote control transmit-
ter, subject it to strong shocks, or place
any heavy items on it.

Use a soft, dry cloth to clean the remote
control transmitter. Do not use deter-
gent, alcohol, or other chemicals.

Do not attempt to disassemble the re-
mote control transmitter yourself. Other-
wise, the transmitter may not operate
properly. If the transmitter needs a new
battery, contact a Yamaha dealer.
TIP:

While the engine is running, input from the
remote control transmitter is not received.

If you accidentally lose your remote control
transmitter, contact a Yamaha dealer.
EJU31150Engine stop switch
Push the engine stop switch (red button) to
stop the engine normally.
EJU31161Engine shut-off switch
Attach one end of the engine shut-off cord
(lanyard) to your left wrist, and then insert the
clip on the other end under the engine shut-off
switch (black button). The engine will stop au-
tomatically when the clip is removed from the
1Transmitter holder
1
1Engine stop switch
1
UF1W71E0.book Page 27 Tuesday, June 24, 2008 11:46 AM

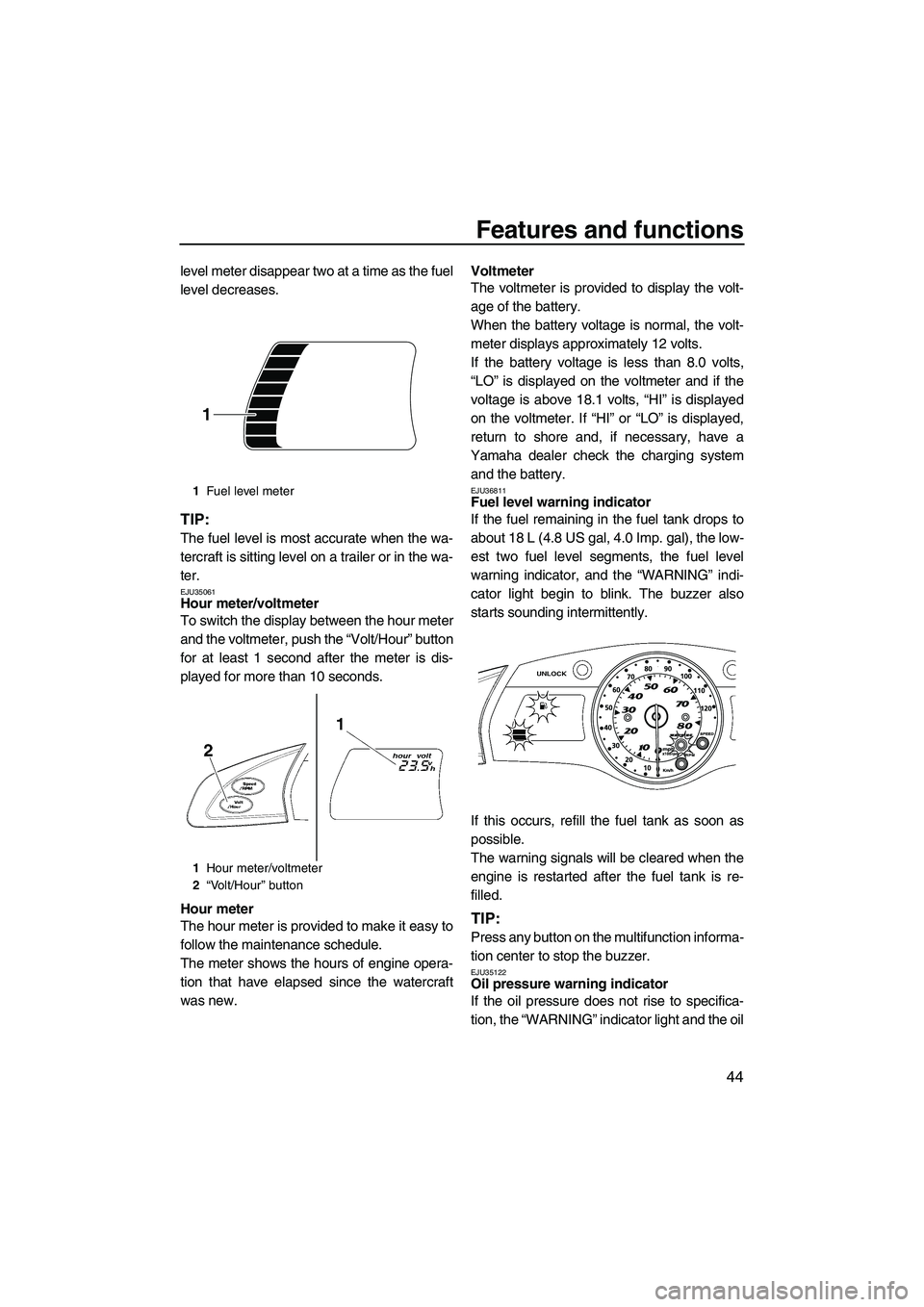

Features and functions
44
level meter disappear two at a time as the fuel
level decreases.
TIP:
The fuel level is most accurate when the wa-
tercraft is sitting level on a trailer or in the wa-
ter.
EJU35061Hour meter/voltmeter
To switch the display between the hour meter
and the voltmeter, push the “Volt/Hour” button
for at least 1 second after the meter is dis-
played for more than 10 seconds.
Hour meter
The hour meter is provided to make it easy to
follow the maintenance schedule.
The meter shows the hours of engine opera-
tion that have elapsed since the watercraft
was new.Voltmeter
The voltmeter is provided to display the volt-
age of the battery.
When the battery voltage is normal, the volt-
meter displays approximately 12 volts.
If the battery voltage is less than 8.0 volts,
“LO” is displayed on the voltmeter and if the
voltage is above 18.1 volts, “HI” is displayed
on the voltmeter. If “HI” or “LO” is displayed,
return to shore and, if necessary, have a
Yamaha dealer check the charging system
and the battery.
EJU36811Fuel level warning indicator
If the fuel remaining in the fuel tank drops to
about 18 L (4.8 US gal, 4.0 Imp. gal), the low-
est two fuel level segments, the fuel level
warning indicator, and the “WARNING” indi-
cator light begin to blink. The buzzer also
starts sounding intermittently.
If this occurs, refill the fuel tank as soon as
possible.
The warning signals will be cleared when the
engine is restarted after the fuel tank is re-
filled.
TIP:
Press any button on the multifunction informa-
tion center to stop the buzzer.
EJU35122Oil pressure warning indicator
If the oil pressure does not rise to specifica-
tion, the “WARNING” indicator light and the oil
1Fuel level meter
1Hour meter/voltmeter
2“Volt/Hour” button
1
UF1W71E0.book Page 44 Tuesday, June 24, 2008 11:46 AM

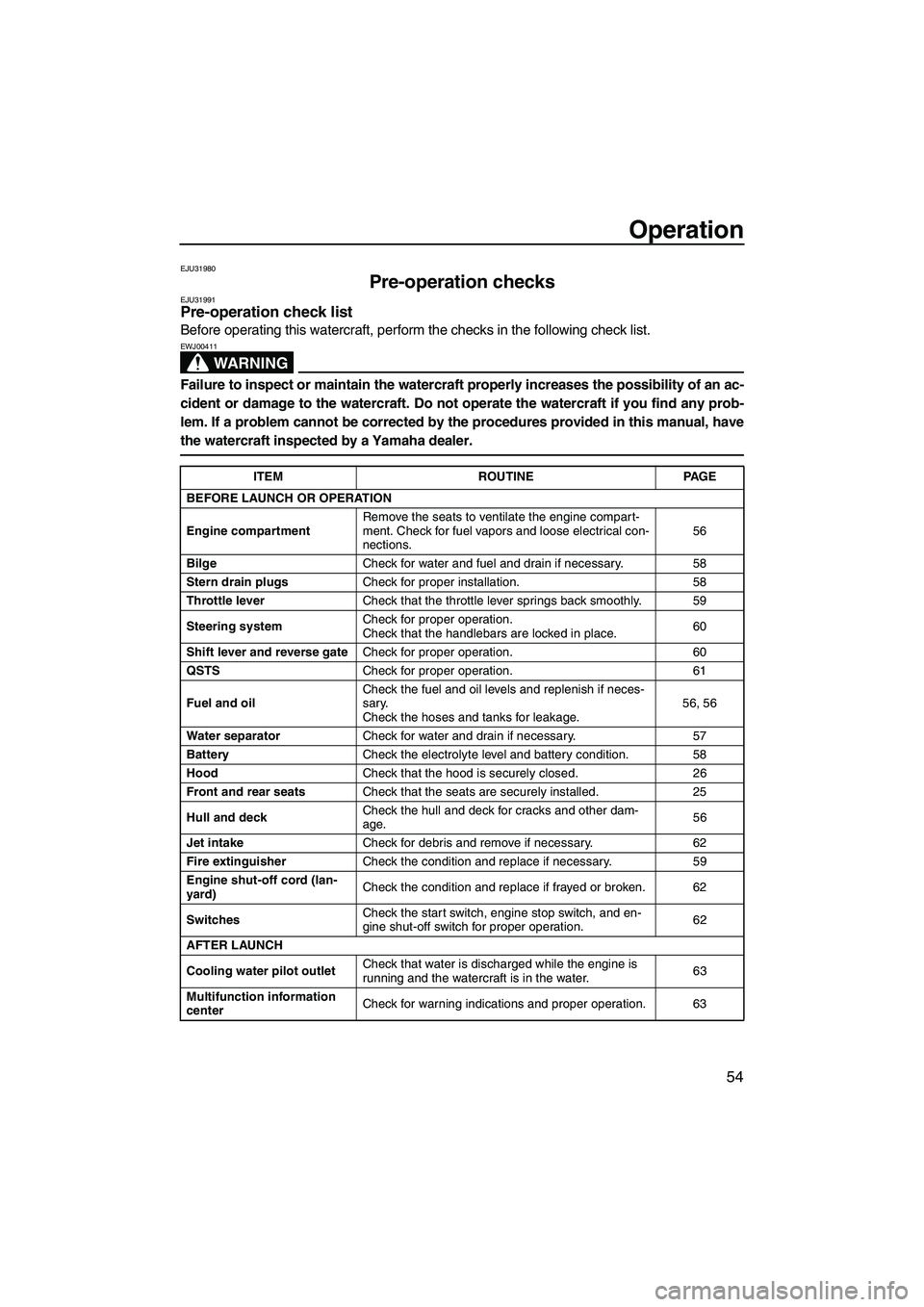

Operation
54
EJU31980
Pre-operation checks EJU31991Pre-operation check list
Before operating this watercraft, perform the checks in the following check list.
WARNING
EWJ00411
Failure to inspect or maintain the watercraft properly increases the possibility of an ac-
cident or damage to the watercraft. Do not operate the watercraft if you find any prob-
lem. If a problem cannot be corrected by the procedures provided in this manual, have
the watercraft inspected by a Yamaha dealer.
ITEM ROUTINE PAGE
BEFORE LAUNCH OR OPERATION
Engine compartmentRemove the seats to ventilate the engine compart-
ment. Check for fuel vapors and loose electrical con-
nections.56
BilgeCheck for water and fuel and drain if necessary. 58
Stern drain plugsCheck for proper installation. 58
Throttle leverCheck that the throttle lever springs back smoothly. 59
Steering systemCheck for proper operation.
Check that the handlebars are locked in place.60
Shift lever and reverse gateCheck for proper operation. 60
QSTSCheck for proper operation. 61
Fuel and oilCheck the fuel and oil levels and replenish if neces-
sary.
Check the hoses and tanks for leakage.56, 56
Water separatorCheck for water and drain if necessary. 57
BatteryCheck the electrolyte level and battery condition. 58
HoodCheck that the hood is securely closed. 26
Front and rear seatsCheck that the seats are securely installed. 25
Hull and deckCheck the hull and deck for cracks and other dam-
age.56
Jet intakeCheck for debris and remove if necessary. 62
Fire extinguisherCheck the condition and replace if necessary. 59
Engine shut-off cord (lan-
yard)Check the condition and replace if frayed or broken. 62
SwitchesCheck the start switch, engine stop switch, and en-
gine shut-off switch for proper operation.62
AFTER LAUNCH
Cooling water pilot outletCheck that water is discharged while the engine is
running and the watercraft is in the water.63
Multifunction information
centerCheck for warning indications and proper operation. 63
UF1W71E0.book Page 54 Tuesday, June 24, 2008 11:46 AM

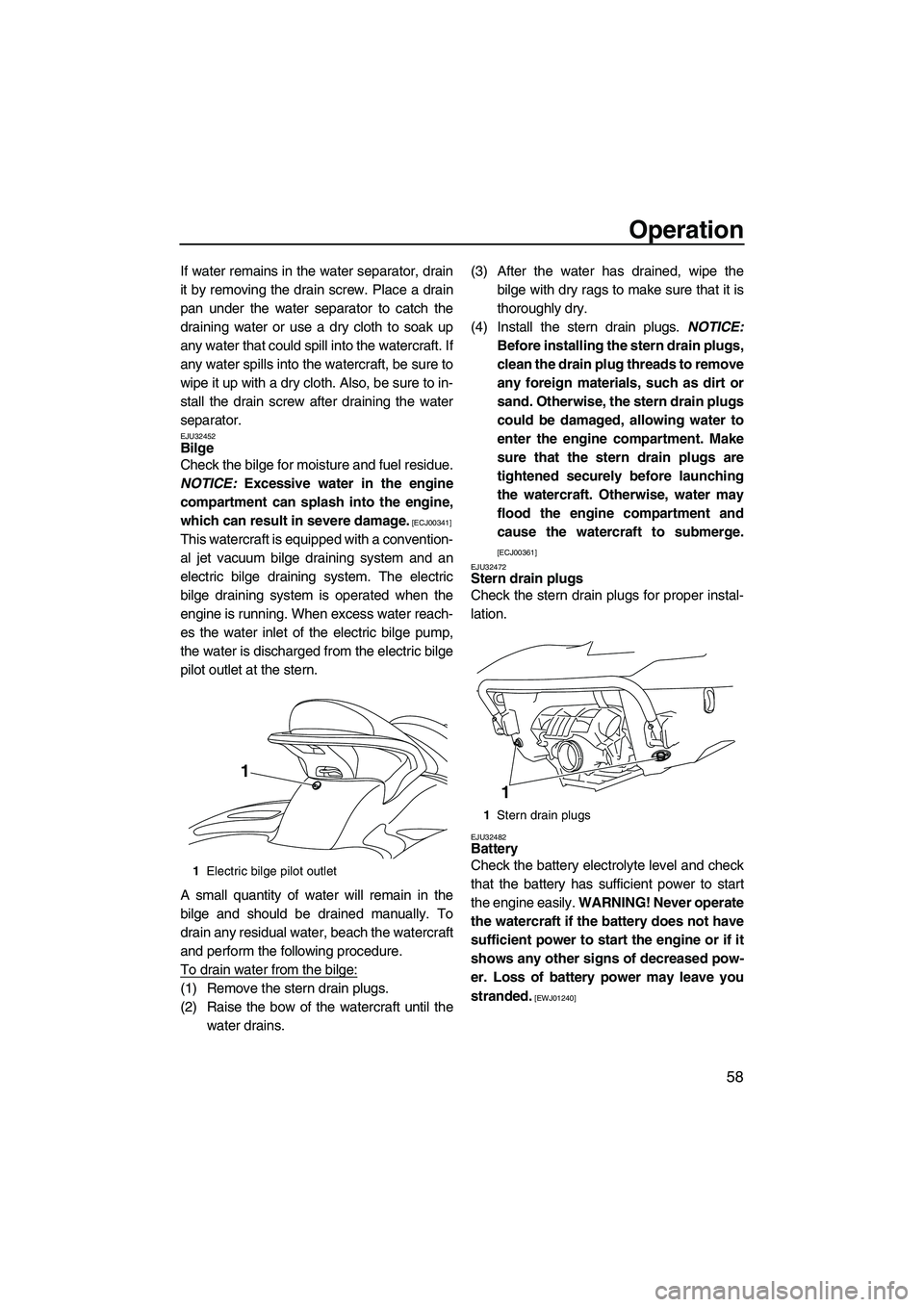

Operation
58
If water remains in the water separator, drain
it by removing the drain screw. Place a drain
pan under the water separator to catch the
draining water or use a dry cloth to soak up
any water that could spill into the watercraft. If
any water spills into the watercraft, be sure to
wipe it up with a dry cloth. Also, be sure to in-
stall the drain screw after draining the water
separator.
EJU32452Bilge
Check the bilge for moisture and fuel residue.
NOTICE: Excessive water in the engine
compartment can splash into the engine,
which can result in severe damage.
[ECJ00341]
This watercraft is equipped with a convention-
al jet vacuum bilge draining system and an
electric bilge draining system. The electric
bilge draining system is operated when the
engine is running. When excess water reach-
es the water inlet of the electric bilge pump,
the water is discharged from the electric bilge
pilot outlet at the stern.
A small quantity of water will remain in the
bilge and should be drained manually. To
drain any residual water, beach the watercraft
and perform the following procedure.
To drain water from the bilge:
(1) Remove the stern drain plugs.
(2) Raise the bow of the watercraft until the
water drains.(3) After the water has drained, wipe the
bilge with dry rags to make sure that it is
thoroughly dry.
(4) Install the stern drain plugs. NOTICE:
Before installing the stern drain plugs,
clean the drain plug threads to remove
any foreign materials, such as dirt or
sand. Otherwise, the stern drain plugs
could be damaged, allowing water to
enter the engine compartment. Make
sure that the stern drain plugs are
tightened securely before launching
the watercraft. Otherwise, water may
flood the engine compartment and
cause the watercraft to submerge.
[ECJ00361]
EJU32472
Stern drain plugs
Check the stern drain plugs for proper instal-
lation.
EJU32482Battery
Check the battery electrolyte level and check
that the battery has sufficient power to start
the engine easily. WARNING! Never operate
the watercraft if the battery does not have
sufficient power to start the engine or if it
shows any other signs of decreased pow-
er. Loss of battery power may leave you
stranded.
[EWJ01240]
1Electric bilge pilot outlet
1
1Stern drain plugs
1
UF1W71E0.book Page 58 Tuesday, June 24, 2008 11:46 AM

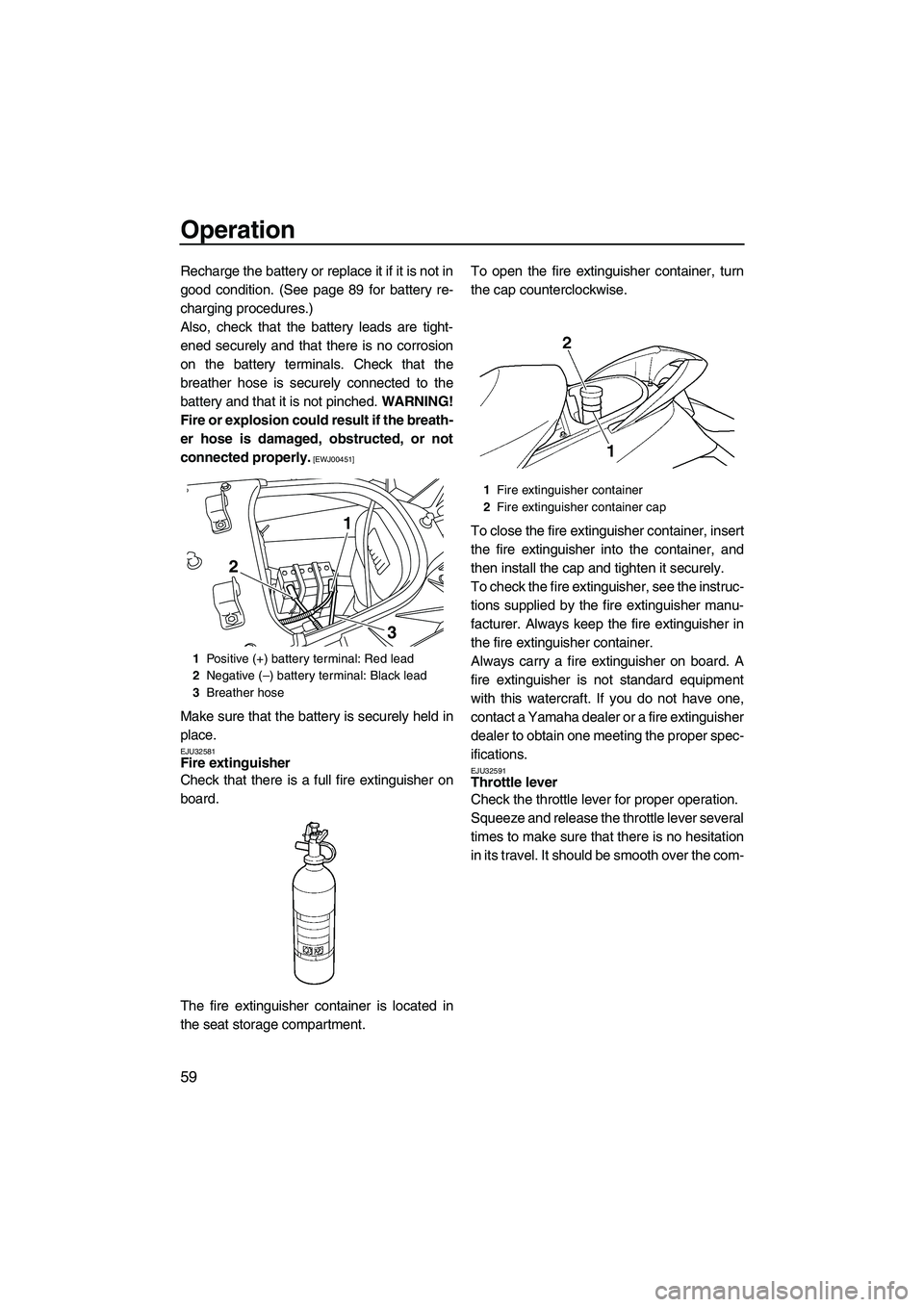

Operation
59
Recharge the battery or replace it if it is not in
good condition. (See page 89 for battery re-
charging procedures.)
Also, check that the battery leads are tight-
ened securely and that there is no corrosion
on the battery terminals. Check that the
breather hose is securely connected to the
battery and that it is not pinched. WARNING!
Fire or explosion could result if the breath-
er hose is damaged, obstructed, or not
connected properly.
[EWJ00451]
Make sure that the battery is securely held in
place.
EJU32581Fire extinguisher
Check that there is a full fire extinguisher on
board.
The fire extinguisher container is located in
the seat storage compartment.To open the fire extinguisher container, turn
the cap counterclockwise.
To close the fire extinguisher container, insert
the fire extinguisher into the container, and
then install the cap and tighten it securely.
To check the fire extinguisher, see the instruc-
tions supplied by the fire extinguisher manu-
facturer. Always keep the fire extinguisher in
the fire extinguisher container.
Always carry a fire extinguisher on board. A
fire extinguisher is not standard equipment
with this watercraft. If you do not have one,
contact a Yamaha dealer or a fire extinguisher
dealer to obtain one meeting the proper spec-
ifications.EJU32591Throttle lever
Check the throttle lever for proper operation.
Squeeze and release the throttle lever several
times to make sure that there is no hesitation
in its travel. It should be smooth over the com-
1Positive (+) battery terminal: Red lead
2Negative (–) battery terminal: Black lead
3Breather hose
3
1
2
1Fire extinguisher container
2Fire extinguisher container cap
UF1W71E0.book Page 59 Tuesday, June 24, 2008 11:46 AM

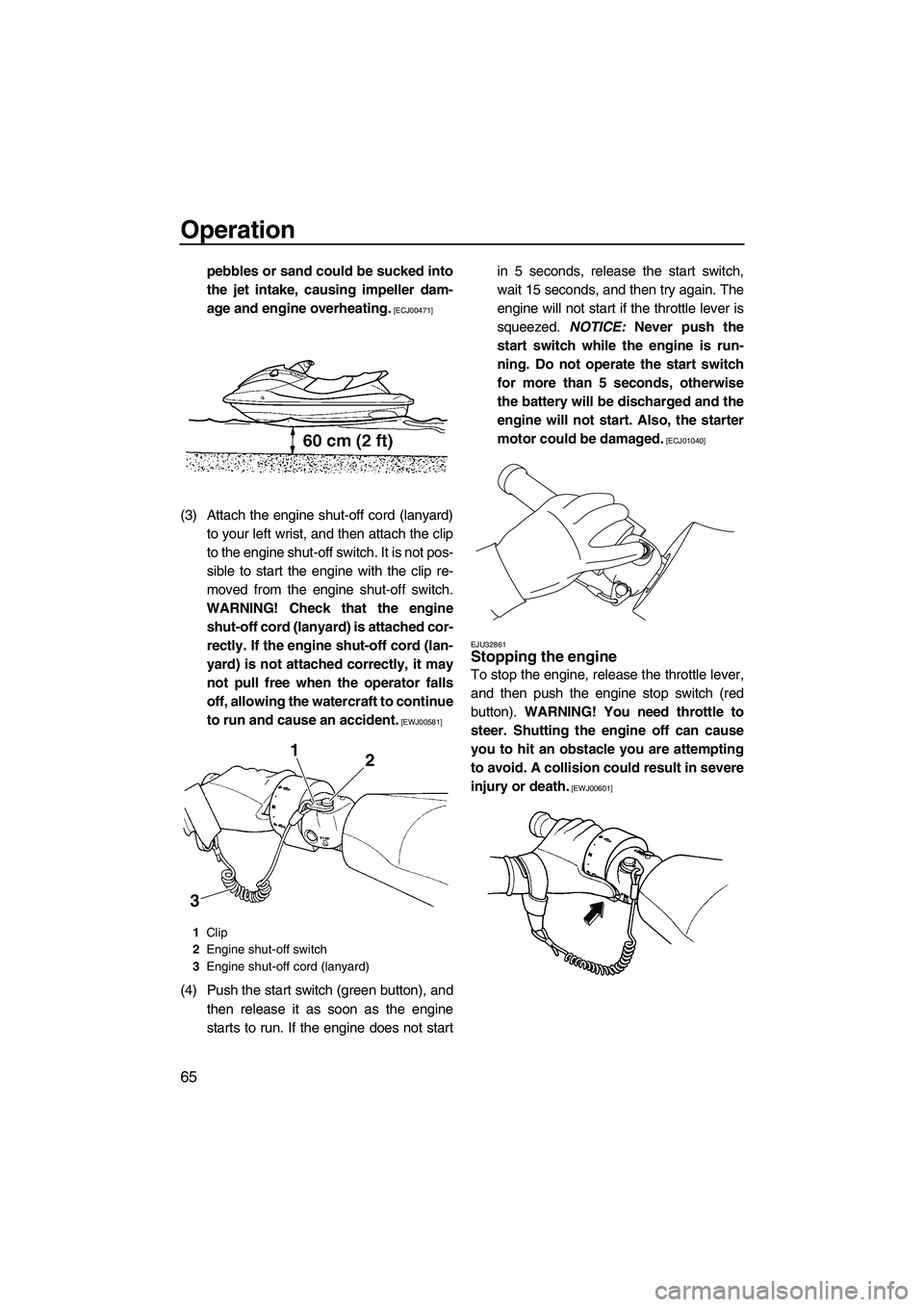

Operation
65
pebbles or sand could be sucked into
the jet intake, causing impeller dam-
age and engine overheating.
[ECJ00471]
(3) Attach the engine shut-off cord (lanyard)
to your left wrist, and then attach the clip
to the engine shut-off switch. It is not pos-
sible to start the engine with the clip re-
moved from the engine shut-off switch.
WARNING! Check that the engine
shut-off cord (lanyard) is attached cor-
rectly. If the engine shut-off cord (lan-
yard) is not attached correctly, it may
not pull free when the operator falls
off, allowing the watercraft to continue
to run and cause an accident.
[EWJ00581]
(4) Push the start switch (green button), and
then release it as soon as the engine
starts to run. If the engine does not startin 5 seconds, release the start switch,
wait 15 seconds, and then try again. The
engine will not start if the throttle lever is
squeezed. NOTICE: Never push the
start switch while the engine is run-
ning. Do not operate the start switch
for more than 5 seconds, otherwise
the battery will be discharged and the
engine will not start. Also, the starter
motor could be damaged.
[ECJ01040]
EJU32861
Stopping the engine
To stop the engine, release the throttle lever,
and then push the engine stop switch (red
button). WARNING! You need throttle to
steer. Shutting the engine off can cause
you to hit an obstacle you are attempting
to avoid. A collision could result in severe
injury or death.
[EWJ00601]
1Clip
2Engine shut-off switch
3Engine shut-off cord (lanyard)
31
2
UF1W71E0.book Page 65 Tuesday, June 24, 2008 11:46 AM

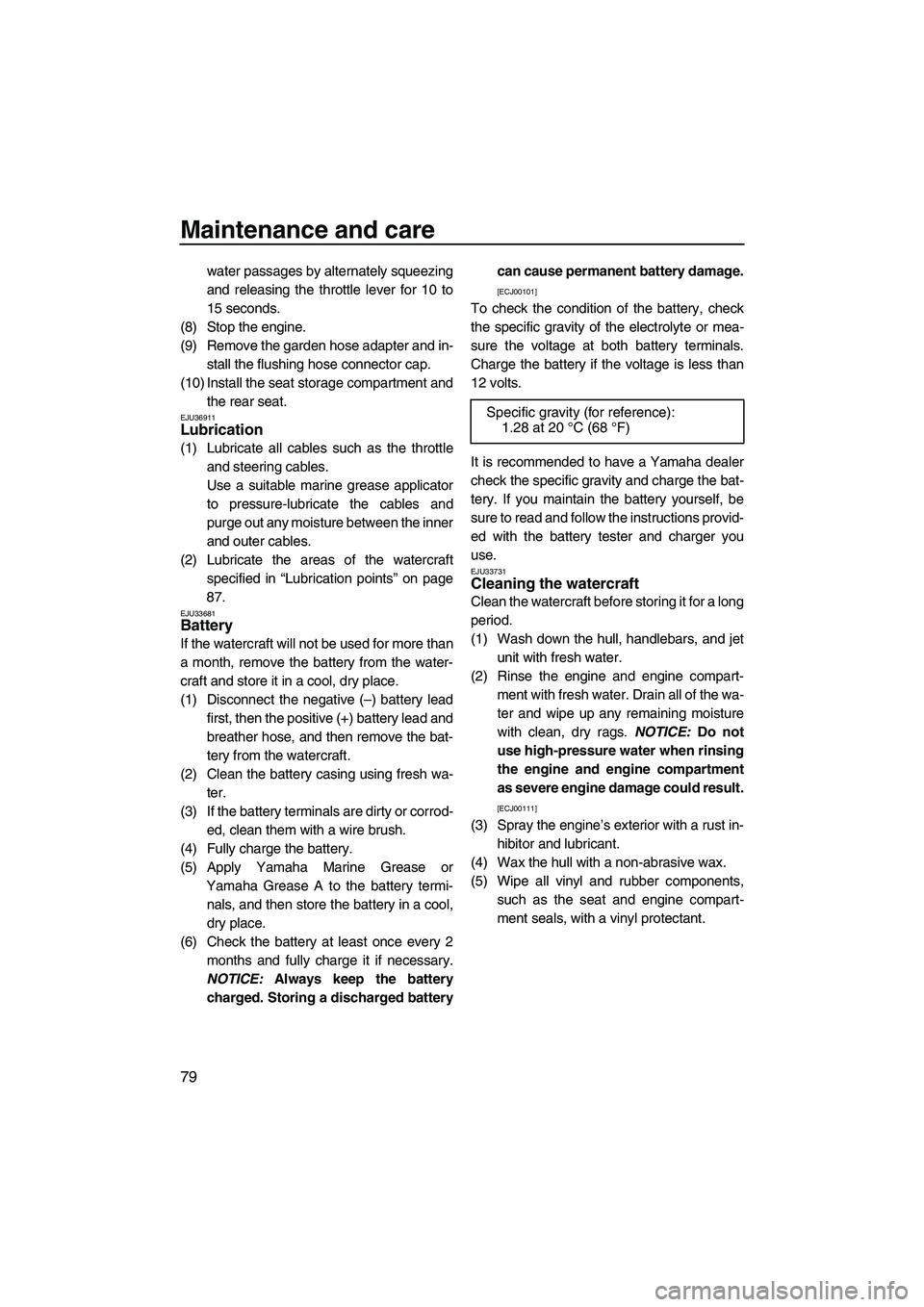

Maintenance and care
79
water passages by alternately squeezing
and releasing the throttle lever for 10 to
15 seconds.
(8) Stop the engine.
(9) Remove the garden hose adapter and in-
stall the flushing hose connector cap.
(10) Install the seat storage compartment and
the rear seat.
EJU36911Lubrication
(1) Lubricate all cables such as the throttle
and steering cables.
Use a suitable marine grease applicator
to pressure-lubricate the cables and
purge out any moisture between the inner
and outer cables.
(2) Lubricate the areas of the watercraft
specified in “Lubrication points” on page
87.
EJU33681Battery
If the watercraft will not be used for more than
a month, remove the battery from the water-
craft and store it in a cool, dry place.
(1) Disconnect the negative (–) battery lead
first, then the positive (+) battery lead and
breather hose, and then remove the bat-
tery from the watercraft.
(2) Clean the battery casing using fresh wa-
ter.
(3) If the battery terminals are dirty or corrod-
ed, clean them with a wire brush.
(4) Fully charge the battery.
(5) Apply Yamaha Marine Grease or
Yamaha Grease A to the battery termi-
nals, and then store the battery in a cool,
dry place.
(6) Check the battery at least once every 2
months and fully charge it if necessary.
NOTICE: Always keep the battery
charged. Storing a discharged batterycan cause permanent battery damage.
[ECJ00101]
To check the condition of the battery, check
the specific gravity of the electrolyte or mea-
sure the voltage at both battery terminals.
Charge the battery if the voltage is less than
12 volts.
It is recommended to have a Yamaha dealer
check the specific gravity and charge the bat-
tery. If you maintain the battery yourself, be
sure to read and follow the instructions provid-
ed with the battery tester and charger you
use.
EJU33731Cleaning the watercraft
Clean the watercraft before storing it for a long
period.
(1) Wash down the hull, handlebars, and jet
unit with fresh water.
(2) Rinse the engine and engine compart-
ment with fresh water. Drain all of the wa-
ter and wipe up any remaining moisture
with clean, dry rags. NOTICE: Do not
use high-pressure water when rinsing
the engine and engine compartment
as severe engine damage could result.
[ECJ00111]
(3) Spray the engine’s exterior with a rust in-
hibitor and lubricant.
(4) Wax the hull with a non-abrasive wax.
(5) Wipe all vinyl and rubber components,
such as the seat and engine compart-
ment seals, with a vinyl protectant. Specific gravity (for reference):
1.28 at 20 °C (68 °F)
UF1W71E0.book Page 79 Tuesday, June 24, 2008 11:46 AM

Maintenance and care
82
*1 This operation should be performed after every use.
*2 This operation should be performed before long-term storage.
BatteryCheck, charge 89
Rubber couplingCheck—
Engine mountCheck—
Nuts and boltsCheck—
Air filter elementCheck 83
Engine oilReplace
50 hours or 12 months83
Oil filterReplace 83
Valve clearanceCheck, adjust— Item OperationInitial Thereafter every
Page 10
hours50
hours100
hours100
hours200
hours
6
months12
months12
months24
months
UF1W71E0.book Page 82 Tuesday, June 24, 2008 11:46 AM
