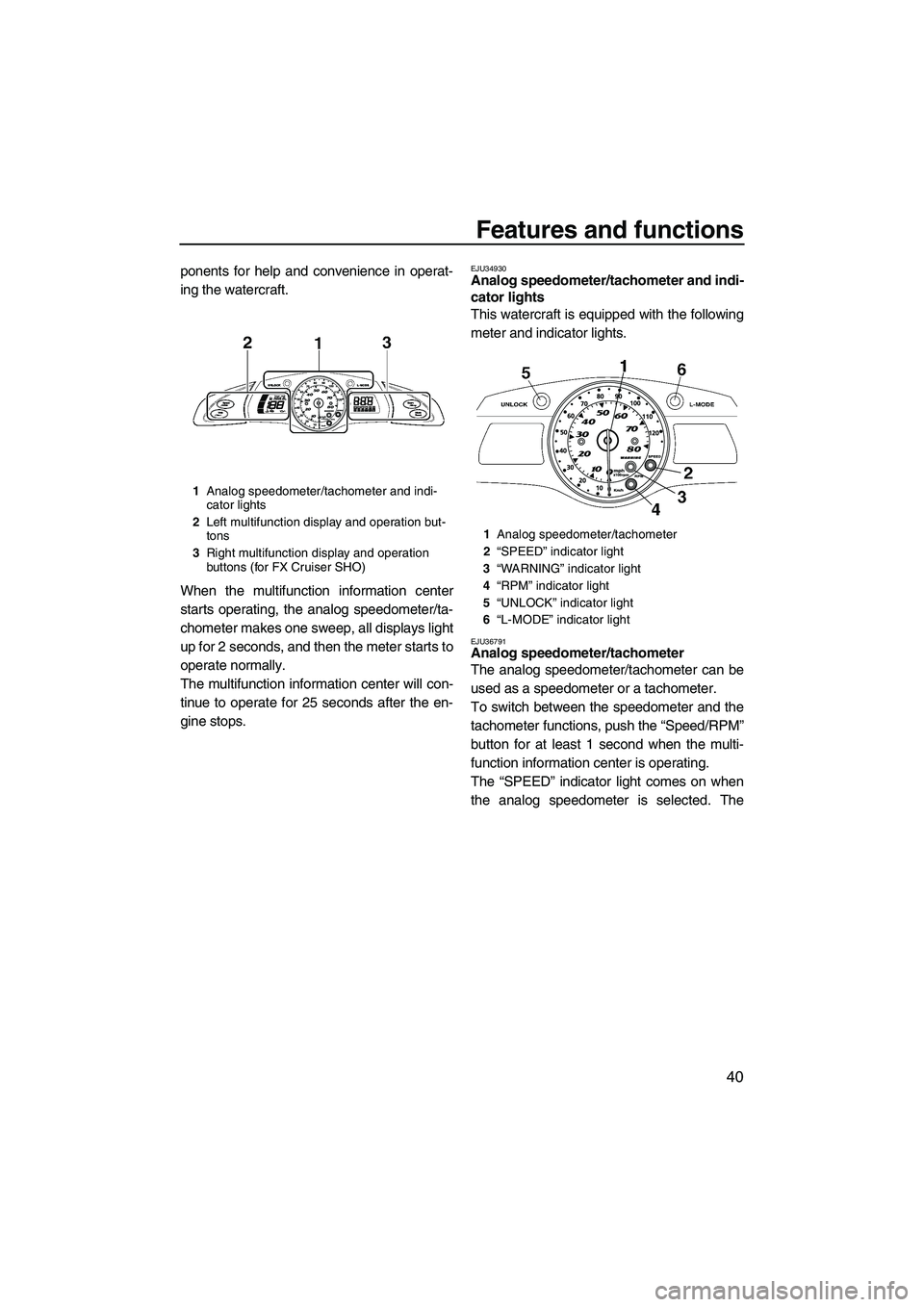

Features and functions
40
ponents for help and convenience in operat-
ing the watercraft.
When the multifunction information center
starts operating, the analog speedometer/ta-
chometer makes one sweep, all displays light
up for 2 seconds, and then the meter starts to
operate normally.
The multifunction information center will con-
tinue to operate for 25 seconds after the en-
gine stops.EJU34930Analog speedometer/tachometer and indi-
cator lights
This watercraft is equipped with the following
meter and indicator lights.
EJU36791Analog speedometer/tachometer
The analog speedometer/tachometer can be
used as a speedometer or a tachometer.
To switch between the speedometer and the
tachometer functions, push the “Speed/RPM”
button for at least 1 second when the multi-
function information center is operating.
The “SPEED” indicator light comes on when
the analog speedometer is selected. The
1Analog speedometer/tachometer and indi-
cator lights
2Left multifunction display and operation but-
tons
3Right multifunction display and operation
buttons (for FX Cruiser SHO)
1Analog speedometer/tachometer
2“SPEED” indicator light
3“WARNING” indicator light
4“RPM” indicator light
5“UNLOCK” indicator light
6“L-MODE” indicator light
UF1W71E0.book Page 40 Tuesday, June 24, 2008 11:46 AM
Page 49 of 108

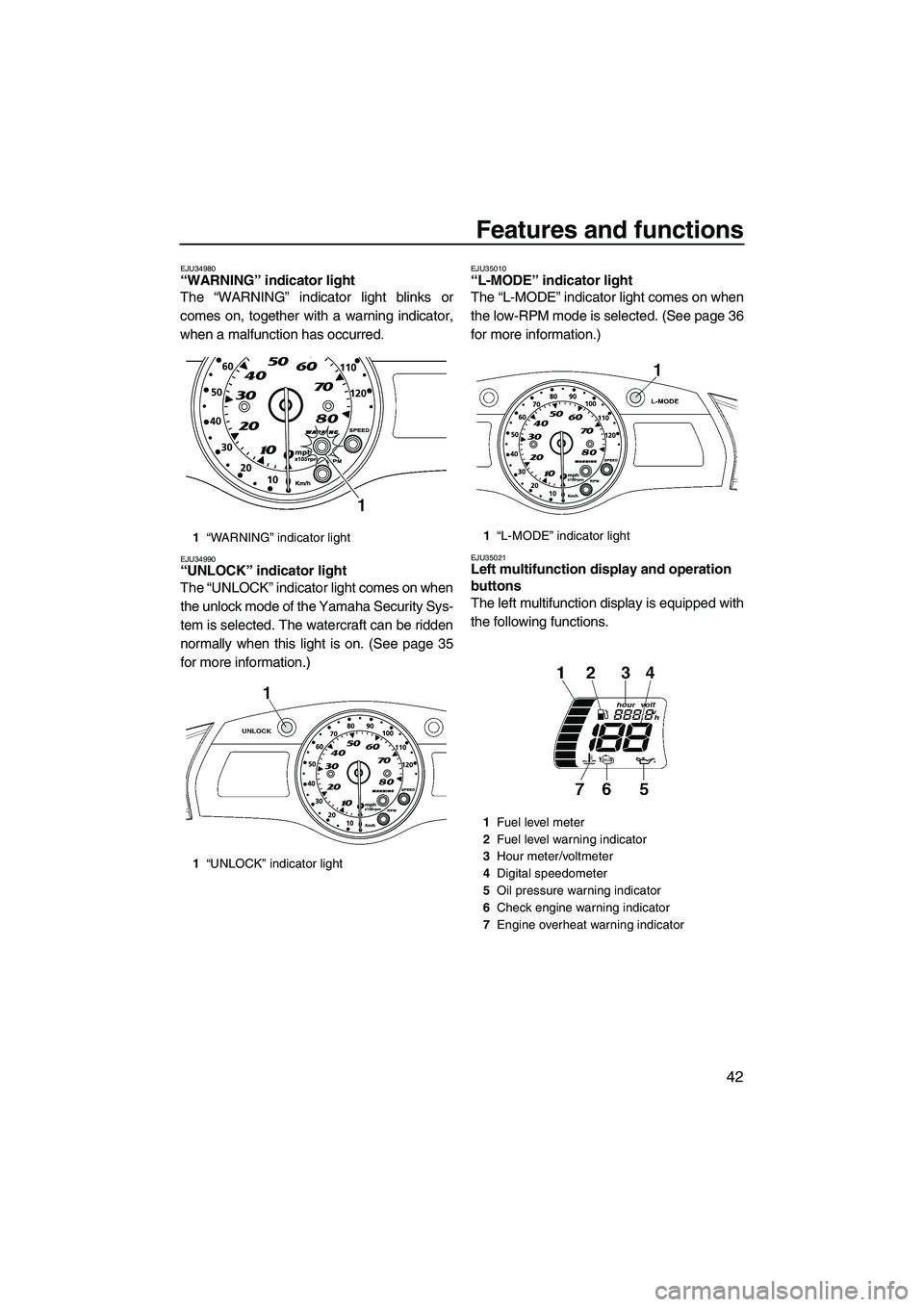

Features and functions
42
EJU34980“WARNING” indicator light
The “WARNING” indicator light blinks or
comes on, together with a warning indicator,
when a malfunction has occurred.
EJU34990“UNLOCK” indicator light
The “UNLOCK” indicator light comes on when
the unlock mode of the Yamaha Security Sys-
tem is selected. The watercraft can be ridden
normally when this light is on. (See page 35
for more information.)
EJU35010“L-MODE” indicator light
The “L-MODE” indicator light comes on when
the low-RPM mode is selected. (See page 36
for more information.)
EJU35021Left multifunction display and operation
buttons
The left multifunction display is equipped with
the following functions.
1“WARNING” indicator light
1“UNLOCK” indicator light1“L-MODE” indicator light
1Fuel level meter
2Fuel level warning indicator
3Hour meter/voltmeter
4Digital speedometer
5Oil pressure warning indicator
6Check engine warning indicator
7Engine overheat warning indicator
UF1W71E0.book Page 42 Tuesday, June 24, 2008 11:46 AM
Page 50 of 108

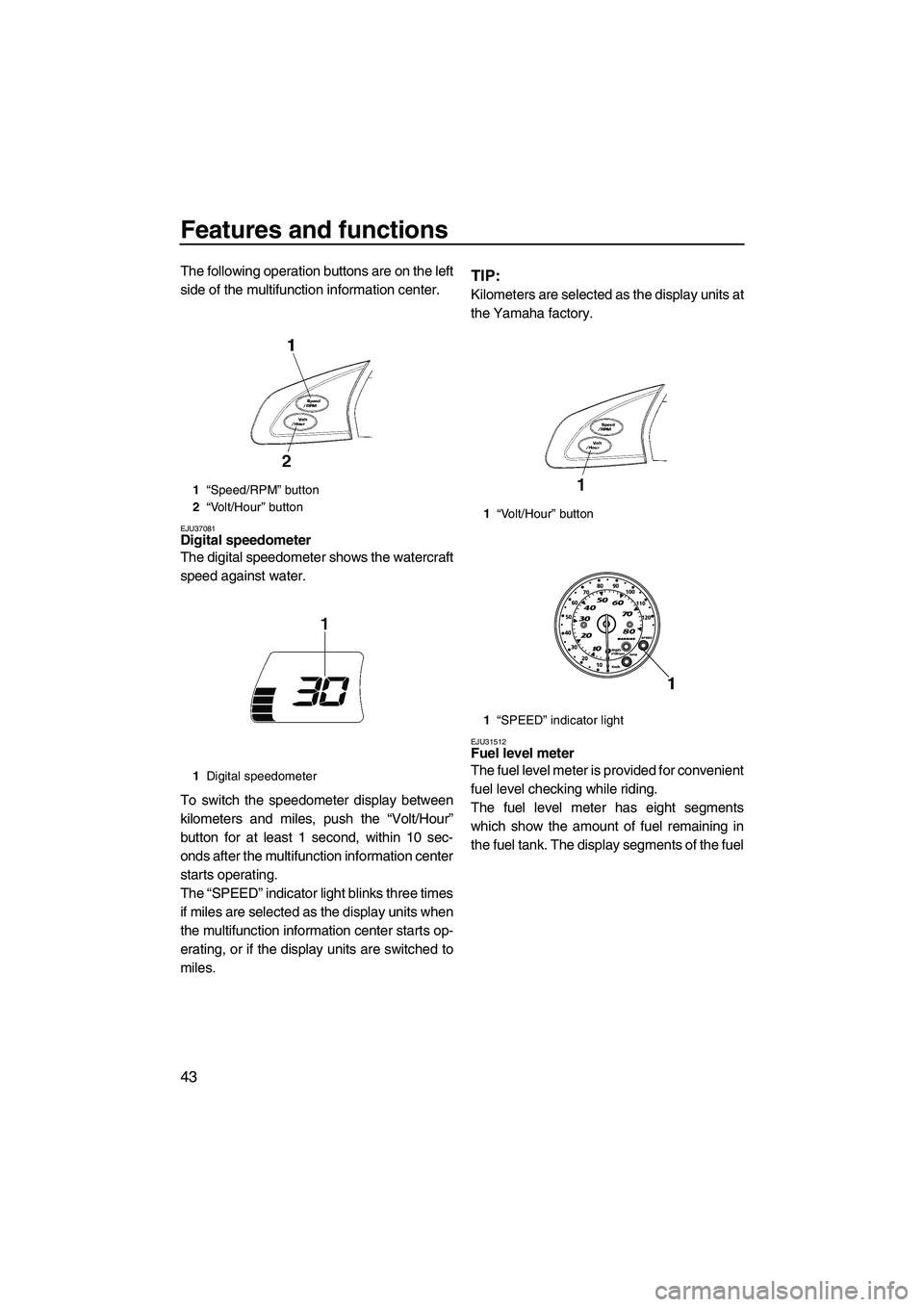

Features and functions
43
The following operation buttons are on the left
side of the multifunction information center.
EJU37081Digital speedometer
The digital speedometer shows the watercraft
speed against water.
To switch the speedometer display between
kilometers and miles, push the “Volt/Hour”
button for at least 1 second, within 10 sec-
onds after the multifunction information center
starts operating.
The “SPEED” indicator light blinks three times
if miles are selected as the display units when
the multifunction information center starts op-
erating, or if the display units are switched to
miles.
TIP:
Kilometers are selected as the display units at
the Yamaha factory.
EJU31512Fuel level meter
The fuel level meter is provided for convenient
fuel level checking while riding.
The fuel level meter has eight segments
which show the amount of fuel remaining in
the fuel tank. The display segments of the fuel
1“Speed/RPM” button
2“Volt/Hour” button
1Digital speedometer
1“Volt/Hour” button
1“SPEED” indicator light
UF1W71E0.book Page 43 Tuesday, June 24, 2008 11:46 AM
Page 53 of 108

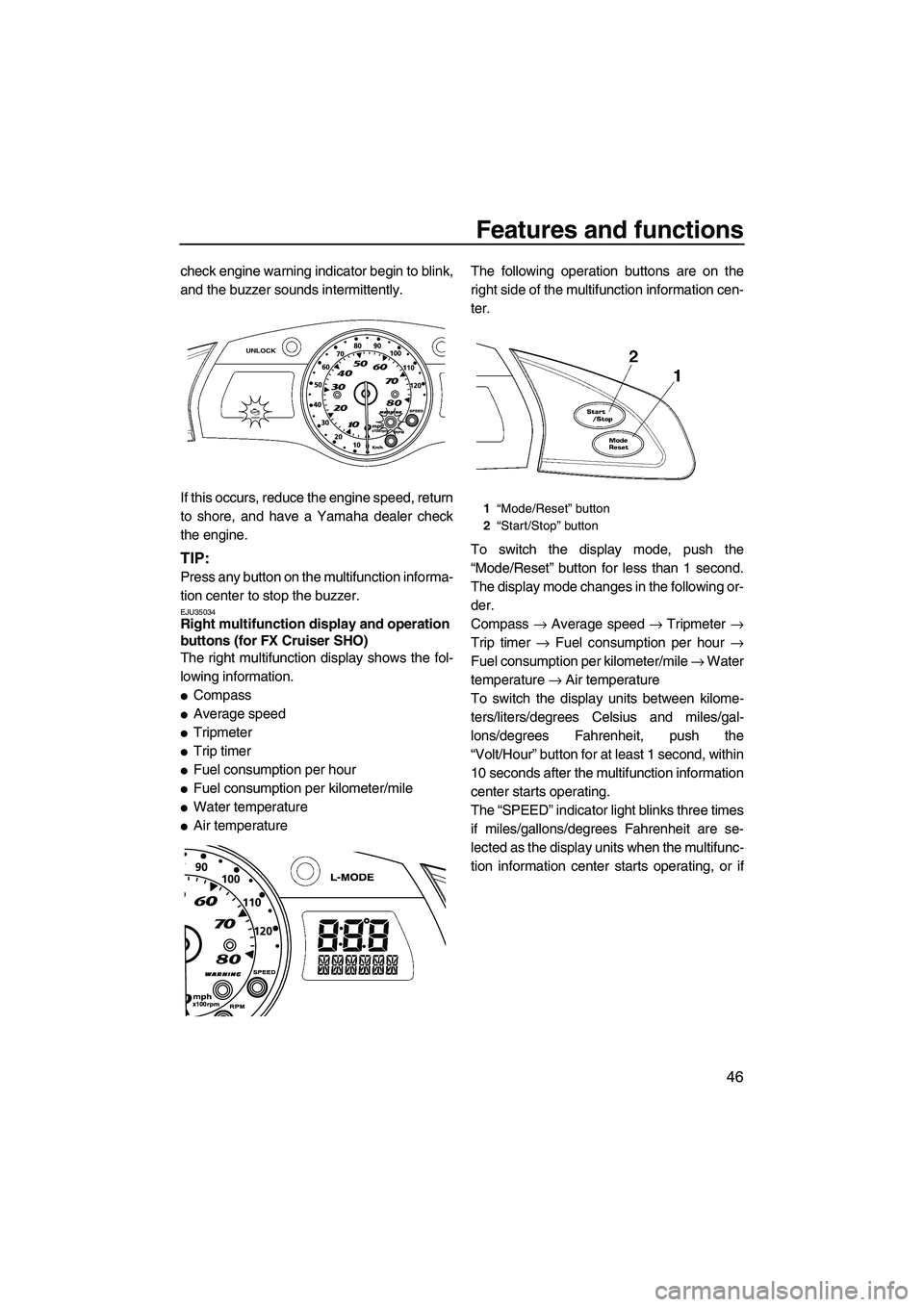

Features and functions
46
check engine warning indicator begin to blink,
and the buzzer sounds intermittently.
If this occurs, reduce the engine speed, return
to shore, and have a Yamaha dealer check
the engine.
TIP:
Press any button on the multifunction informa-
tion center to stop the buzzer.
EJU35034Right multifunction display and operation
buttons (for FX Cruiser SHO)
The right multifunction display shows the fol-
lowing information.
Compass
Average speed
Tripmeter
Trip timer
Fuel consumption per hour
Fuel consumption per kilometer/mile
Water temperature
Air temperatureThe following operation buttons are on the
right side of the multifunction information cen-
ter.
To switch the display mode, push the
“Mode/Reset” button for less than 1 second.
The display mode changes in the following or-
der.
Compass → Average speed → Tripmeter →
Trip timer → Fuel consumption per hour →
Fuel consumption per kilometer/mile → Water
temperature → Air temperature
To switch the display units between kilome-
ters/liters/degrees Celsius and miles/gal-
lons/degrees Fahrenheit, push the
“Volt/Hour” button for at least 1 second, within
10 seconds after the multifunction information
center starts operating.
The “SPEED” indicator light blinks three times
if miles/gallons/degrees Fahrenheit are se-
lected as the display units when the multifunc-
tion information center starts operating, or if
1“Mode/Reset” button
2“Start/Stop” button
UF1W71E0.book Page 46 Tuesday, June 24, 2008 11:46 AM
Page 106 of 108

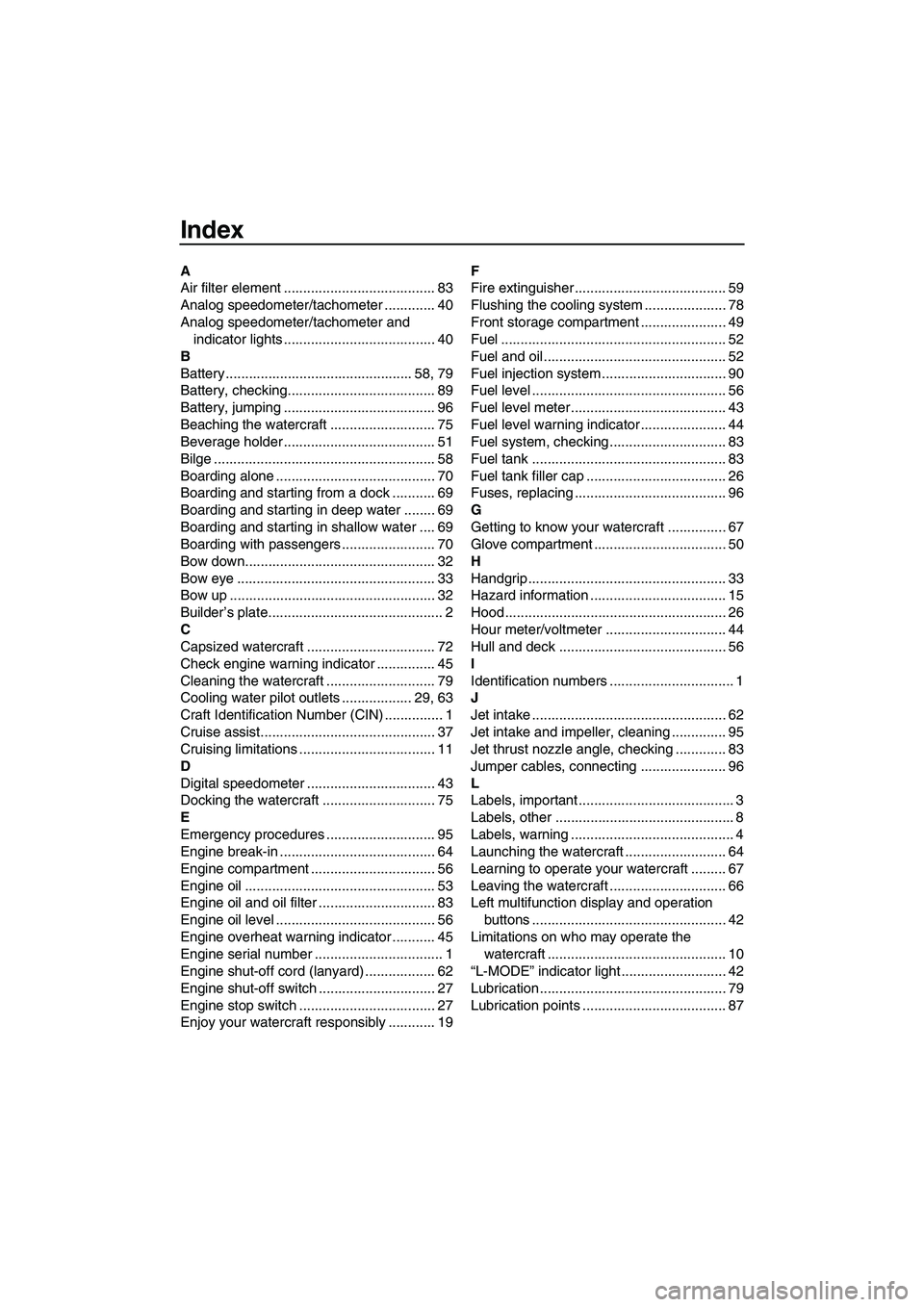

Index
A
Air filter element ....................................... 83
Analog speedometer/tachometer ............. 40
Analog speedometer/tachometer and
indicator lights ....................................... 40
B
Battery ................................................ 58, 79
Battery, checking...................................... 89
Battery, jumping ....................................... 96
Beaching the watercraft ........................... 75
Beverage holder ....................................... 51
Bilge ......................................................... 58
Boarding alone ......................................... 70
Boarding and starting from a dock ........... 69
Boarding and starting in deep water ........ 69
Boarding and starting in shallow water .... 69
Boarding with passengers ........................ 70
Bow down................................................. 32
Bow eye ................................................... 33
Bow up ..................................................... 32
Builder’s plate............................................. 2
C
Capsized watercraft ................................. 72
Check engine warning indicator ............... 45
Cleaning the watercraft ............................ 79
Cooling water pilot outlets .................. 29, 63
Craft Identification Number (CIN) ............... 1
Cruise assist............................................. 37
Cruising limitations ................................... 11
D
Digital speedometer ................................. 43
Docking the watercraft ............................. 75
E
Emergency procedures ............................ 95
Engine break-in ........................................ 64
Engine compartment ................................ 56
Engine oil ................................................. 53
Engine oil and oil filter .............................. 83
Engine oil level ......................................... 56
Engine overheat warning indicator ........... 45
Engine serial number ................................. 1
Engine shut-off cord (lanyard) .................. 62
Engine shut-off switch .............................. 27
Engine stop switch ................................... 27
Enjoy your watercraft responsibly ............ 19F
Fire extinguisher ....................................... 59
Flushing the cooling system ..................... 78
Front storage compartment ...................... 49
Fuel .......................................................... 52
Fuel and oil............................................... 52
Fuel injection system ................................ 90
Fuel level .................................................. 56
Fuel level meter ........................................ 43
Fuel level warning indicator ...................... 44
Fuel system, checking .............................. 83
Fuel tank .................................................. 83
Fuel tank filler cap .................................... 26
Fuses, replacing ....................................... 96
G
Getting to know your watercraft ............... 67
Glove compartment .................................. 50
H
Handgrip ................................................... 33
Hazard information ................................... 15
Hood ......................................................... 26
Hour meter/voltmeter ............................... 44
Hull and deck ........................................... 56
I
Identification numbers ................................ 1
J
Jet intake .................................................. 62
Jet intake and impeller, cleaning .............. 95
Jet thrust nozzle angle, checking ............. 83
Jumper cables, connecting ...................... 96
L
Labels, important ........................................ 3
Labels, other .............................................. 8
Labels, warning .......................................... 4
Launching the watercraft .......................... 64
Learning to operate your watercraft ......... 67
Leaving the watercraft .............................. 66
Left multifunction display and operation
buttons .................................................. 42
Limitations on who may operate the
watercraft .............................................. 10
“L-MODE” indicator light ........................... 42
Lubrication................................................ 79
Lubrication points ..................................... 87
UF1W71E0.book Page 1 Tuesday, June 24, 2008 11:46 AM
Page 107 of 108

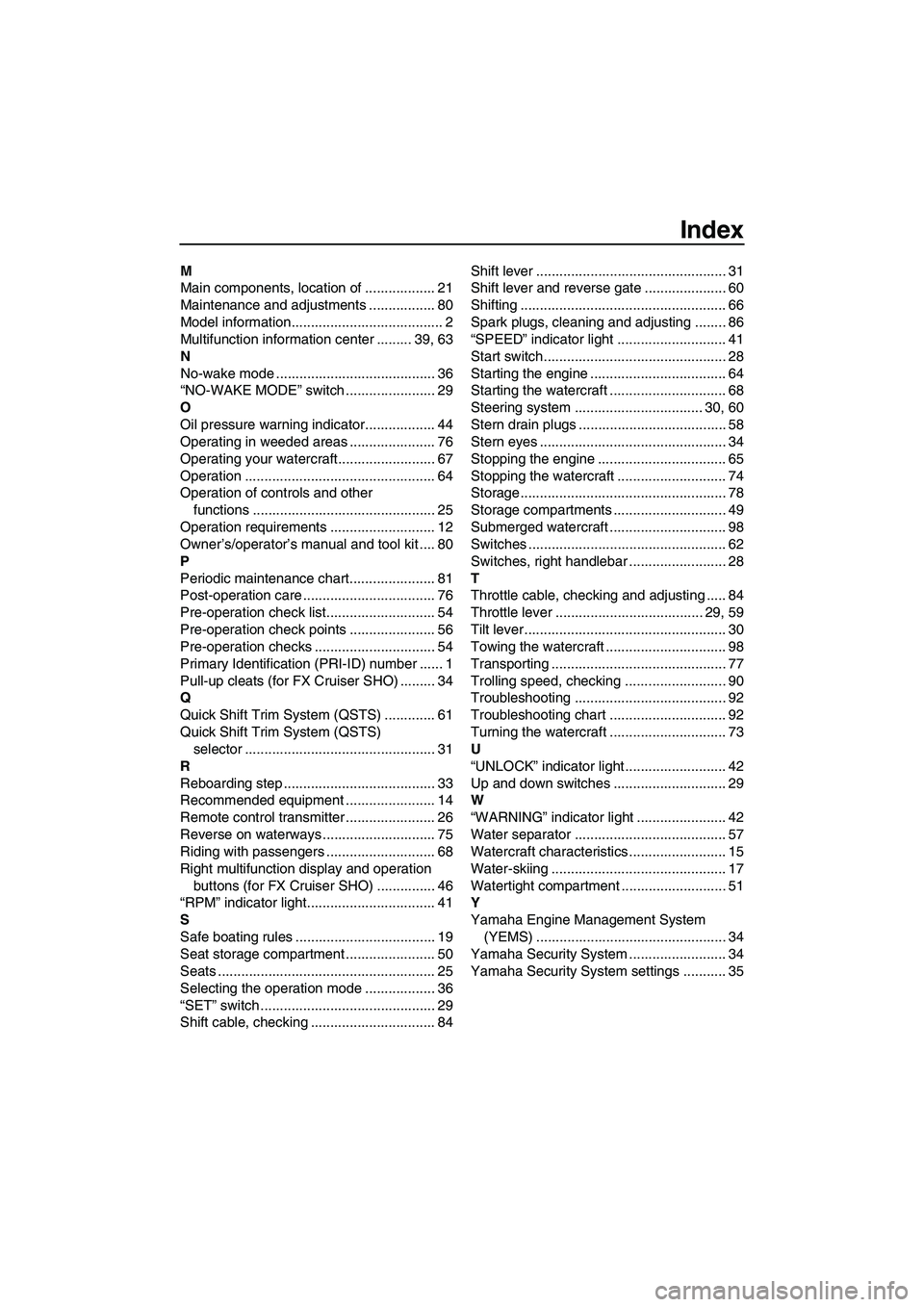

Index
M
Main components, location of .................. 21
Maintenance and adjustments ................. 80
Model information....................................... 2
Multifunction information center ......... 39, 63
N
No-wake mode ......................................... 36
“NO-WAKE MODE” switch ....................... 29
O
Oil pressure warning indicator.................. 44
Operating in weeded areas ...................... 76
Operating your watercraft......................... 67
Operation ................................................. 64
Operation of controls and other
functions ............................................... 25
Operation requirements ........................... 12
Owner’s/operator’s manual and tool kit .... 80
P
Periodic maintenance chart...................... 81
Post-operation care .................................. 76
Pre-operation check list............................ 54
Pre-operation check points ...................... 56
Pre-operation checks ............................... 54
Primary Identification (PRI-ID) number ...... 1
Pull-up cleats (for FX Cruiser SHO) ......... 34
Q
Quick Shift Trim System (QSTS) ............. 61
Quick Shift Trim System (QSTS)
selector ................................................. 31
R
Reboarding step ....................................... 33
Recommended equipment ....................... 14
Remote control transmitter ....................... 26
Reverse on waterways ............................. 75
Riding with passengers ............................ 68
Right multifunction display and operation
buttons (for FX Cruiser SHO) ............... 46
“RPM” indicator light................................. 41
S
Safe boating rules .................................... 19
Seat storage compartment ....................... 50
Seats ........................................................ 25
Selecting the operation mode .................. 36
“SET” switch ............................................. 29
Shift cable, checking ................................ 84Shift lever ................................................. 31
Shift lever and reverse gate ..................... 60
Shifting ..................................................... 66
Spark plugs, cleaning and adjusting ........ 86
“SPEED” indicator light ............................ 41
Start switch............................................... 28
Starting the engine ................................... 64
Starting the watercraft .............................. 68
Steering system ................................. 30, 60
Stern drain plugs ...................................... 58
Stern eyes ................................................ 34
Stopping the engine ................................. 65
Stopping the watercraft ............................ 74
Storage..................................................... 78
Storage compartments ............................. 49
Submerged watercraft .............................. 98
Switches ................................................... 62
Switches, right handlebar ......................... 28
T
Throttle cable, checking and adjusting ..... 84
Throttle lever ...................................... 29, 59
Tilt lever .................................................... 30
Towing the watercraft ............................... 98
Transporting ............................................. 77
Trolling speed, checking .......................... 90
Troubleshooting ....................................... 92
Troubleshooting chart .............................. 92
Turning the watercraft .............................. 73
U
“UNLOCK” indicator light .......................... 42
Up and down switches ............................. 29
W
“WARNING” indicator light ....................... 42
Water separator ....................................... 57
Watercraft characteristics ......................... 15
Water-skiing ............................................. 17
Watertight compartment ........................... 51
Y
Yamaha Engine Management System
(YEMS) ................................................. 34
Yamaha Security System ......................... 34
Yamaha Security System settings ........... 35
UF1W71E0.book Page 2 Tuesday, June 24, 2008 11:46 AM
