Trouble recovery
97

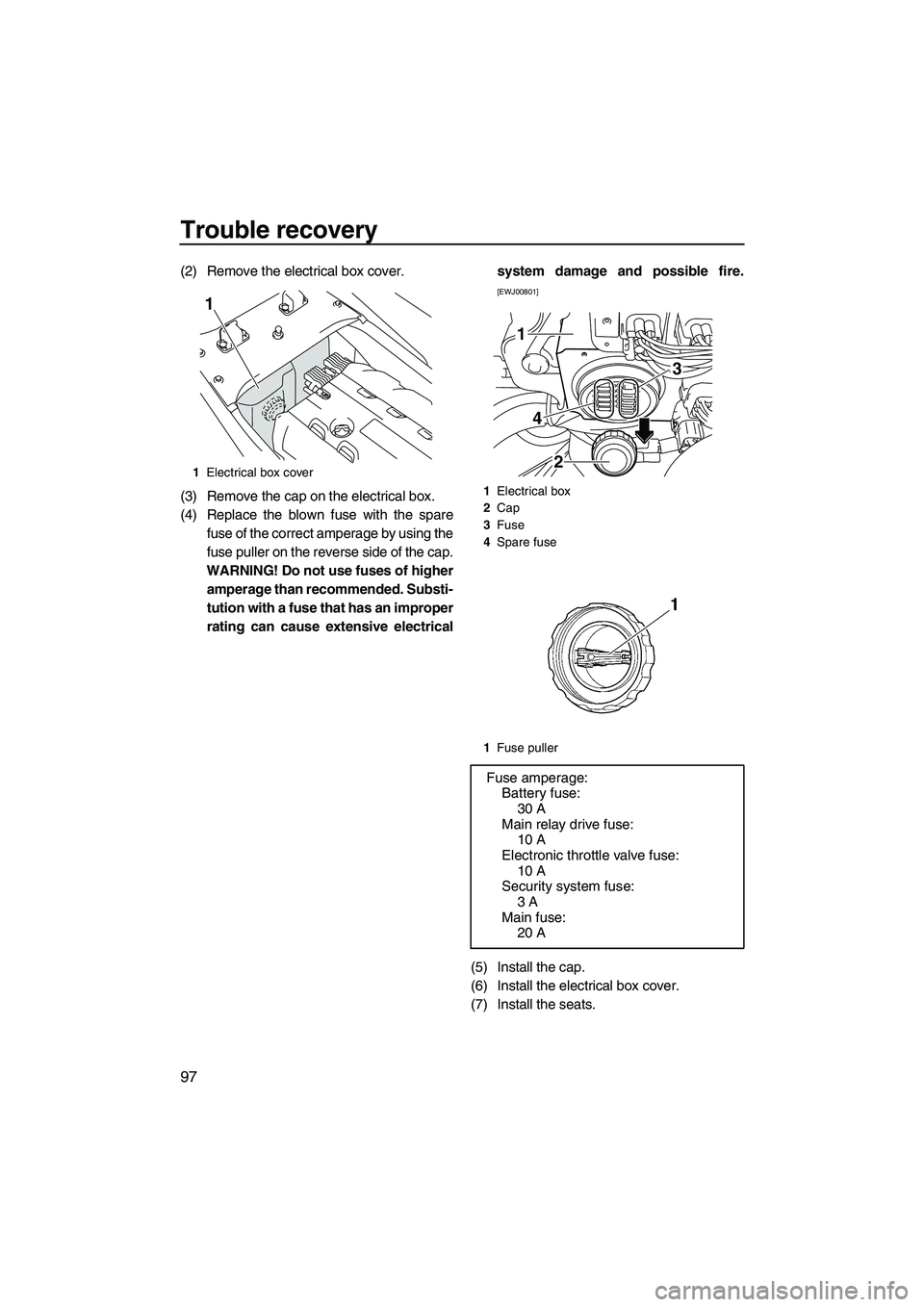

(2) Remove the electrical box cover.
(3) Remove the cap on the electrical box.
(4) Replace the blown fuse with the spare
fuse of the correct amperage by using the
fuse puller on the reverse side of the cap.
WARNING! Do not use fuses of higher
amperage than recommended. Substi-
tution with a fuse that has an improper
rating can cause extensive electricalsystem damage and possible fire.
[EWJ00801]
(5) Install the cap.
(6) Install the electrical box cover.
(7) Install the seats.
1Electrical box cover
1
1Electrical box
2Cap
3Fuse
4Spare fuse
1Fuse puller
Fuse amperage:
Battery fuse:
30 A
Main relay drive fuse:
10 A
Electronic throttle valve fuse:
10 A
Security system fuse:
3 A
Main fuse:
20 A
1
23
4
