YAMAHA FX SVHO 2015 Owners Manual

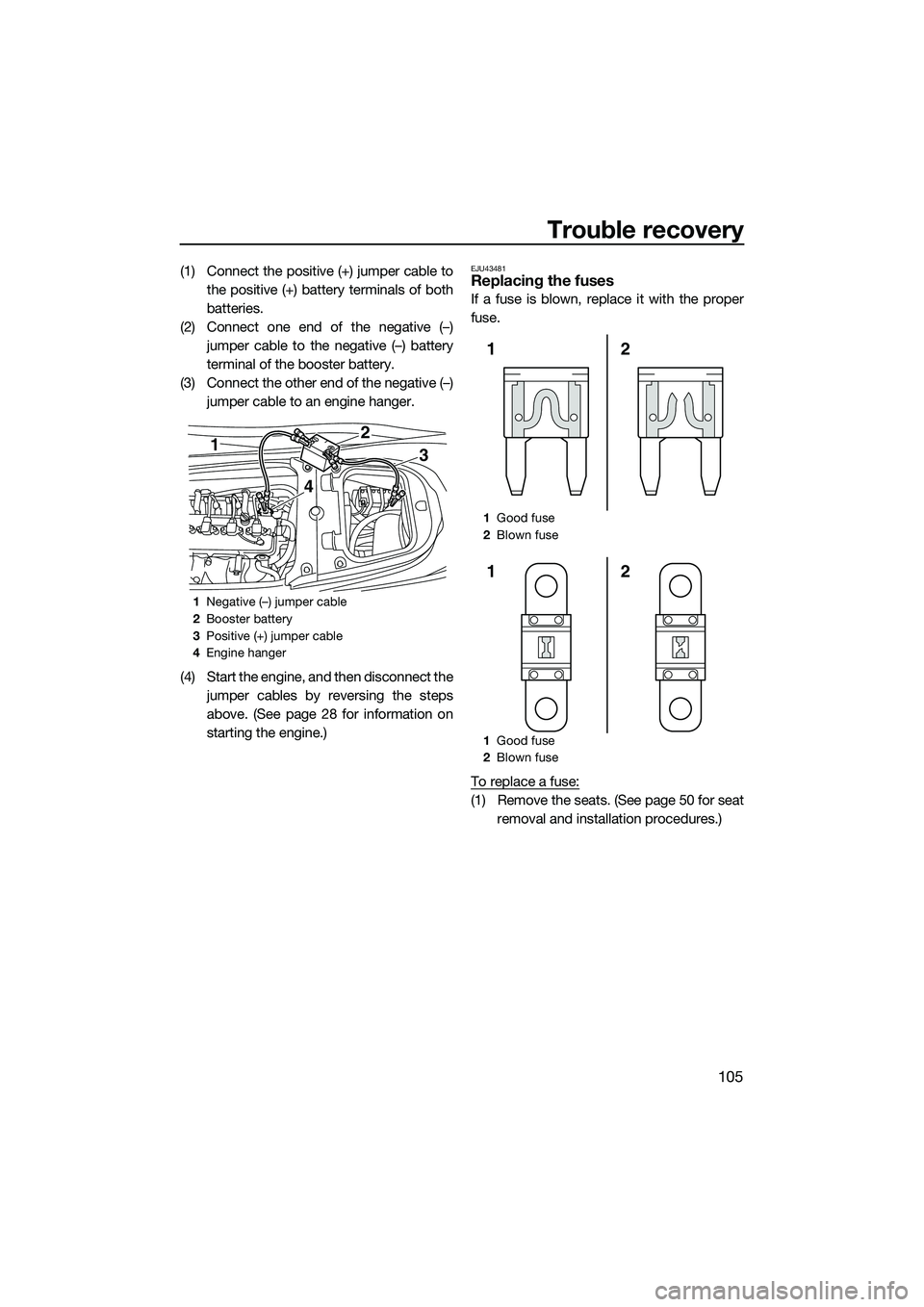

Trouble recovery
105
(1) Connect the positive (+) jumper cable tothe positive (+) battery terminals of both
batteries.
(2) Connect one end of the negative (–) jumper cable to the negative (–) battery
terminal of the booster battery.
(3) Connect the other end of the negative (–) jumper cable to an engine hanger.
(4) Start the engine, and then disconnect the jumper cables by reversing the steps
above. (See page 28 for information on
starting the engine.)EJU43481Replacing the fuses
If a fuse is blown, replace it with the proper
fuse.
To replace a fuse:
(1) Remove the seats. (See page 50 for seatremoval and installation procedures.)
1Negative (–) jumper cable
2 Booster battery
3 Positive (+) jumper cable
4 Engine hanger
1
4
3
2
1Good fuse
2 Blown fuse
1 Good fuse
2 Blown fuse
2
1
2
1
UF3J71E0.book Page 105 Friday, June 27, 2014 1:50 PM

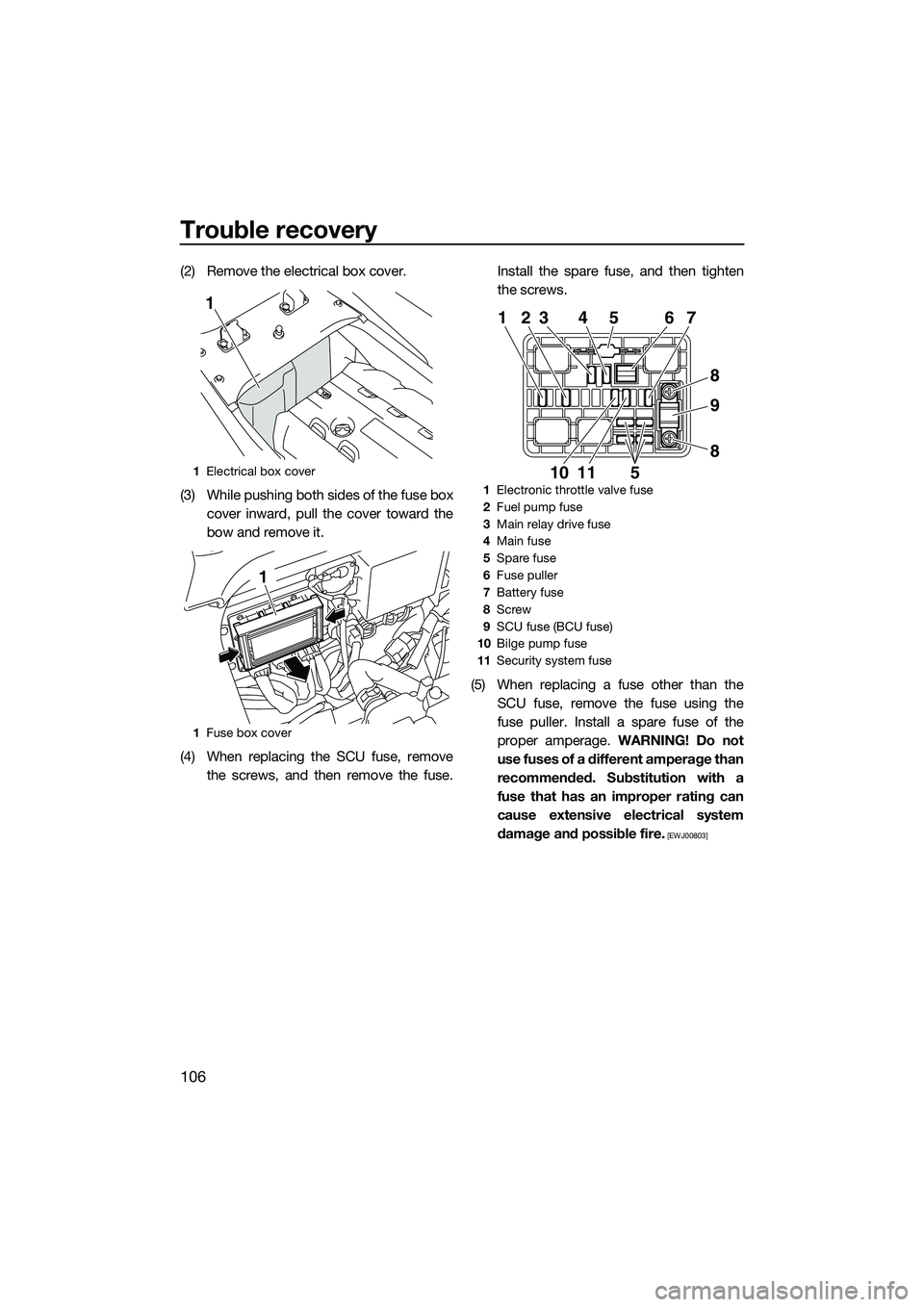

Trouble recovery
106
(2) Remove the electrical box cover.
(3) While pushing both sides of the fuse boxcover inward, pull the cover toward the
bow and remove it.
(4) When replacing the SCU fuse, remove the screws, and then remove the fuse. Install the spare fuse, and then tighten
the screws.
(5) When replacing a fuse other than the SCU fuse, remove the fuse using the
fuse puller. Install a spare fuse of the
proper amperage. WARNING! Do not
use fuses of a different amperage than
recommended. Substitution with a
fuse that has an improper rating can
cause extensive electrical system
damage and possible fire.
[EWJ00803]
1 Electrical box cover
1 Fuse box cover
1
1
1Electronic throttle valve fuse
2 Fuel pump fuse
3 Main relay drive fuse
4 Main fuse
5 Spare fuse
6 Fuse puller
7 Battery fuse
8 Screw
9 SCU fuse (BCU fuse)
10 Bilge pump fuse
11 Security system fuse
1
5
23 4 5 6 7
8
9
8
1110
UF3J71E0.book Page 106 Friday, June 27, 2014 1:50 PM

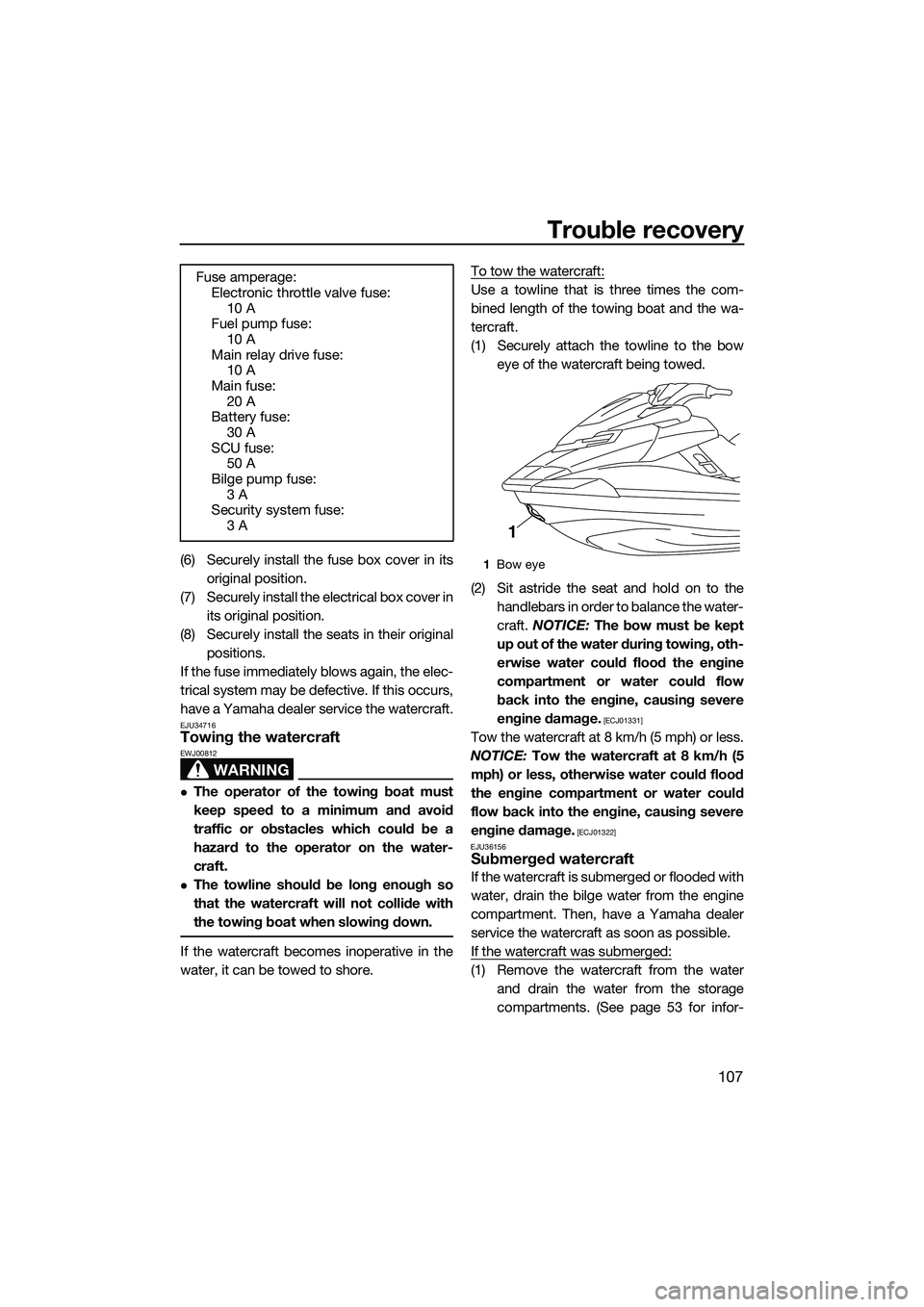

Trouble recovery
107
(6) Securely install the fuse box cover in itsoriginal position.
(7) Securely install the electrical box cover in its original position.
(8) Securely install the seats in their original positions.
If the fuse immediately blows again, the elec-
trical system may be defective. If this occurs,
have a Yamaha dealer service the watercraft.
EJU34716Towing the watercraft
WARNING
EWJ00812
The operator of the towing boat must
keep speed to a minimum and avoid
traffic or obstacles which could be a
hazard to the operator on the water-
craft.
The towline should be long enough so
that the watercraft will not collide with
the towing boat when slowing down.
If the watercraft becomes inoperative in the
water, it can be towed to shore. To tow the watercraft:
Use a towline that is three times the com-
bined length of the towing boat and the wa-
tercraft.
(1) Securely attach the towline to the bow
eye of the watercraft being towed.
(2) Sit astride the seat and hold on to the handlebars in order to balance the water-
craft. NOTICE: The bow must be kept
up out of the water during towing, oth-
erwise water could flood the engine
compartment or water could flow
back into the engine, causing severe
engine damage.
[ECJ01331]
Tow the watercraft at 8 km/h (5 mph) or less.
NOTICE: Tow the watercraft at 8 km/h (5
mph) or less, otherwise water could flood
the engine compartment or water could
flow back into the engine, causing severe
engine damage.
[ECJ01322]
EJU36156
Submerged watercraft
If the watercraft is submerged or flooded with
water, drain the bilge water from the engine
compartment. Then, have a Yamaha dealer
service the watercraft as soon as possible.
If the watercraft was submerged:
(1) Remove the watercraft from the water and drain the water from the storage
compartments. (See page 53 for infor-
Fuse amperage:
Electronic throttle valve fuse:
10 A
Fuel pump fuse: 10 A
Main relay drive fuse: 10 A
Main fuse:
20 A
Battery fuse: 30 A
SCU fuse: 50 A
Bilge pump fuse:
3 A
Security system fuse: 3 A
1Bow eye
1
UF3J71E0.book Page 107 Friday, June 27, 2014 1:50 PM

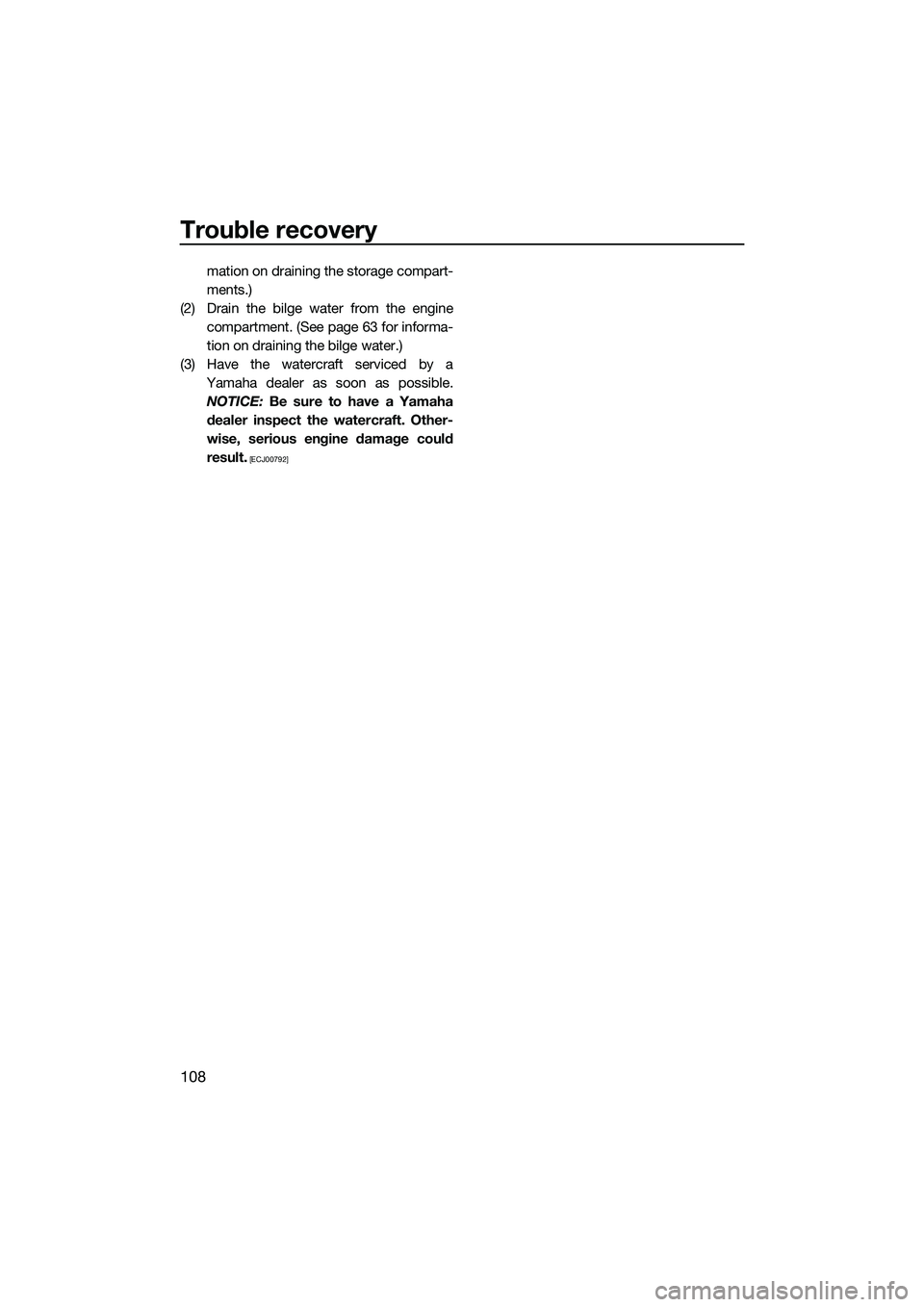

Trouble recovery
108
mation on draining the storage compart-
ments.)
(2) Drain the bilge water from the engine compartment. (See page 63 for informa-
tion on draining the bilge water.)
(3) Have the watercraft serviced by a Yamaha dealer as soon as possible.
NOTICE: Be sure to have a Yamaha
dealer inspect the watercraft. Other-
wise, serious engine damage could
result.
[ECJ00792]
UF3J71E0.book Page 108 Friday, June 27, 2014 1:50 PM

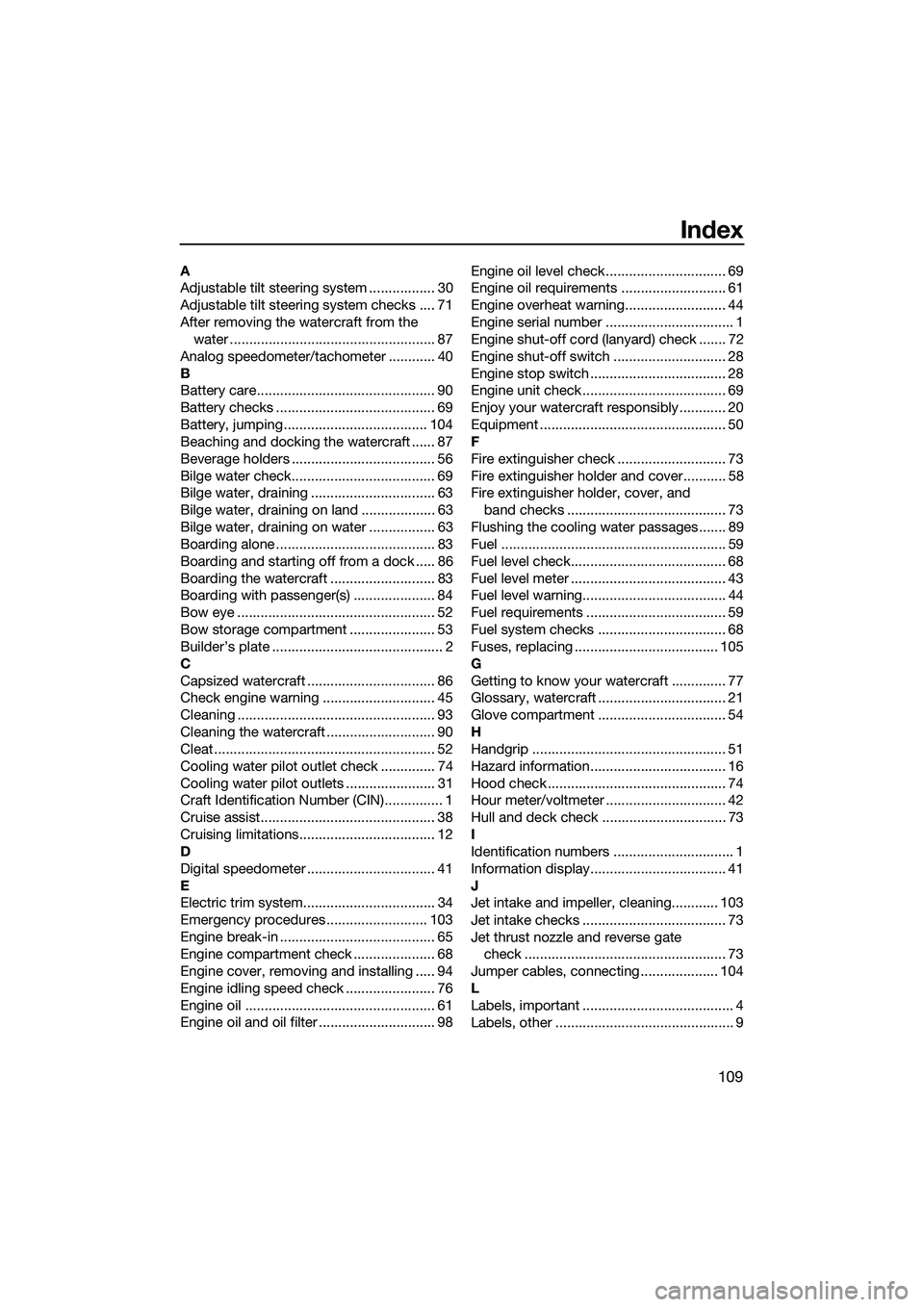

109
Index
A
Adjustable tilt steering system ................. 30
Adjustable tilt steering system checks .... 71
After removing the watercraft from the water ..................................................... 87
Analog speedometer/tachometer ............ 40
B
Battery care.............................................. 90
Battery checks ......................................... 69
Battery, jumping ..................................... 104
Beaching and docking the watercraft ...... 87
Beverage holders ..................................... 56
Bilge water check..................................... 69
Bilge water, draining ................................ 63
Bilge water, draining on land ................... 63
Bilge water, draining on water ................. 63
Boarding alone ......................................... 83
Boarding and starting off from a dock ..... 86
Boarding the watercraft ........................... 83
Boarding with passenger(s) ..................... 84
Bow eye ................................................... 52
Bow storage compartment ...................... 53
Builder’s plate ............................................ 2
C
Capsized watercraft ................................. 86
Check engine warning ............................. 45
Cleaning ................................................... 93
Cleaning the watercraft ............................ 90
Cleat ......................................................... 52
Cooling water pilot outlet check .............. 74
Cooling water pilot outlets ....................... 31
Craft Identification Number (CIN)............... 1
Cruise assist............................................. 38
Cruising limitations................................... 12
D
Digital speedometer ................................. 41
E
Electric trim system.................................. 34
Emergency procedures .......................... 103
Engine break-in ........................................ 65
Engine compartment check ..................... 68
Engine cover, removing and installing ..... 94
Engine idling speed check ....................... 76
Engine oil ................................................. 61
Engine oil and oil filter .............................. 98 Engine oil level check ............................... 69
Engine oil requirements ........................... 61
Engine overheat warning.......................... 44
Engine serial number ................................. 1
Engine shut-off cord (lanyard) check ....... 72
Engine shut-off switch ............................. 28
Engine stop switch ................................... 28
Engine unit check ..................................... 69
Enjoy your watercraft responsibly ............ 20
Equipment ................................................ 50
F
Fire extinguisher check ............................ 73
Fire extinguisher holder and cover........... 58
Fire extinguisher holder, cover, and
band checks ......................................... 73
Flushing the cooling water passages....... 89
Fuel .......................................................... 59
Fuel level check........................................ 68
Fuel level meter ........................................ 43
Fuel level warning..................................... 44
Fuel requirements .................................... 59
Fuel system checks ................................. 68
Fuses, replacing ..................................... 105
G
Getting to know your watercraft .............. 77
Glossary, watercraft ................................. 21
Glove compartment ................................. 54
H
Handgrip .................................................. 51
Hazard information................................... 16
Hood check .............................................. 74
Hour meter/voltmeter ............................... 42
Hull and deck check ................................ 73
I
Identification numbers ............................... 1
Information display................................... 41
J
Jet intake and impeller, cleaning............ 103
Jet intake checks ..................................... 73
Jet thrust nozzle and reverse gate check .................................................... 73
Jumper cables, connecting .................... 104
L
Labels, important ....................................... 4
Labels, other .............................................. 9
UF3J71E0.book Page 109 Friday, June 27, 2014 1:50 PM

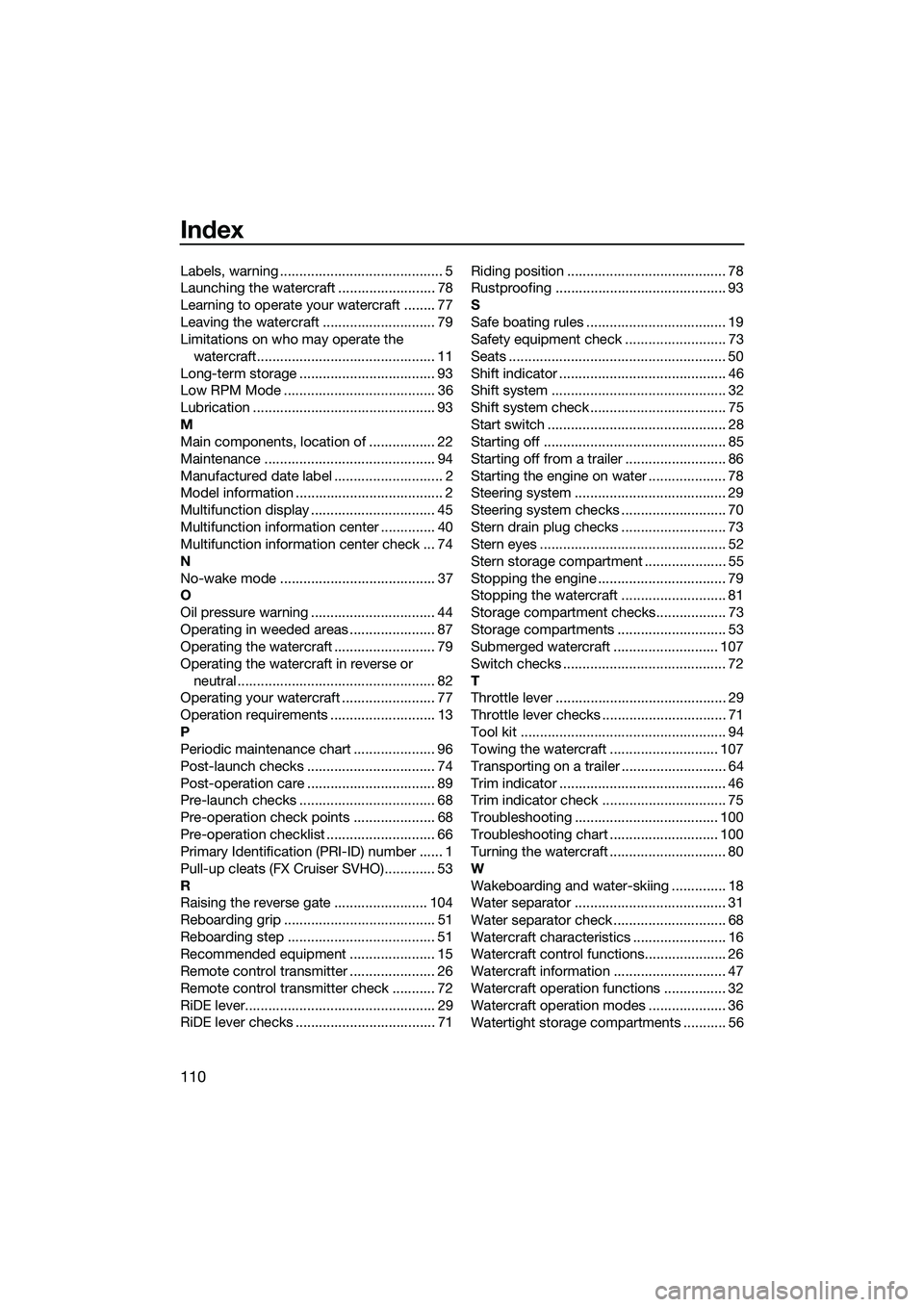

Index
110
Labels, warning .......................................... 5
Launching the watercraft ......................... 78
Learning to operate your watercraft ........ 77
Leaving the watercraft ............................. 79
Limitations on who may operate the watercraft.............................................. 11
Long-term storage ................................... 93
Low RPM Mode ....................................... 36
Lubrication ............................................... 93
M
Main components, location of ................. 22
Maintenance ............................................ 94
Manufactured date label ............................ 2
Model information ...................................... 2
Multifunction display ................................ 45
Multifunction information center .............. 40
Multifunction information center check ... 74
N
No-wake mode ........................................ 37
O
Oil pressure warning ................................ 44
Operating in weeded areas ...................... 87
Operating the watercraft .......................... 79
Operating the watercraft in reverse or neutral ................................................... 82
Operating your watercraft ........................ 77
Operation requirements ........................... 13
P
Periodic maintenance chart ..................... 96
Post-launch checks ................................. 74
Post-operation care ................................. 89
Pre-launch checks ................................... 68
Pre-operation check points ..................... 68
Pre-operation checklist ............................ 66
Primary Identification (PRI-ID) number ...... 1
Pull-up cleats (FX Cruiser SVHO)............. 53
R
Raising the reverse gate ........................ 104
Reboarding grip ....................................... 51
Reboarding step ...................................... 51
Recommended equipment ...................... 15
Remote control transmitter ...................... 26
Remote control transmitter check ........... 72
RiDE lever................................................. 29
RiDE lever checks .................................... 71 Riding position ......................................... 78
Rustproofing ............................................ 93
S
Safe boating rules .................................... 19
Safety equipment check .......................... 73
Seats ........................................................ 50
Shift indicator ........................................... 46
Shift system ............................................. 32
Shift system check ................................... 75
Start switch .............................................. 28
Starting off ............................................... 85
Starting off from a trailer .......................... 86
Starting the engine on water .................... 78
Steering system ....................................... 29
Steering system checks ........................... 70
Stern drain plug checks ........................... 73
Stern eyes ................................................ 52
Stern storage compartment ..................... 55
Stopping the engine ................................. 79
Stopping the watercraft ........................... 81
Storage compartment checks.................. 73
Storage compartments ............................ 53
Submerged watercraft ........................... 107
Switch checks .......................................... 72
T
Throttle lever ............................................ 29
Throttle lever checks ................................ 71
Tool kit ..................................................... 94
Towing the watercraft ............................ 107
Transporting on a trailer ........................... 64
Trim indicator ........................................... 46
Trim indicator check ................................ 75
Troubleshooting ..................................... 100
Troubleshooting chart ............................ 100
Turning the watercraft .............................. 80
W
Wakeboarding and water-skiing .............. 18
Water separator ....................................... 31
Water separator check ............................. 68
Watercraft characteristics ........................ 16
Watercraft control functions..................... 26
Watercraft information ............................. 47
Watercraft operation functions ................ 32
Watercraft operation modes .................... 36
Watertight storage compartments ........... 56
UF3J71E0.book Page 110 Friday, June 27, 2014 1:50 PM

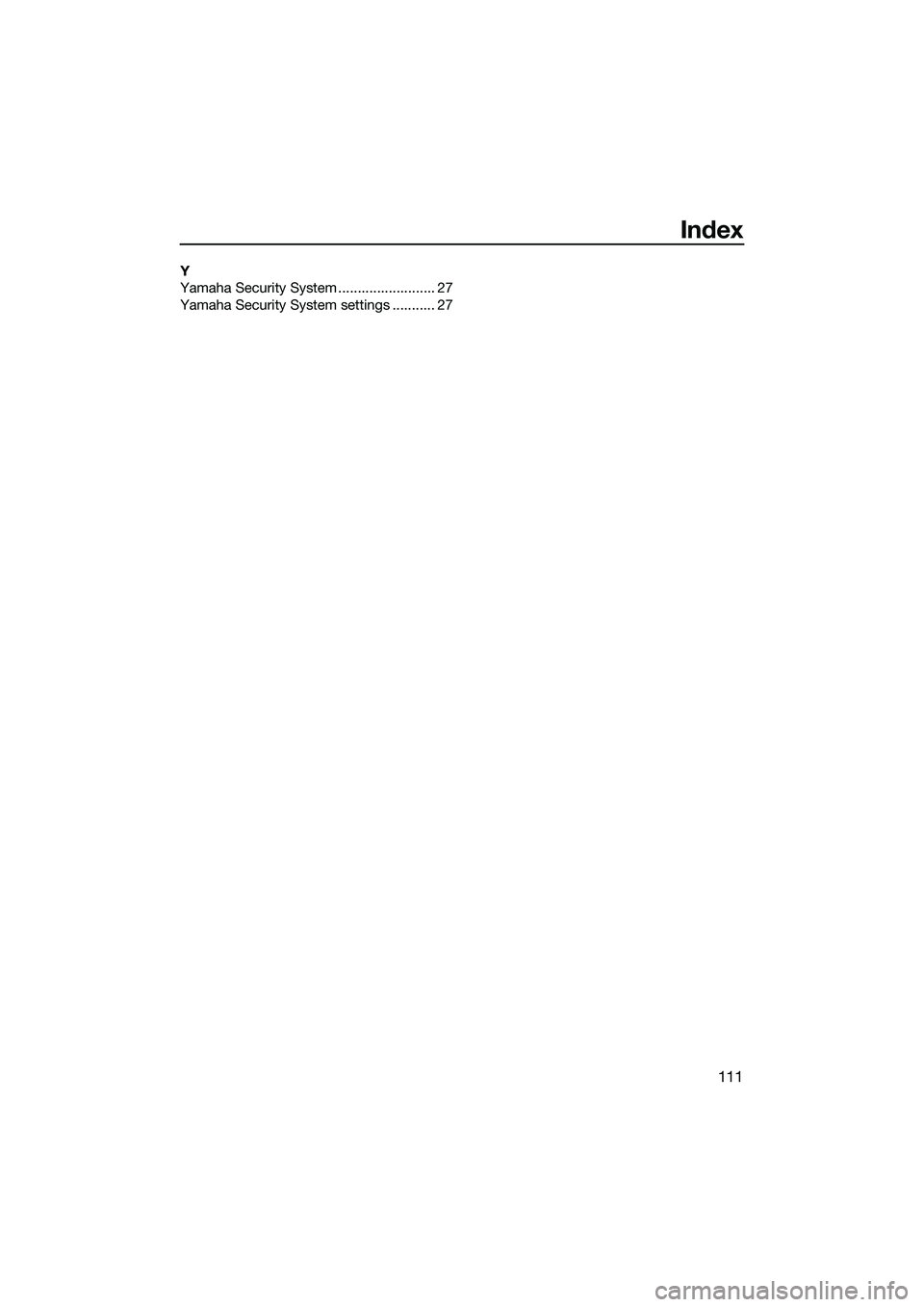

Index
111
Y
Yamaha Security System ......................... 27
Yamaha Security System settings ........... 27
UF3J71E0.book Page 111 Friday, June 27, 2014 1:50 PM

Printed in U.S.A.
July 2014–0.3 × 1 CR
UF3J71E0.book Page 1 Friday, June 27, 2014 1:50 PM
