YAMAHA FZ1-N 2010 Workshop Manual PERIODIC MAINTENANCE AND ADJUSTMENT
6-2
6
EAU46861

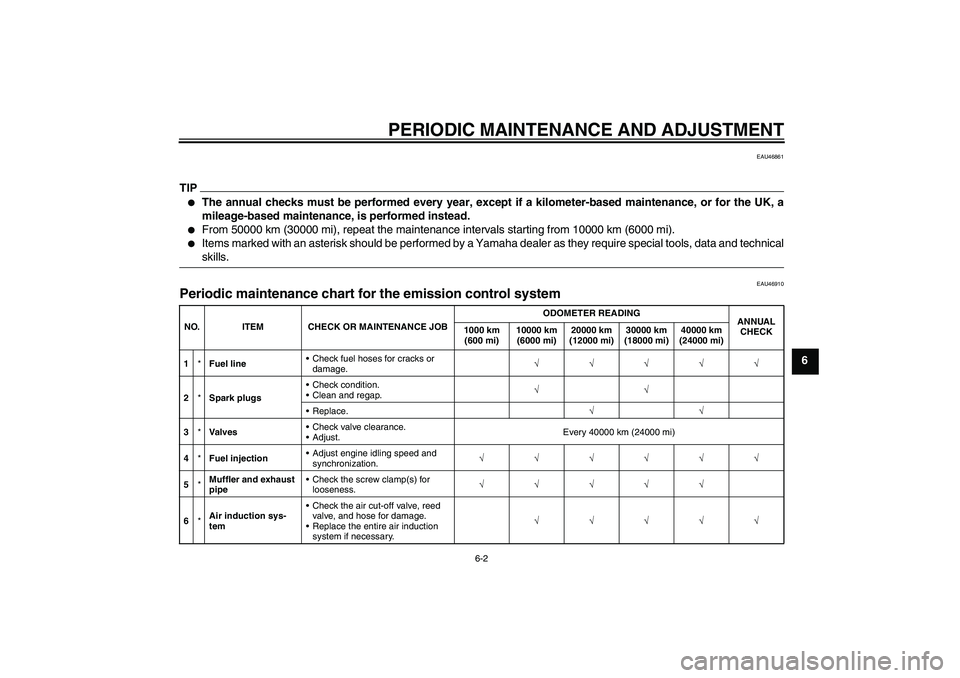

TIP
The annual checks must be performed every year, except if a kilometer-based maintenance, or for the UK, a
mileage-based maintenance, is performe

Page 52 of 104

YAMAHA FZ1-N 2010 Workshop Manual PERIODIC MAINTENANCE AND ADJUSTMENT
6-3
6
EAU1770C

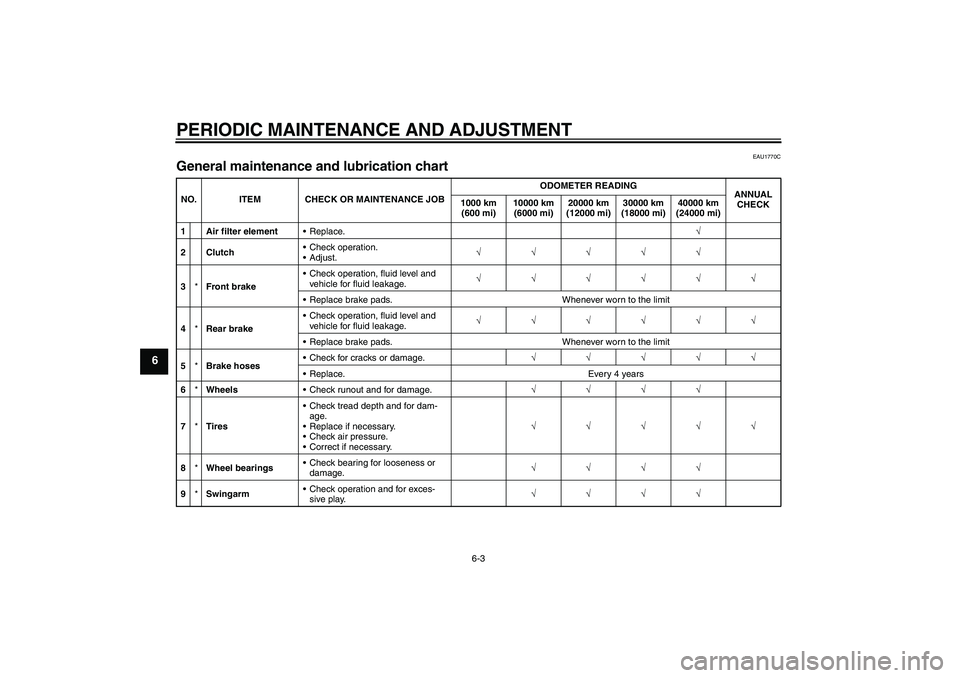

General maintenance and lubrication chart NO. ITEM CHECK OR MAINTENANCE JOBODOMETER READING
ANNUAL
CHECK 1000 km
(600 mi)10000 km
(6000 mi)20000 k

Page 53 of 104

YAMAHA FZ1-N 2010 Workshop Manual PERIODIC MAINTENANCE AND ADJUSTMENT
6-4
6

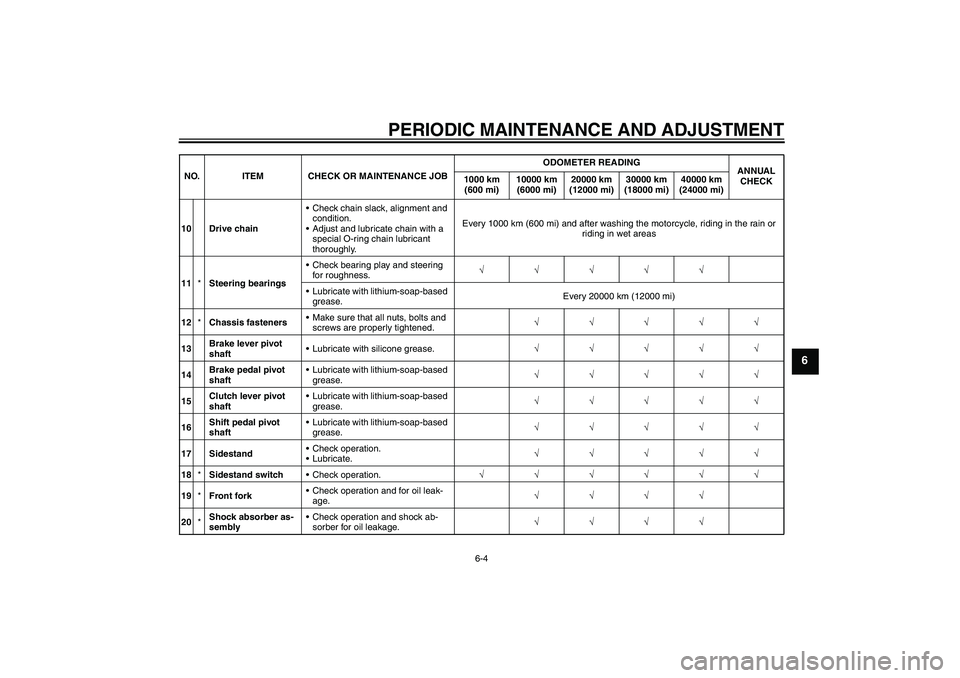

10 Drive chainCheck chain slack, alignment and
condition.
Adjust and lubricate chain with a
special O-ring chain lubricant
thoroughly.Every 1000 km (600

Page 54 of 104

YAMAHA FZ1-N 2010 Workshop Manual PERIODIC MAINTENANCE AND ADJUSTMENT
6-5
6

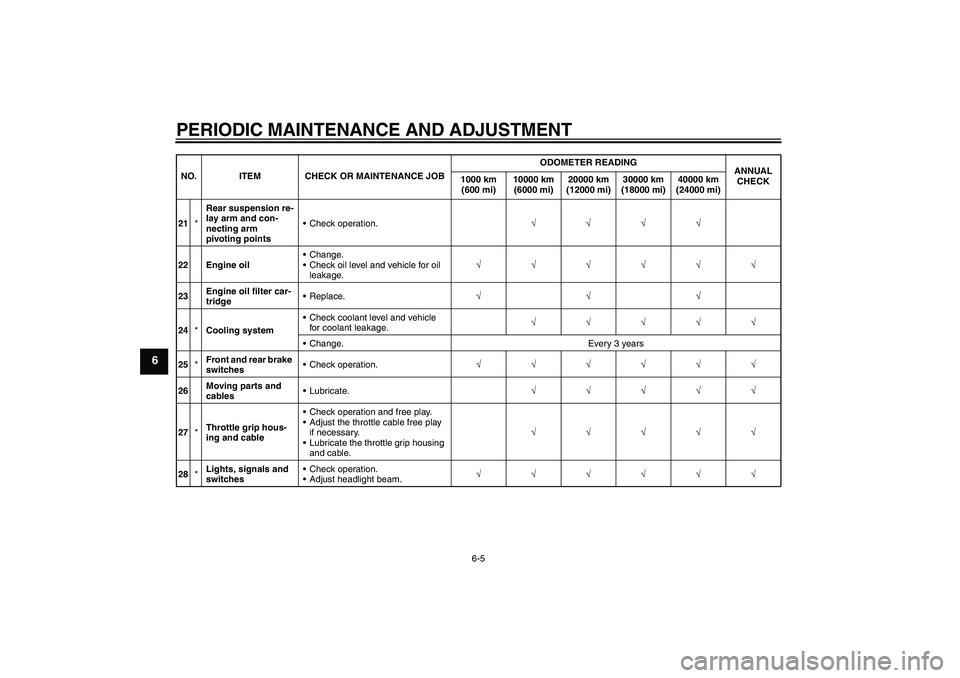

21*Rear suspension re-
lay arm and con-
necting arm
pivoting pointsCheck operation.√√√√
22 Engine oilChange.
Check oil level and vehicle for oil

Page 55 of 104

YAMAHA FZ1-N 2010 Workshop Manual PERIODIC MAINTENANCE AND ADJUSTMENT
6-6
6
EAU18680
TIP

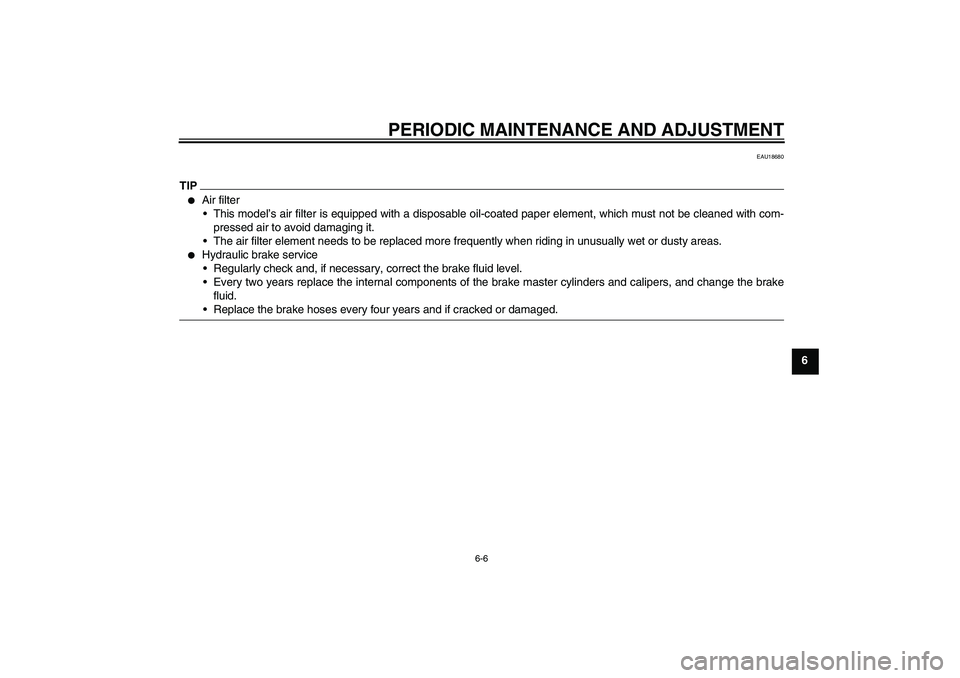

Air filter
This model’s air filter is equipped with a disposable oil-coated paper element, which must not be cleaned with com-
pressed air to

Page 56 of 104

YAMAHA FZ1-N 2010 Workshop Manual PERIODIC MAINTENANCE AND ADJUSTMENT
6-7
6
EAU18751
Removing and installing the
panel The panel shown needs to be removed
to perform some of the maintenance
jobs described in this chapter. Refer to
th

Page 57 of 104

YAMAHA FZ1-N 2010 Workshop Manual PERIODIC MAINTENANCE AND ADJUSTMENT
6-8
6
EAU19652

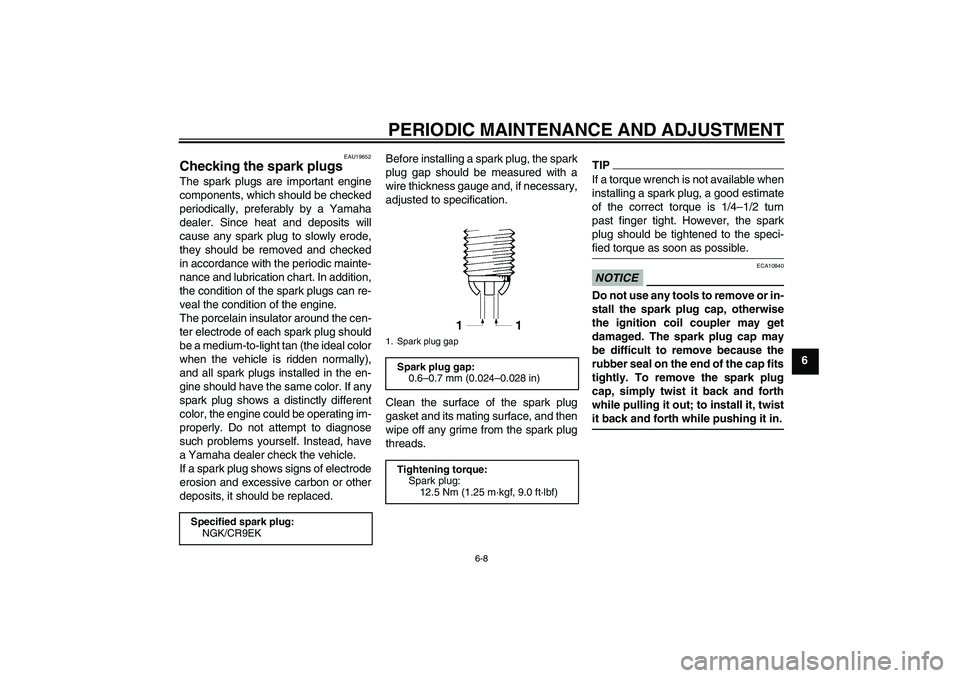

Checking the spark plugs The spark plugs are important engine
components, which should be checked
periodically, preferably by a Yamaha
dealer. Since

Page 58 of 104

YAMAHA FZ1-N 2010 Workshop Manual PERIODIC MAINTENANCE AND ADJUSTMENT
6-9
6
EAU19908

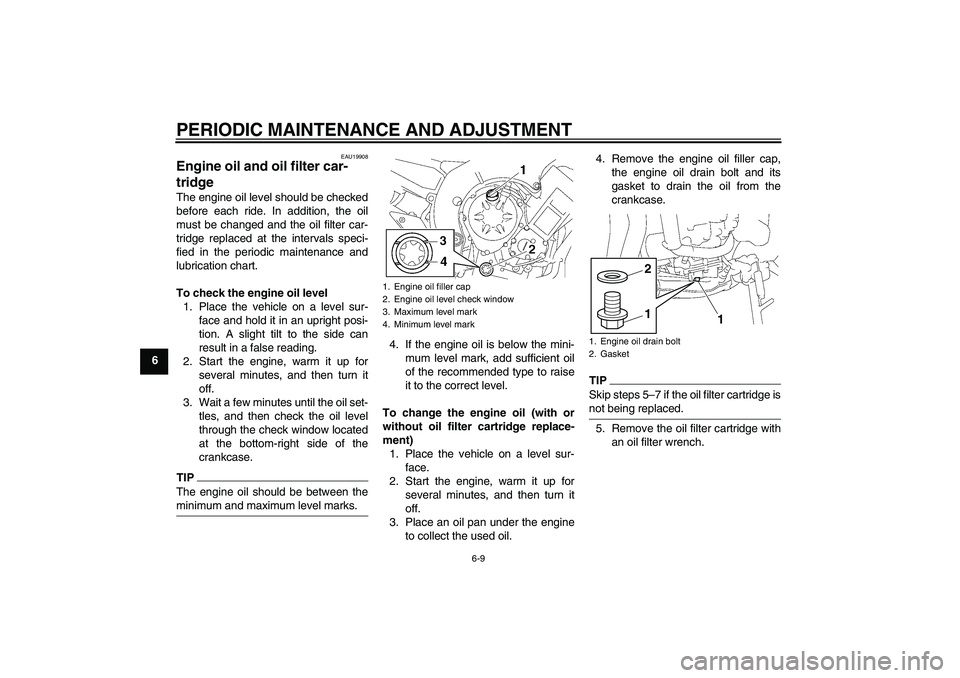

Engine oil and oil filter car-
tridge The engine oil level should be checked
before each ride. In addition, the oil
must be changed and the oil filte

Page 59 of 104

YAMAHA FZ1-N 2010 Workshop Manual PERIODIC MAINTENANCE AND ADJUSTMENT
6-10
6
TIPAn oil filter wrench is available at a
Yamaha dealer.6. Apply a thin coat of clean engine
oil to the O-ring of the new oil filter
cartridge.
TIPMake sure

Page 60 of 104

YAMAHA FZ1-N 2010 Workshop Manual PERIODIC MAINTENANCE AND ADJUSTMENT
6-11
6
TIPBe sure to wipe off spilled oil on any
parts after the engine and exhaust sys-
tem have cooled down.NOTICE
ECA11620

In order to prevent clutch slip-
pag
